DIY Self-tapping Screw

Here's a wacky idea: let's try to use a Dremel grinding disc to cut a notch in a screw, and make a DIY self-tapping screw!

The difference between a regular screw and a self tapping screw is in the tip. The self-tapping kind has a notch that cuts out some material and allows it to engage in material with less effort.

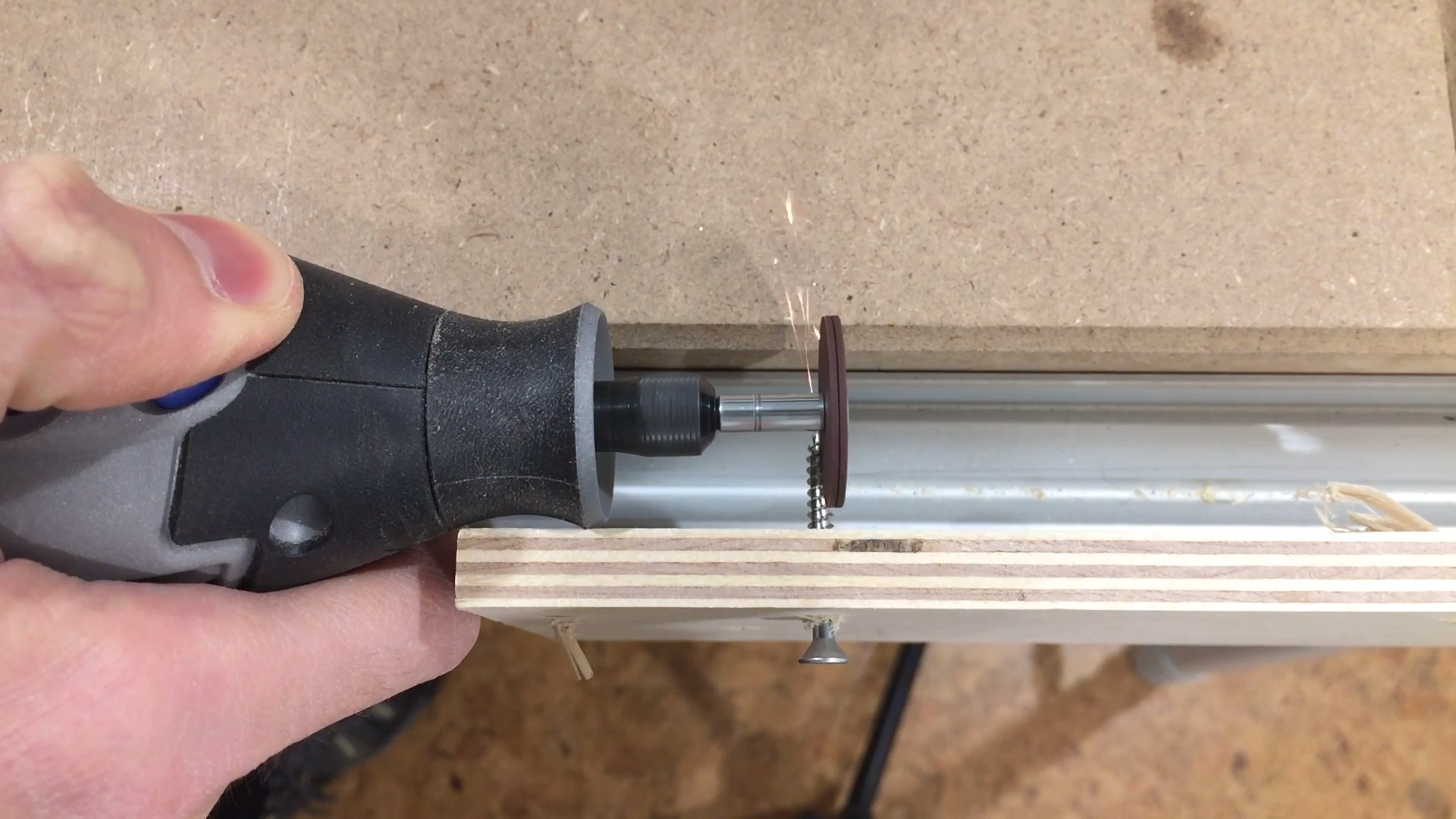

With a Dremel grinding disc, it's easy to create the notch on a regular screw. Thus making the DIY self-tapping screw.

Proof of concept: check! Although, a freehand grinding approach is not ideal.

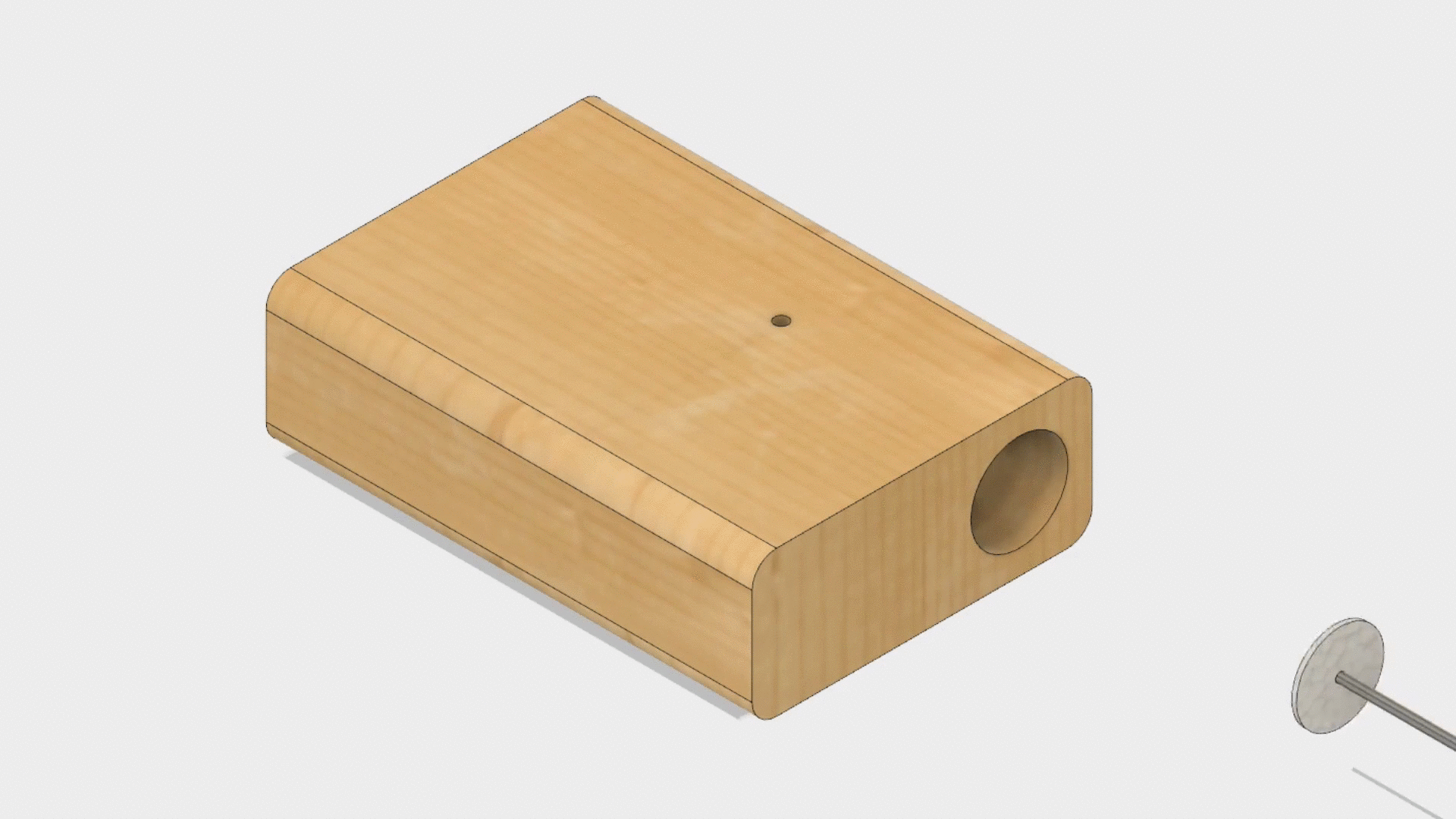

A block like this would be great to hold the tool, and guide the screw into the grinding disc.

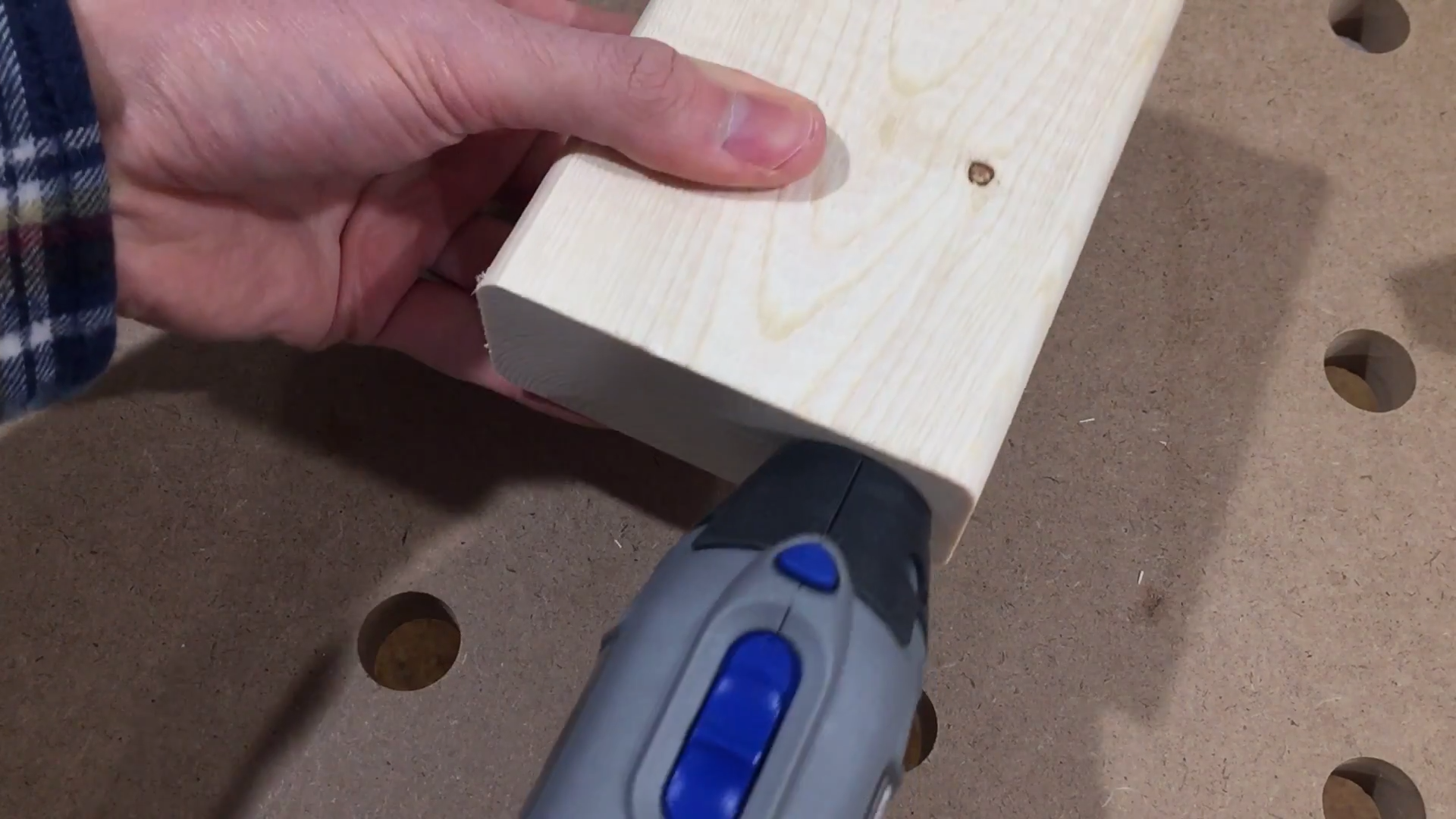

Hole for the Dremel tool.

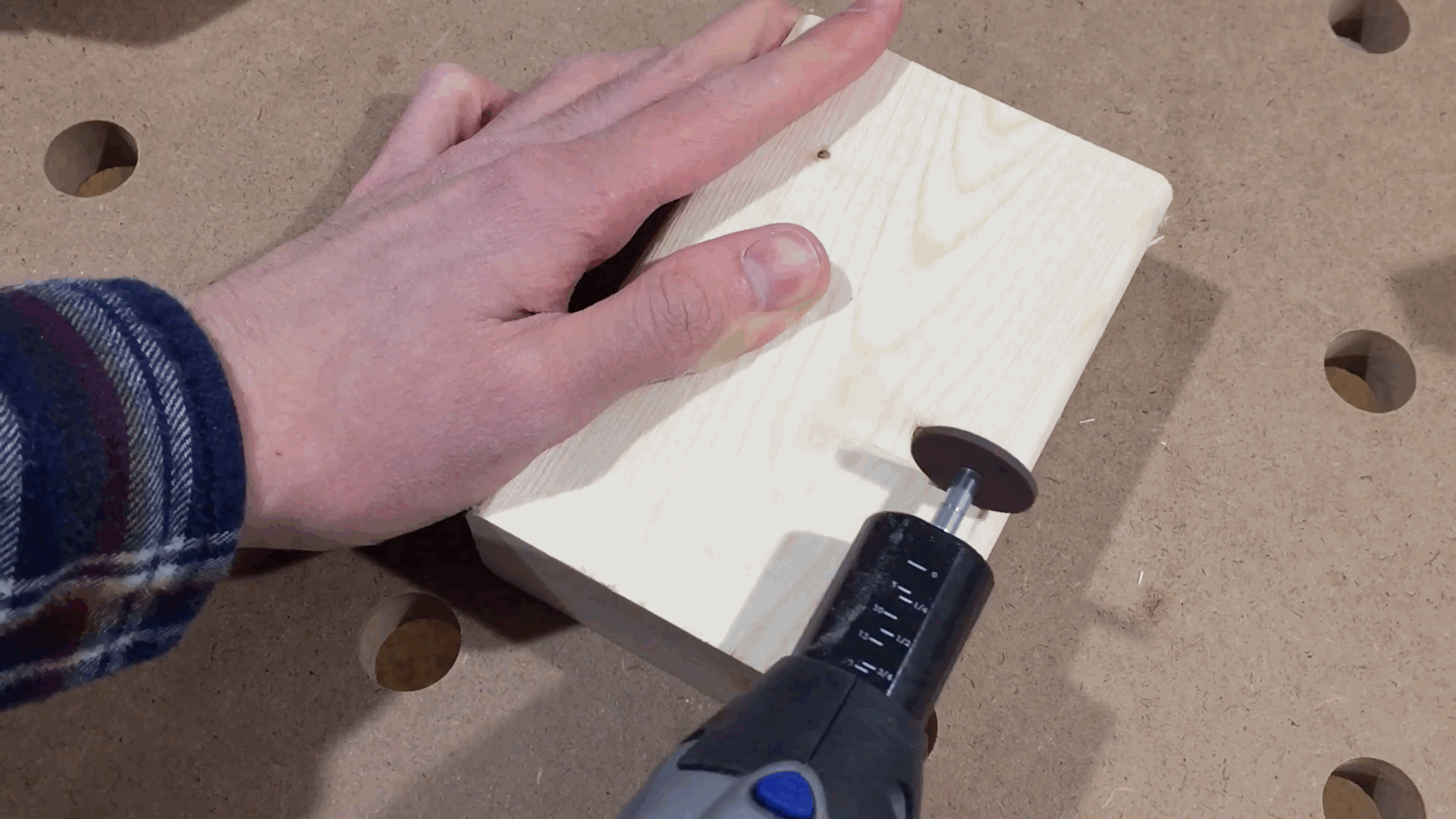

Locating the hole for guiding the screw. Use the Dremel to mark expected depth of the grinding disc.

Then use a square to mark the expected edge of the grinding disc.

This hole will guide the screw.

With the Dremel set up inside the jig, this is what should be seen looking through the screw guide hole. The grinding disc is visible in one quadrant.

Making self-tapping screws with a Dremel is much more precise now.

As expected, the self-tapping screw requires noticeably less pressure to engage.

Screw smoke... don't breathe this!

HIGH FIVE for reading :)
