DIY Security System

In this instructable I will be showing you what I made for my final exam was a DIY security system

(Note: this is a school project it is not completed)

the circuit I have only has the ultrasonic sensor and the IR receiver hooked up to it I was going to attach the aldreno to a raspberry pie 3 to have it send a photo to any device its wirelessly attached to and add a camera to take the photo when the ultrasonic sencorr is tripped

the code is not finished but the idea is to make the IR receiver turn on and off the ultrasonic sensor and have a camera take a Pictor and send it to your phone I found this to make it possible but never got around to trying it

( https://www.raspberrypi.org/forums/viewtopic.php?t... )

but here's the code I have right now

#define trigPin 13
#define echoPin 12

#include const int irReceiverPin = 2;

decode_results results;

IRrecv irrecv(irReceiverPin);

int distance; long duration;

void setup() {

Serial.begin (9600);

pinMode(trigPin, OUTPUT);

pinMode(echoPin, INPUT);

Serial.begin(9600); //initialize serial monitor

irrecv.enableIRIn(); //enable ir receiver module

duration = pulseIn(echoPin, HIGH);

distance = (duration/2) / 29.1; }

void loop() {

if (irrecv.decode(&results)) //if the ir receiver module receiver data

{

Serial.print("irCode: "); //print"irCode: "

Serial.print(results.value, HEX); //print the value in hexdecimal

Serial.print(", bits: "); //print" , bits: "

Serial.println(results.bits); //print the bits

irrecv.resume(); // Receive the next value

if(results.value == 0xFFA25D) {

digitalWrite(trigPin, LOW); // Added this line

delayMicroseconds(2); // Added this line

digitalWrite(trigPin, HIGH);

delayMicroseconds(10); // Added this line

digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);

distance = (duration/2) / 29.1;

results.value = 0;

if (distance <= 200){

digitalWrite(trigPin, LOW); // Added this line

delayMicroseconds(2); // Added this line

digitalWrite(trigPin, HIGH);

delayMicroseconds(10); // Added this line

digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);

irrecv.resume();

Serial.print("Distance: ");

Serial.println(distance); } } delay(1000); }

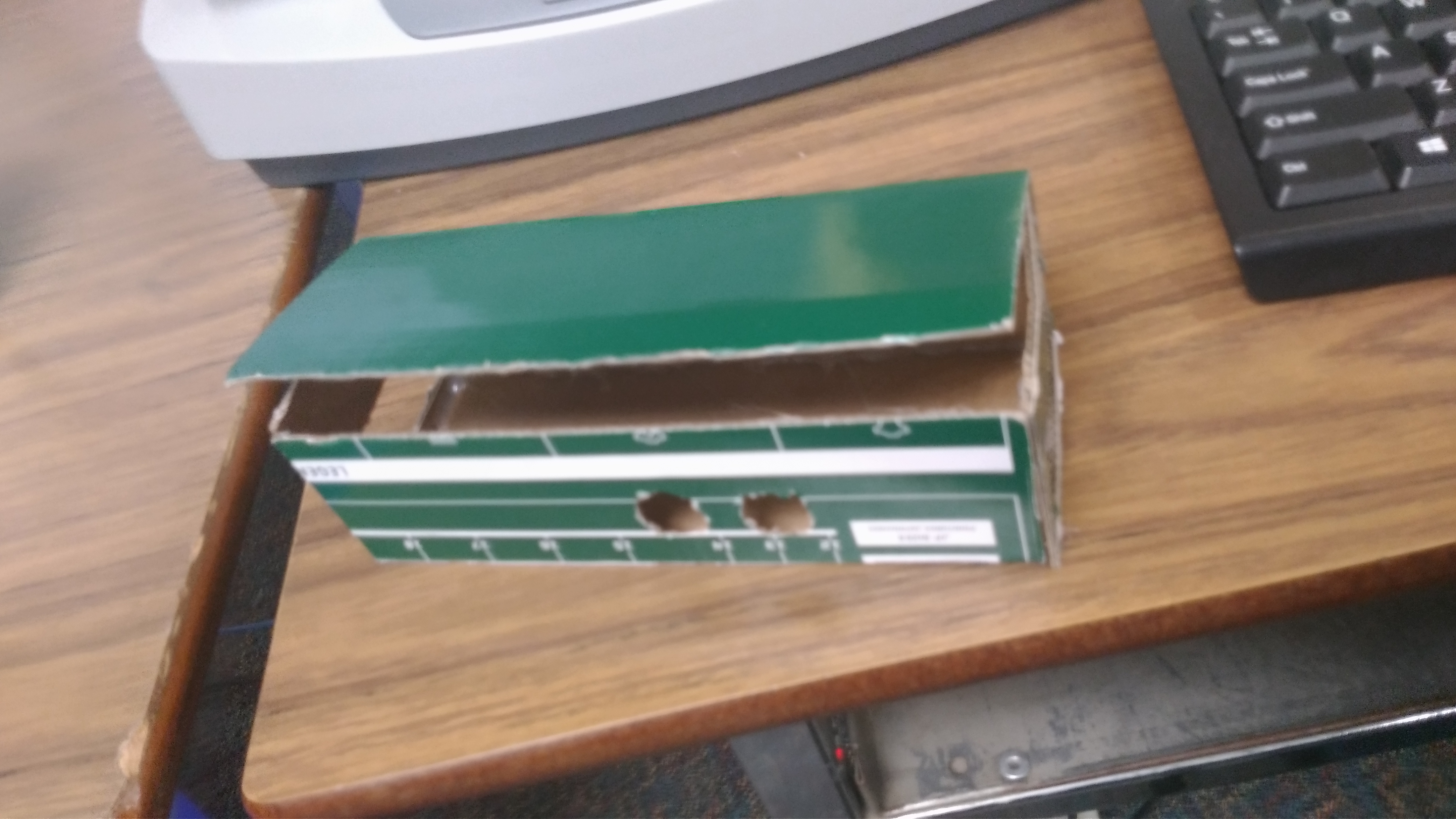

the container does not really matter as long as the ultrasonic sensor and the IR receiver and the power cord has a place to pop out of so they can work. I just made a box out of some cardboard I had lying around.
