DIY SURVIVAL CONTAINERS FROM CO2 CARTIGES

by Handy_Bear in Outside > Camping

40112 Views, 260 Favorites, 0 Comments

DIY SURVIVAL CONTAINERS FROM CO2 CARTIGES

MAH03662.00_06_44_04.Image fixe014.jpg

I recently got some empty co2 cartiges from a friend of mine. After keeping them in my workshop for a year, I had the idea of transforming them into small containers, that are really resistant, and can serve you as extra airsoft pellets tanks or as containers to keep your money when camping.

Watch the Video

CE QUE L'ON PEUT FAIRE AVEC UNE VIEILLE CARTOUCHE DE CO2 (projet facile)

You can watch the video here (if the video above does not work) : https://youtu.be/KRZ1vxZrKHE

What You Will Need:


You will need these tools:

_a hacksaw

_a drill

_a vice

_sandpaper

_a dremel (if you dont have one, you can use sandpaper)

You will also need these materials:

_an empty CO2 cartige

_some glue

_the cap of an apple compote bottle / baby food bottle

_a keyring

Sanding

MAH03662.00_00_44_18.Image fixe001.jpg
MAH03662.00_01_00_13.Image fixe002.jpg

To start, sand down the text that is on the cartige. If you use a drill, it will give your cartige also a nice industrial look.

Sawing

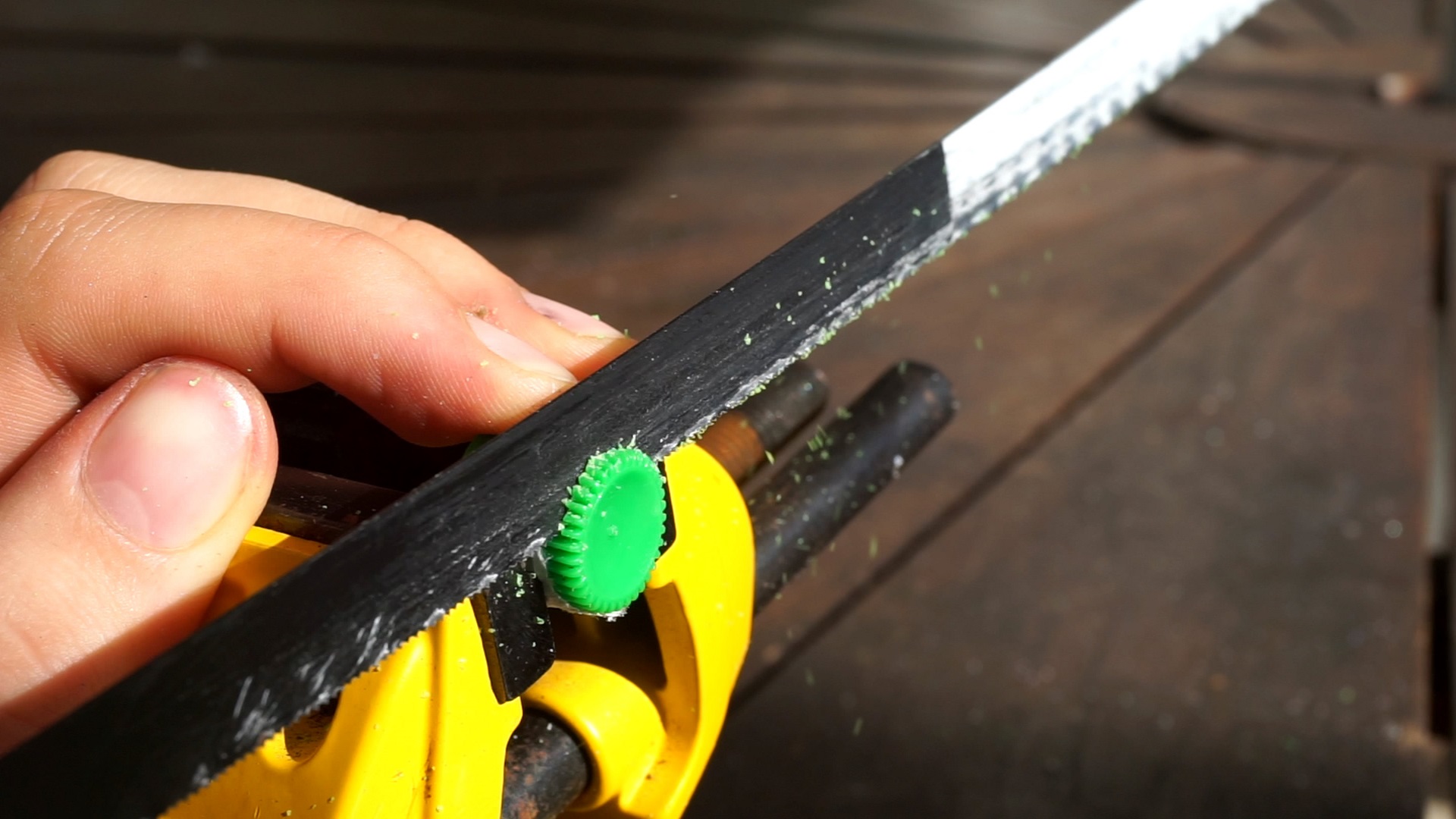

MAH03662.00_01_23_20.Image fixe003.jpg
MAH03662.00_01_59_20.Image fixe004.jpg

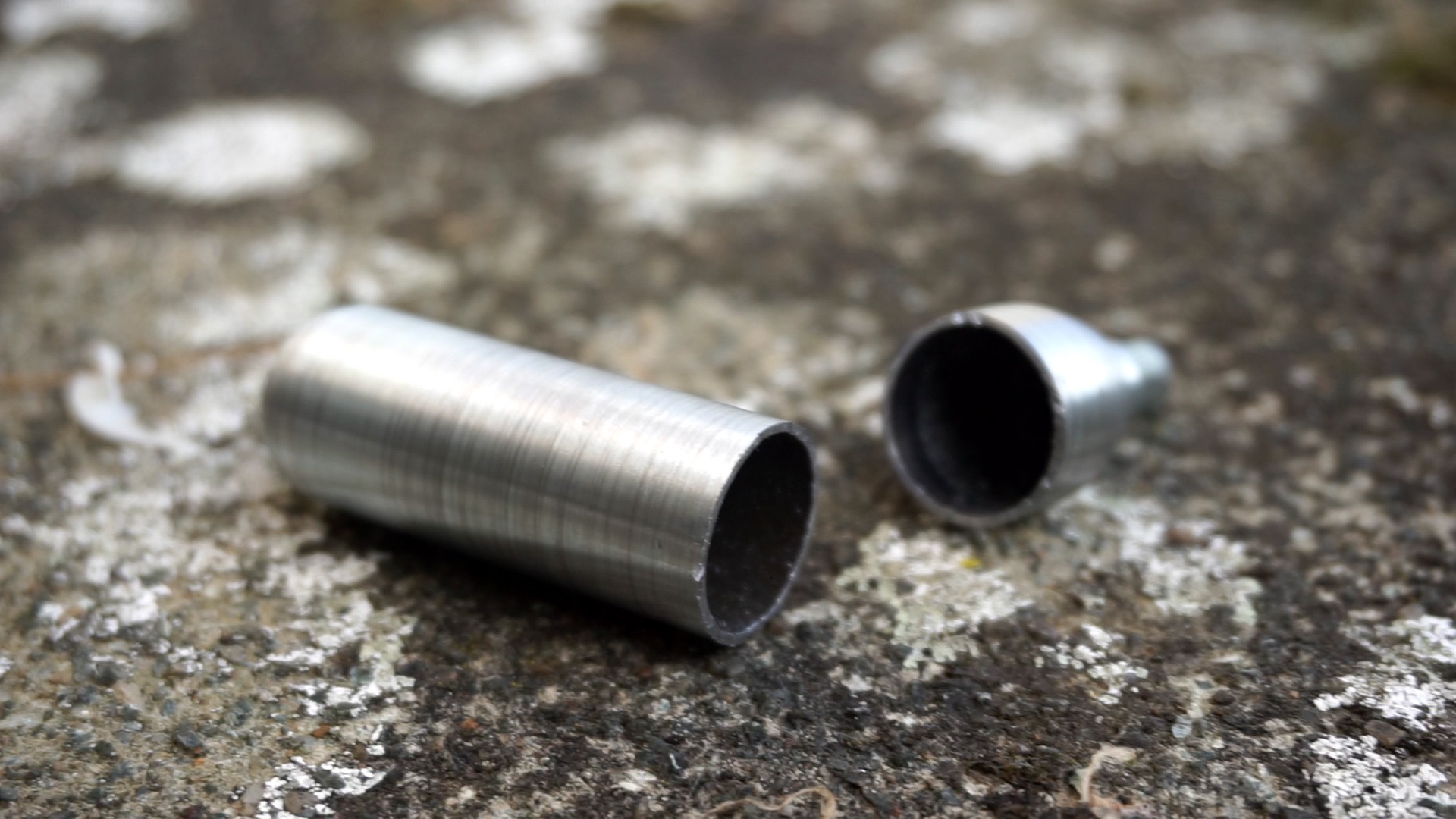

Saw your cartige in half at about two thirds of it's size.

Processing the Cap of the Compote Bottle

MAH03662.00_02_23_11.Image fixe005.jpg
MAH03662.00_02_26_01.Image fixe006.jpg
MAH03662.00_03_15_01.Image fixe009.jpg
MAH03662.00_03_03_17.Image fixe008.jpg

Snip off the cap of the compote bottle and sand it like shown in the video. At the end, the cap should fit in the co2 cartige.

Gluing

MAH03662.00_03_28_02.Image fixe010.jpg
MAH03662.00_04_46_22.Image fixe011.jpg

Glue the two parts of the compote bottle and the cartige together, so, that you get two pieces that can be screwed together.

Drilling the Hole for the Keyring and Adding It (the Keyring)

MAH03662.00_02_46_00.Image fixe007.jpg
MAH03662.00_05_31_13.Image fixe012.jpg
MAH03662.00_05_42_09.Image fixe013.jpg

Drill a hole in the upper part of the cartige, so, that it penetrates it from the two sides. After that, add the keyring.

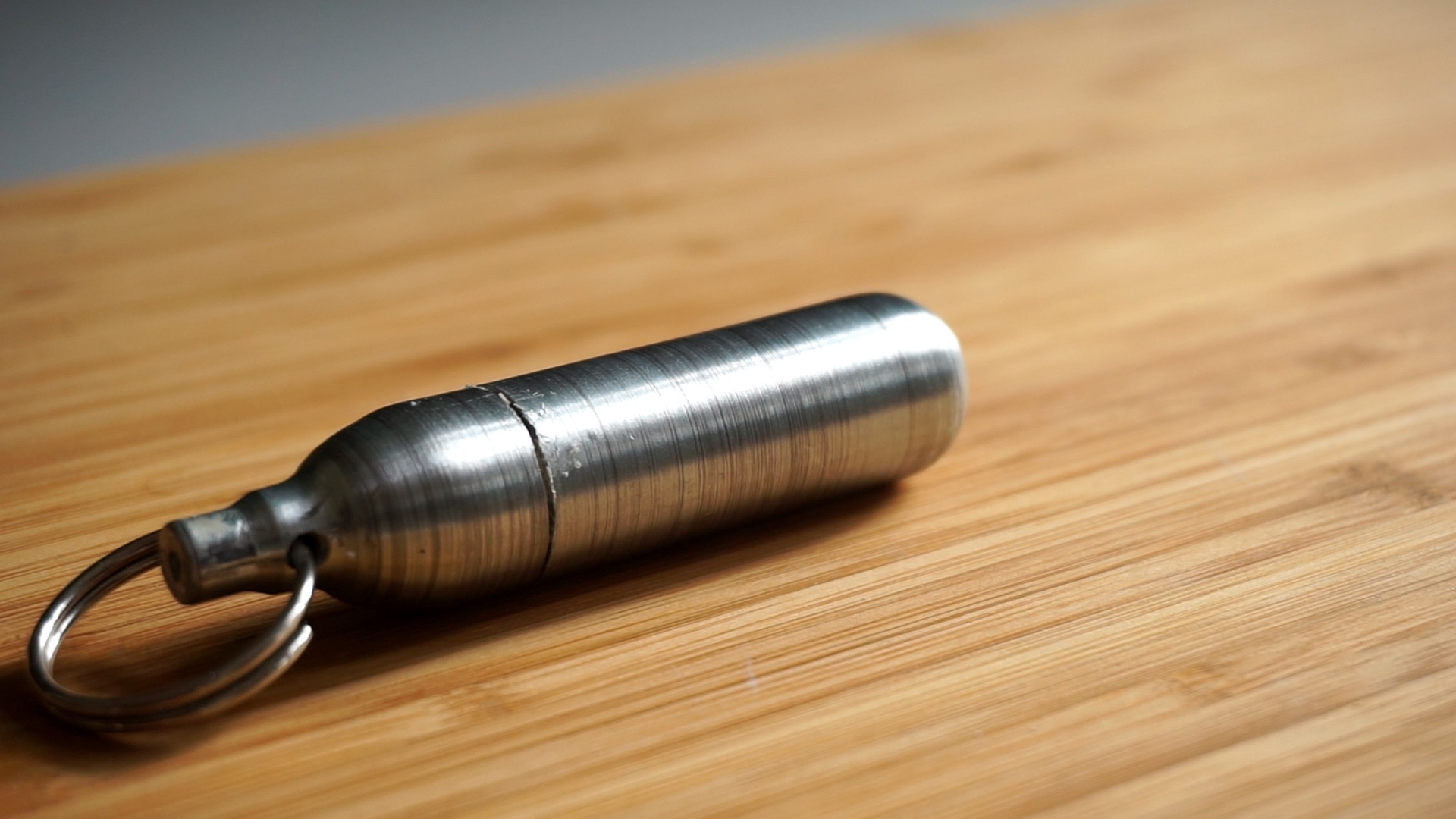

SUCCESS!!

capsule de co2.jpg

Congratulations! You just created a small weather resistant container, that can save your life in the wild nature! Now let go outside and test it out! :D
