DIY RC Transmitter Hack: Joystick MOD

Hi everyone
Hi friends We have been prototyping since 2015. We rarely documented our works. It would have been really great if someone got benefited from our works, So we thought of posting our ideas projects as Instructables.While searching the internet to collect ideas on DIY-RC Transmitter and Receiver. We encountered many people struggling with the Self-centering Joystick for Throttle.

Guess what!

We've found an effective solution for this problem without damaging the Joystick. It's really a damn simple solution. We've tested it with the PlayStation (kind of) Joysticks. It proved to be very helpful.

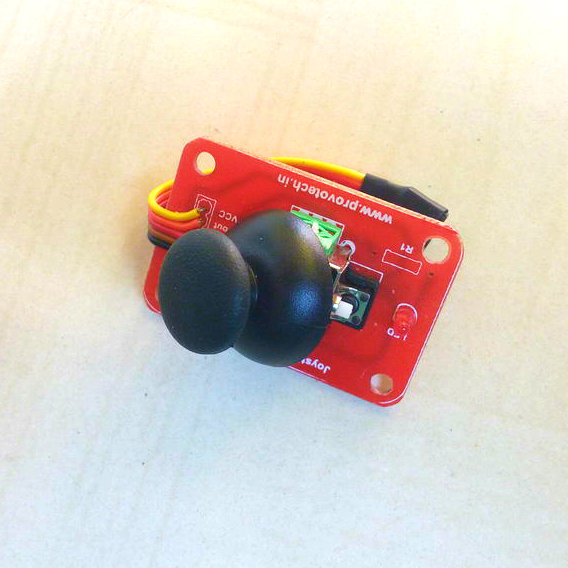

If it is a BreakoutBoard, first remove it.Then,

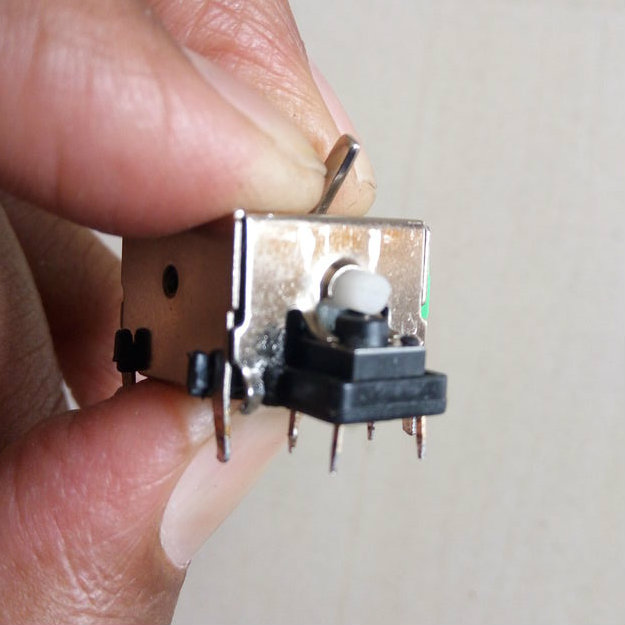

Remove the back cover of the Joystick

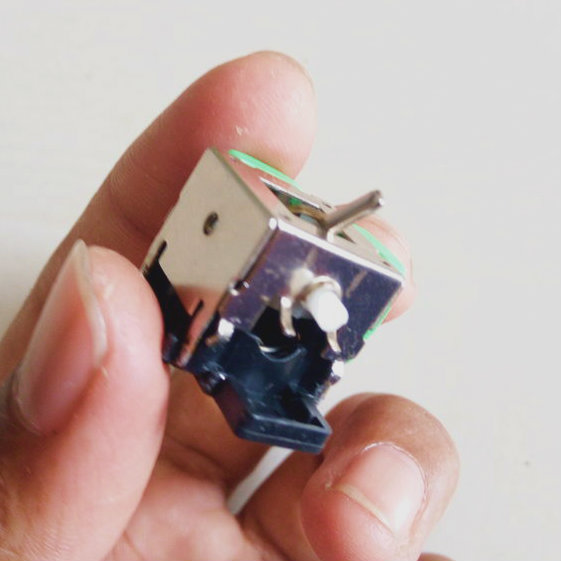

Be sure you loosen the links or else you will break the backcover! Don't remove the axes,you might damage the potentiometer inside the Joystick

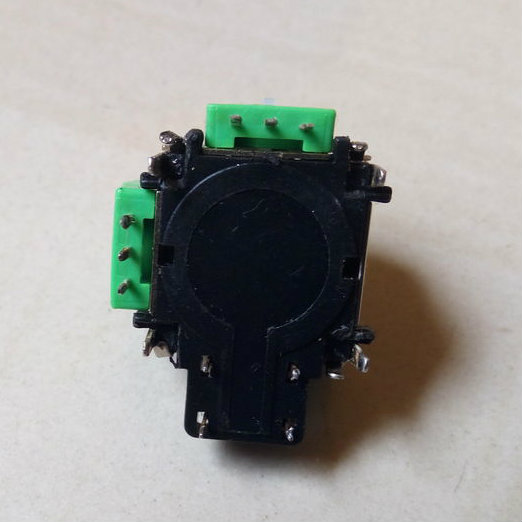

Now you will be able to see the inside of the Joystick

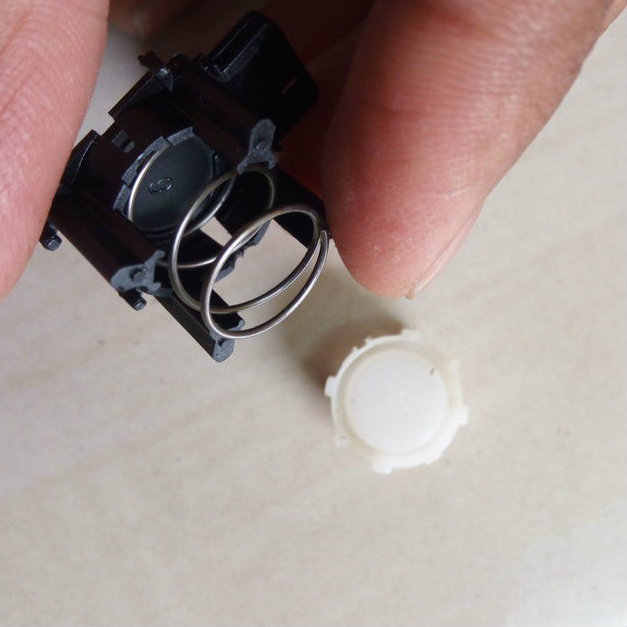

To remove the spring and the sliding portion, You'll need to BREAK the locks

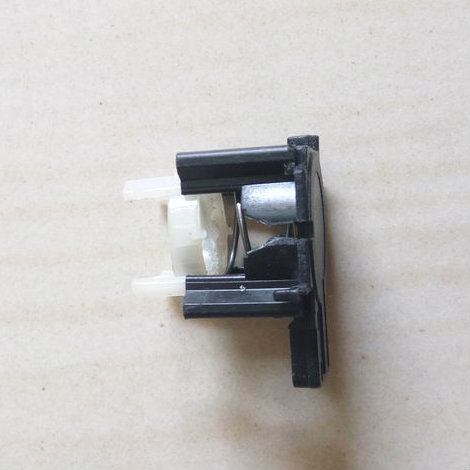

On breaking the locks, the sliding part will pop up.

Note:The sliding part must not be damaged

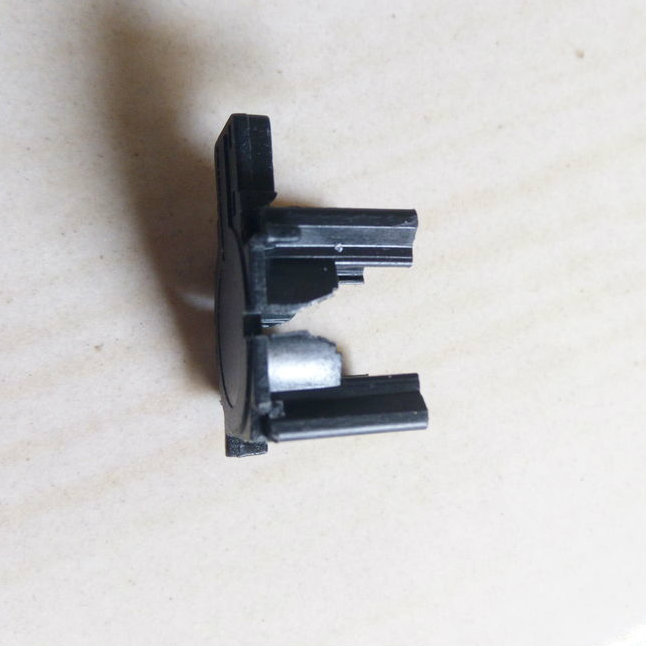

Cut the center portion

You must cut it as perfectly as possible.

This will help one of the axes to be freed from Self-Centering

Note: Don't cut the portion which holds the Spring. This will totally spoil the Joystick

Test it by just putting it back together

Don't fasten the links!!!!

Just test it by holding it firmly in your hands

If your Joystick is working as expected, just move on to the next step

Else If your Joystick is not smooth or If it is getting stuck at one position or If it is not reaching it's maximum range; don't panic. Just once again make sure that the circle is perfectly cut off! then it should work perfectly fine

Now you shall fasten the links.

Don't forget to put the push button in it's place

Wow that's awesome You've modified your Joystick for your DIY project.

Best of luck : Let your project be a great success
