DIY RC Control Horns From Recycled Plastic Cards With Template
by TechMartian in Circuits > Reuse
2724 Views, 1 Favorites, 0 Comments
DIY RC Control Horns From Recycled Plastic Cards With Template
![IMG_2452.jpg](/proxy/?url=https://content.instructables.com/FCR/MF1B/J6WGEFJM/FCRMF1BJ6WGEFJM.jpg&filename=IMG_2452.jpg)
![IMG_2454.jpg](/proxy/?url=https://content.instructables.com/FW1/UF31/J6WGEFRT/FW1UF31J6WGEFRT.jpg&filename=IMG_2454.jpg)
![IMG_2463.jpg](/proxy/?url=https://content.instructables.com/FTK/9261/J6WGEG1H/FTK9261J6WGEG1H.jpg&filename=IMG_2463.jpg)
All RC planes need a control horn to mount the push rods which are controlled by the servos. Without these, the plane will be uncontrolled. Most of the DIY solution of RC control horns needs a laser cutter but for most of us who don't have a laser cutter, here's a cheap,easy, and reliable solution for your RC Plane Control Surfaces.
All my planes use this type of control horn and I have not had a single one fail!
Measure and Draw
![IMG_2445.jpg](/proxy/?url=https://content.instructables.com/FZC/7BYU/J6WGEESR/FZC7BYUJ6WGEESR.jpg&filename=IMG_2445.jpg)
Measure the control horn needed. I normally use only half of the width of the card. I've provided a ruler to the template so you can scale yours accordingly.
Holes
![IMG_2446.jpg](/proxy/?url=https://content.instructables.com/FN5/T5LG/J6WGEEYR/FN5T5LGJ6WGEEYR.jpg&filename=IMG_2446.jpg)
![IMG_2448.jpg](/proxy/?url=https://content.instructables.com/F66/JL1M/J6WGEF69/F66JL1MJ6WGEF69.jpg&filename=IMG_2448.jpg)

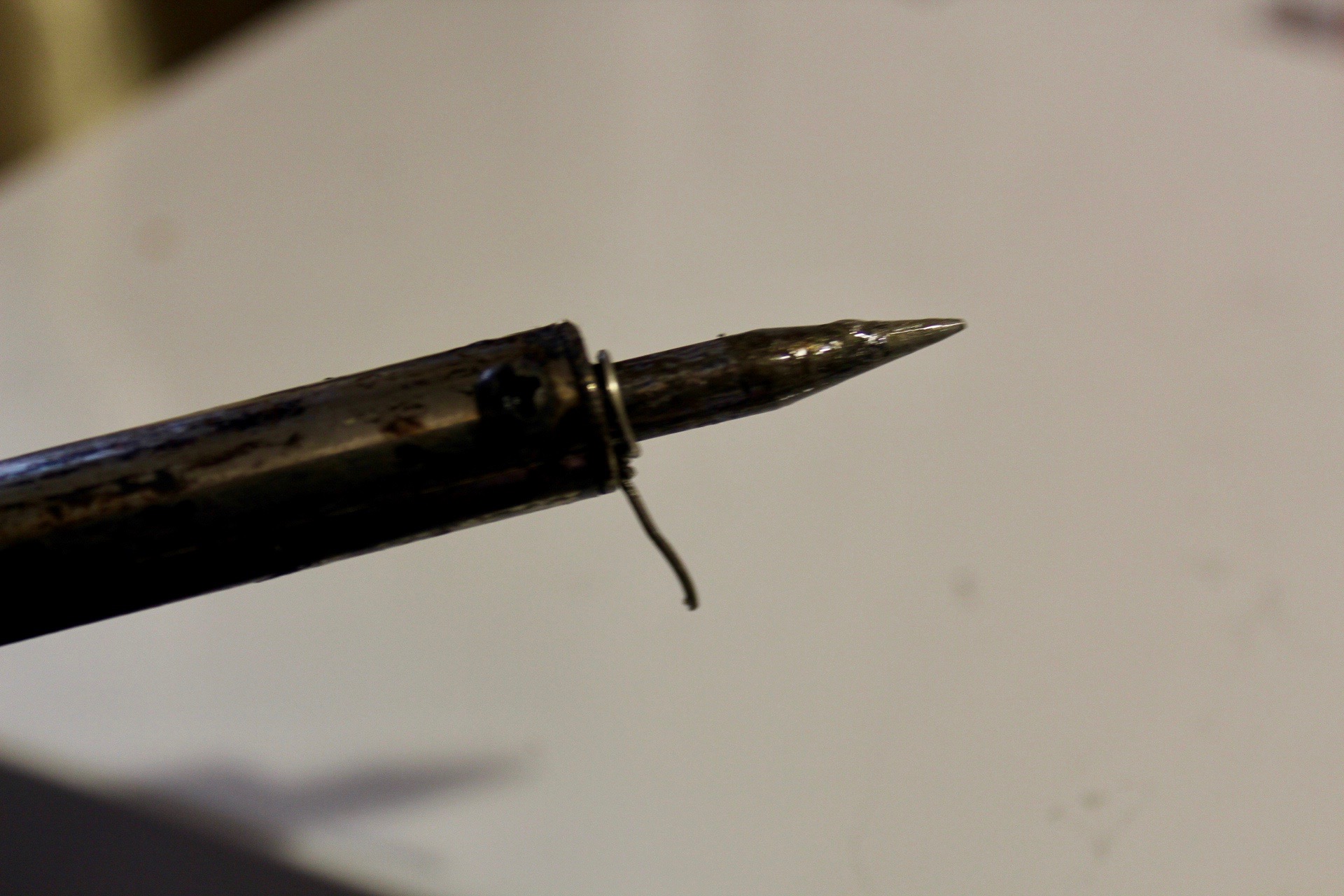

To make holes on a piece of plastic it is easiest to do so with a soldering iron. With the soldering iron cold, wrap a paperclip around it and tighten it with pliers. Then, push it down onto the card.
Cut
![IMG_2465.jpg](/proxy/?url=https://content.instructables.com/FR2/R4DU/J6WGEG7U/FR2R4DUJ6WGEG7U.jpg&filename=IMG_2465.jpg)
Cut the drawn outline. Then, cut two small notches on the side so that it can stand steadily on the control surfaces.
Mount and Enjoy!
![IMG_2450.jpg](/proxy/?url=https://content.instructables.com/F45/3F2V/J6WGEFGL/F453F2VJ6WGEFGL.jpg&filename=IMG_2450.jpg)
![IMG_2451.jpg](/proxy/?url=https://content.instructables.com/FXD/T00G/J6WGEFGP/FXDT00GJ6WGEFGP.jpg&filename=IMG_2451.jpg)
![IMG_2453.jpg](/proxy/?url=https://content.instructables.com/FWK/WQ8D/J6WGEFN2/FWKWQ8DJ6WGEFN2.jpg&filename=IMG_2453.jpg)

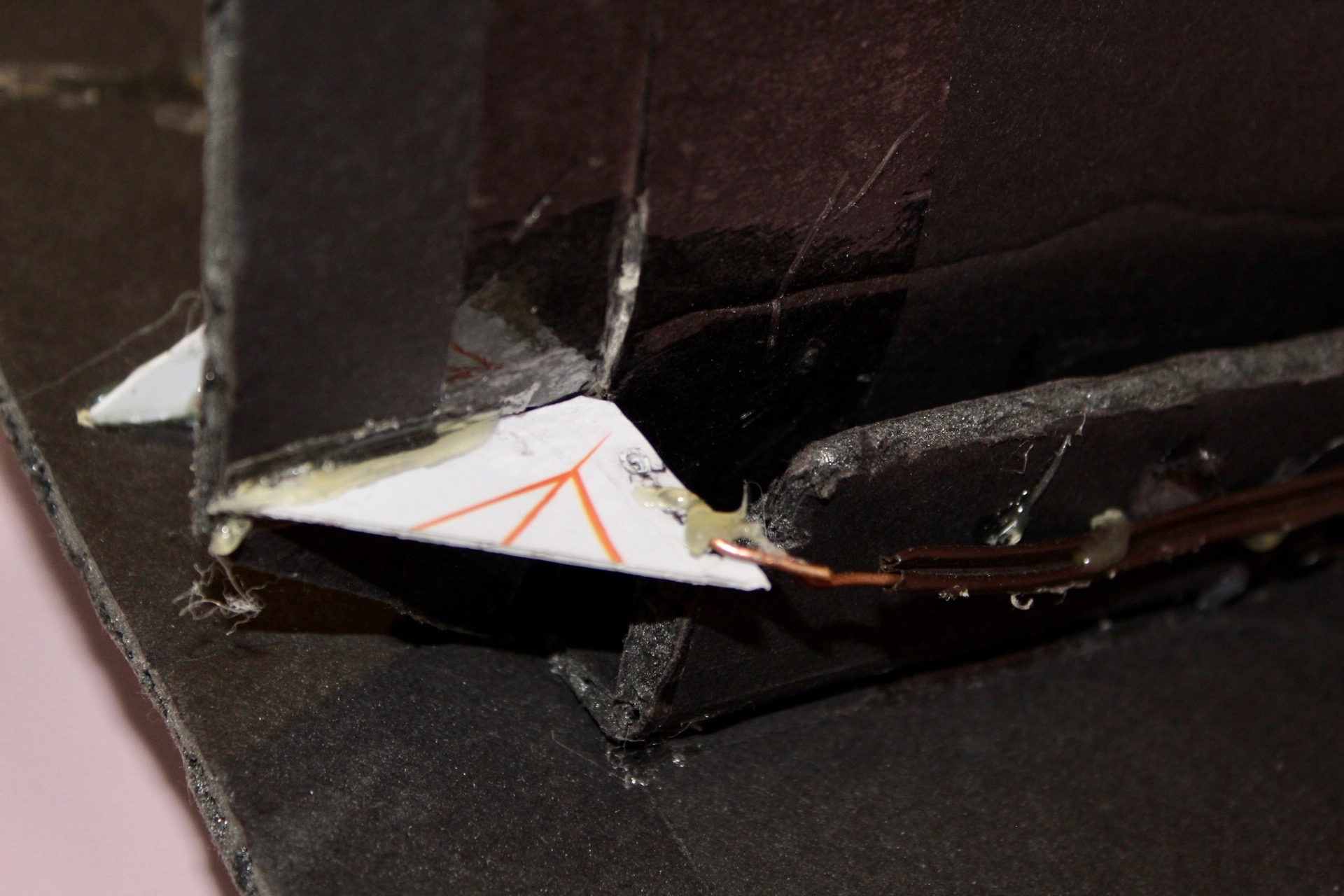

Mount it onto your RC plane by making an incision with an x-acto knife and applying hot glue to the stand.
Enjoy and Happy Flying!
