DIY Project ARGB LED Hexagonal Panel

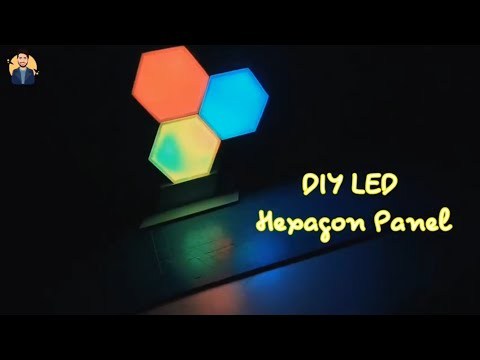

Hi everyone, in this Instructable I'm going to show you how to make an Addressable RGB Hexagonal Panel using WS2812b LEDs (Aka Neopixels). That description doesn't really do it justice, so go check out the video above! Please note that Addressable RGB lets you have many different Modes of lighting with the help of ARGB header present on almost all newer Chipset motherboards. Here is how to do it -
Supplies
BASIC ITMES
Sunboard, Diffuser sheet, Argb led and controller, strong glue, ruler, marker, knife and wires and soldering kits
Hexagon Shape
Draw a Hexagonal shape using compass and ruler. And cut it out.
Border
Cut 2cm wide sunboard for border.
Border 2
Cut 6 pc small border
Base
Add all borders using strong glue
Diffuser
Cut same size 2 diffuser panel as like Hexagonal base.
Argb Led
Cut 4x2 leds
Holes
Cut 2 holes for headers
Soldring
Solder wires and header
Adding Leds
Put leds and headers into the base
Checking
Check all leds and wires
Add Diffuser
Add 2 layer of diffuser panels
Finishings
Add some strong glue for sticking diffuser,.
3 Panels
Make panels 3 times or more
Base Stand
I made a base stand with sunboard
Attachments
I used male headers for connecting each panels
Done
Its ready for play. Plug led controller
Beauty
Its cool
