DIY Bench Power Supply

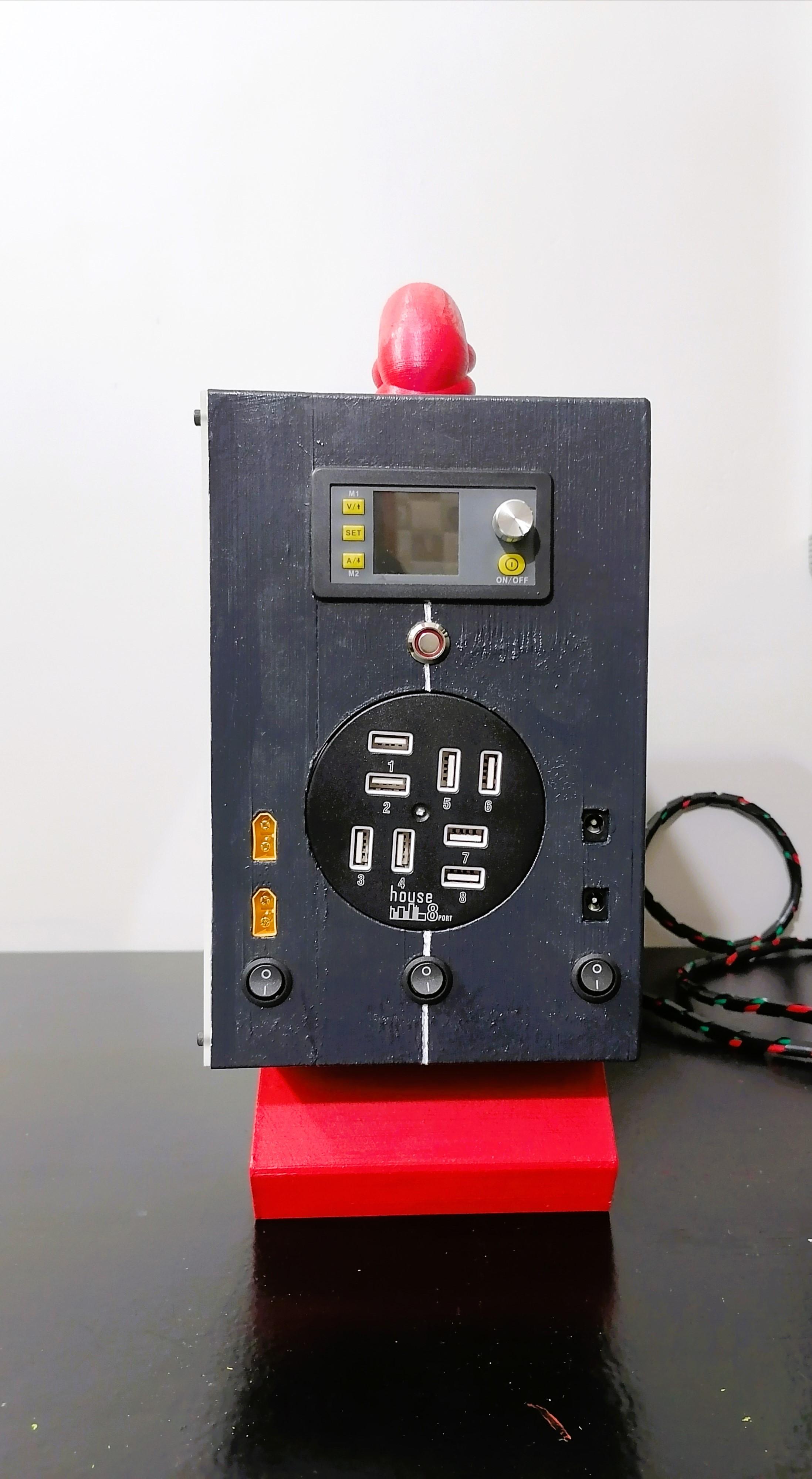

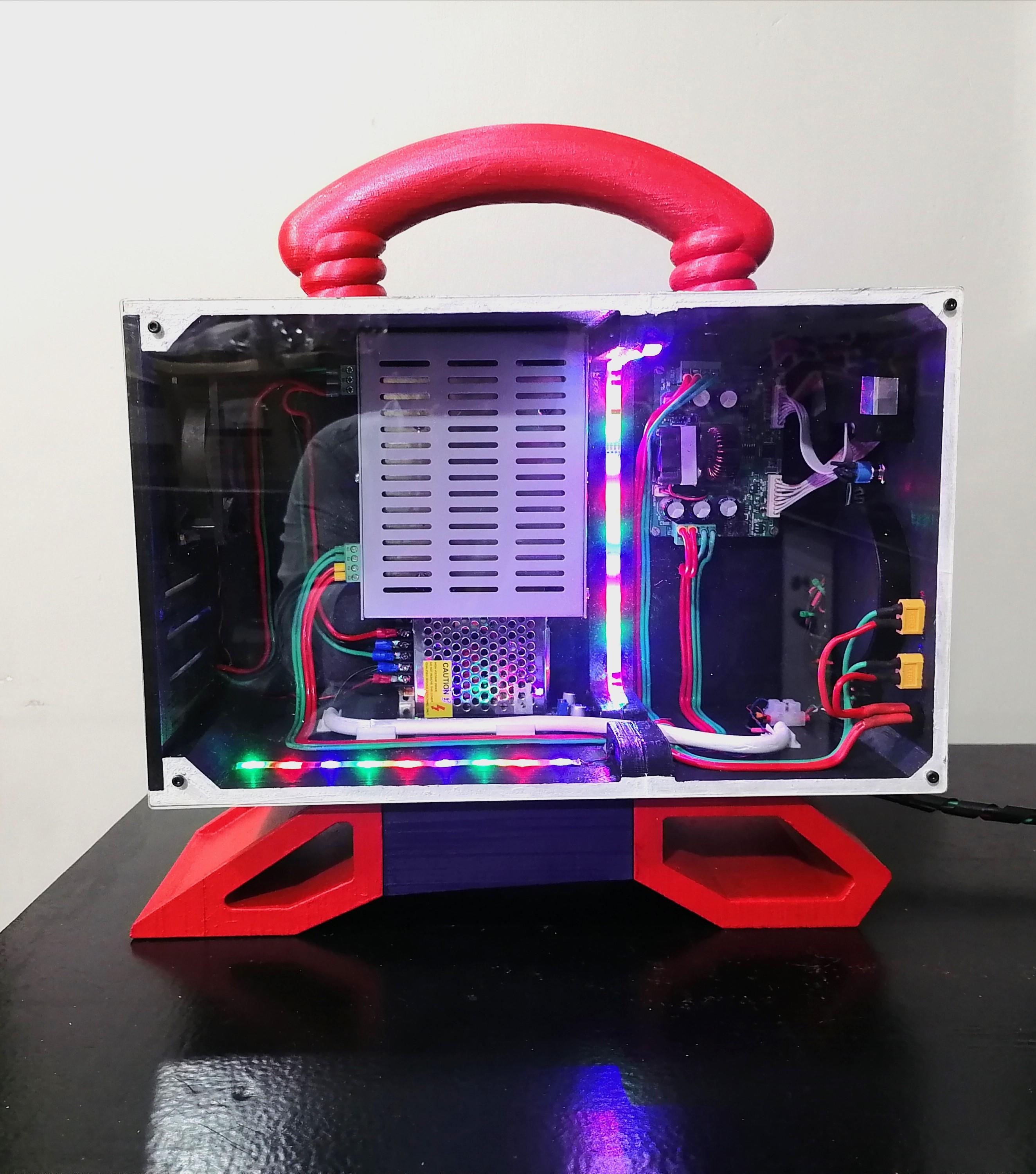

Fully 3D Printed Power Supply. Here I am building a Modern look Power Supply with Max 240Watt Output.

Features:

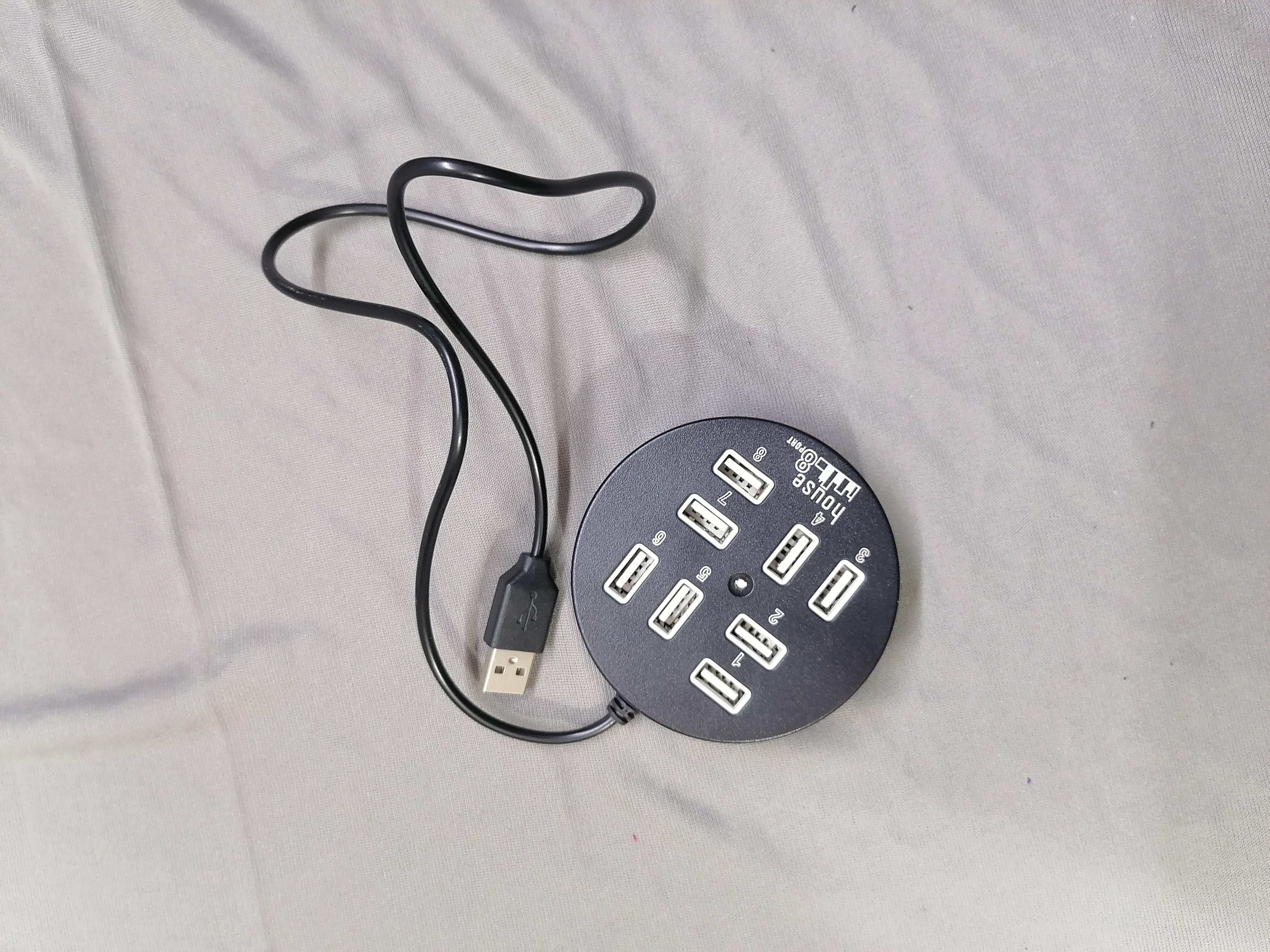

-Multi USB hub

-Multiple Output Voltage

-RGB Light

-Modern Look

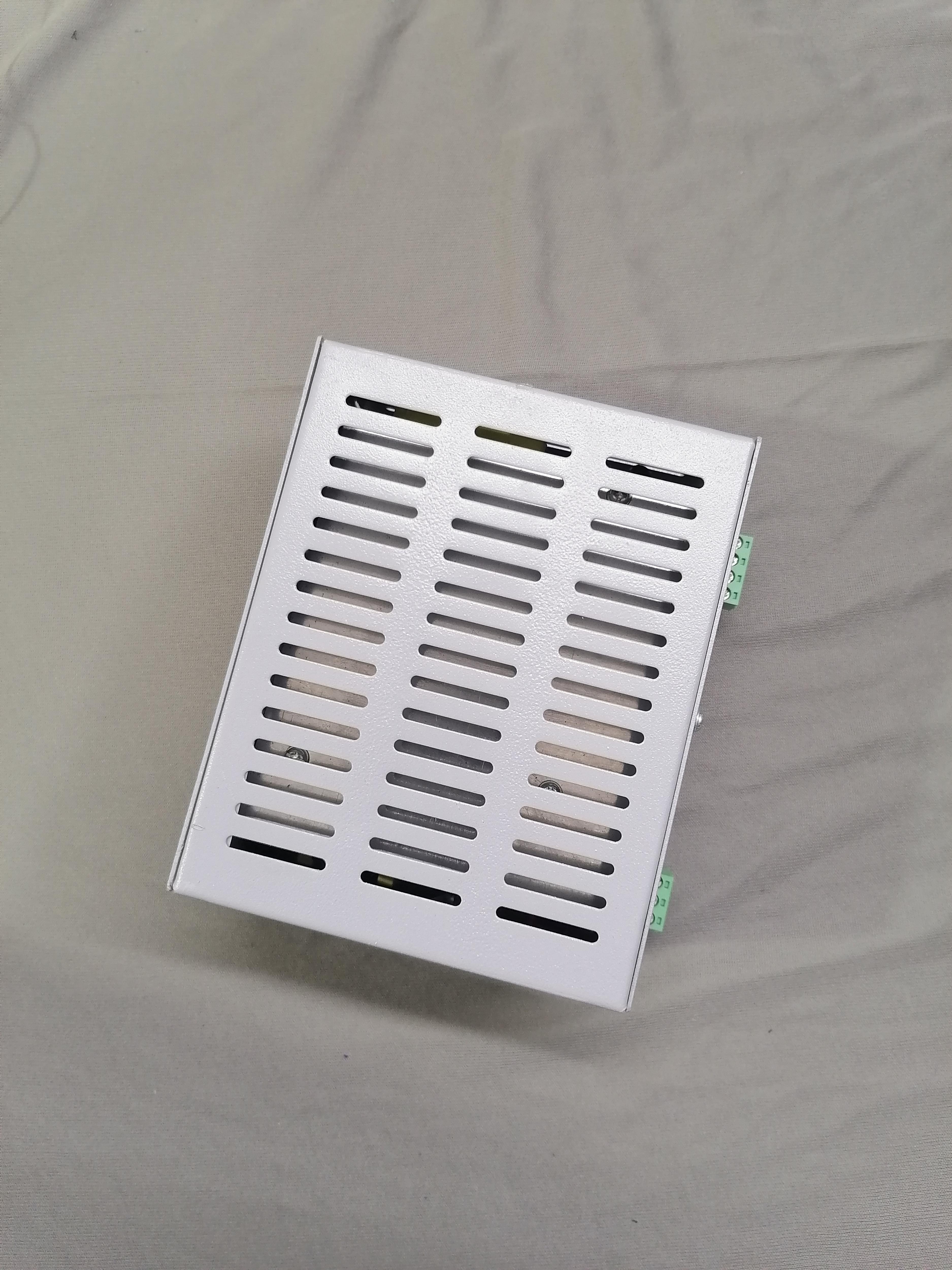

1) Power Supply 24v 10A

2) Connectors (Your choice)

XT60 - Male and Female - Pcs

DC Power Jack Socket Female and Male 2.1x5.5mm - Pcs

3) Screws : 20x3 mm, 20x5mm, 40x5mm

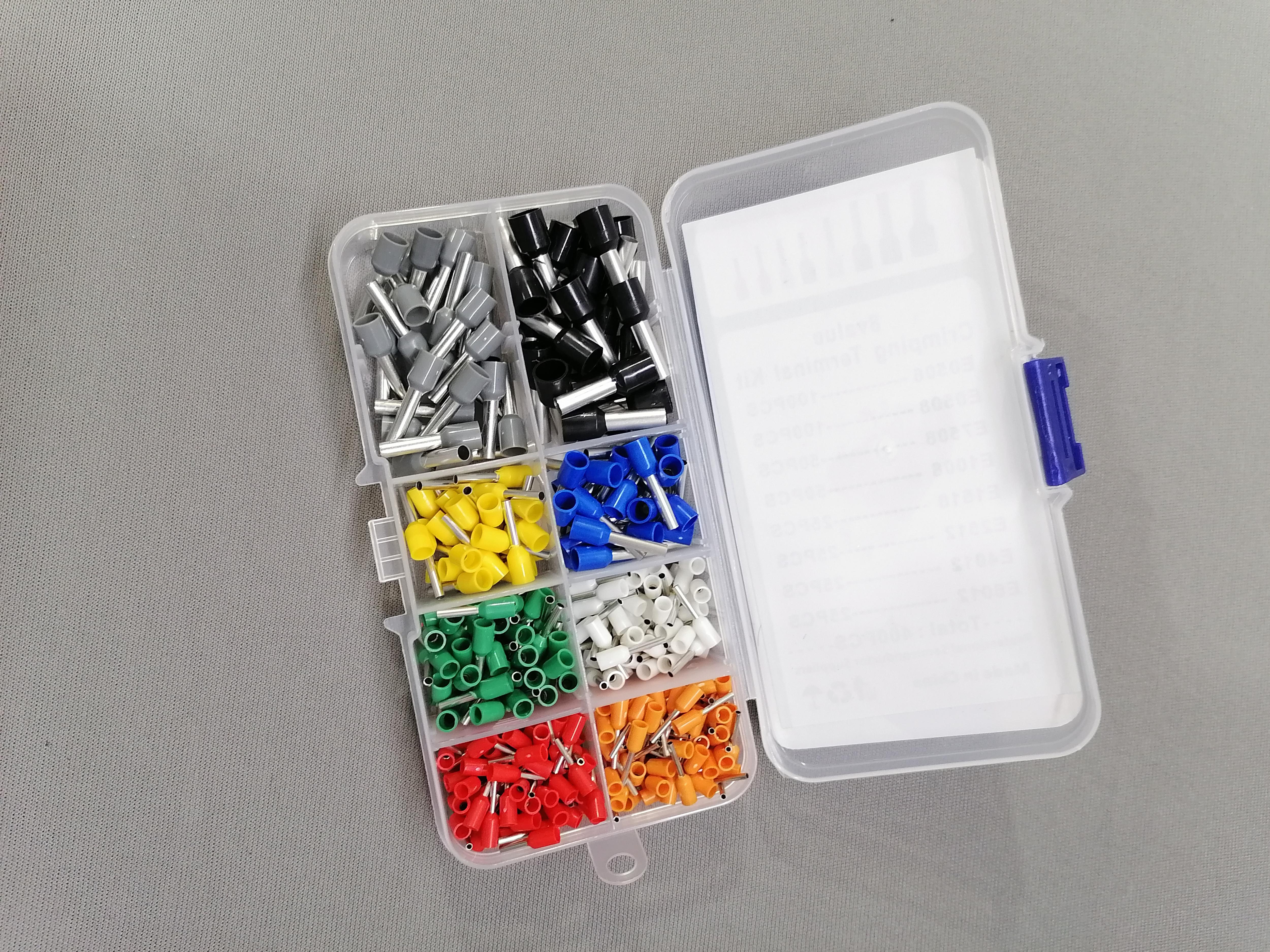

4) Wires

5) Push latching Switch

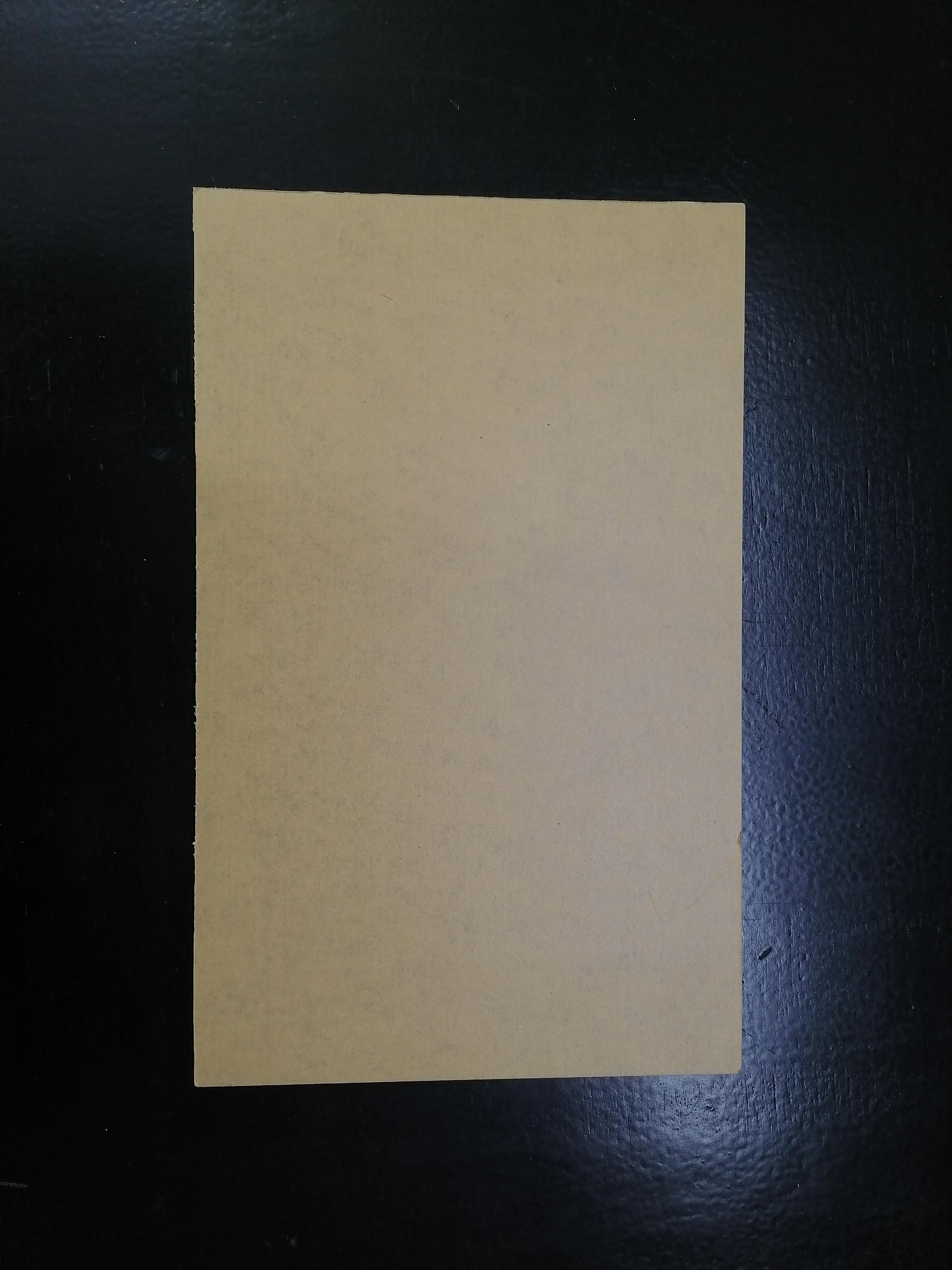

6) Acrylic Sheet 36 x 22 cm and 2mm thick

7) 3D printed parts

8) 12v Fan

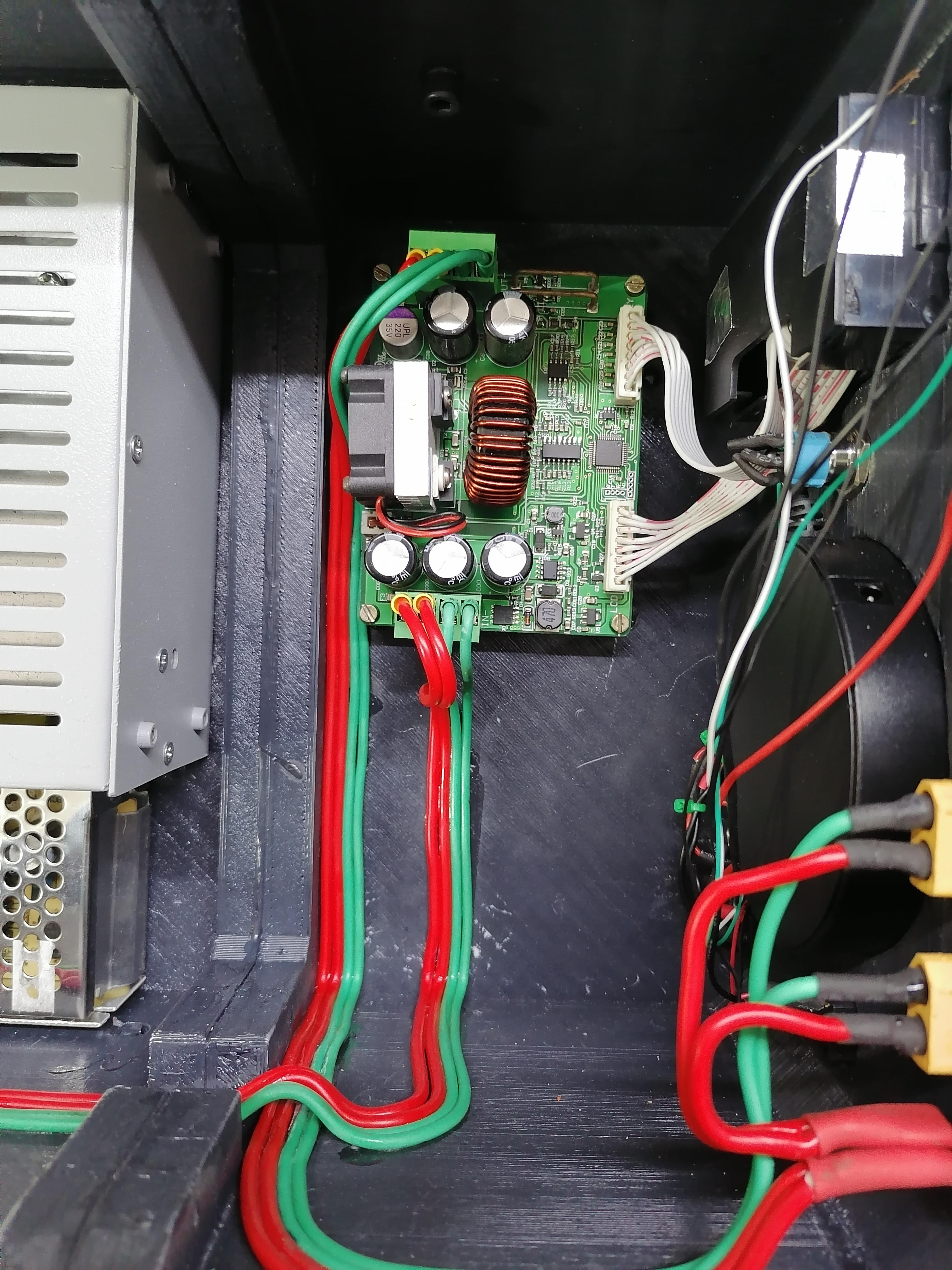

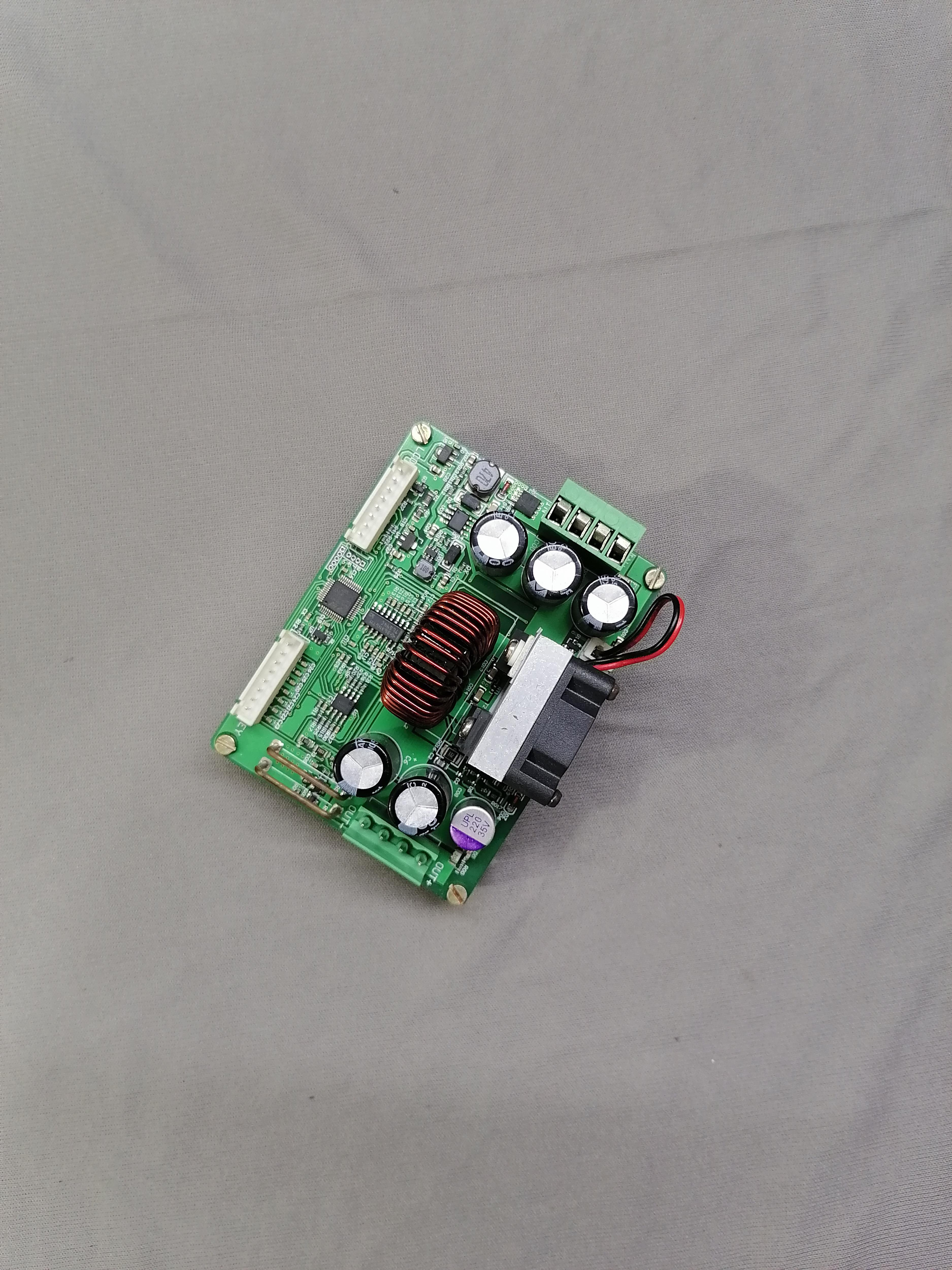

9) Power Control Circuit - DPS3012

10) 3A 250V AC SPST ON-OFF Round Rocker Switch – 3 Pcs

11) LM2596 DC to DC Step Down 12v to 5v

12) LED Strip 12v

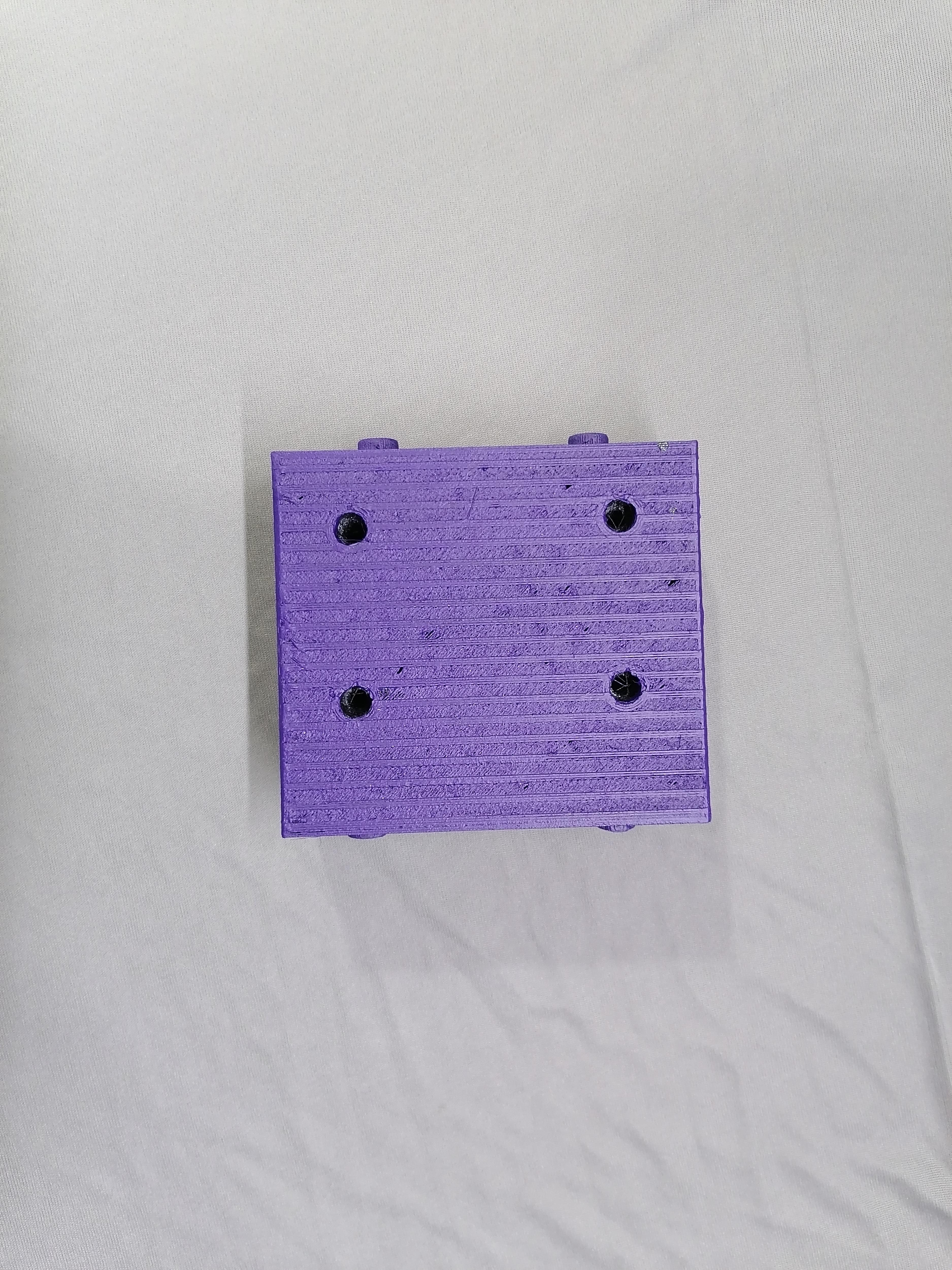

3D Designed in Fusion360 Software

Join each parts using Super Glue.

Use Screws 20x3mm for joining two Parts.

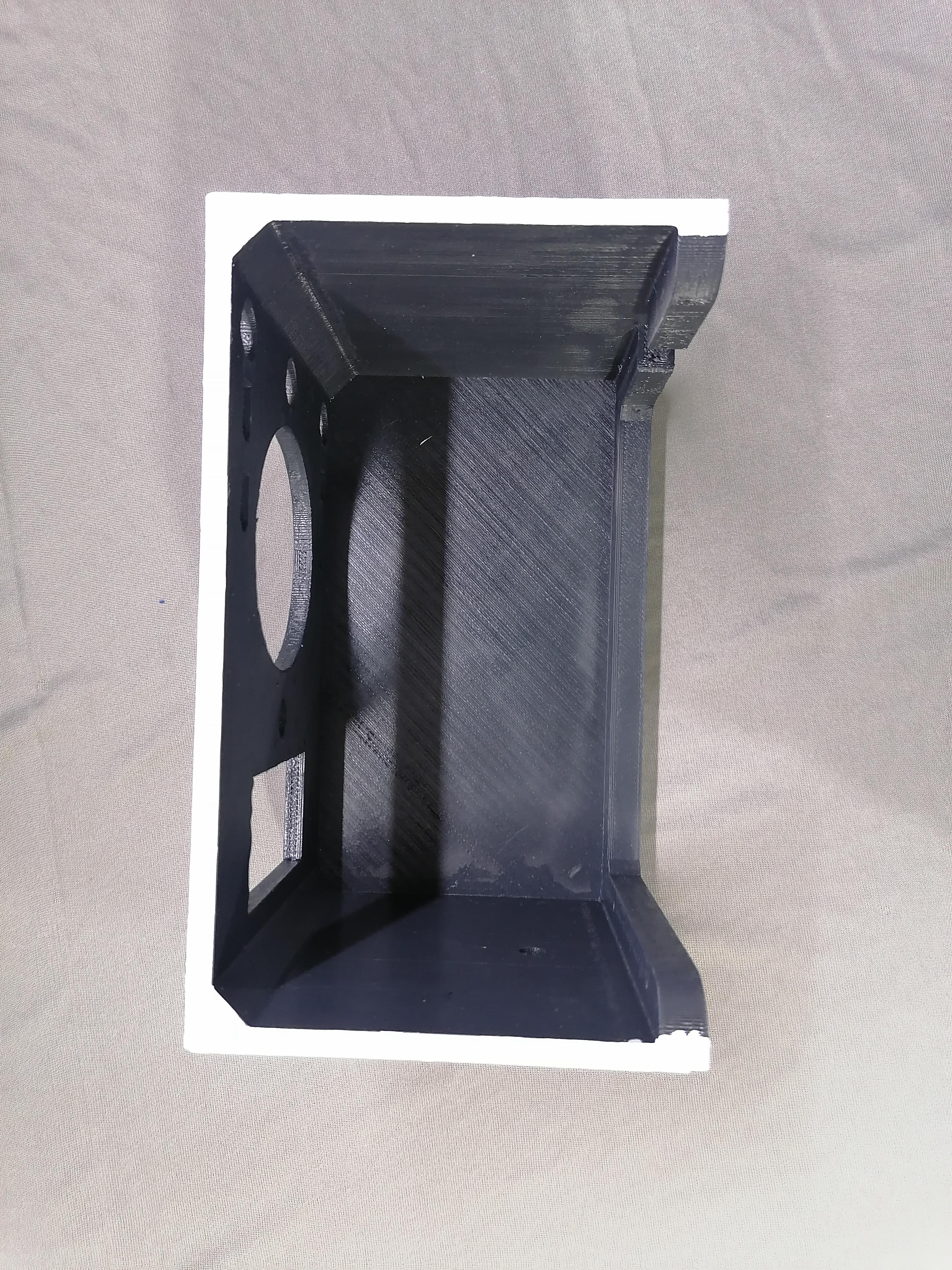

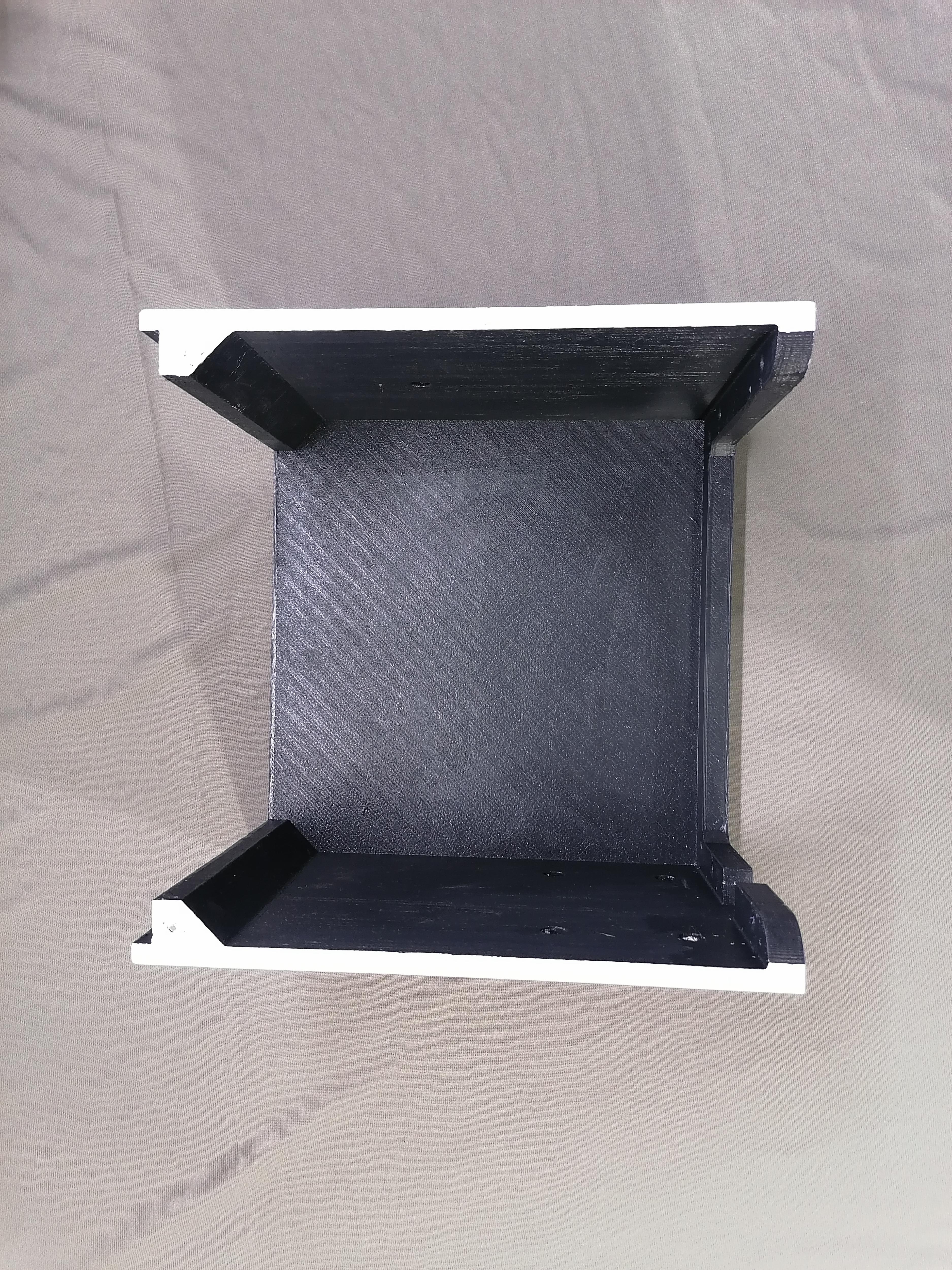

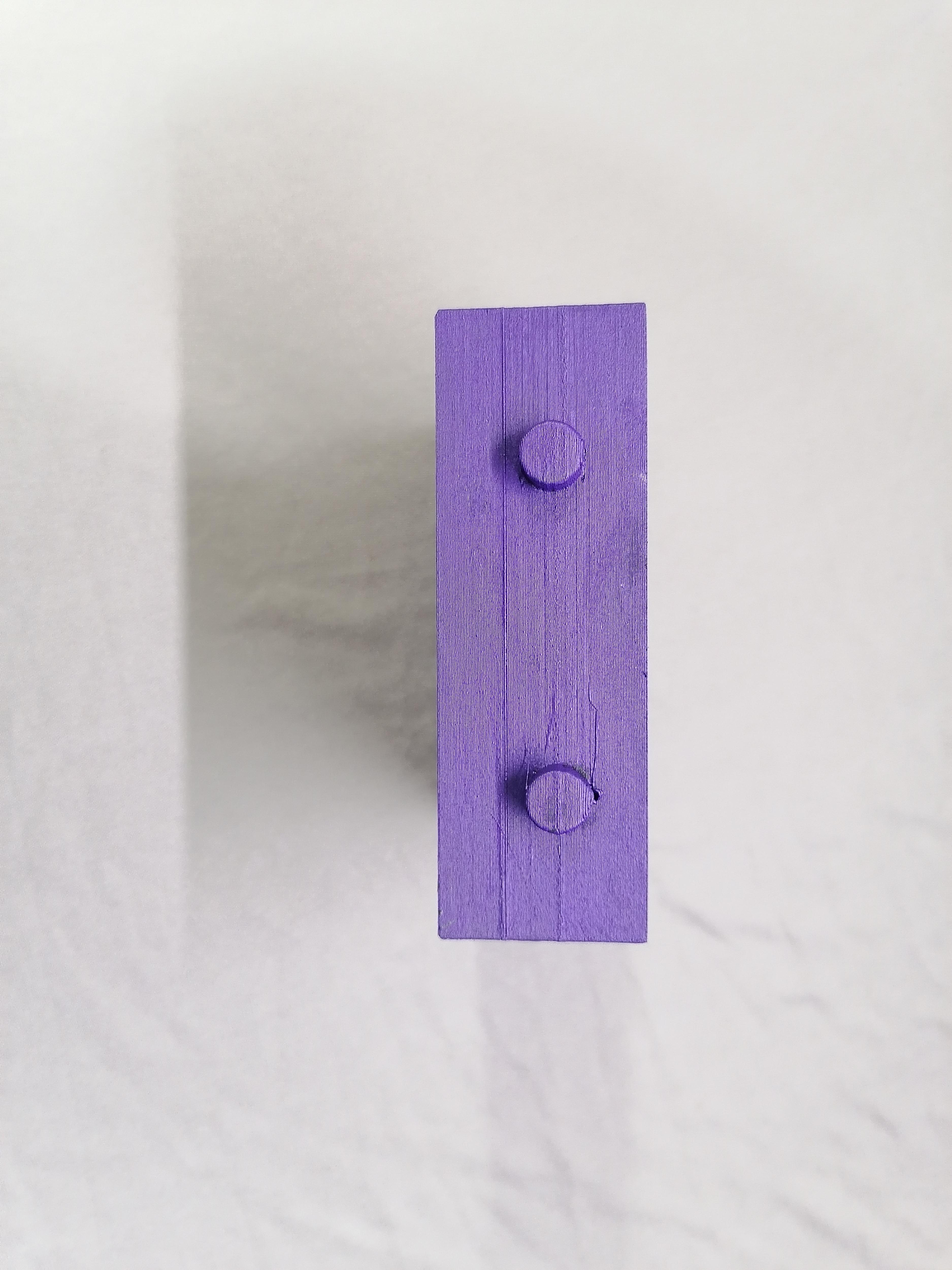

Join the base and main body with long screws 40x5mm or super glue.

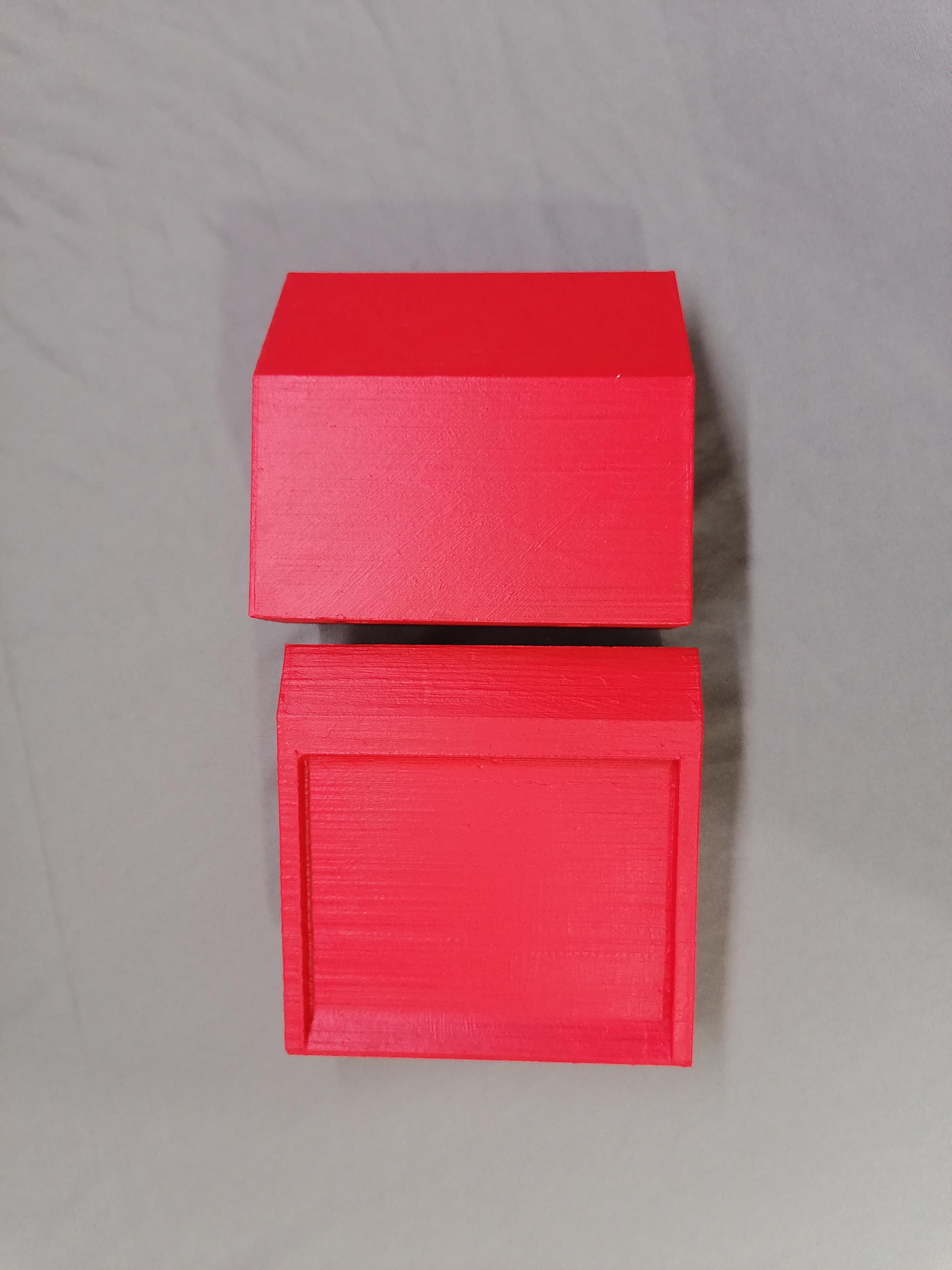

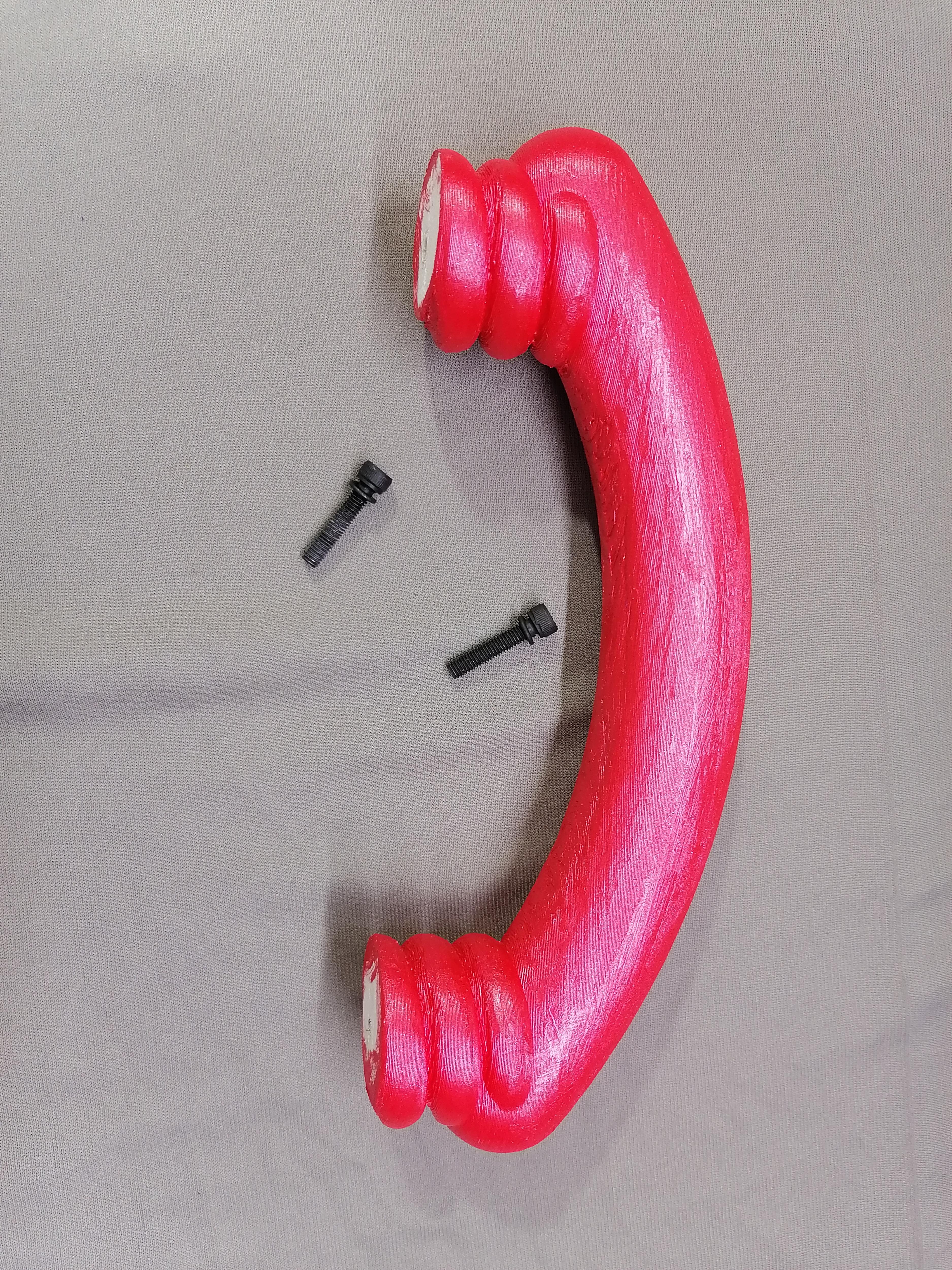

Use screws 20x5mm to join the handle to the main body.

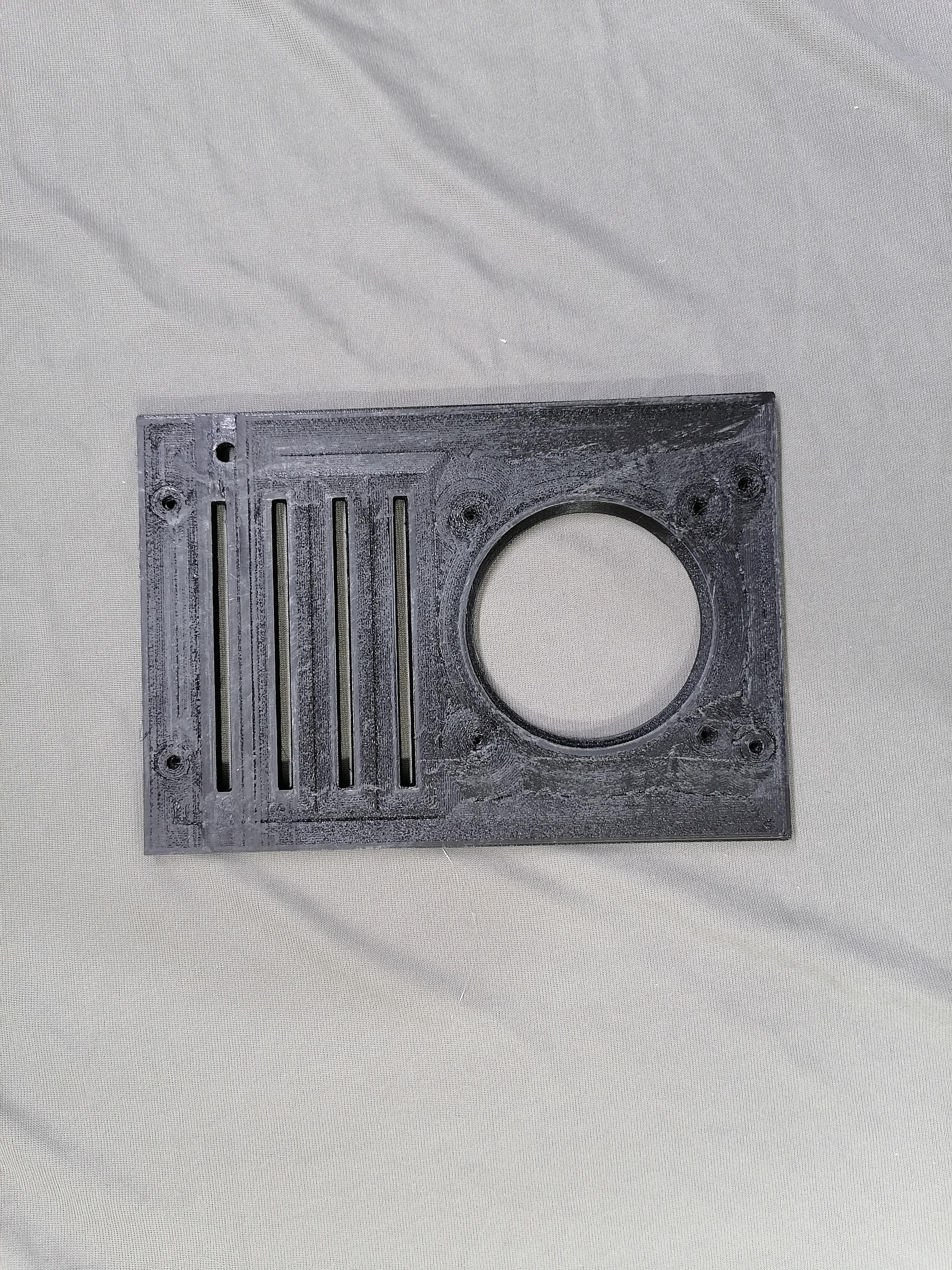

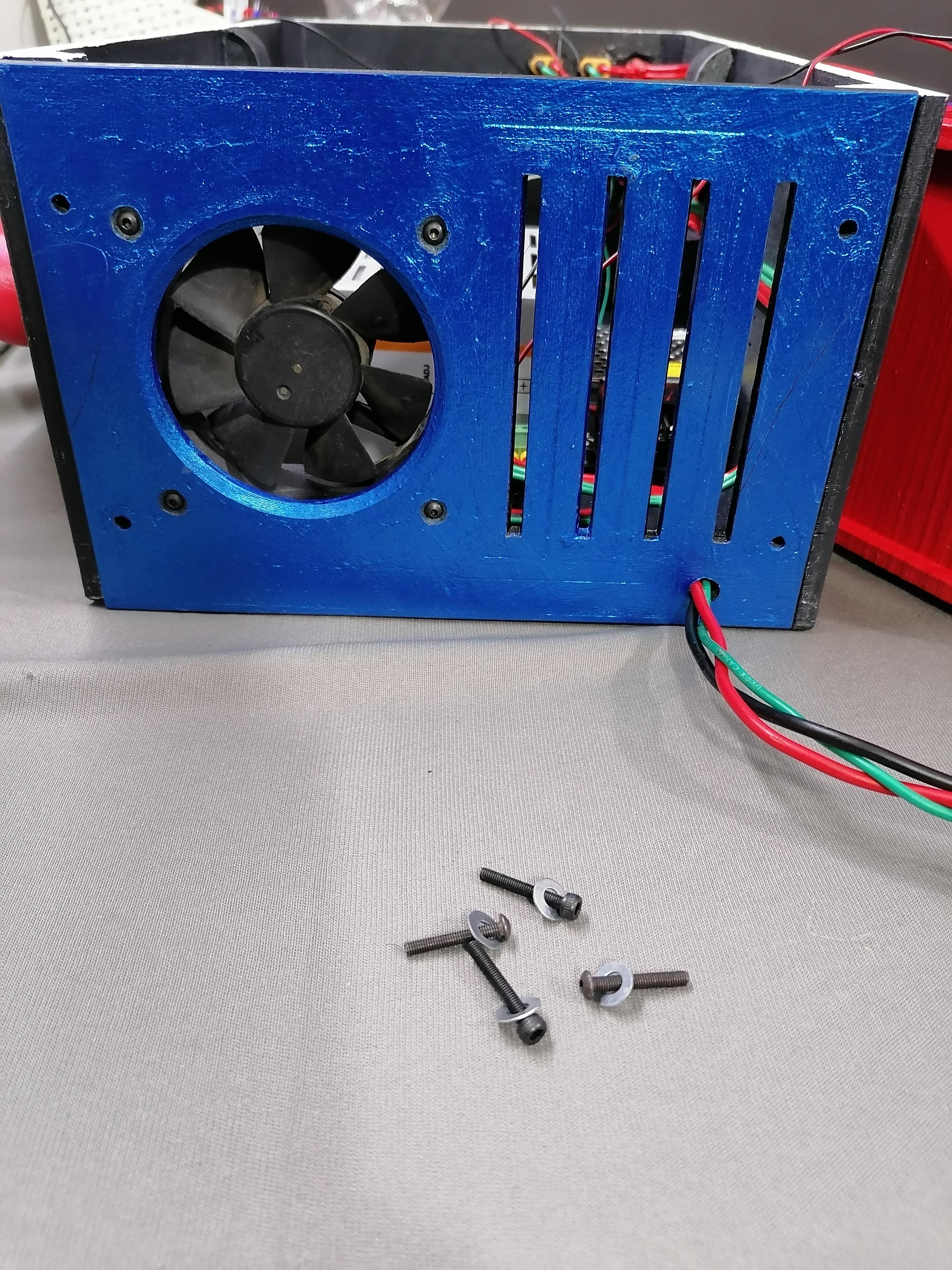

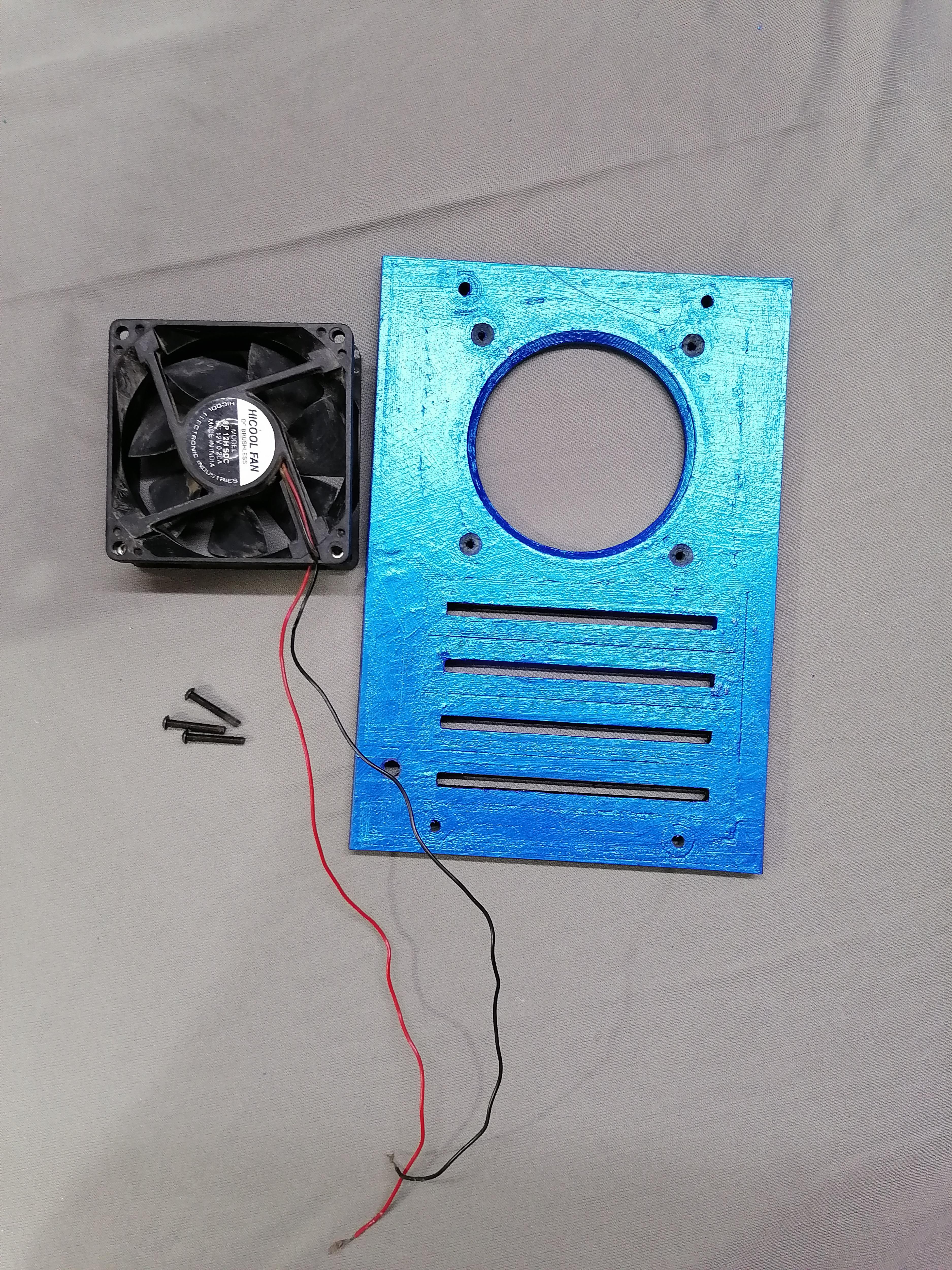

Use screws to attach the fan to the back Lid

Use Super Glue to join the power supply on the main body.

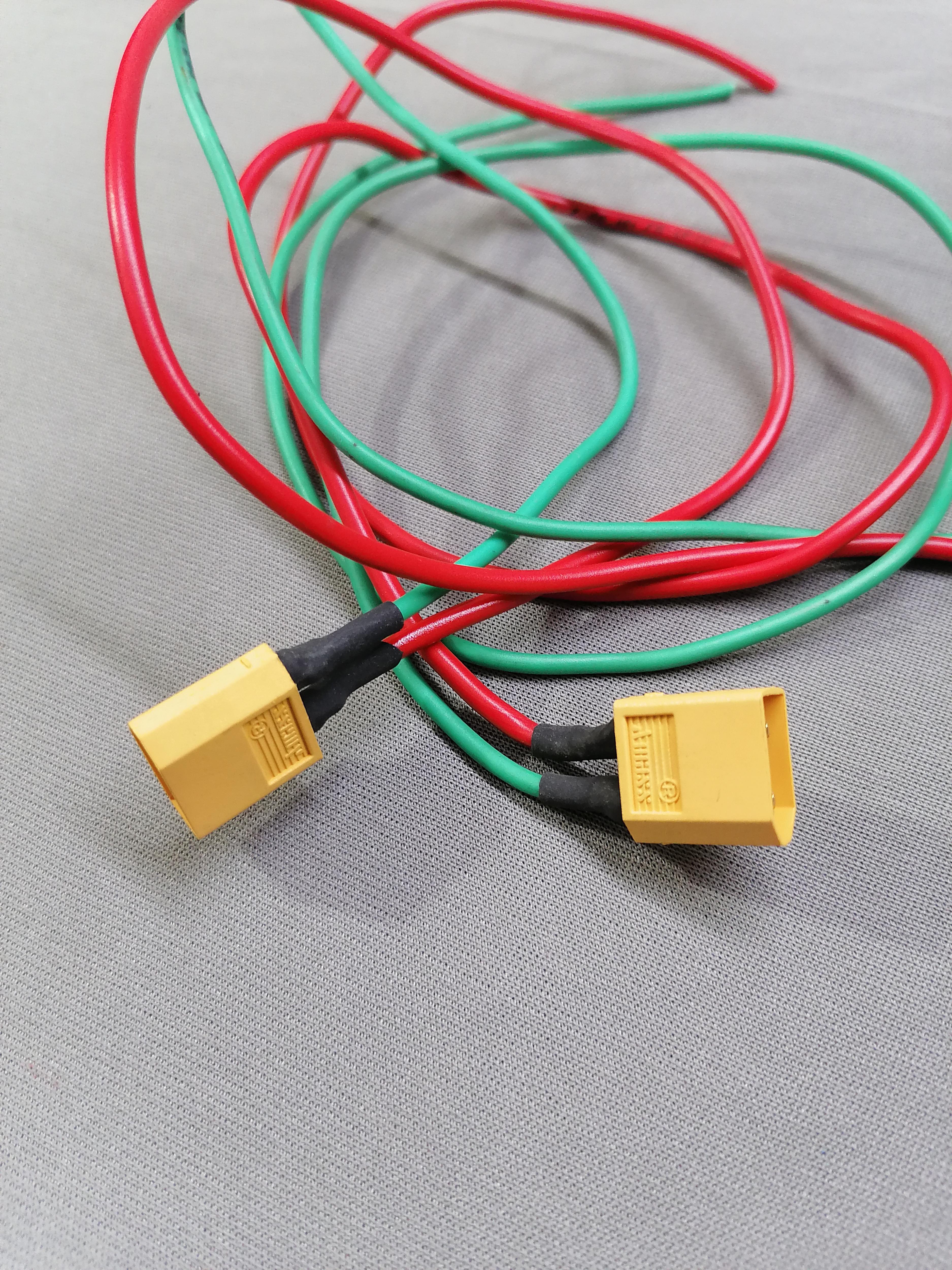

Make the cables connector Female with a wire length near 50cm. (2 Pairs)

Make the cables connector Female with a wire length near 50cm. (2 Pairs)

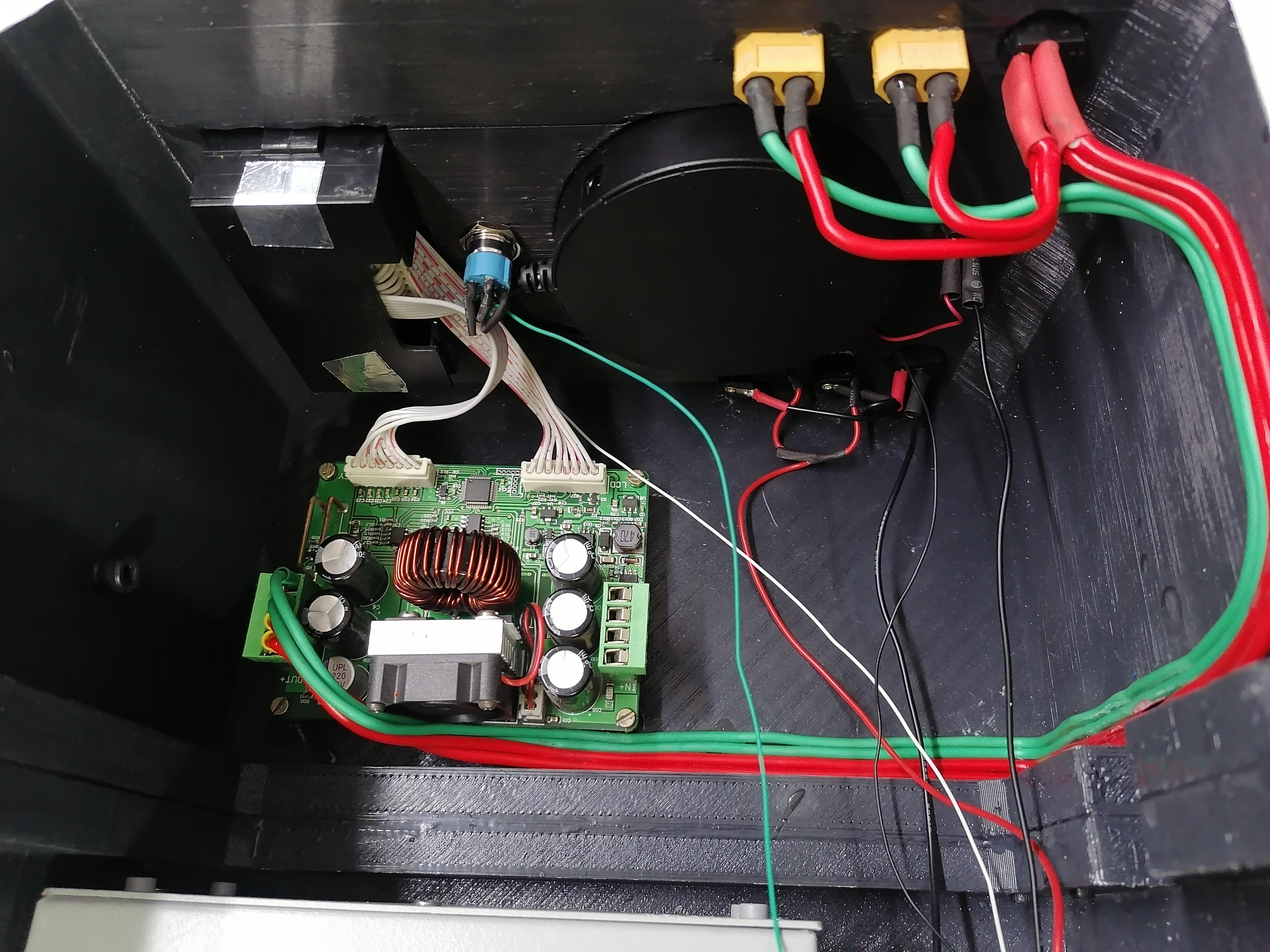

Insert LCD Display, USB Hub, XT60 Female Cable Connector, DC Jack Female Cable Connector, and Switches as shown in the image.

Use super glue to stick the wire with the main body.

Use PVC Pipe For Guiding And Hide Small Wires

LM2596 Dc to Dc Step Down for powering the USB Hub.

Make holes of 3mm diameter and depth of 20mm on the side of the main body and use the screw to attach the acrylic sheet.
