DIY Portable Ring Light

Step 1






I started with the plastic top from some blank CDs

Divide the surface into quadrants. I used a lens hood that came with my lens to trace out the hole for the lens. Put about 10 LEDs per quadrant
Step 3

Drill out the holes and cut out the middle
Step 4

Paint it. Make sure you use a spray paint that works with a soft plastic
Step 5

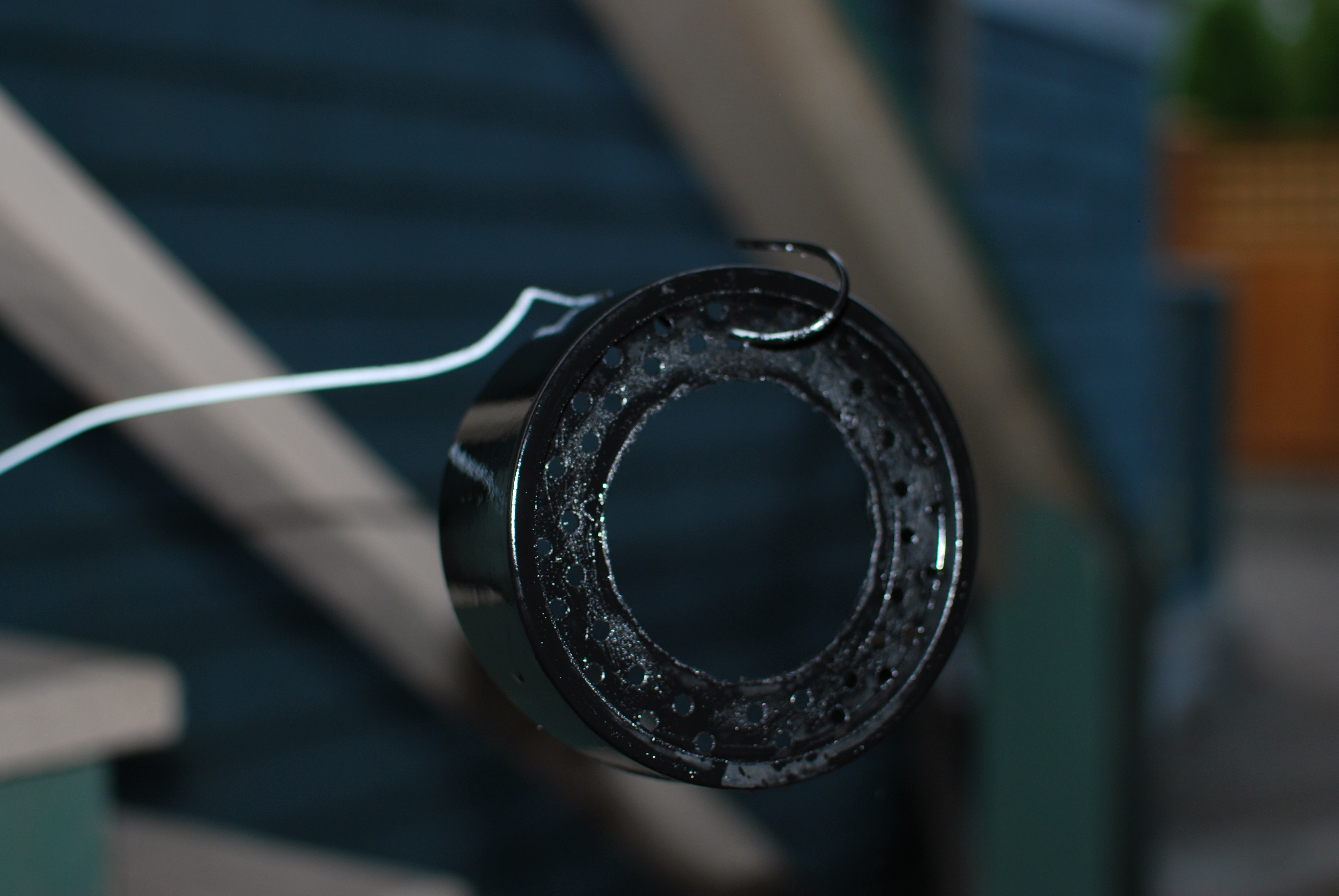

Drying
Step 6

LEDs in all the holes
Step 7

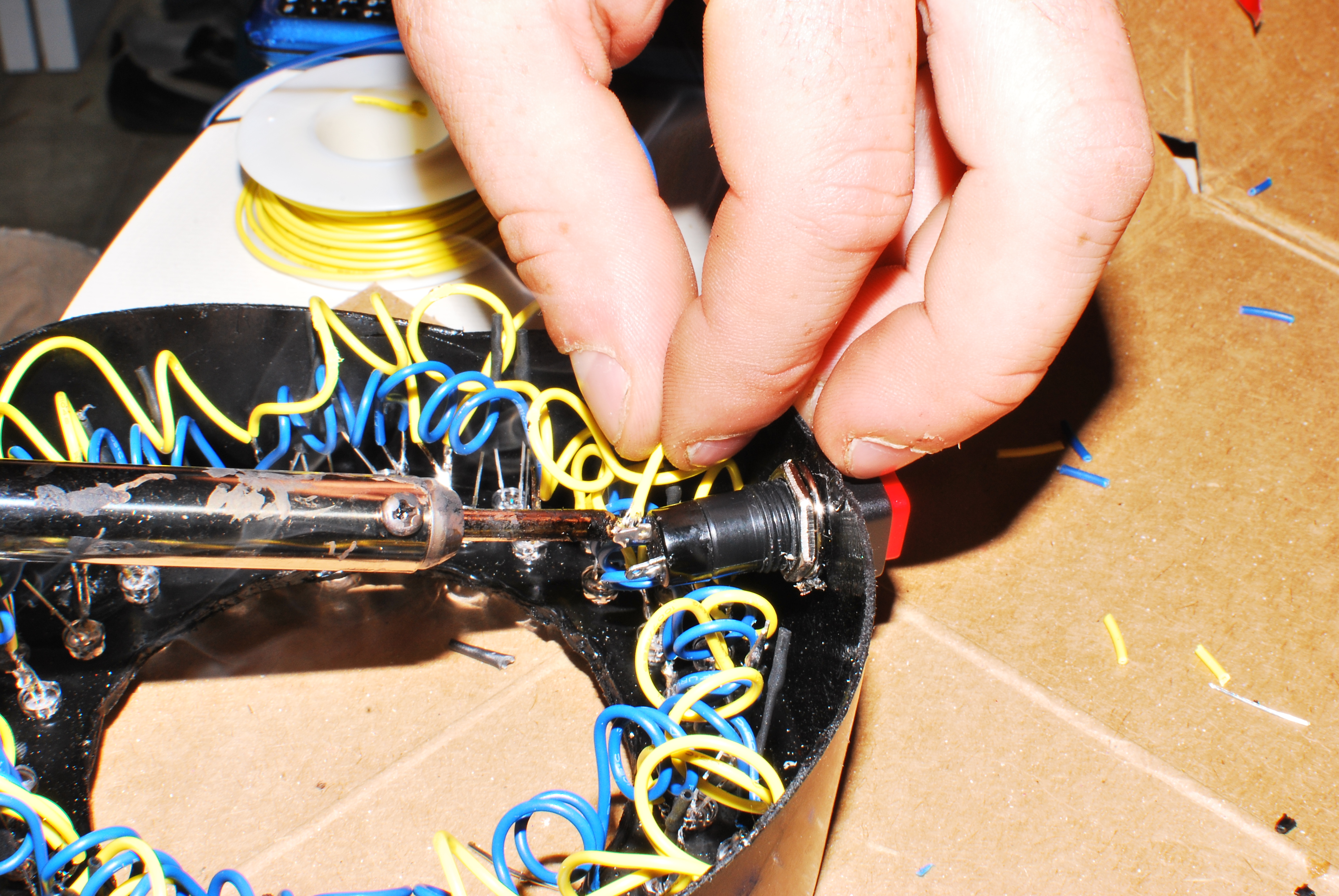

All the LEDs need to be soldered in parallel and not sequence. Working with a 9 volt battery i split the LEDs into groups of 3. Take the positive and negatives from all the groups and solder them togeather.
Step 8

Should look something like this
Step 9

Added a push button to turn it on/off
Step 10

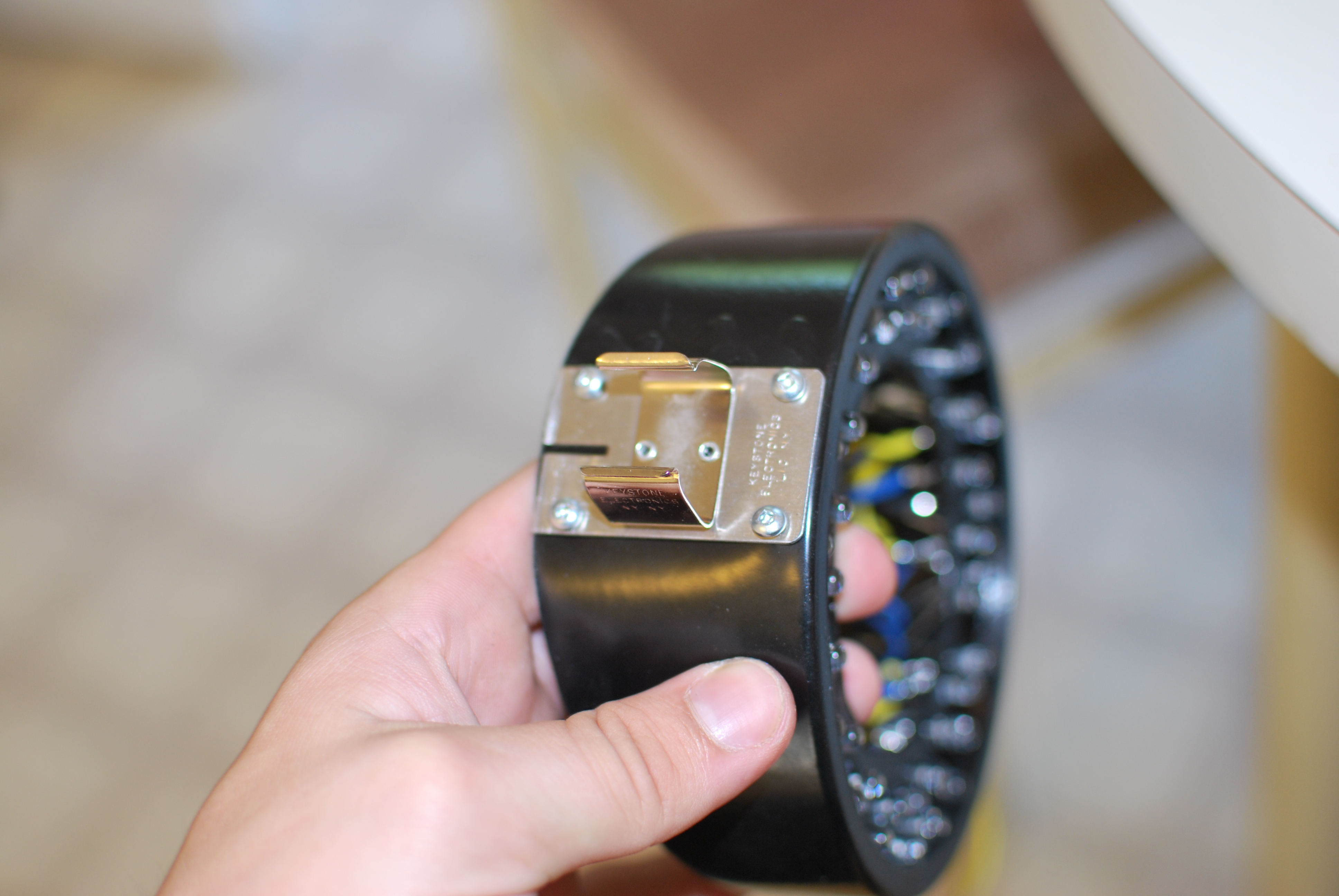

Battery clip
Step 11

The hood from my lens is just epoxy'd into the center. Also added an inch of a chopstick with epoxy to the right side for stability when pressing the button
Step 12

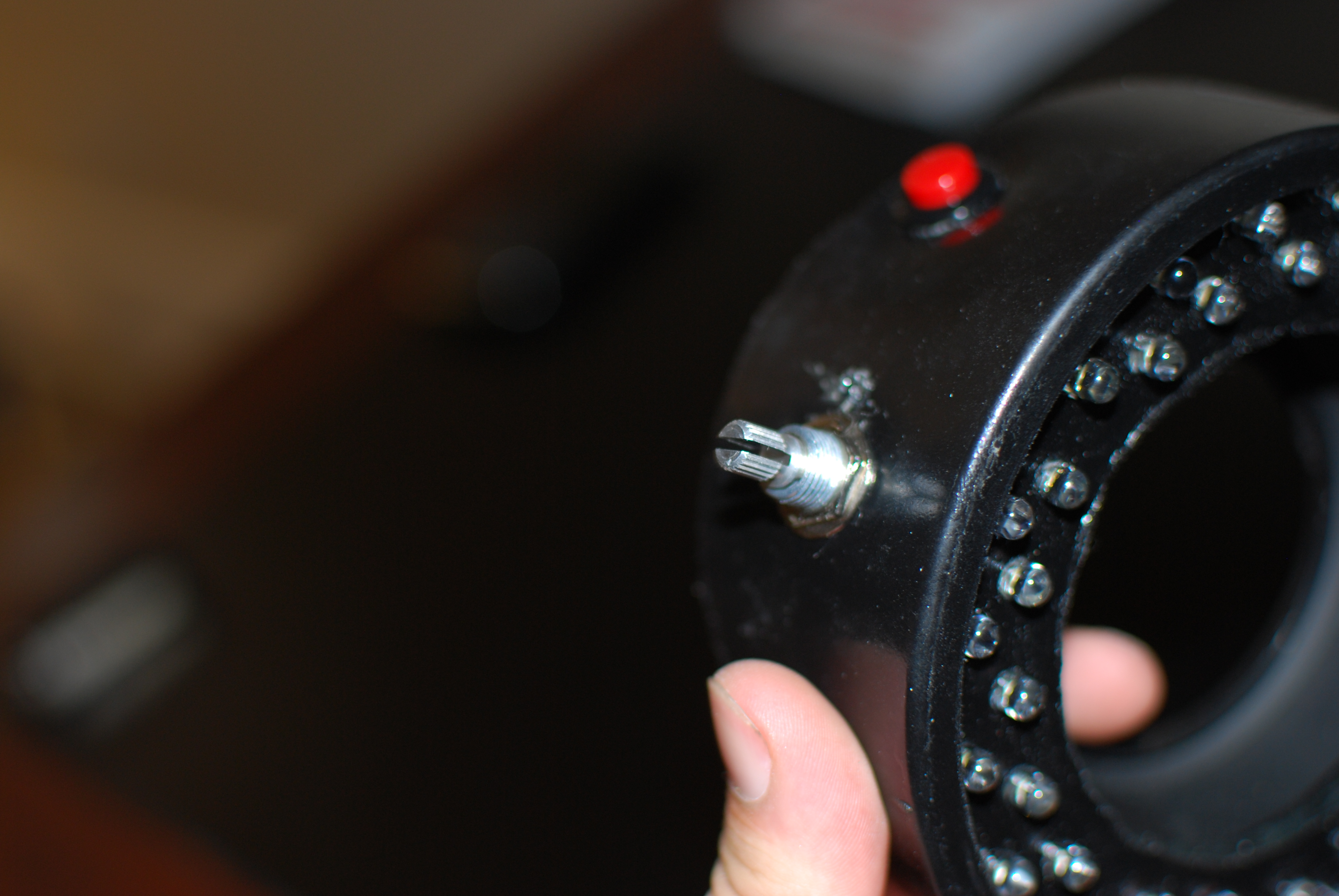

The final product was a little too bright so i added a potentiometer to adjust brightness
Step 13

Step 14

Step 15

Step 16

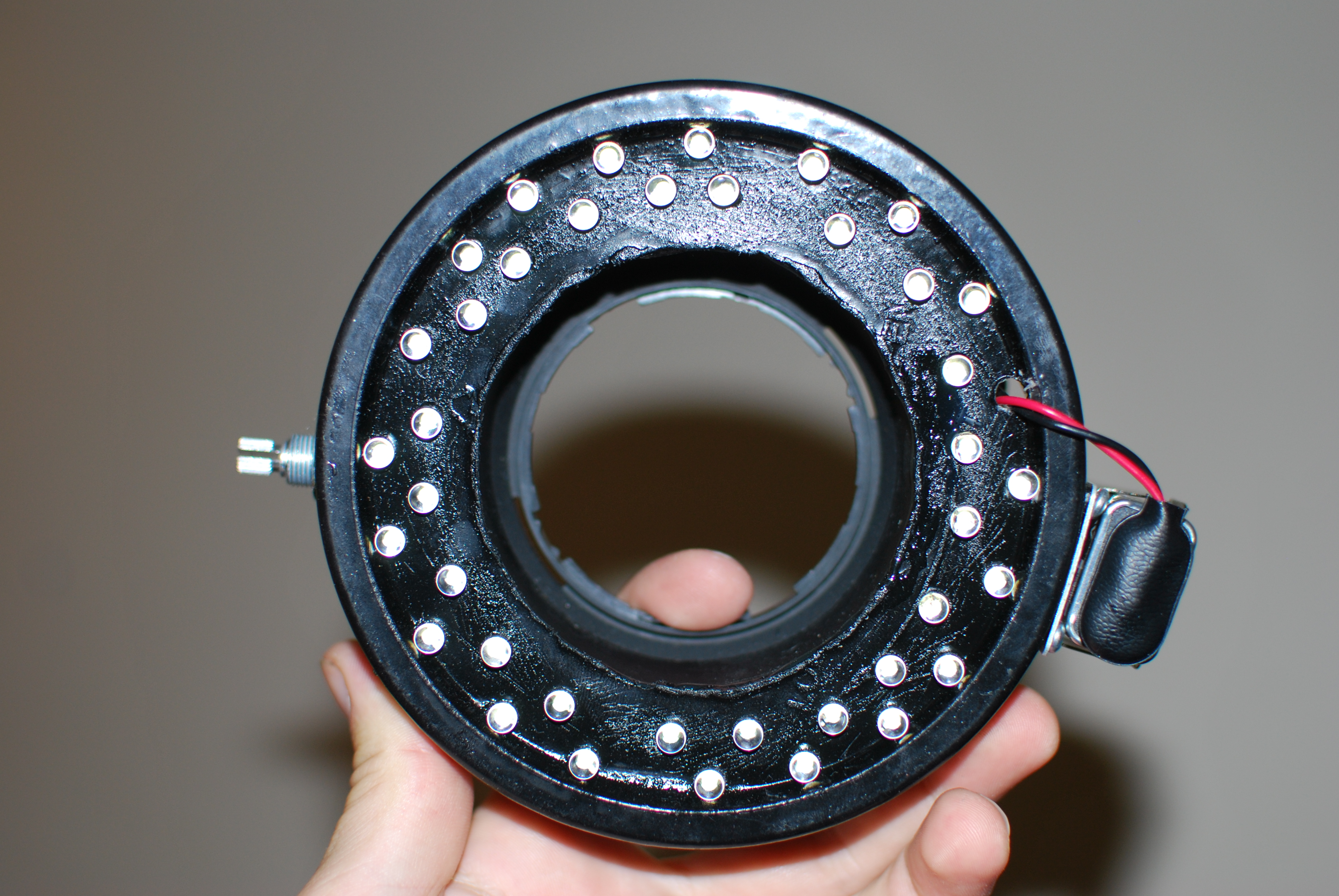

All done
Test
