Variable Power Control for Soldering Pencil Iron (cheap & Easy)
by andy_8a in Circuits > Soldering
10675 Views, 204 Favorites, 0 Comments
Variable Power Control for Soldering Pencil Iron (cheap & Easy)
![temp_-1265355172.jpg](/proxy/?url=https://content.instructables.com/F0K/FCZT/I7AB3OPC/F0KFCZTI7AB3OPC.jpg&filename=temp_-1265355172.jpg)
Portable and nice little bastard....
Electronic Diagram
![temp_798257490.jpg](/proxy/?url=https://content.instructables.com/FMW/SQ4G/I7AB3OPL/FMWSQ4GI7AB3OPL.jpg&filename=temp_798257490.jpg)
The circuit diagram its based on the Weller WLC100 electronic soldering station, and was reproduced by Tony Van Roon, so you'll sure that this has been test it so many times before...
Parts and Tools
![temp_1545677148.jpg](/proxy/?url=https://content.instructables.com/FY3/M1O3/I7AB3OPM/FY3M1O3I7AB3OPM.jpg&filename=temp_1545677148.jpg)
![temp_2001377723.jpg](/proxy/?url=https://content.instructables.com/FJQ/6XLE/I7AB3OPU/FJQ6XLEI7AB3OPU.jpg&filename=temp_2001377723.jpg)
![temp_-1405094525.jpg](/proxy/?url=https://content.instructables.com/FLT/S5BS/I7AB3OPX/FLTS5BSI7AB3OPX.jpg&filename=temp_-1405094525.jpg)
You will need:
2 - Diodes 1N4004 (can be from 4004 to 4007, and thus every replacement that exist)
1 - 250k Potentiometer, with its knob
1 - Diac, bilateral trigger type
1 - Triac 400v/25A ( i used the BTA08 at 600v)
1 - Capacitor 823k 250v (83nf, i used a 100nf)
1 - Resistor 15k, 1/8 watt or more
1 - little box to put everything inside.
1 - Switch, should be at least 3A/125v
1 - AC male panel mount power outlet, it doesnt need the ground pin, unless you have a weird iron pencil that need it.
1 - Pre drilled pcb, because its a very simple circuit, but if you know how or want to build your pcb, i will not stop you, its your life, carpe diem.
1 - (in the end i didn used) terminal block so you can tie the power cable to the circuit.
1 - Power Cable (again, it doesnt need to have the ground part)
Cable (at least 18awg)
An the most important things:
Imagination (a lot) and wil.
Tools:
I used a drill, a dremel and my wlc100 soldering station, a table, light, snacks, food, a bathroom, my house and a ruler, never forget to have a ruler...
2 - Diodes 1N4004 (can be from 4004 to 4007, and thus every replacement that exist)
1 - 250k Potentiometer, with its knob
1 - Diac, bilateral trigger type
1 - Triac 400v/25A ( i used the BTA08 at 600v)
1 - Capacitor 823k 250v (83nf, i used a 100nf)
1 - Resistor 15k, 1/8 watt or more
1 - little box to put everything inside.
1 - Switch, should be at least 3A/125v
1 - AC male panel mount power outlet, it doesnt need the ground pin, unless you have a weird iron pencil that need it.
1 - Pre drilled pcb, because its a very simple circuit, but if you know how or want to build your pcb, i will not stop you, its your life, carpe diem.
1 - (in the end i didn used) terminal block so you can tie the power cable to the circuit.
1 - Power Cable (again, it doesnt need to have the ground part)
Cable (at least 18awg)
An the most important things:
Imagination (a lot) and wil.
Tools:
I used a drill, a dremel and my wlc100 soldering station, a table, light, snacks, food, a bathroom, my house and a ruler, never forget to have a ruler...
Measuring and Cutting
![temp_1051210533.jpg](/proxy/?url=https://content.instructables.com/F9P/XVRZ/I7AB3OQ2/F9PXVRZI7AB3OQ2.jpg&filename=temp_1051210533.jpg)
![temp_-864718824.jpg](/proxy/?url=https://content.instructables.com/FLU/NY1C/I7AB3OQ4/FLUNY1CI7AB3OQ4.jpg&filename=temp_-864718824.jpg)
![temp_314603311.jpg](/proxy/?url=https://content.instructables.com/FNT/81BX/I7AB3OQ7/FNT81BXI7AB3OQ7.jpg&filename=temp_314603311.jpg)
![temp_332692904.jpg](/proxy/?url=https://content.instructables.com/F7Y/S8KX/I7AB3OQ9/F7YS8KXI7AB3OQ9.jpg&filename=temp_332692904.jpg)
![temp_331523550.jpg](/proxy/?url=https://content.instructables.com/FGX/QRYX/I7AB3OQA/FGXQRYXI7AB3OQA.jpg&filename=temp_331523550.jpg)
You really know what i meant right?
Just focus that should be simple and everything should fits. Theres where the imagination comes true.
My potentiometer was to large so i cut it, just hopes that the vibration and heat doesnt reduce the life of the poor little guy...
You can see that the rectangles holes were cut in X, so it doesnt leave marks and its easier to remove.
Just focus that should be simple and everything should fits. Theres where the imagination comes true.
My potentiometer was to large so i cut it, just hopes that the vibration and heat doesnt reduce the life of the poor little guy...
You can see that the rectangles holes were cut in X, so it doesnt leave marks and its easier to remove.
Soldering
![temp_-130049011.jpg](/proxy/?url=https://content.instructables.com/FXM/I970/I7AB3OQB/FXMI970I7AB3OQB.jpg&filename=temp_-130049011.jpg)
![temp_271904398.jpg](/proxy/?url=https://content.instructables.com/FWC/750F/I7AB3OQC/FWC750FI7AB3OQC.jpg&filename=temp_271904398.jpg)
Not so difficult right? well, it depends on your pulse, experience and confidence, but there just seven components, so i know you will achieve it.
If you want you cant test it before in a protoboard (the center and the left pins in the potentiometer in the second photo are those you're looking for...)
If you want you cant test it before in a protoboard (the center and the left pins in the potentiometer in the second photo are those you're looking for...)
Fitting Everything In
![temp_571259373.jpg](/proxy/?url=https://content.instructables.com/FUN/9Q4N/I7AB3OQE/FUN9Q4NI7AB3OQE.jpg&filename=temp_571259373.jpg)
![temp_-1986849418.jpg](/proxy/?url=https://content.instructables.com/FK7/P1L0/I7AB3OQF/FK7P1L0I7AB3OQF.jpg&filename=temp_-1986849418.jpg)
Go get some whater and eat something, you're almost done...
Slow... almost.. a little to the left... Thats it! you got youself a nice little timey wimey heater thing, a pat for youself in the back.
Now you shold test it, in the original WLC100 says that its only for solderig irons smaller than 300w, so dont be afraid...
Slow... almost.. a little to the left... Thats it! you got youself a nice little timey wimey heater thing, a pat for youself in the back.
Now you shold test it, in the original WLC100 says that its only for solderig irons smaller than 300w, so dont be afraid...
My Measures
![temp_485508278.jpg](/proxy/?url=https://content.instructables.com/F6H/0WVM/I7AB3OQG/F6H0WVMI7AB3OQG.jpg&filename=temp_485508278.jpg)
![temp_-456468738.jpg](/proxy/?url=https://content.instructables.com/FMJ/9ZCL/I7AB3OQH/FMJ9ZCLI7AB3OQH.jpg&filename=temp_-456468738.jpg)
![temp_-622478452.jpg](/proxy/?url=https://content.instructables.com/FZJ/XVMI/I7AB3OQJ/FZJXVMII7AB3OQJ.jpg&filename=temp_-622478452.jpg)
![temp_841892299.jpg](/proxy/?url=https://content.instructables.com/F6D/DHYA/I7AB3OQM/F6DDHYAI7AB3OQM.jpg&filename=temp_841892299.jpg)
![temp_493729782.jpg](/proxy/?url=https://content.instructables.com/FWR/RGI2/I7AB3OQO/FWRRGI2I7AB3OQO.jpg&filename=temp_493729782.jpg)
![temp_-716505154.jpg](/proxy/?url=https://content.instructables.com/FCS/1HP0/I7AB3OQR/FCS1HP0I7AB3OQR.jpg&filename=temp_-716505154.jpg)

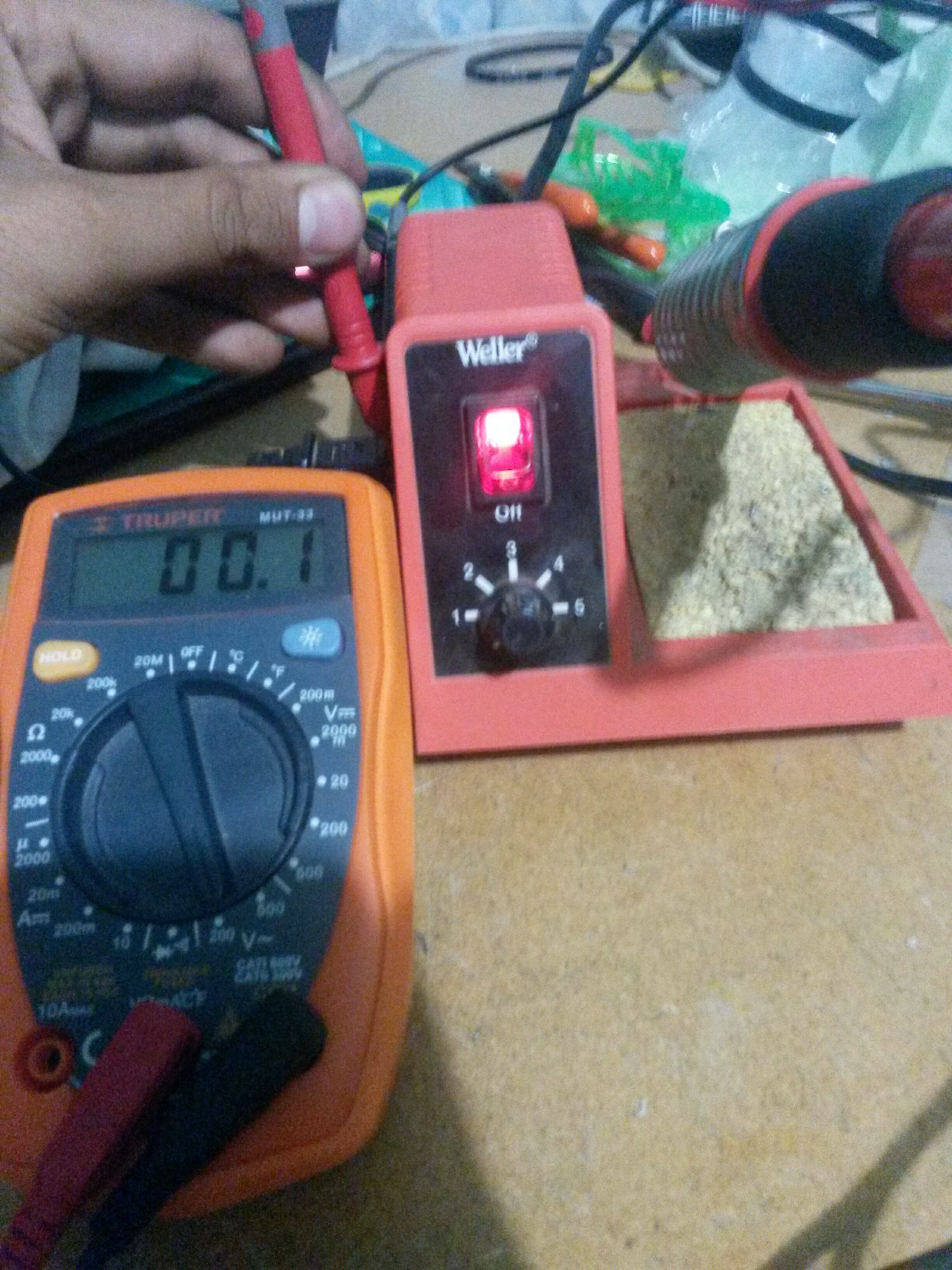

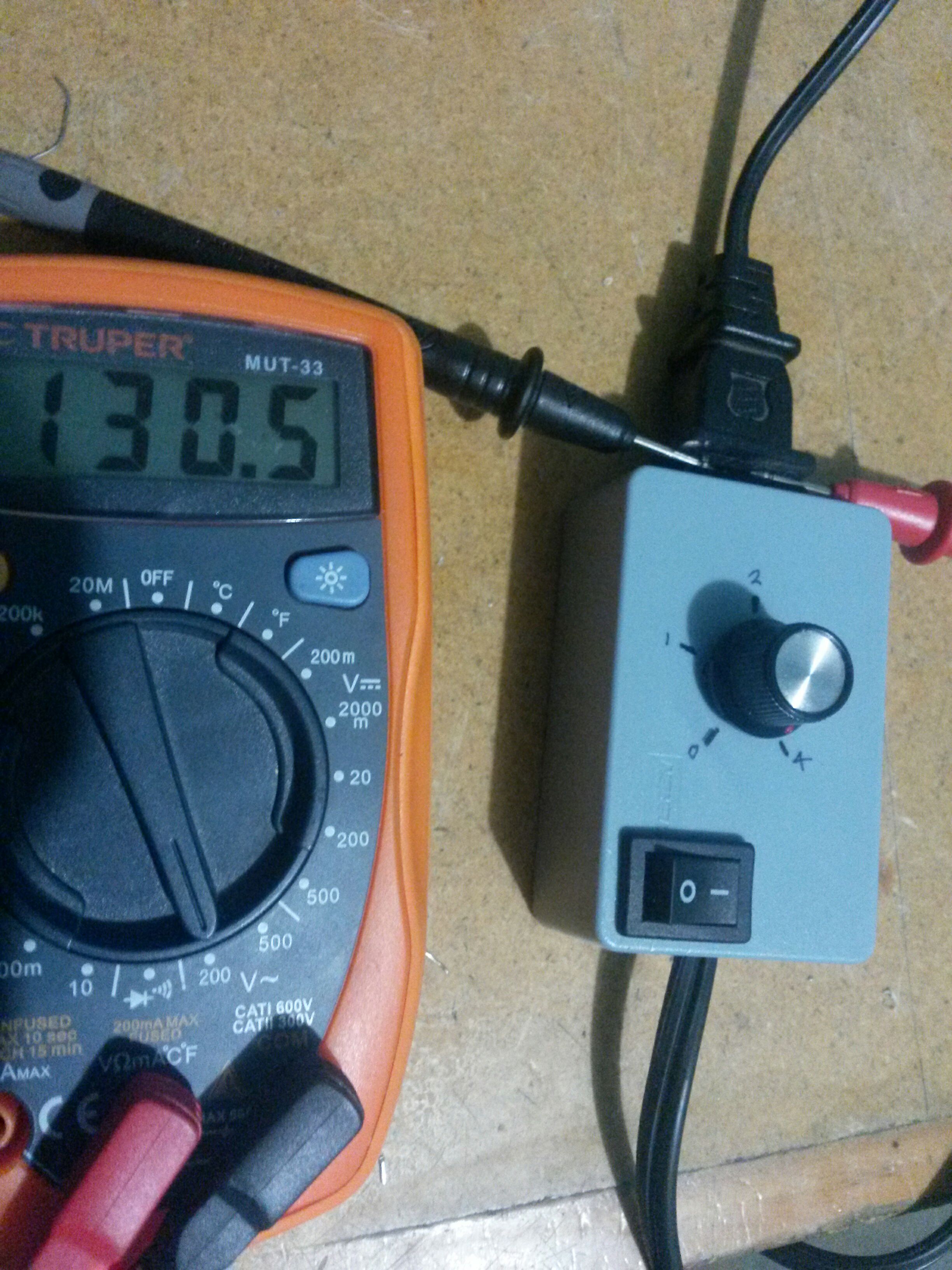

So this is what old friend WLC measures vs the little new town guy...
The crazy thing its that our circuit got a more proportional change in the voltage, so im not sure what to think, maybe there's life in other planets...
But it works, now you got +1 in DIYlogy...
The crazy thing its that our circuit got a more proportional change in the voltage, so im not sure what to think, maybe there's life in other planets...
But it works, now you got +1 in DIYlogy...
