DIY Persistence of Vision

In This Project I Will Introduce You To Perspective Of Vision Or POV Display With A Few Supplies Such As Arduino And Hall Sensors To Make A Rotating Display Which Displays Anything You Like Such As Text,Time and Other Special Characters.

Here you can find a parts list with example sellers for your convenience (affiliate links)

Amazon.in

PCB : https://amzn.to/36BFP3z

1* Arduino Nano : https://amzn.to/3bIIsBv

1*Lithuim Charger Controller : https://amzn.to/36eUnpn

8* Blue Leds and 2* White and 1* Red : https://amzn.to/3ebnFYP

Step Up Module 2A : https://amzn.to/3e8Ok8s

150 Ohms Resistor : https://amzn.to/3gjy1aL

Lithium Polymer Battery : https://amzn.to/2WX6KDx

Dc Motor : https://amzn.to/36wMpIn

Hall Sensor : https://amzn.to/3gdRVUK

Neodymium Magnet : https://amzn.to/2A0ni4G

Banggood

PCB : https://bit.ly/2TyTpz6

1* Arduino Nano : https://bit.ly/3eheXIK

1*Lithuim Charger Controller : https://bit.ly/3grCE2S

8* Blue Leds and 2* White and 1* Red : https://bit.ly/2XrBFGW

Step Up Module 2A : https://bit.ly/2ZyfZvE

150 Ohms Resistor : https://bit.ly/2XveThM

Lithium Polymer Battery : https://bit.ly/3ghRBEx

Dc Motor : https://bit.ly/3cZcH8v

Hall Sensor : https://bit.ly/2XsjEbN

Neodymium Magnet : https://bit.ly/3cYlNT5

Spray Paint And Other Parts Are Optional.

Create A Custom Sized Through Hole PCB By Cutting It in the Dimensions Of 17 cm* 2.3 cm Feel Free To Smooth The Edges And Sides With Sandpaper and Give a Curvature Like Shape Towards The Ends. Spray Painting The PCB With Black Spray Paint Gives It a Glossy, Shiny And A Good Look When The Assembly Rotates.

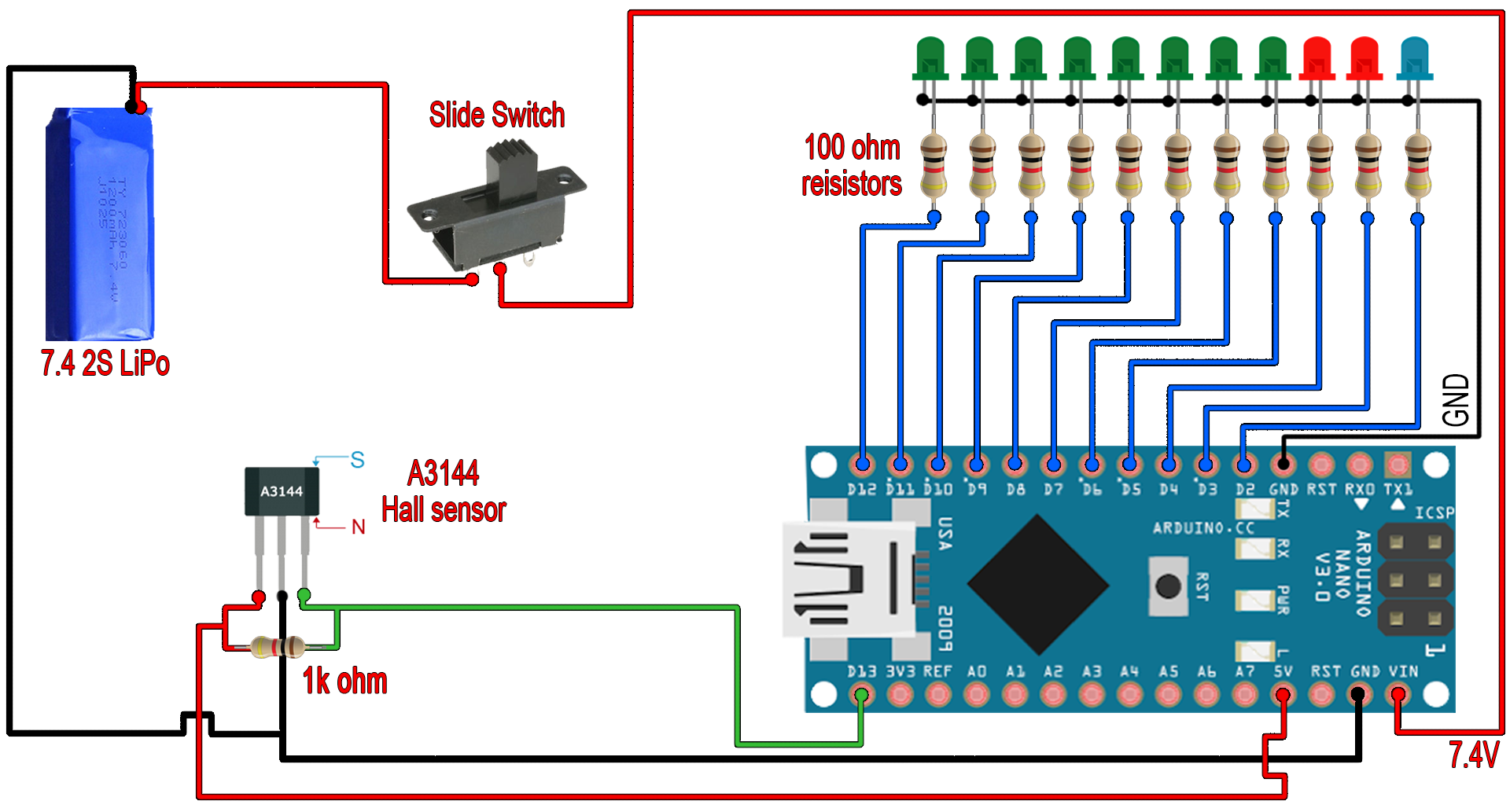

Use the here presented schematic and reference pictures to create the circuit.

I have Made Use Of a Boost Converter As Well To Boost The Battery Voltage Of 3.7 V To 5 V.

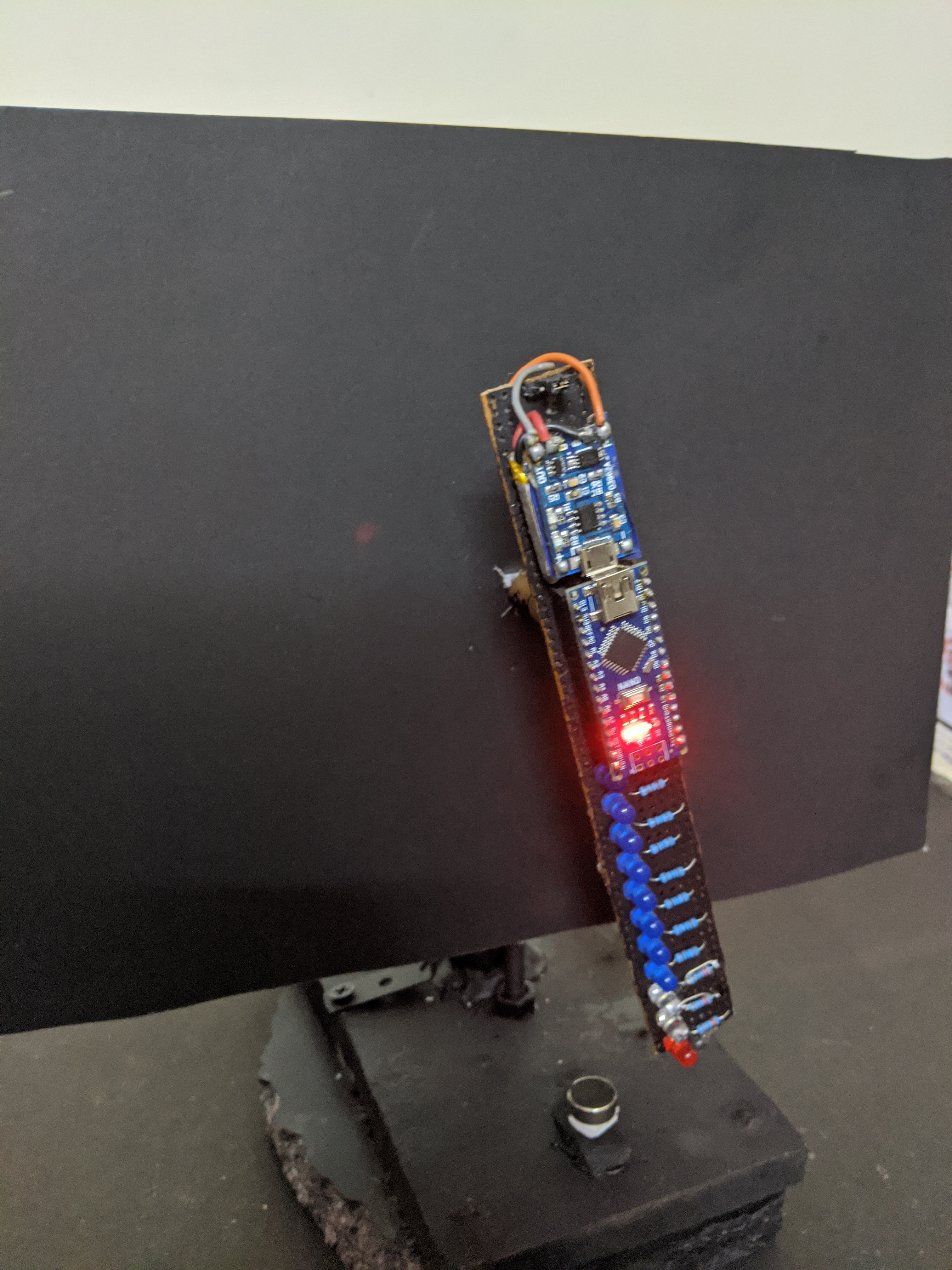

The Final PCB Should Somewhat Resemble As In The Aforementioned Picture, The Shaft Which Connects To the PCB can Be Connected Through the Rings Which Are Permanently Attached With The Help of Super Glue Or Araldite .

The Code Can Be Uploaded To The Arduino After Selecting The Arduino And The Port, The Code For Display Text Is Editable And Any Text Can Be Written/Uploaded To The Board. For The Purpose Of This Instructable I Have Uploaded The Text Instructables.

You did it! You just created your own POV Display!
