DIY PVC Speaker

Hi, yet another pvc project.

This time im with an cool pvc speaker .Recently i made an powerful 7.1 and there where lack of an center speaker

so i decided to make an center speaker with pvc's,

please go threw pictures and ask me if you have questions.

Here im using all 75mm(2.5 inch) pvc.

• length (for joining elbow to T)
• 2 - elbows
• 1 -T

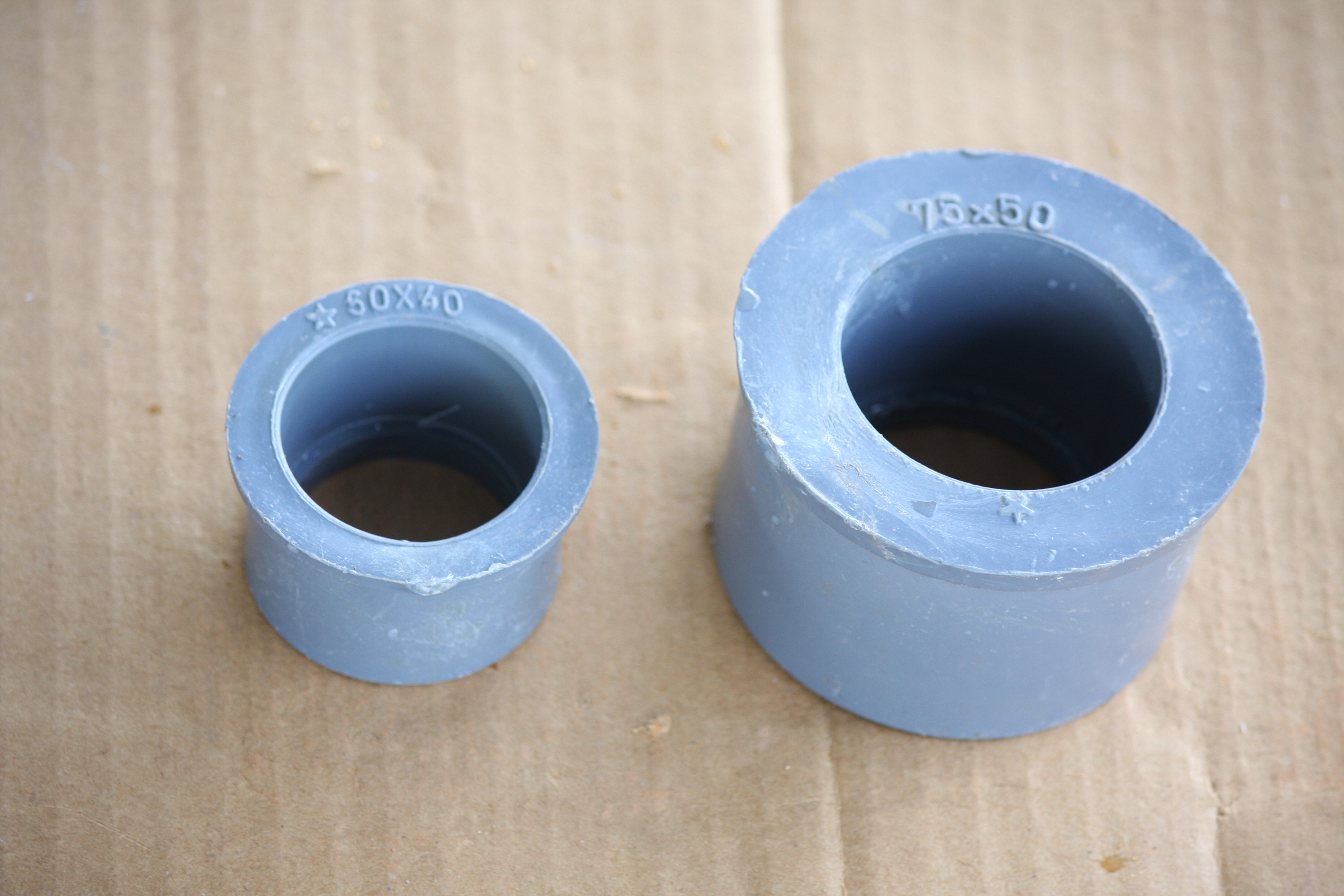

• Reducer
• 1 - Tweeter speakers

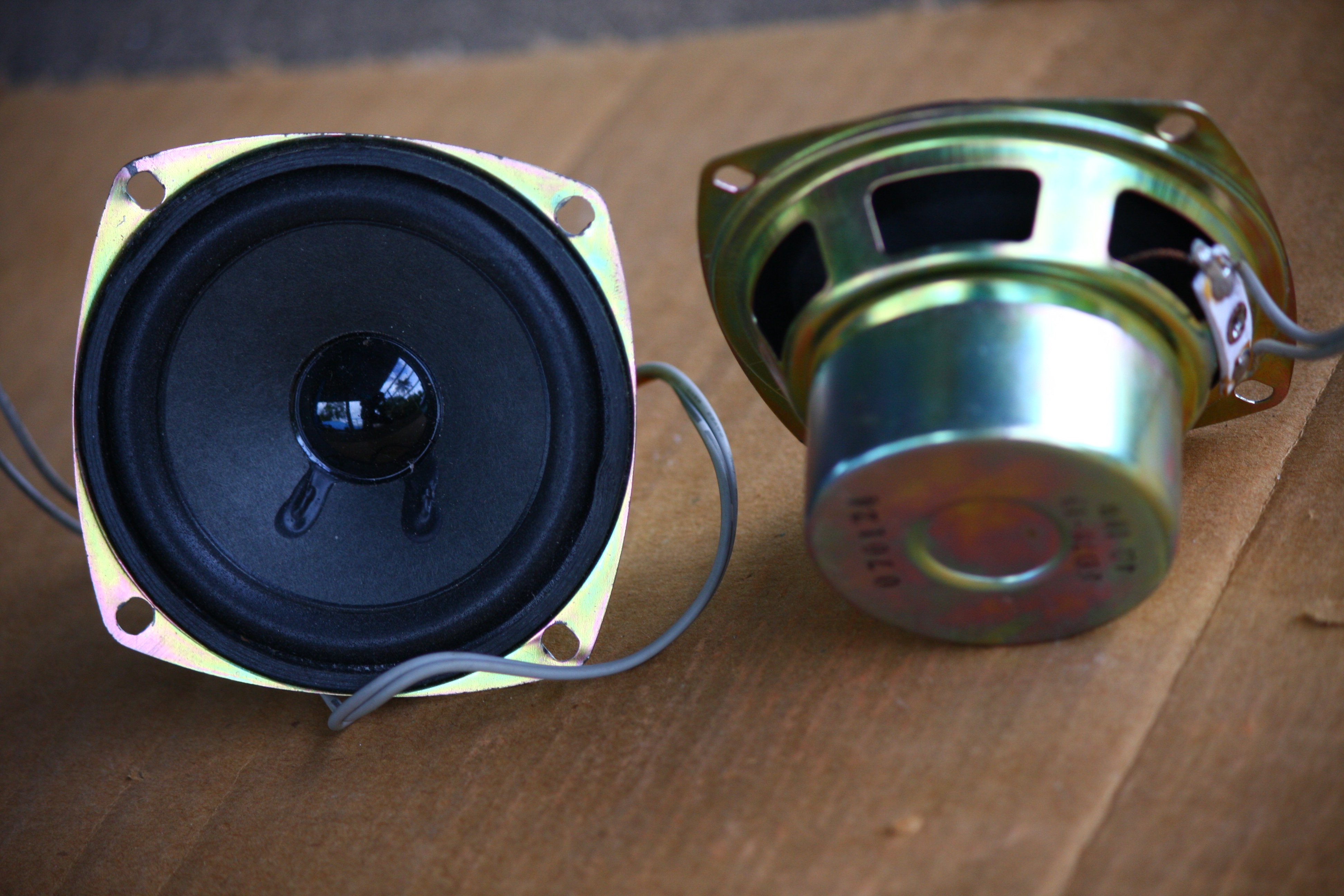

• 2 - Speakers (i used 10w)
• Any epoxy compound

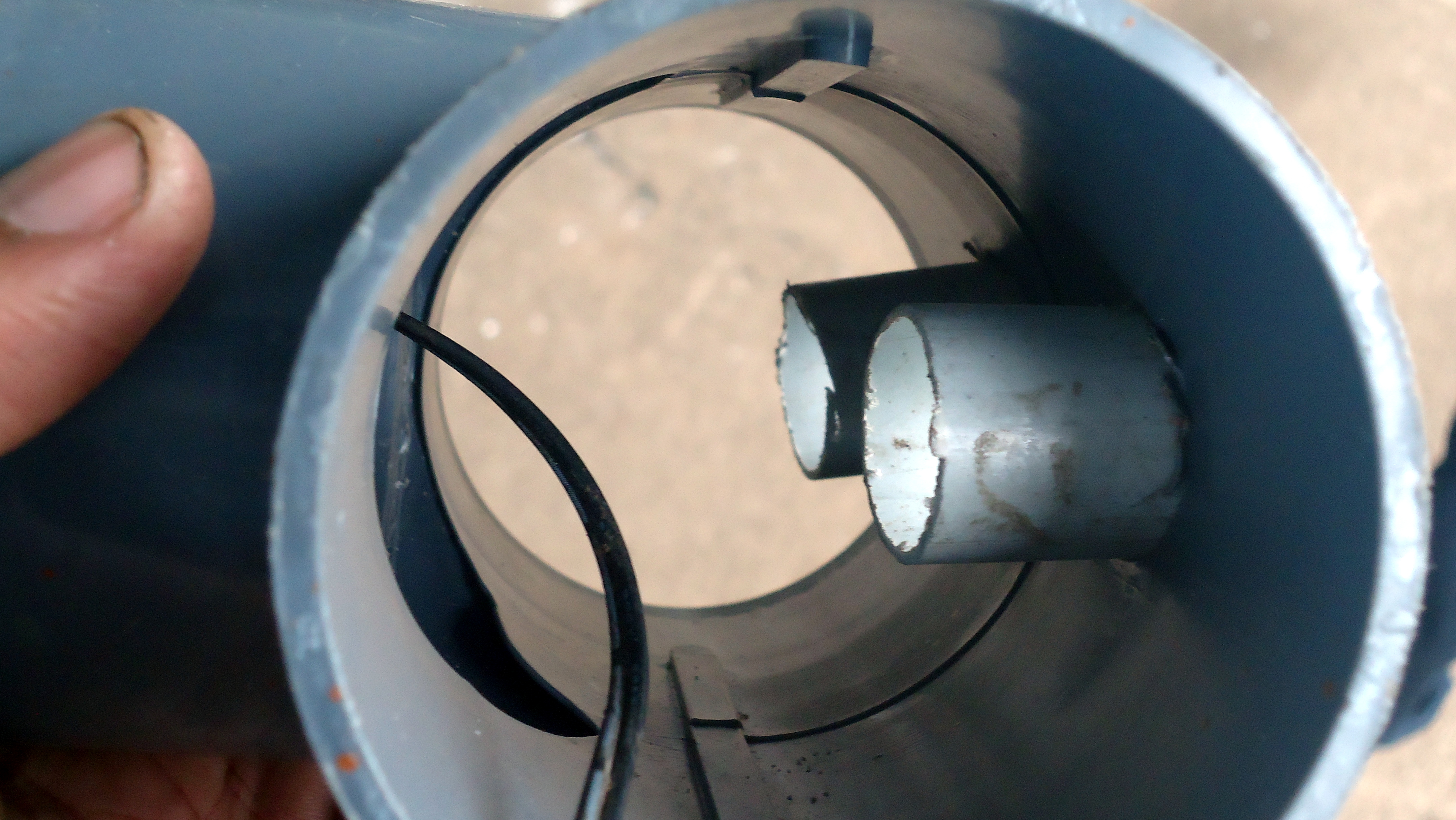

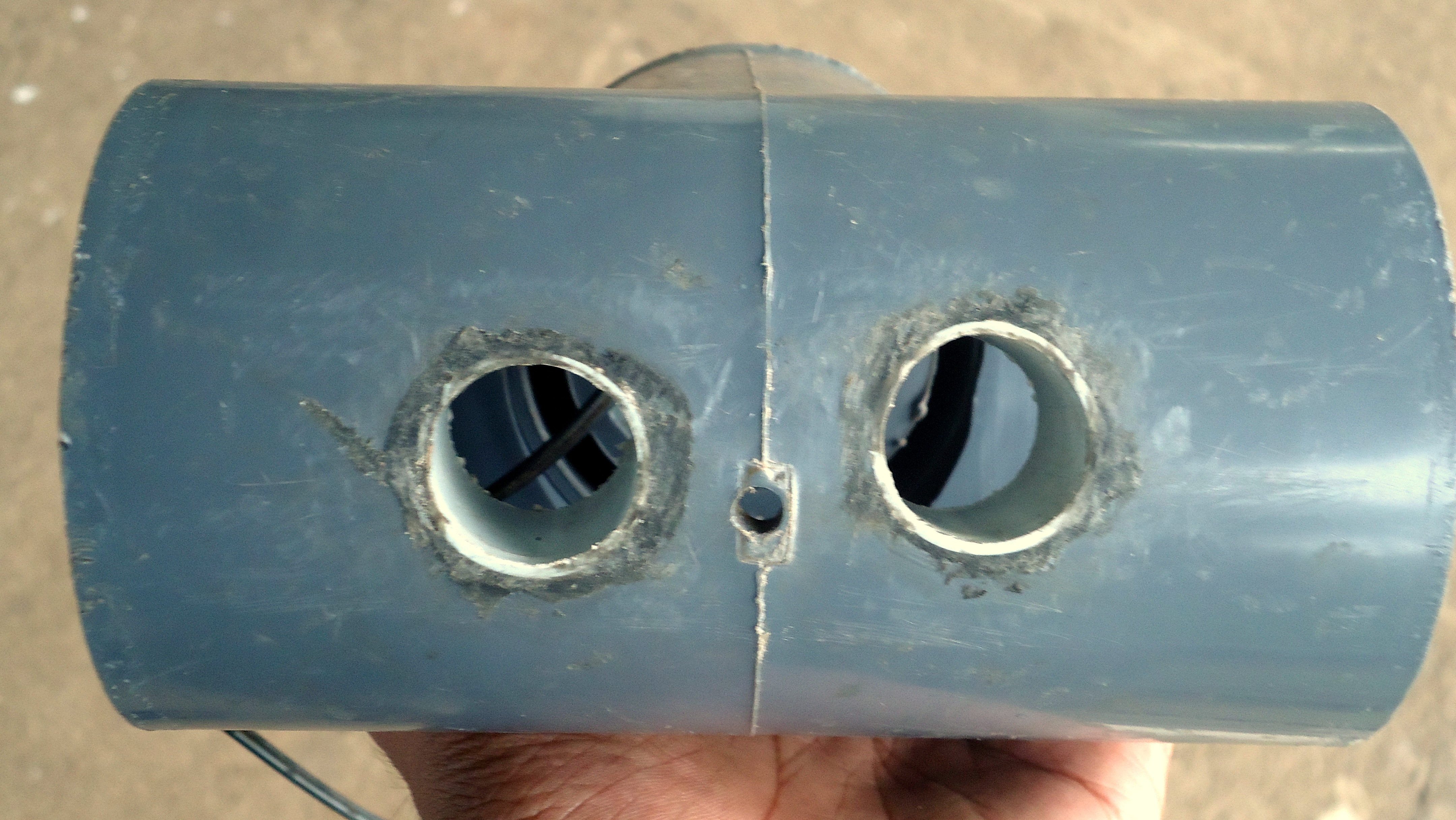

First make two holes for air vents and fix a small piece of pvc pipe this will results clean bass.

And make another small holes for speaker wire

Then glue speakers and seal the remaining gaps with epoxy

Do speaker connection ,(i made this speaker as center speaker for my home made 7.1 system so i connected those

3 speakers in parallel )

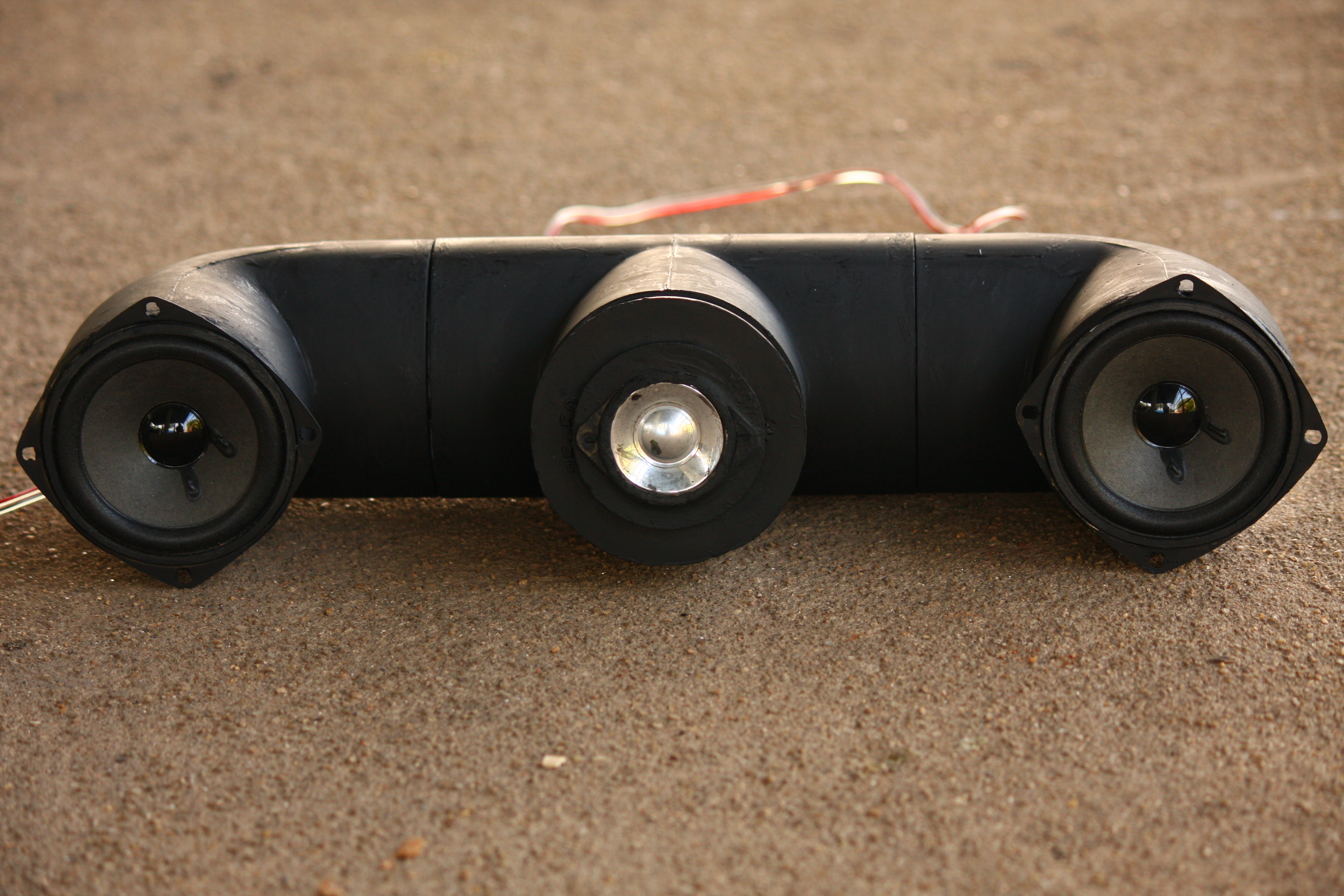

Then assemble everything together ,paint it it you want.

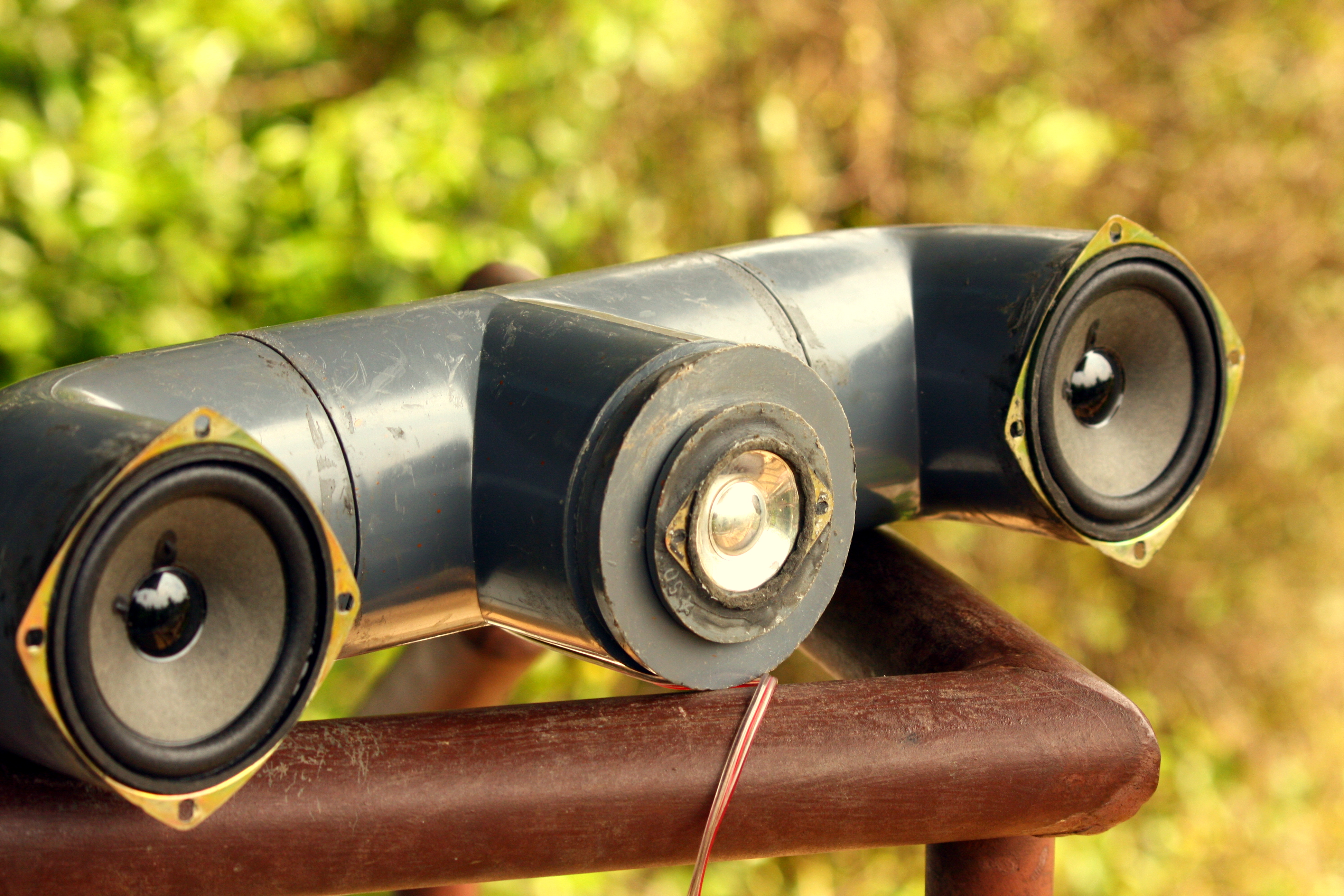

Seriously result is just amazing, sound is crystal clear "especially vocals " air vents on back are really working well

getting good mid volume thats good for center speakers.


So i started few more pvc speakers projects

TRY IT AND ENJOY!!
