DIY PCB Mini Drill Press

I had an old chinese sewing machine which is broken. I thought to make pcb mini drill press with it. I also placed LED's so as to use it in darkness also. It works with 12v DC. It can drill PCB as well as wood. It is very cheap and made with scrap material except motor.

• Old Sewing machine
• PCB drill motor http://www.banggood.com/12V-Small-PCB-Drill-Press-Drilling-With-1mm-Drill-p-929516.html?rmmds=myorder
• LED strip

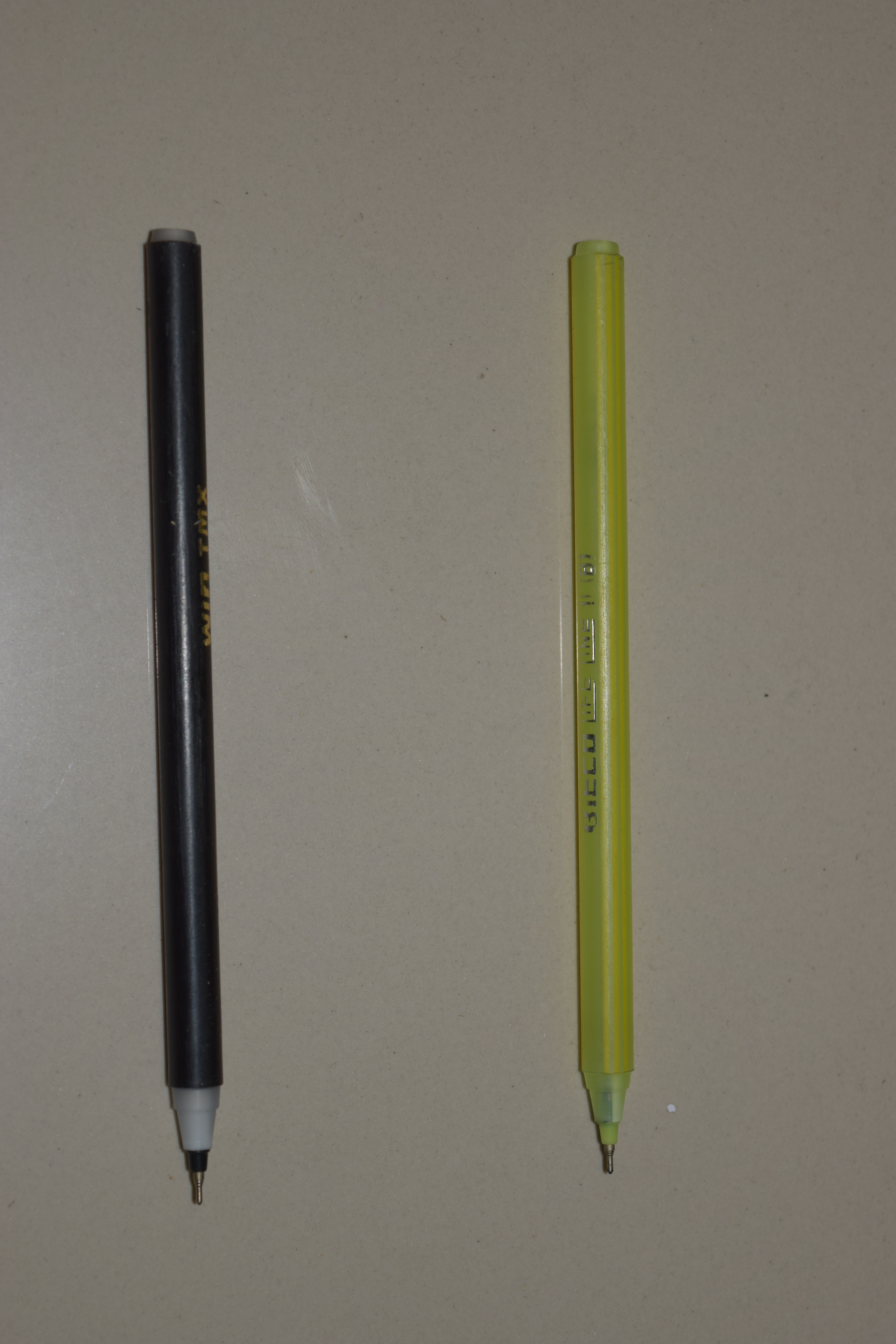

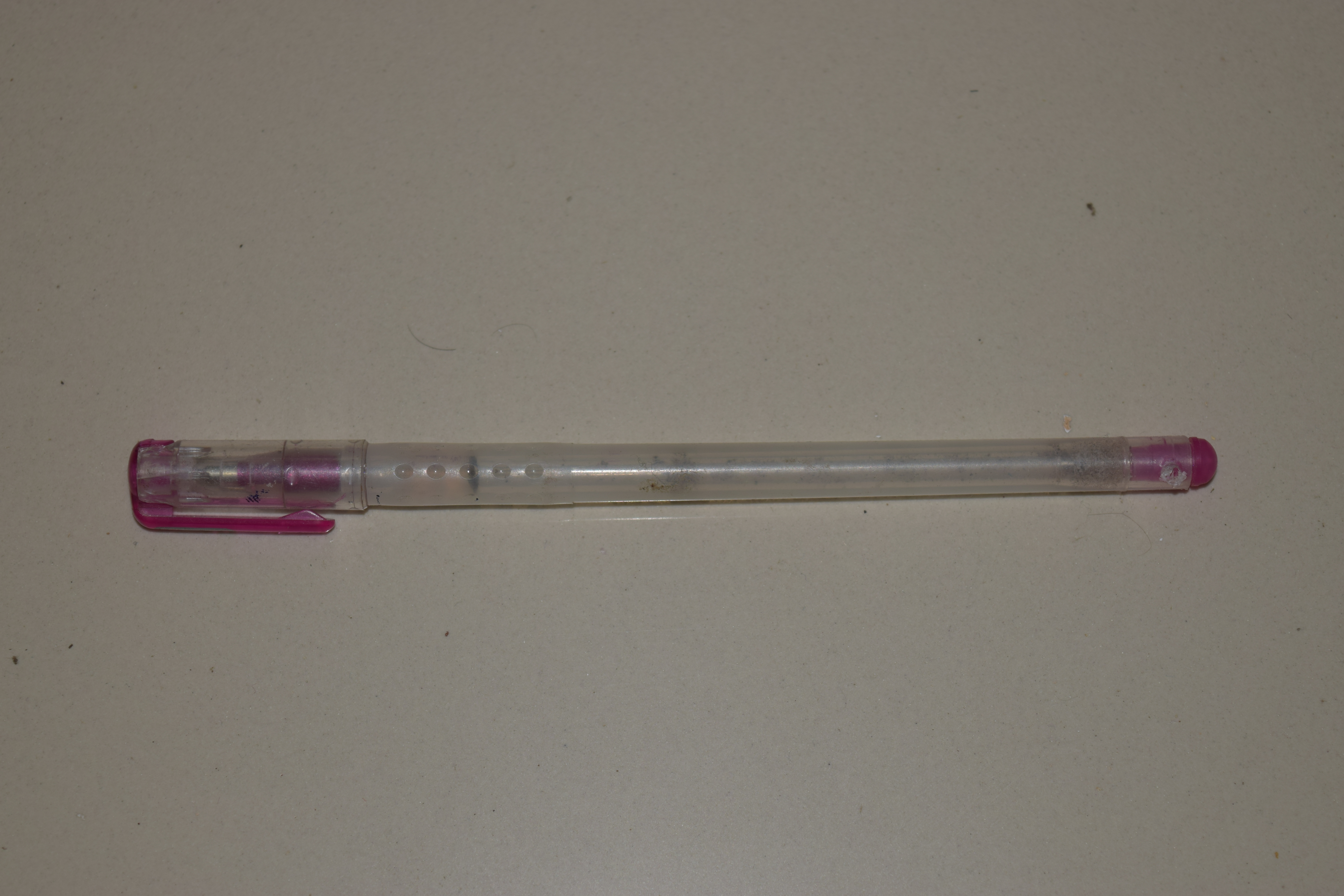

• Old pens
• Pen caps

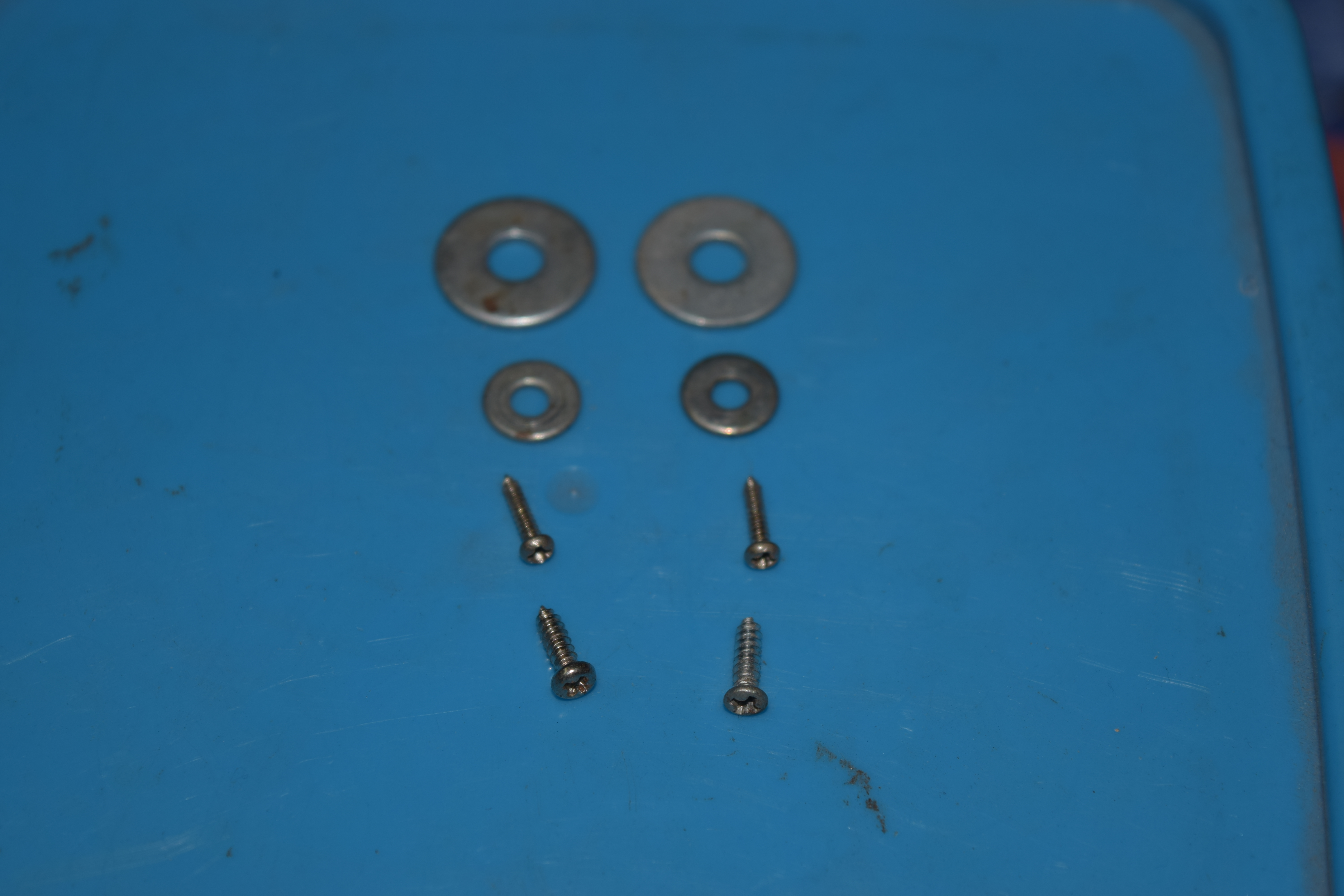

• Washers, Screws
• Hot glue
• Wire
• 6MM MDF
• Binding wire

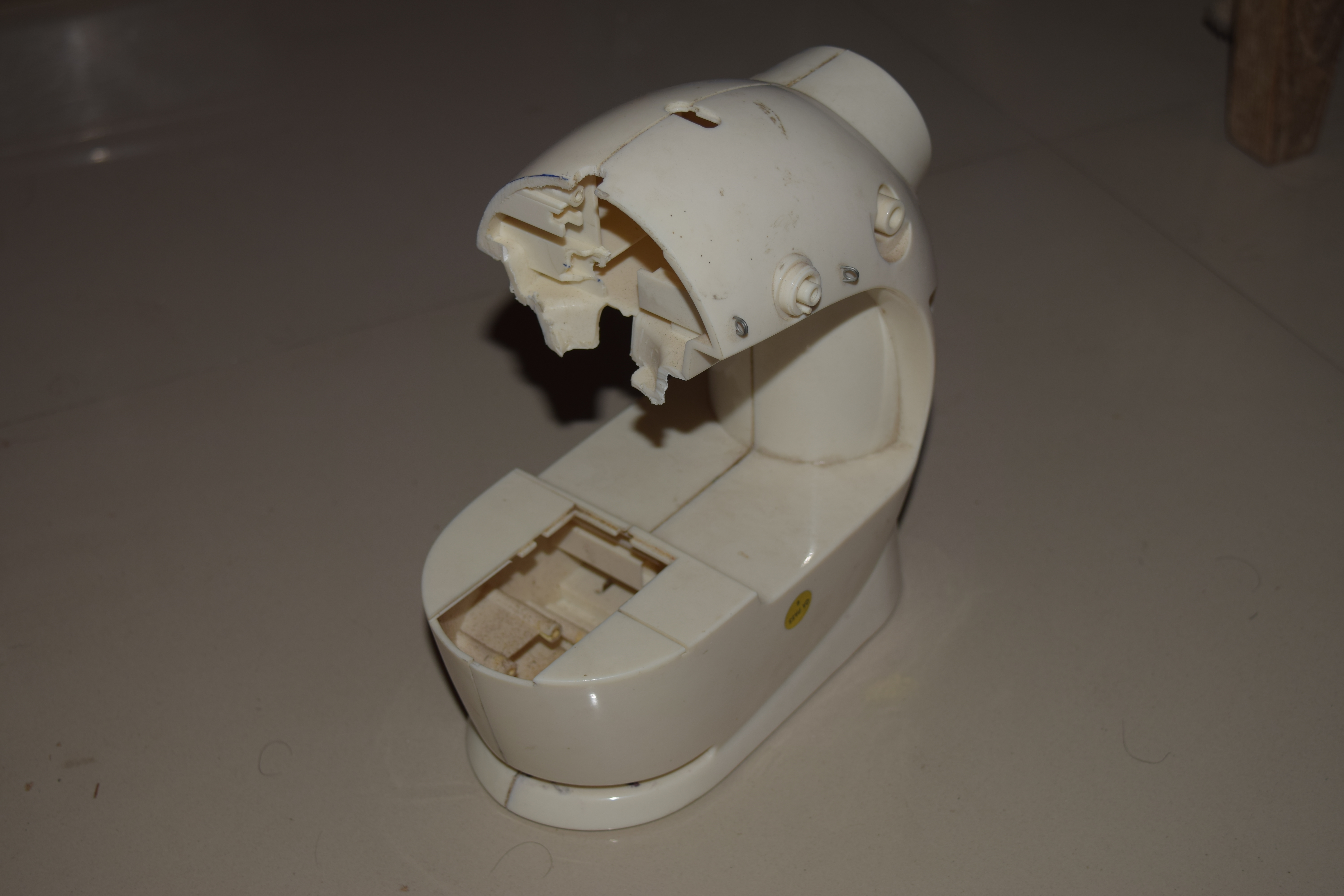

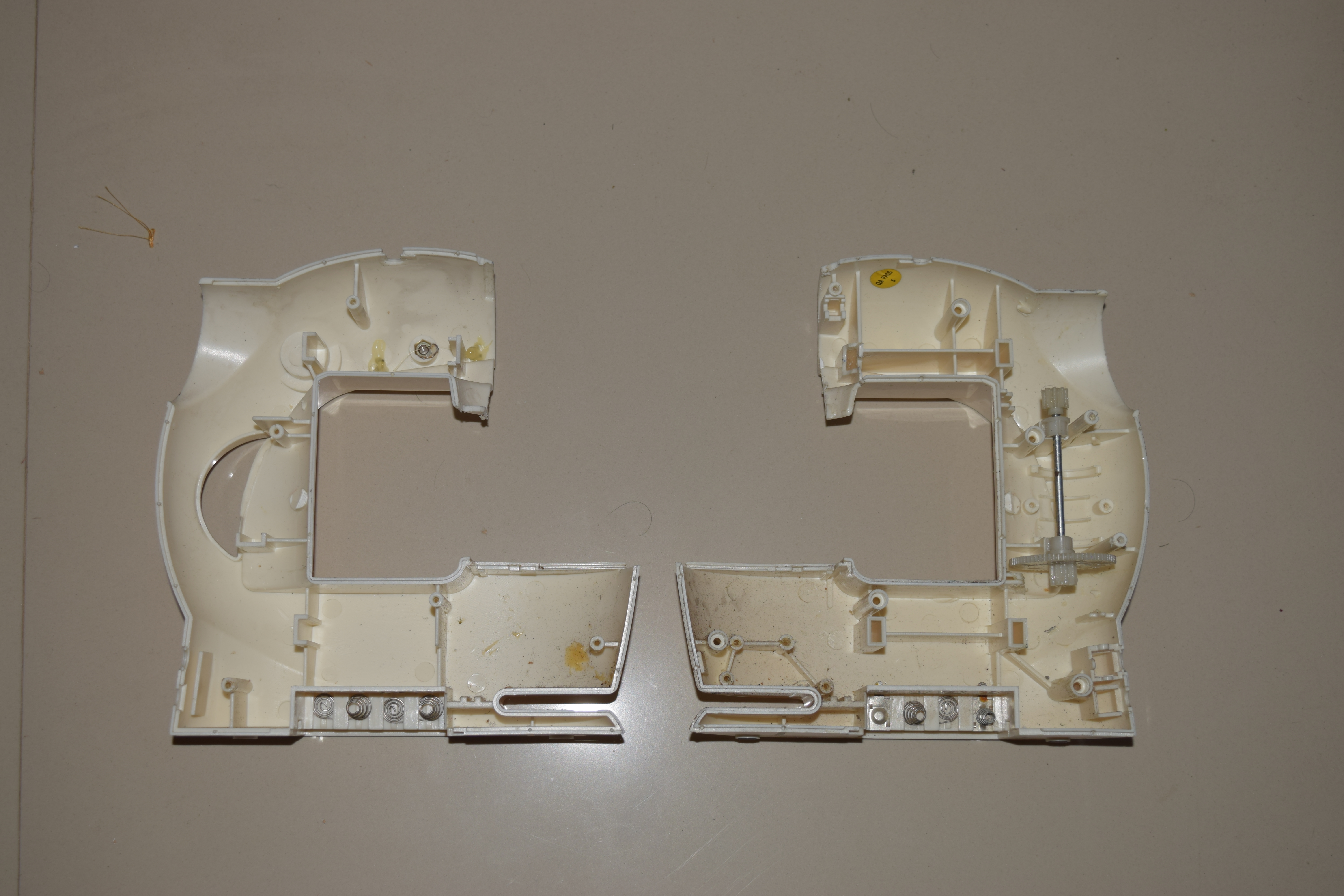

• Disassemble sewing machine and remove all the internal parts except switches and DC jack.
• Cut the front portion as shown in picture.

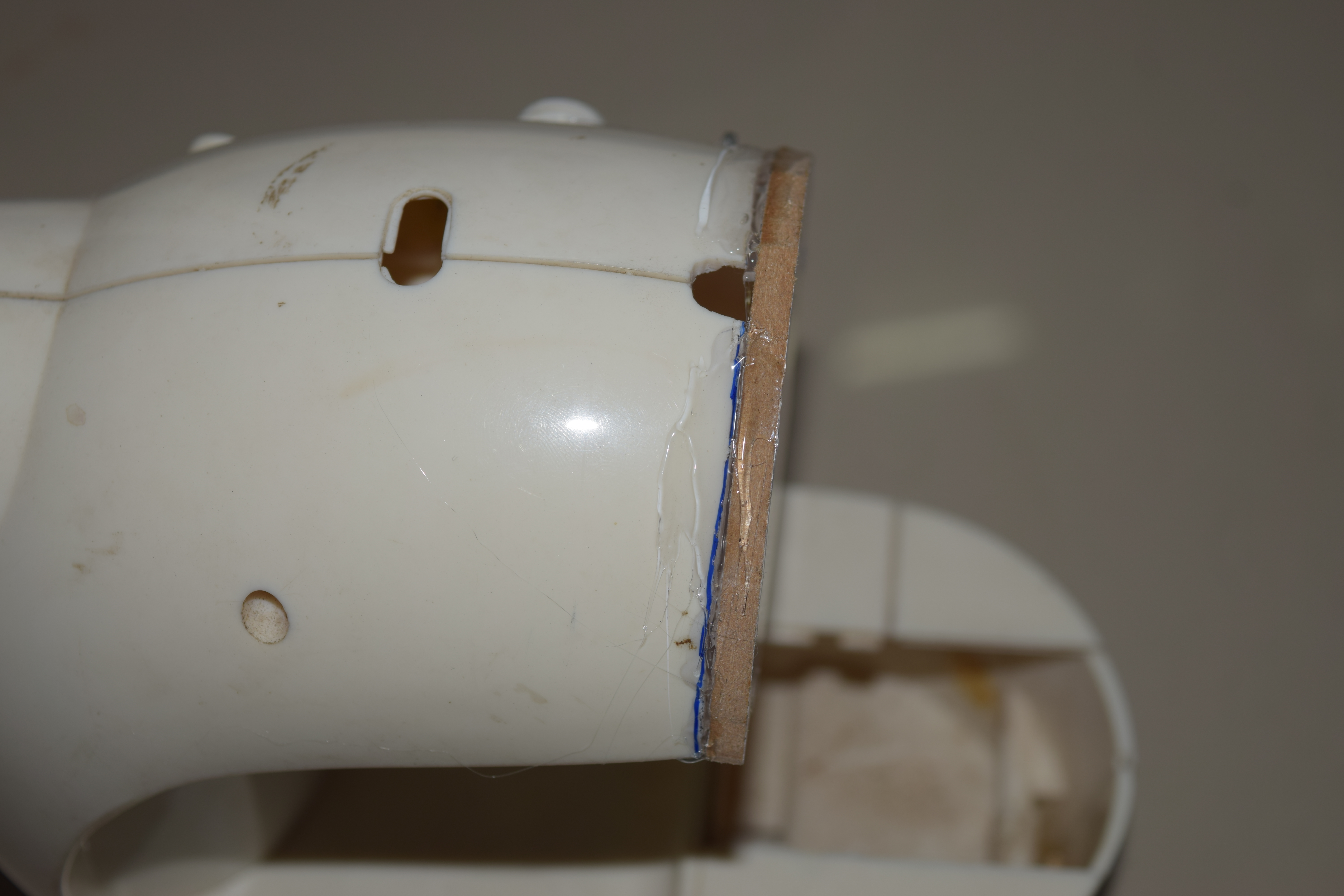

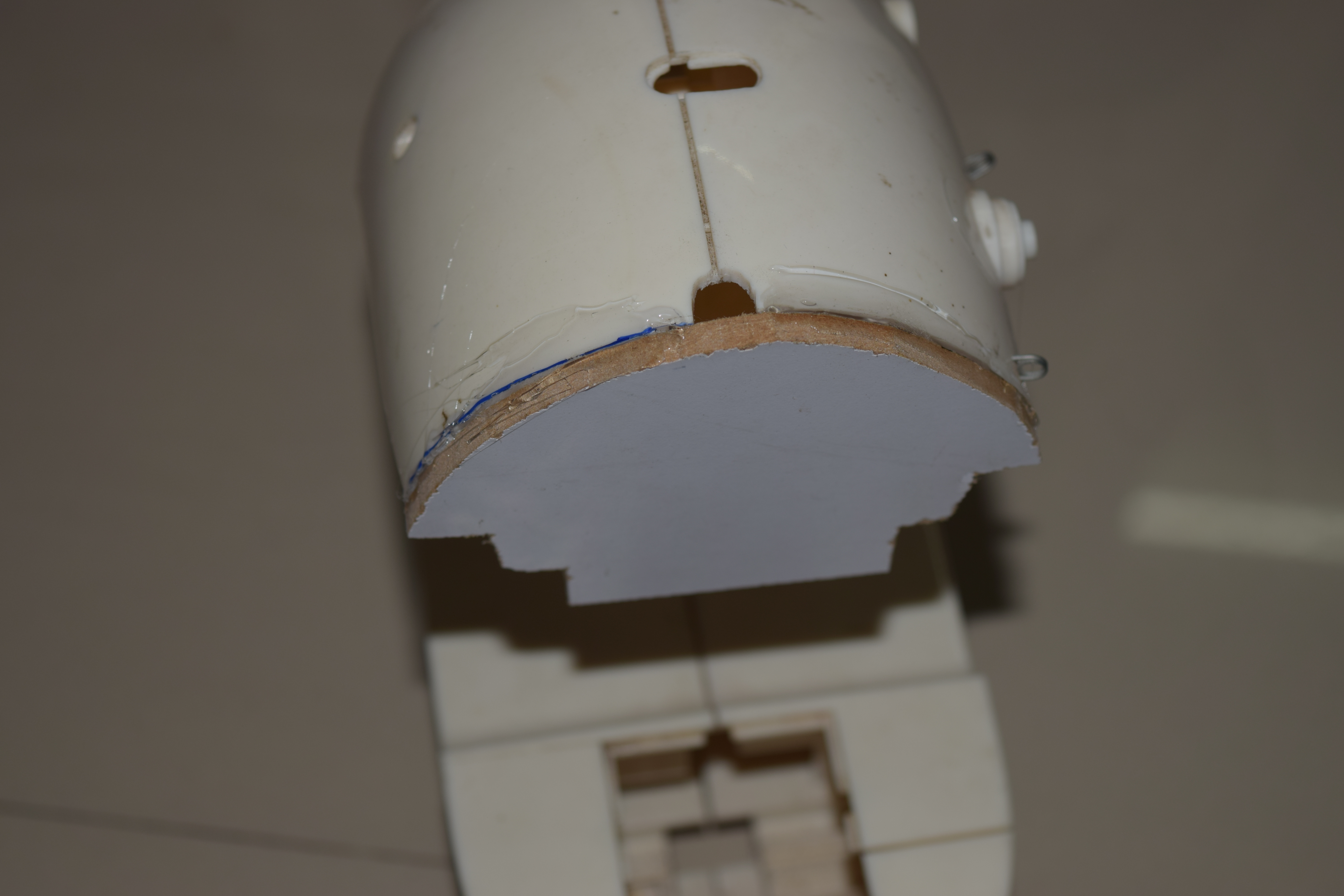

Cut 6MM MDF and hot glue it to the sewing machine as shown.

• Cut the caps on one side so that pen can slide easily.
• Attach pen caps to the motor base plate with hot glue.

• Wind binding wire across a bold pen and make 2 springs.

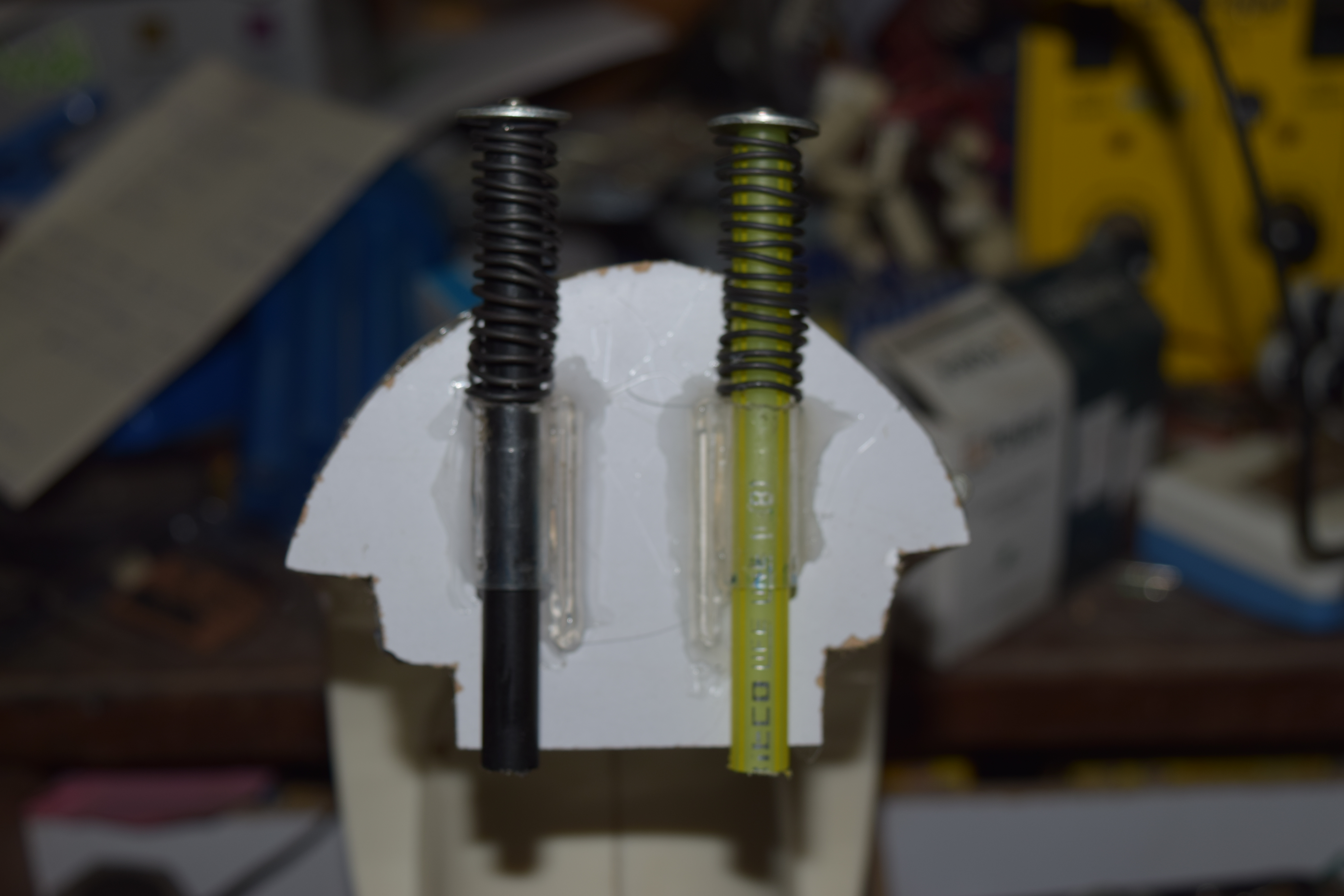

• Screw washers to one end of the pens and insert spring as shown in pictures.

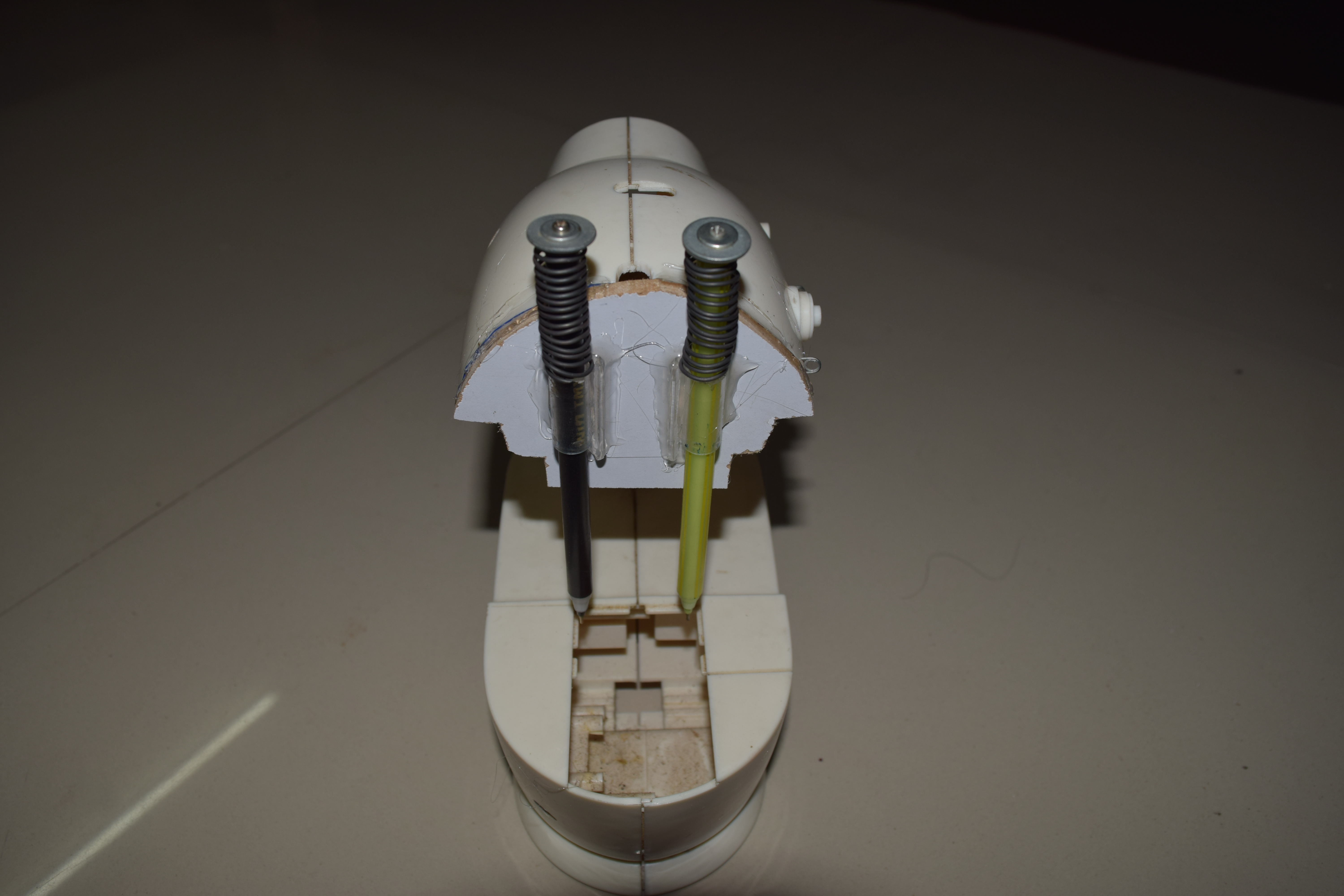

• Insert the pens to caps and check for free sliding.
• Trim the pens to desired length.

Glue a plastic sheet.

• Drill holes to the MDF and tie motor with zip tie.
• Apply hot glue.

• Screw the motor to pen's as mentioned earlier.
• Apply hot glue.

• Drill a hole to one end of the pen so that we can fix the pen to base plate.

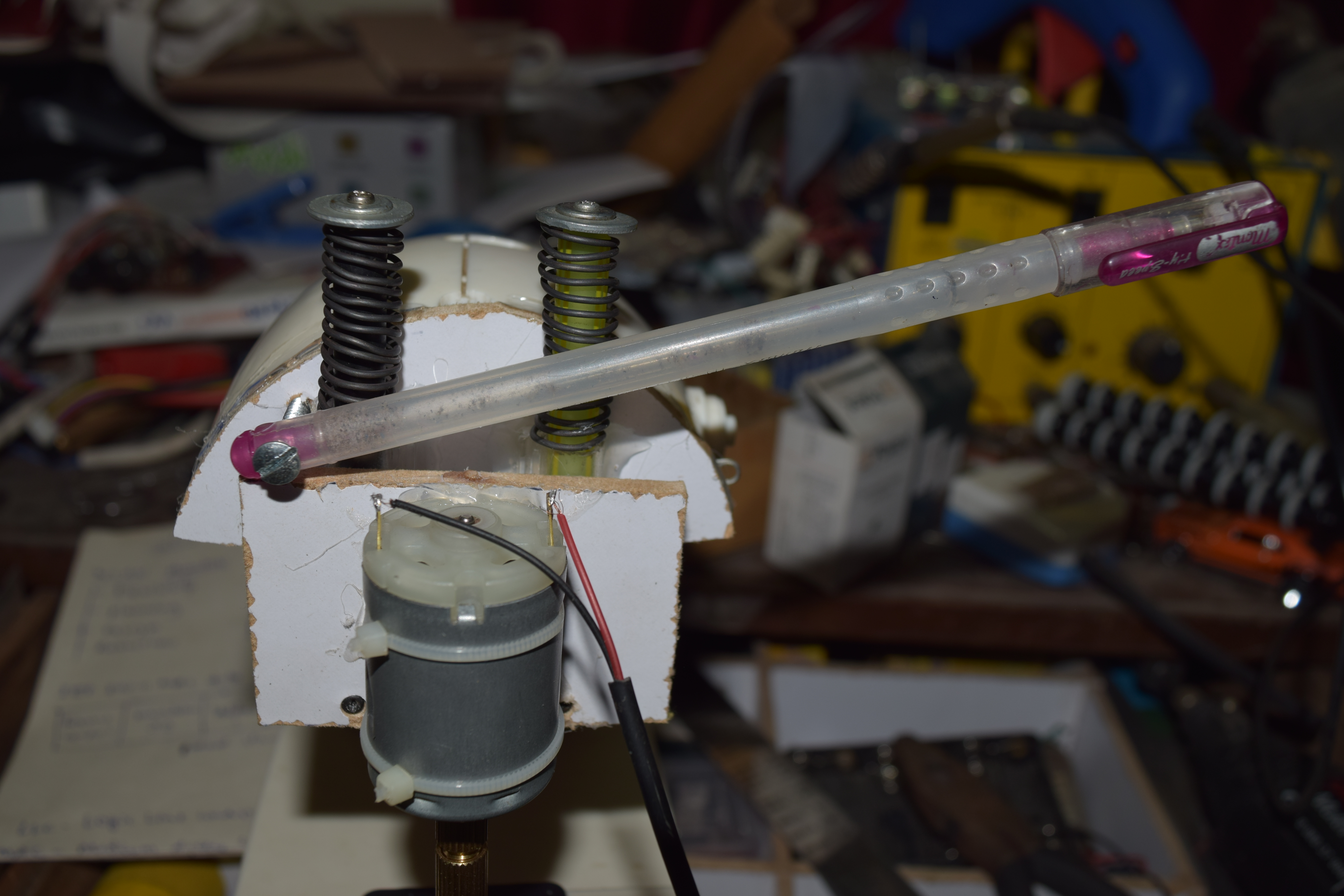

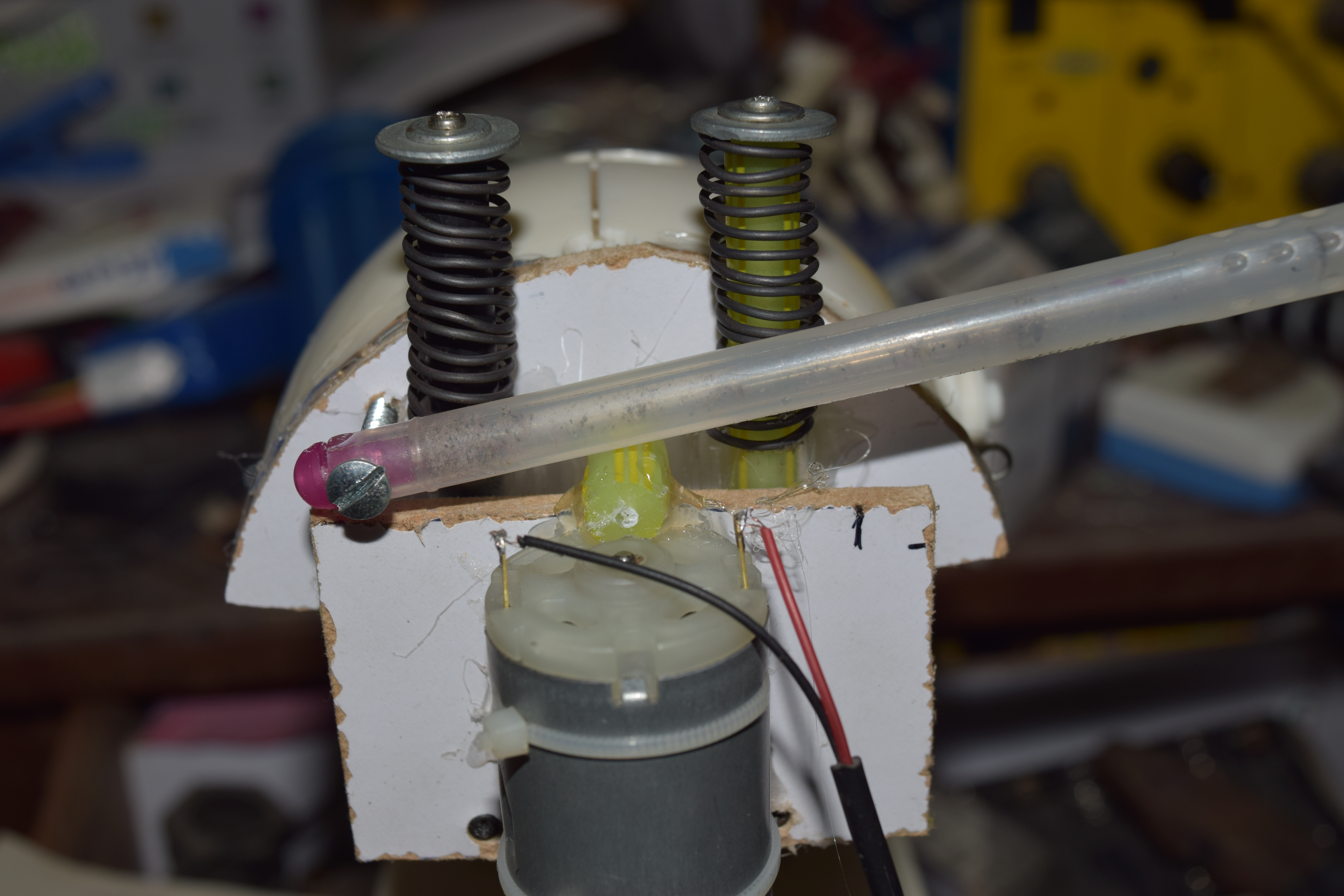

• Fix the pen to MDF so that when we press the handle, motor should move downwards.
• Fix a plastic piece at the center as shown in picture.

Take LED strip and attach beneath the motor as shown.

Wire the motor and LED's through switches.

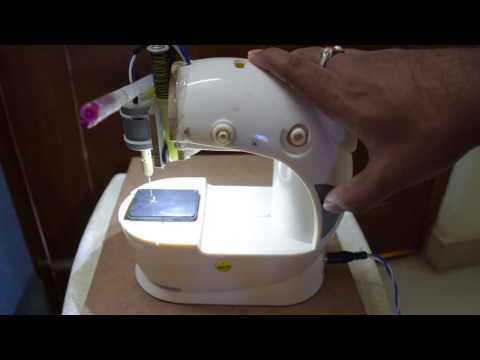

Our pcb mini drill press is ready to use. Power it with 12v Battery.

Make it, Use it, Enjoy.
