DIY PCB Making for RGB LED

I made DIY PCB at home for RGB LED. Please Watch this video for Better Explanation.
PCB Layout

I printed PCB layout on Photo Paper using Laser Printer. (Laser Printer Must)
PCB Layout For RGB Controller http://bit.ly/2X0Dk43
Copper Clad Board

I used 12" x 12" copper clad Board
Placing

Cutting PCB Layout and Copper clad board

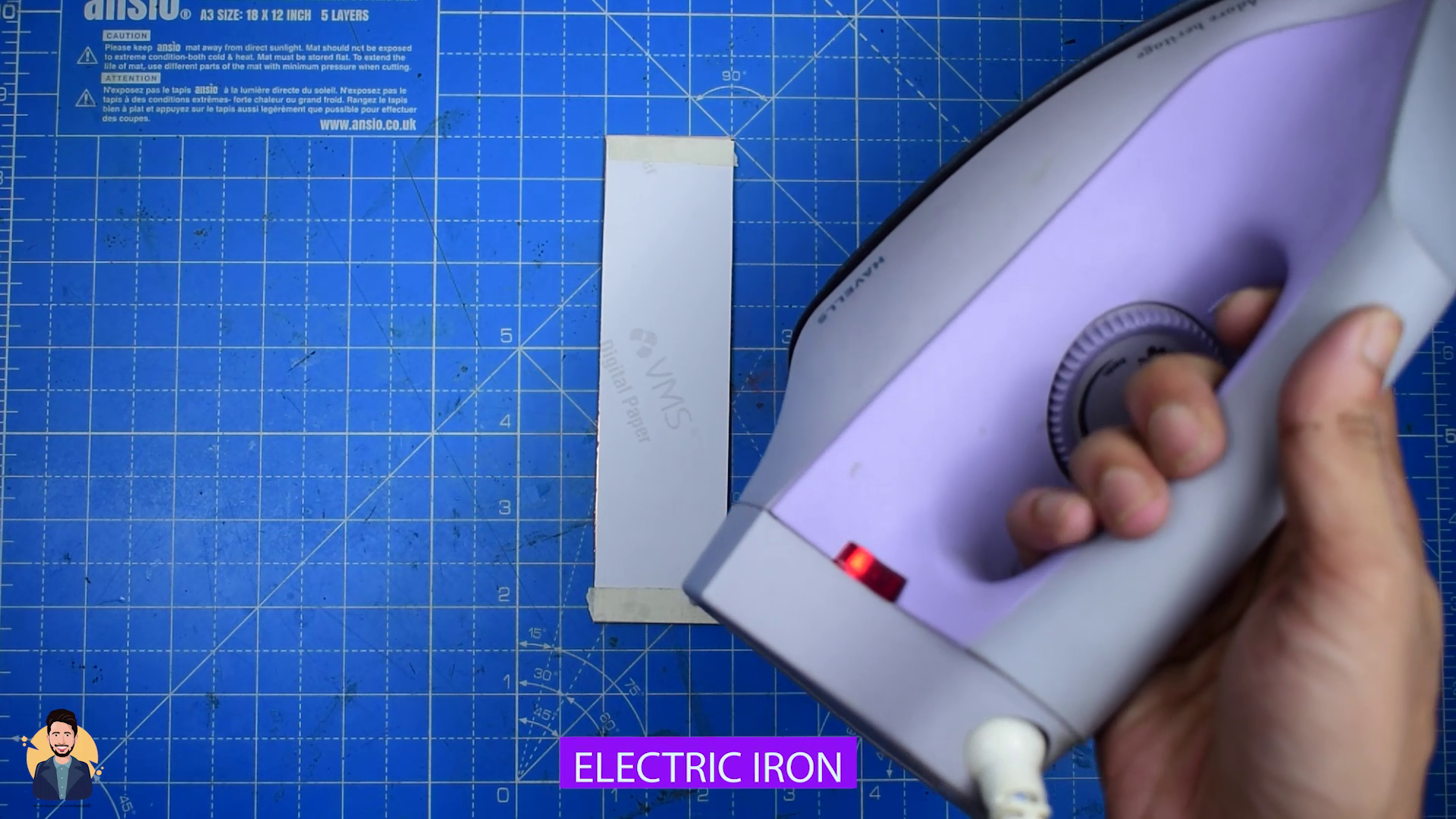

Electric Iron

For Ink Impression i used Electric Iron
Pressing

I pressed Iron For 5 to 6 minutes

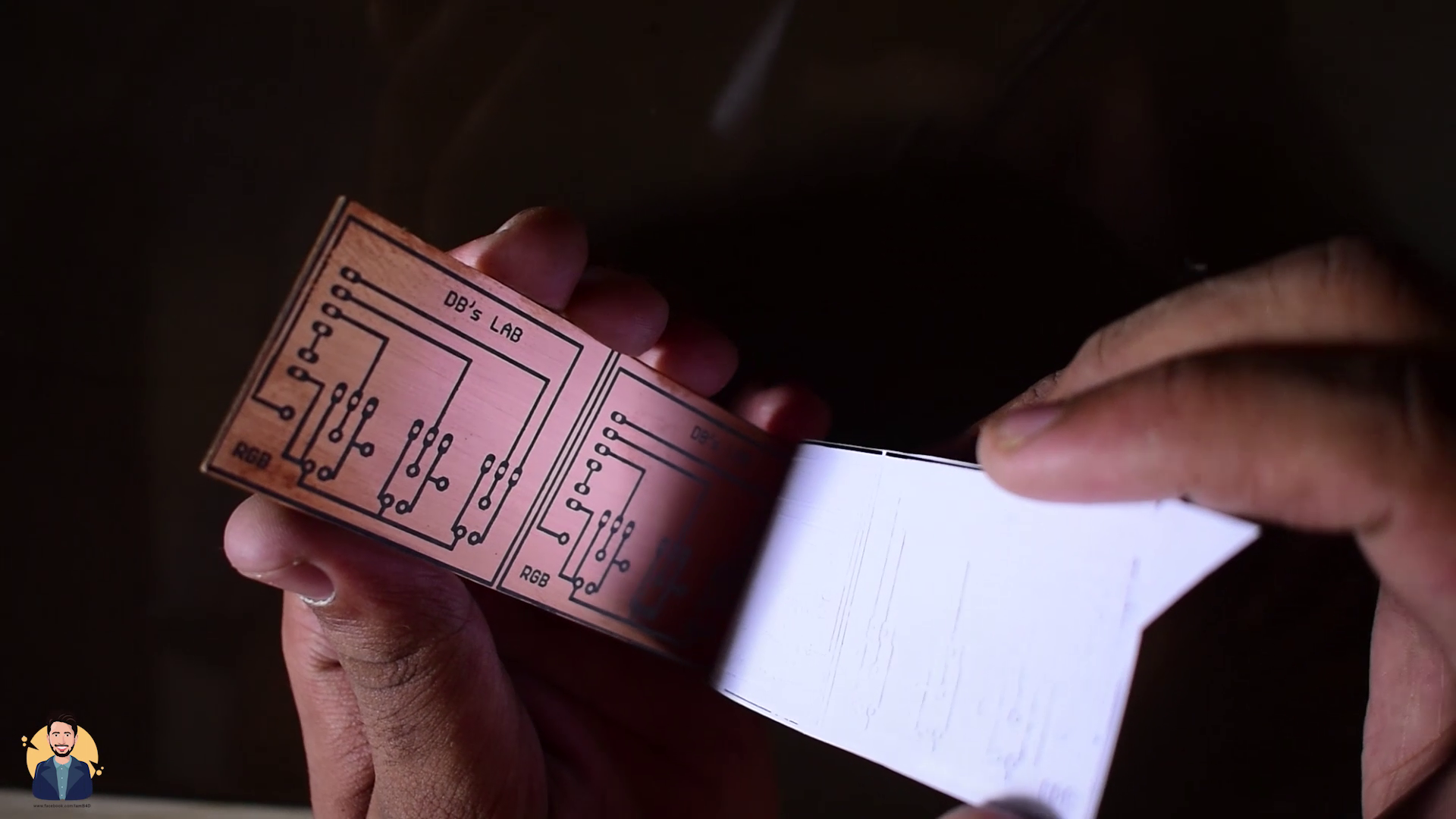

Removing Photopaper

After Pressing Done Remove Photopaper from copper Board very slowly.
Etching Solution

I made Etching solution by FeCl3 Powder and Water.
Reaction

Sink the board into Etching Solution for 15 minutes.
Washing

After removing Extra copper, wash the board with fresh water.
Fresh PCB

After Cleaning PCB, My pcb looks like this.
Drilling

Drilling for components as marked.
Components



Components:
IRFZ44N Mosfet x3
2.2uf 63v Capacitor x3
1M Resistor x3
Soldering


Solder Components as Showing.
Female Header

Adding Female Header For RGB Strips Power Out.

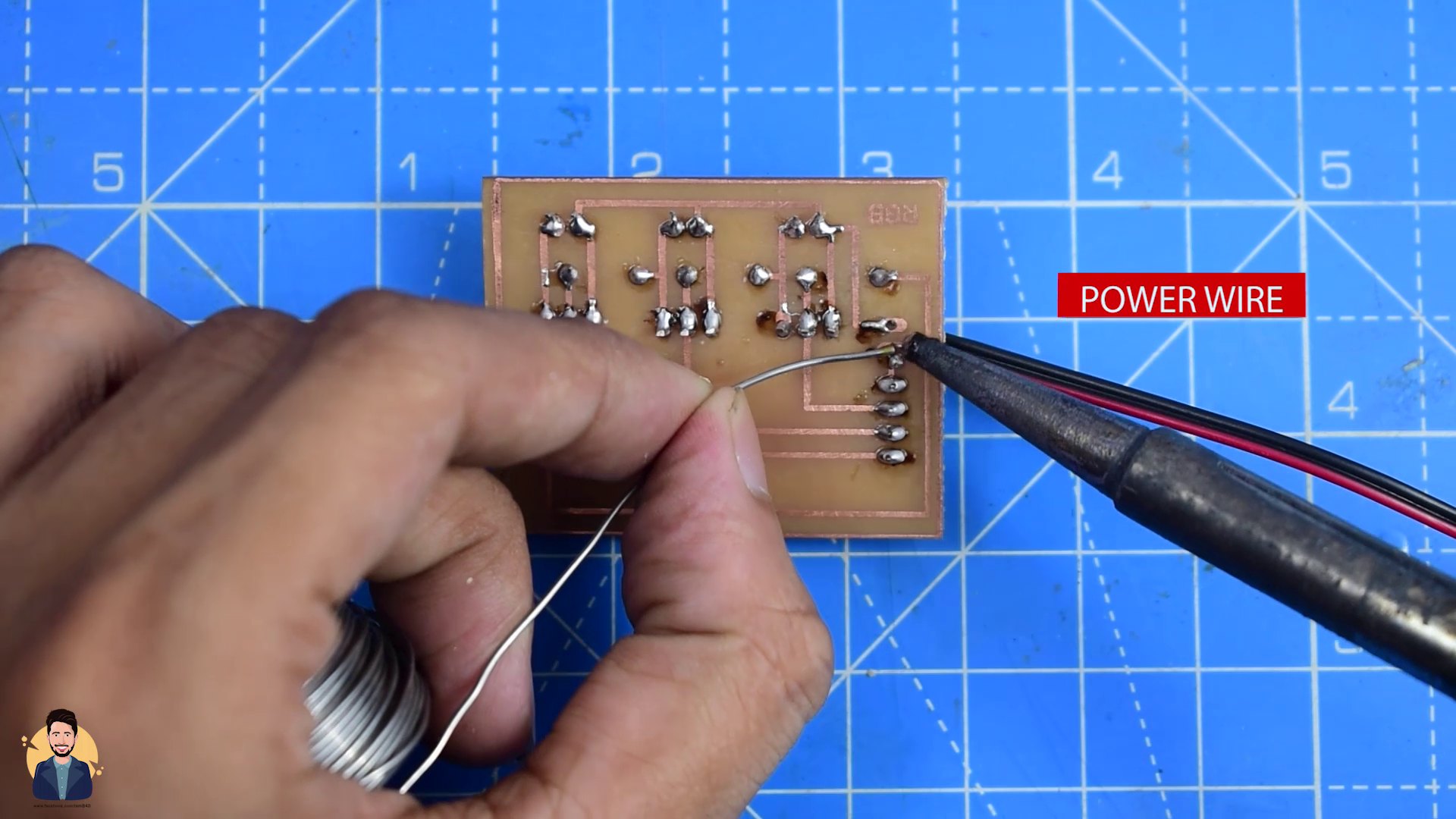

Power Wire


Solder Power Wire as Showing (12V power Supply)
Power the Circuit

Lets Power up the circuit with 12v power supply. and Plug RGB strips in the Female Header
Light



Done.
RGB Circuit Runs Good.
