DIY Over Current Protection(Protect Your Sensitive Circuits)

Hyy Friends most of our electronics circuits fail to work and draws more current from power supply/Battery and burns due to high current flow, Today we make a over current protection circuit to protect our test circuit.

Watch Video For more info

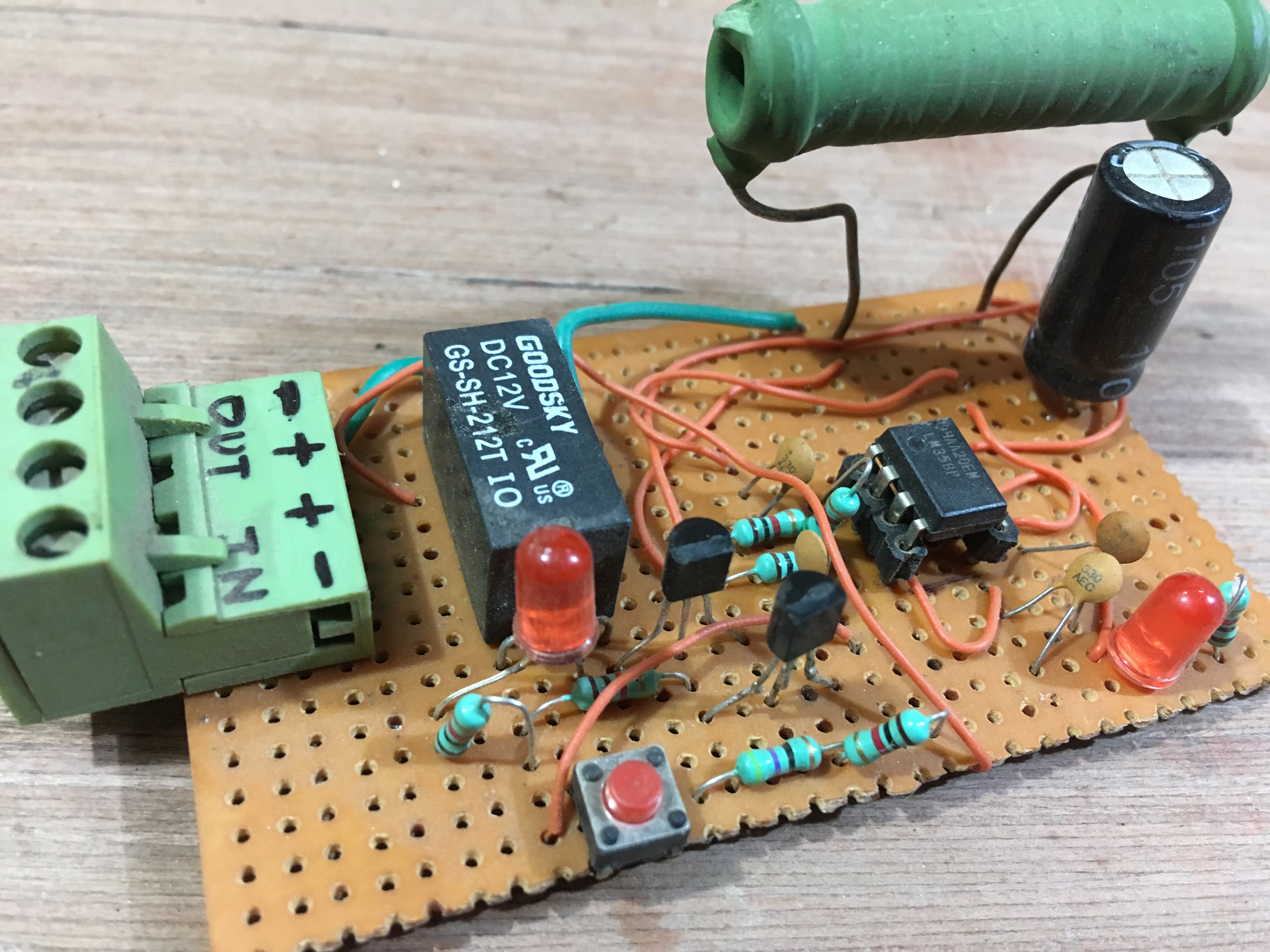

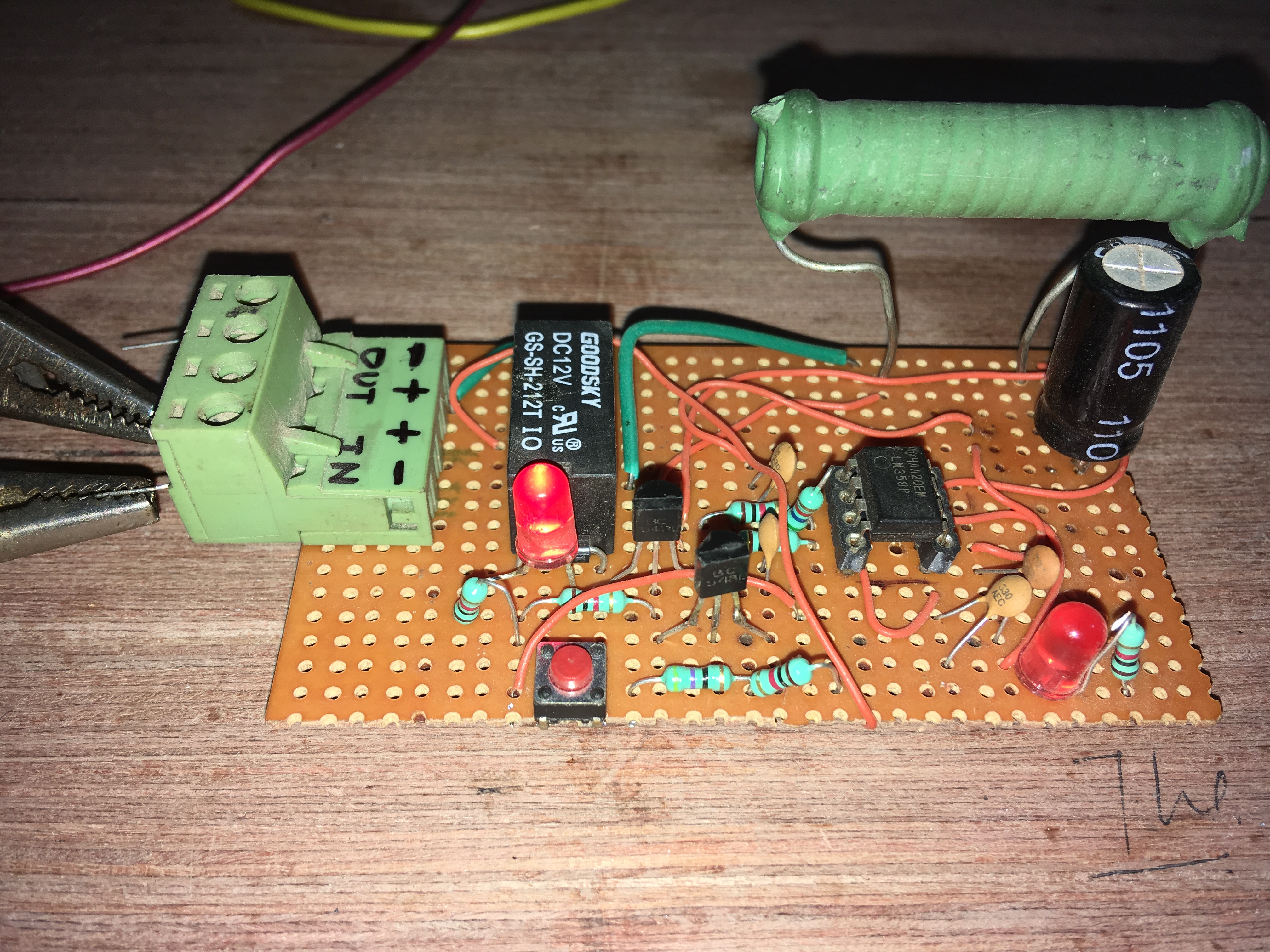

Assemble all components according to circuit diagram.

1. 1x LM358 Duel Channel Op-Amp

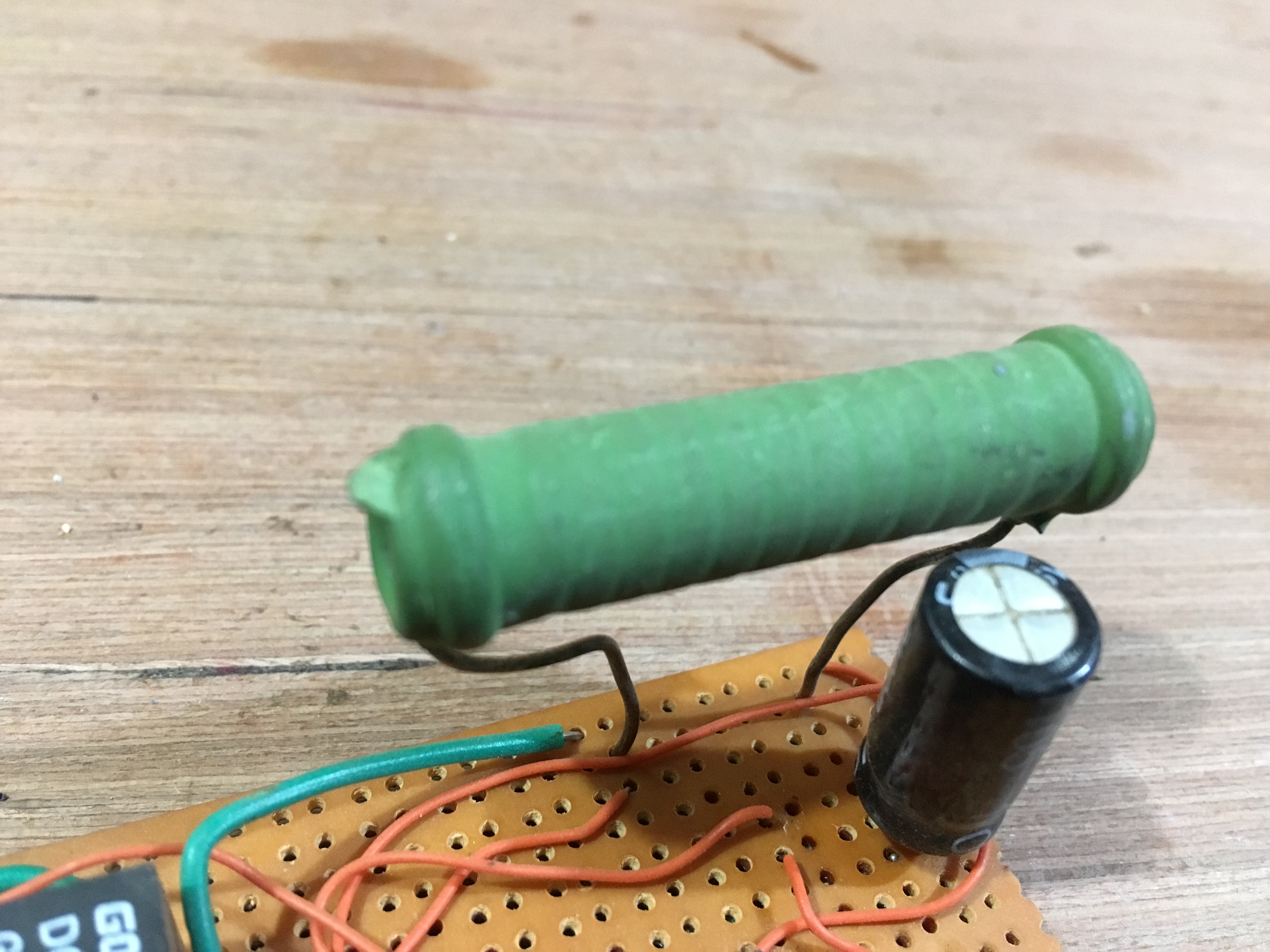

2. 0.5 Ohm 10 Watt Resistor.
3. DPDT Relay
4. Red LED (5mm)
5. 2x 20 K Ohm Resistor
6. 6x 1 K Ohm Resistor.
7. 10 K Ohm - 100 K Ohm Pot.
8. 1N 4148 Diode.
9. 2x BC547
10. Tectile Switch

Enjoy Your Build.

Thank You
