DIY Obstacle Avoidance and Ranging Robot for Arduino

I.Brief introduction

II.Parameter

III.Experiment course introduction

IV.Listing

V.Install instruction

VI.Experiment in detail

1>.L298N motor driver module

2>.Tracking smart car

3>.Ultrasonic obstacle avoidance intelligent car

4>.Infrared remote control of intelligent car

5>.Mobile phone bluetooth intelligent car

6>.Multi_Function

Obstacle Avoidance And Ranging Robot For Arduino is a MCU learning application development system regarding The arduino microcontroller series Atmega-328 as the core. This kits include finish tracking,obstacle avoidance,infrared remote and bluetooth function as long as a large of interesting code and extensible external circuit module in order to increase more function.

1.Motor parameter: Voltage:1.5V-12V.
Motor axial length:10mm. Rotate speed:100rpm/min(6V).

2.L298N driver motor ,solate form MCU;

3.Three channels tracking module,check black and white wire;

4.Infrared remote control communication module,consist of remote system of smart car;

5.Ultrasonic module is used in obstacle avoidance;

6.Bluetooth wireless module,it can remote control smart car with mobile phone;

7.It can be connect to 7V-12V power,can connect to more sensors as you can imagine.

1.Application of L298N motor driver module;
2.Tracking smart car;

3.Ultrasonic obstacle avoidance smart car;

4.Infrared remote control smart car;

5.Arduino bluetooth programmable smart car;

6.Four functions in one code multifunction code.

1.Metal gear motor x2
2.Wheel x2

3.Motor fixed part x2

4.Universal wheel x1

5.Chassis x2

6.L298N motor driver module x1

7.Arduino UNO controller x1

8.Arduino sensor shield x1

9.PTZ x1

10.Servo motor x1

11.Ultrasonic module x1

12.Three channels tracking module x1

13.Infrared receive sensor x1

14.Remote control x1

15.2000MA 18650 battery x2

16.18650 battery box x1

17.18650 battery charger x1

18.Dupont line 1P x40

19.M3*35mm copper cylinder x4

20.M3*10mm copper cylinder x2

21.M3 screw and nut severals

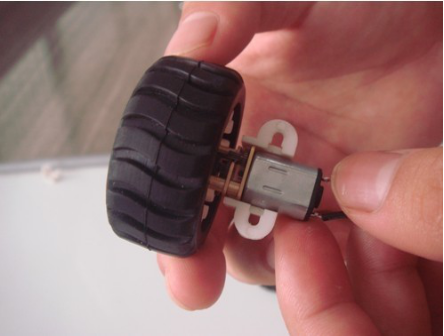

Step 1: connect gear motor and wheel.

Step 2: install motor fixed parts.

Step 3: install motor to chassis.

Step 4: fixed motor with nuts and screws.

Step 5: repeat steps above ,install another wheel and motor.

Step 6: prepare universal wheel.

Step 7: fixed universal wheel.

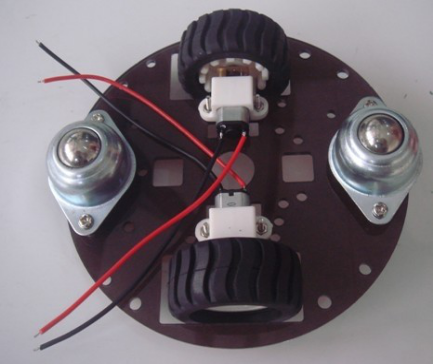

Step 8: repeat steps above ,install another universal wheel.

Step 9: install three channels tracking module.

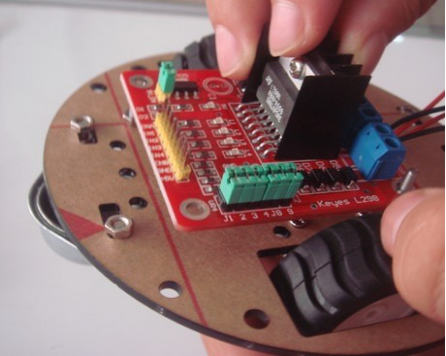

Step 10: install L298N module.

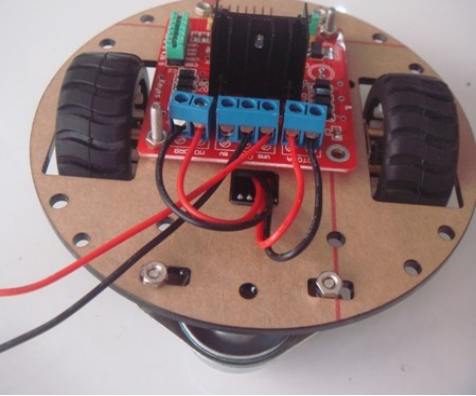

Step 11:connect right wire of motor and battery box.The positive pole of battery box connect to VMS of L298N module.The negative pole of battery box connect to GND of L298N module.

Step 12:install 18650 battery box with screw.

Step 13:install four M3*35mm copper cylinders for second chassis.

Step 14:install chassis.

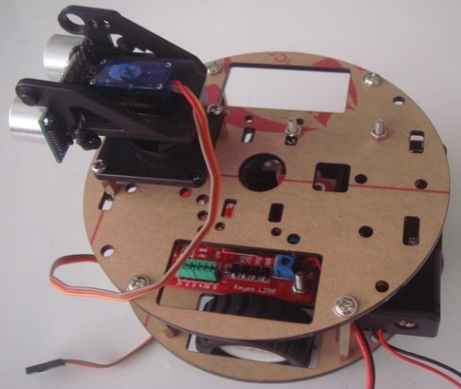

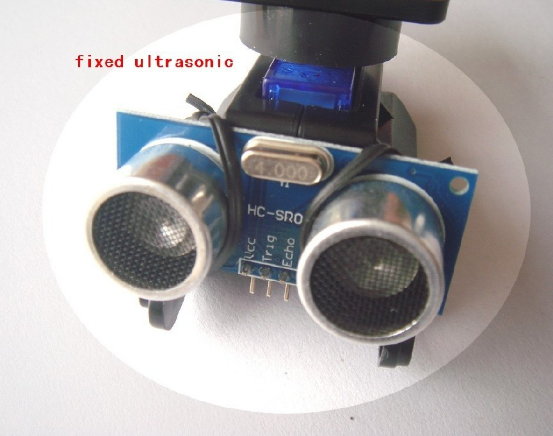

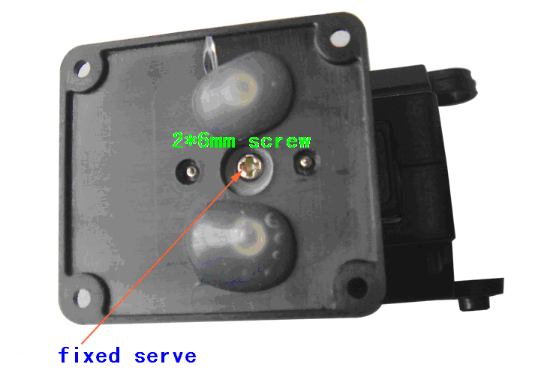

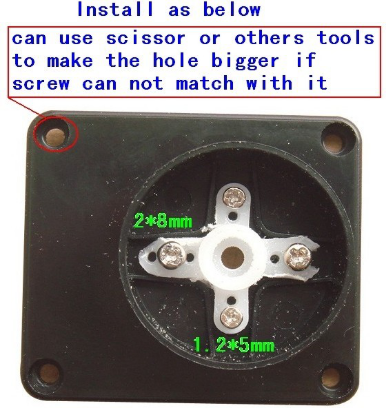

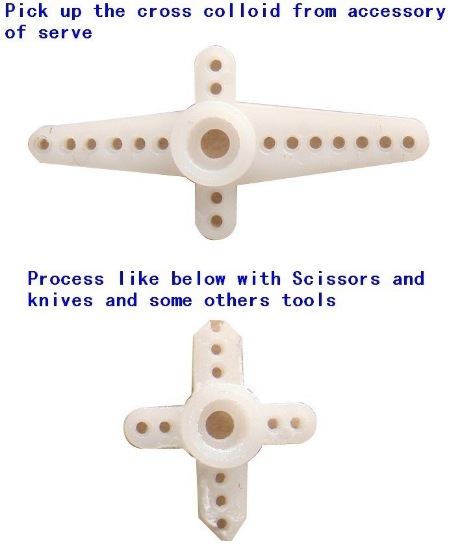

Step 15:install PTZ

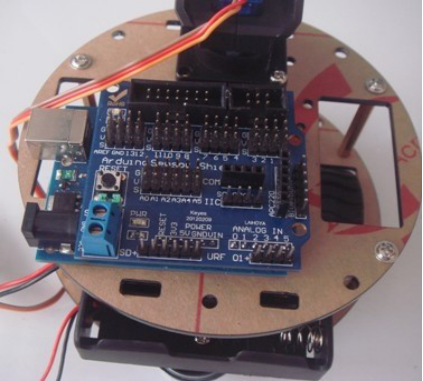

Step 16:install arduino uno controller.

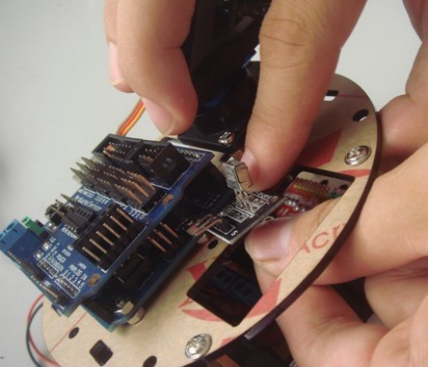

Step 17:install infrared remote control module.for new ,we have install this car.

1.L298N motor driver module

ENA(yellow in picture):

1(5V/PWM):enable motor A

0(GND/PWM):disenable motor A

IN1 to 5V,IN2 to GND,motor A

corotation IN1 to GND,IN2 to 5V,motor A

rollback ENB(yellow in picture):

1(5V/PWM):enable motor B

0(GND/PWM):disenable motor B

IN3 to 5V,IN4 to GND,motor A corotation

IN3 to GND,IN4 to 5V,motor A rollback

5V_EN(green in picture):

If use the jumper, chip 78 m05 provide power supply for modules

If do not use jumper, need to use 5v-pin & GND-pin provides power supply module for modules

CSA/CSB(green in picture):

Current test pins for motor A/B,can series connection resistance

If do not use jumper, detection of the current

If use the jumper,not detect current

UR1-UR4(green in picture)
Choose whether to use pull-up resistor For I/O port driver ability of microcontroller, can short circuit, using pull-up resistor If use the jumper, Do not use the pull-up resistor.

If do not use jumper ,use the pull-up resistor

int pinI1=8;//define IN1 pin

int pinI2=9;//define IN2 pin
int speedpin=11;//define EA(PWM) pin

int pinI3=6;//define IN3 pin

int pinI4=7;//define IN4 pin

int speedpin1=10;//define EB(PWM) pin

void setup()

{
pinMode(pinI1,OUTPUT);

pinMode(pinI2,OUTPUT);

pinMode(speedpin,OUTPUT);

pinMode(pinI3,OUTPUT);

pinMode(pinI4,OUTPUT);

pinMode(speedpin1,OUTPUT);

}

void loop()

{

//go straight

analogWrite(speedpin,100);// define speed

analogWrite(speedpin1,100);

digitalWrite(pinI4,LOW);// right motor move in anticlockwise

digitalWrite(pinI3,HIGH);

digitalWrite(pinI1,LOW);// left motor move in clockwise

digitalWrite(pinI2,HIGH);

delay(2000);

//go back

analogWrite(speedpin,100);// define speed

analogWrite(speedpin1,100);

digitalWrite(pinI4,HIGH);// right motor move in clockwise

digitalWrite(pinI3,LOW);

digitalWrite(pinI1,HIGH);// left motor move in anticlockwise

digitalWrite(pinI2,LOW);

delay(2000);

//turn left

analogWrite(speedpin,60);//

analogWrite(speedpin1,60);

digitalWrite(pinI4,LOW);//

digitalWrite(pinI3,HIGH);

digitalWrite(pinI1,HIGH);//

digitalWrite(pinI2,LOW);

delay(2000);

//turn right

analogWrite(speedpin,60);//

analogWrite(speedpin1,60);

digitalWrite(pinI4,HIGH);//

digitalWrite(pinI3,LOW);

digitalWrite(pinI1,LOW);//

digitalWrite(pinI2,HIGH);

delay(2000);

//stop

digitalWrite(pinI4,HIGH);//

digitalWrite(pinI3,HIGH);

digitalWrite(pinI1,HIGH);//

digitalWrite(pinI2,HIGH);

delay(2000);

}

NOTE:You can use other code to driver motor.

Tracking module principle:TCRT5000 Using infrared reflectivity of color is different, the strength of the reflected signal is converted into electrical signals. Black and white tracing module in high level effectively detect black, white is detected for the low level, effectively detect 0-3 cm in height.

Method of application:

1>>.There are 3 row needle sensor interfaces, is GND, VCC, OUT. VCC &gnd for power supply side, the OUT signal is output.

2>>.An object is detected, the output signal low level; Not detected objects, the output signal of high level.

3>>.Major judgment signal output is 0 or 1, will be able to determine whether an object exists.

Performance Parameter:

1>>.detect distance:Test white paper is about 2cm..Depending on the color of different distance is different.white is farthest

2>>.supply voltage:2.5V~12V,Not more than 12V(It is best to low voltage power supply, power supply voltage is too high will shorten the life of a sensor.5V power supply is preferred)

3>>.operating current:18-20mA when 5V.By a large number of tests, sensor hardware Settings for 18~20mA best performance when working current, main performance on anti-jamming capability

4>>.Detection principle of the white line and black line, the principle of the detection of the white line, white line around the color is close to black, then adjust the adjustable resistance of infrared sensor above, will lower sensitivity, has been transferred to the surrounding color just detect, it can detect the white line.

Test code:

int pin=7;//

int val;//

void setup()

{

pinMode(ledPin,OUTPUT);//

Serial.begin(9600);//

}

void loop()

{ val=digitalRead(pin);/

/ Serial.println(val);//

}

Tracking smart test code:

int MotorRight1=5;

int MotorRight2=6;

int MotorLeft1=10;

int MotorLeft2=11;

const int SensorLeft = 7; //left sensor input

const int SensorMiddle= 4 ; //middle sensor input

const int SensorRight = 3; //right sensor input

int SL; //left sensor state

int SM; //

int SR; //

void setup()

{

Serial.begin(9600);

pinMode(MotorRight1, OUTPUT); // pin 8 (PWM)

pinMode(MotorRight2, OUTPUT); // 9 (PWM)

pinMode(MotorLeft1, OUTPUT); // 10 (PWM)

pinMode(MotorLeft2, OUTPUT); // 11 (PWM)

pinMode(SensorLeft, INPUT); //

pinMode(SensorMiddle, INPUT);//

pinMode(SensorRight, INPUT); //

}

void loop()

{

SL = digitalRead(SensorLeft);

SM = digitalRead(SensorMiddle);

SR = digitalRead(SensorRight);

if (SM == HIGH)//middle sensor in black area

{

if (SL == LOW & SR == HIGH) // left sensor in black area,right sensor in white area,so turn left

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

analogWrite(MotorLeft1,0);

analogWrite(MotorLeft2,80);

}

else if (SR == LOW & SL == HIGH) //

{

analogWrite(MotorRight1,0);//

analogWrite(MotorRight2,80);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

else //

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

analogWrite(MotorLeft1,200);

analogWrite(MotorLeft2,200);

analogWrite(MotorRight1,200);

analogWrite(MotorRight2,200);

}

}

else //

{

if (SL == LOW & SR == HIGH)//

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

}

else if (SR == LOW & SL == HIGH) //

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

else //

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);;

}}}

Obstacle avoidance intelligent ultrasonic is convenient, simple and easy to do real-time control, and can meet the practical requirements in terms of accuracy of measurement, thus become a commonly used method of obstacle avoidance. Ultrasonic method using reference (Arduino ultrasonic ranging).

Ultrasonic smart wiring diagram;

Test code:

#include

int pinLB=6; // left back

int pinLF=9; // left front

int pinRB=10; // right back

int pinRF=11; // left front

int inputPin = A0; // ultrasonic echo

int outputPin =A1; // ultrasonic trig

int Fspeedd = 0; // front distance

int Rspeedd = 0; // right distance

int Lspeedd = 0; // left distance

int directionn = 0; // Determine the direction of car turns

Servo myservo; // myservo

int delay_time = 250; // Stable steering servo motor

int Fgo = 8; // advance

int Rgo = 6; // turn right

int Lgo = 4; // turn left

int Bgo = 2; // back

void setup()

{

pinMode(pinLB,OUTPUT); // pin 6 (PWM)

pinMode(pinLF,OUTPUT); // pin 9 (PWM)

pinMode(pinRB,OUTPUT); // pin 10 (PWM)

pinMode(pinRF,OUTPUT); // pin 11 (PWM)

pinMode(inputPin, INPUT); // Define ultrasound input pin

pinMode(outputPin, OUTPUT); // Define ultrasound output pin

myservo.attach(5); // Define the servo motor output pin5 (PWM)

}

void advance(int a) // advance

{ //In the mid-point of the two wheels as a reference

digitalWrite(pinRB,LOW); //right wheel advance

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH); //left wheel advance

digitalWrite(pinLF,LOW);

delay(a);

}

void right(int b) //turn right (single wheel)

{

digitalWrite(pinRB,HIGH); //right stop

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH); //left advance

digitalWrite(pinLF,LOW);

delay(b);

}

void left(int c) //turn left(single wheel)

{

digitalWrite(pinRB,LOW); //righ wheel advance

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH); //left stop

digitalWrite(pinLF,HIGH);

delay(c);

}

void left(int c) //turn left(single wheel)

{

digitalWrite(pinRB,LOW); //righ wheel advance

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH); //left stop

digitalWrite(pinLF,HIGH);

delay(c);

}

void turnR(int d) //turn right(double wheels)

{

digitalWrite(pinRB,HIGH); //right wheel back

digitalWrite(pinRF,LOW);

digitalWrite(pinLB,HIGH); //left wheel advance

digitalWrite(pinLF,LOW);

delay(d);

}

void turnL(int e) //turn left (double wheels)

{

void turnL(int e) //turn left (double wheels)
{

digitalWrite(pinRB,LOW); //right wheel advance

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,LOW); //left wheel back

digitalWrite(pinLF,HIGH);

delay(e);

}

void stopp(int f) //stop

{

digitalWrite(pinRB,HIGH);

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH);

digitalWrite(pinLF,HIGH);

delay(f);

}

void back(int g) //back

{

digitalWrite(pinRB,HIGH); //right wheel back

digitalWrite(pinRF,LOW);

digitalWrite(pinLB,LOW); //left wheel back

digitalWrite(pinLF,HIGH);

delay(g);

}

void detection() //Measuring three angles(2.90.178)

{

myservo.write(90); //measure distance in the front

delay(delay_time); // Waiting for servo motor stable

ask_pin_F(); // Read the distance of front

if(Fspeedd < 20) // If the distance is less than 20cm in front

{

stopp(1); // clear output ,motor stop

myservo.write(178); //measure left distance

delay(delay_time);

ask_pin_L();

myservo.write(2); //measure right distance

delay(delay_time);

ask_pin_R();

if(Lspeedd > Rspeedd) //compare distance of right and left

{

directionn = Lgo; //turn left

}

right
if(Lspeedd <= Rspeedd) //if the distance is less than or equal to the distance at the right

{

directionn = Rgo; //turn right

}

}

else

else

directionn = Fgo;

}

myservo.write(90);

delay(delay_time);

}

void ask_pin_F() // Measure the distance in front

{

digitalWrite(outputPin, LOW); //Ultrasonic launch 2us low level

delayMicroseconds(2);

digitalWrite(outputPin, HIGH); // ultrasound transmitting high voltage 10us, there is at least 10us

delayMicroseconds(11);

digitalWrite(outputPin, LOW); // Ultrasonic launch low level

float Fdistance = pulseIn(inputPin, HIGH); //measure time

Fdistance= Fdistance/5.8/10; // time to distance （cm）

Fspeedd = Fdistance;

}

void ask_pin_L() //

{

delay(delay_time);

digitalWrite(outputPin, LOW); //

delayMicroseconds(2);

digitalWrite(outputPin, HIGH); //

delayMicroseconds(11);

digitalWrite(outputPin, LOW); //
float Ldistance = pulseIn(inputPin, HIGH); //

Ldistance= Ldistance/5.8/10; //

Lspeedd = Ldistance; //

}

void ask_pin_R() //

{

delay(delay_time);

digitalWrite(outputPin, LOW); //

delayMicroseconds(2);

digitalWrite(outputPin, HIGH; //

delayMicroseconds(11);

digitalWrite(outputPin, LOW); //
float Rdistance = pulseIn(inputPin, HIGH); //

Rdistance= Rdistance/5.8/10; //

Rspeedd = Rdistance; //

}

void loop()

{
detection(); //Measure the Angle and determine which direction to go to

if(directionn == 2)

{

back(600);
}

if(directionn == 6)

{

turnR(350);

stopp(1); }

if(directionn == 4)

{

turnL(350);

stopp(1);

}
if(directionn == 8)

{

advance(10);

ask_pin_F();

if(Fspeedd < 20) stopp(1);

}

}

Test code:

#include //

const int irReceiverPin = 2; //

IRrecv irrecv(irReceiverPin); //

decode_results results; //

void setup()
{

Serial.begin(9600); //
irrecv.enableIRIn(); //

}

//

void showIRProtocol(decode_results *results)

{

Serial.print("Protocol: ");

//
switch(results->decode_type) {

case NEC:

Serial.print("NEC");

break;

case SONY:

Serial.print("SONY");

break;
case RC5:

Serial.print("RC5");

break;

case RC6:

Serial.print("RC6");

break;

default:

Serial.print("Unknown encoding");

}

//
Serial.print(", irCode: ");

Serial.print(results->value, HEX); //

Serial.print(", bits: ");

Serial.println(results->bits); //

}

void loop()

{

if (irrecv.decode(&results)) { //

showIRProtocol(&results); //

irrecv.resume(); //

}

}

Test code:
//******Infrared remote smart car code*******

#include

int RECV_PIN = A0;

int pinLB=6;//

int pinLF=9;//

int pinRB=3;//

int pinRF=5;//

//******

long advence = 0x00EF807F;

long back = 0x00EFA05F;

long stop = 0x00EF906F;
long left = 0x00EF00FF;

long right = 0x00EF40BF;

IRrecv irrecv(RECV_PIN);
decode_results results;

void dump(decode_results *results) {

int count = results->rawlen;

if (results->decode_type == UNKNOWN)

{

Serial.println("Could not decode message");

}

else

{

if (results->decode_type == NEC)

{

Serial.print("Decoded NEC: ");

}

else if (results->decode_type == SONY)

{

Serial.print("Decoded SONY: ");

}

else if (results->decode_type == RC5)

{

Serial.print("Decoded RC5: ");

}

else if (results->decode_type == RC6)
{

Serial.print("Decoded RC6: ");

}

Serial.print(results->value, HEX);

Serial.print(" (");

Serial.print(results->bits, DEC);

Serial.println(" bits)");

}

Serial.print("Raw (");

Serial.print(count, DEC);

Serial.print("): ");

for (int i = 0; i < count; i++)
{

if ((i % 2) == 1) {

Serial.print(results->rawbuf[i]*USECPERTICK, DEC);

}

else

{

Serial.print(-(int)results->rawbuf[i]*USECPERTICK, DEC);

}

Serial.print(" ");

}

Serial.println("");

}

void setup()
{

pinMode(RECV_PIN, INPUT);

pinMode(pinLB,OUTPUT);

pinMode(pinLF,OUTPUT);

pinMode(pinRB,OUTPUT);

pinMode(pinRF,OUTPUT); S

erial.begin(9600);

irrecv.enableIRIn(); // Start the receiver

}

int on = 0;

unsigned long last = millis();

void loop()

{
if (irrecv.decode(&results))

{

// If it's been at least 1/4 second since the last

// IR received, toggle the relay

if (millis() - last > 250)

{

on = !on;

// digitalWrite(8, on ? HIGH : LOW);

digitalWrite(13, on ? HIGH : LOW);

dump(&results);

}

if (results.value == advence )

{digitalWrite(pinRB,LOW);//

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,LOW);//

digitalWrite(pinLF,HIGH);}

if (results.value == back )

{digitalWrite(pinRB,HIGH);//）BACK

digitalWrite(pinRF,LOW);}

if (results.value == left )

{ digitalWrite(pinRB,LOW);// STOP

digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH);//GO

digitalWrite(pinLF,LOW);}

if (results.value == right )
{ digitalWrite(pinRB,HIGH);//）GO

digitalWrite(pinRF,LOW);

digitalWrite(pinLB,HIGH);//STOP

digitalWrite(pinLF,HIGH);}

if (results.value == stop )

{ digitalWrite(pinRB,HIGH);//ST

OP digitalWrite(pinRF,HIGH);

digitalWrite(pinLB,HIGH);//STOP

digitalWrite(pinLF,HIGH);

}

last = millis();
irrecv.resume(); // Receive the next value

}

}

Being a short-range radio technology, Bluetooth technology can effectively simplify the handheld computers, laptops and mobile phones for communication between mobile phones and other mobile communication terminal equipment. What's more, Bluetooth can also simplify the above communication between the devices and the Internet,so that the modern communication equipment and data transmission become more efficiently, and broaden the way with wireless communications.
Because today is the first time to deal with the bluetooth module, or to a profound, let the Arduino and PC communication success. Wiring, first connect bluetooth motherboard + 5 v VCC, bluetooth motherboard GND connection - GND, motherboard TX connected bluetooth RX, RX connected bluetooth TX. When the success of the bluetooth module when the power is connected to the PC, the bluetooth module power will flashing lights, connect light green light will light up.

Test code:

char val;
int ledpin=13;

void setup()

{

Serial.begin(9600);

pinMode(ledpin,OUTPUT);

}

void loop()

{

val=Serial.read();

if(val=='r')

{

digitalWrite(ledpin，HIGH);

delay((500);

digitalWrite(ledpin，LOW);

delay(500);

Serial.println("keyes");

}

}

Let's learn the Arduino bluetooth remote control programmable intelligent car. Through bluetooth control forward, backward, turn left, turn right, buttons, computers and mobile phones, two kinds of control mode. (mobile phone operating system support Android 2.3.7 above. The computer must bring their own bluetooth)

When used for the first time to mobile phone with bluetooth car matching (pairing for the first time after the later don't have in wireless location), first take a look at the following steps:
1>>.Remember to open mobile phone bluetooth oh, open the software will remind users open the bluetooth 2>>.Then the text as shown in figure tips, connect a bluetooth device, scan matching bluetooth oh, otherwise not be able to connect to the car.

3>>.Match the car, the password is "1234" try it

Test code:

int MotorRight1=5;

int MotorRight2=6;

int MotorLeft1=10;

int MotorLeft2=11;

void setup()

{

Serial.begin(9600);

pinMode(MotorRight1, OUTPUT); // pin 8 (PWM)

pinMode(MotorRight2, OUTPUT); //9 (PWM)

pinMode(MotorLeft1, OUTPUT); //10 (PWM)

pinMode(MotorLeft2, OUTPUT); //11 (PWM)

}

void go()//

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

void left() //

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

void left() //

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

void right() //

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);

}

void stop() //

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

}

void back() //

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);;

}

void loop()

{

char val = Serial.read();

Serial.write(val);

if (-1 != val) {

if ('W' == val)

go();

else if ('A' ==val)

left();

else if ('D' == val)

right();

else if ('S' == val)

back();

else if ('Q' == val)

stop();

delay(500);

}

else

{

//stop();

delay(500);

}

}

Test code:

//******************************

#include

#include

//***********************define motor pin*************************

int MotorRight1=5;

int MotorRight2=6;

int MotorLeft1=10;

int MotorLeft2=11;

int counter=0;

const int irReceiverPin = 2; //Infrared receive sensor

char val;

//***********************set detection IRcode*************************

long IRfront= 0x00FFA25D; //go straight

long IRback=0x00FF629D; //go back

long IRturnright=0x00FFC23D; //turn right

long IRturnleft= 0x00FF02FD; //turn left

long IRstop=0x00FFE21D; //stop

long IRcny70=0x00FFA857; //CNY70 automatic mode

long IRAutorun=0x00FF906F; //Ultrasonic automatic mode

long IRturnsmallleft= 0x00FF22DD;

//*************************define CNY70 pin***************************

const int SensorLeft = 7; //left sensor input

const int SensorMiddle= 4 ; //middle sensor input

const int SensorRight = 3; //right sensor input

int SL; //left sensor state

int SM; //middle sensor state

int SR; //right sensor state

IRrecv irrecv(irReceiverPin); // define IRrecv receive signal

decode_results results; // decoderesults

//*************************define ultrasonic pin****************

int inputPin =13 ; // ultrasonic receive pin

int outputPin =12; //ultrasonic echo pin

int Fspeedd = 0; // front distance

int Rspeedd = 0; // right distance

int Lspeedd = 0; // left distance

int directionn = 0; // front=8; back=2; left=4; right=6

Servo myservo; // define myservo

int delay_time = 250; // servo motor go back state time

int Fgo = 8; // go straight

int Rgo = 6; // turn right

int Lgo = 4; // turn left

int Bgo = 2; // go back

//*********************************(SETUP)

void setup()

{

Serial.begin(9600);

pinMode(MotorRight1, OUTPUT); // pin 8 (PWM)

pinMode(MotorRight2, OUTPUT); //pin 9 (PWM)

pinMode(MotorLeft1, OUTPUT); // pin 10 (PWM)

pinMode(MotorLeft2, OUTPUT); // pin 11 (PWM)

irrecv.enableIRIn(); // start infrared decode

pinMode(SensorLeft, INPUT); //

pinMode(SensorMiddle, INPUT);//

pinMode(SensorRight, INPUT); //

digitalWrite(2,HIGH);

pinMode(inputPin, INPUT); //

pinMode(outputPin, OUTPUT); //

myservo.attach(9); //

}

//*************************************************(Void)

void advance(int a) // go straight

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

delay(a * 100);

}

void right(int b) //turn right(single wheel)

{

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

delay(b * 100);

}

void left(int c) //turn left(single wheel)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

delay(c * 100);

}

void turnR(int d) //turn right(two wheels)

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

delay(d * 100);

}

void turnL(int e) //turn left(two wheels)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);

delay(e * 100);

}

void stopp(int f) //stop

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

delay(f * 100);

}

void back(int g) //go back

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);;

delay(g * 100);

}

void detection() //measurement 3 angle(front ,left,right)

{

int delay_time = 250; //

ask_pin_F(); // detection distance in front

if(Fspeedd < 10) // if distance less than 10mm

{

stopp(1); // clear output

back(2); // go back 0.2s

}

if(Fspeedd < 25) // if distance less than 25mm

{

stopp(1); // clear output

ask_pin_L(); // detection distance in left delay(delay_time);

// Waiting for the servo motor is stable ask_pin_R(); //

detection distance in right delay(delay_time); // waiting

for servo motor state

if(Lspeedd > Rspeedd) //if left distance greater than right

{

directionn = Lgo; //go left

}

if(Lspeedd <= Rspeedd) //if left distance less than right

{

directionn = Rgo; //go right

}

if (Lspeedd < 15 && Rspeedd < 15) //if distance less 10mm both right and left

{

directionn = Bgo; //go back

}

}

else //if distance greater than 25mm

{

directionn = Fgo; //go straight

}

}

//*********************************************

void ask_pin_F() // detection distance in front

{

myservo.write(90);

digitalWrite(outputPin, LOW); // ultrasonic echo low level in 2us

delayMicroseconds(2);

digitalWrite(outputPin, HIGH); // ultrasonic echo high level in 10us, At least 10us

delayMicroseconds(10);

digitalWrite(outputPin, LOW); // ultrasonic echo low leve

float Fdistance = pulseIn(inputPin, HIGH); // read time

Fdistance= Fdistance/5.8/10; // turn time to distance

Serial.print("F distance:"); //output distance (mm)

Serial.println(Fdistance); //display distance

Fspeedd = Fdistance; // write distance to Fspeed

}

//******************************************************

void ask_pin_L() // detection distance in left

{ myservo.write(177)

; delay(delay_time);

digitalWrite(outputPin, LOW); // ultrasonic echo low level in 2us

delayMicroseconds(2);

digitalWrite(outputPin, HIGH); // ultrasonic echo high level in 10us, At least 10us

delayMicroseconds(10);

digitalWrite(outputPin, LOW); // ultrasonic echo low level

float Ldistance = pulseIn(inputPin, HIGH); // read time

Ldistance= Ldistance/5.8/10; // turn time to distance

Serial.print("L distance:"); //output distance (mm)

Serial.println(Ldistance); //display distance

Lspeedd = Ldistance; // write distance to Lspeed

}

//******************************************************************************

void ask_pin_R() // detection distance in right

{ myservo.write(5);

delay(delay_time);

digitalWrite(outputPin, LOW); //

delayMicroseconds(2);

digitalWrite(outputPin, HIGH); //

delayMicroseconds(10);

digitalWrite(outputPin, LOW); //

float Rdistance = pulseIn(inputPin, HIGH); //

Rdistance= Rdistance/5.8/10; //

Serial.print("R distance:"); //

Serial.println(Rdistance); //

Rspeedd = Rdistance; //

}

//***********************************(LOOP)

void loop()

{

SL = digitalRead(SensorLeft);

SM = digitalRead(SensorMiddle);

SR = digitalRead(SensorRight);

performCommand();

//******************************normal remote control mode

if (irrecv.decode(&results))

{ // Decoding success，receive infrared signal

/*********************************************/

if (results.value == IRfront)//go straight

{

advance(10);//go straight

}
/***************************************/

if (results.value == IRback)//go back
{

back(10);//go back

}

/***********************************************************************/

if (results.value == IRturnright)//turn right

{

left(6); // turn left;

}

/***********************************************************************/

if (results.value == IRstop)//stop

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

}

//*************************************cny70 automatic mode

if (results.value == IRcny70)

{

while(IRcny70)

{

SL = digitalRead(SensorLeft);

SM = digitalRead(SensorMiddle);

SR = digitalRead(SensorRight);

if (SM == HIGH)//middle sensor in black area

{

if (SL == LOW & SR == HIGH) // left sensor in black area,right sensor in white area ,so turn left

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

analogWrite(MotorLeft1,0);

analogWrite(MotorLeft2,80);

}

else if (SR == LOW & SL == HIGH) //left white,right black ,turn right

{

analogWrite(MotorRight1,0);//

analogWrite(MotorRight2,80);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

else // left and right both in white ,go straight

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

analogWrite(MotorLeft1,200);

analogWrite(MotorLeft2,200);

analogWrite(MotorRight1,200);

analogWrite(MotorRight2,200);

}

}

else // middle sensor in white area

{

if (SL == LOW & SR == HIGH)// left black,right white,turn left

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

}

else if (SR == LOW & SL == HIGH) // left white,right black ,turn right

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,HIGH);

}

else // left and right both in white ,stop

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,LOW);;

}
}

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,HIGH);

digitalWrite(MotorRight2,HIGH);

digitalWrite(MotorLeft1,HIGH);

digitalWrite(MotorLeft2,HIGH);

break;

}
}

}

results.value=0;

}

//********************************ultracsonic automaitc mode

if (results.value ==IRAutorun )

{

while(IRAutorun)

{

myservo.write(90); //make the servo motor reset

detection(); //

if(directionn == 8) //directionn = 8(go straight)

{

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

break;

}
}

results.value=0;
advance(1); //

Serial.print(" Advance "); //

Serial.print(" ");

}

if(directionn == 2) //2(go back)

{

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

break;

}
}

results.value=0;
back(8); //

turnL(3); //To prevent the jammed

Serial.print(" Reverse "); //

}

if(directionn == 6) // 6(turn right)

{

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

break;

}

}

results.value=0;

back(1);

turnR(6); //

Serial.print(" Right "); //

}

if(directionn == 4) // 4(turn left)

{

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

break;

}
}

results.value=0;

back(1);

turnL(6); //
Serial.print(" Left "); //

}

if (irrecv.decode(&results))

{

irrecv.resume();

Serial.println(results.value,HEX);

if(results.value ==IRstop)

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

break;

}
}

}

results.value=0;

}
/***********************************************************************/

else

{

digitalWrite(MotorRight1,LOW);

digitalWrite(MotorRight2,LOW);

digitalWrite(MotorLeft1,LOW);

digitalWrite(MotorLeft2,LOW);

}

irrecv.resume(); //

}

}

void performCommand() {

if (Serial.available()) {

val = Serial.read();

}

if (val == 'f') { // Forward

advance(10);
} else if (val == 'z') { // Stop Forward

stopp(10) ;

} else if (val == 'b') { // Backward

back(10);

} else if (val == 'y') { // Stop Backward

back(10);

} else if (val == 'l') { // Right

turnR(10);

} else if (val == 'r') { // Left

turnL(10);

} else if (val == 'v') { // Stop Turn

stopp(10) ;

} else if (val == 's') { // Stop

stopp(10) ;

}

}

We can do a lot experiment through the robot in the summer vocation if you love to stay at home.

Detailed code and process will help us enjoy the whole expreriment. Even we are a fresh men in Arduino and know little about how to make robot.

What's more, ICStation has a discount during the holidays. We can get 55% discount before 10th July 2016

http://www.icstation.com/robot-learning-kits-ardui...

If you think it's a good project, could you please share with your friends?

If you have any suggestion, please comment and we will answer you as soon as possible.

If you have some more ideas about making a review about ICStation's products, please contact icstation13@gmail.com
