DIY Modern Murphy Bed

Since schooling is going to be hybrid for many places for a bit, I wanted to transform a guest room space in my parents' house into a combination home office and guest room for my mom, who is a physical therapist for children with disabilities. So, I built the best space-saving guest room project on the planet… a DIY modern murphy bed!

Want to see this build in action? Check out my my video on YouTube & please subscribe!

For full details about the printable plans and cut list I used, please visit my website!

Tools
Murphy Bed Hardware Kit
Track Saw/Table Saw
Miter Saw
Jig Saw
Drill & Driver
Nail Gun
Sander & Sandpaper
Iron (For Edgebanding)
Chisel
Staining Materials
Forstner Bits *

Materials
¾” Birch Plywood *
¼” Birch Plywood *
1 x 2 Pine * Edgebanding *
Birch Veneer Sheets
1 ¼” Wood Screws
1 ½” Wood Screws
3” Lag Screws
Wood Glue
Special Walnut Stain
Black Spray Paint

* Indicates materials and tools that are specific to the particular DIY Murphy bed hardware kit I used. Please refer to your particular Murphy bed kit’s plans for your specific materials list.

After collecting my materials and reviewing the plans, I cut all of my plywood pieces using my track saw. If you don’t have a track saw you can use a circular saw with a guide or a table saw. I only needed my jig saw for one cut (to round the outside edges of the bed frame).

Next, I cut all of my pine pieces for my queen-sized bed frame using my miter saw. I trimmed any specialty pieces with my table saw.

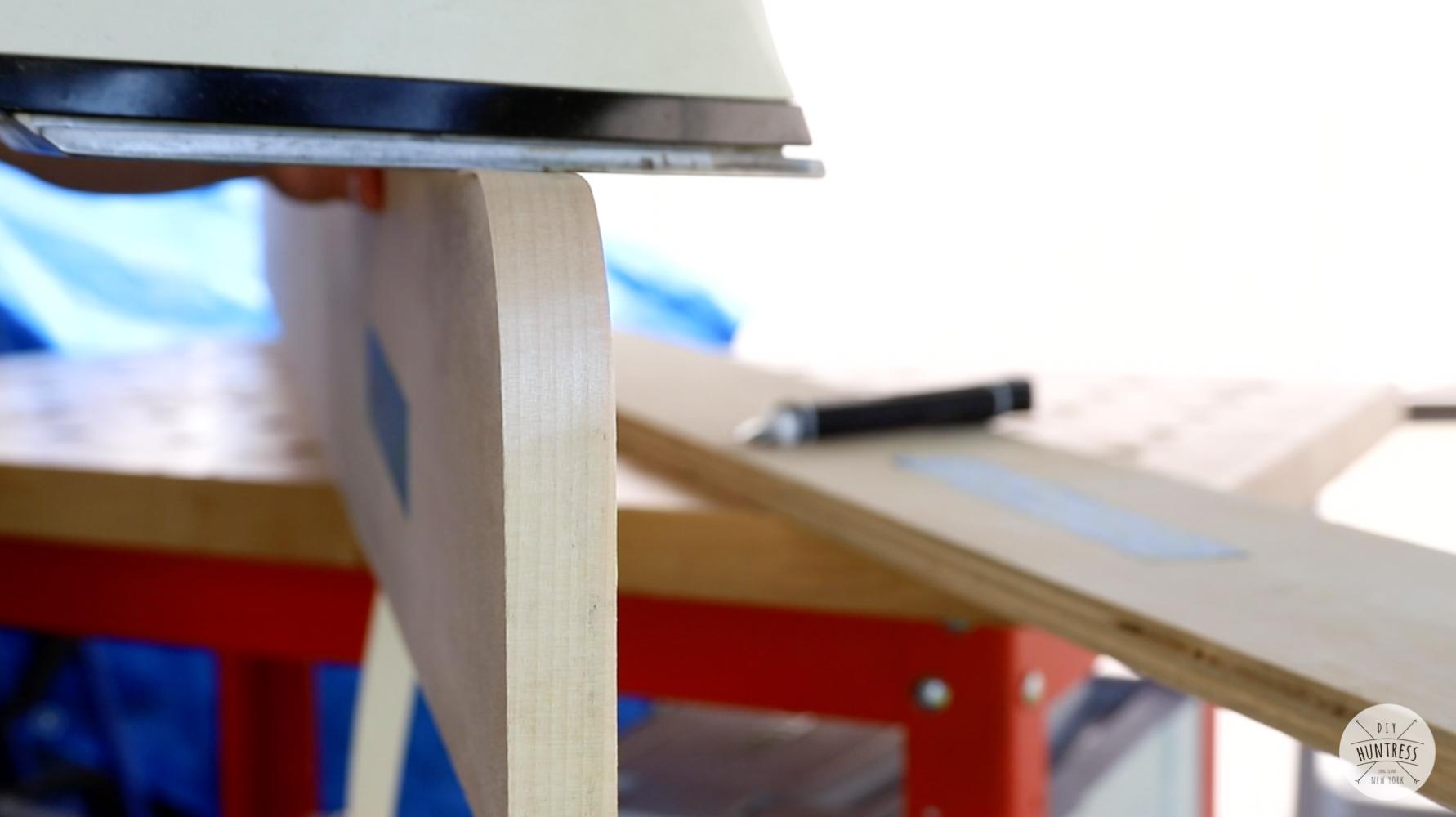

Once my pieces were cut, I applied edge banding to all of the exposed edges of plywood using a hot iron.

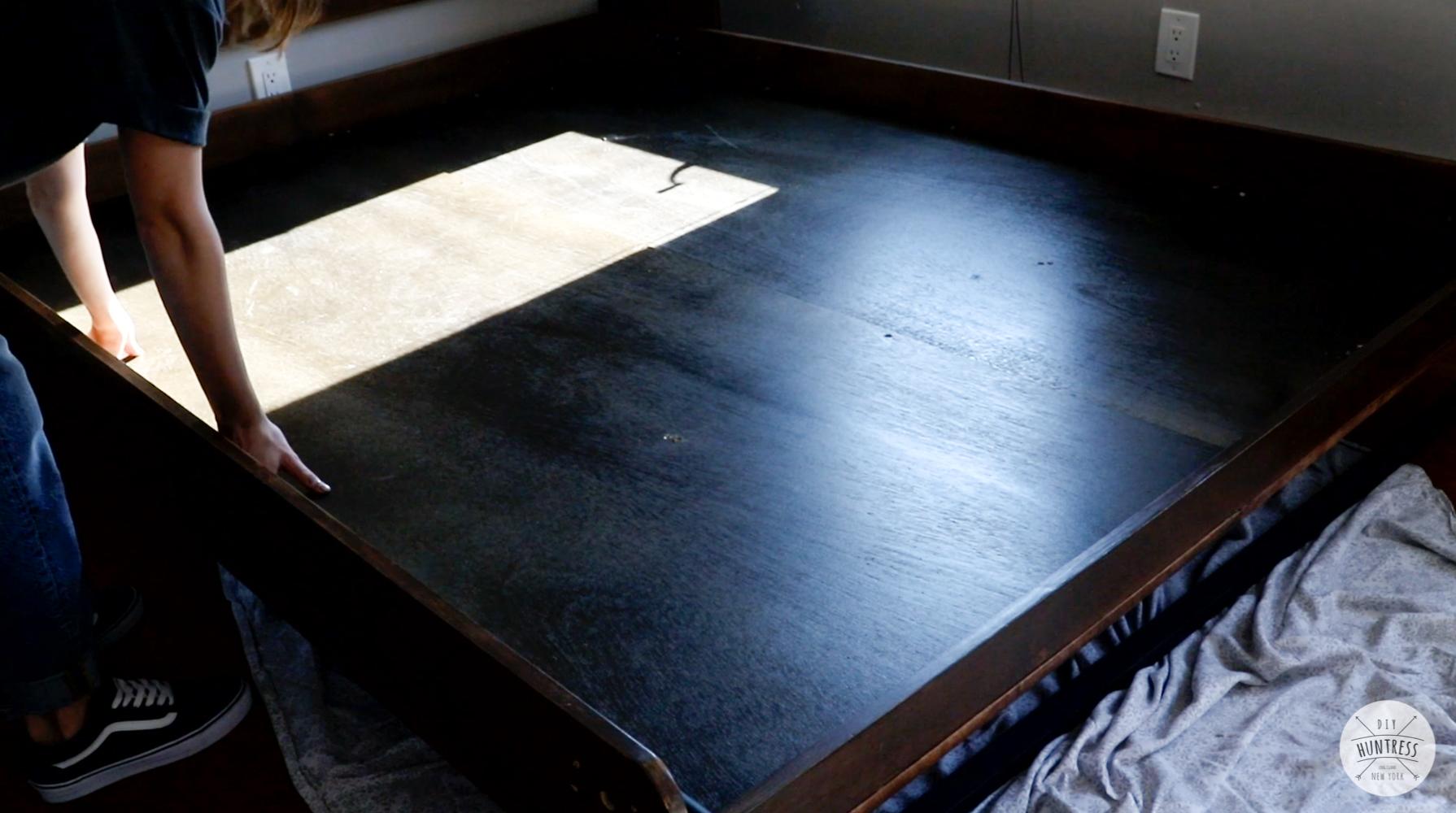

Next, I pre-stained all of my bed pieces.

I then assembled the bed frame using the plans to guide me. I installed any hardware that needed to be placed in the bed frame according to the plans as well. I had to do this in the final space because the stairway was too narrow to fit the assembled frame.

Once the bed frame was assembled, I began to assemble the other cabinet pieces and install hardware according to my specific set of plans.

Next, I focused my energy on the Murphy bed doors (I had to wait to do this because of spacing issues in my shop). I decided to use pressure-sensitive, adhesive birch veneer to create a chevron effect on the front of the cabinet. I seriously loved this stuff – it was so easy to trim with a box cutter and apply using some pressure.

I then stained the doors to match the cabinet.

I then installed the doors to the back end of the bed frame using the plans to guide me.

Next, I cut and installed custom cabinet pulls using 2 x 2” poplar. I cut them to 1 ½” square and used my table saw to cut a groove for my fingers to grip (you can see this in action in my video).

Next, it was time to close up the bed frame using the ¼” plywood.

I then installed the headers for the cabinet according to the plans and I then enlisted the help of my family to help install the pistons to the bed frame and the cabinet. I also used their help to anchor the bed to the wall (but, it's best to follow your specific plans for anchoring placement).

Instead of applying a piece of trim to the outside of the cabinet, I opted for a removable piece of flush trim that I can move out of the way when folding the bed up and down (you can see this in action in the video).

I absolutely love how this Murphy bed space turned out! It not only looks awesome, but allows for so much room for activities!
