DIY Mini Adjustable Power Supply

Hello friends, in this project I am going to show you how to build a 1.2 to 32 volt 5 amp power supply.By making this project, you can control: motor speed, lamp light, circuit voltage, etc.

1- LM338 (TO-220 Package) 1 pcs https://www.amazon.com/LM338T-Voltage-Regulator-Sh...

2- Potentiometer 4.7K 1 pcs https://www.amazon.com/Potentiometer-4-7K-Linear-M...

3- 1N4007 2 pcs https://www.amazon.com/1N4007-Silastic-Junction-St...

4-270 ohm Resistor 1W 1 pcs https://www.amazon.com/EDGELEC-Resistor-Tolerance-...

5-Radial Electrolytic Capacitor, 10uF, 50V 2 pcs https://www.amazon.com/Projects-Radial-Electrolyti...

6-Radial Electrolytic Capacitor, 1000uF, 50V 1 pcs https://www.amazon.com/Capacitor-1000uF-Volt-25mm-...

7- 100nF Capacitor 2 pcs https://www.amazon.com/Uxcell-a15102200ux0046-1000...

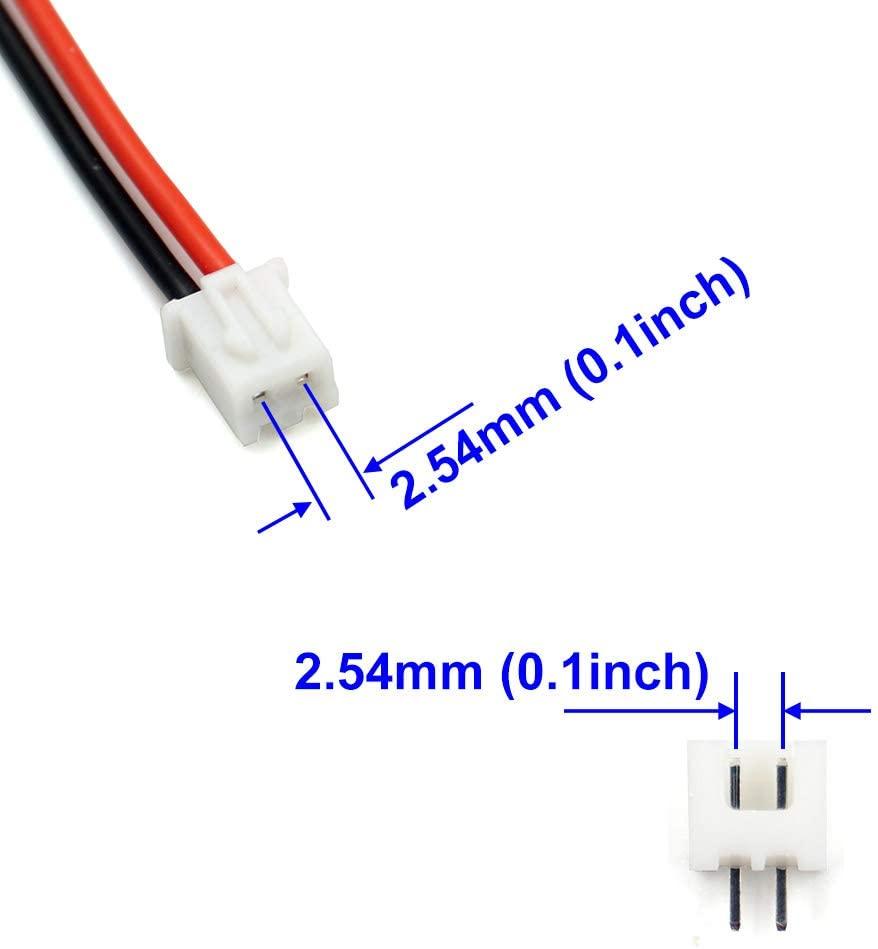

8- 2 pin connector 2 pcs https://www.amazon.com/JST-XH-Balance-Connector-Si...

9- DC Voltmeter 1 pcs https://www.amazon.com/MariaP-Segment-Digital-Disp...

10- Project Case 1 pcs (To the desired size)

11- female dc plug 1 pcs (According to the photo)

12- copper sheets 6*6 CM 1 pcs

Using the included schematic, you can see how the parts are connected to each other. Use the attached file for a more detailed review

Use the attached file to print your pcb using common methods.Using the photos, you can see the steps of printing, acid work and perforation

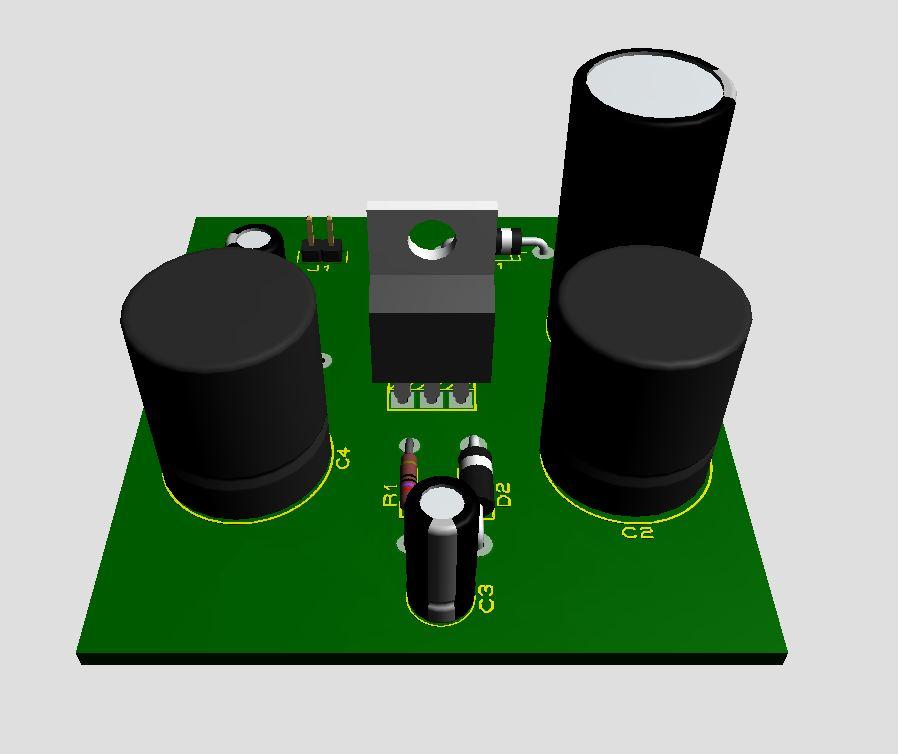

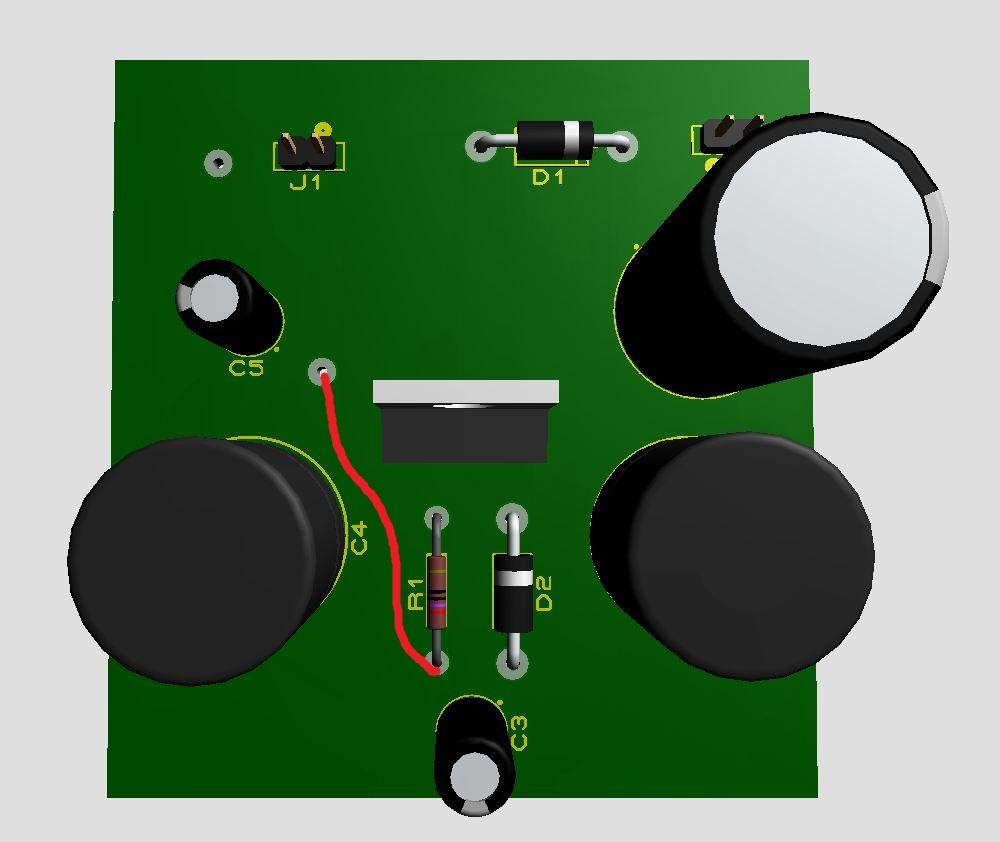

Assemble the parts on the board using the pictures. Pay attention to the polarity of the parts.Note: A connection above or below the board must be made by wire. The connection is highlighted in red in the image

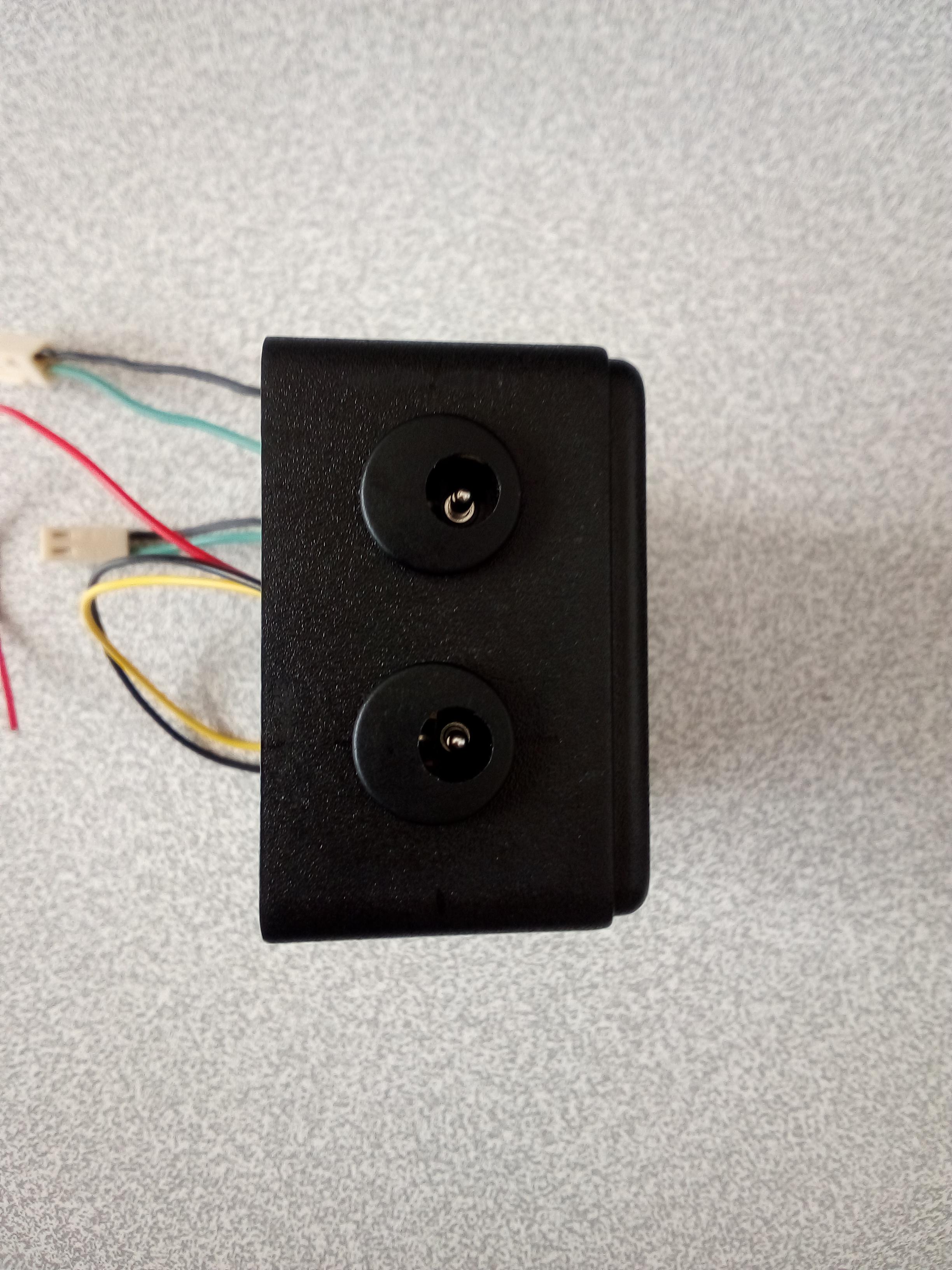

In this step, you have to put the board in the box. This step depends on your talent, but you can also get help from the photos.According to the photos: drill the location of the sockets, cut the location of the voltmeter, drill the location of the potentiometer .You can make electronic connections inside the box using schematics.Get the voltmeter power from the input and the voltmeter signal from the output Positive.Finally, close the box lid.

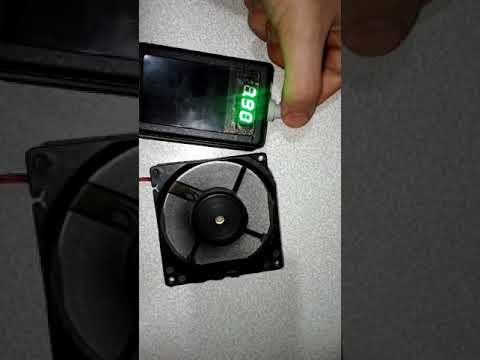

At this stage we will test the project. The input voltage is converted by the device to a controllable output voltage.The maximum input voltage is 32 volts.

Your project is complete. Good luck
