Alcohol Powered Gun (Mini SpudGun)

Airsofts are to mainstream, so I made a pocket sized version of the SpudGun. It works like a spitball but has an ignition system. The gun shoots BBs, paper, tissue or any kind of projectile the would fits inside its the barrel. It can work as a mini BB shotgun, just simply load multiple BBs in the barrel and it shoots +4 BBs over 50 meters!

How Does It Work:

It work when you put alcohol inside the chamber. In the combustion chamber, flammable materials gets ignited by the electric igniter (piezoelectric sparker), then when the gas or liquid gets burned it quickly creates a large amount of pressure inside the chamber, when the chamber gets pressurized the projectile exits the barrel at a very fast velocity. Since Alcohol is flammable and cheap I decided to use it. Different kinds of flammable gas or liquids can be used for better results.

Please dirseguard my grammar. I was 12 y/o when I posted this :DD

You Will Need:
- 2 Bottles
- Round Cylindrical Ballpen (BIC)
- Super Glue
- Lighter

Open your lighter using a mini screwdriver. Insert your screwdriver in the metal part of the lighter and carefully remove the metal cover, then you will see a black object with a cylindrical metal below with a wire protruding, that.  will be your igniter for the spudgun. Be careful not to make a leak in the gas chamber.

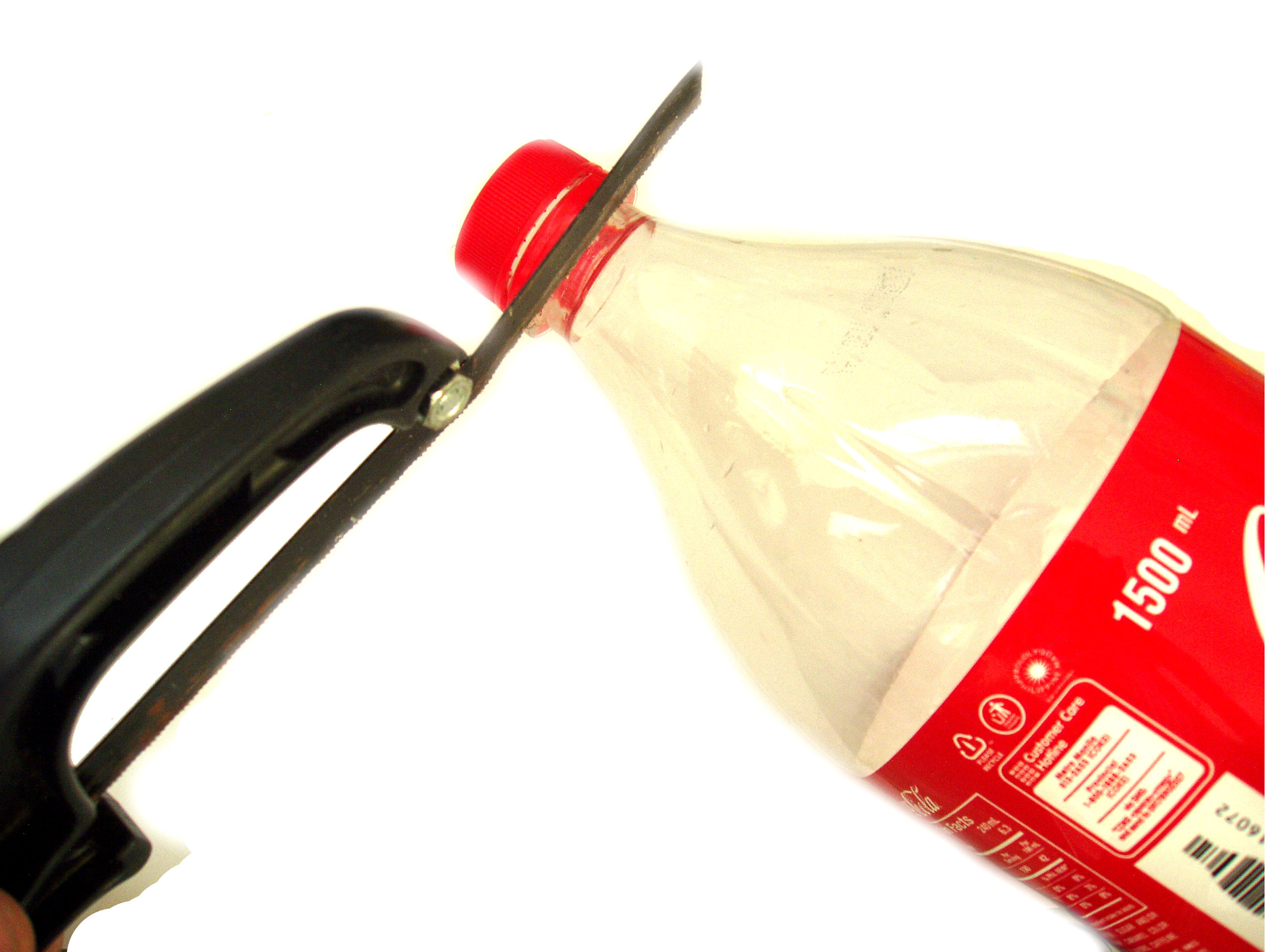

Saw the top part of the bottle. Do the same with  the other bottle. You will need both of top part for your "Ignition Chamber". Be sure to make the cut very straight to avoid having leaks later. I recommend for you to use 2 same kinds of bottles for it to fit snuggly.

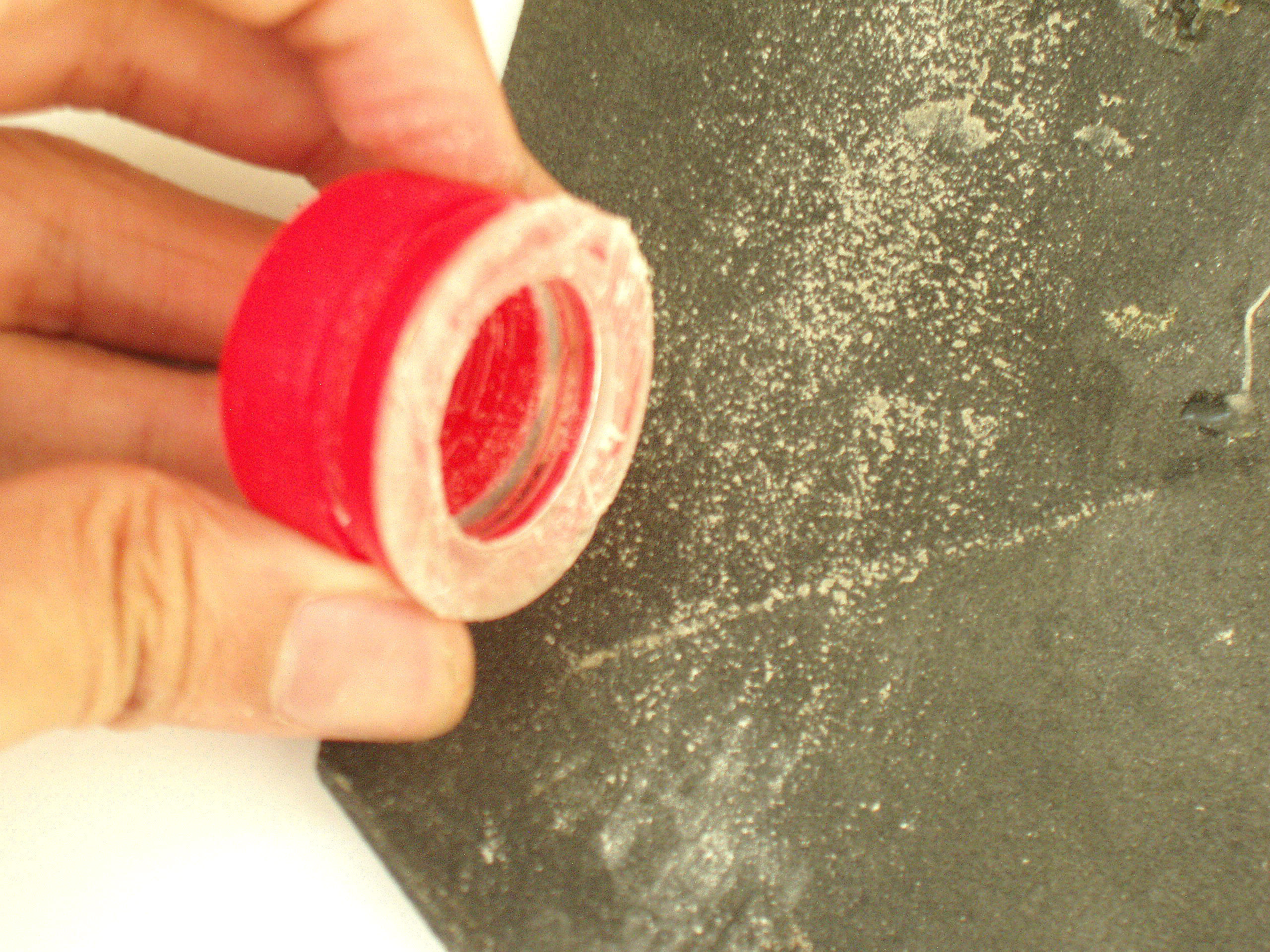

Sand the top part with the roughest sanding paper then use the smoothest sanding paper in order to have a flat and smooth texture. After sanding be sure to clean both of it with soap and water. Be sure to remove the sanded plastic with water. Be sure to make it as flat and smooth as possible.

Glue both of the top part to make your ignition chamber. Be sure to apply enough glue for it not to leak. Escape of pressure in the Ignition Chamber reduces the projectile's range of fire. Leave the Ignition Chamber for about 2-8 hours for the glue to dry. Always be sure to make everything right and perfect. Efficiency is a huge factor.

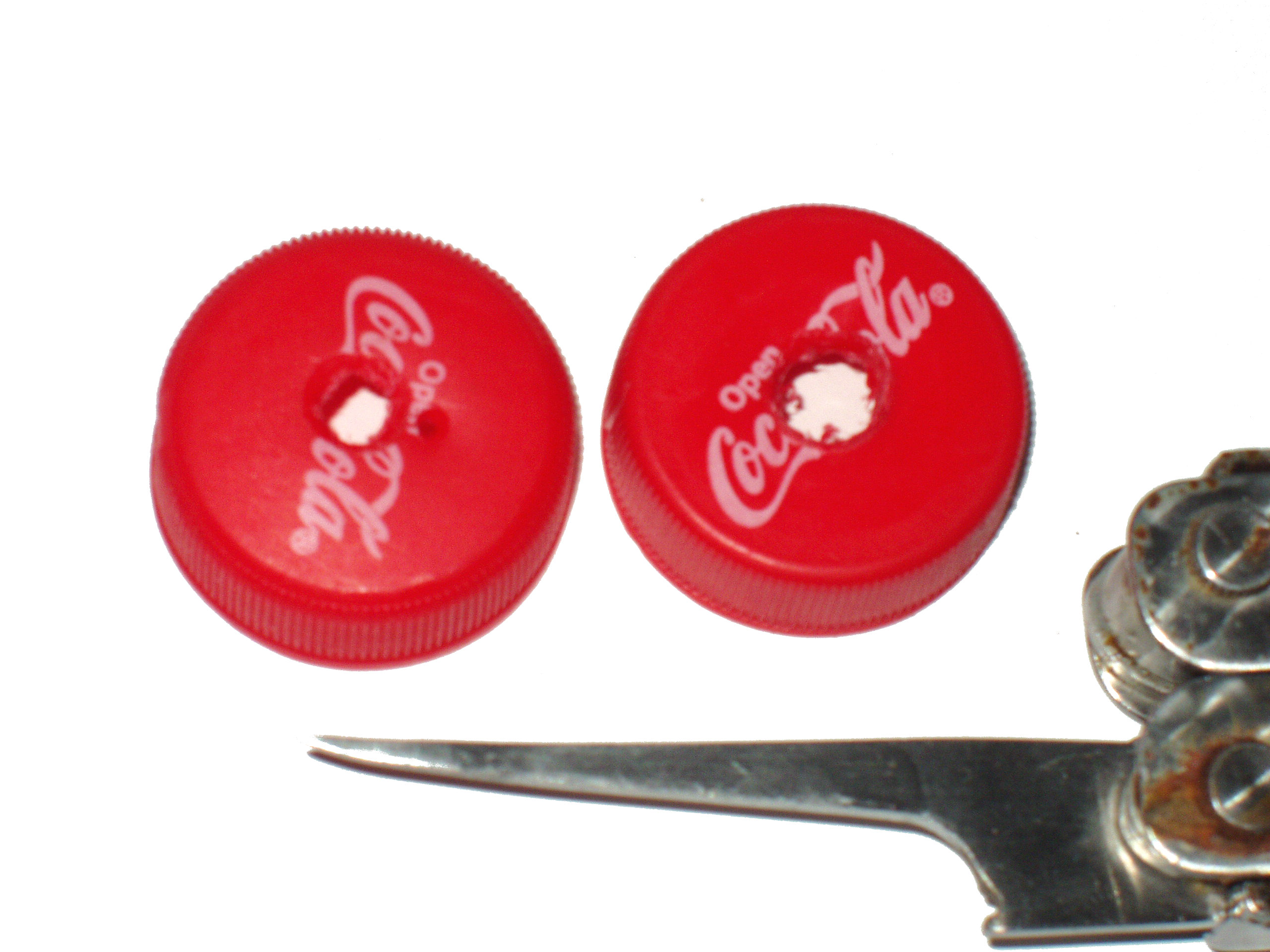

Remove both of the bottle caps from the Ignition Chamber. Get the first bottle cap and make a hole for the ballpen enough to fit. Get the second bottle cap and make a small hole for the Igniter's wire and make another hole for the bottom part of the Igniter (cylindrical metal). Be sure to make every hole exact of its size.

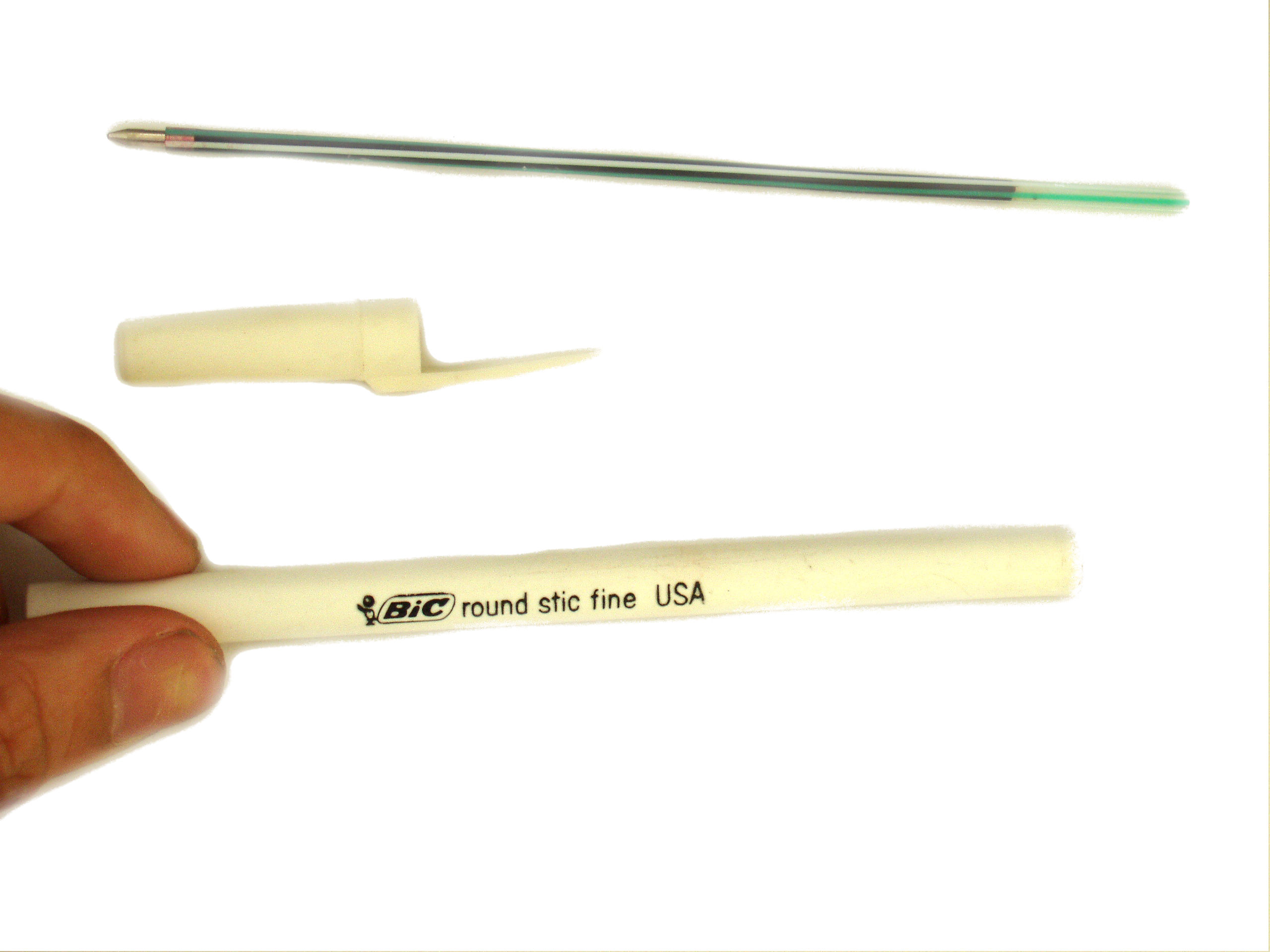

Get a ballpen I prefer using BIC because its body is round and has a large diameter. Disassemble the pen then take the pen's body you will need it for your "Barrel". You can use a smaller pen for shooting smaller projectiles like seed or BBs.

Get your first bottlecap with the single hole then attach the ballpen. Secure it by gluing it with hot glue. You can make differnet Barrel Sets for different kinds of ammo. Range depends on your barrel and ammo.

Get your second bottle cap with the two hole cap. First insert the metal bottom of the Igniter then insert wire into the smaller hole. Secure the set by using hot glue.

Screw everything up. Check if there are leaks or any flaws. Make sure your glue is dry. Your project should look like this.

How To Use It:

1st.) Unscrew the "Barrel Set"
2nd.) Fill it alcohol (2-5ml)
3rd.) Place your projectile below your barrel
4th.) Blow air for Carbon Dioxide to be replaced with air.
5th.) Screw it back again
6th.) Shake it two times

(See Video For Better Instructions)

Aim it at your target it should reach a distance for about 20-40 meters. Depends on your barrel and ammo.

Tips:

- You can make different barrel sets.
- Make your ammo fit into your barrel to increase efficiency with its mussel velocity.
- If your gun shoots very weak check for leaks or change your Barrel Set.
- Use Gatorade to have a larger Ignition Chamber.
- Use eye protection.
- Use denatured alcohol instead of Ethyl alcohol.
- Contact me at ASCexperiments@gmail.com or just PM me here in instructables


This is my new version. I'm looking forward on making another Instructable about this 8/10/11 .
