DIY Micro:bit Breadboard Hat
by BrianMCHS in Circuits > Microcontrollers
273 Views, 0 Favorites, 0 Comments
DIY Micro:bit Breadboard Hat
![image0.jpeg](/proxy/?url=https://content.instructables.com/FV5/FT4B/KKIGE3CI/FV5FT4BKKIGE3CI.jpg&filename=image0.jpeg)
![image6.jpeg](/proxy/?url=https://content.instructables.com/FJB/WJMM/KKIGE3CY/FJBWJMMKKIGE3CY.jpg&filename=image6.jpeg)

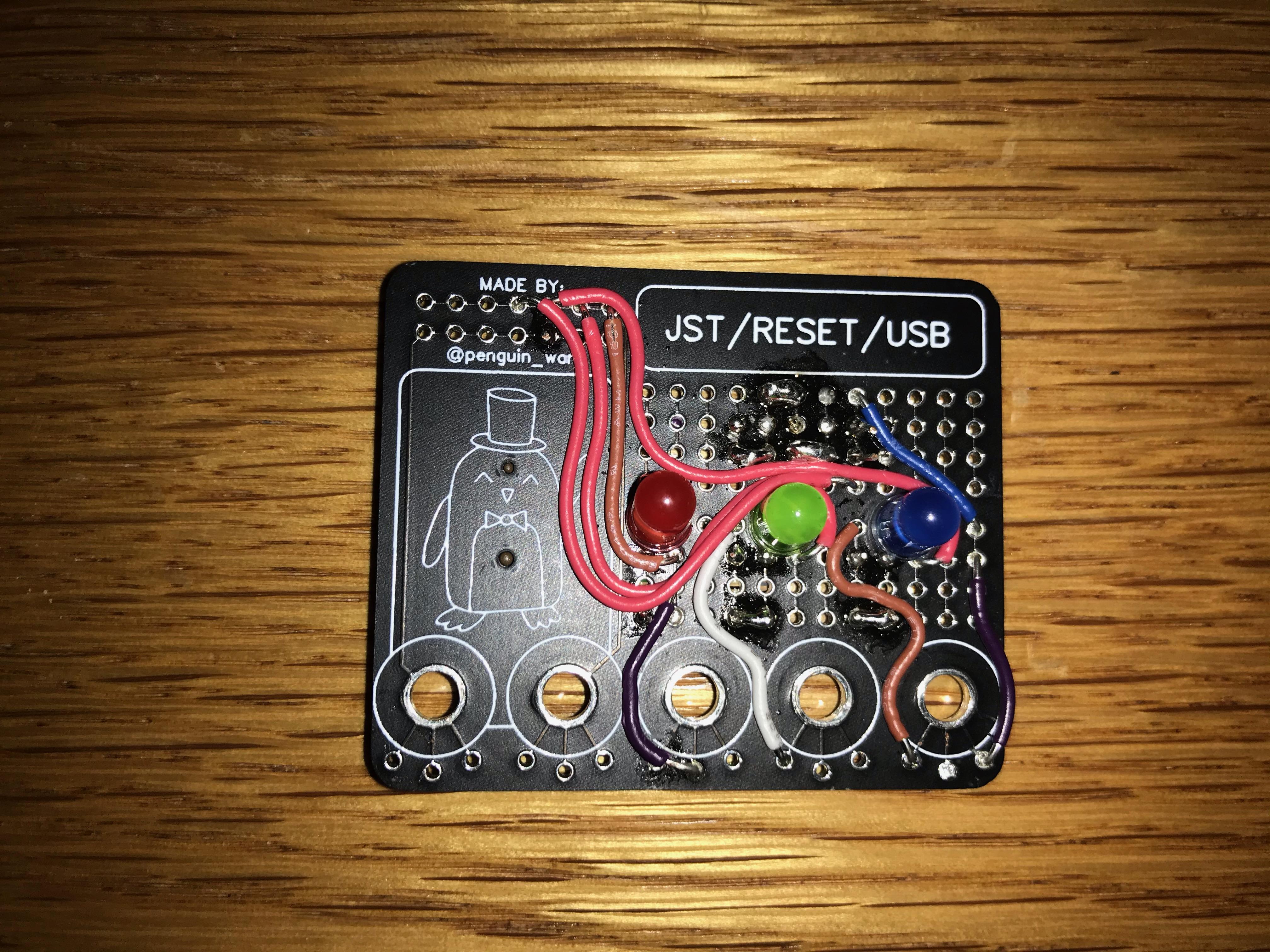

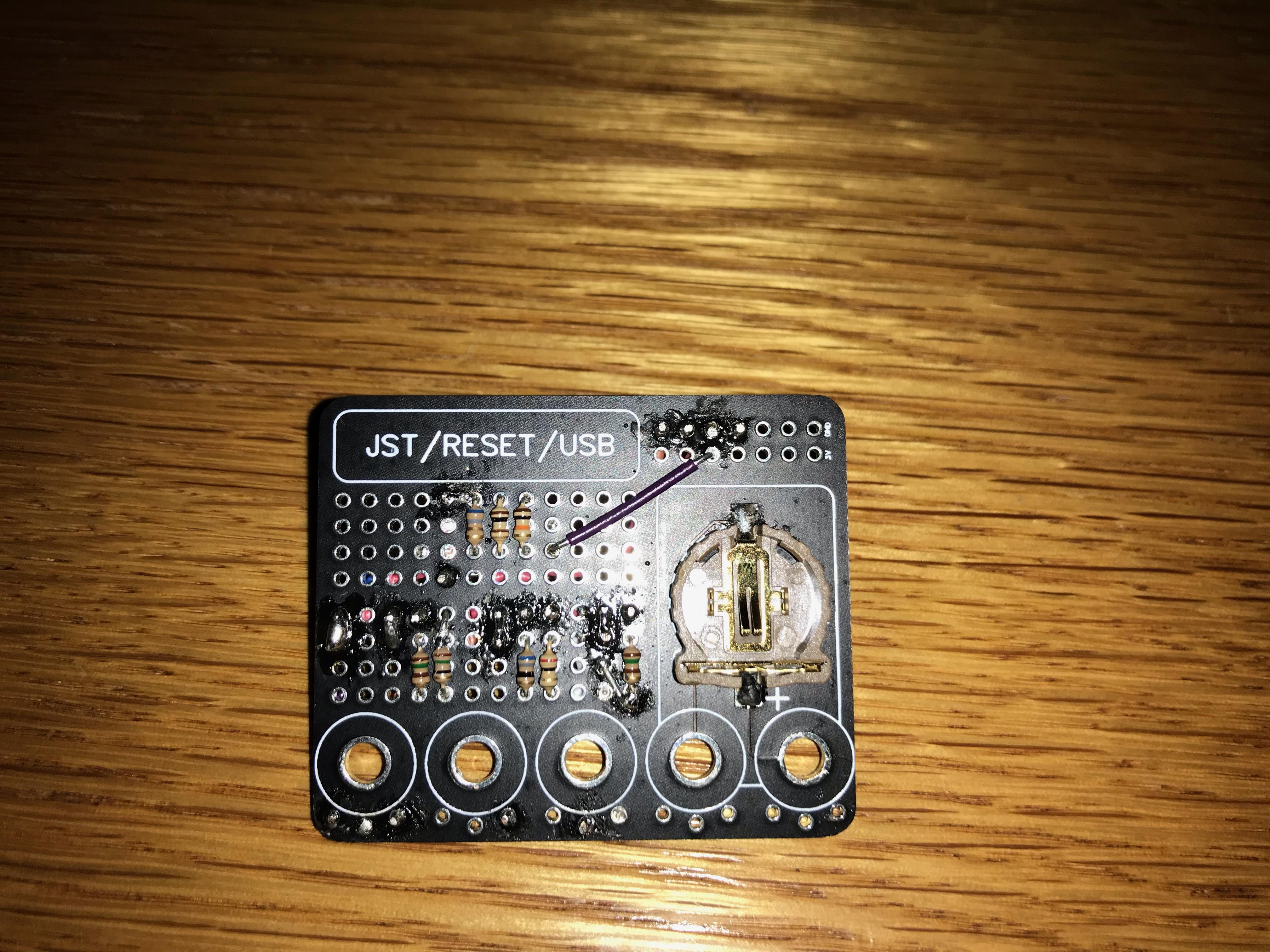

Before assembling my Micro:bit-based breadboard hat, I first modeled the original dimensions of a BBC Micro:bit in EagleCAD. After creating the general outline, I added an empty patch to accommodate for the battery plug, Micro USB B port, and the reset switch, along with an array of holes with standard breadboard spacing. Finally, I added a CR1225 battery holder to offer a more portable power source for any project. After receiving my boards from JLCPCB, I soldered on the battery holder along with a LED circuit for a DIY temperature sensor.
Attaching the Hat
![image7.jpeg](/proxy/?url=https://content.instructables.com/FG1/MOCW/KKIGE3DE/FG1MOCWKKIGE3DE.jpg&filename=image7.jpeg)

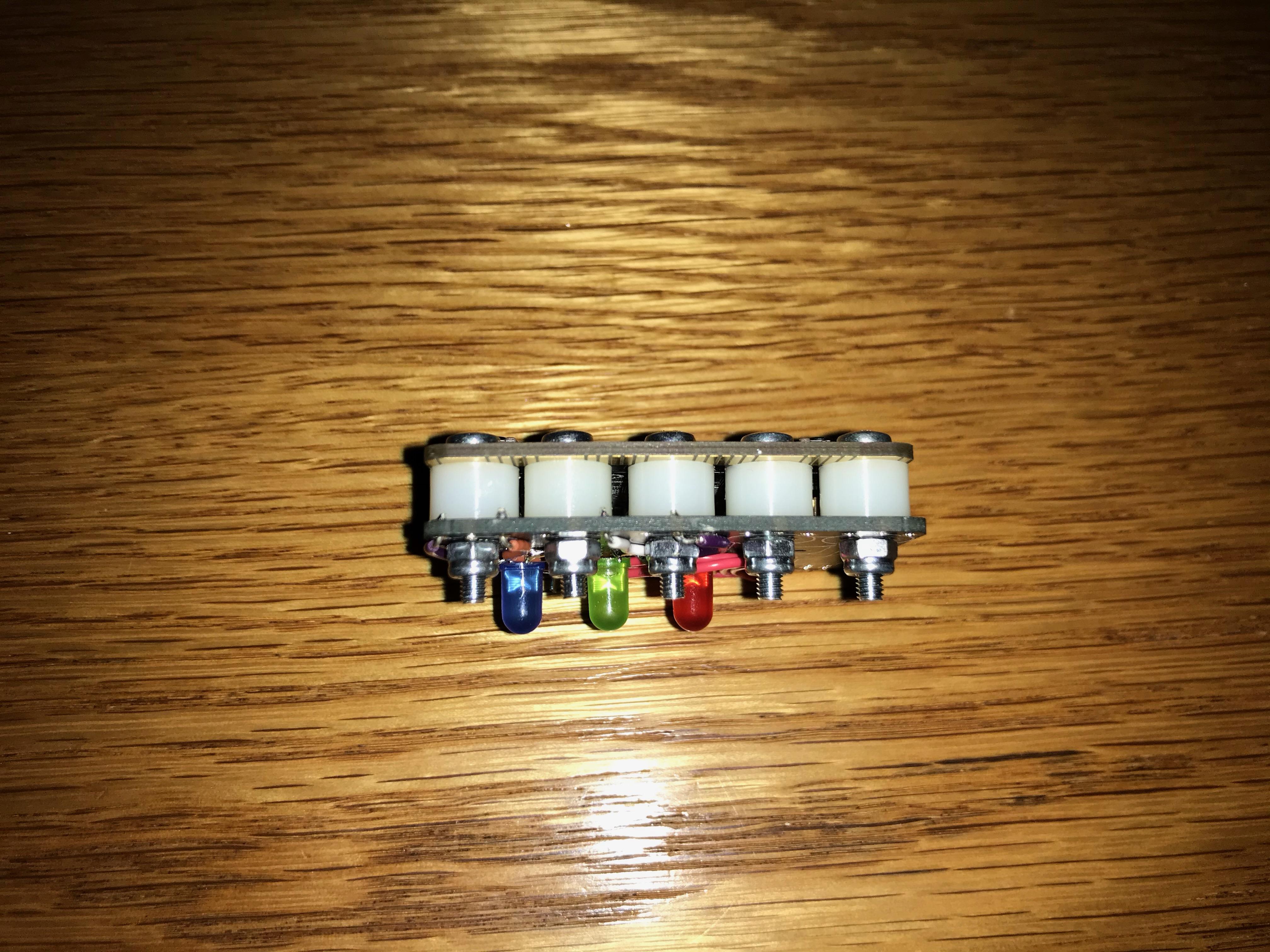

To attach the hat to the Micro:bit I used 5 M3 screws, 5 M3 nylon locking nuts, and 5 1/4" tall nylon spacers.
The Case
![image8.jpeg](/proxy/?url=https://content.instructables.com/FGN/X177/KKIGE3DT/FGNX177KKIGE3DT.jpg&filename=image8.jpeg)

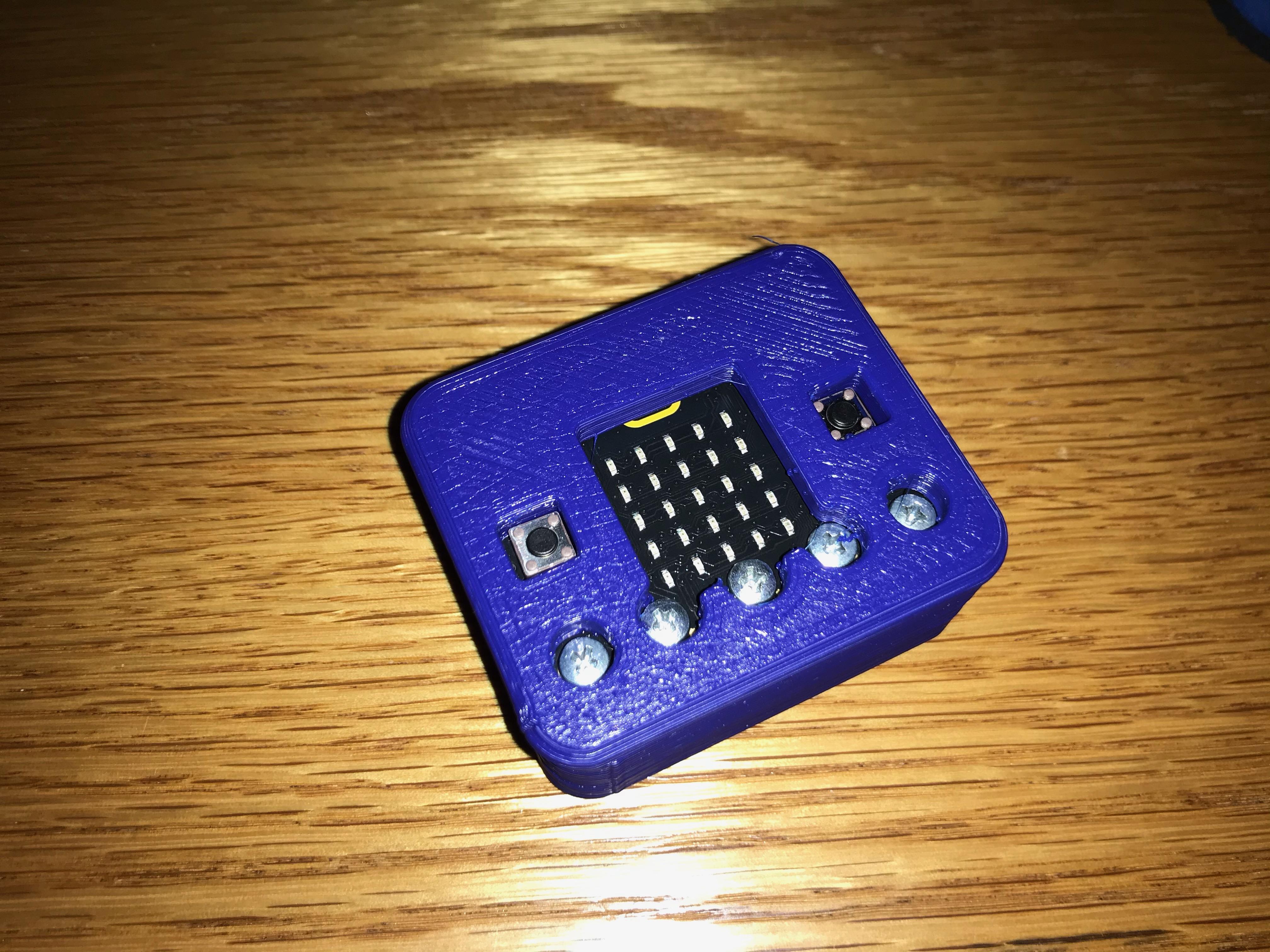

Lastly, I designed a simple case in Fusion360 to isolate the breadboard circuit while still allowing the LED matrix, A/B switches, and assembly screws to remain accessible.
