DIY MiNi Music Tesla Coil Kit

by ICStation in Circuits > Electronics

814 Views, 1 Favorites, 0 Comments

DIY MiNi Music Tesla Coil Kit

MINI Music Tesla Coil_13034_1(1).jpg
Component List.png

Introduction:

The Tesla coil can produce high temperature and high pressure plasma, which can sing, ignition, wireless transmission, and light fluorescent lamp. It has a wonderful arc. It is a very interesting small production of scientific experiments. This is DIY Tesla coil Kit parts, which needs to be soldered and assembled by yourself.

Parameter:

1. PCB size: 4.0mm*8.0mm

2. Power: 15W

3. Power input: DC 15-24v. The current is 2A. DC5.5 interface / pin

4. Audio input: 3.5 socket, can be connected to mobile phone, MP3, computer audio

Install 4pcs Resistor


Install LEDs, Capacitor, Audio Socket and Power Socket


Install the Heat Sink for 2pcs IC

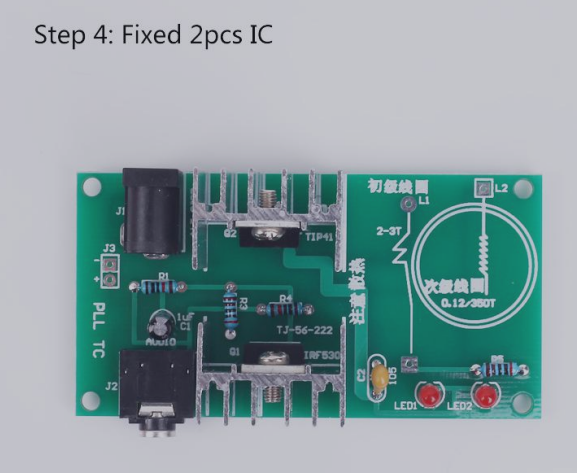

Fixed 2pcs IC


Install Coil


Done!

DIY Tesla Coil Plasma Speaker_13034_3(3).jpg
MINI Music Tesla Coil_13034_2(1).jpg

Video About This Tesla Kit

Build a Tesla

If you want to have a try, click here to get this Mini Music Tesla Kit from us ^0^

Thanks for your watching, hope you will like this interesting kit.
