DIY Mega Head Flashlight With 6x10W LEDs

by adachsoft in Workshop > Lighting

1370 Views, 8 Favorites, 0 Comments

DIY Mega Head Flashlight With 6x10W LEDs


This is my new head flashlight. I know it looks a bit strange, but it shines as much as the lights in the car. I installed 6 leds each with 10W. All powered from a 14.4v battery from a cordless drill. This is the most powerful flashlight I have had in my entire life. To build this flashlight I used the previous project ( Diy LED lights panel for 5$ - Cheap and Easy 6 x 10W ) where I step by step described how to do it.


This article can also see here:


DIY mega head flashlight with 6x10W LEDsCable


Diy LED lights panel for 5$ - Cheap and Easy 6 x 10W

Components


Measuring and Cutting


Below is an example of plexiglass cutting.

Grinding the Edges


After cutting the plexiglass the edges are not smooth, that is why I am sanding them.

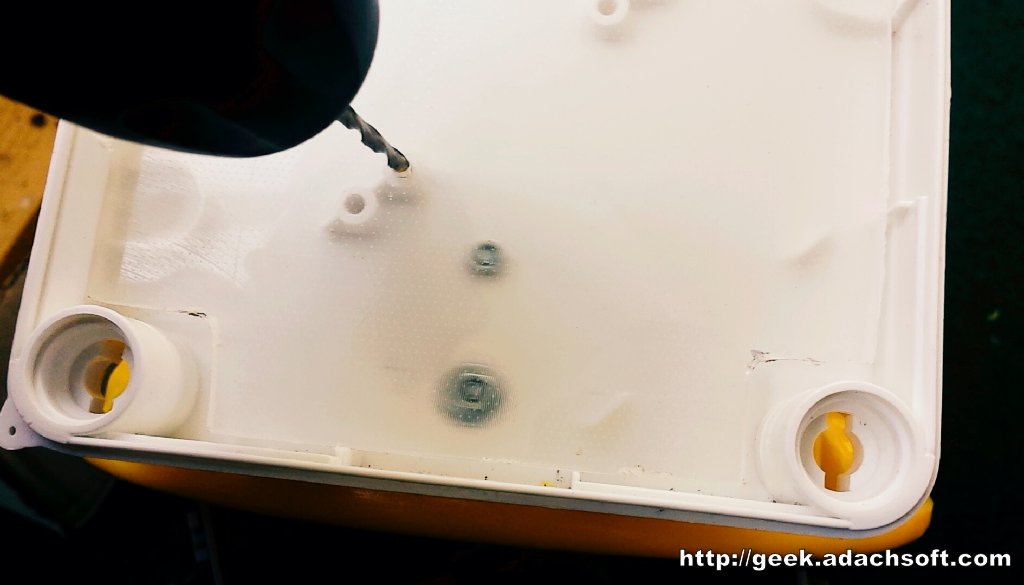

Drilling Holes


Now I can fit plexiglass into a plastic box and drill the mounting holes.

Mounting LM2596


Time to mount the LM2596. LM2596 is step down converter and I use this as leds driver.In addition, I added a rectifier diode, this protects against reverse polarity.

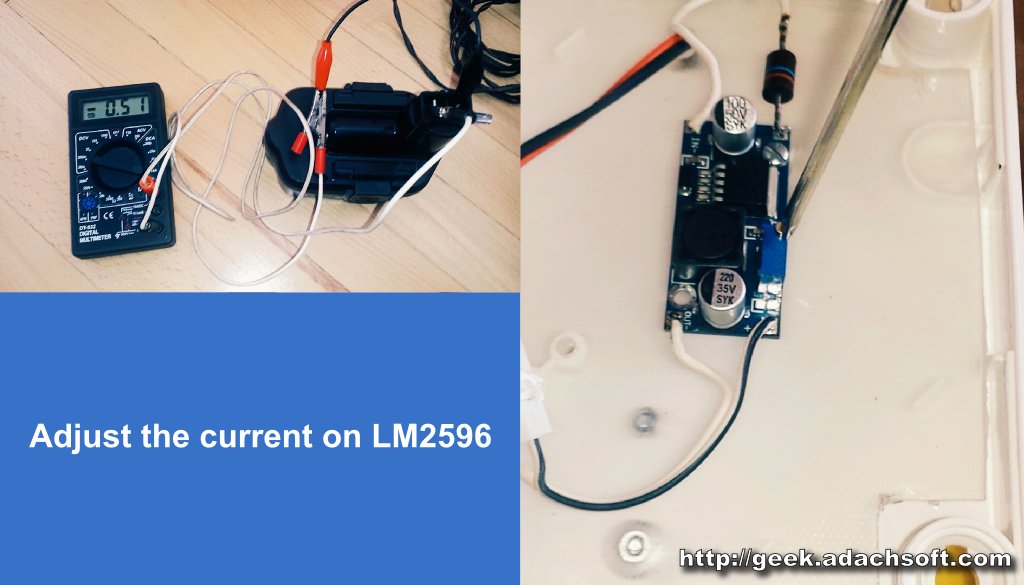

Adjust the Current on LM2596


Adjust current on LM29. Just now I set the current at 0.5A, it is only for testing.I use a screwdriver to set the correct current.

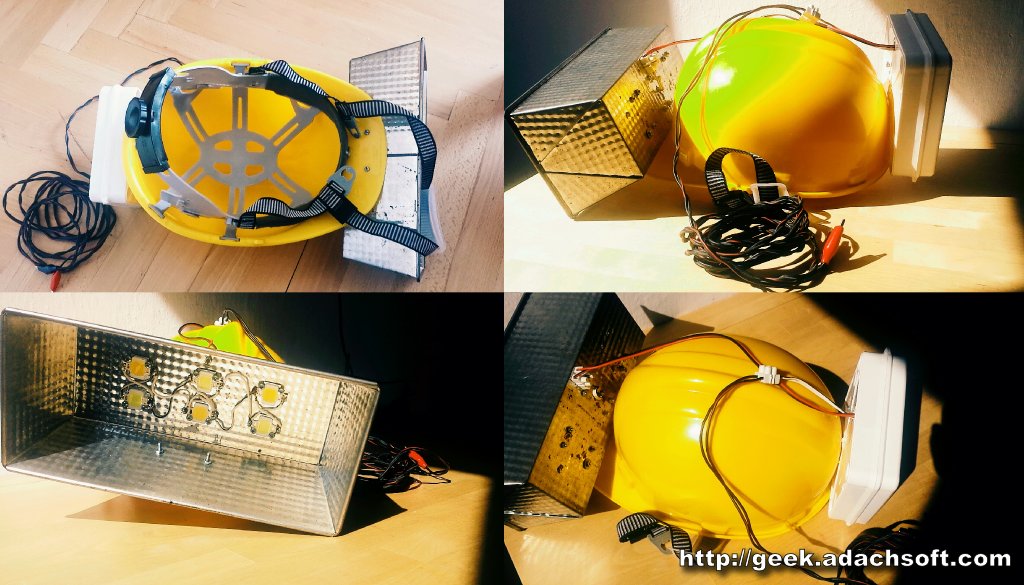

Putting Everything Together


Now I can put everything together and test how it works.
