DIY Mason Jar Chandelier

This project is not too complicated if you know the basics of wiring. I did it in about 1 day but had majority of the materials.

Materials

1. Wire (I used 14 gauge, 3 wire since it's a lighting project

2. Plug (Optional, you can hard wire it if you choose to do so)

3. 2x12
4. Mason Jars

5. Light Sockets

6. Light Bulbs

7. Wire Nuts

Tools

1. Wire strippers or Box Knife

2. Side Cutters

2. Screwdriver

3. Miter Saw or Rip Saw

4. Scroll Saw or Coping Saw

5. Router, Router Table, or Chisel

6. Drill or Drill Press

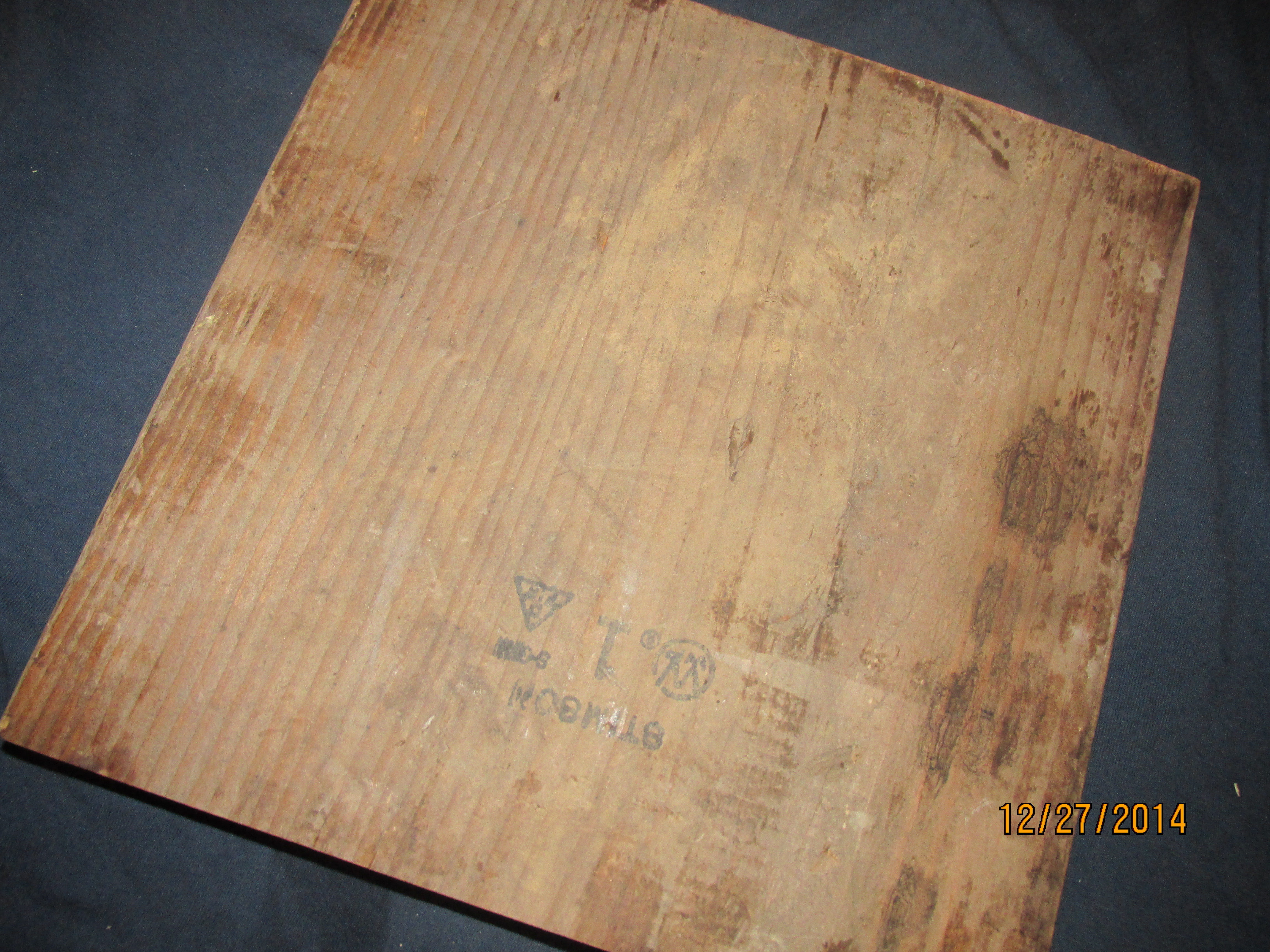

The box is simple and can be built to your needs and desires. The box size depends on location and number of mason jars. I squared up a 2x12 (11.25 x 11.25). This will be my box.

You can build your box out of whatever you have around though (Pallets, Scrap, etc.)

This step is the point where you make the place to hide the wires. If you didn't use a solid chunk of wood you can skip this part.

I went in an inch on all sides and made a square. This is the stuff I will be removing. I first removed the edges of the square 3/4" deep with a router (adjust yours to the thickness of your board, I just did half of mine). Then you can take out the rest in the middle. This process takes awhile but doesn't have to be perfect because it will be hidden.

I then notched a slot 3/8" deep for my plug wire to come out of. If you are hardwiring, you don't have to do this.

At this point you will drill the holes for the wire to run through. I am only using 4 mason jars, so 4 holes. You can equally space them out but I did mine randomly. Drill a hole just big enough for your light socket because the mason jar lid will need to cover it.

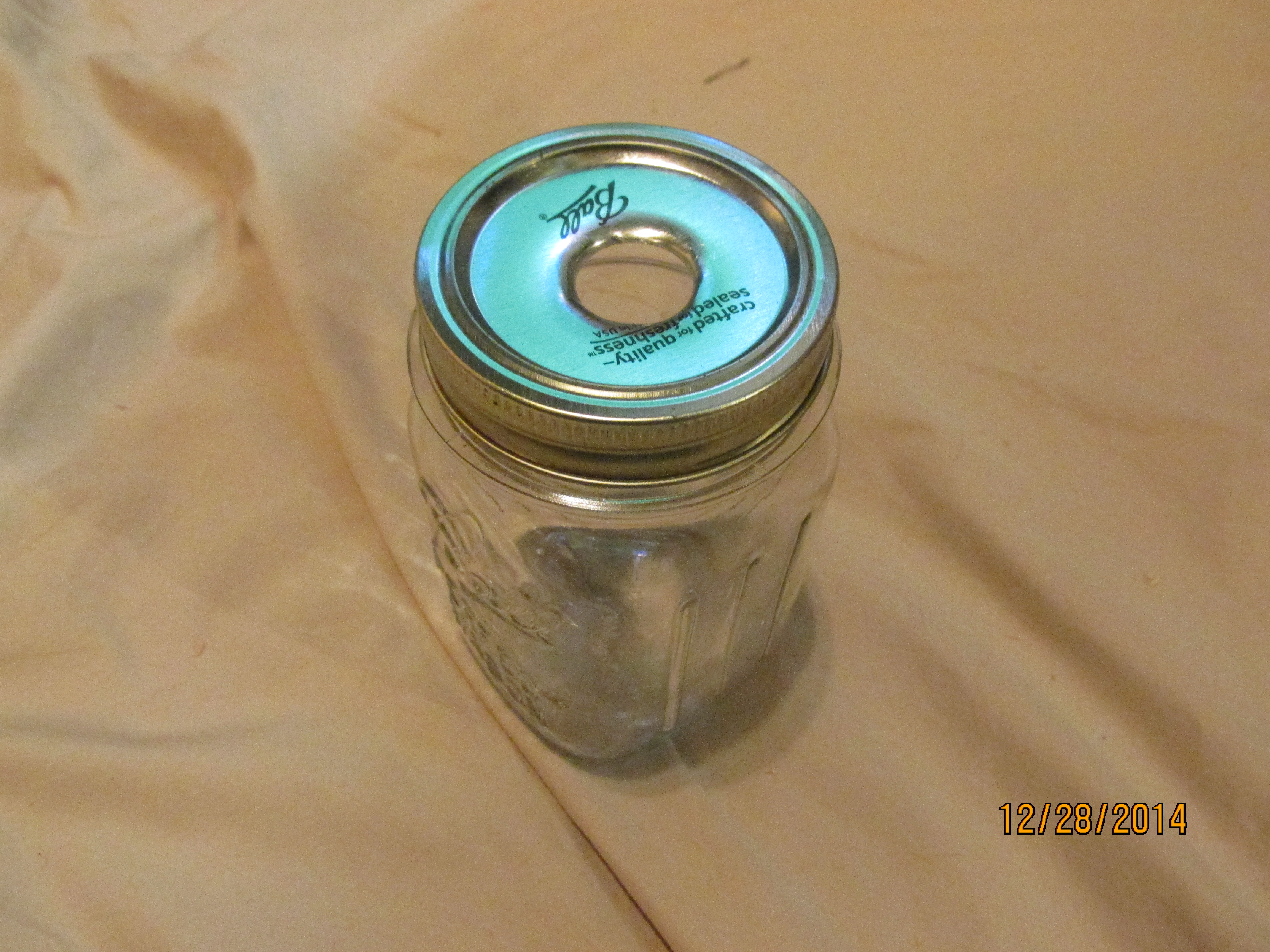

Drill the lids of your mason jars to the size of the threads on your socket. If you are using a socket that doesn't have threads drill the hole big enough for the sockets and hot glue them in place.

When the holes are drilled, thread in the light sockets.

You then feed the lid assembly through the hole making sure you place the band on with it. You can then screw it down using short drywall screws.

After this is done thread on the mason jar.

The wiring is very simple depending on the amount of sockets you have. It is even easier if you wire it in series but if one socket goes bad the rest down the line will go. I parallel wired it which continues the flow of electricity even through a bad socket.

Mine may look like a mess but it is safely wired and all works.
