DIY Make Light Bulb Smart Phone Projector at Home Easy Way




Requirements:
Light Bulb
Shoe Box
USB Speakers
Mobile Power Bank
Caution :
Take care while handling blades and while breaking filament
Let's Get Started
Preparing Light Bulb





Remove the filament in the light bulb after removing wash it water and clean it you will get a clear bulb.
Fixing the Bulb to Shoe Box

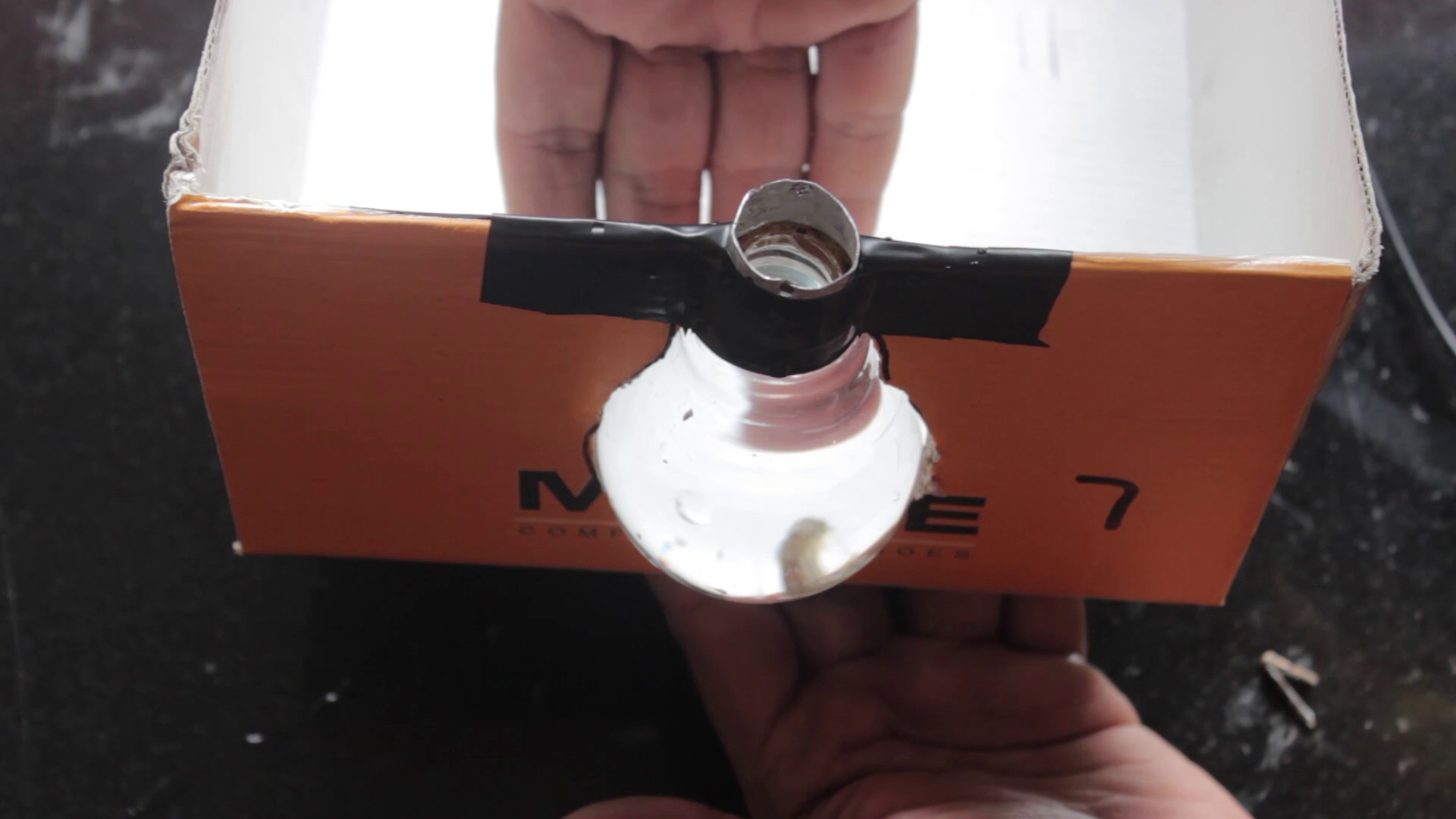

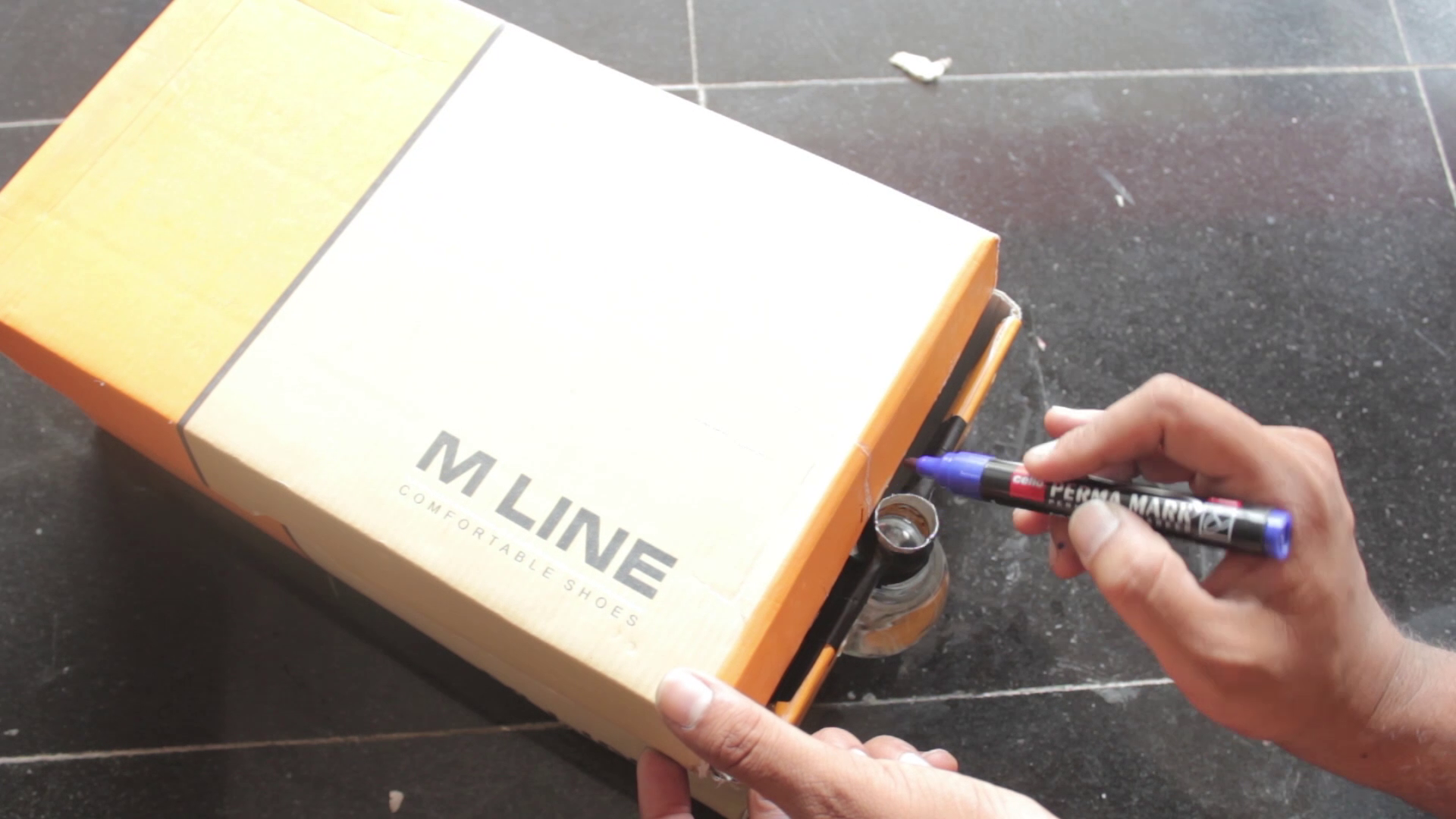

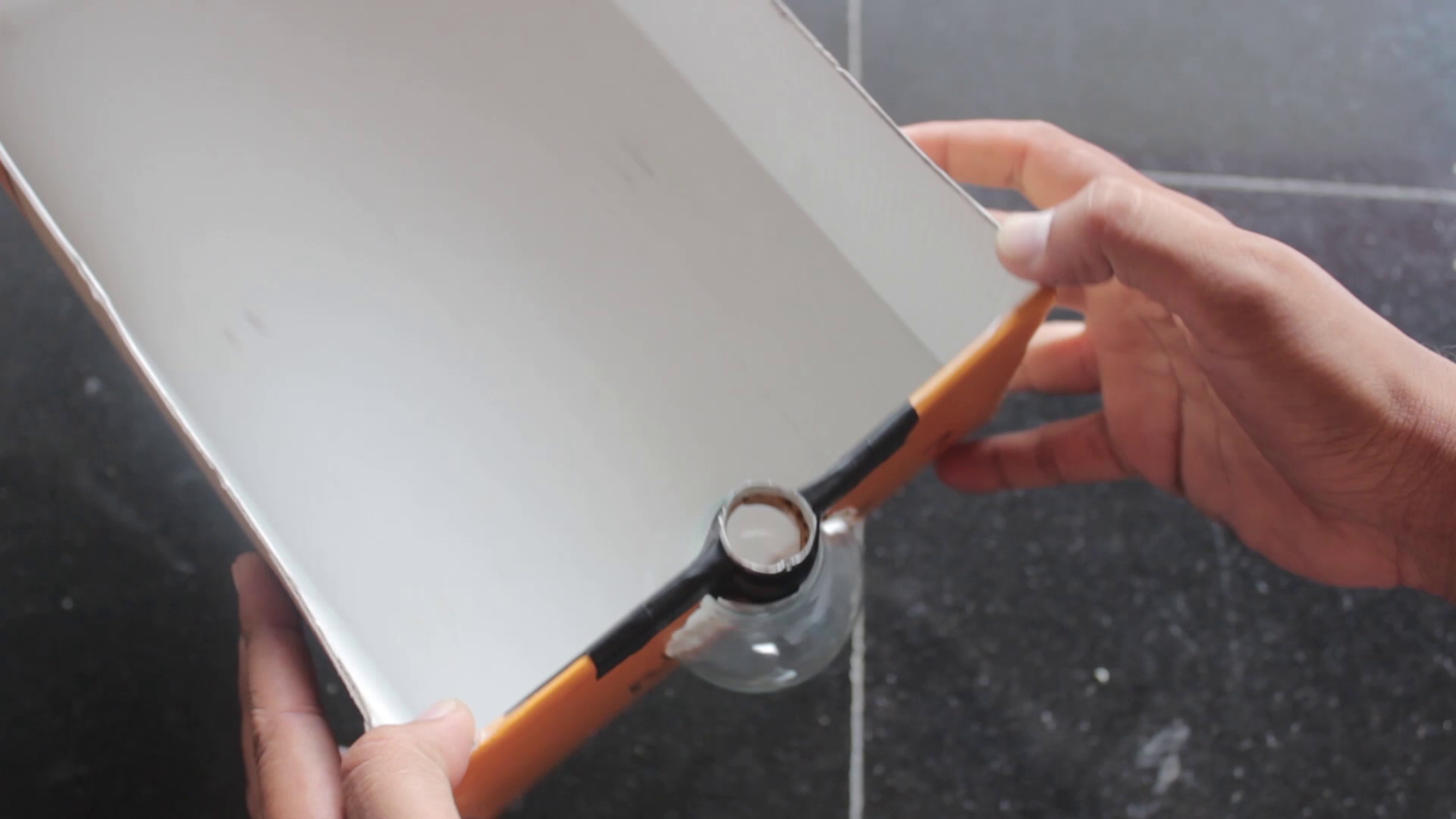

Place the empty bulb over the one upside portion of box and mark around the bulb shape and using a scissor cut it and place the bulb in the cut portion and apply tape on both sides and apply more plaster pieces to fix the bulb firmly.It looks like as shown in last picture.
Preparing Mobile Holder to Fix in the Box

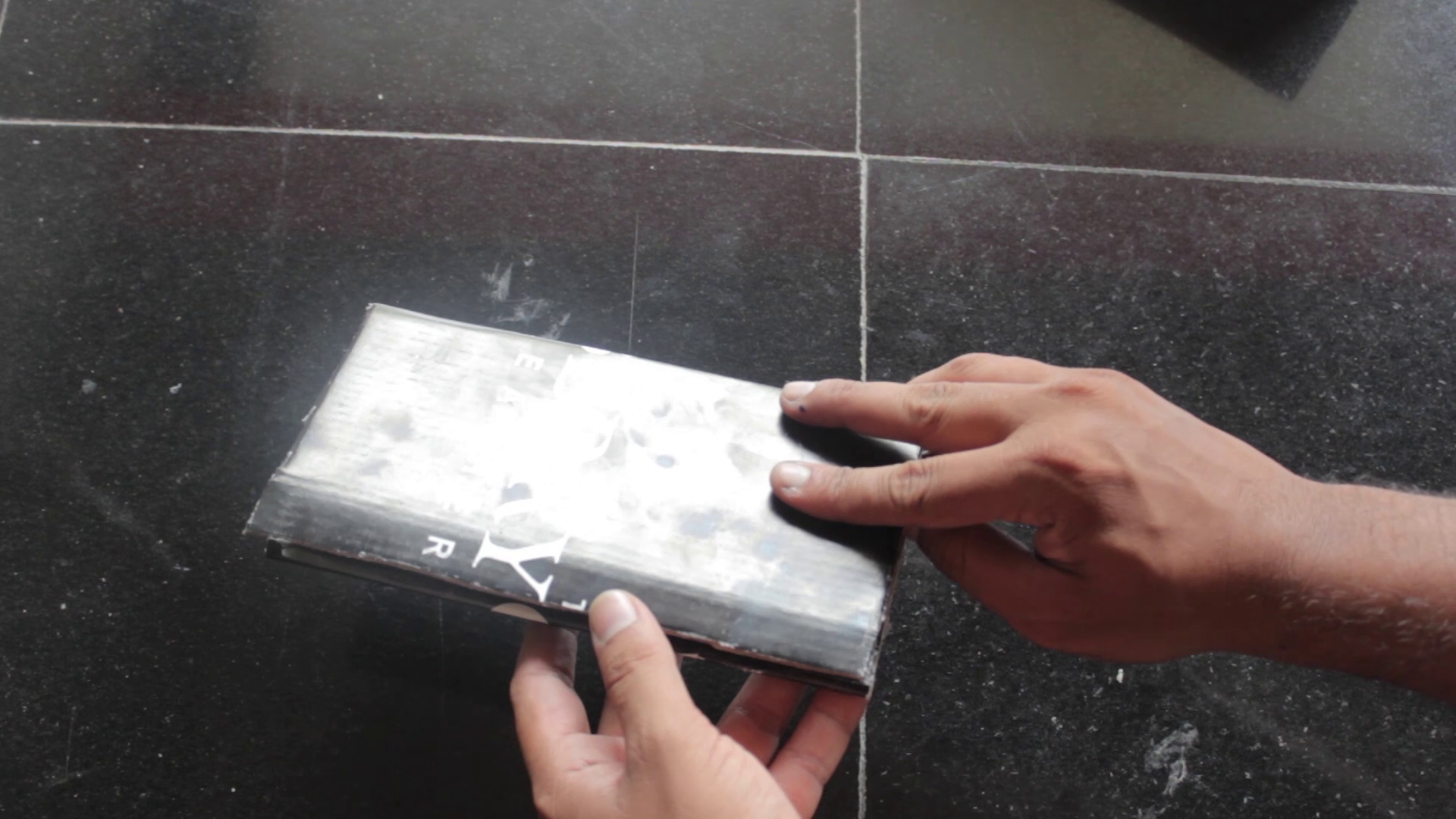

Take another card board sheet that fixes tightly inside the box and fold it and remove the excess portion after folding and using gum or tape stick it and it looks like a rectangular sheet that fixes inside the box tightly and holds the mobile.
Fixing Usb Speakers in Box

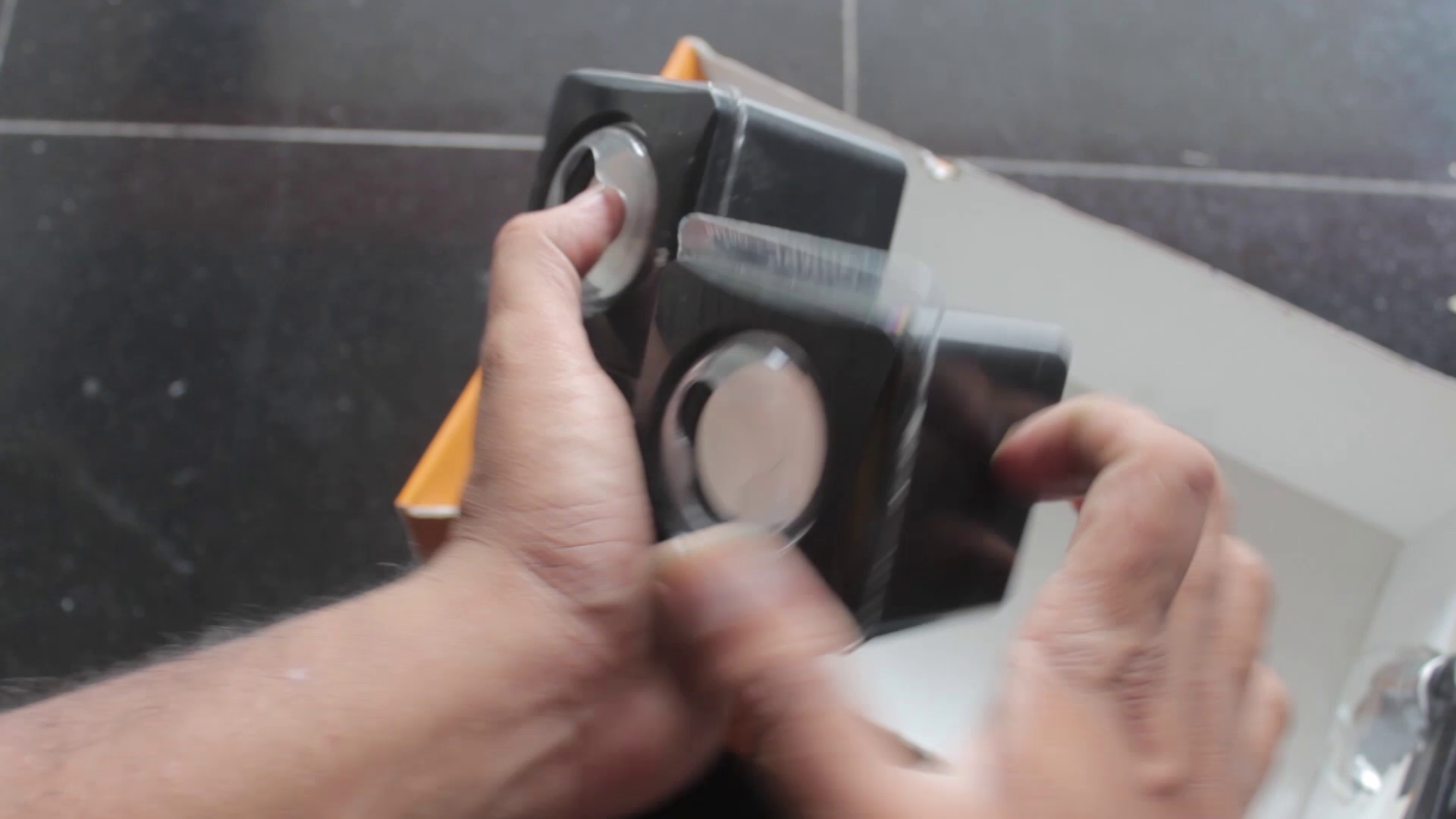

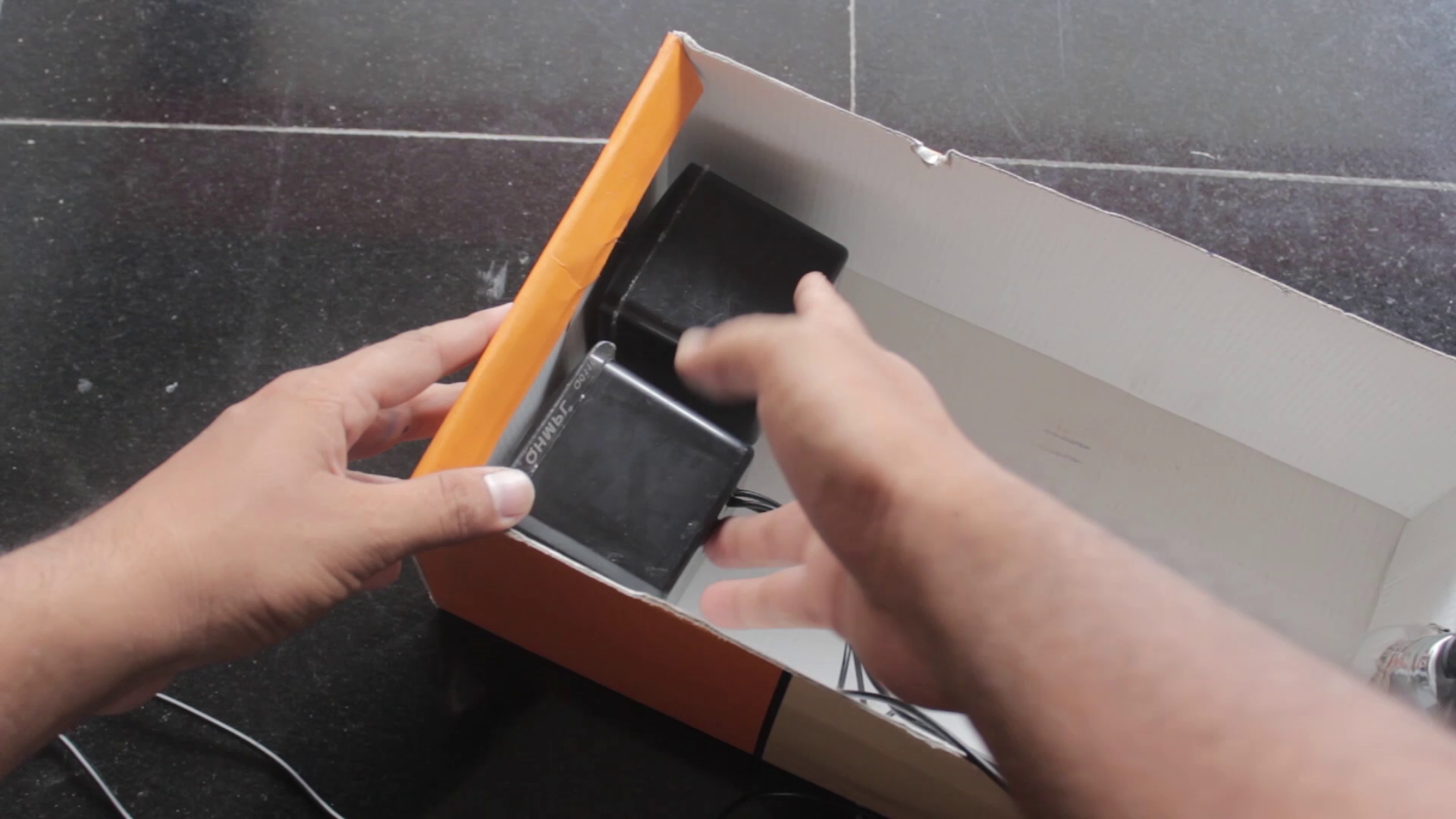

Take the usb speakers and fix inside the box using double side foam tape by making holes on back side.
Fill the Bulb With Water

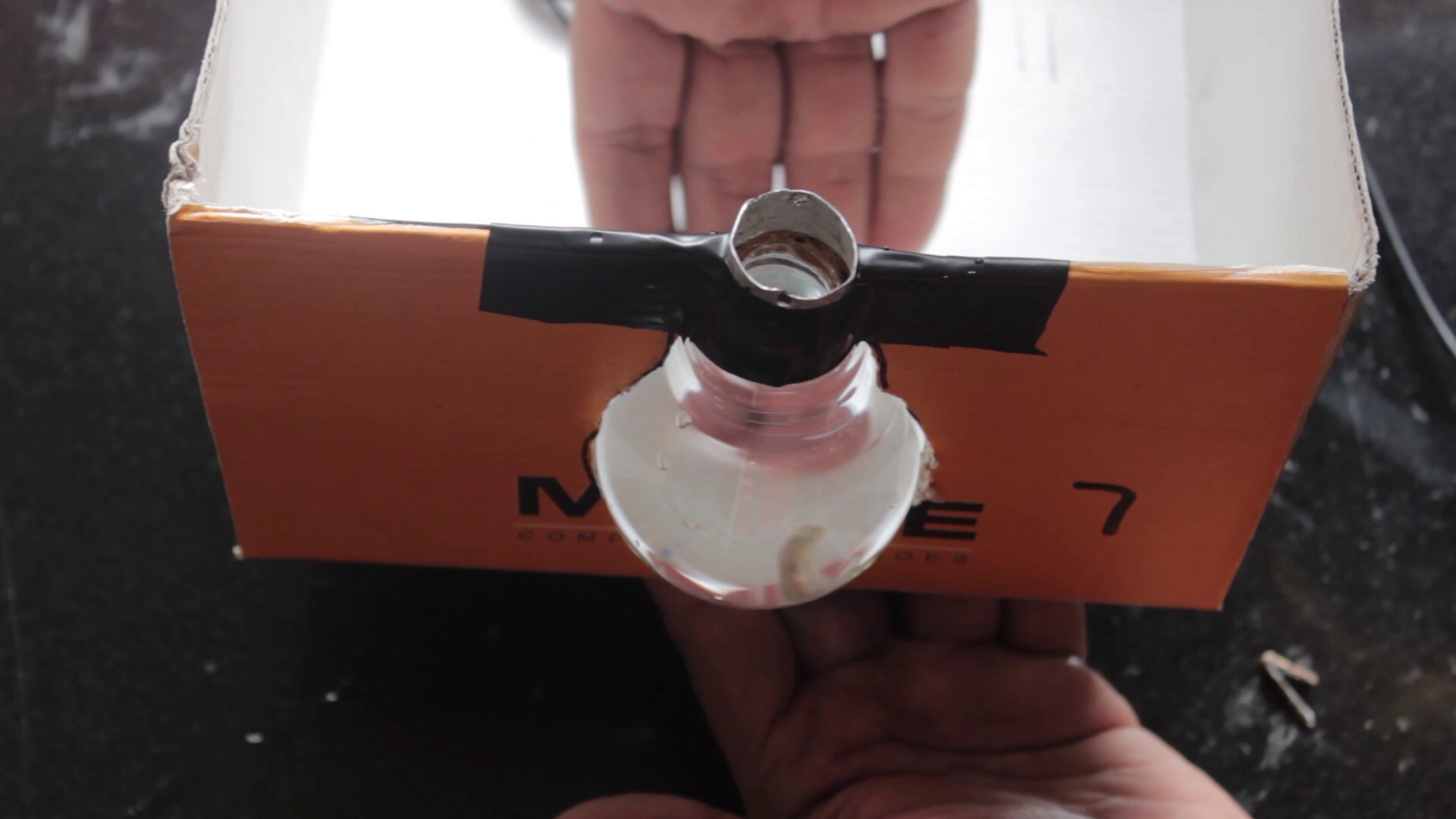

Fill the light bulb with water it serves as a magnifier.
Fixing the Inside Contents





Now fix the final part Mobile to mobile holder using Double side foam tape and fix it inside the box.and connect the usb speakers to mobile with 3.5mm jack and power source through mobile power bank.
Fixing Box Lid





After fixing inside contents fix the lid over the box and give necessary cuts to fix the lid to box.
Testing Time








1.Increase mobile brightness to 100%
2.Turn off Auto Screen Rotation
3.If you are using MX player go to display settings and stop screen rotation.
4.And Finally play video upside down and place it inside the projection box
5.Adjust the position of mobile inside the box behind the bulb to see the clear projection without blur and watch the movie.
Results




These are the results of the projector.
Thanks for watching my article and bye bye have a great day.
