DIY Mailbox Post

I decided to make a new mailbox post and replace our old box and post to add some curb appeal to the front of our home. This is a GREAT project for those new to woodworking and on a budget. I completed the entire project for under $100 and this includes the post, a new box and custom made decals to apply to the sides of the box with our last name and address. Another goal was to make the new mailbox match our newly painted front door!

For this Project you will need 1 = 8ft 4x4 material of your choice, for my post i chose cedar but you can commonly find treated pine 4x4 material at any big home center store.

A saw of some sort, I used a miter saw, and table saw in this construction as well as a plunge router for my choice of joinery in this build (mortise and tenon) But you could accomplish this with only a hand saw and a drill if necessary.

Wood Glue

And if you choose to add a new box you will also need one of those.

If you are replacing the mailbox itself, you will also need a piece of wood to attach the box to (whatever length and thickness will be required to fit underneath the mailbox mount area. Wood screws (various lengths)

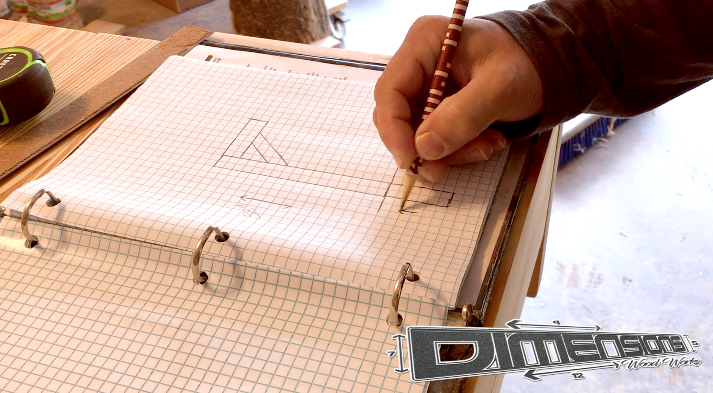

You can choose to make a 3D model for this simple project (but for me i just drew it on graph paper) Get your measurements and cuts laid out to ensure a seamless workflow.

After making your plans and getting your measurements, begin to cut out all pieces for the main post construction. For this simple design, I only had 4 main pieces: the main post, the piece to support the box, the support piece (with the two 45 degree cuts) and the small piece of wood to actually attach the box to the post.

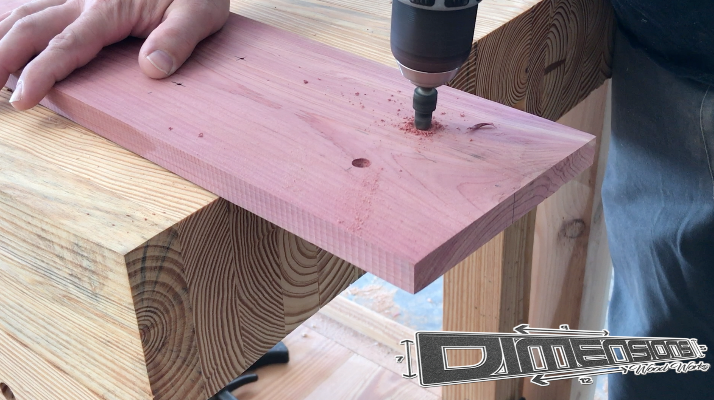

For my build, i chose to use mortise and tenon joints for added strength but the connections could simply be made with wood screws if you so choose. Using screws along with glue will make for a strong enough joint but make sure to use screws rated for outdoor use (such as deck screws)

Glue , screw and otherwise assemble all of the pieces. If you use glue, make sure to add clamps and allow glue to cure fully before putting the post in the ground. When mounting the smaller board that the box attaches to, make sure to open and close the mailbox door so you can be sure the door has enough clearance to open and close properly.

If you are using an untreated material (as i did) You will need to apply some sort of water resistant finish to the post itself. I used a Spar Urethane, which has great water resistant properties and meant for use in the marine field for coating boats. This finish will give the wood several more years of durability with the abuse that any piece will take in being outdoors. Water and UV rays reek havoc on wood so anything that can give some protection will help your new project to last much longer.

With my post it was simply inset into a hole, but if you have a mailbox that has been set into concrete, you will have to dig out the concrete surrounding the base of of the post. If it is simply placed into the hole, you will need to merely wiggle the post back and forth and side to side until it is loose enough to lift from the hole.

First i made a small mark around each side of the post for 20 inches , which is required where i live. Then i set the new post back into the old hole, adding a little dirt, then a bit of water and all the while tamping the dirt around the post as i went. I continued this process over and over to cover a few inches at a time to make sure the post was well seated into the hole. Make sure to keep a level handy and check that the post remains level throughout the installation process.

The installation of the new mailbox is overwhelmingly simple. I used 8 stainless steel screws to attach the box to the platform on top of the post. This process may vary depending on the mailbox you choose for your project.

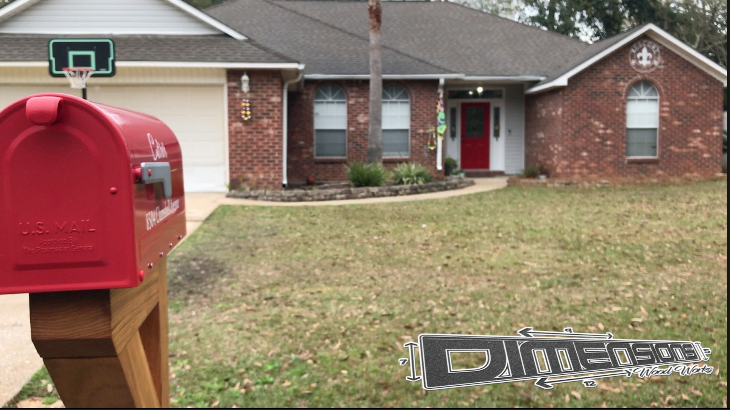

Now you ( and your neighbors ) can enjoy your new mailbox and post. If you want to see the full in depth build, you can go watch the video embedded here. If you have any questions please feel free to leave them in the comments on the video or send me a message or comment here on Instructables!
