DIY Low Cost Floating Valve for Low Tech Irrigation Automation With Ollas


If you do not want to be on the headlines for wasting water (https://www.latimes.com/california/story/2022-08-22/kim-kardashian-kevin-hart-california-drought-water-waste) it might be a good time to install or improve your garden irrigation system.

This instructable shows how to make a low cost, low tech floating valve.

  • It works well in a low pressure environment ( i.e. water coming form a rain water tank)
  • It would not be able to handle pressure (like water coming from domestic water network). See step 6 if you only have access to such water distribution.

The basic idea is to pinch a flexible tube when water reaches some level. When used in ollas to auto fill them you can make an extremely efficient watering system, without any programing device, timer or pump.

Ollas irrigation, also called pitcher irrigation is a very efficient way to water your plants (save 50 to 75% of water compared to traditional means of watering) and on top of saving water it is better for the plants, less work for the gardener (i.e. less weeds to remove : less germination on the dry surface as water come underneath). Check this poterie Jamet site, they share a lot of information on ollas : https://www.poterie-jamet.com/.


I wanted to improve a bit the ollas system with low tech automation in order to auto fill the ollas with a rain water tank.

I started this work with this instructable : low tech greenhouse automation, this is an update of the watering part.


Although I got good results with the low tech watering automation setup in my greenhouse, there were several points I wanted to improve :

The underground interconnection of the pots : it works well but makes it difficult to reorganize the pots or perform maintenance, there is also a risk of leak over time.

The flower pots themselves : they are not as optimized as a true ollas can be (the maximum radius of the pot is closed to the ground surface while for an ollas this is the minimum radius, as a result the maximum water diffusion takes place underground with an ollas).


So I wanted to use true ollas that are not interconnected underground. A simple solution is to have a floating valve installed in each ollas, unfortunately I could not find any commercially available floating valve that would fit in an ollas (due to its small radius)....let's make one then...


I have tested many different setup...even tried motorbike carburetor float pin.. but what I describe in this instructable is what worked...all my other attempts did not give good results (immediately or over time).

You have two parts in this instructable, from step 2 to 5 is how to make the floating valve using a 3D printer, from step 7 to 12 if you do not have a 3D printer.

Supplies

  • A few ollas with their cover...I have no idea how easy it is to find ollas in your own country...if not easy it might be a good opportunity to develop your own ollas business...
  • polystyrene balls or eggs (7cm diameter)... need to be big enough to push the valve, small enough to be inserted into the ollas
  • 2mm brass rod (I found mine sold as brass brazing rod)
  • thin walled silicon tube (4 mm outside diameter, 3mm inside diameter)
  • standard micro drip irrigation water hose (what is sold locally here is 4 mm inside diameter, 6mm outside diameter)
  • connectors for this micro water hose
  • 2 x 3mm screws, nuts and washers
  • PLA filament for the 3D printed parts

For the non 3D printed version same as above but PLA is replaced by :

  • L shaped aluminum (10x20mm 50mm length)
  • flat shaped aluminum (10 mm wide, 2 pieces 40 mm long, 2 pieces 50 mm long)
  • square aluminum tube (8x8mm 60mm long)
  • two small pop rivets (could be replaced by screws if you do not have any pop rivet gun)

Let's See It Working First...

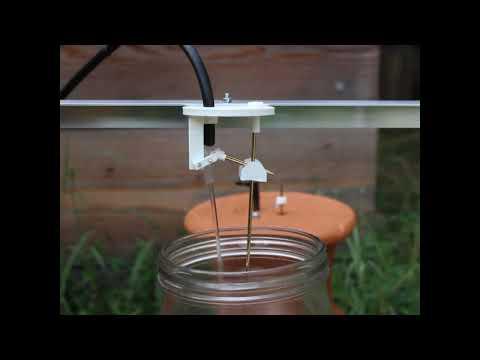

floating valve in action

This small video is accelerated by 8 to illustrate the floating valve in action.

Print the Parts


I designed my parts to be used with 2mm rods and 6mm water hose...you may have to adjust the hole sizes based on what you have available.

I used PLA which is water resistant and easy to print.

Parts Assembly

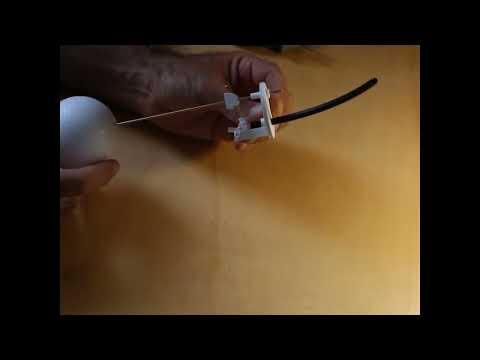

Floating valve assembly

Assembly is simple, insert the brass rod and cut to desired size (allow enough clearance between parts, do not tight then together, the mechanism must operate smoothly)

I found it convenient to use a power drill to insert the brass stick into the polystyrene ball. Since this ball will push the whole mechanism, it should not slide easily along the brass stick. Once assembled, you can adjust the desired water level in the ollas by moving up or down the floater. Make sure the brass stick is shorter than the depth of the ollas or it could maintain the valve in a closed position.

The small piece of silicon tube is just inserted in the black hose, to ease the insertion, humidify it first.

You will notice that the mechanism gently pinches the silicone tube even in open position.

Modify the Ollas Lid

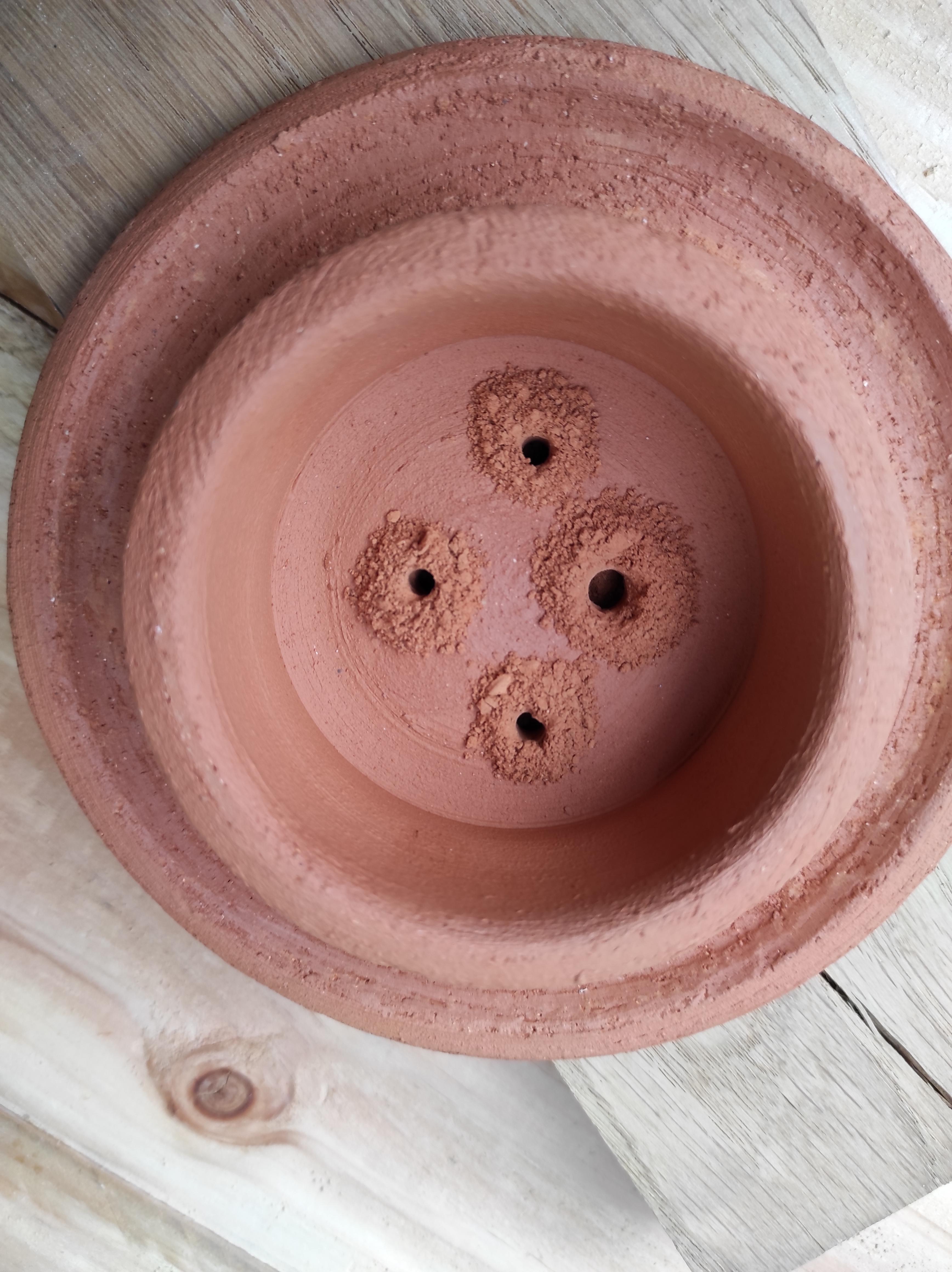

  • use the printed plate to mark the 4 needed holes
  • drill : the two holes that will be used to secure the plate on the lid are drilled with 4mm drill bit. The two others (one to let the brass rod move freely and one to let the water hose go in) are drilled with 6mm drill bit. I used masonry drill bits (for concrete) it does a nice job on clay.

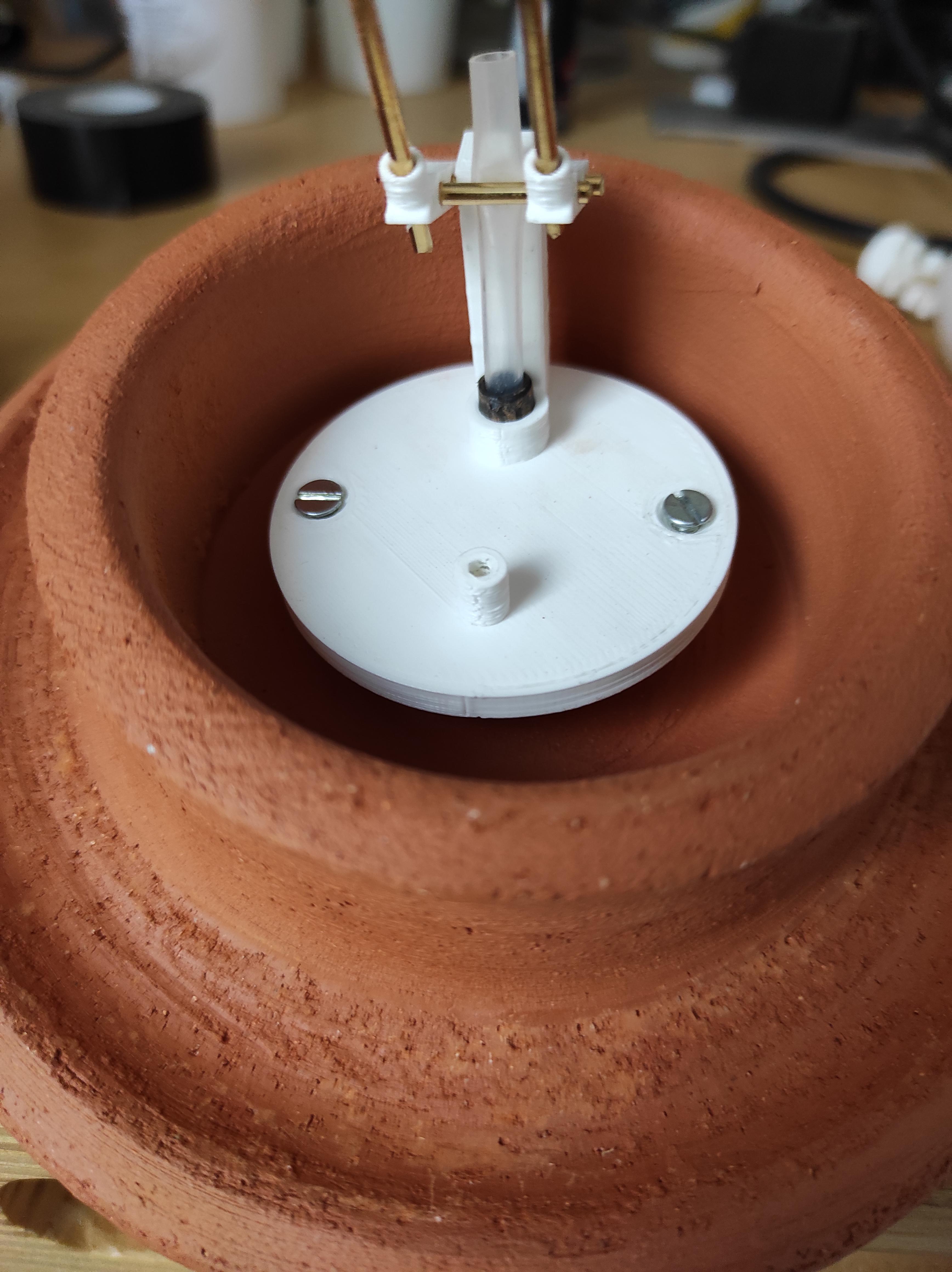

  • secure the plate with two screws and reinstall the brass rod with its polystyrene ball into the mechanism.

Test and Install Your New Irrigation System !

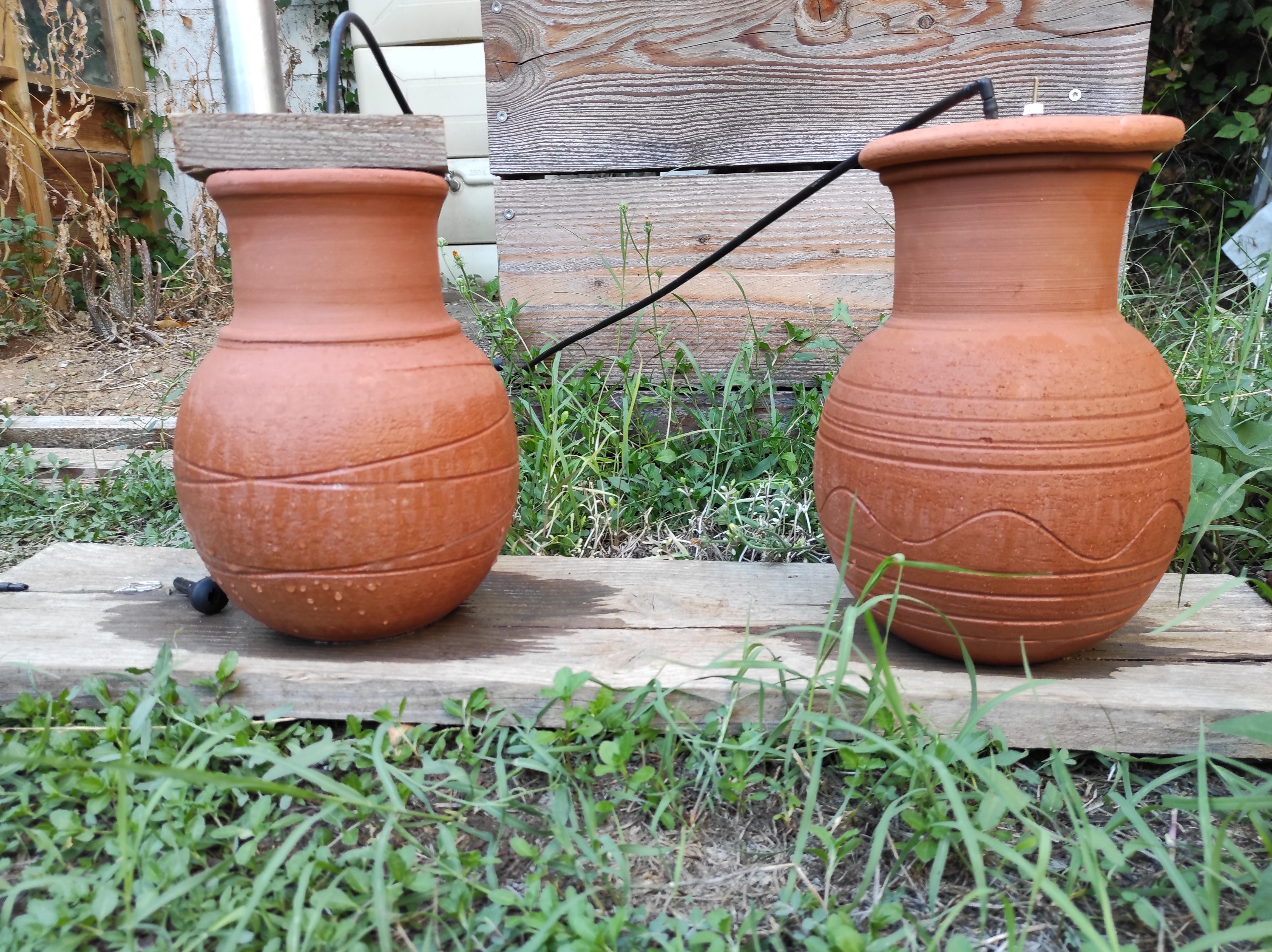

The photo shows two ollas under test.

They will be buried in their final location.

What If I Do Not Have a Rain Water Barrel ?


Well, install one :) https://www.instructables.com/DIY-Rain-Barrel/

As another option, you could just create a small buffer tank between the water distribution and the ollas you want to auto feed, it will "break" the pressure of the distributed water (as mentioned earlier this floating valve cannot handle water pressure from public network or a pump).

This buffer tank would be auto filled with a "strong" floating valve (like the ones we have in our toilets, cheap and easy to find as spare parts). The tank does not need to be big but just high enough (higher than the highest ollas since we use gravity to fill the ollas).

I Do Not Have a 3D Printer

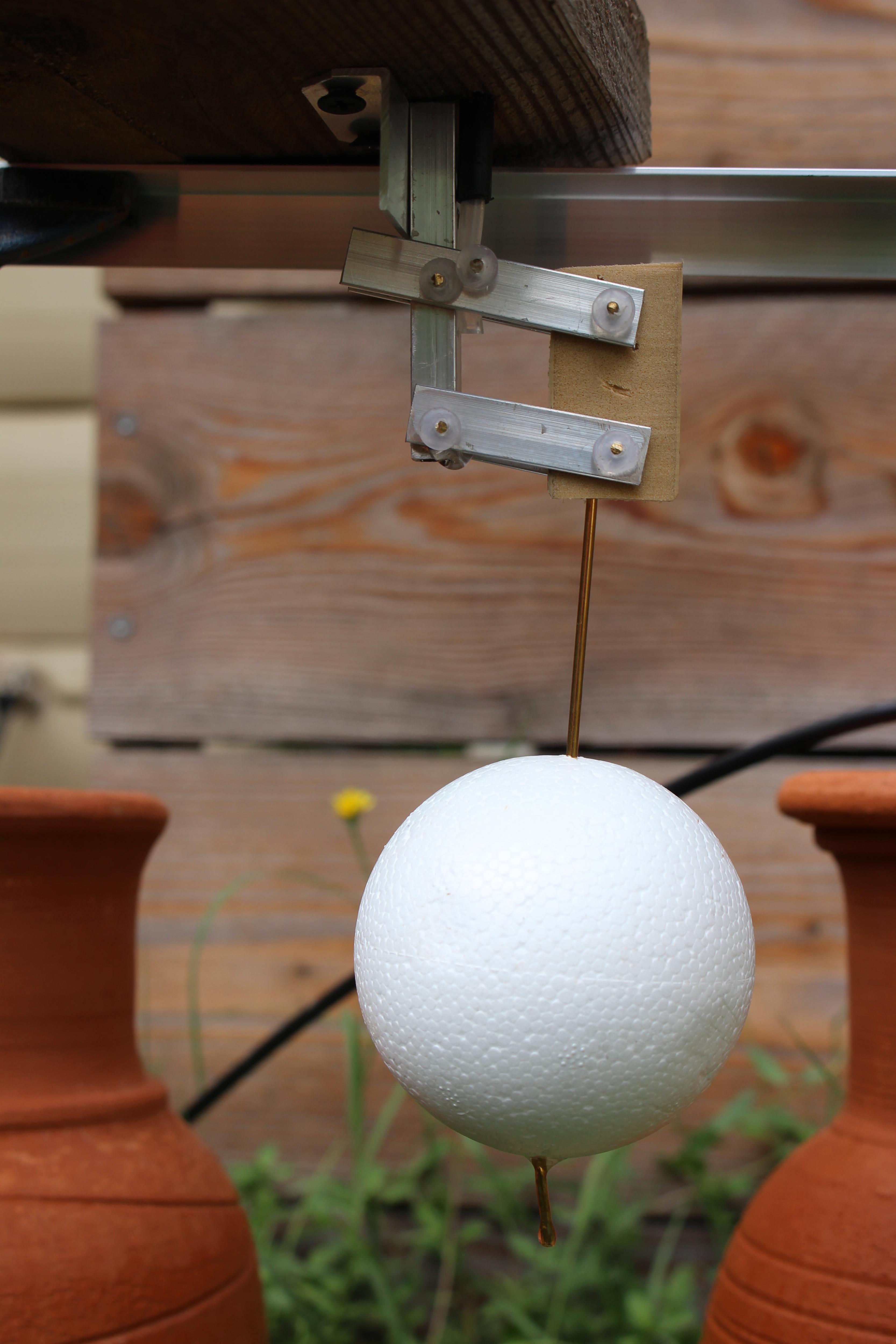

DIY floating pinch valve with non 3D printed part

3D printing such parts is really the easy way especially if you want to make several valves, however, if you do not have a 3D printed or do not have an easy access to one you can make a valve using parts found in DIY stores (aluminum profiles)

I am suggesting a slightly different design here, the brass rod does not need to go through the ollas lid (it can be seen as an advantage, however we do not see any more if the ollas is empty or not from the outside any more, which is convenient I think). This design could be of course adapted for 3D printing.

Cut the Aluminum Profiles

  • square profile : 60mm long
  • flat bar : 2x 40 mm and 2x 50mm long
  • L shaped : 50 mm long

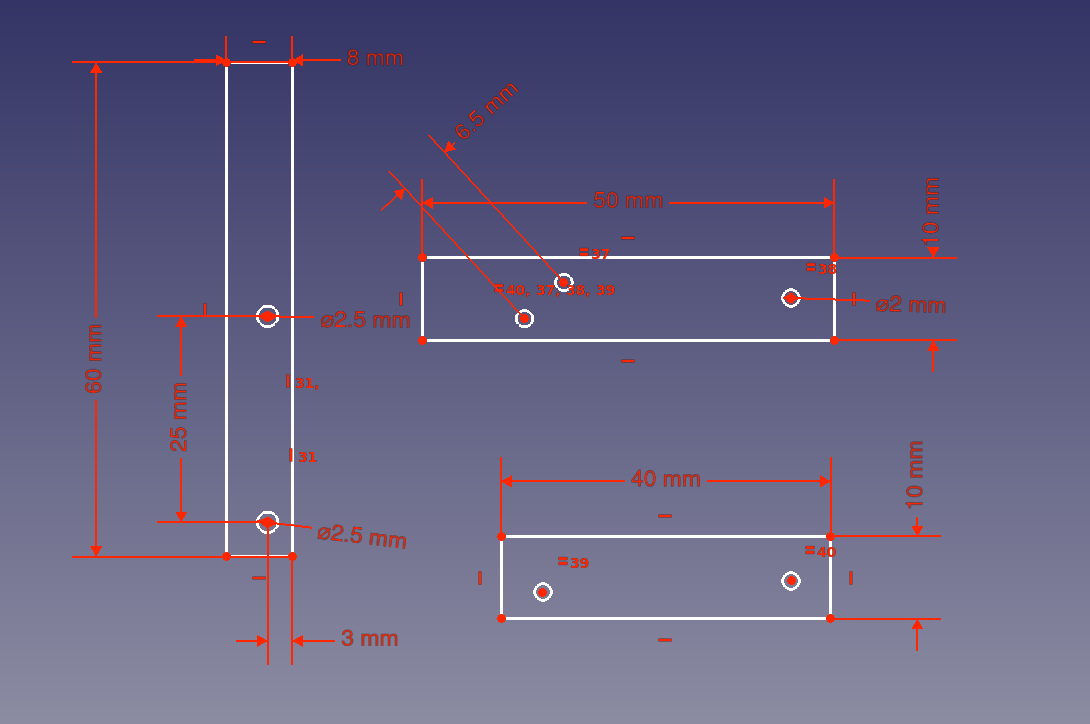

Drill the Aluminum Parts


This is the most important part. The quality of the drills will impact the quality of the whole mechanism (a good parallelism will allow smooth operation).

I think it would be hard to achieve something good enough without a drill press.

The most important point is to have the holes in the aluminum arms perfectly aligned. To achieve this I suggest you start drilling the hole on one of the arm (one of the longest one with three holes) and then use this one as a template to drill the three remaining arms.

Use a center punch to accurately place your hole marks before drilling.

Cut a Cork

one last piece is missing, it links the floater axis to the mechanism. I used a piece of cork bottle :

  • cut a 5 mm wide slice of a cork (in its length)
  • drill two holes 25 mm apart on one face
  • drill one deep hole to insert the floater axis

Assemble the Parts With the Brass Axis

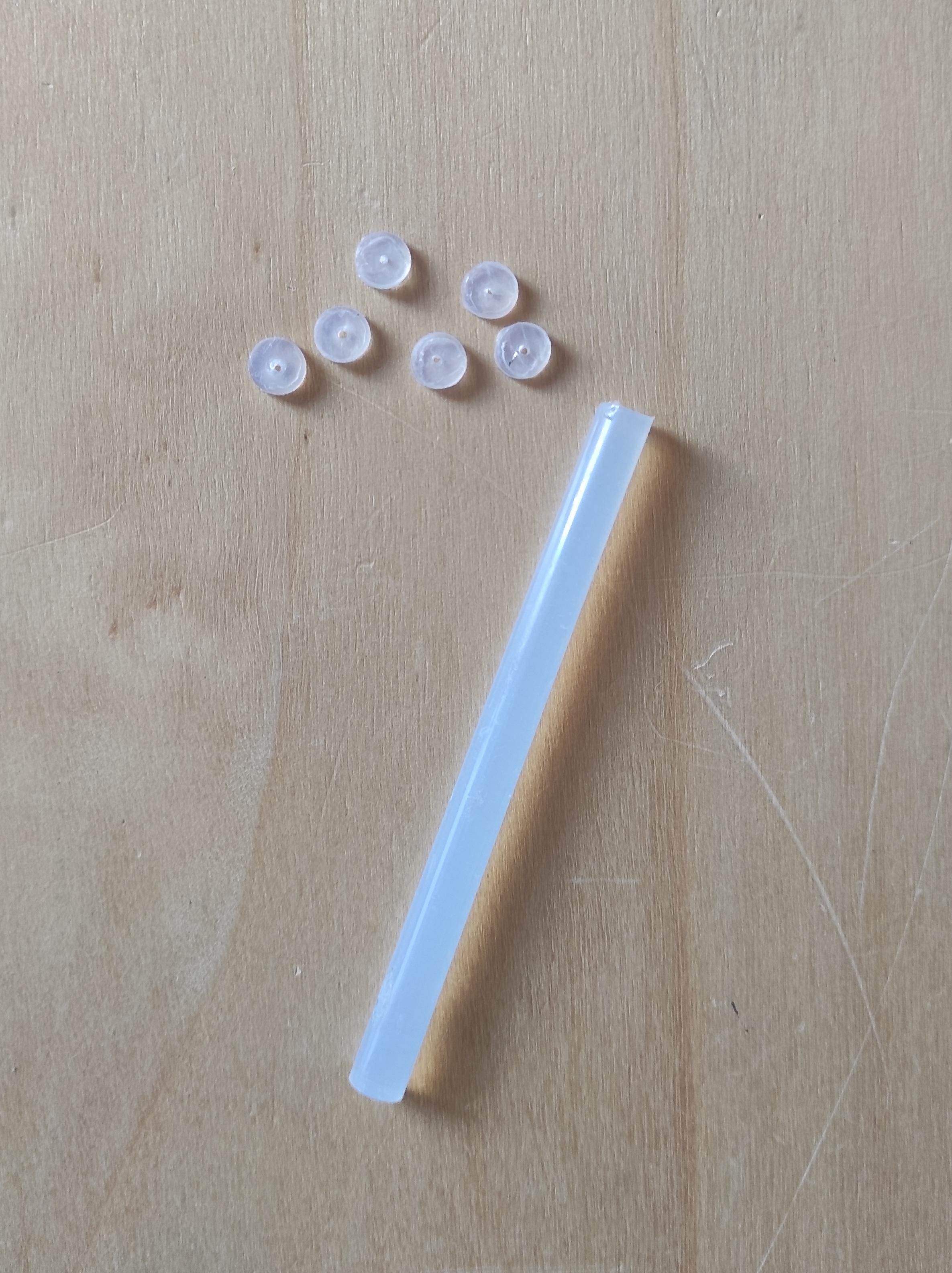

We have five axis to insert, I added some end stop made from slices of hot glue stick drilled in their center.

The mechanism photo on step 6 should be enough to understand what has to be done.

Install on an Ollas Lid

This design requires only 3 holes : 2 (4mm ) to secure the L shaped profile with two screws, one (6mm) to insert the micro drip watering hose, it needs to be as close as possible to the square bar.

Thanks

Thanks to https://www.terra-idria.fr/ who provided me with two ollas for my tests.

Thanks to Poterie Jamet with whom I exchanged while designing this floating valve and who will provide me with a few ollas to present this project at Maker Faire Lille (France) 2022
