DIY Ligthbox / Light Table
by simplerandom in Workshop > Woodworking
5006 Views, 71 Favorites, 0 Comments

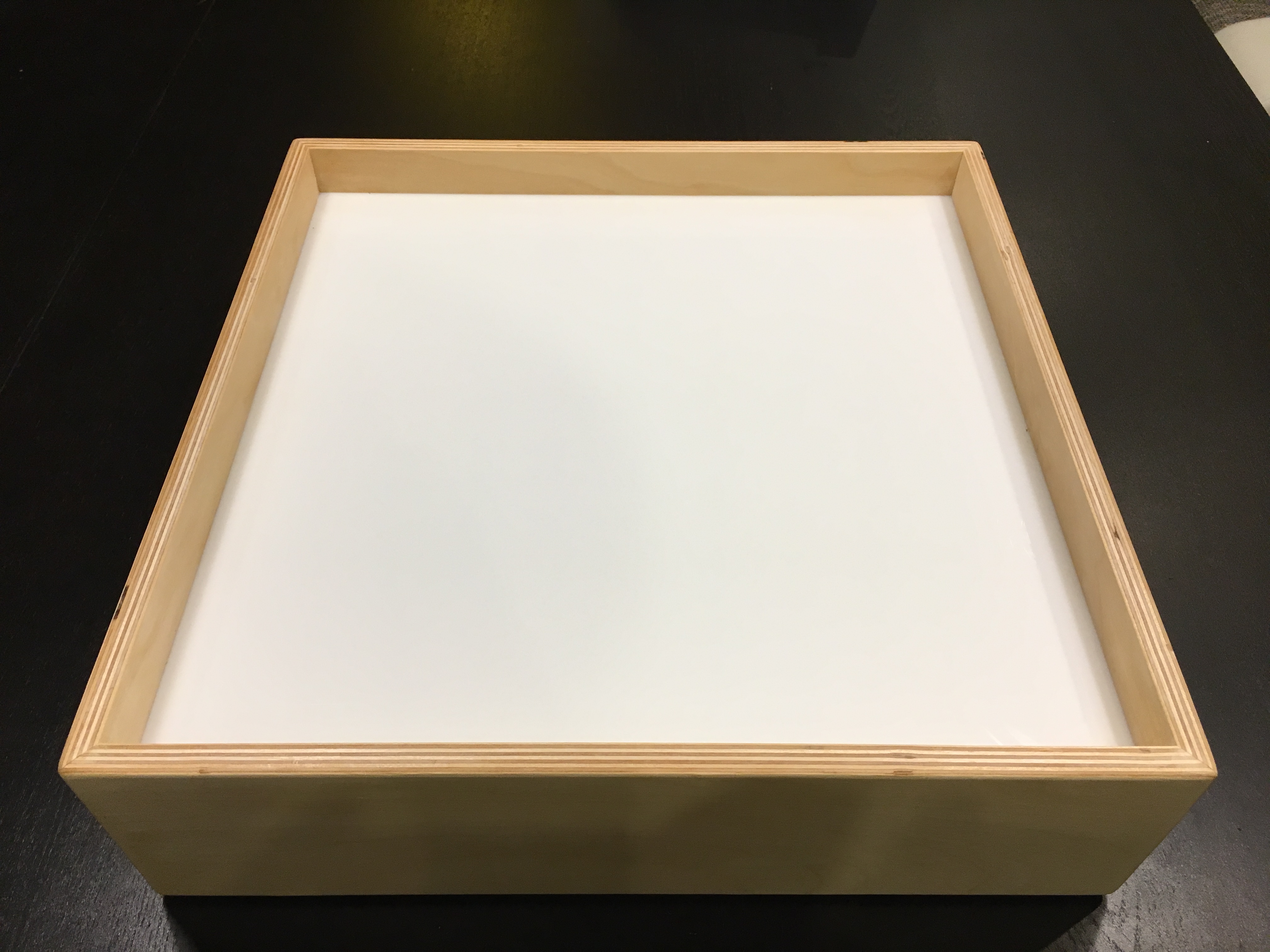

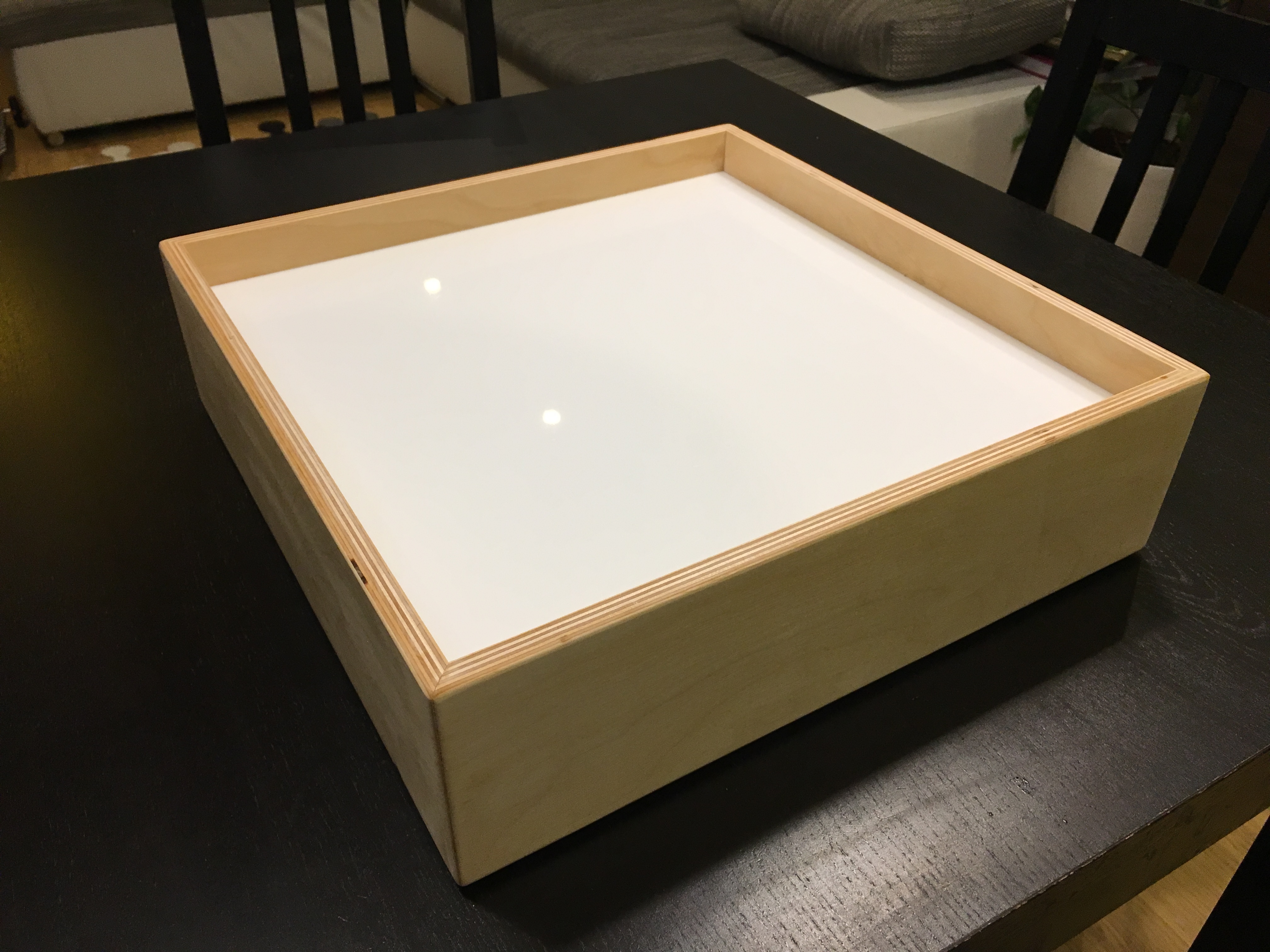

DIY Ligthbox / Light Table



Simple lightbox/ lighttable
Material List
- 11mm plywood
- Organic glass
- LED stripe (battery powered) with remote
Cut Sides




Cut box sides to 11cm x 40cm size.
To do 45degree bevel cuts, used 45degree router bit (was quicker that adjust saw blade)

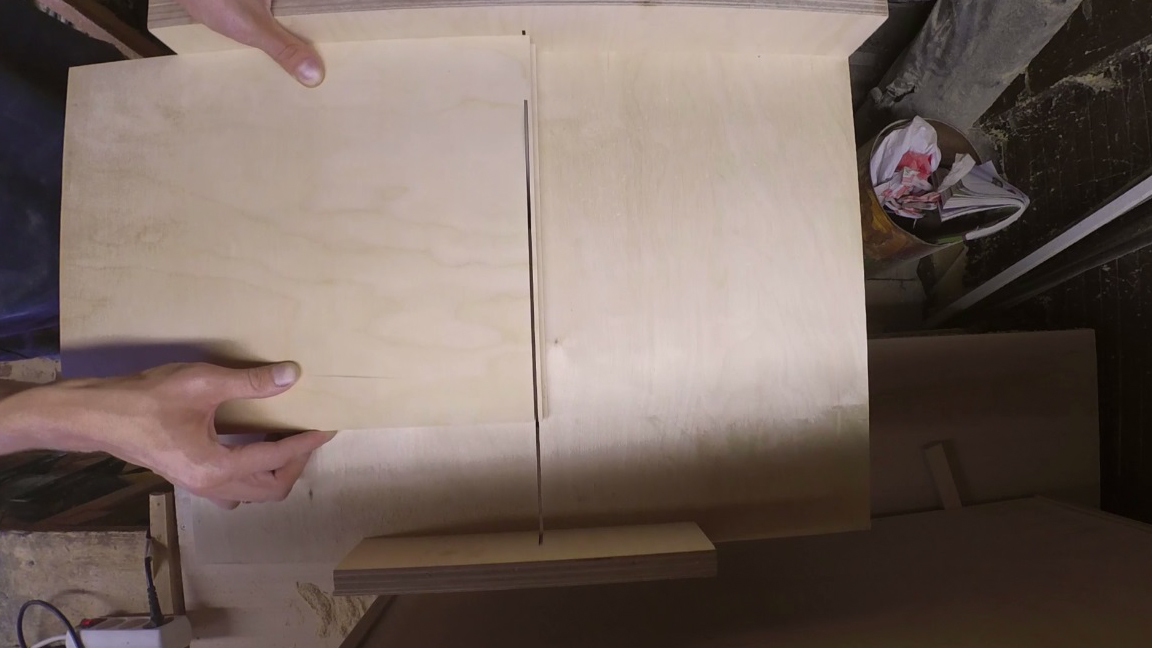

Some More Cutting

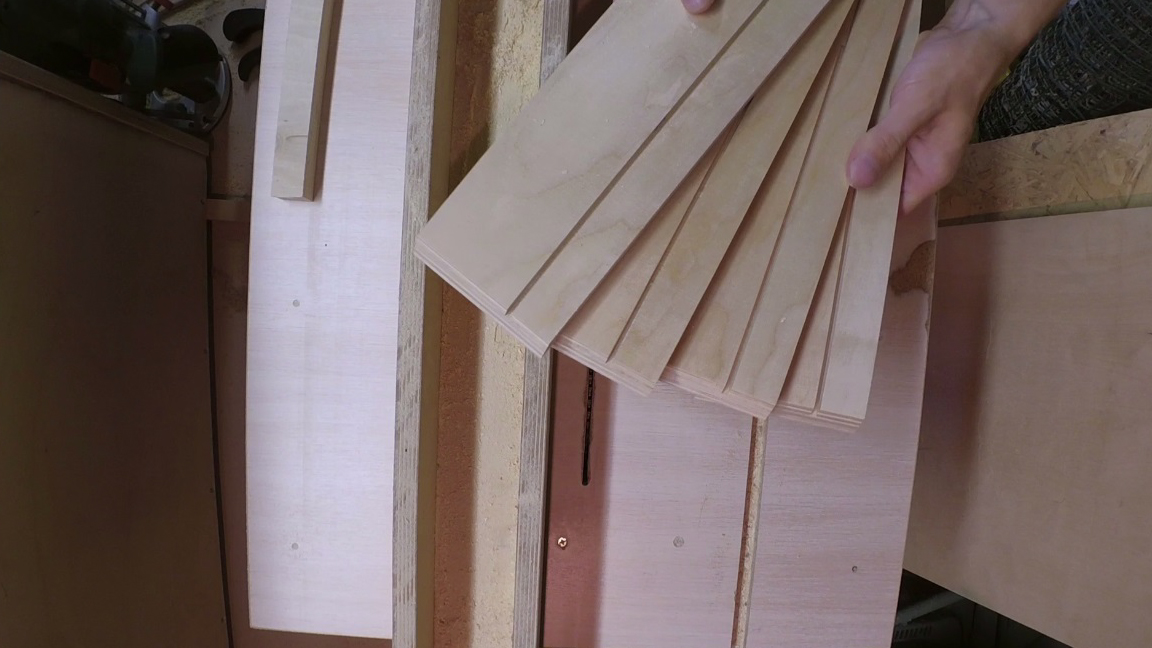

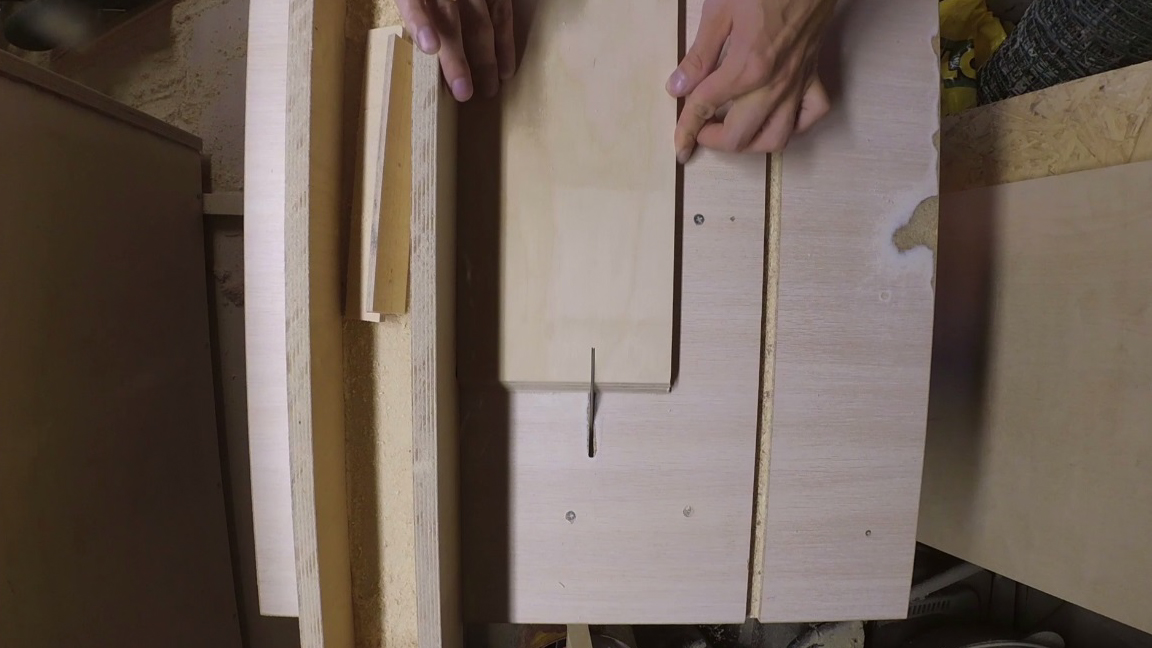

Cut gap for organic glass and for bottom.
Cut organic glass to match.
Cut bottom.

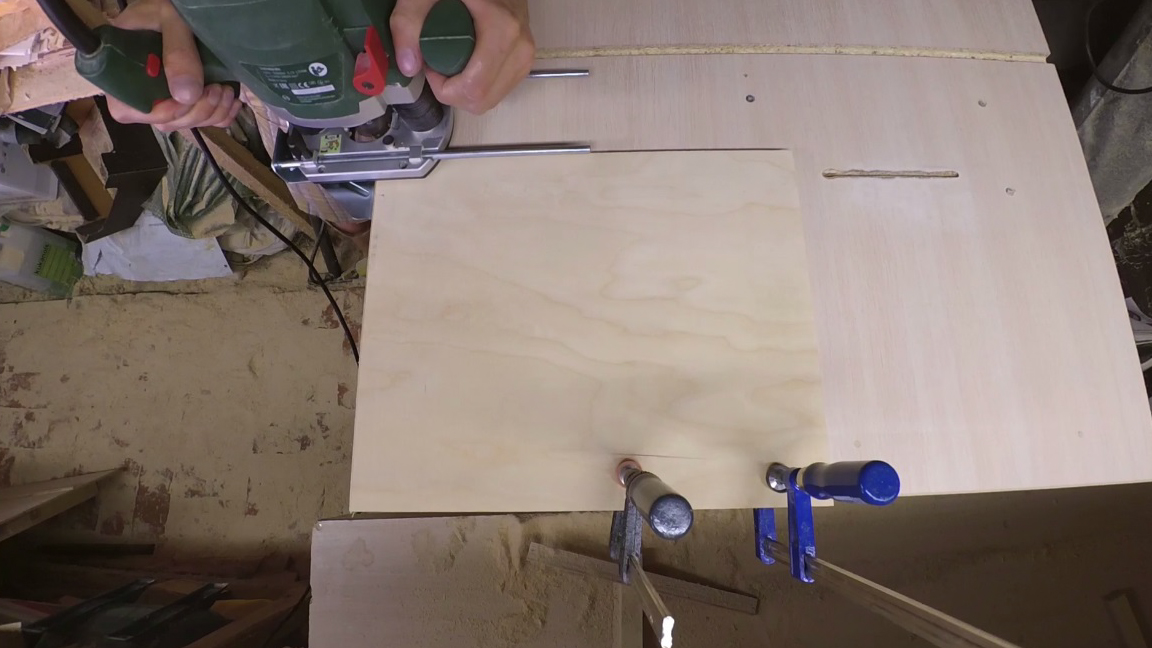

Routed hole for battery cover.
Soldering


Cut LED stripe to size, glued and soldered then
Gluing, Sanding, Painting

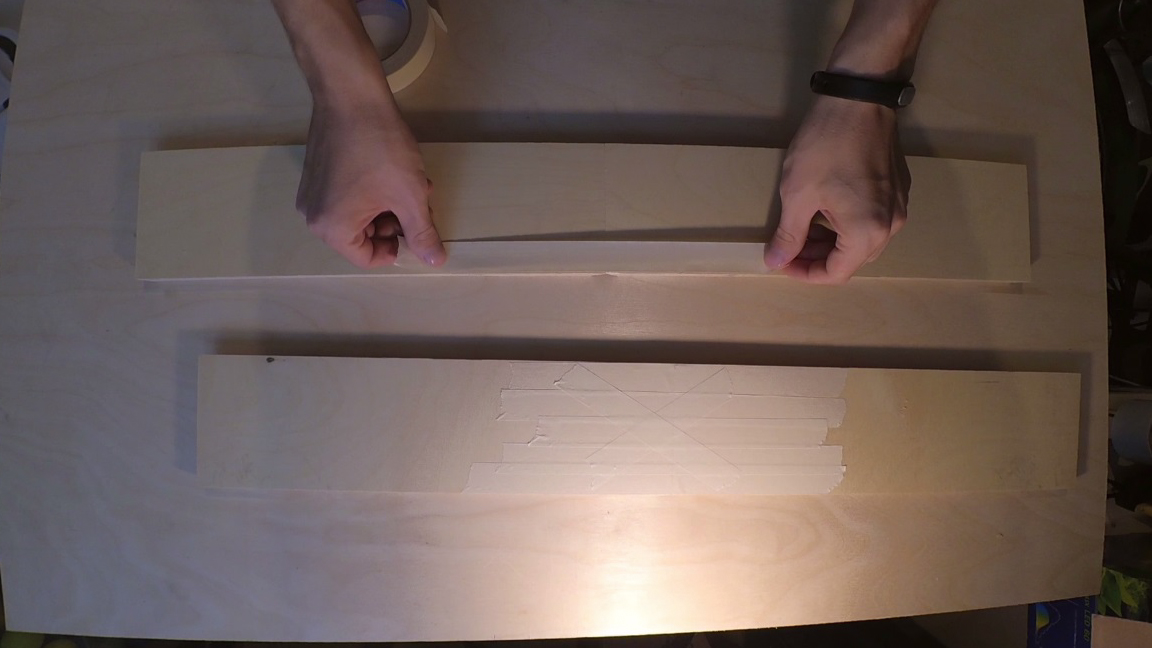

Used painers tape to hold parts together - for easier gluing.

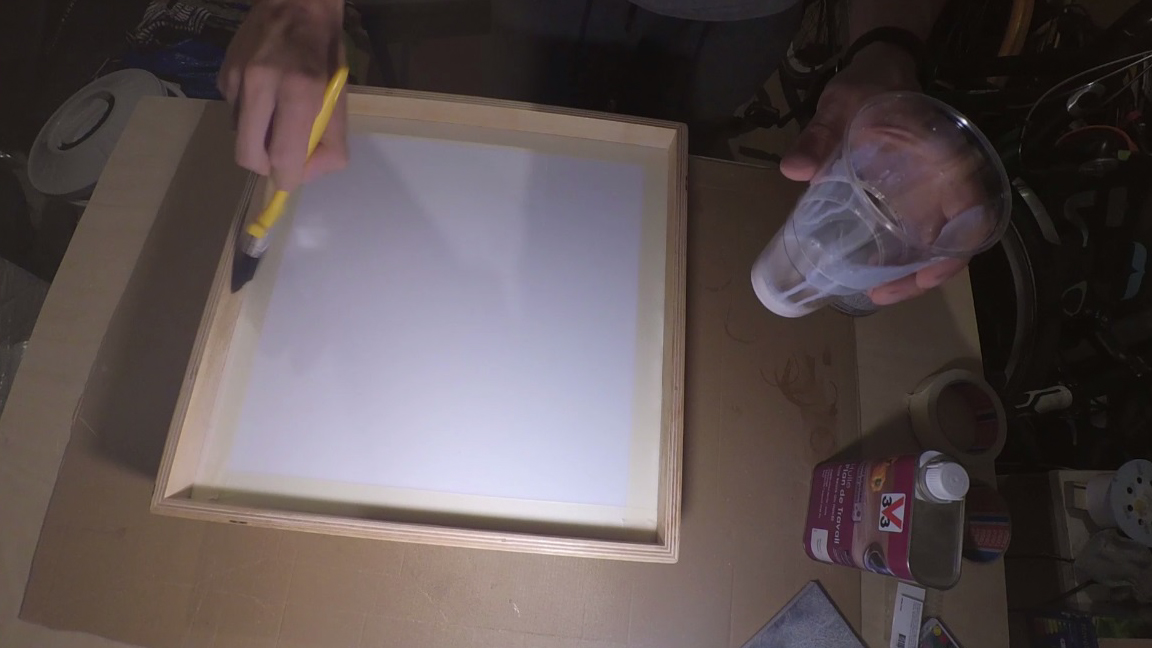

Then sanding and covering with oil.
Video
