DIY Led Add-on
The idea is to make the led have more effect and to add an iconic shape to the led.
For the shape we used the laser cutter of http://www.by-wire.net/ (thx a lot!) and for the moment two kinds of perspex.
The principle is the back-light for amongst others a liquid crystal display.
For the shape we used the laser cutter of http://www.by-wire.net/ (thx a lot!) and for the moment two kinds of perspex.
The principle is the back-light for amongst others a liquid crystal display.
Needed
not too much!
the 3mm led's
perspex
3 coin battery cell of 3V
super glue
the 3mm led's
perspex
3 coin battery cell of 3V
super glue

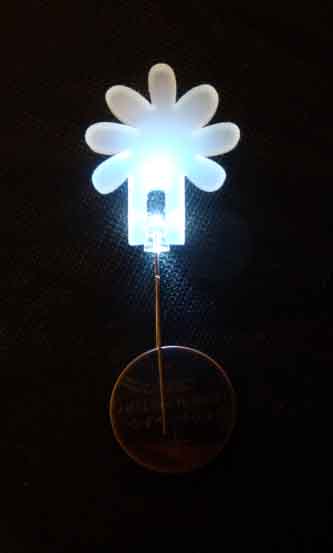

The first kind of perspex is milky white and makes a nice diffuse glow.

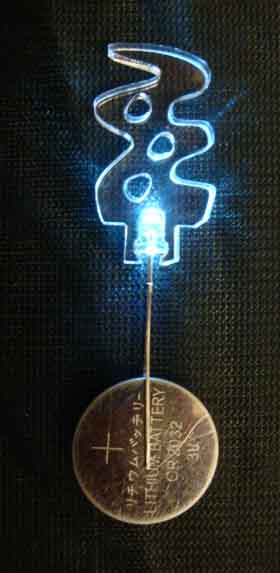

The second kind of perspex is transparent like glass. In this case the light of the bright pointed led directed forwards has to be broken to other directions.

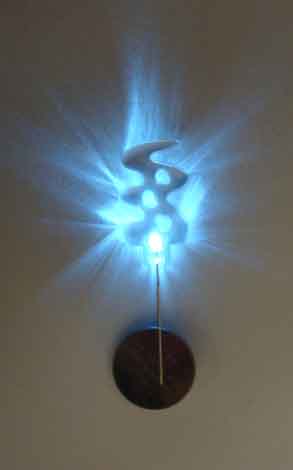

That is why in these transparent add-ons there are little round shapes and lines in the center line of the led beam.
The shapes are made with Illustrator and exported as a dxf file, which can be used for the laser cutter.
Some of the ai files can be found here: http://contrechoc.com/blogProjects/led_3mm.zip
Of course other types of perspex can easily be used, like colored perspex. Experiment!
The second kind of perspex is transparent like glass. In this case the light of the bright pointed led directed forwards has to be broken to other directions.
That is why in these transparent add-ons there are little round shapes and lines in the center line of the led beam.
The shapes are made with Illustrator and exported as a dxf file, which can be used for the laser cutter.
Some of the ai files can be found here: http://contrechoc.com/blogProjects/led_3mm.zip
Of course other types of perspex can easily be used, like colored perspex. Experiment!

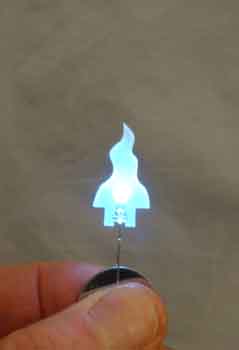

These add-ons can be "clicked" upon the 3mm led's, using the led shaped opening in the perspex.
With a bit of (super-)glue the add-on is attached more permanently to the led.
(Most of the led's function around 3V so the coin battery provided a nice source of energy without needing resistors.)
With a bit of (super-)glue the add-on is attached more permanently to the led.
(Most of the led's function around 3V so the coin battery provided a nice source of energy without needing resistors.)
The Whole Collection
Once started with this idea, you can make many variations.
Using colored led's seems to be cool,
using colored perspex....
and than using it in clothing...
many things to explore!
Using colored led's seems to be cool,
using colored perspex....
and than using it in clothing...
many things to explore!
