DIY Laser Spirograph

Good afternoon, dear viewers and readers. Today I want to show you a laser projector with electronic control. Otherwise it can be called a laser spirograph.

This laser spirograph was taken from the original article of radio magazine 2008, the first issue.

Once I tried to repeat and assemble this device, but for some reason I put it on the back burner. But recently I had the idea to do everything anew with a small modification of the printed circuit board.

The laser spirograph has two DC collector motors installed parallel to each other and a laser diode module or laser pointer. A mirror is mounted on the shaft of each motor at a slight angle.

Thus, the laser beam will fall to the center of the first mirror, and the beam reflected from the center of the first mirror will fall to the center of the second mirror. Each mirror will create an elliptical scan when rotated.

By overlapping two elliptical scans, we will be able to observe different figures depending on the frequency of rotation of the mirrors, similar to the Lissajous figures.

Please support me on Patreon to create a new projects.

You can find all the necessary information for repeating this device by clicking on the link to Patreon:

• https://www.patreon.com/HOBBYHOMEELECTRONICS

Radio parts store:

• http://ali.pub/3a5caa

Header & Socket connectors 2.54 mm:

• http://ali.pub/39z71g

Dupont connectors 2.54 mm:

• http://ali.pub/39z77v

Microchip CD4049BE:

• http://ali.pub/39zbub

Microchip CD4066BE:

• http://alii.pub/694ty3

Microchip LM358:

• http://alii.pub/694vj2

Microchip LM324:

• http://alii.pub/39zdo1

Microchip CD4017BE:

• http://ali.pub/39zdzi

Multi-colored wire:

• http://ali.pub/39zepy

Laser:

• http://ali.pub/39zev0

Mirror:

• http://alii.pub/694ts9

Buttons:

• http://ali.pub/39zfge

Plastic pulley:

• http://ali.pub/39zfnl

Microphone:

• http://alii.pub/694u4b

Motor RC300 6000RPM DC 1.5-9V:

• http://alii.pub/694u9k

Mounting racks:

• http://alii.pub/694va4

I have redrawn and slightly changed the basic scheme in the online environment for developing printed circuit boards EasyEDA.

The laser spirograph circuit contains such components as: a microphone amplifier, a pulse generator, an electric motor shaft speed regulator, an electronic mode switch for the projector, a sawtooth voltage generator.

Based on the principle diagram, a double-sided control circuit board was obtained, as well as separate printed circuit boards of buttons and brackets for motors and a laser consisting of several parts.

Let’s proceed to the installation of radio components on the control circuit board. Next let’s proceed to the installation of the printed circuit board of buttons.

After installation and soldering all the major radio components, we get such a great control circuit board.

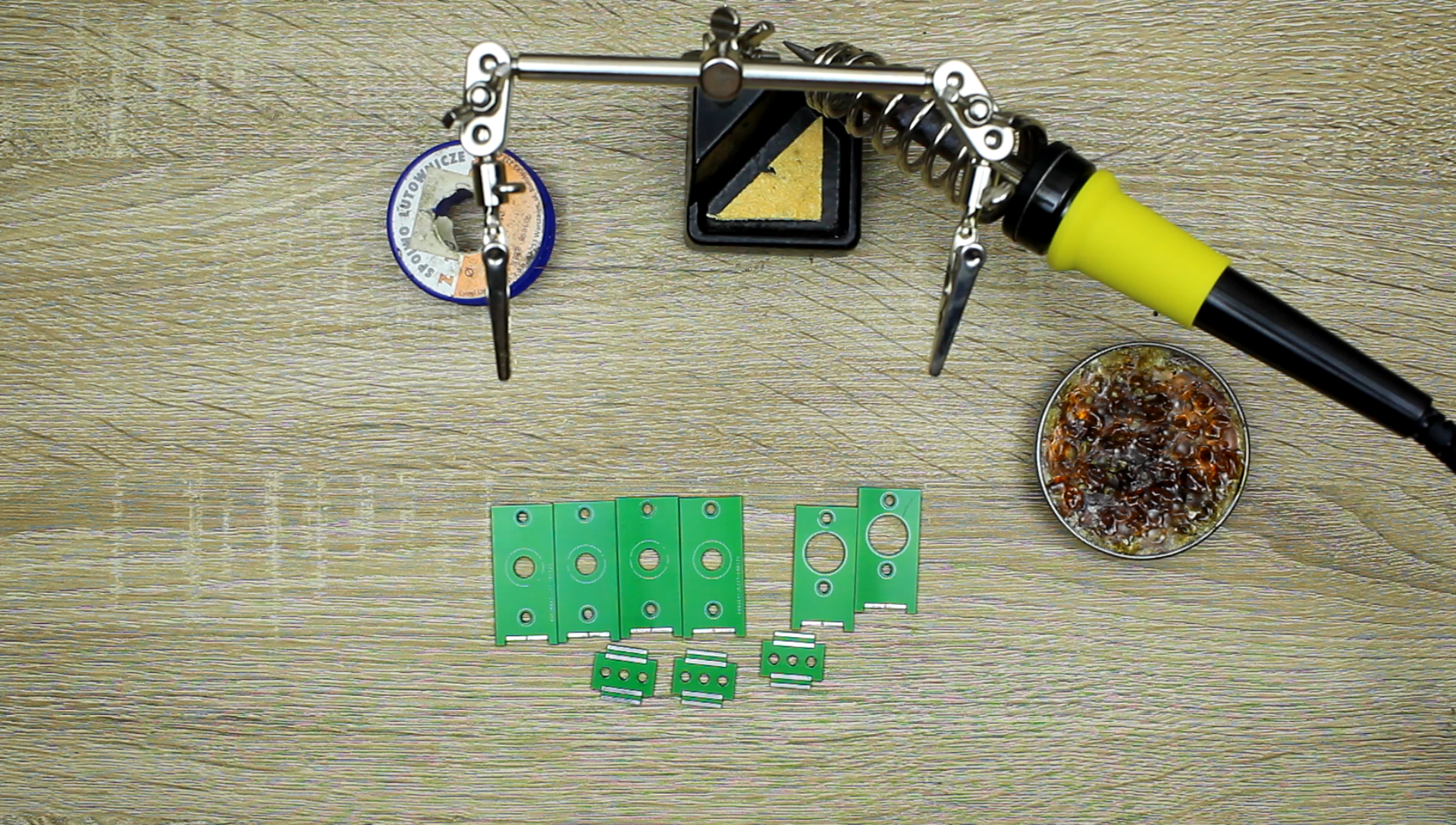

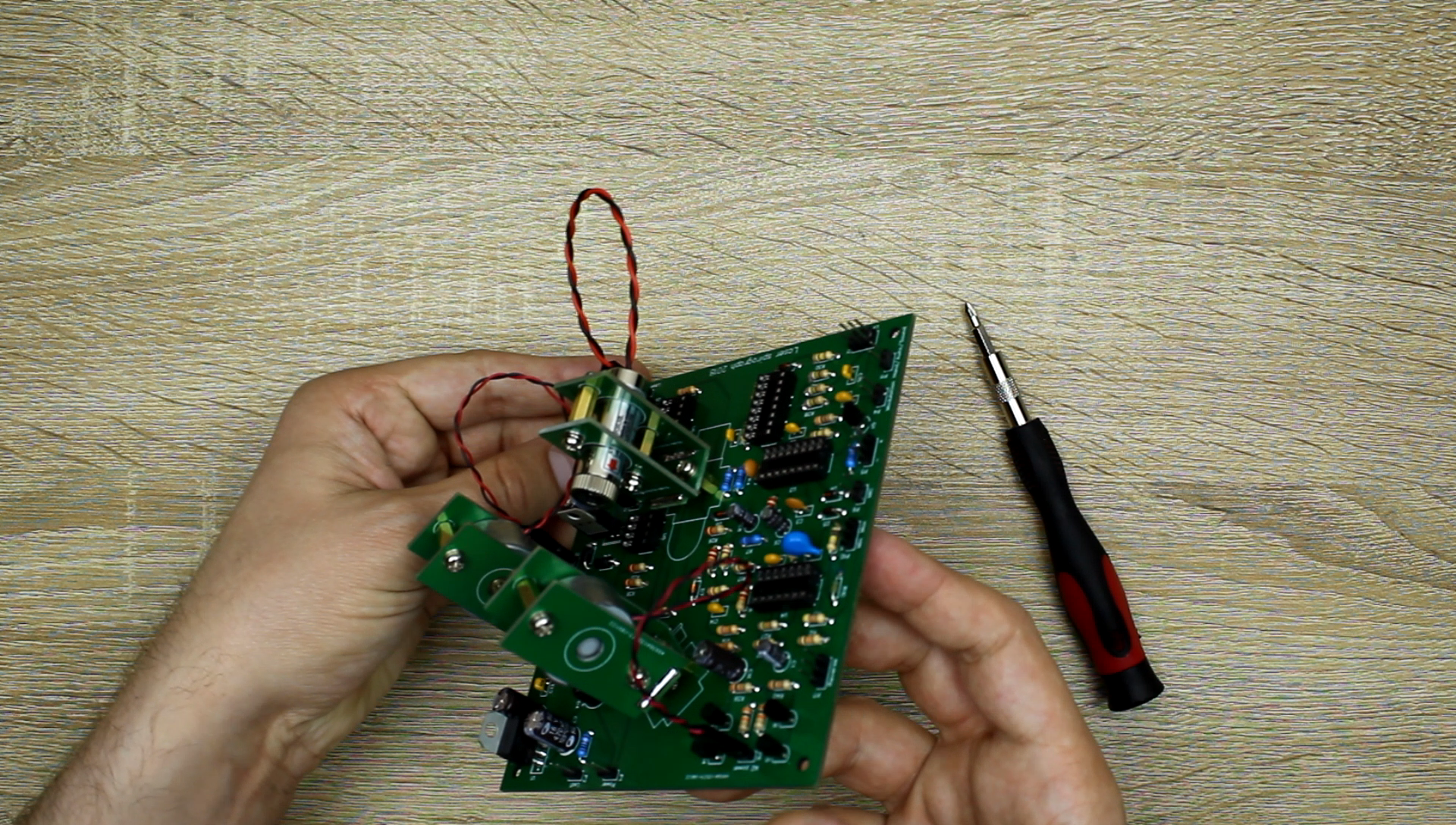

Let’s proceed to the installation of brackets for motors and a laser. Before you start connecting the printed circuit boards to each other, you need to thoroughly tin the places of their joints.

Soldering joints is done both outside and inside. For additional rigidity of the brackets, brass mounting racks 12 mm long are installed inside.

Ready-made brackets are installed on the control circuit board using M3 screws and five-millimeter brass mounting racks.

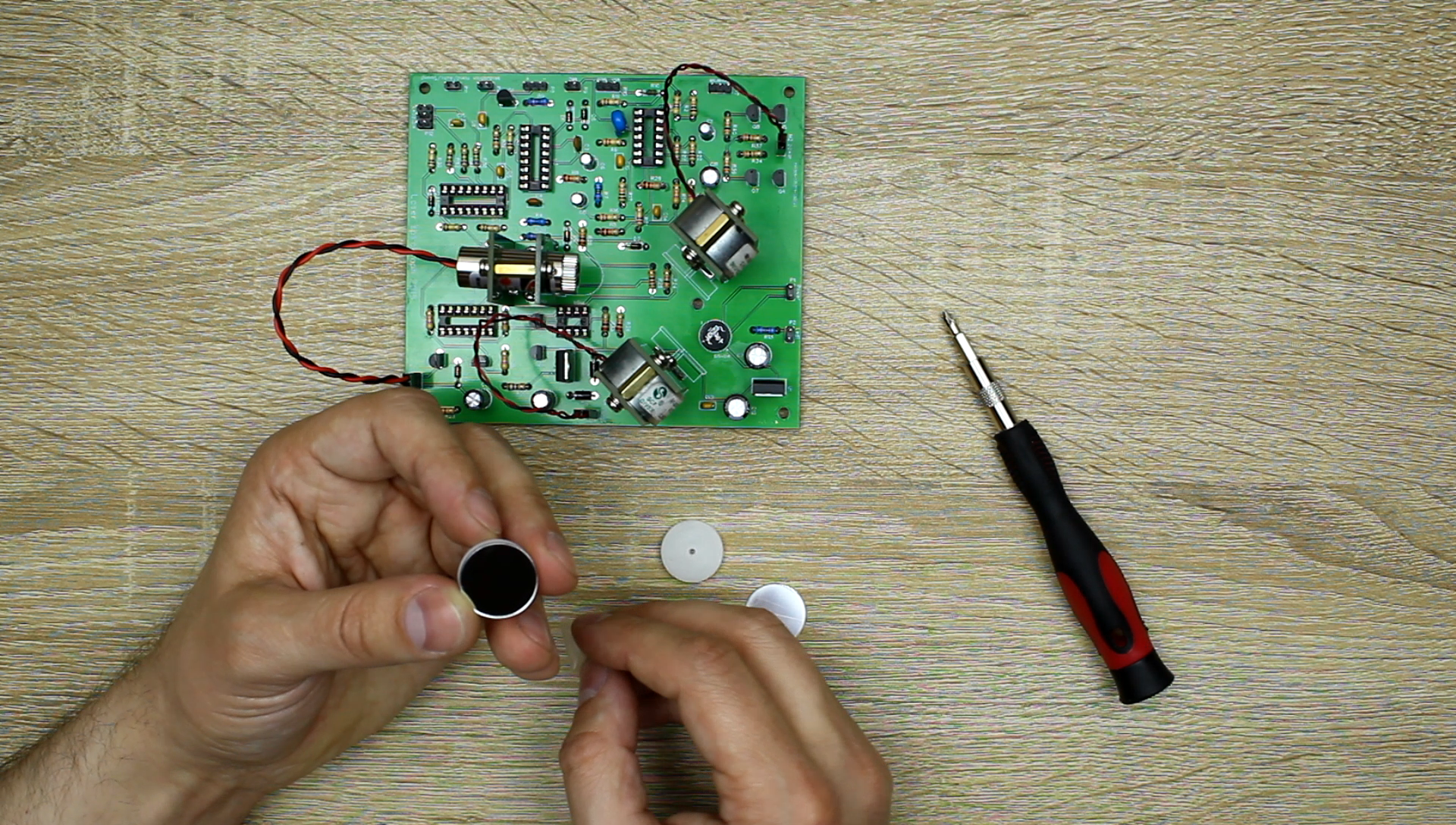

Put a small plastic pulley with a glued mirror made of organic glass on the shaft of each motor.

Then, prepare the wires for further connection of external indicators, buttons and switches.

Before soldering, remove all excess insulation and tin the wires.

Isolate each separate wire with a heat shrink tube to avoid short circuits.

Crimp the remaining wires with terminals and insert them into the appropriate connectors.

Twist the wires together with a screwdriver, giving them a more aesthetic look.

For installation all the electronics, we will use a ready-made plastic polystyrene case with removable panels. The dimensions of this case are 200 mm wide, 180 mm long and 70 mm high.

Drill holes in the lower part of the case for the mounting racks for the control circuit board, then bevel from the inside and outside.

Drill and cut holes for buttons, switches and LED indicators on the back of the removable panel, and make a hole with a diameter of 30 mm on the front panel for the beam of the laser module.

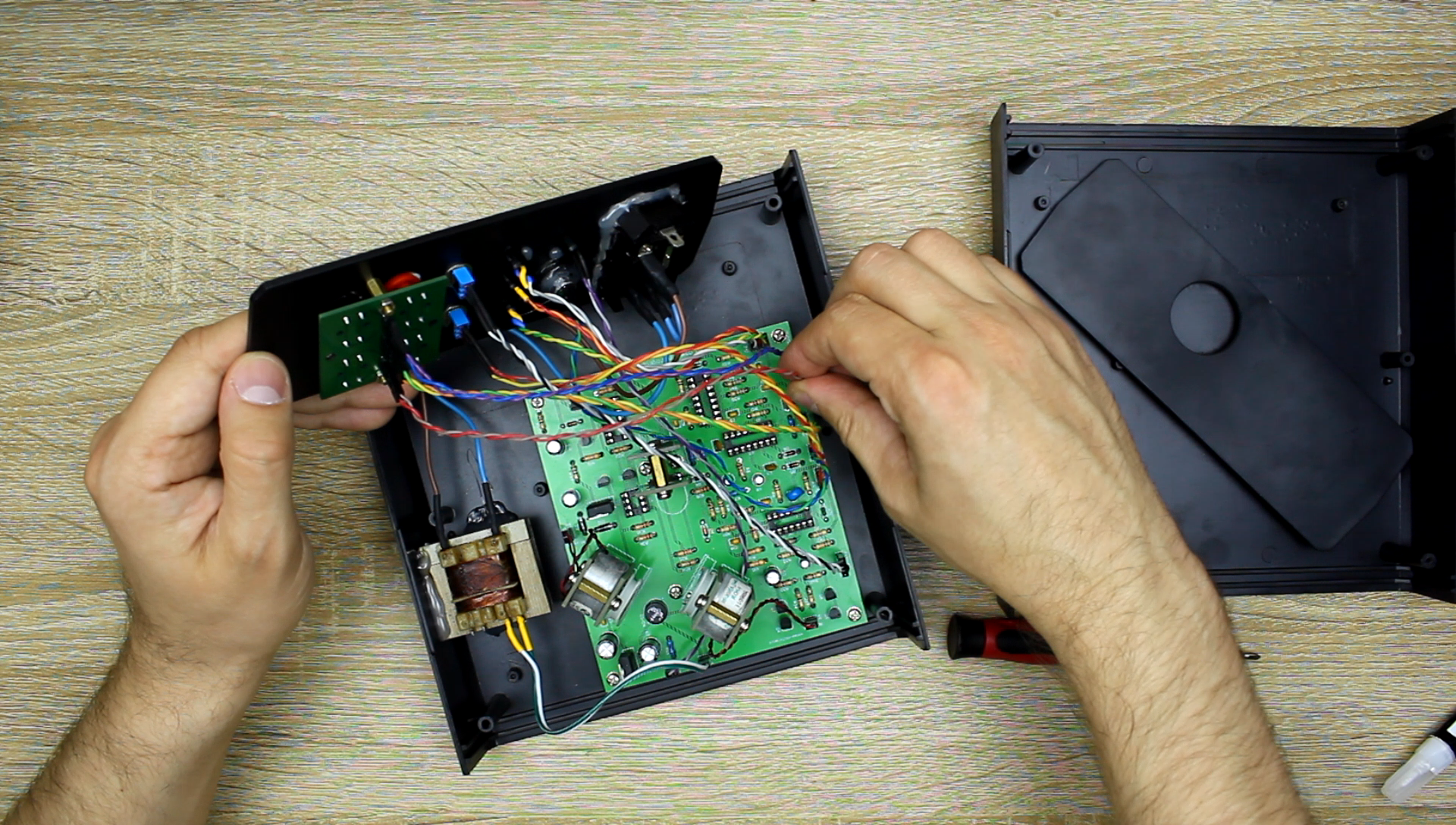

Next, proceed to the final installation of all printed circuit boards and wire connections.

After the work done, the laser spirograph is ready for use. Before proceeding to the demonstration, let’s talk a little about control.

On the back of the case there are four buttons, two toggle switches, a microphone and operation mode indicators. The black button means the change of modes, the white button modulates the laser, the red and green buttons are responsible for the rotation speed of the motor and the volume of the microphone. The top toggle switch is used to reverse the motor, the bottom one for microphone gain.

It is better to observe figures drawn with a laser spirograph in a darkened room.

You can easily create greater color saturation with a smoke generator, and then the laser beams become more spectacular.

The laser spirograph can be used in entertainment events – discos, concerts, club and home parties.

Remember, laser radiation is dangerous for the eyes. While making and operating a laser spirograph it is forbidden to light it in the eyes.
