DIY Kayak Carts (from a Stroller)
by stargazer424 in Outside > Boats
9092 Views, 54 Favorites, 0 Comments
DIY Kayak Carts (from a Stroller)
![IMG_3176.JPG](/proxy/?url=https://content.instructables.com/FJS/S6MR/ICX7S4G9/FJSS6MRICX7S4G9.jpg&filename=IMG_3176.JPG)
While I was looking to buy new kayak, I started to think of DIY add-ons and accessories. One thing I wanted to do was build a kayak cart for when there is a distance from the car to the water. It was mere coincidence that the day I brought home the kayak, I found a stroller by the trash while walking the dog. Here are the steps I took to make a kayak cart from the stroller.
Step 1: Disassembling the Stroller
![IMG_3145.JPG](/proxy/?url=https://content.instructables.com/F4V/JSSA/ICX7JI2J/F4VJSSAICX7JI2J.jpg&filename=IMG_3145.JPG)
![IMG_3149.JPG](/proxy/?url=https://content.instructables.com/FJ9/NCPZ/ICX7JI2S/FJ9NCPZICX7JI2S.jpg&filename=IMG_3149.JPG)
![IMG_3152.JPG](/proxy/?url=https://content.instructables.com/F04/RSF1/ICX7JI34/F04RSF1ICX7JI34.jpg&filename=IMG_3152.JPG)
![20150802_204646.jpg](/proxy/?url=https://content.instructables.com/FEA/IB3B/ICX7JJ4F/FEAIB3BICX7JJ4F.jpg&filename=20150802_204646.jpg)
![IMG_3159.JPG](/proxy/?url=https://content.instructables.com/FJ1/616K/ICX7JI3M/FJ1616KICX7JI3M.jpg&filename=IMG_3159.JPG)
![IMG_3165.JPG](/proxy/?url=https://content.instructables.com/FQW/LD5O/ICX7JI3N/FQWLD5OICX7JI3N.jpg&filename=IMG_3165.JPG)

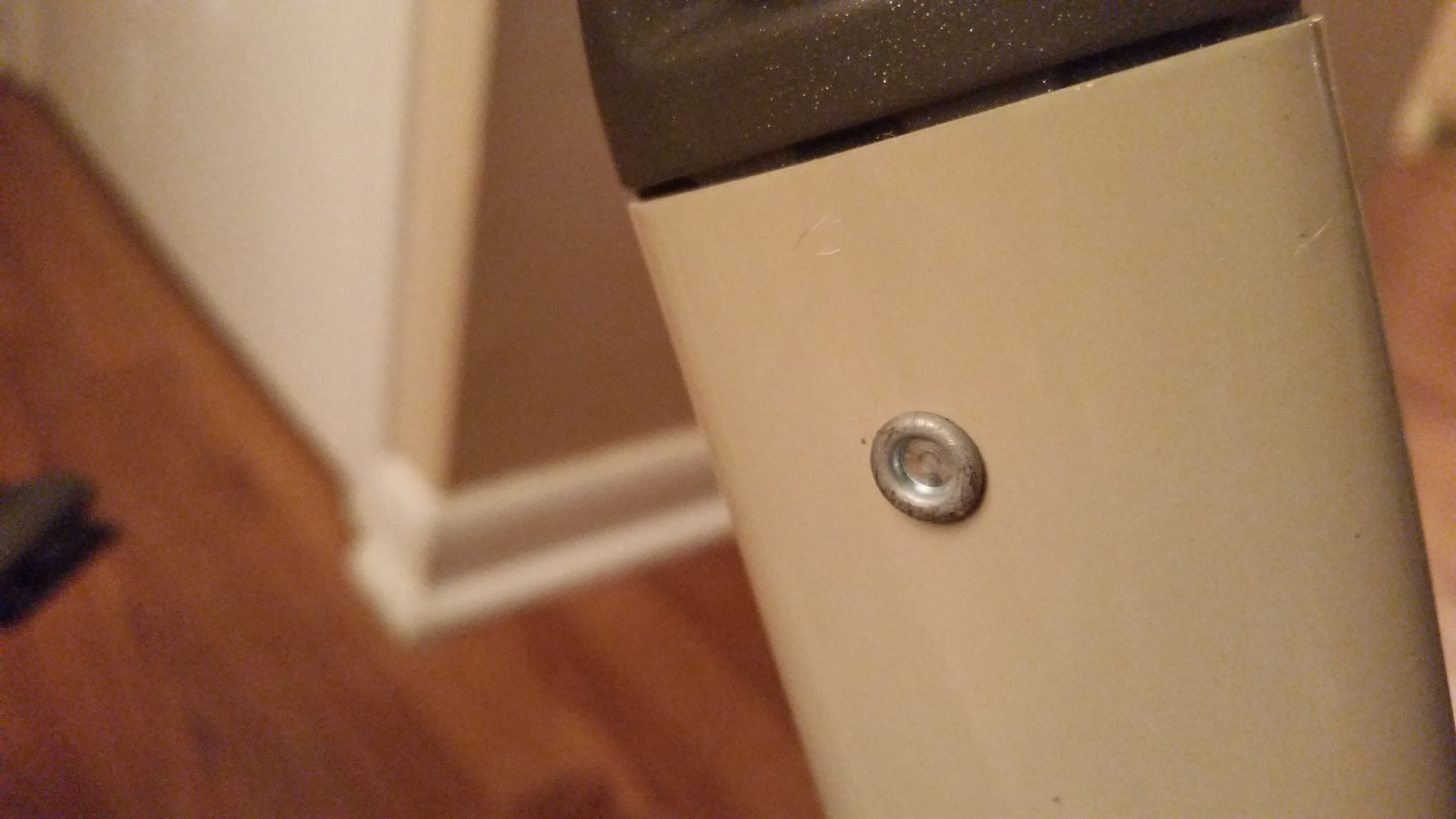

The first thing I did was to remove the seat and cover and tossed them in the garbage! Then I detached sections of the stroller's body. This presented a problem because it wasn't assembled with standard bolts, screws and nuts. It was held together with rivets. Not having a rivet tool, I took a drill with a metal bit to each rivet until I was able to remove them. These will be replaced with bolts later.
Step 2: Reconfiguring
![IMG_3171.JPG](/proxy/?url=https://content.instructables.com/FBO/QRK9/ICX7JI62/FBOQRK9ICX7JI62.jpg&filename=IMG_3171.JPG)
![IMG_3172.JPG](/proxy/?url=https://content.instructables.com/F5L/O1DR/ICX7JI6N/F5LO1DRICX7JI6N.jpg&filename=IMG_3172.JPG)

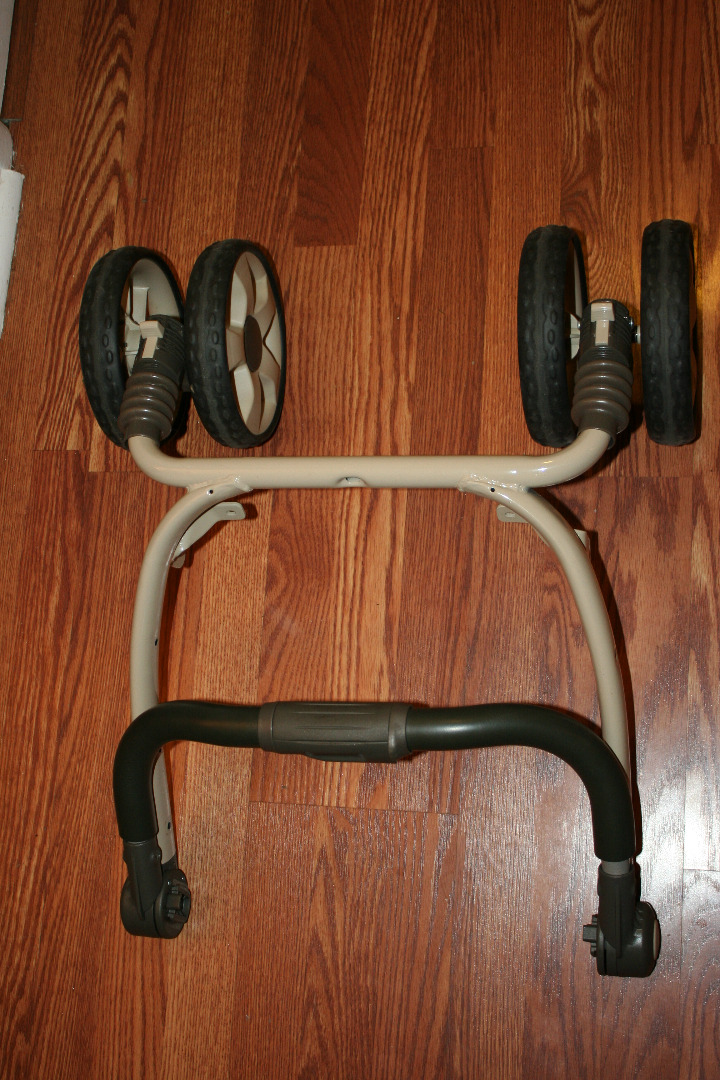

I played around with a couple of configurations. I was originally thinking of using the rear wheels because they are bigger, but it worked out that the top handle fits perfectly into the front wheels. Bonus: the handles are fold-able!
After attaching the handles to the wheels with them angled up, I tested it out and it didn't quite work. When the kayak was resting on the wheel end, I had to hold up the kayak while trying to bring the handle end up to it and strap it down at the same time.
I wound up flipping the handles so they were angled down and acted as a stand. Now all I need to do is pick up some bolts to replace the rivets.
Step 3: Padding
![IMG_3175.JPG](/proxy/?url=https://content.instructables.com/FXC/JATC/ICX7S4FY/FXCJATCICX7S4FY.jpg&filename=IMG_3175.JPG)
![IMG_3177.JPG](/proxy/?url=https://content.instructables.com/F9H/GW42/ICX7S4GC/F9HGW42ICX7S4GC.jpg&filename=IMG_3177.JPG)
![IMG_3178.JPG](/proxy/?url=https://content.instructables.com/FGI/J5J9/ICX7S48U/FGIJ5J9ICX7S48U.jpg&filename=IMG_3178.JPG)

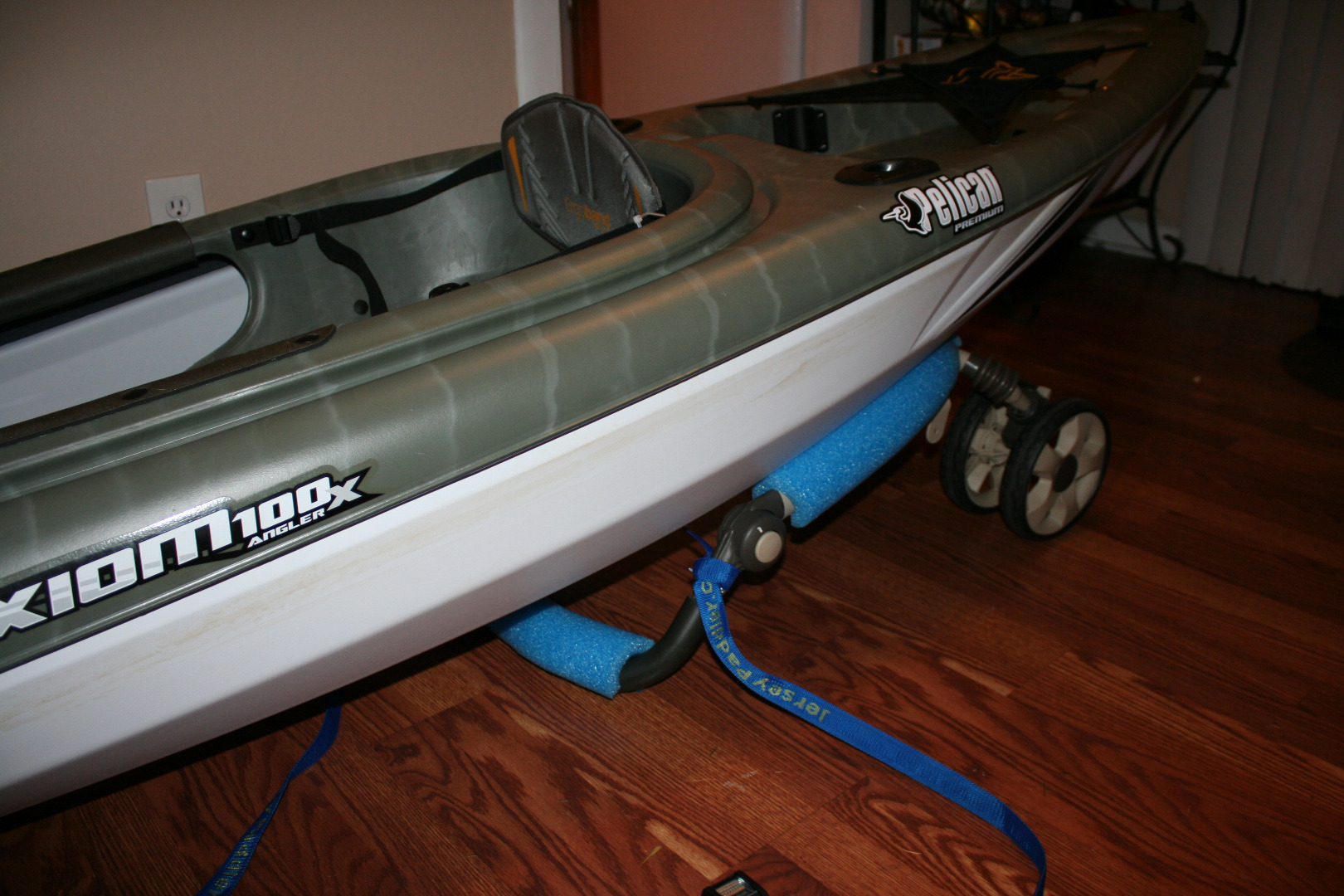

I cut a line across a foam pool noodle and wrapped it around the metal. This gives padding so I don't scratch the kayak and also provides friction so it doesn't slide off. I will attach these more securely with zip ties.
Step 4: Testing
![IMG_3179.JPG](/proxy/?url=https://content.instructables.com/F4T/ZCL3/ICX7S49Q/F4TZCL3ICX7S49Q.jpg&filename=IMG_3179.JPG)
![IMG_3180.JPG](/proxy/?url=https://content.instructables.com/FIB/FN0R/ICX7S49V/FIBFN0RICX7S49V.jpg&filename=IMG_3180.JPG)
![IMG_3181.JPG](/proxy/?url=https://content.instructables.com/F3C/GIJM/ICX7S49Z/F3CGIJMICX7S49Z.jpg&filename=IMG_3181.JPG)
![IMG_3189.JPG](/proxy/?url=https://content.instructables.com/FGY/HHRX/ICX7S4AN/FGYHHRXICX7S4AN.jpg&filename=IMG_3189.JPG)

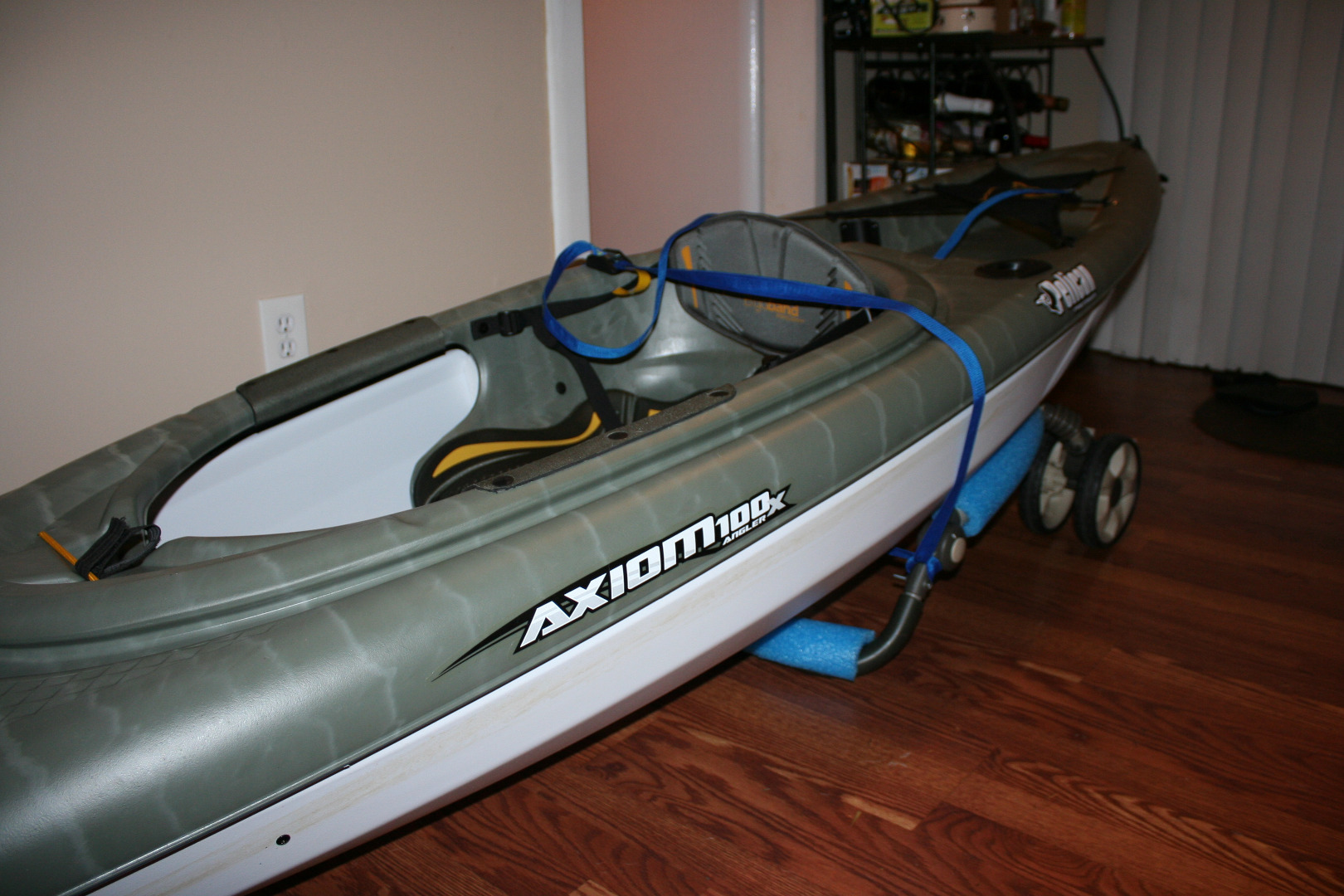

I then wrapped a strap around the handles, put the kayak on and tightened the strap. Now I can lift the kayak and roll it down to the water.
Spare Parts!
![IMG_3198.JPG](/proxy/?url=https://content.instructables.com/FJA/ZVJZ/ICX7S4AP/FJAZVJZICX7S4AP.jpg&filename=IMG_3198.JPG)
![IMG_3174.JPG](/proxy/?url=https://content.instructables.com/FKP/CP5C/ICX7JI77/FKPCP5CICX7JI77.jpg&filename=IMG_3174.JPG)
I have a bunch of spare parts to save for another project. I might be able to make another cart out of the front wheels if I can figure a way to set it up.
