DIY Jumper Wires (male to Male)
A jump wire, is a short electrical wire with a solid tip at each end (or sometimes without them, simply "tinned"), which is normally used to interconnect the components in a breadboard. Follow this procedure to make your own.
Gather the Requirements
Measure and Cut Wires From the Ribbon
Make the length to suit your requirements.
Separate Every Header Pins and Wire

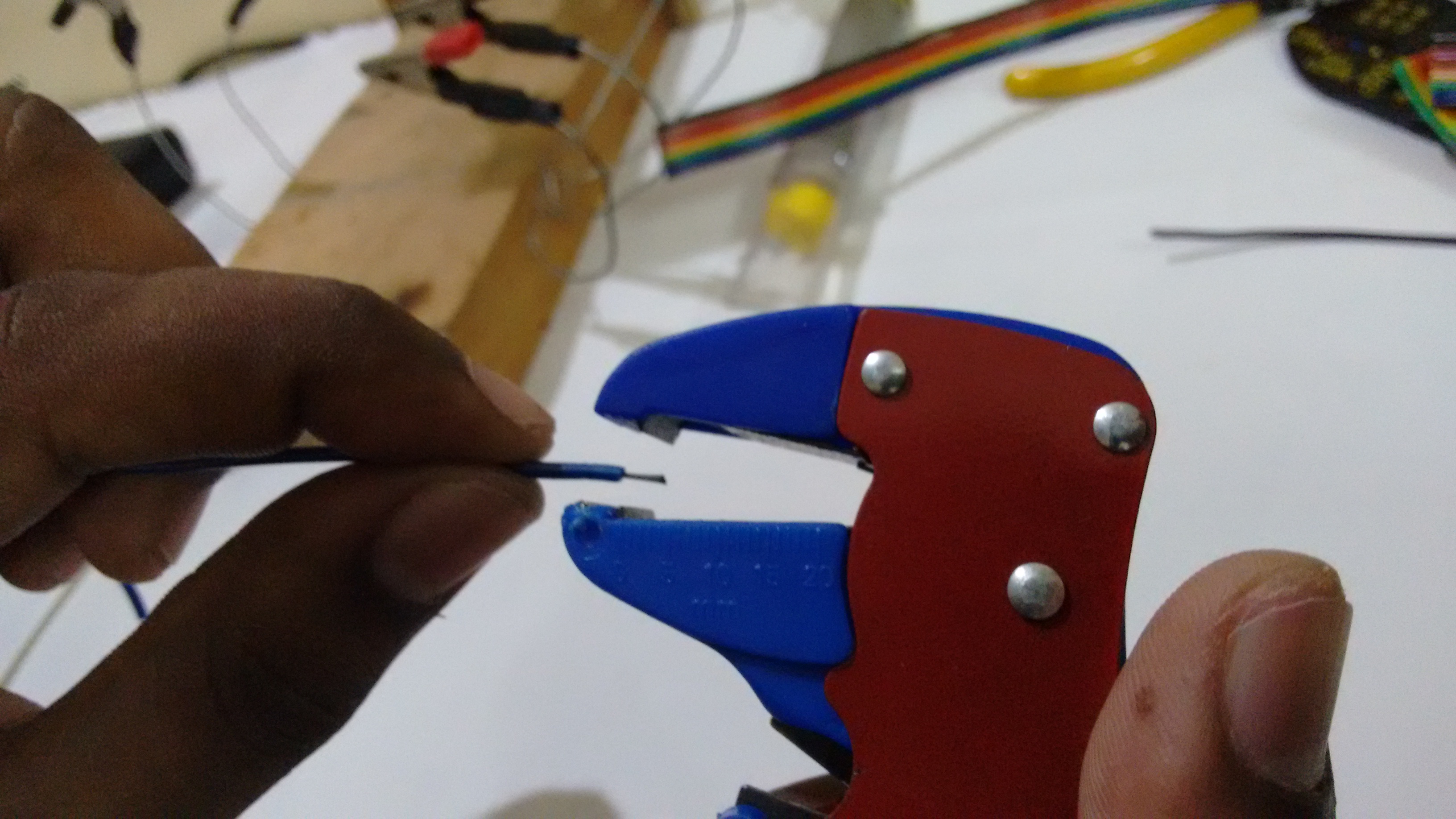

Strip the Sleeve and Twist the Wire
Fix the Header Pin in Octopus. Check the Link for Build Instructions -->> Octopus
With the Help of Helping Hands Solder the Pin to Wire
Apply flux
Tin the tip
Solder

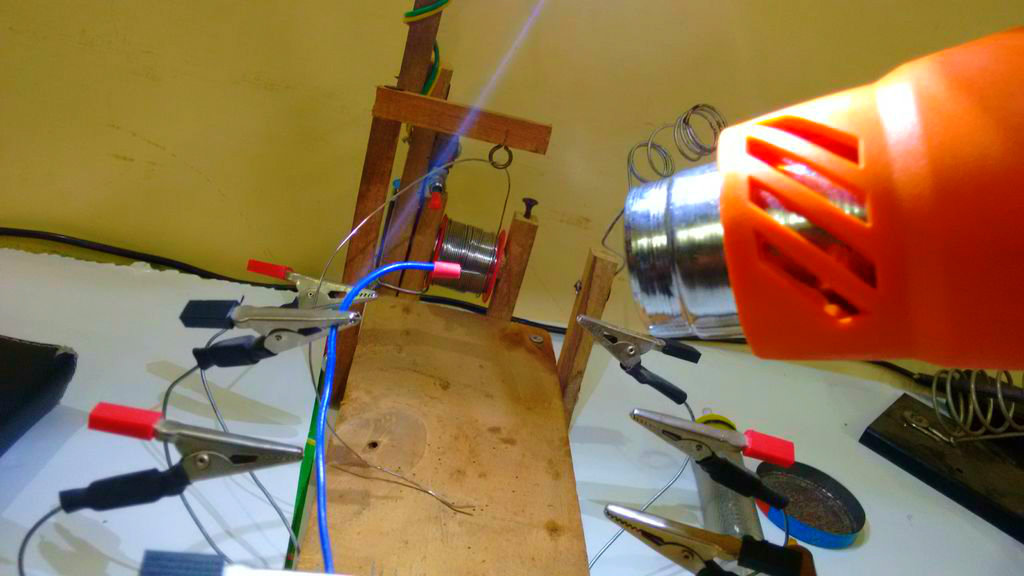

Insert Heat Shrink Sleeve and Shrink It With Hot Air Gun
This Video Might Help You
)
link to video: https://youtu.be/hHPUx4jzwUc
Happy Bread Boarding.
