DIY Jellybean Switch

by delaneyb in Circuits > Assistive Tech

42 Views, 1 Favorites, 0 Comments

DIY Jellybean Switch


The original idea and instructions for this project completed by RyanFromQA can be found by clicking here.


This project is designed to adapt an answer buzzer to be able to be used as a way to provide switch access to adapted toys.

Supplies

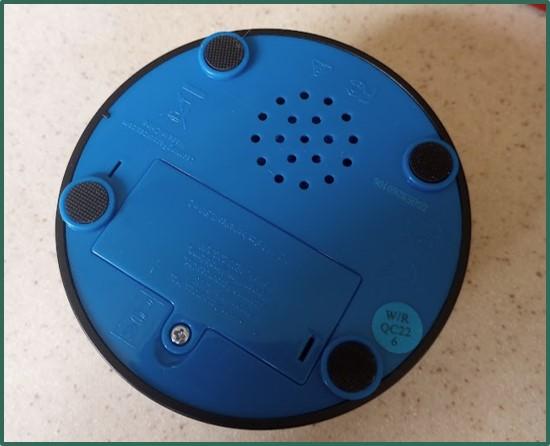

Remove Black Pads


Remove black pads to reveal screws underneath.

Remove Screws


Remove all 4 screws.

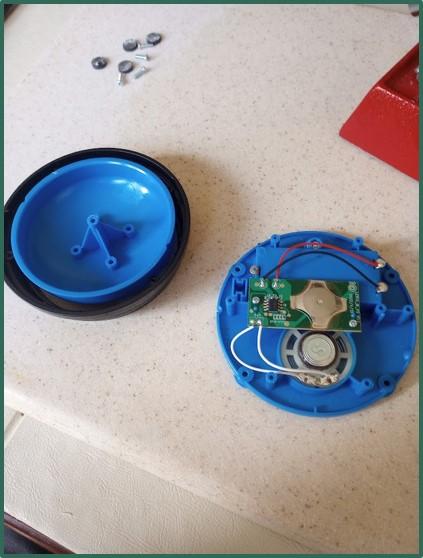

Separate


Remove bottom of answer buzzer- there will be 3 separate pieces.

Solder


Add solder to the arrows indicated by arrows.

Cut Cable


Cut cable (we will be using the male end of the cable for this project).

Strip Cable


Strip cable so that wires from both red and white cables are shown.

Solder


Solder ends of wires for both the red and white cables.

Add Hole


Melt or drill a hole into the side of the answer buzzer.

Thread Wire


Thread wire through the hole, so that the exposed wires are in the inside.

Solder


Solder one cable to each of the areas indicated in the photos (these are the areas that had solder added in step 6). Solder the RED cable to the area labeled VDC.

Add Zip Tie


Add zip tie to cable to prevent wires from being ripped out of switch. Cut the end of the zip tie.

Reassemble


Reassemble switch.

Reattach Screws


Screw in 4 screws to bottom of switch.

Reattach Black Pads


Reattach black pads to bottom of switch.

Enjoy


Use with switch adapted toy and enjoy!
