DIY Hot Plate With Arduino Temperature Sensor

Hello, everyone, in this instructable I will show you how to make the most useful a DIY enthusiast must-have in their workshop; a hot plate for SMD reflow soldering using a Thermocouple sensor controlled by an Arduino nano to monitor the temperature!

Keep reading to know how!!

This was meant to be as inexpensive as possible because as you might know there are several hot plates on sale in Aliexpress and eBay but those cost as much as USD50 plus shipping and I thought; why not making my own for much less?

The total cost of this build is about USD15, not bad!

Parts:

Hot plate https://es.aliexpress.com/item/32948287178.html?sp...

Voltage regulator https://es.aliexpress.com/item/1005002206251820.ht...

Temperature sensor with probe https://es.aliexpress.com/item/2045970236.html?spm...

Better accuracy probe (optional) https://es.aliexpress.com/item/1005001387169413.ht...

Oled screen https://es.aliexpress.com/item/32957309383.html?sp...

Arduino nano https://es.aliexpress.com/item/1005002170922114.ht...

Power cord

5V plug to power the Arduino

Some wood

First of all, we have to upload the code to the Arduino and then we will wire it up on a breadboard to see if it actually works.

I assume you know how to program an Arduino, it is really easy!

Just download the code found here, open it and upload it until you see a success message.

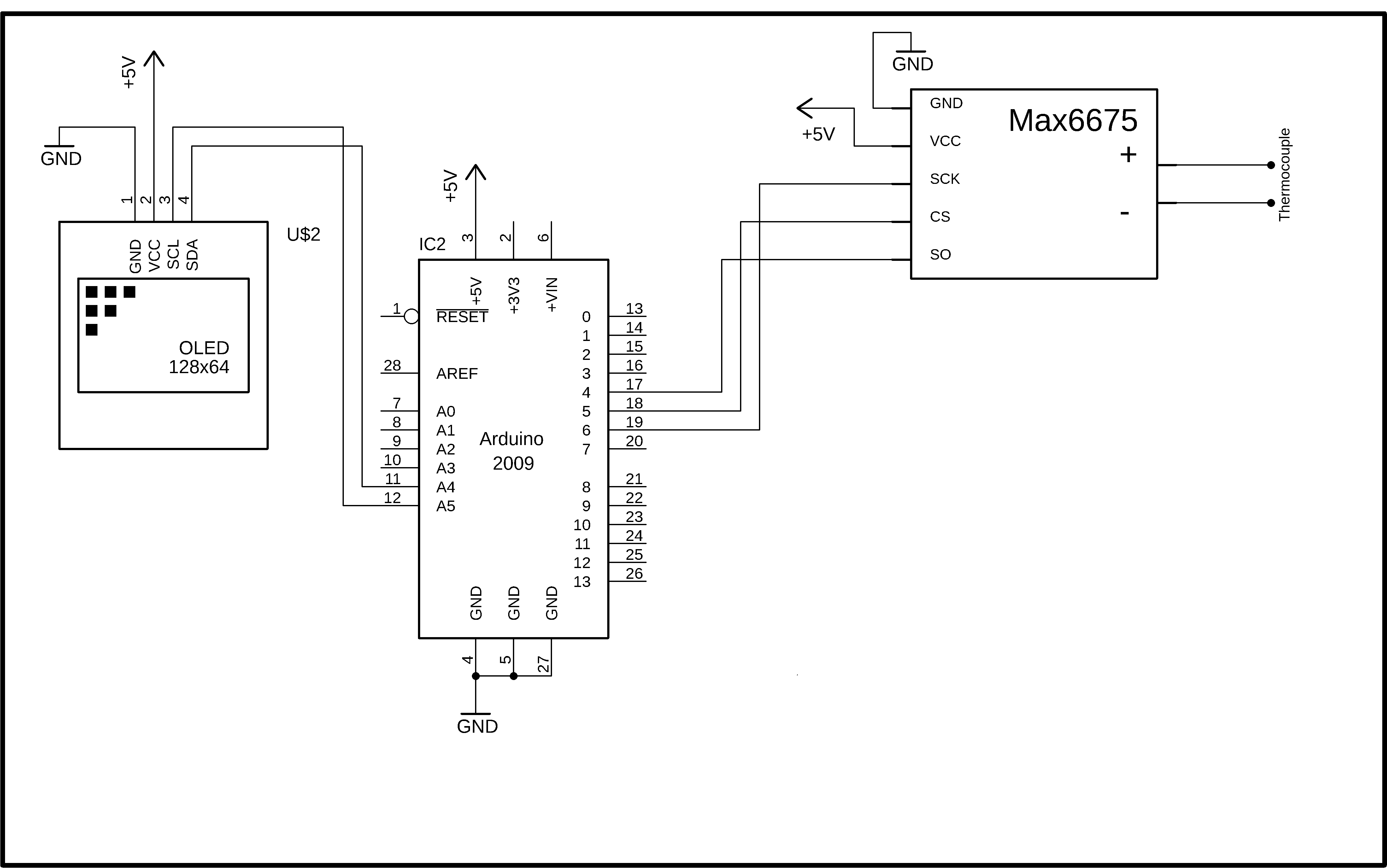

Now, once we have uploaded the code, we are going to wire everything. This step is simple, just follow the wiring diagram and you are set.

Once you have checked that everything works as it should, you can create your own board to make it look better and more professional.

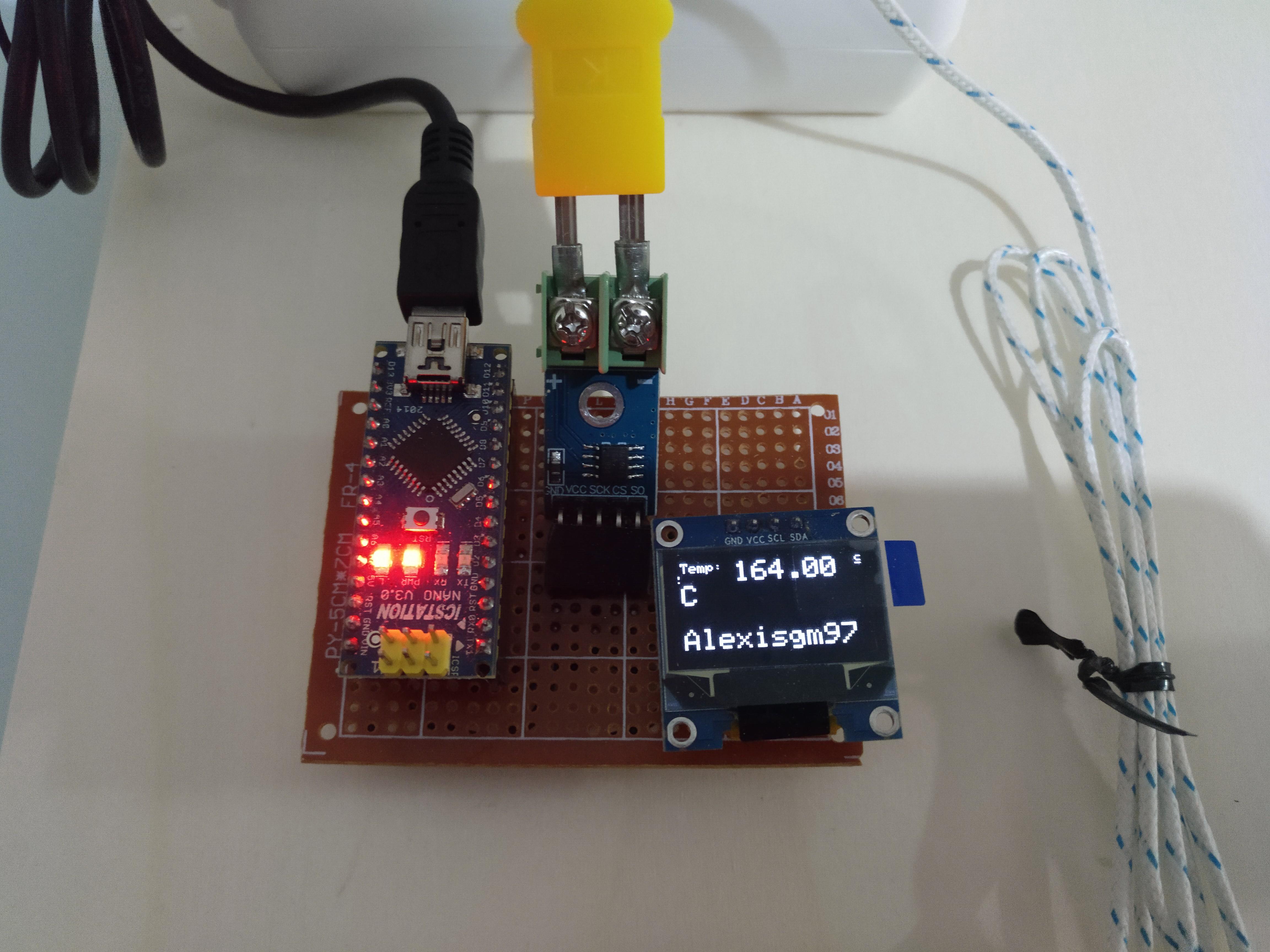

I made mine with a 7x5cm perfboard. I arranged all the components and in the back, I soldered all the connections following the diagram. Feel free to make it as you want!

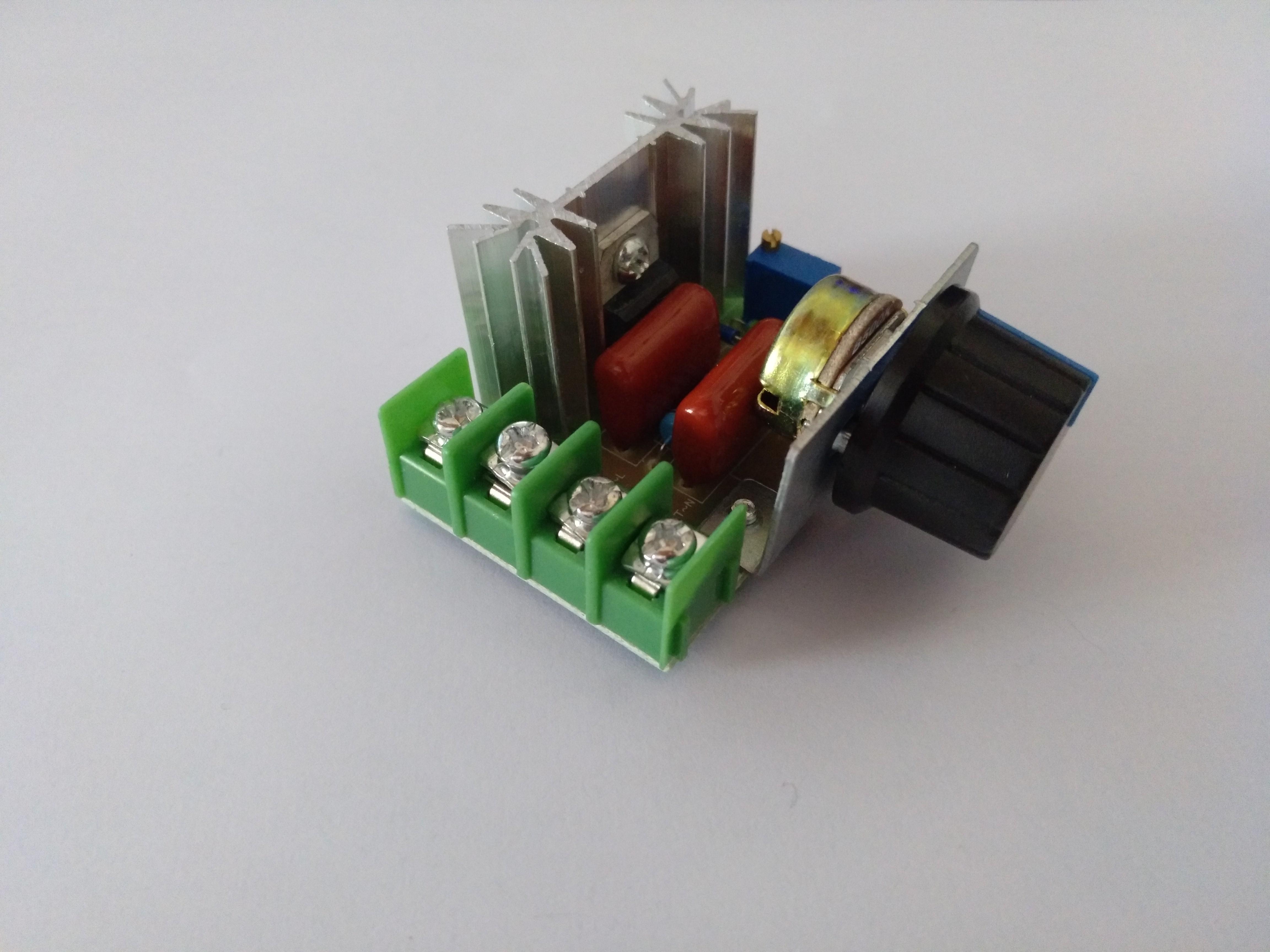

Now we have to wire the rest of the components, the hot plate, the voltage regulator and the power cord. Before wiring it together I bought some Faston terminals to make it safer and more secure. I recommend you do this too if you want to avoid accidents.

Simply solder these terminals to all the live wires and then wire everything following this little schematic I made. Be careful when working with these types of cables as they carry a lot of voltage and current. Make all the soldering and connections with the cables UNPLUGGED.

This is the final step where you will have to find a suitable surface to install all the components, for example, a piece of wood or something like that because the hot plate can easily reach 200 degrees celsius, so be careful!

I arranged mine like this because it works for me, you can make it however your want!!

Now with a bit of Kepton tape, put the temperature probe in a corner of the plate to monitor the temperature easily.

We have finished, now, simply plug the cable, turn the knob to adjust the desired temperature and that's it! We have completed this instructable!

Now we can solder our PCBs with SMD components easily and for little money!

I hope this little instructable has been useful for you and don't forget to vote for me in the Arduino Contest!!
