DIY Homemade Vacuum Cleaner Using Computer Cooling Fan

In this video i will show you how to build your own DIY vacuum cleaner

Making Video

DIY Homemade vacuum cleaner using computer cooling fan

Things Required

1. Plastic Bottle

2. Bottle Cap

3. Another Cap with length 3 to 5 Cm

4. Cloth with Filter

5. 12 Volt Computer Cooling Fan

6. Scale, Sketch Pen & Knife

7. Insulation Tape

8. Scissor

9. Soldering Rod, Soldering Wire & Soldering Paste

10. Wire Stripper

11. Glue

12. Packing Tape

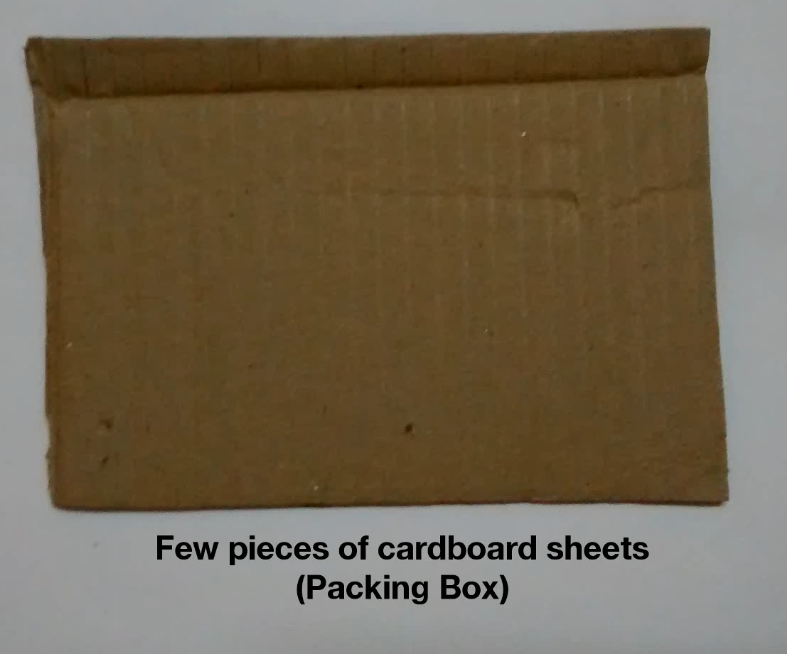

13. Few Pieces of Cardboard Sheets

14. Plastic Container with Lid

Wiring

Construction

1st Image - Cut the bottle at the top

2nd Image - Now place the cut piece at an angle and mark it with a sketch pen / marker as shown in 3rd Image

4th Image - Now cut & remove the marked part

5th Image - Now remove the bottom section leaving about 6 to 8 Cm

Construction

1st Image - Shows how the nozzle will be placed

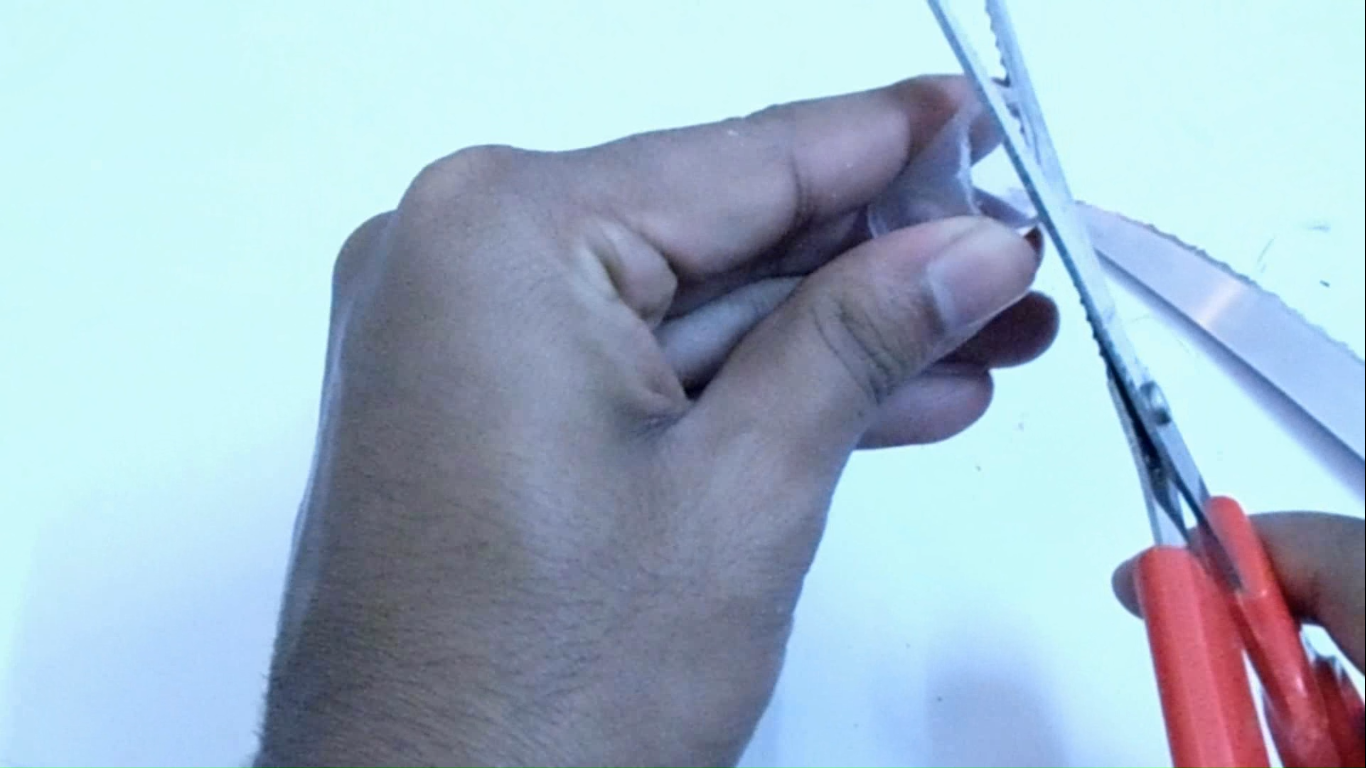

2nd Image - Now cut the cap an angle

3rd Image - Make a hole in the bottle cap

4th Image - Make a hole in the plastic container

Construction - Joining

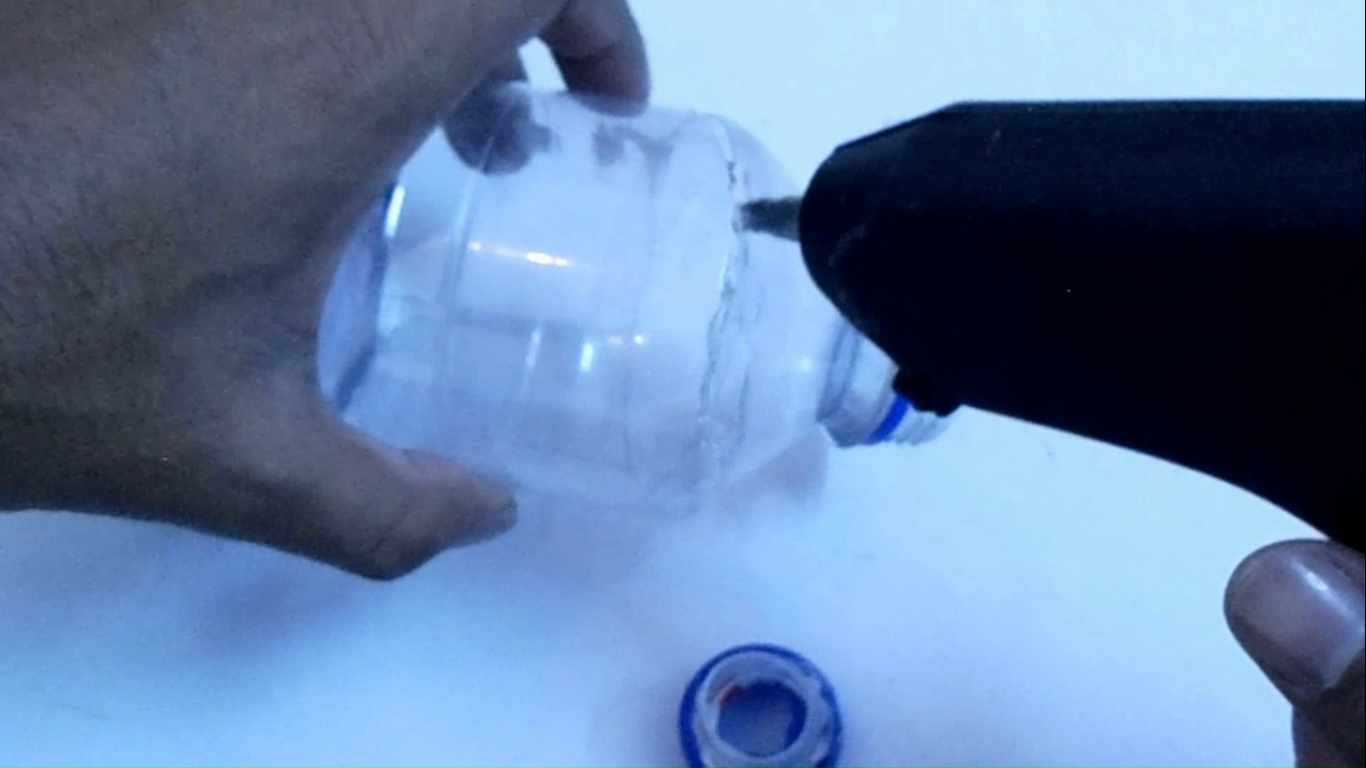

1st Image - Now Glue the bottle cap & the white cap

2nd Image - Now glue the container to the plastic bottle (Note : in this image you can see there is a filter which is not required hence it was not shown here but it shown in the making video

3rd Image - Join the Nozzle part to the plastic bottle

Construction - Filter & Fan

Now to create filter

1st Image - Mark the size of the fan and

2nd Image - Now remove the center part so that air can flow (You need 2)

3rd Image - Now glue the filter to one of the cardboard sheet

4th Image - Now place the another card board sheet over it & glue it

(Placement = Cardboard sheet - Cloth - Cardboard Sheet)

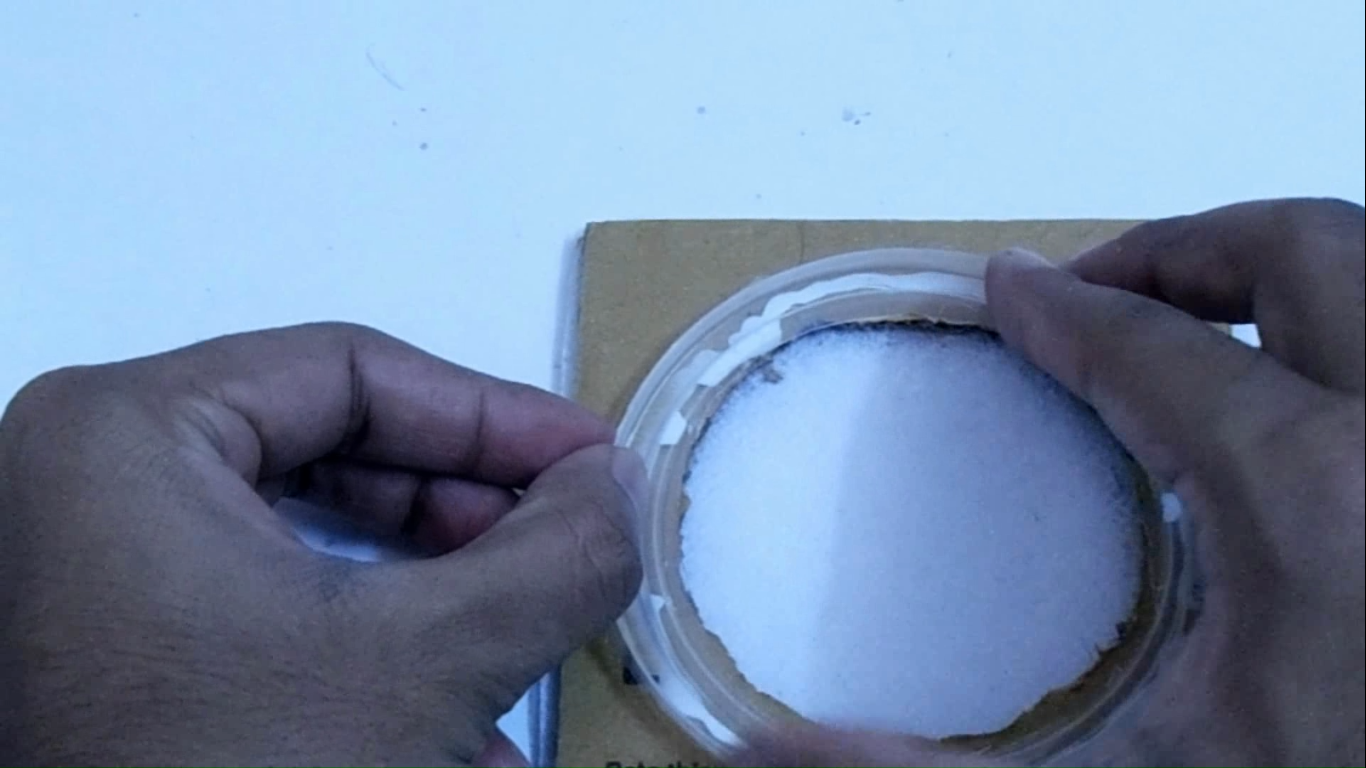

5th Image - Now place the container lid and mark the center part which has to be removed

6th Image - Once the center part is removed glue it to the one side of the filter

7th Image - Now glue the computer cooling fan to the other side

8th Image - Now cover all the sides of the fan and add a switch(optional)

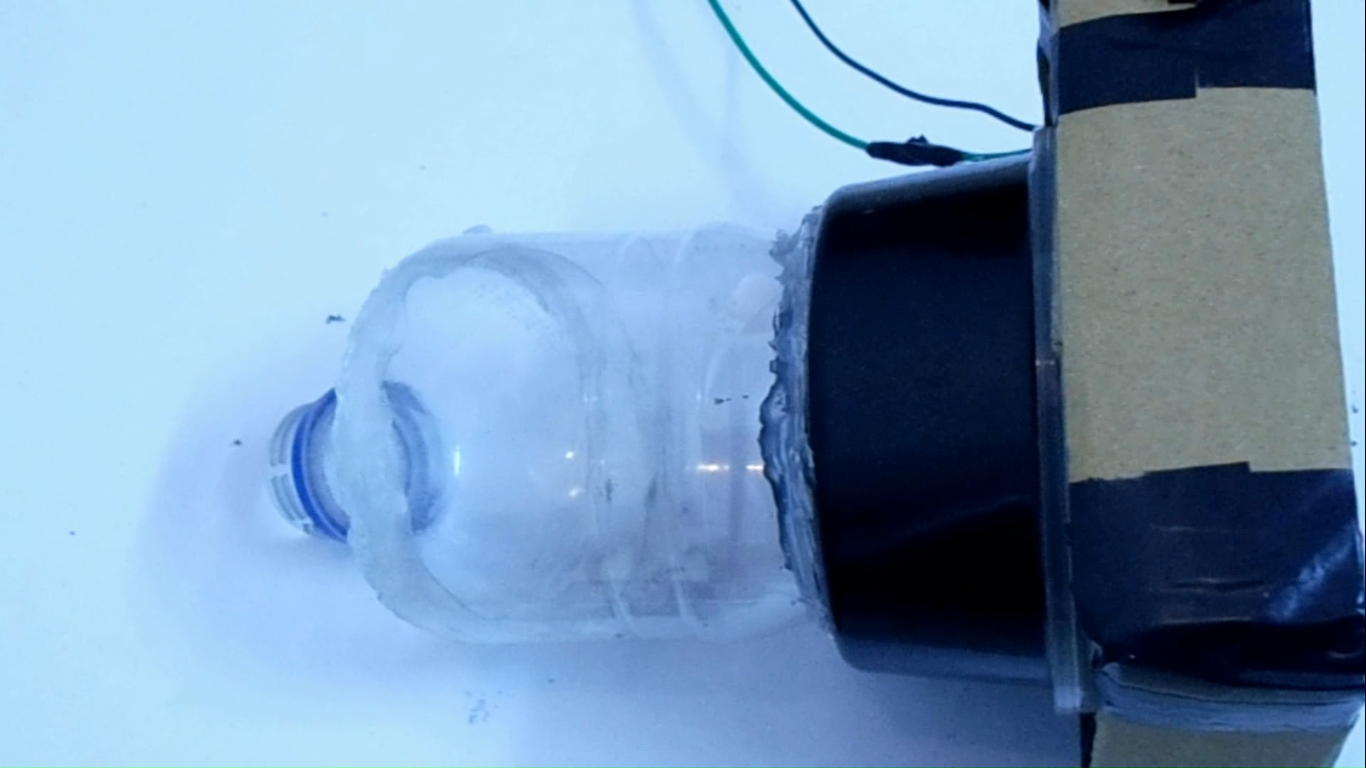

Finished Images

To watch the testing of the vacuum cleaner please CLICK HERE or go to the step 1 (Making Video)

Testing begins @ 10:40

------------------------------------------------------------------------------------------------------------------------------------------------------
