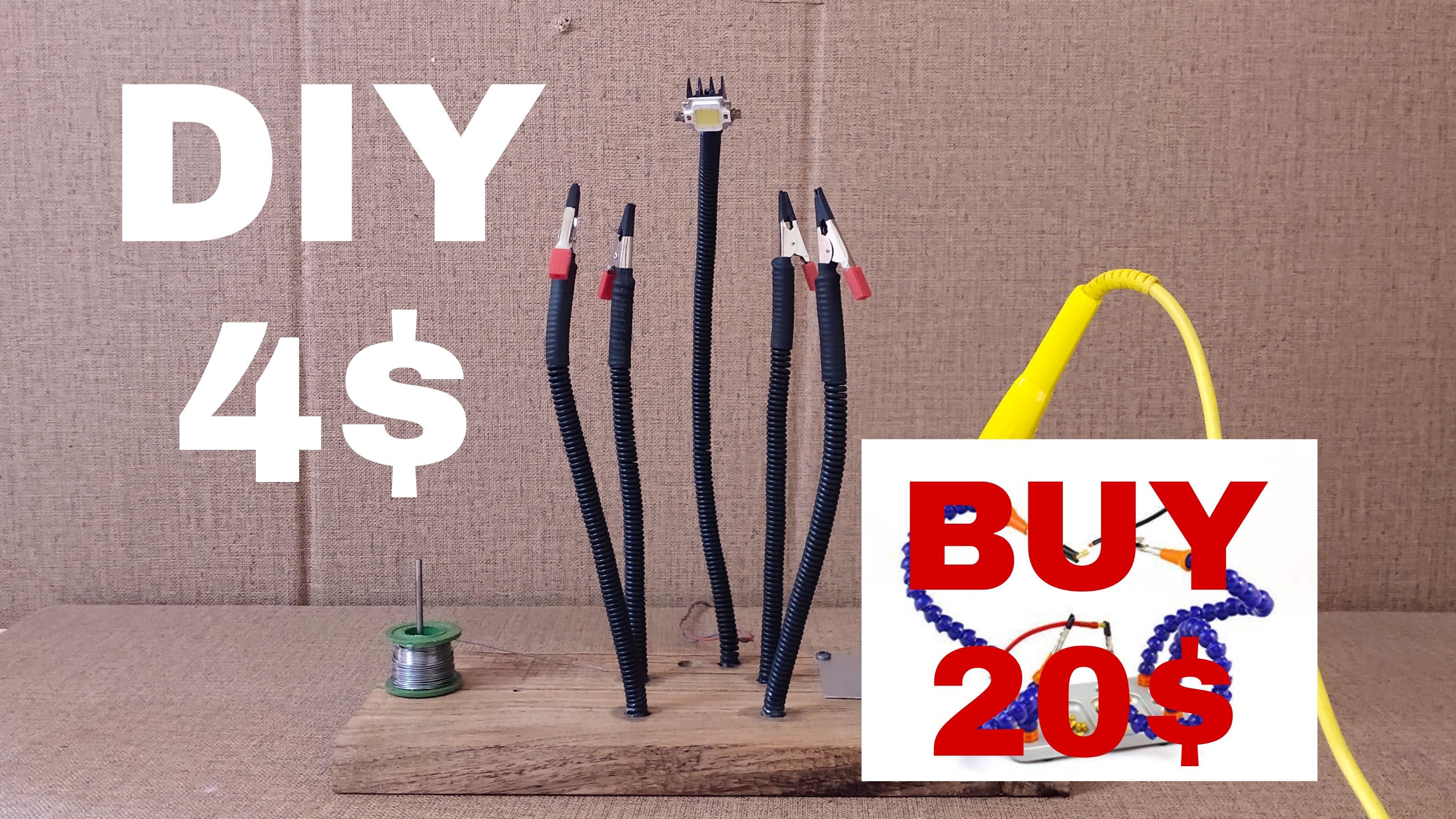

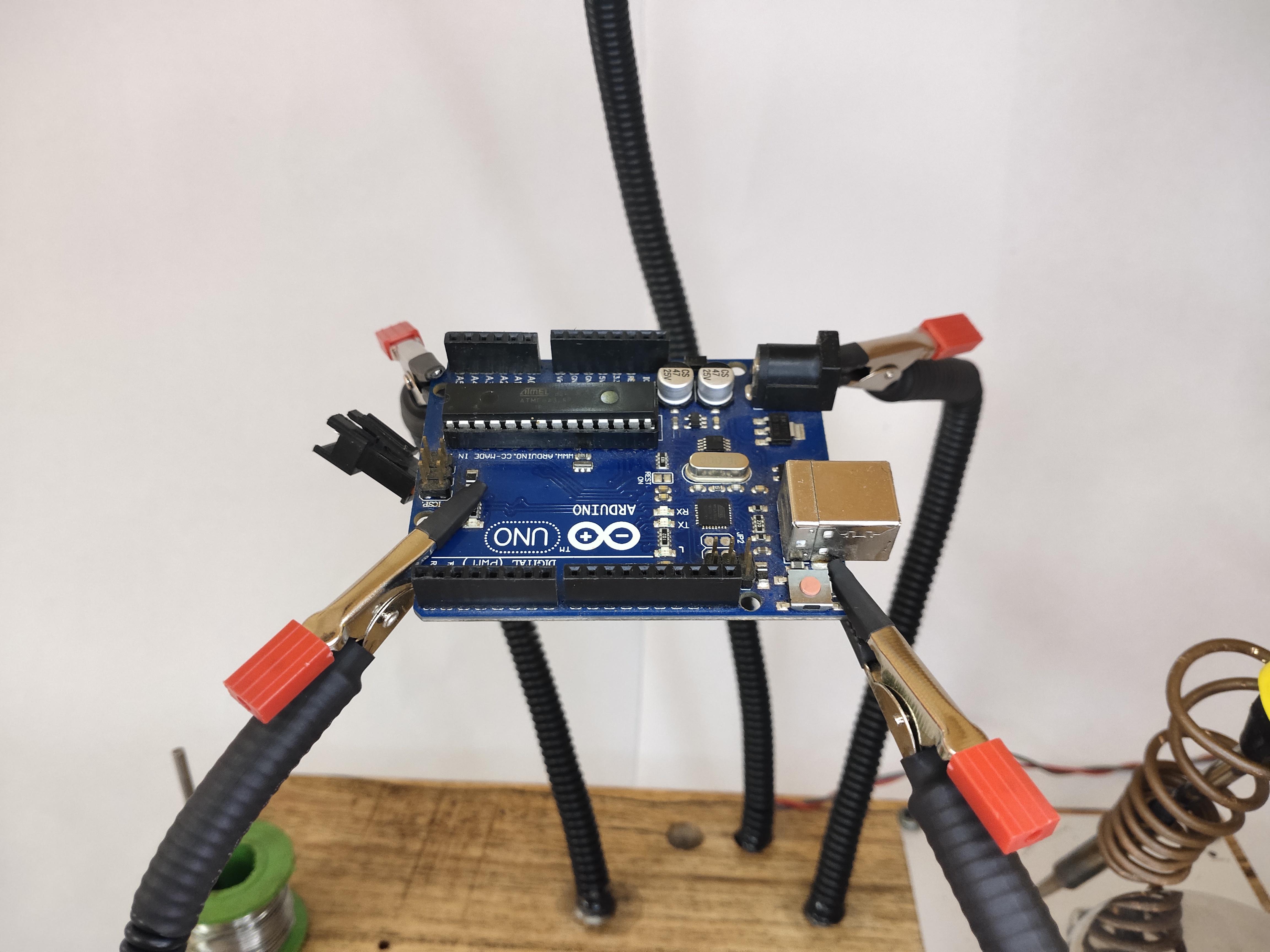

In this tutorial I am going to show how we can make a super flexible helping hands soldering station using basic materials which are low coast and can be found easily in nearby stores. This 4$ helping hands soldering station looks decent and can perform all the tasks that a commercial helping hands soldering station can do.
Supplies
- 10 Gauge plastic coated single string metal wire
- Block of wood (15x30 Cm)
- Alligator Pins
- Some different sizes of steel rods
- Solder Holder (Or) Thick metal wire
- Solder tip cleaner (Or) A small container with steel scrubber
- A (7X10Cm) metal sheet
- Wood Finish Oil
- 5V White LED Light
- Hand drill and other tools
Making Flexible Arms:
![Screenshot (16).png](/proxy/?url=https://content.instructables.com/FEW/S65X/KFB420D6/FEWS65XKFB420D6.png&filename=Screenshot (16).png)
![Screenshot (15).png](/proxy/?url=https://content.instructables.com/FIP/CAU4/KFB420D2/FIPCAU4KFB420D2.png&filename=Screenshot (15).png)
![Screenshot (17).png](/proxy/?url=https://content.instructables.com/FJ2/B8A2/KFB420D9/FJ2B8A2KFB420D9.png&filename=Screenshot (17).png)
![Screenshot (18).png](/proxy/?url=https://content.instructables.com/FHG/100E/KFB420DD/FHG100EKFB420DD.png&filename=Screenshot (18).png)
![Screenshot (19).png](/proxy/?url=https://content.instructables.com/FBG/WJD9/KFB420DG/FBGWJD9KFB420DG.png&filename=Screenshot (19).png)
![Screenshot (21).png](/proxy/?url=https://content.instructables.com/FPX/I6HE/KFB420DI/FPXI6HEKFB420DI.png&filename=Screenshot (21).png)
- Take the hand drill with a long 5mm diameter rod.
- Mark a point on rod for length of the arm.
- Take the metal wire and roll on the rod to make the spring.
- Similarly make few more springs.
- Take the same metal wire and double it using drill.
- This double wire is going to act as core for helping hands.
Drilling Holes on the Wood:
![IMG_20200916_140612.jpg](/proxy/?url=https://content.instructables.com/FUU/U2YT/KFB420X1/FUUU2YTKFB420X1.jpg&filename=IMG_20200916_140612.jpg)
![IMG_20200916_150541.jpg](/proxy/?url=https://content.instructables.com/FKE/ZZQC/KFB420XD/FKEZZQCKFB420XD.jpg&filename=IMG_20200916_150541.jpg)
![Screenshot (23).png](/proxy/?url=https://content.instructables.com/F9U/4A5G/KFB420XG/F9U4A5GKFB420XG.png&filename=Screenshot (23).png)
![IMG_20200916_151430.jpg](/proxy/?url=https://content.instructables.com/FHU/2OFF/KFB420XF/FHU2OFFKFB420XF.jpg&filename=IMG_20200916_151430.jpg)
![Screenshot (24).png](/proxy/?url=https://content.instructables.com/FMW/951B/KFB420XH/FMW951BKFB420XH.png&filename=Screenshot (24).png)
![Screenshot (26).png](/proxy/?url=https://content.instructables.com/FRT/FD2B/KFB420XJ/FRTFD2BKFB420XJ.png&filename=Screenshot (26).png)

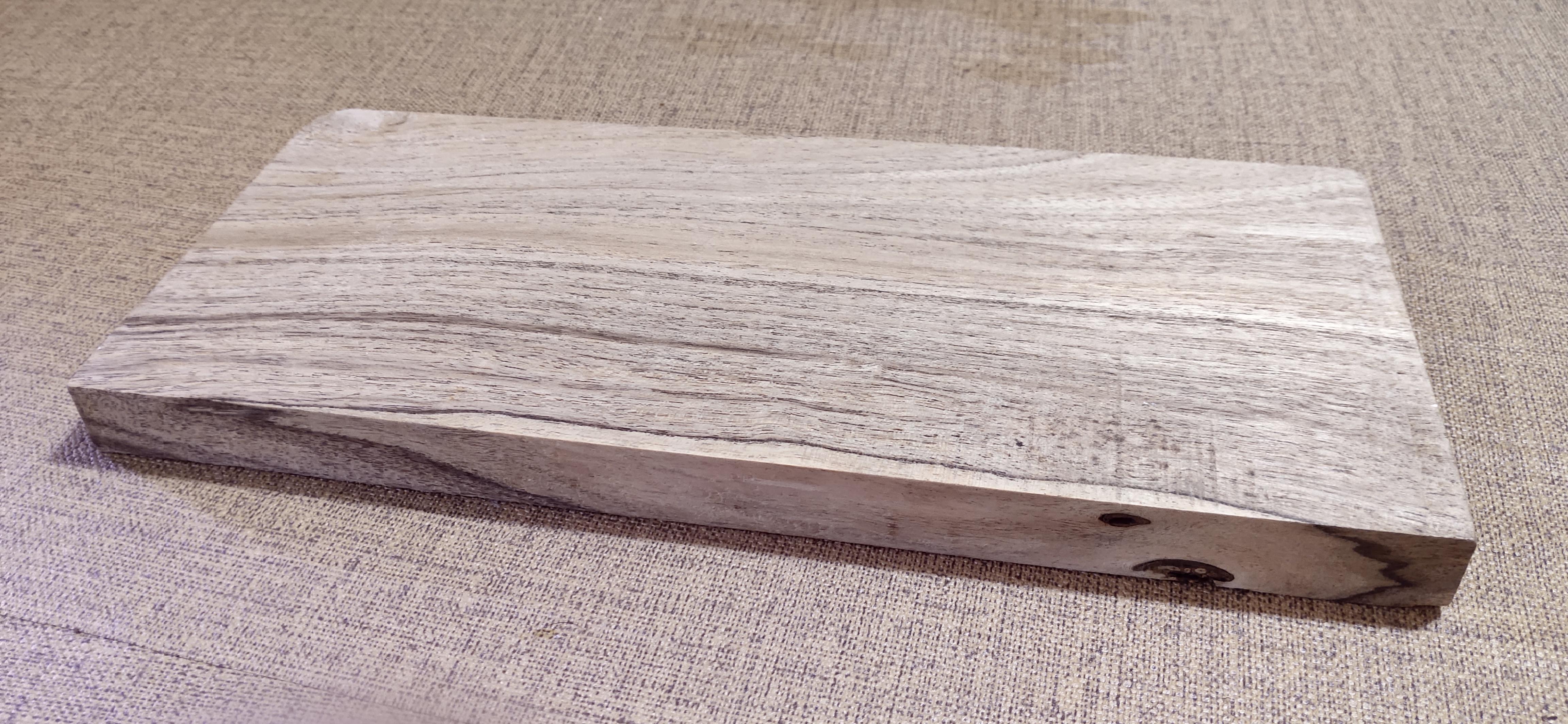

- Take the wooden block and mark the positions where you want to place your helping hands, solder holder, lead wire holder and solder tip cleaner.
- Drill the appropriate holes at the marks you made.
- For placing the helping hand drill a hole of spring diameter.
- Inside the same hole drill a hole of core diameter.
Installing Helping Hands:
![Screenshot (28).png](/proxy/?url=https://content.instructables.com/FC4/7HAU/KFB4211F/FC47HAUKFB4211F.png&filename=Screenshot (28).png)
![Screenshot (30).png](/proxy/?url=https://content.instructables.com/FY9/Z0C2/KFB4211H/FY9Z0C2KFB4211H.png&filename=Screenshot (30).png)
![Screenshot (31).png](/proxy/?url=https://content.instructables.com/FD3/O8EM/KFB4211K/FD3O8EMKFB4211K.png&filename=Screenshot (31).png)
![IMG_20200916_161059.jpg](/proxy/?url=https://content.instructables.com/FFJ/PD2Z/KFB4215U/FFJPD2ZKFB4215U.jpg&filename=IMG_20200916_161059.jpg)
![Screenshot (32).png](/proxy/?url=https://content.instructables.com/FA8/F87K/KFB4211N/FA8F87KKFB4211N.png&filename=Screenshot (32).png)
![IMG_20200917_095416.jpg](/proxy/?url=https://content.instructables.com/F6O/WW1P/KFB421N5/F6OWW1PKFB421N5.jpg&filename=IMG_20200917_095416.jpg)
![IMG_20200917_133411.jpg](/proxy/?url=https://content.instructables.com/FMD/7RP1/KFB421ND/FMD7RP1KFB421ND.jpg&filename=IMG_20200917_133411.jpg)
- Put the cores and springs in the respective holes using glue.
- Take the heat shrink tubes and the alligator pins.
- Fix the alligator pin using super glue.
- After the glue dries position the heat shrink tube and shrink it.
- Put the heat shrink tubes on the teeth's of the alligator pins.

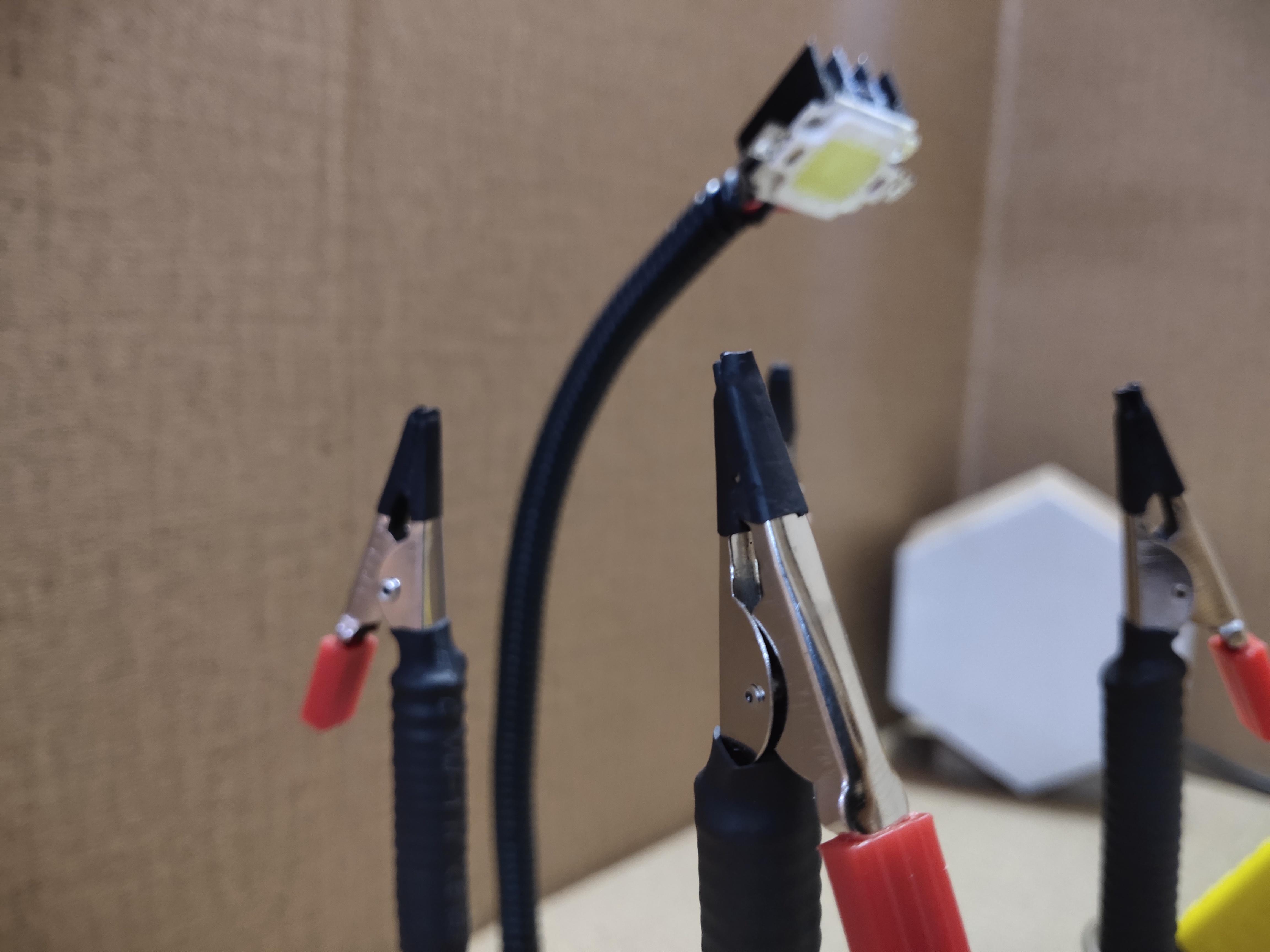

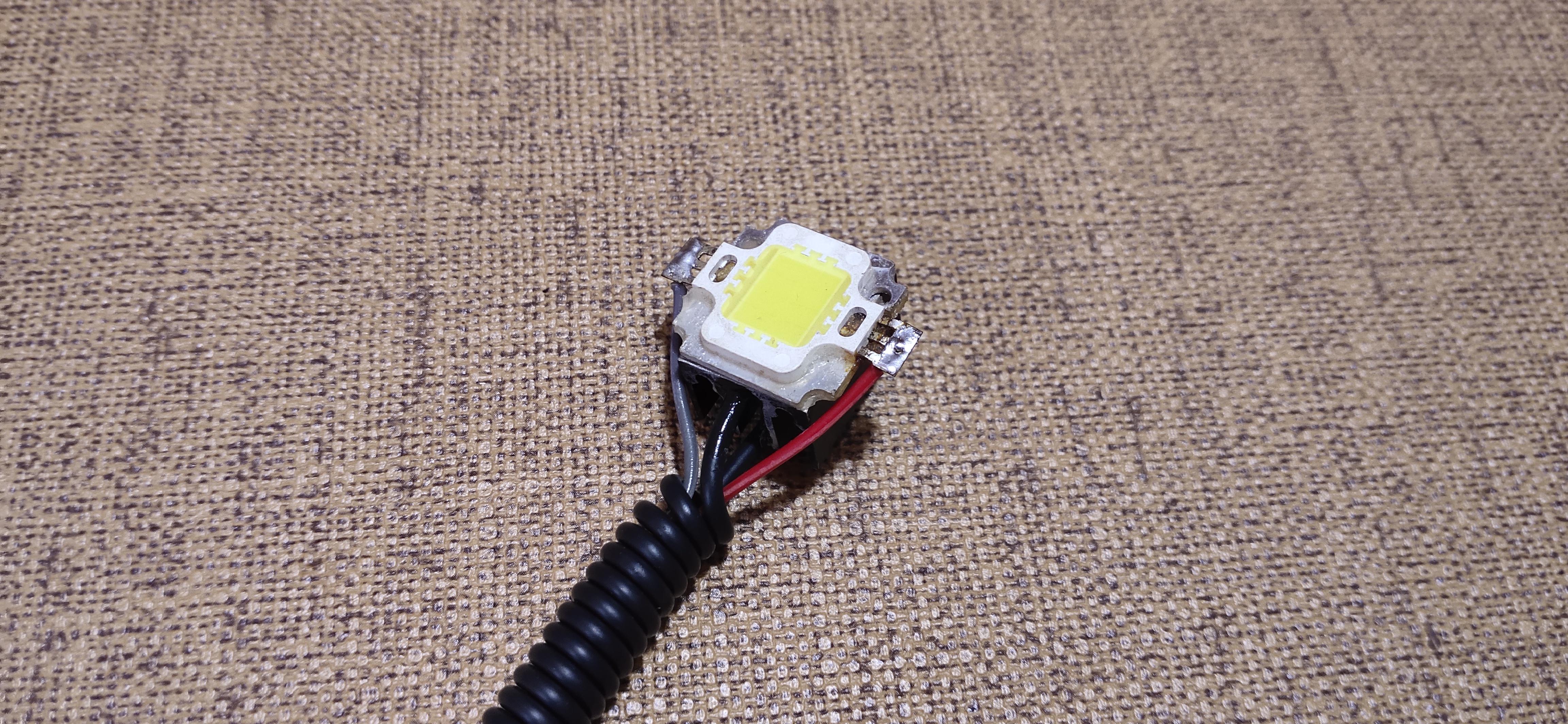

- Glue a 5V LED light on a flexible hand.
Note: You can even put a magnifier and a small DC fan on the flexible hand.
Final:
![IMG_20200916_140957.jpg](/proxy/?url=https://content.instructables.com/F4J/528E/KFB421VL/F4J528EKFB421VL.jpg&filename=IMG_20200916_140957.jpg)
![Screenshot (35).png](/proxy/?url=https://content.instructables.com/F4A/Z2OE/KFB421XU/F4AZ2OEKFB421XU.png&filename=Screenshot (35).png)
![Screenshot (34).png](/proxy/?url=https://content.instructables.com/FQO/JYWB/KFB421X6/FQOJYWBKFB421X6.png&filename=Screenshot (34).png)
![Screenshot (38).png](/proxy/?url=https://content.instructables.com/FVP/QAUJ/KFB421YT/FVPQAUJKFB421YT.png&filename=Screenshot (38).png)
![IMG_20200917_132647.jpg](/proxy/?url=https://content.instructables.com/FYK/QMQ1/KFB421W2/FYKQMQ1KFB421W2.jpg&filename=IMG_20200917_132647.jpg)
![IMG_20200917_132951.jpg](/proxy/?url=https://content.instructables.com/FO0/M1UJ/KFB421WM/FO0M1UJKFB421WM.jpg&filename=IMG_20200917_132951.jpg)
![Screenshot (36).png](/proxy/?url=https://content.instructables.com/FN0/T37X/KFB4227L/FN0T37XKFB4227L.png&filename=Screenshot (36).png)
![Screenshot (37).png](/proxy/?url=https://content.instructables.com/F6N/SKYZ/KFB421Y5/F6NSKYZKFB421Y5.png&filename=Screenshot (37).png)

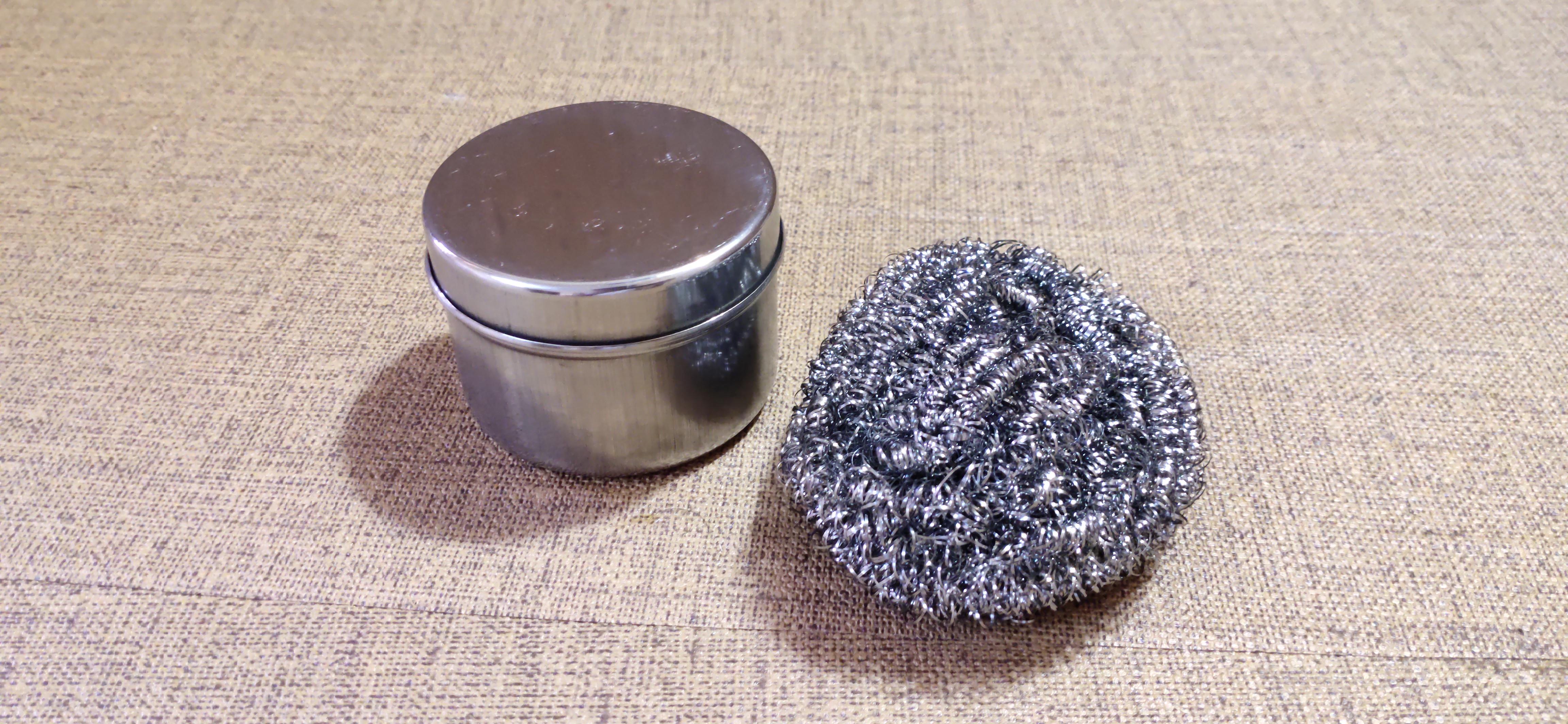

- Fix the container with screws on to the wood.
- Place the scrubber and put the lid.
- To this lid make a opening.
- Fix the solder iron holder and a small rod for lead wire holder.
- Apply the wood finishing oil.
You can use a commercial solder holder and commercial solder tip cleaner instead.
