DIY Head Tracker


This is a tutorial to create one of the most cost-effective head-tracking hardware.

Supplies


850nm IR LED 120 degrees spread x 10 $5.32 (test the LEDs before soldering onto wires as some may be duds)

https://www.aliexpress.us/item/2251832779864218.html


heat shrink $4.69

https://www.aliexpress.us/item/3256803265089349.html


resister $15.32 (only need one of the 33 Ohm resistors)

https://smile.amazon.com/gp/product/B08BNDL6DS


galvanized wire


20 gauge red and black wires


2 AAA battery holder with switch 5 pack $6.89

https://smile.amazon.com/dp/B099Z655ZM


850nm filter 17mm square $6.87

https://www.aliexpress.us/item/2255801048966875.html


Velcro

Hot glue

Solder


Tools

Wire cutter

Wire stripper

Work pad with centimeter square grid

Hot glue gun

Soldering iron

Velcro

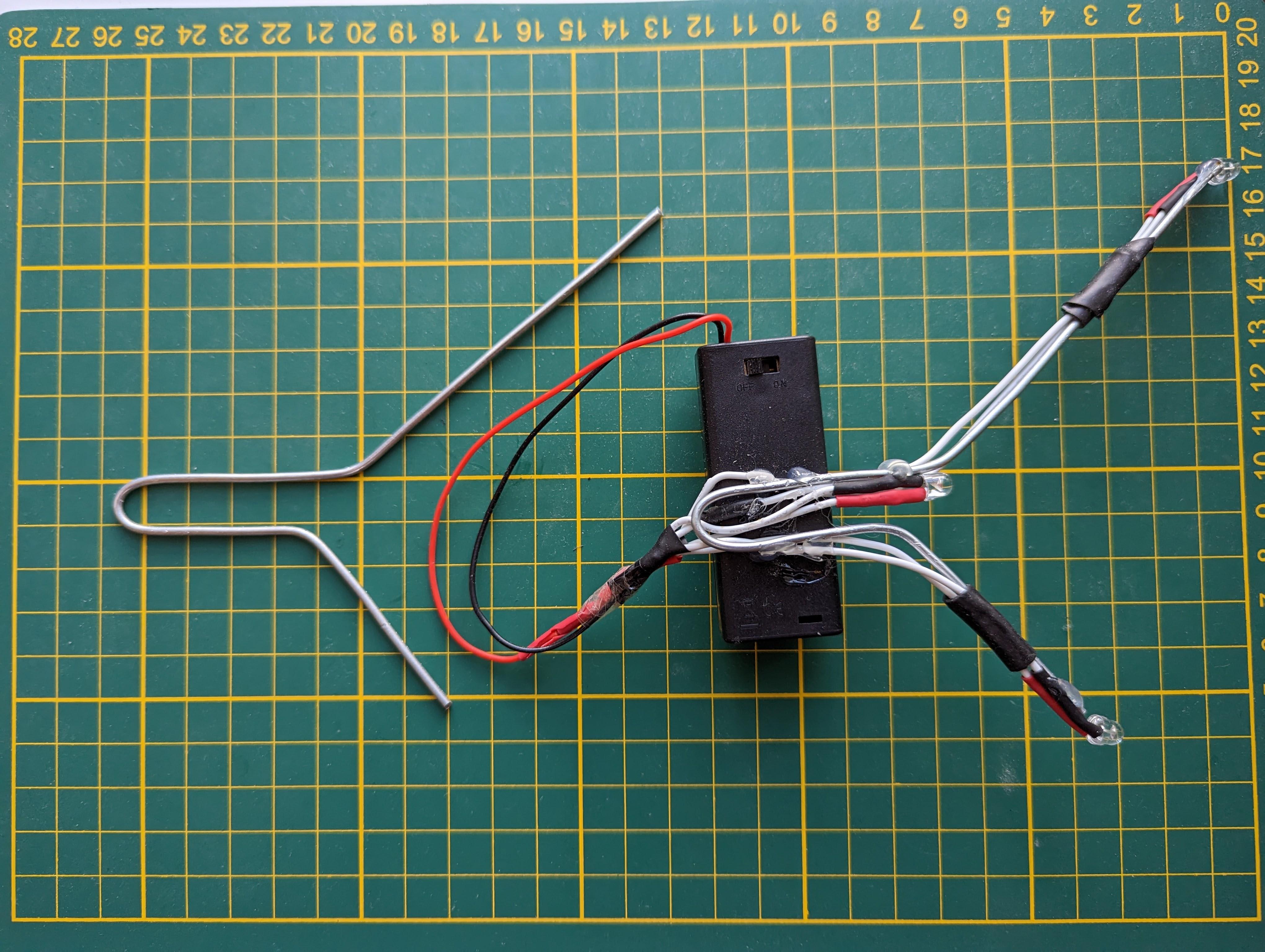

Cutting the Wire


Get yourself a metal wire/coathanger and warp it into this shape.

This allows the software to recognize where your head is and how it turns.

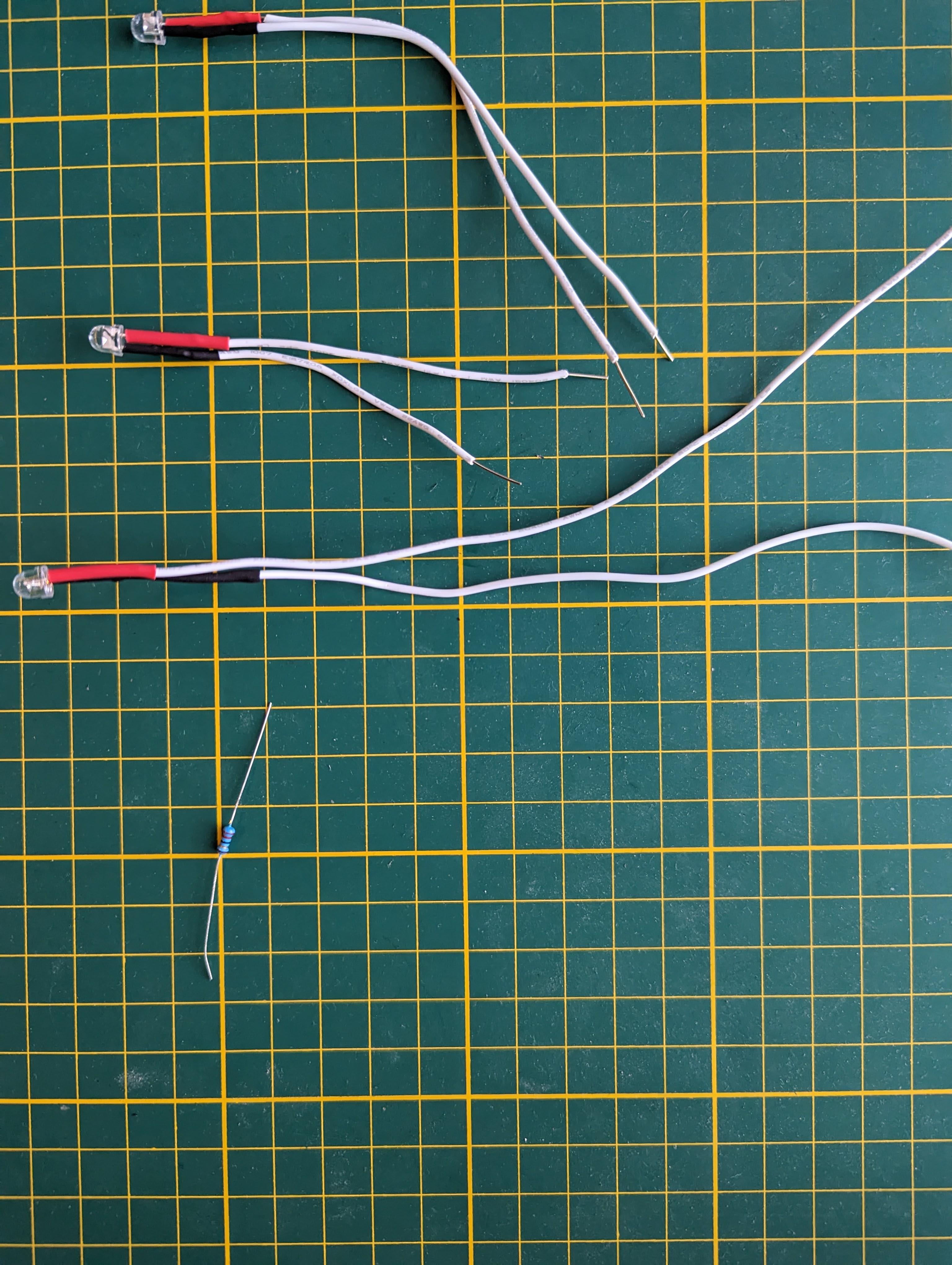

Soldering the LEDs

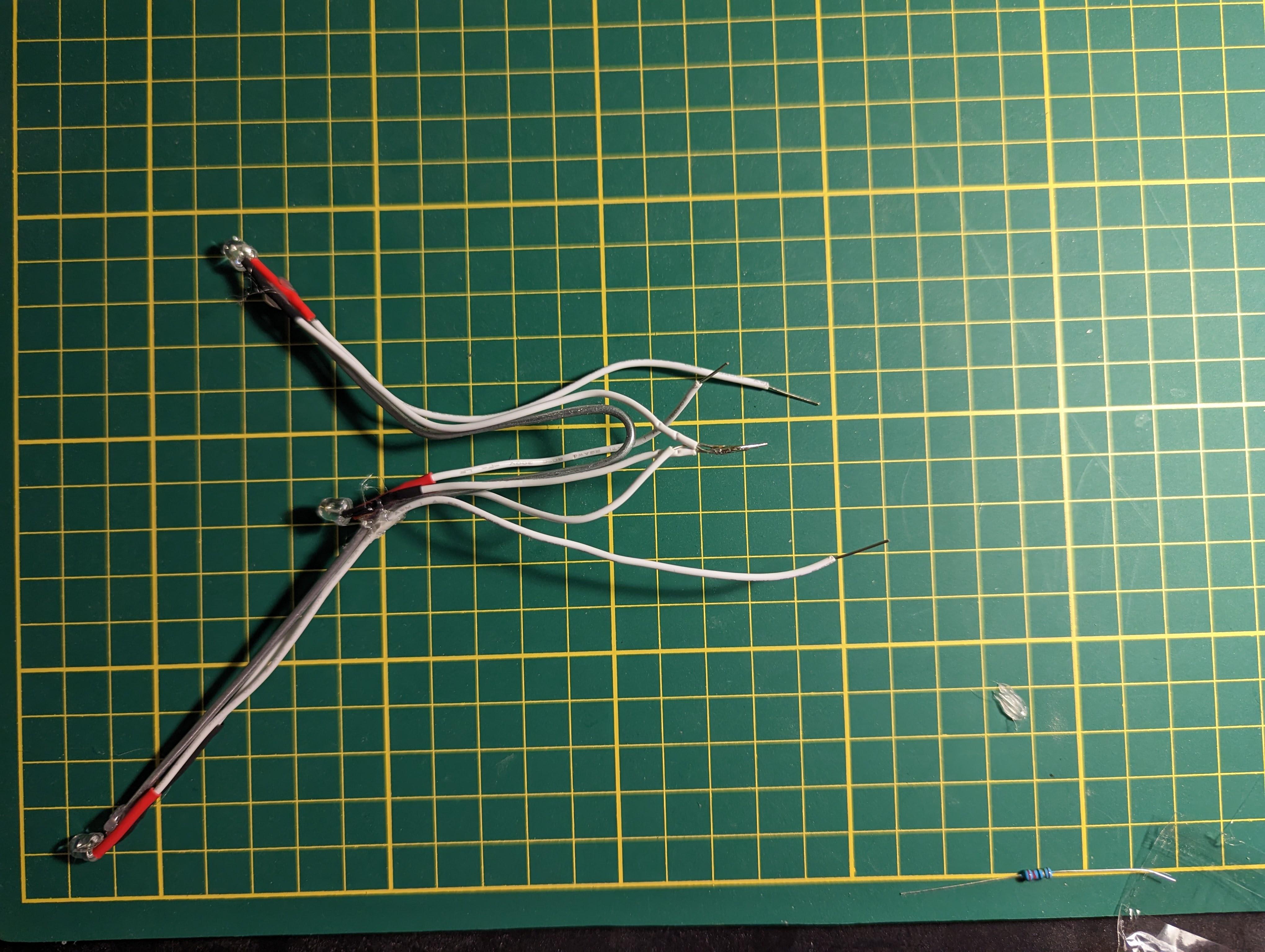

After testing your LEDs to make sure it works appropriately, solder them onto wires.

You will want 2 long, 2 medium, and 2 short-length wires for the LEDS for the 3 positions.

Sold them together and ensure you know Cathode (negative/ground) and Anode (positive/power).

Cathode is the shorter pin of the LED and Anode is the longer one.

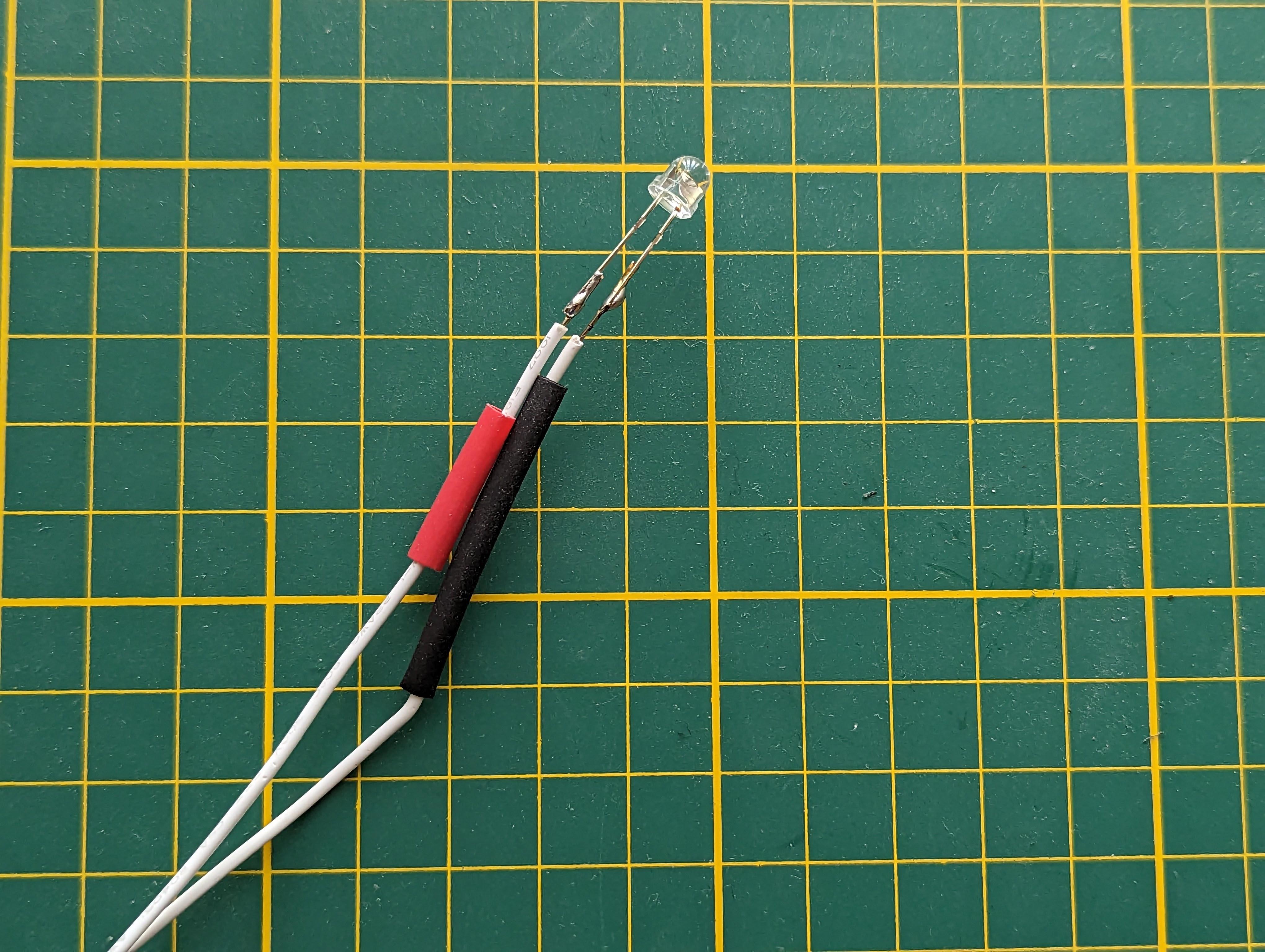

Heat Shrink

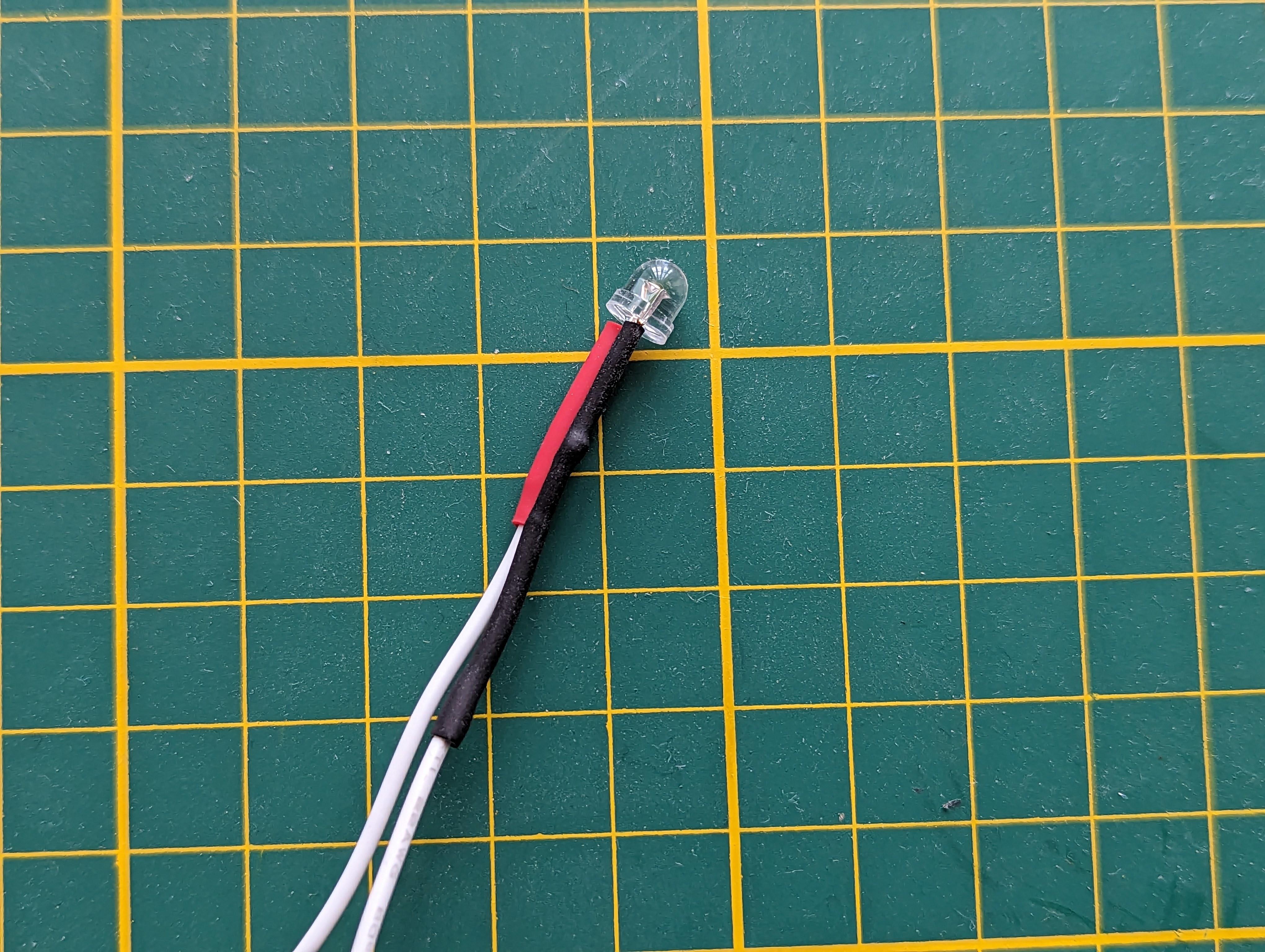

To avoid shorting and also for the organization, use heat shrink on the wires and make sure it covers soldered parts.

Hot Glue to Frame

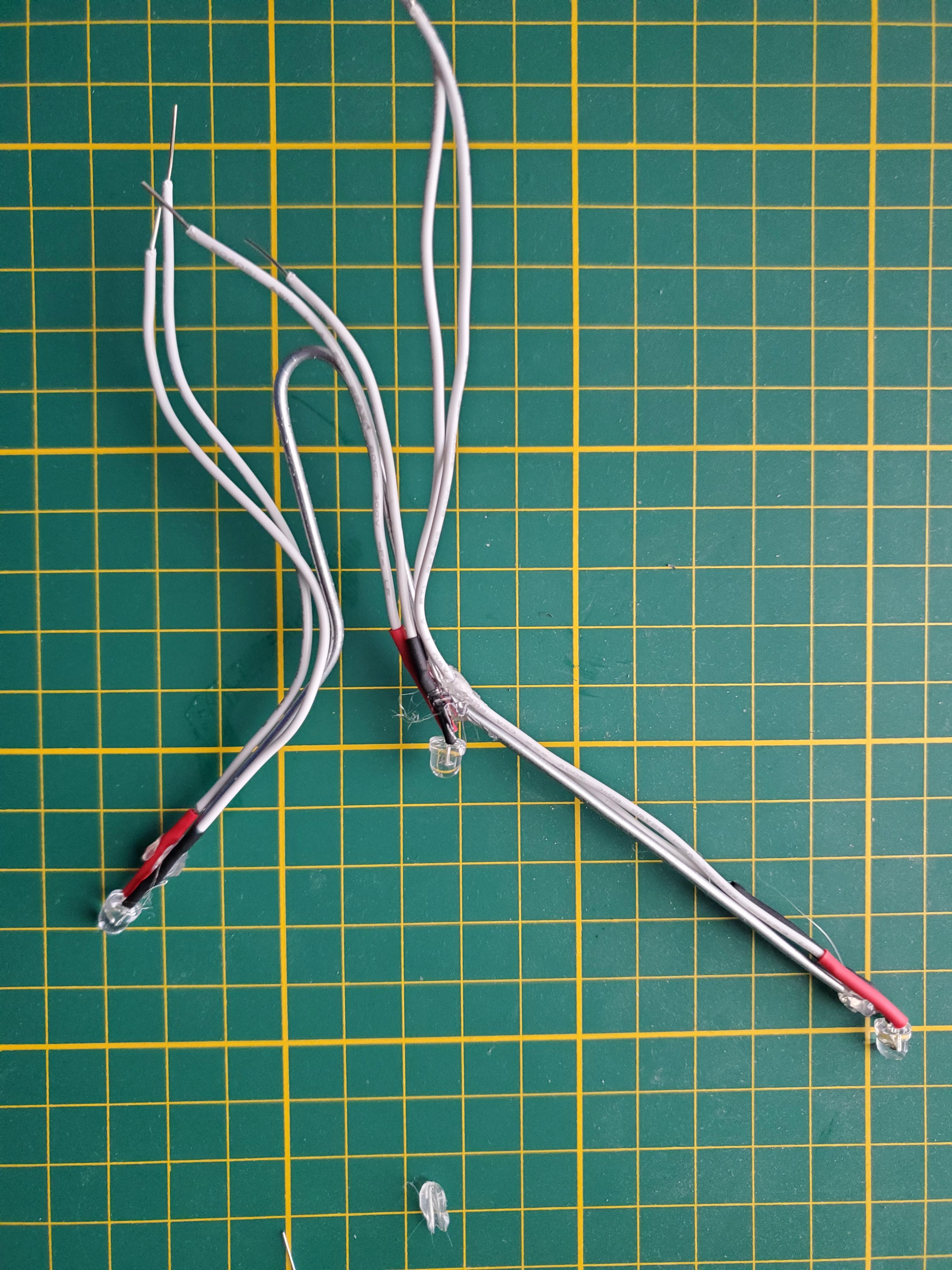

Hot Glue the LEDs to the frame of the head tracker.

Glue and shape the wire onto the frame.

Resistor

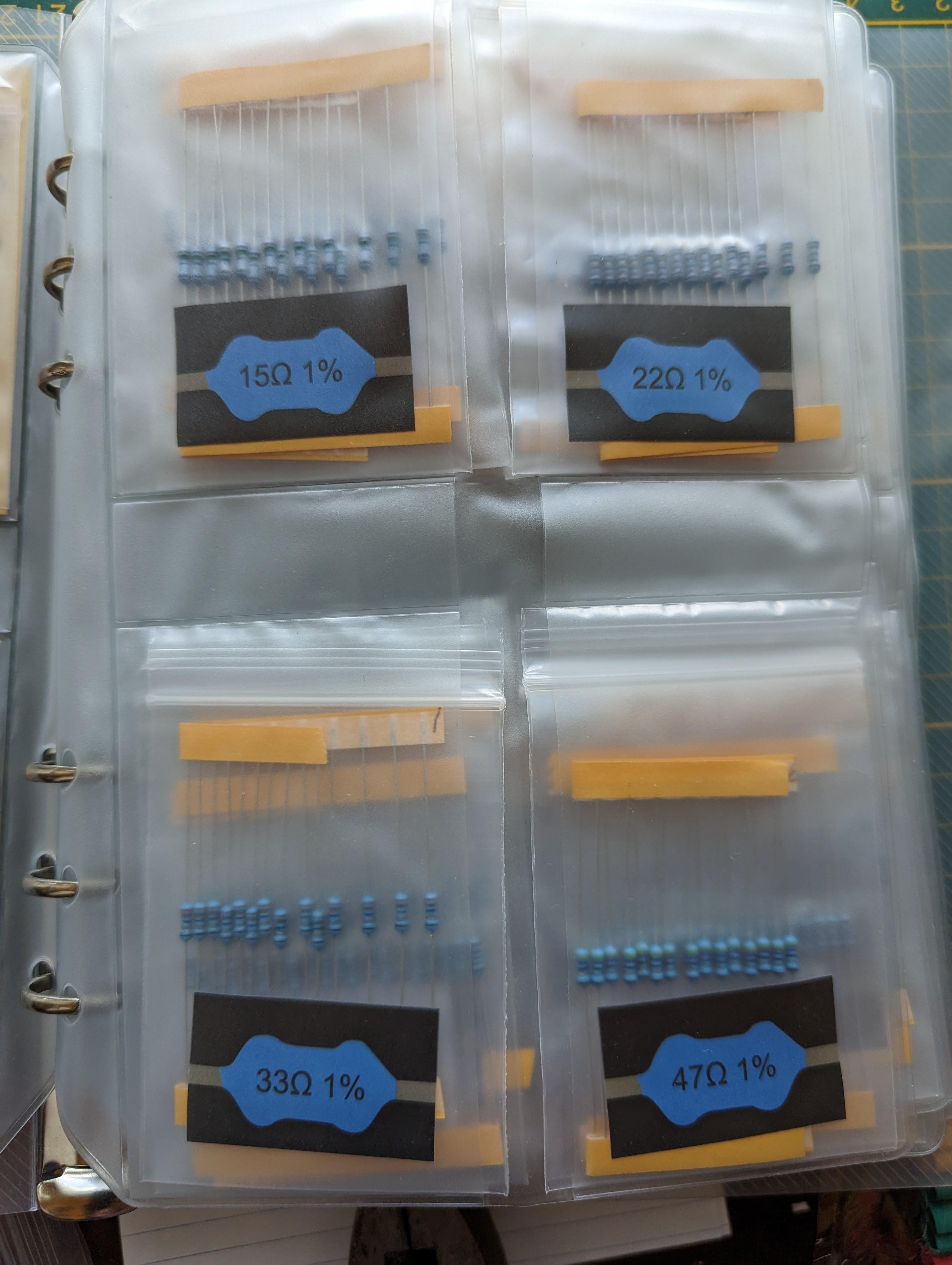

After soldering all 3 of the LEDs together, you want to get one of the 33 Ohm resistors and solder it to the end of the anode side (red)


Power Supply

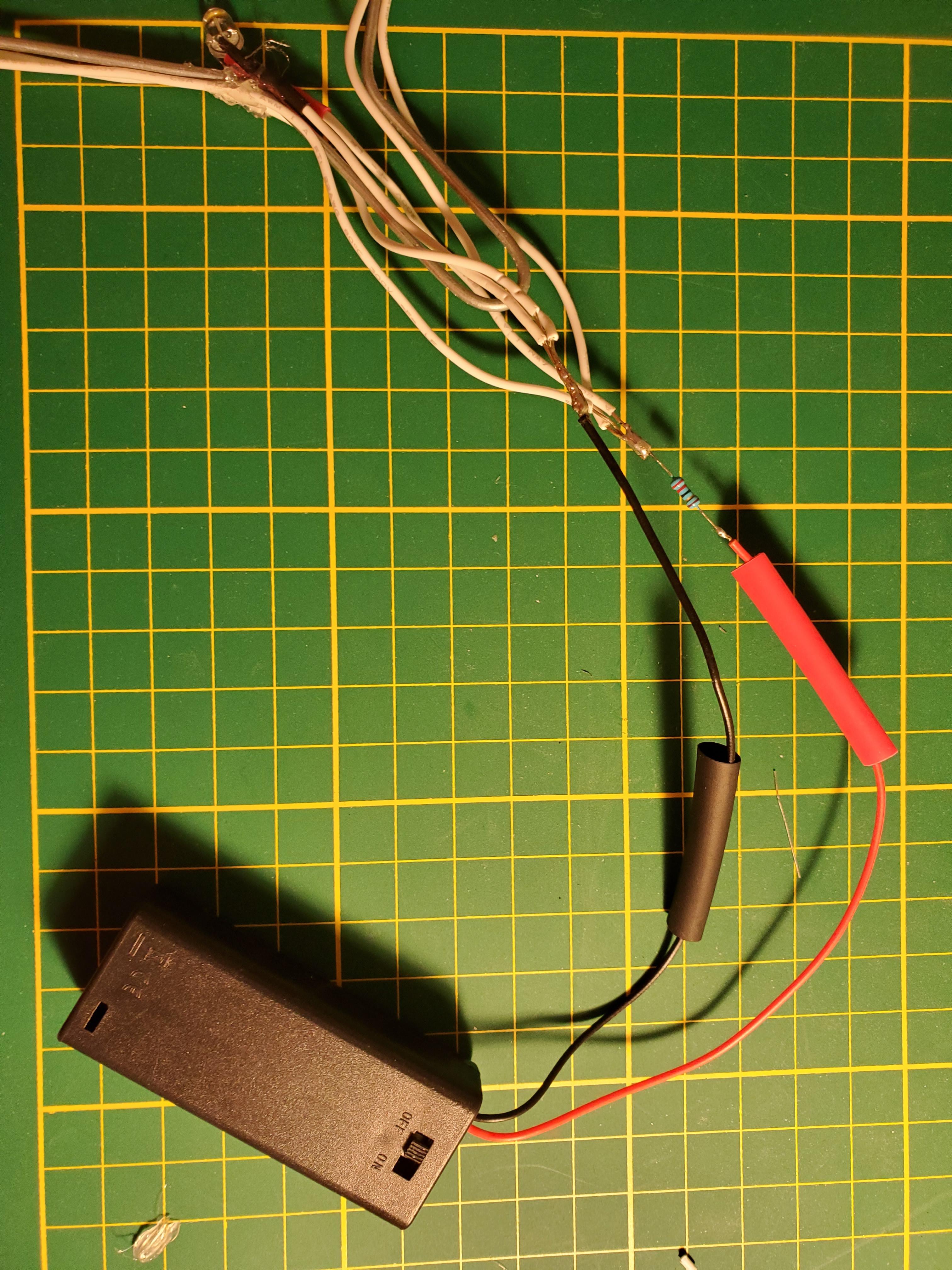

Get the power supply and solder the wires onto their respective wires.

The red wire of the power should attach to the end of the resistor.

Put heat-shrink on the wire before soldering.

Glue the Power Supply

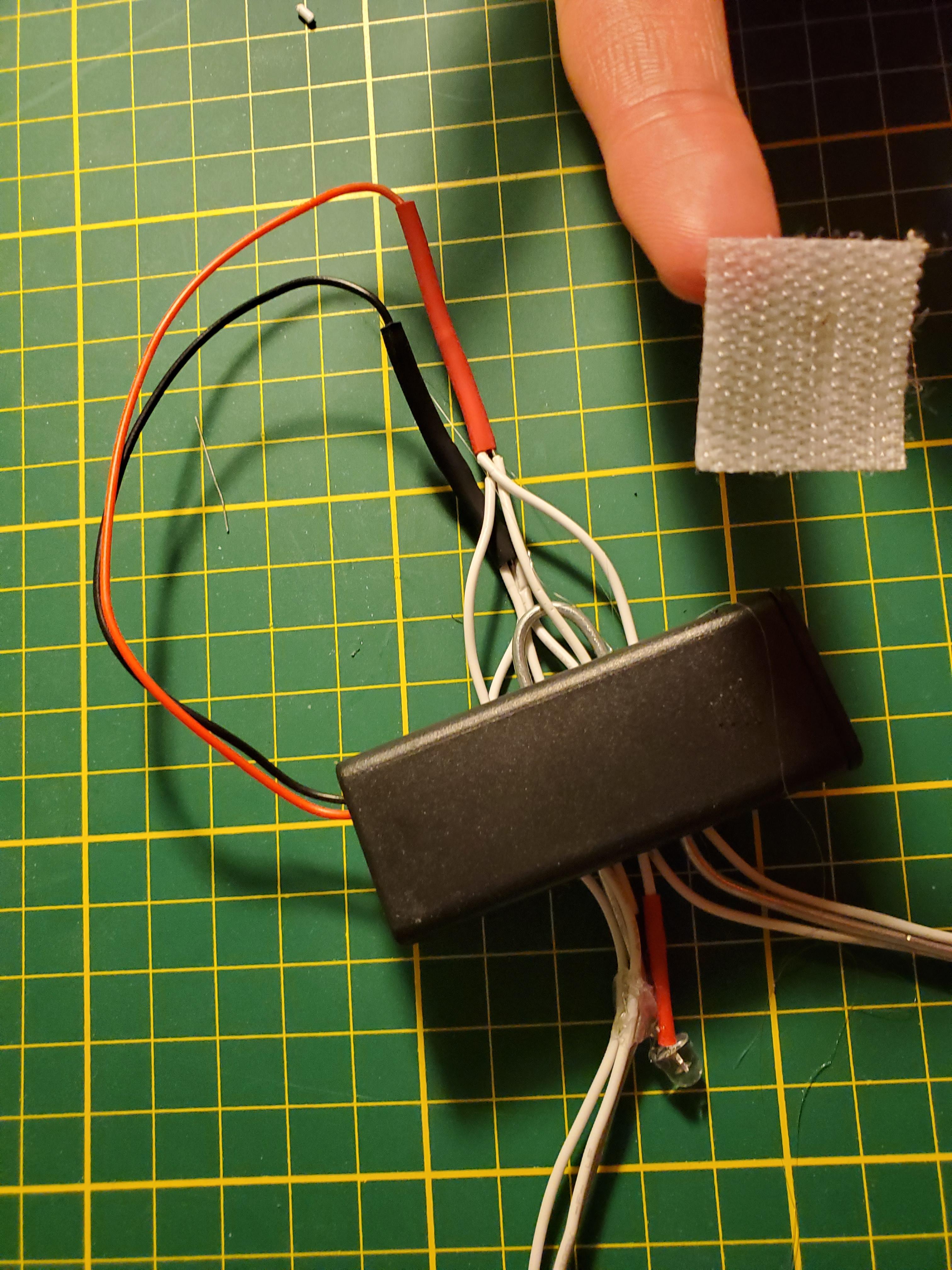

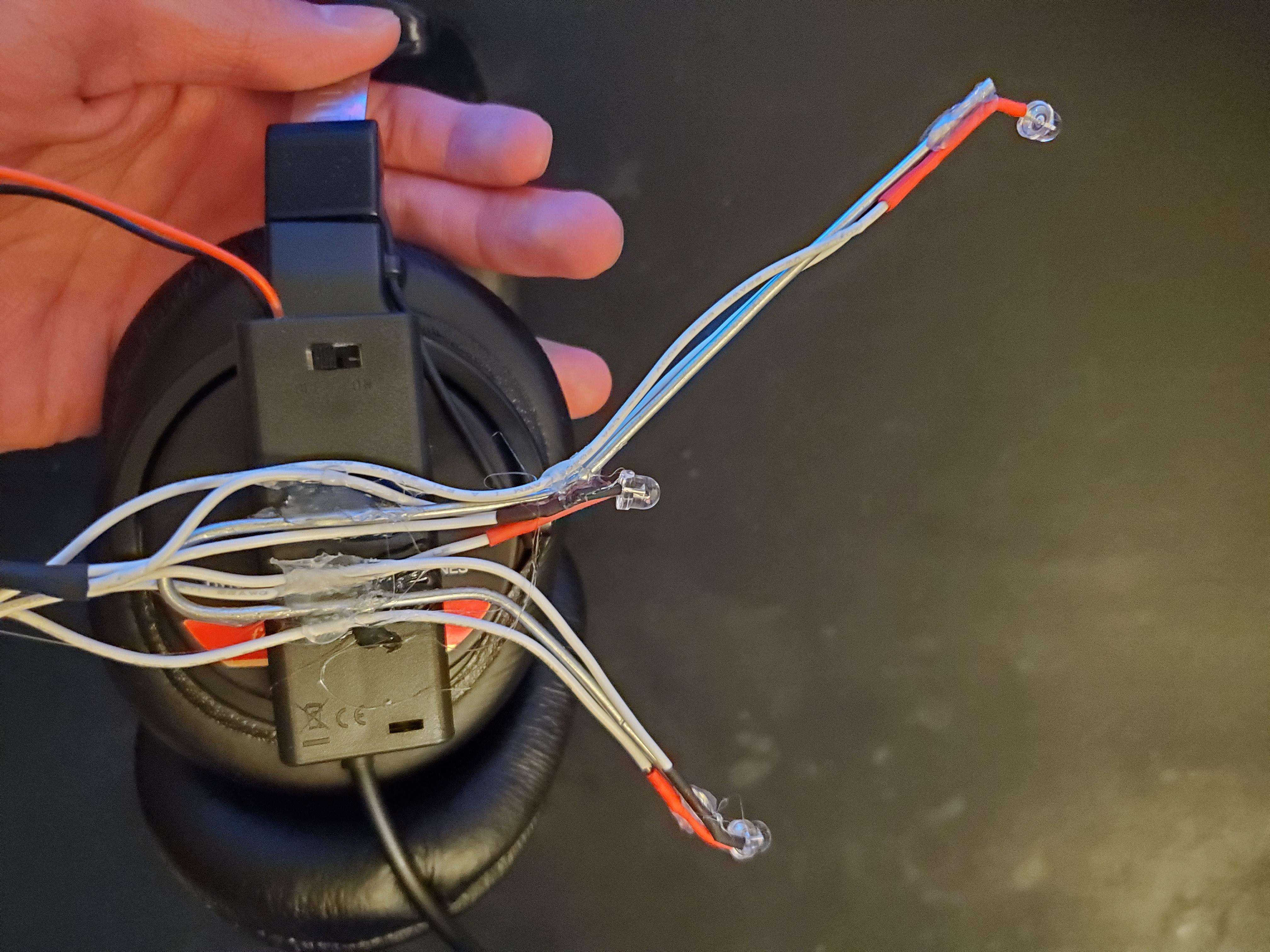

Glue the frame on the switch side of the power supply and ensure it is on tightly.

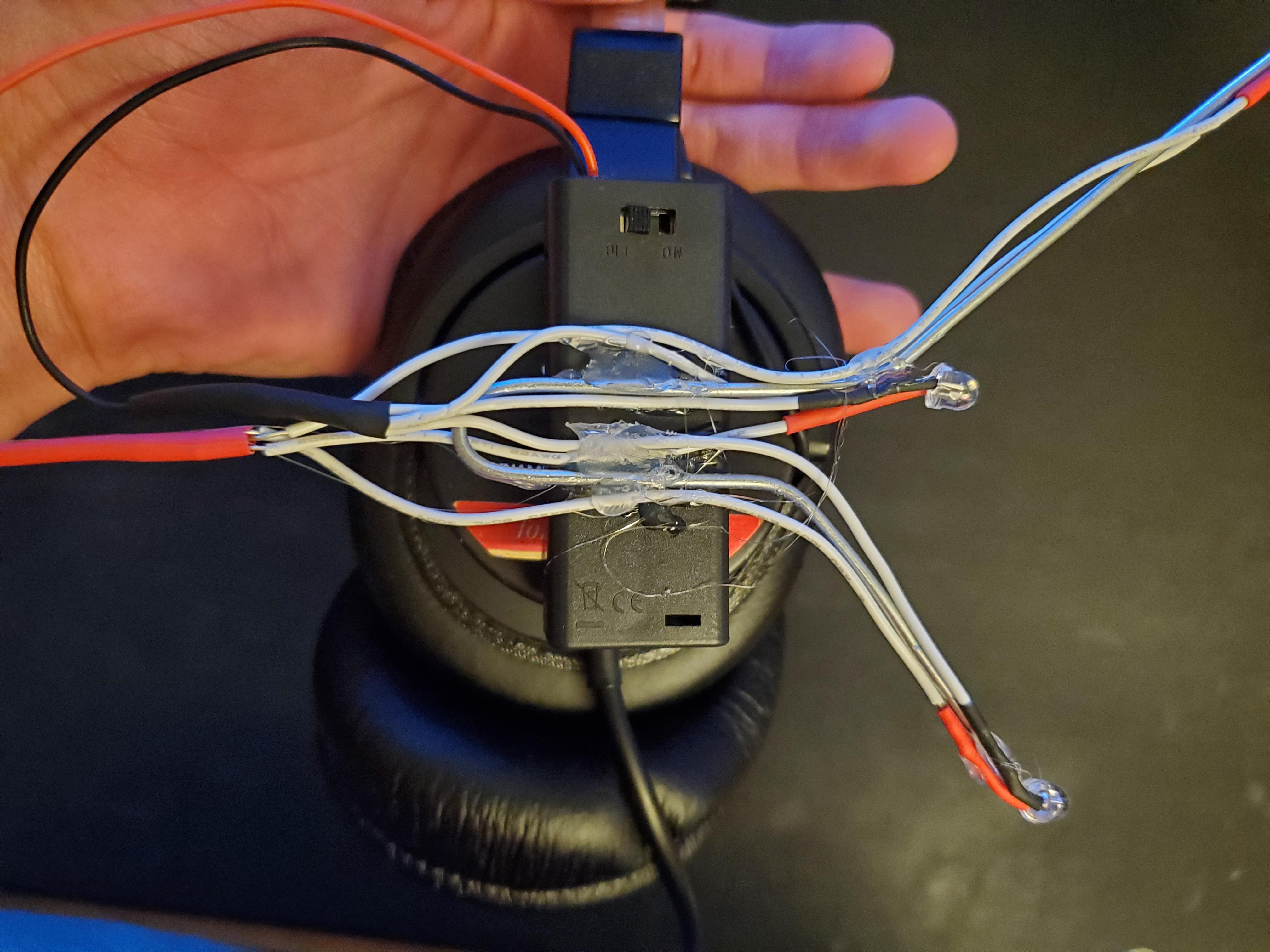

Velcro

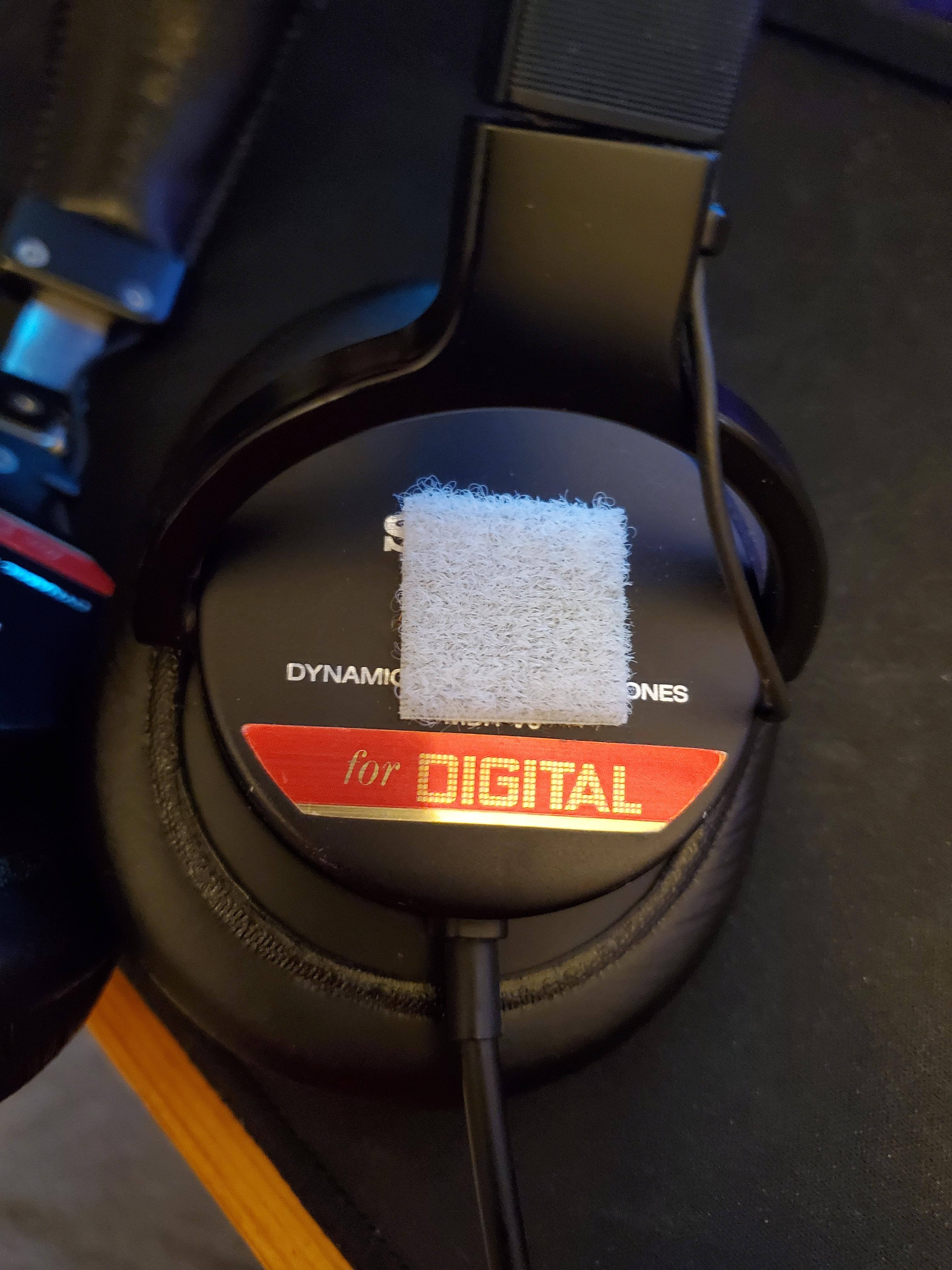

Add velcro to the back of the power supply and to your headphone.

Visible Light Filter

Tape over or cover your webcam with the light filter with the reflective part facing out.

Install OpenTrack

https://github.com/opentrack/opentrack/releases

There are some tutorials on YouTube if you are unsure, but scroll and find the win32-setup.exe and click on it.

Select Point Tracker 1.1 in the input section

Adjust the mapping to your liking.

After that, your games should detect OpenTrack when it is turned on.
