Fixing a Old Broken Computer Cooling Fan With a New DC Motor

In this project i will show you how to fix a broken computer fan with a new fan.

I found this computer fan in my junk collection, which was not working. I tried to repair the fan with the same motor but no use, the chip which controls the motor was fried so came up with this Idea of using a new motor.

Making Video

DIY | Fixing a old broken computer cooling fan with a new DC motor

You can watch the video of fixing the fan or continue reading for the steps involved.

You Can Subscribe To My YouTube Channel Here : https://goo.gl/ctc8l9

Things Required

1. Broken Computer Fan (Fan & enclosure separated)

2. Hot Glue Gun

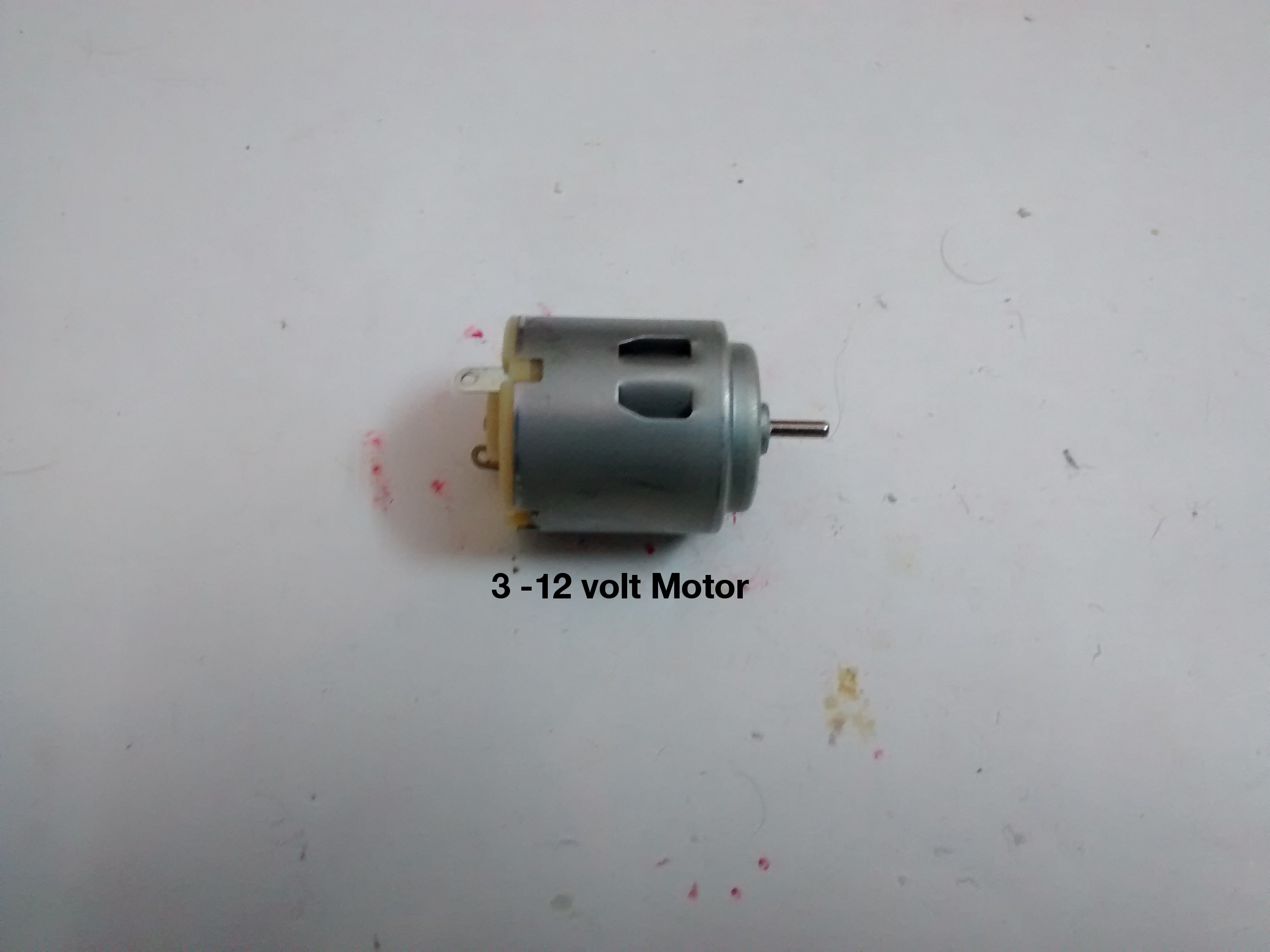

3. DC motor (capable of running between 5 to 12 volt)

4. USB Cable

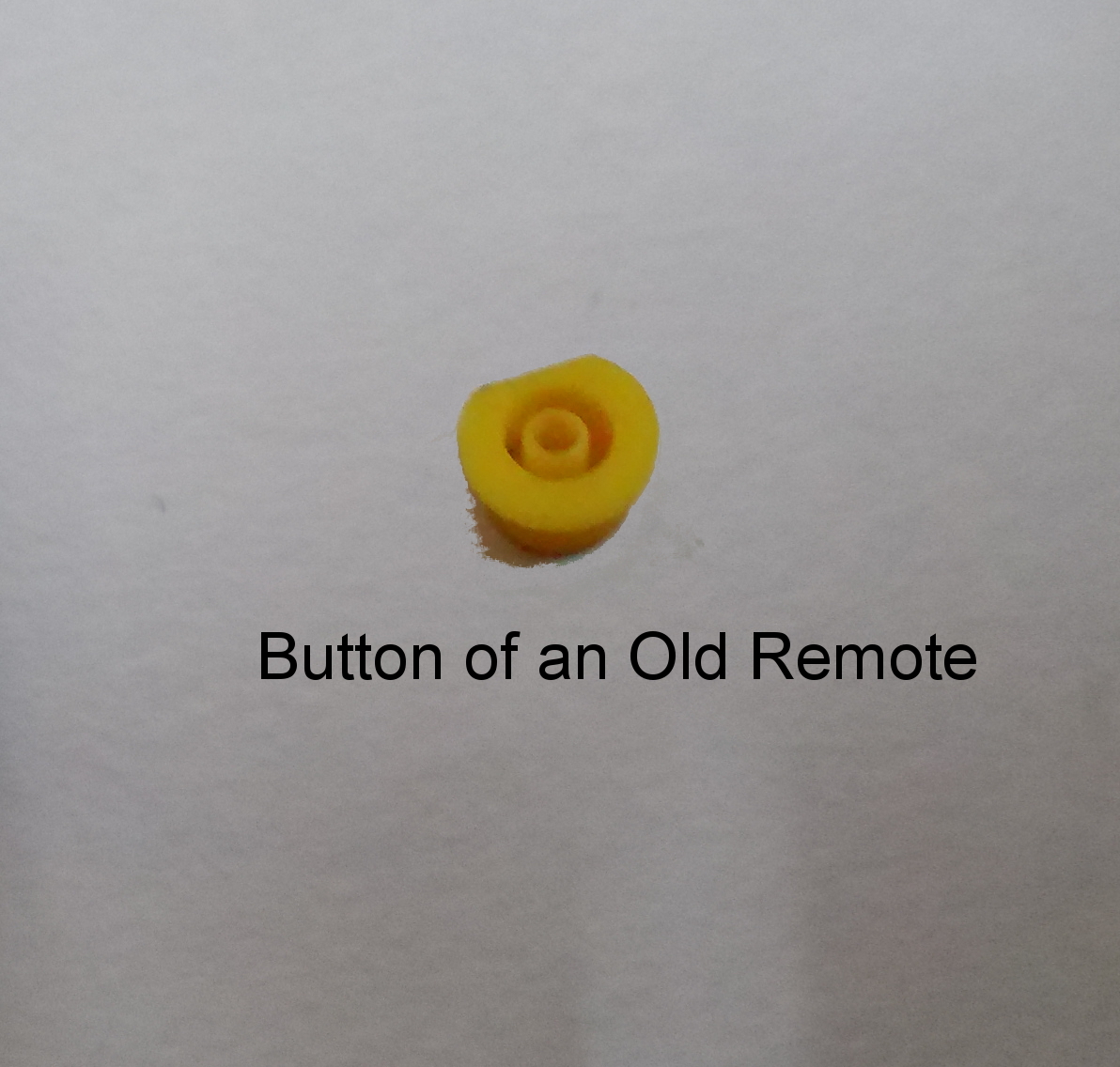

5. Remote Button (found this in my junk collection)

6. Deo bottle cap

7. Any container cap (diameter 10Cm)

8. soldering rod, soldering wire & soldering paste

9. Stripper

10. Scissor

11. Super Glue

12. Battery & Battery cap with clips

------------------------------------------------------------------------------------------------------------

If you interested in making this product you can use my affiliate buying links :

Amazon US:

Computer cooling fan : http://amzn.to/2acNUk6

Hot Glue Gun - http://amzn.to/29Y2BU8

DC Motor : http://amzn.to/29Qg9lO

USB Cable - http://amzn.to/2a3wlCS

Soldering Kit : http://amzn.to/29RyXjJ

Wires - http://amzn.to/29Y1kwt

Battery - http://amzn.to/29Y0Shu

Scissor - http://amzn.to/29Y1K65

Super glue - http://amzn.to/29Wvpi1

Wire Stripper & Cutter - http://amzn.to/29RBsm8

Amazon India :

Computer Cooling Fan - http://amzn.to/2a0r3sq

Hot Glue Gun - http://amzn.to/29HEslT

DC Motor - http://amzn.to/29X8X79

USB Cable - http://amzn.to/2a5dCWj

Soldering Kit - http://amzn.to/29P00wv

Wires - http://amzn.to/29GdPBl

Battery - http://amzn.to/29HEp9E

Scissor - http://amzn.to/29P2ECE

Super glue - http://amzn.to/29HHbvK

Wire Stripper & Cutter - http://amzn.to/2a0wBD8

Motor Attachement

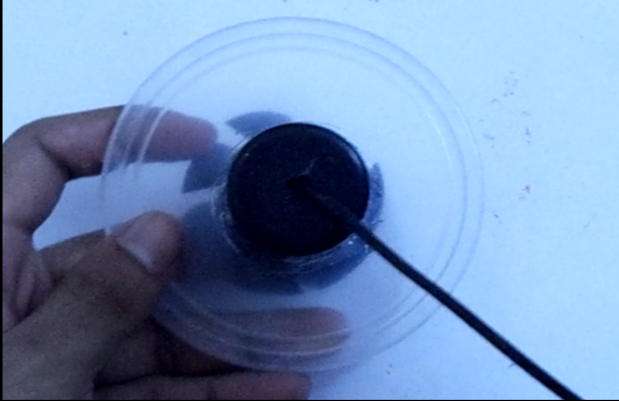

1st Image - Make a hole in the center of the container cap so that motor shaft can pass through

2nd image - Glue the motor to the container cap

Motor Cap

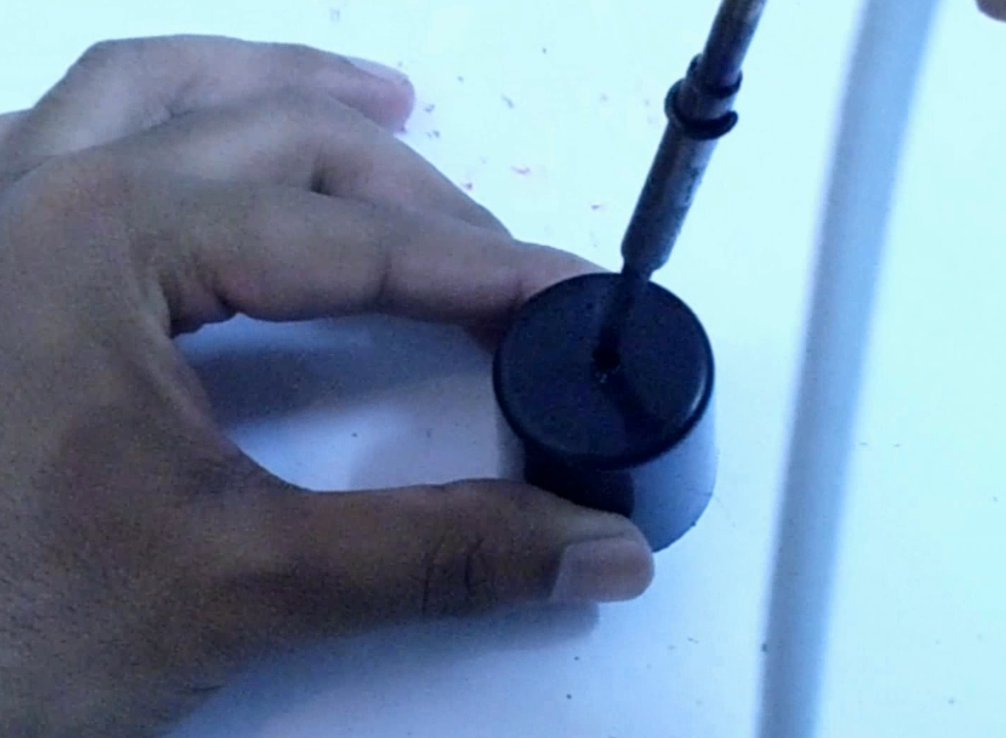

1st Image - Make a hole in the center of the Deo bottle cap

2nd Image - Insert the USB wire through the hole.

3rd image - Solder the wire to the motor and glue the cap over the motor

4th Image - USB pin configuration

Fan Attachement

1st Image - Make a hole in the center of the fan bade

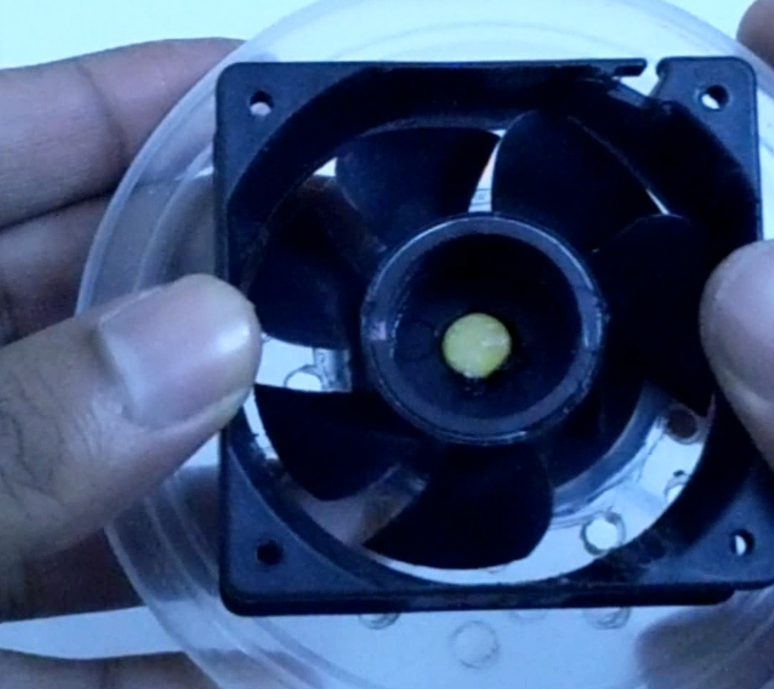

2nd Image - Insert the remote button and glue it

Combining the Motor, Fan Blade & the Outer Cover

1st Image - Attach the fan and the motor

2nd Image - Make some holes in the container cap so that air can flow

3rd Image - Mark the outline of the outer cover on the container cap

4th image - after marking cut the excess with a scissor

5th Image - Glue the container cap to the outer cover (be very careful while gluing make sure the blades are not touching the outer cover

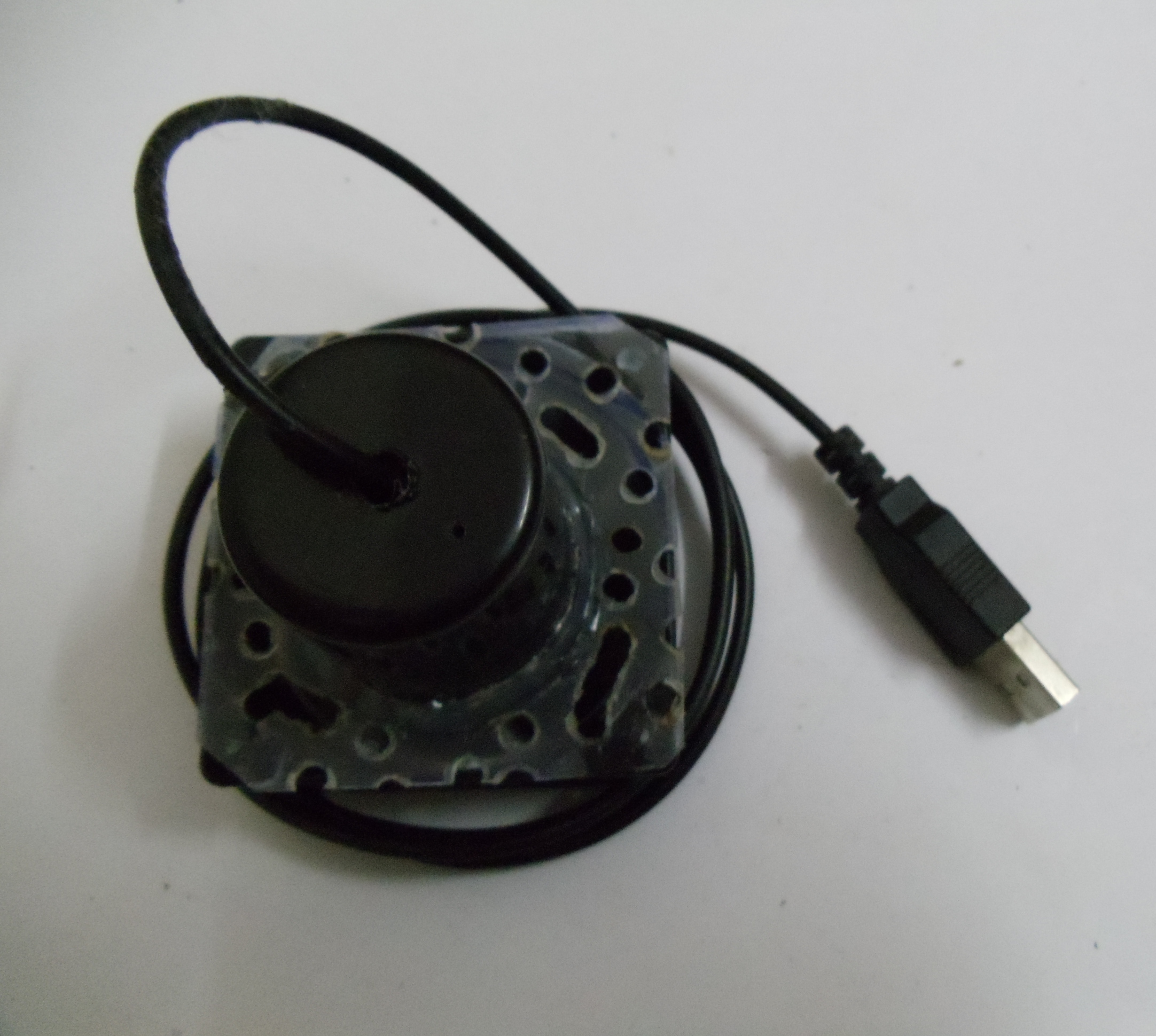

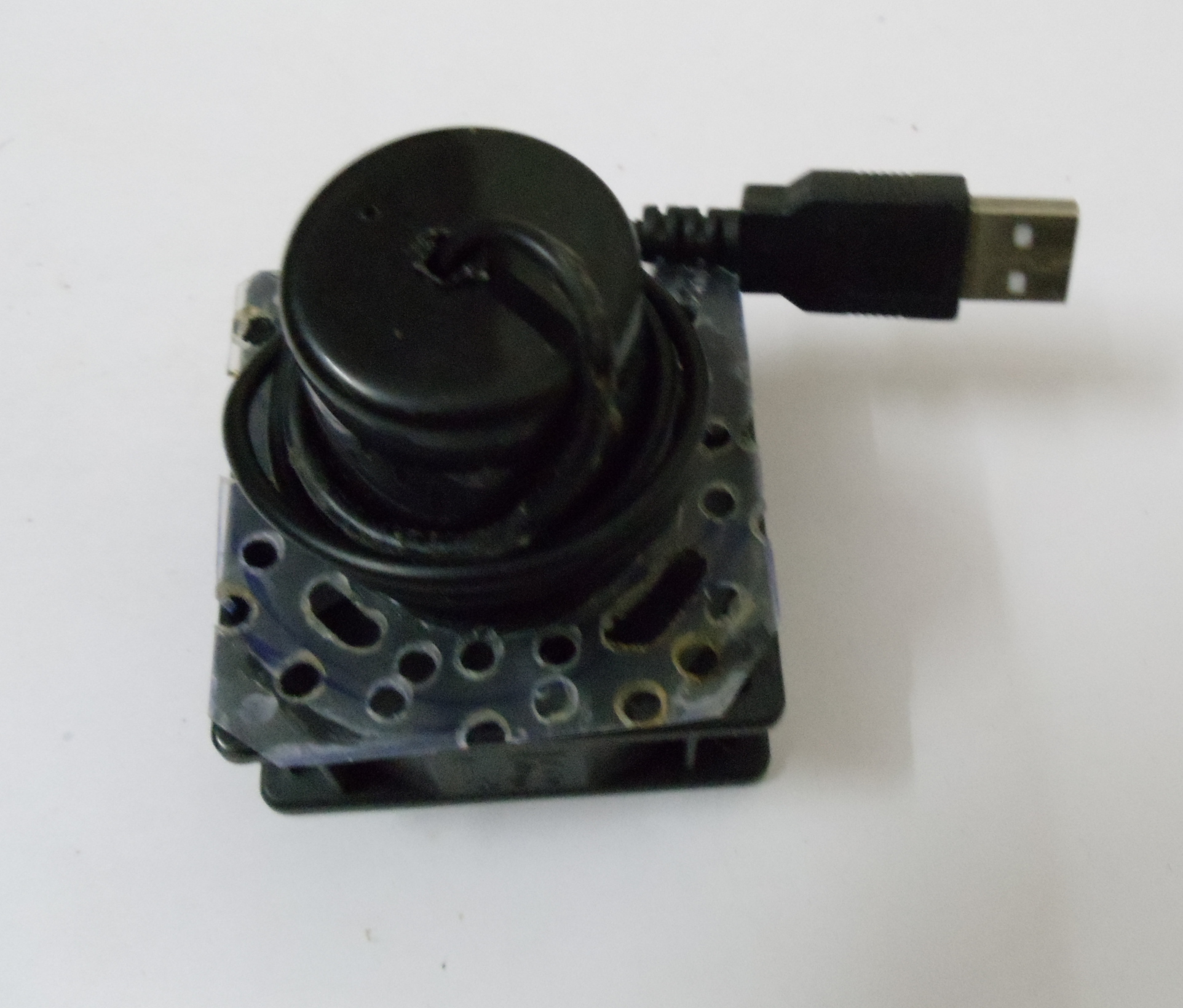

Finished Images

To the watch the video of the testing please go to the step 1 or CLICK HERE

Testing Begins @ 7:03

------------------------------------------------------------------------------------------------
