DIY Fitness Tracker(GET-FIT)

by CodersCafeTech in Circuits > Arduino

9342 Views, 75 Favorites, 0 Comments

DIY Fitness Tracker(GET-FIT)

π†πžπ­π…π’π­ | DIY Fitness Tracker | Arduino Nano 33 BLE SENSE | Edge Impulse

Introducing GetFit, your ultimate health and workout partner. GetFit is an easy-to-use, teachable fitness tracker with the capability of detecting an endless variety of exercises. Powered by Arduino Nano 33 BLE Sense and Edge Impulse, it is a completely open-source project.

Features

  • Can Count unlimited exercises
  • Fully open-source
  • Teachable
  • Rechargeable
  • Calorie Burn Estimation on a daily and weekly basis

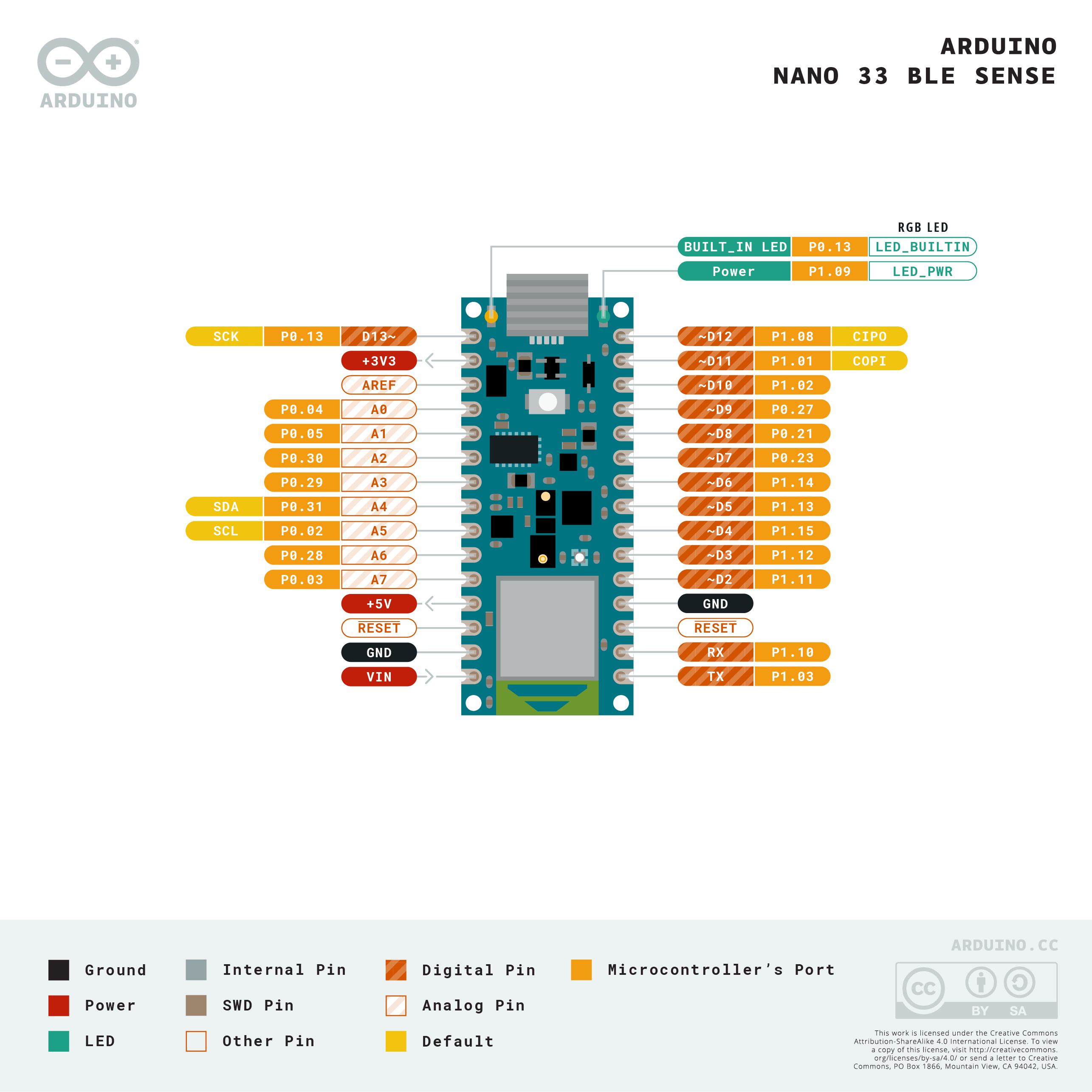

Arduino Nano 33 BLE Sense(Brain)


For doing this project we are using, Arduino nano 33 BLE sense. It's a 3.3V AI-enabled board in the smallest available form factor. It comes with a series of embedded sensors.

  • LSM9DS1 (9 axis IMU)
  • LPS22HB (Barometer and temperature sensor)
  • HTS221 (relative humidity sensor)
  • APDS-9960 (Digital proximity, Ambient light, RGB, and Gesture Sensor)
  • MP34DT05 (Digital Microphone)

Here we are utilizing the 3 acceleration channels of the LSM9DS1 sensor for counting the activities.

It is a very hard task to recognize the activities using rule-based programming, as people don't perform activities, in the same way, every time. But machine learning can handle these variations with ease. To create a machine learning model, you would traditionally use a framework like TensorFlow or Scikit-learn on top of a high-level language like Python. There are a lot of benefits to still learning some of these frameworks, but here we're going to use a tool called Edge Impulse as it just makes model training much easier. Fortunately, the Arduino Nano 33 BLE Sense is fully supported by Edge Impulse.

Edge Impulse


Using Edge Impulse you can quickly collect real-world sensor data, train ML models on this data in the cloud, and then deploy the model back to your Arduino device. From there you can integrate the model into your Arduino sketches with a single function call.
This document contains "How you can get started with Edge Impulse and BLE Sense board"? And also the sample machine learning projects. Don't forget to try, if you are a beginner in this field.

Data Aquisition


Data is an unavoidable part of the machine learning model, for the data acquisition and model generation head over to the edgeimpulse.com.
Make sure your device is connected to edge impulse.

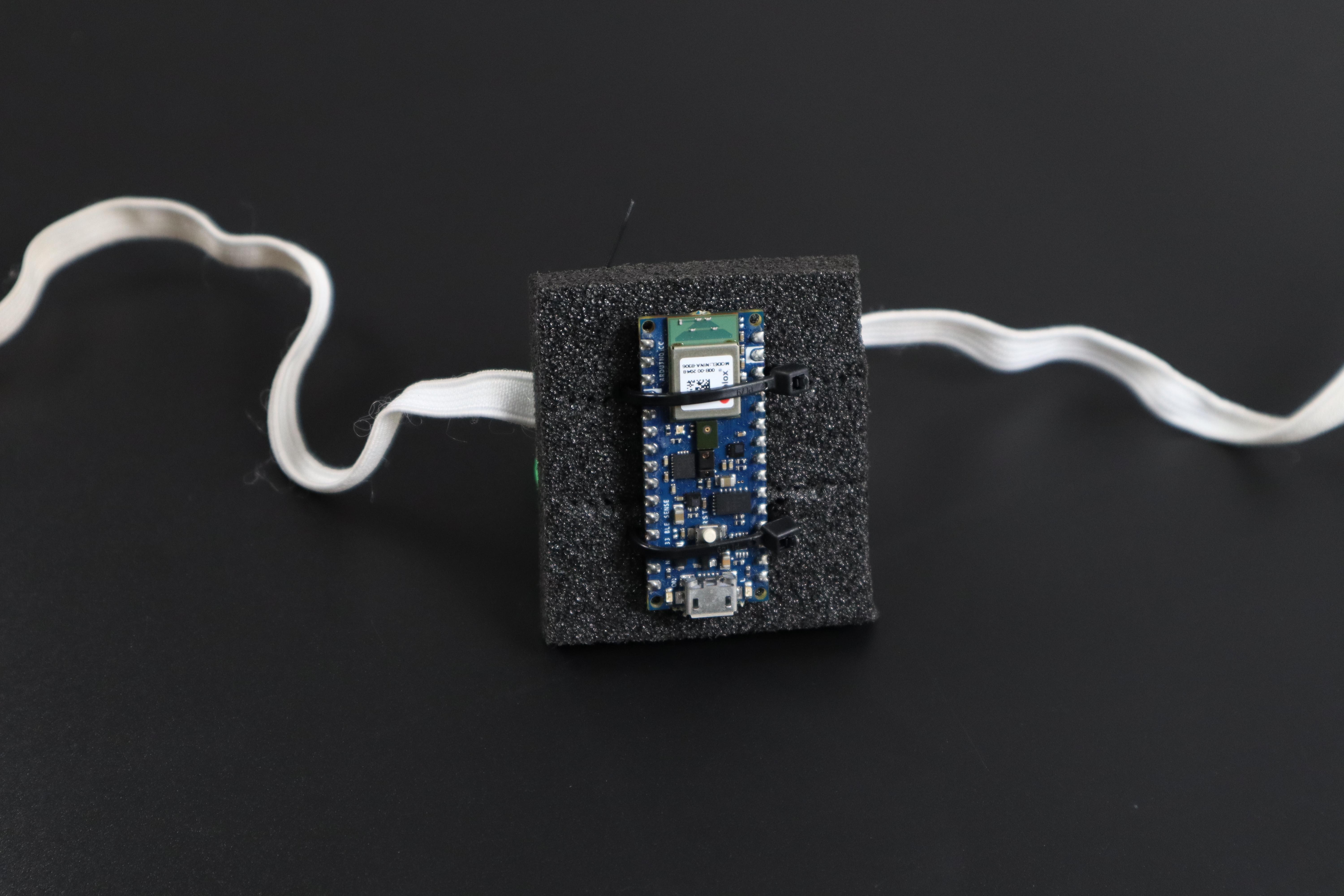

Then we attached the Arduino to my arm with a couple of wiring ties and a sponge, to make the model very accurate for every activity. Then we started sampling.

We have collected around 17min of data. The more data you have, the better your model becomes.Also, try to maintain a balanced dataset. Having a balanced data set for a model would generate higher accuracy.
Here we also took the idle state by remaining them stationary at the different starting and ending positions of the motions. We also performed the split data set for testing the model, That's really good practice when analyzing the model. Training data is used to train your model, and testing data is used to test your model's accuracy after training.

Feature Extraction

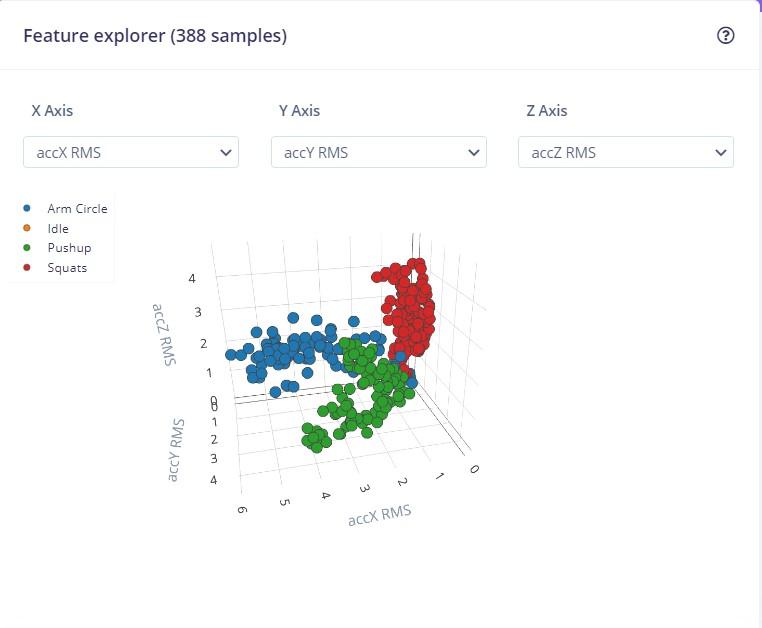

Figuring out which features to extract from our data to submit to our model for training and, eventually, inference, is one of the most essential things we can do in machine learning. Rather than picking and choosing some of the raw samples, the edge impulse will combine the samples in a variety of ways to generate unique features that help describe what's going on in a particular motion.

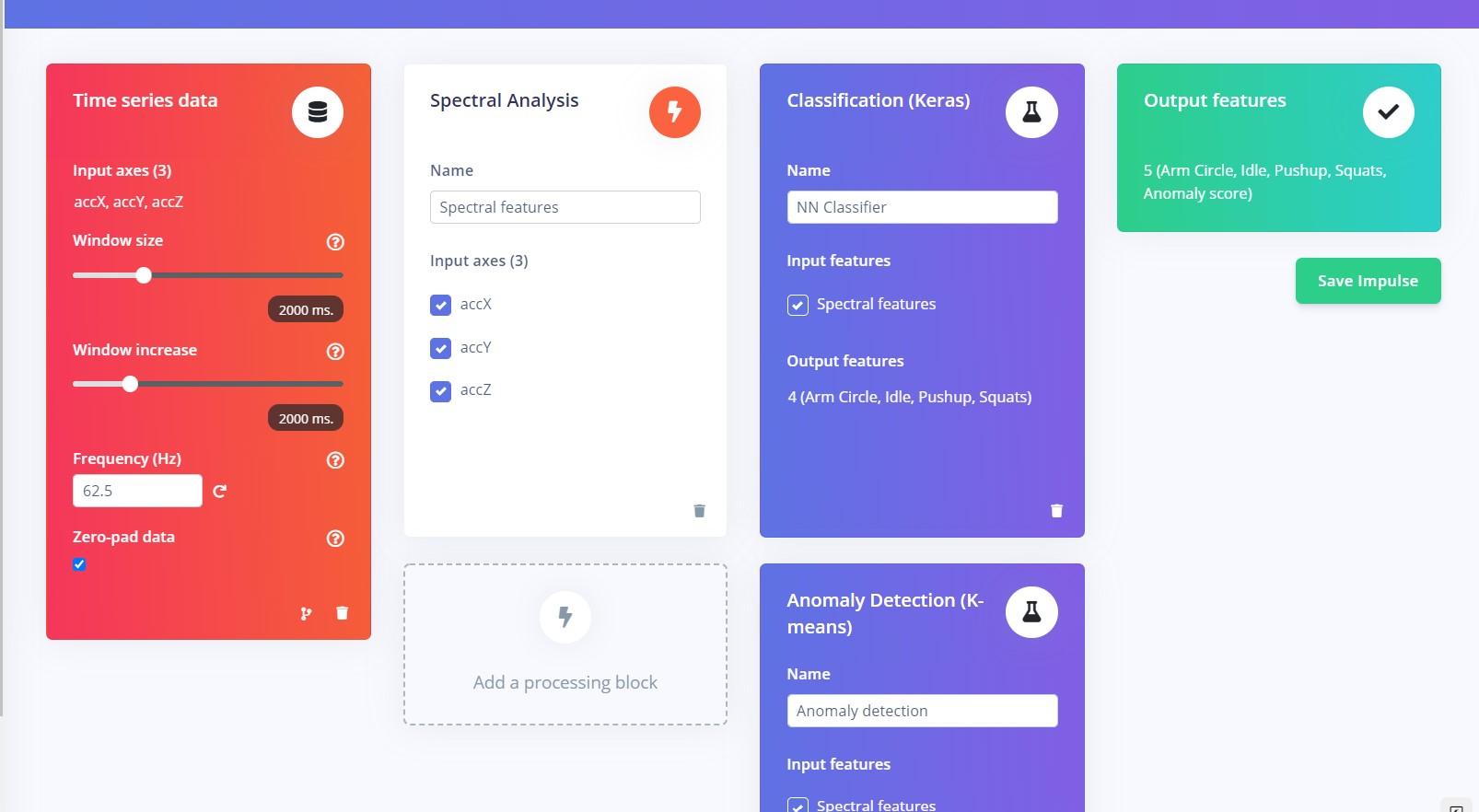

We should first create an impulse, which is Edge Impulse's word for a machine learning pipeline, in order to generate features. You should see the first block, which represents your raw data. Here we used window size and window increase as 2000ms because it perfectly suits our data. The processing block refers to our feature extraction method in the edge impulse, Edge Impulse will recommend the spectral analysis block for our motion data, which is what we want. In the learning slot, we added a neural network cross-block. Although neural networks are fantastic, they have one major problem. They're useless when it comes to dealing with data they've never seen before (like a new activity). Because neural networks only have access to training data, they are unable to assess this. Even if you offer it something entirely different beyond what it's seen before, it'll still fall into one of the four categories. So we also added an Anamoly detection block to find the anomalies in the motions. They will actually stand out in the output.

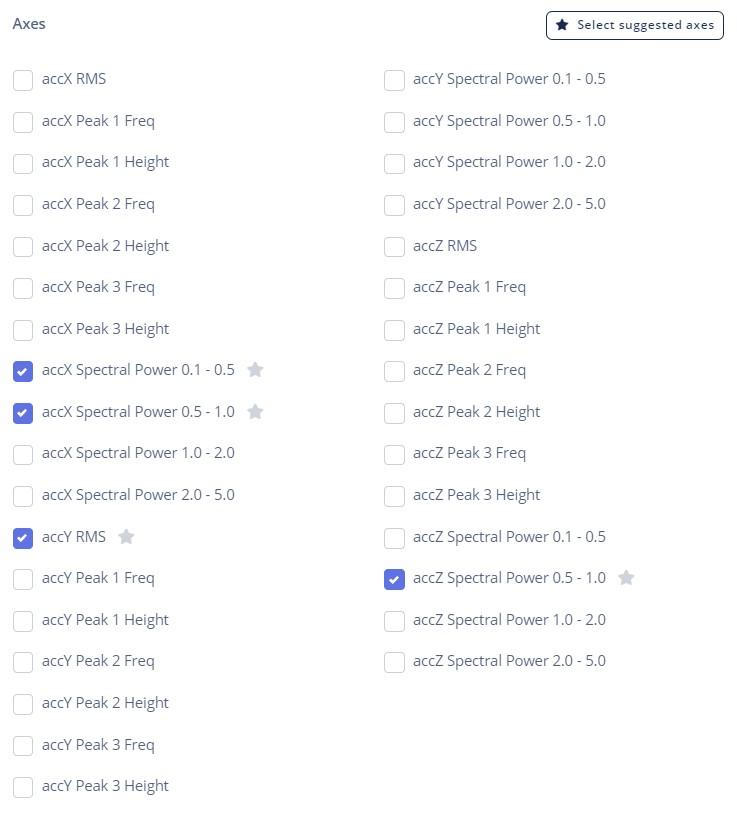

After designing impulse, we generated the features for this data.

Neural Network

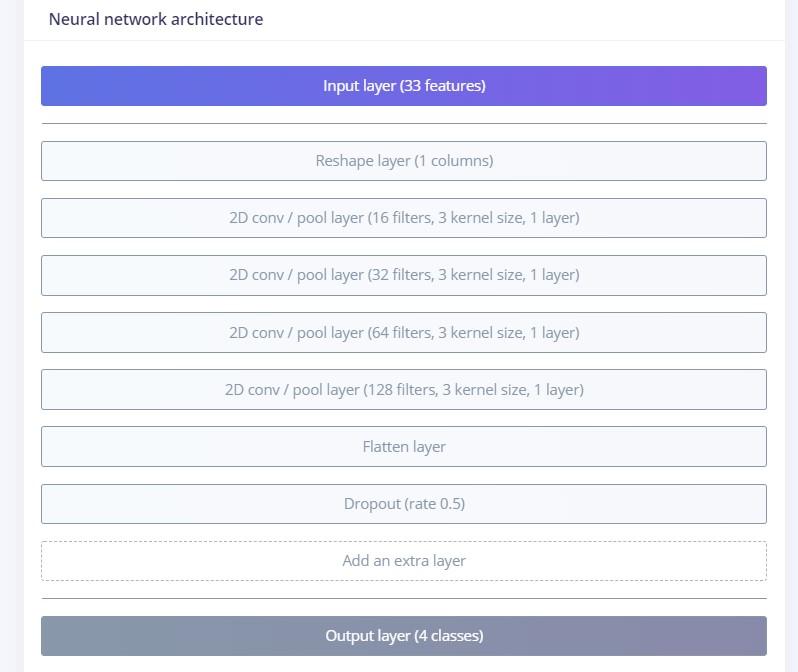

NN architecture.jpg
nn settings.jpg

A neural network is a series of algorithms that endeavors to recognize underlying relationships in a set of data through a process that mimics the way the human brain operates. In this sense, neural networks refer to systems of neurons, either organic or artificial in nature.
Neural networks can adapt to changing input; so the network generates the best possible result without needing to redesign the output criteria It's time for generating a model by consuming these extracted features. These are our neural network settings and architecture for generating models.

If you don't have any ideas about this, don't worry the edge impulse will automatically suggest the best architecture and settings for you.
By using these settings we made 93% accuracy for the model. It seems to be very awesome. The below image shows the confusion matrix for our model.

Anomaly Detection

anomaly detection settings.jpg

The main intention of anomaly detection is to identify the anomalies during workouts so we will disregard them. We already calculated the feature importance for our data, because they are very significant in anomaly detection.
The edge impulse actually uses K-means clustering for anomaly detection. This method looks at the data points in a dataset and groups those that are similar into a predefined number K of clusters. A threshold value can be added to detect anomalies: if the distance between a data point and its nearest centroid is greater than the threshold value, then it is an anomaly.

The above image shows the anomaly explorer window, When we tried to classify the pushup motion(test data). As you can see the data is enclosed in the cluster. For the anomaly, the data points will be outside the cluster.

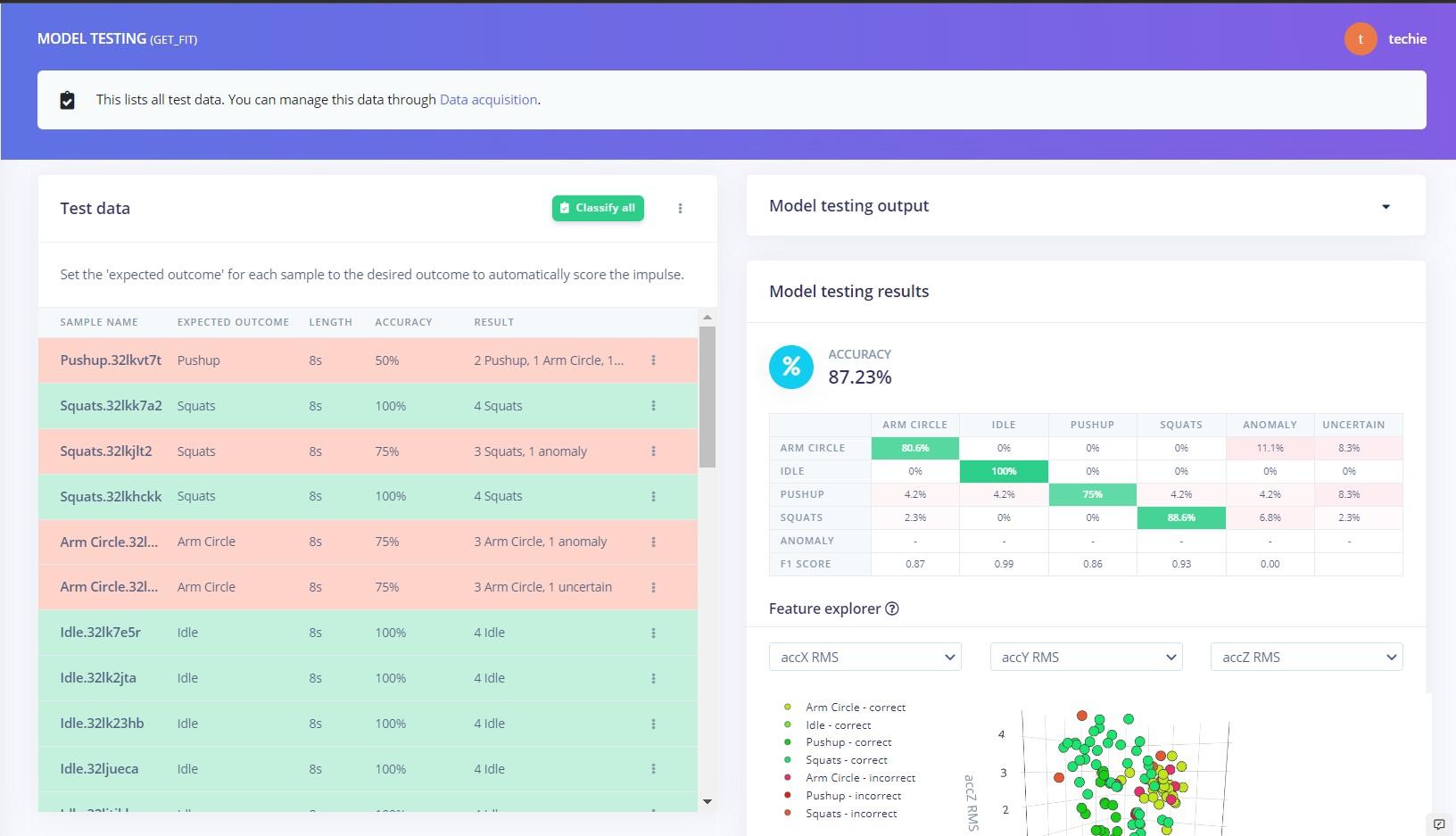

Modeltesting


It's time to validate our model with the test data and see how it performs on the new data.

It is classifying the test data very well, we have an 87% accuracy. We are good to go

Deployment

optimization tab.jpg

Now that we have our ML model, it's time to deploy it with our edge device(Arduino Nano 33 BLE sense). The ML you trained is already optimized for its use with embedded hardware such as microcontrollers. Deploying the ML model to your Nano 33 BLE Sense board is really simple, just navigate to Deployment on the left menu.
In the Create library section, click on Arduino library, and then, on the bottom, click on the Build button. This will start a process where Edge Impulse creates a library for your Arduino board that has the ML model you have trained. When the building process is done, your browser should start downloading the generated library. In Edge impulse, there are options for selecting the optimizations for the NN classifier. By selecting the suitable one, we will be getting better on device performance. The surprising fact is that the Edge impulse will recommend the best one for our purpose. By enabling the compiler we will get the same accuracy with less memory.

Data Flow

MVI_05320036 (1).jpg

For sending the data to the cloud we are utilizing the Bluetooth low energy of 33 BLE sense. The device will actually send the data to the phone via Bluetooth and then the phone forwards this data to the firebase and that's our database in this project.

Bluetooth Low Energy, BLE for short, is a power-conserving variant of Bluetooth. BLE’s primary application is the short-distance transmission of small amounts of data (low bandwidth). Unlike Bluetooth which is always on, BLE remains in sleep mode constantly except for when a connection is initiated. This makes it consume very low power and we will get more run time.
That's why we used the BLE for communicating between phones and the Arduino nano 33 BLE sense. In this scenario, the Arduino will act as a peripheral and the phone will act as a central device To use the BLE capabilities of the BLE sense, we are using Arduino BLE Library.

Firebase is a mobile and web application development platform. Firebase frees developers to focus on crafting fantastic user experiences. You don’t need to manage servers. You don’t need to write APIs. Firebase is your server, your API, and your data store, all written so generically that you can modify it to suit most needs. In our project, we use Firebase's real-time database to instantly post and retrieve data so that there is no time delay.
To find Firebase Config

  • Go to Firebase
  • Then go to Settings > Project Settings
  • Under Your Apps > SDK Setup and Configuration > Config


User Interface

WhatsApp Image 2022-06-01 at 10.57.31 PM.jpeg

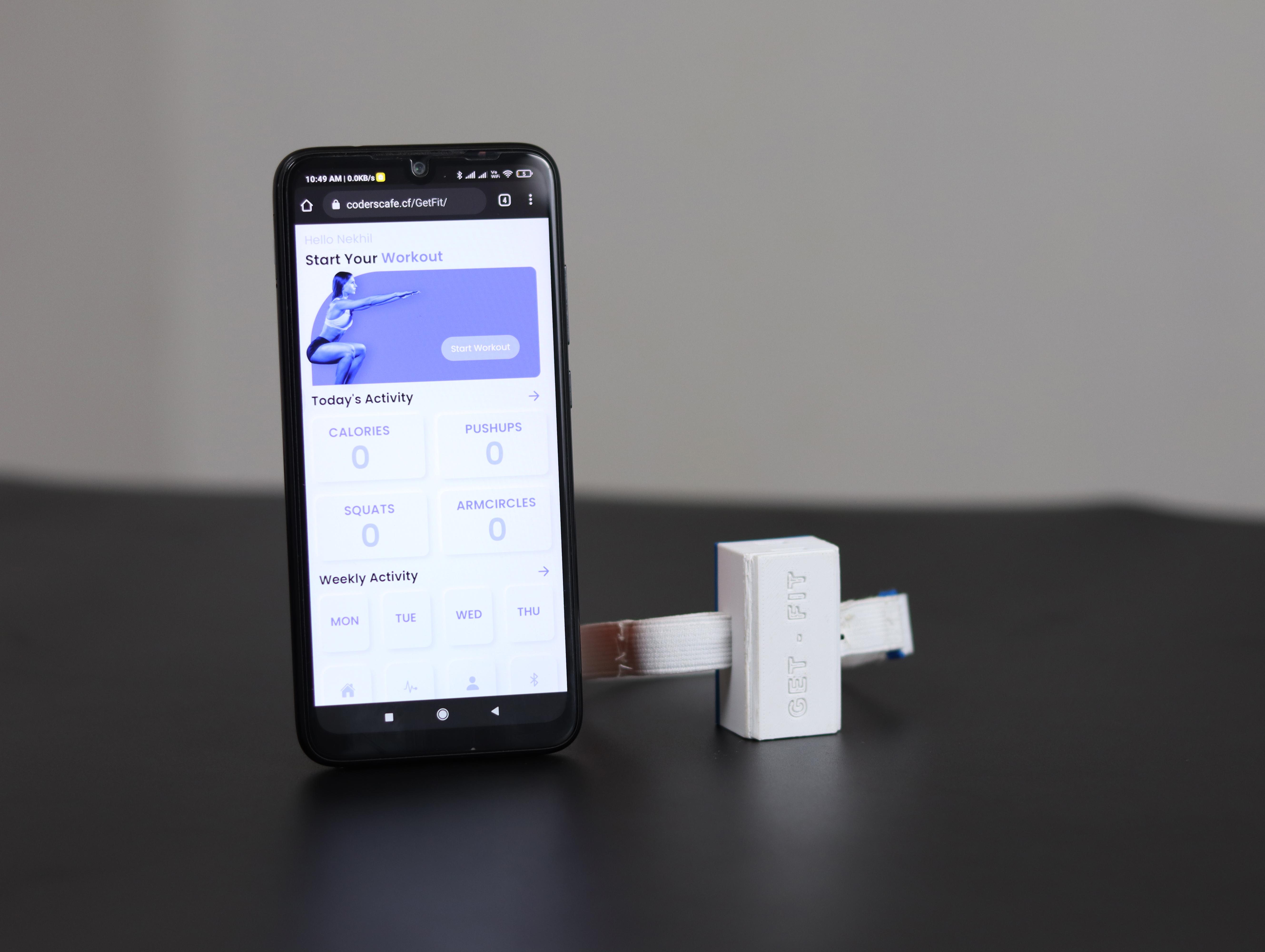

We have designed a neuromorphic companion web app for the device. Neumorphism, or soft UI, is a visual style that combines background colors, shapes, gradients, highlights, and shadows to ensure graphic intense buttons and switches. All that allows achieving a soft, extruded plastic look, and almost 3D styling.
Before starting the workout you need to submit your personal details such as name, age, gender, height, and weight in the personal tab. This info is used in analyzing the workout.

You can find the entire code here.

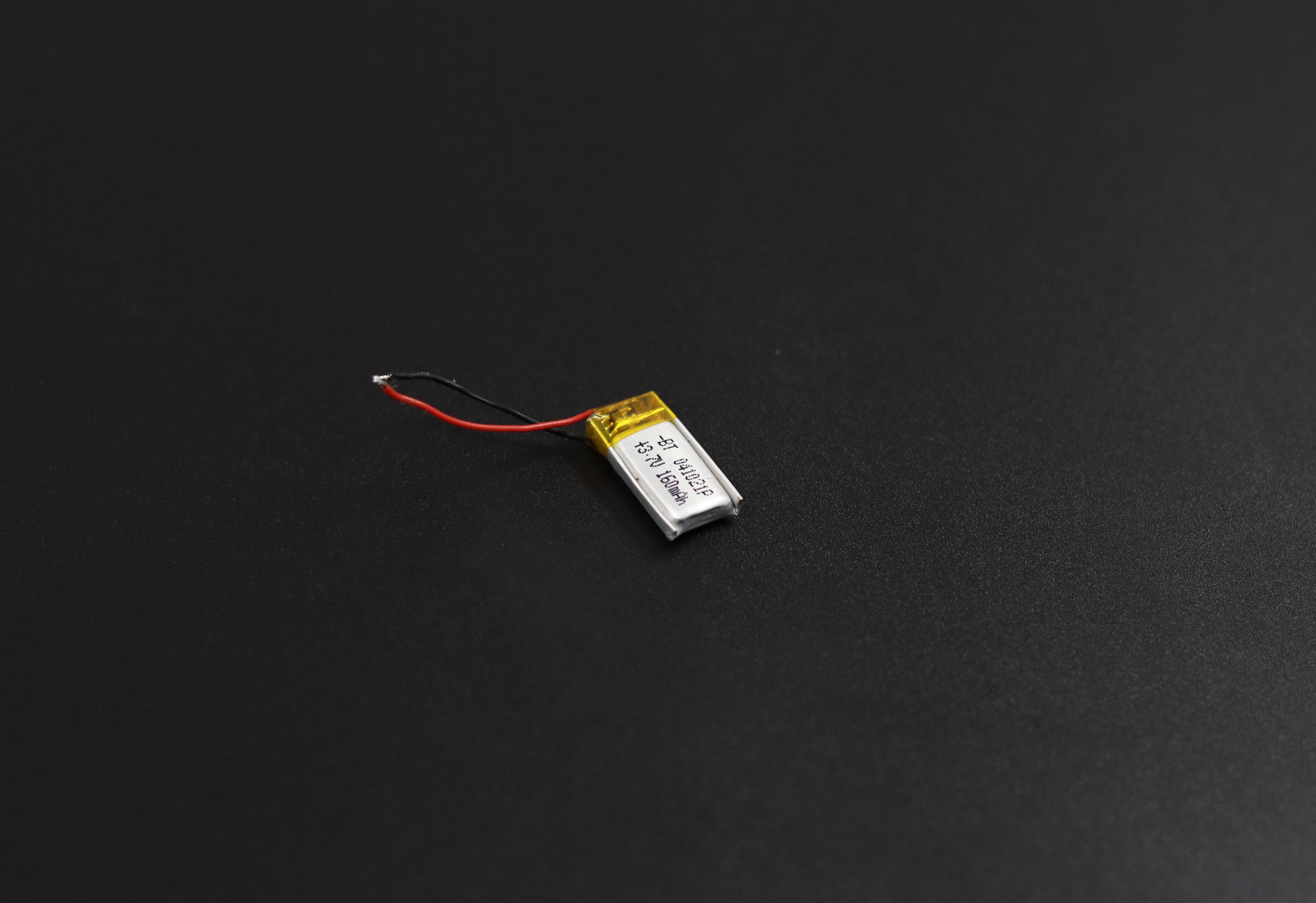

Lipo Battery

Lipo battery.jpg

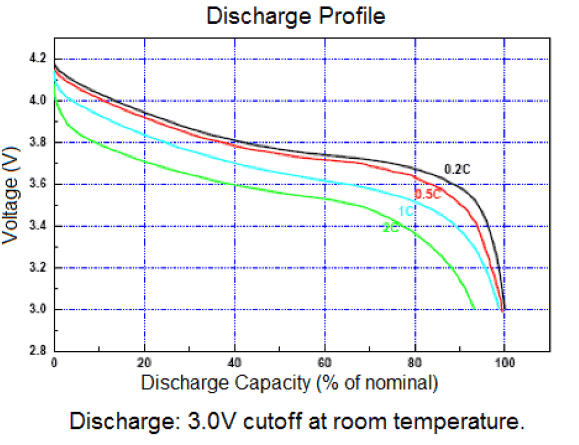

The main advantages of LiPo battery cells are that they have about four times the energy or density of nickel-cadmium or nickel-metal hydride batteries. They are also very lightweight and pliable. These advantages pointed us to choose a LiPo battery for the device. To reduce the size, Here we used a 160 mah battery and that can yield optimum run time for the device. The maximum voltage of the LiPo is 4.2v and the nominal voltage is 3.7V. The voltage starts at 4.2 maximum and quickly drops down to about 3.7V for the majority of the battery life. Once you hit 3.4V the battery is dead and at 3.0V the cutoff circuitry disconnects the battery. The graph above shows the discharge profile of LiPo.

DC Voltage Booster


There are actually two options that exist for powering up the Arduino either to give standard 3.3V to 3.3V pin or to give (5-21) Volts to the Vin. In both cases, we should be very careful.
The VIN (and the USB) go into a 3.3V switching regulator. This has a minimum input voltage of 4.5V. When we feed 3.3V from the power source directly into the board. We should isolate the output of that regulator from the rest of the circuit by cutting that one link (refer to the above image).

Note : if you provide more than 3.3V you are liable to damage the board.

So here we are supposed to give 5V to the Vin of the Arduino, but Lipo batteries can provide up to only 4.2 v when it is fully charged.
To deal with the complication, we are using a voltage boost converter module that provides 5V DC stable voltage output at various input range between 1.5V to 5V.

This is the voltage boost converter module that provides 5V DC stable voltage output at various input range between 1.5V to 5V. This small tiny circuit boosts the voltage level and provides the amplified stabilized 5V output. For the different input ranges, it consumes a different amount of current to produce a balanced output.
While using this module one must comply with the following conditions1. Input voltage cannot be greater than the nominal voltage, otherwise, it will burn out module2. Input power must be greater than the output power, otherwise, the output voltage will be less than the nominal voltage.3. Output load cannot be greater than the nominal load, otherwise, the output voltage will be less than the nominal voltage.

  • Starting voltage 0.8V, the output current 7mA
  • Input 1-1.5V, output 5V 40-100mA
  • Input 1.5-2V, output 5V 100-150mA
  • Input 2-3V, output 5V 150-380mA
  • Input more than 3V, output 5V 380-480mA;

DC-DC boost converter modules operate at frequency of 150KHZ, the typical conversion efficiency is 85%

TP4056 Li-Ion Battery Charger Module

tp4056 charge controller.jpg

TP4056 module is a linear charger lithium-ion battery. This module uses the TP4056 Li-Ion charge controller IC and a separate protection IC. They can charge batteries consisting of single cells. Most importantly, it supports constant current and constant voltage modes of charging operations. Users can select both modes. This module offers a 1-ampere charging current.
But our battery needs only 170 ma current. The interesting fact of the module is that it has an RPROG Current setting resistor(R3). So we can easily adjust the output current by changing that resistor. The above image shows the R3 and its current value.

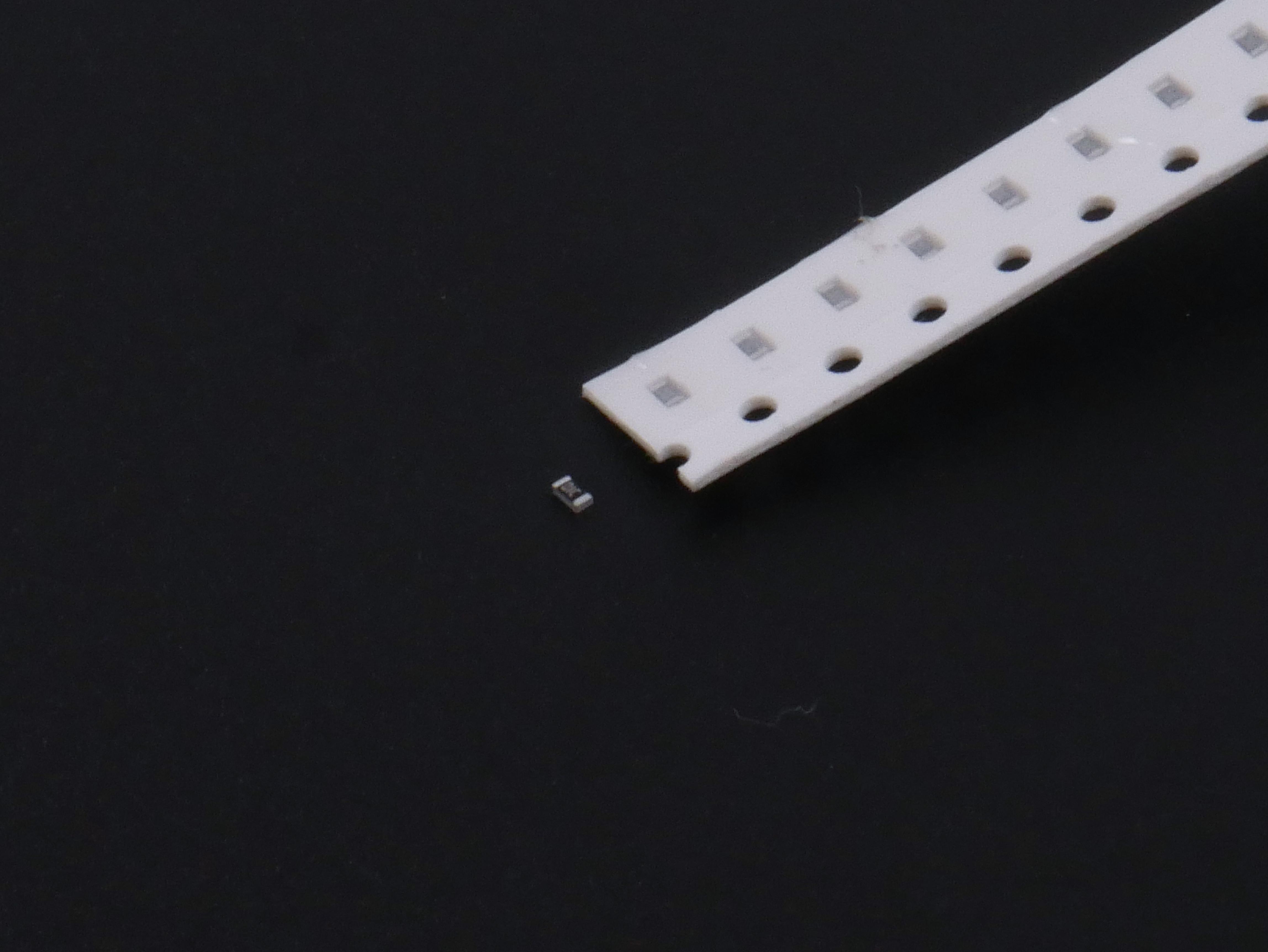

The TP4056 charger module have 0805 SMD package, for resistors. We replaced the 1.2K resistor to 10K. Now it can provide 130 ma current for the battery. So our device can be easily charged by means of this module.

Note : You can also provide 1Amps current to the battery, but it won't last long.

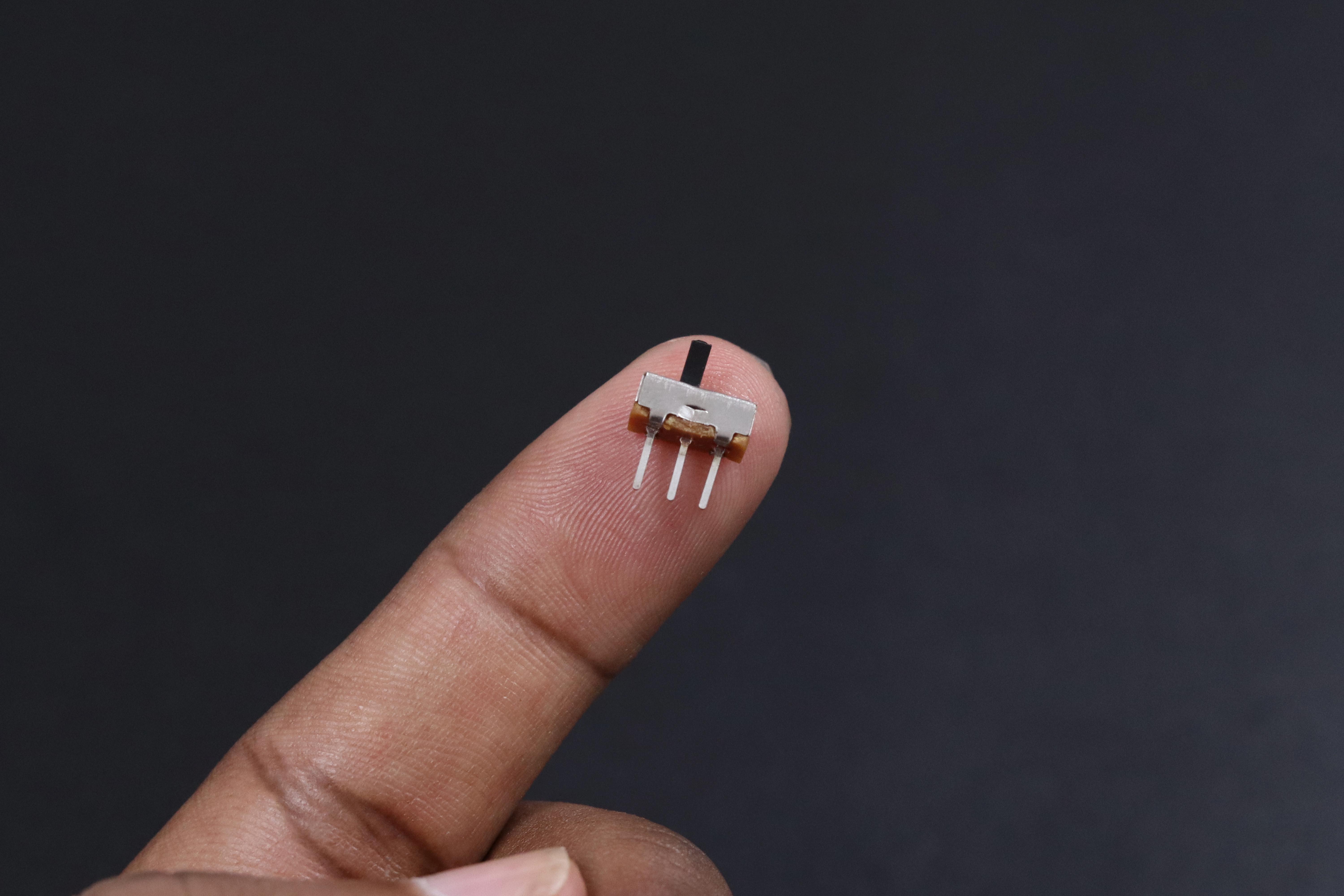

4mm SPDT 1P2T Slide Switch


4mm SPDT 1P2T Slide Switch used with TP4056 charger module to regulate the current flow between the charge controller and voltage booster. The above schema shows current flow in the SPDT switch.

Fusion 360 for Case

3d printed parts.jpg
body and lid.jpg

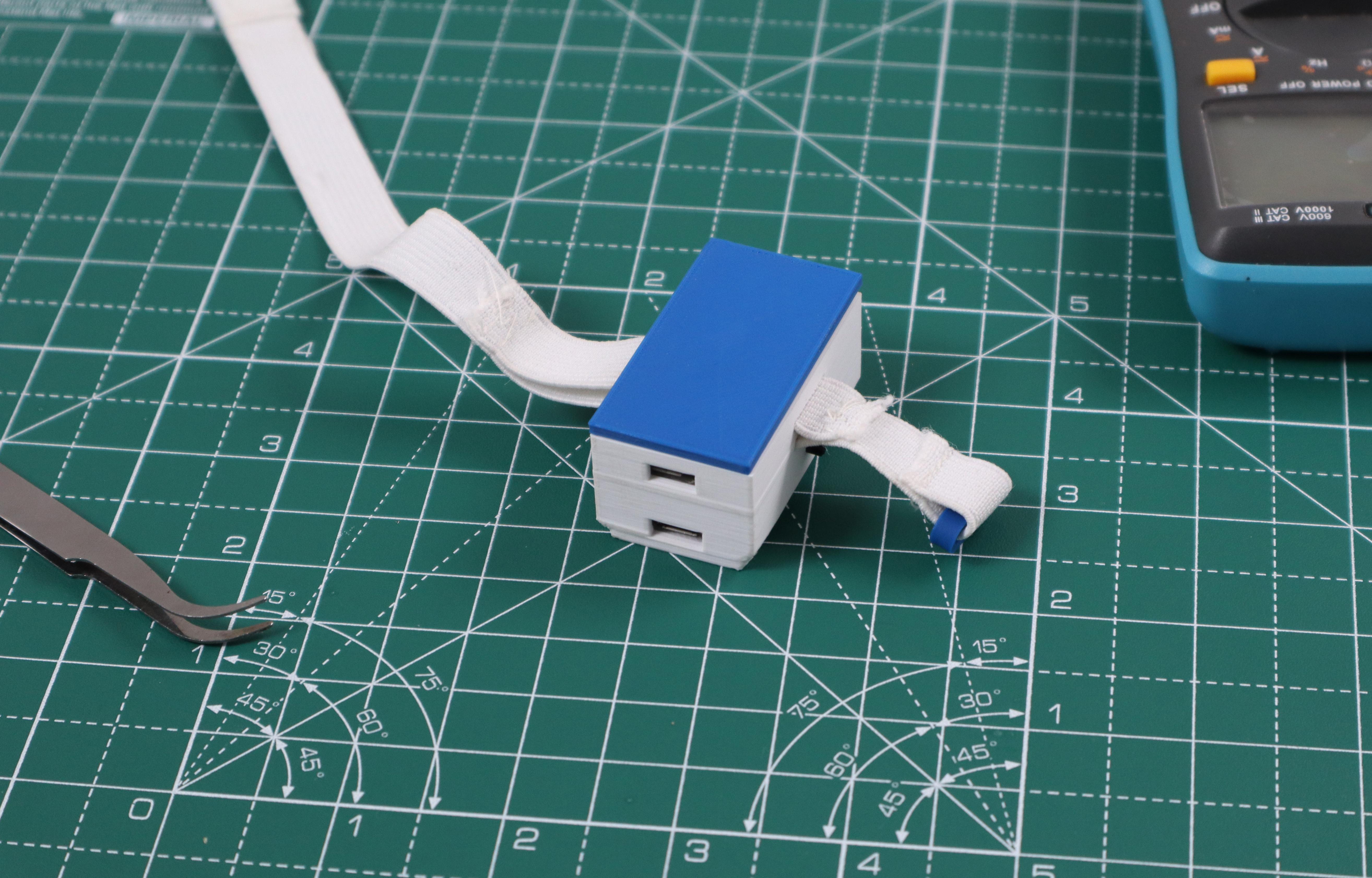

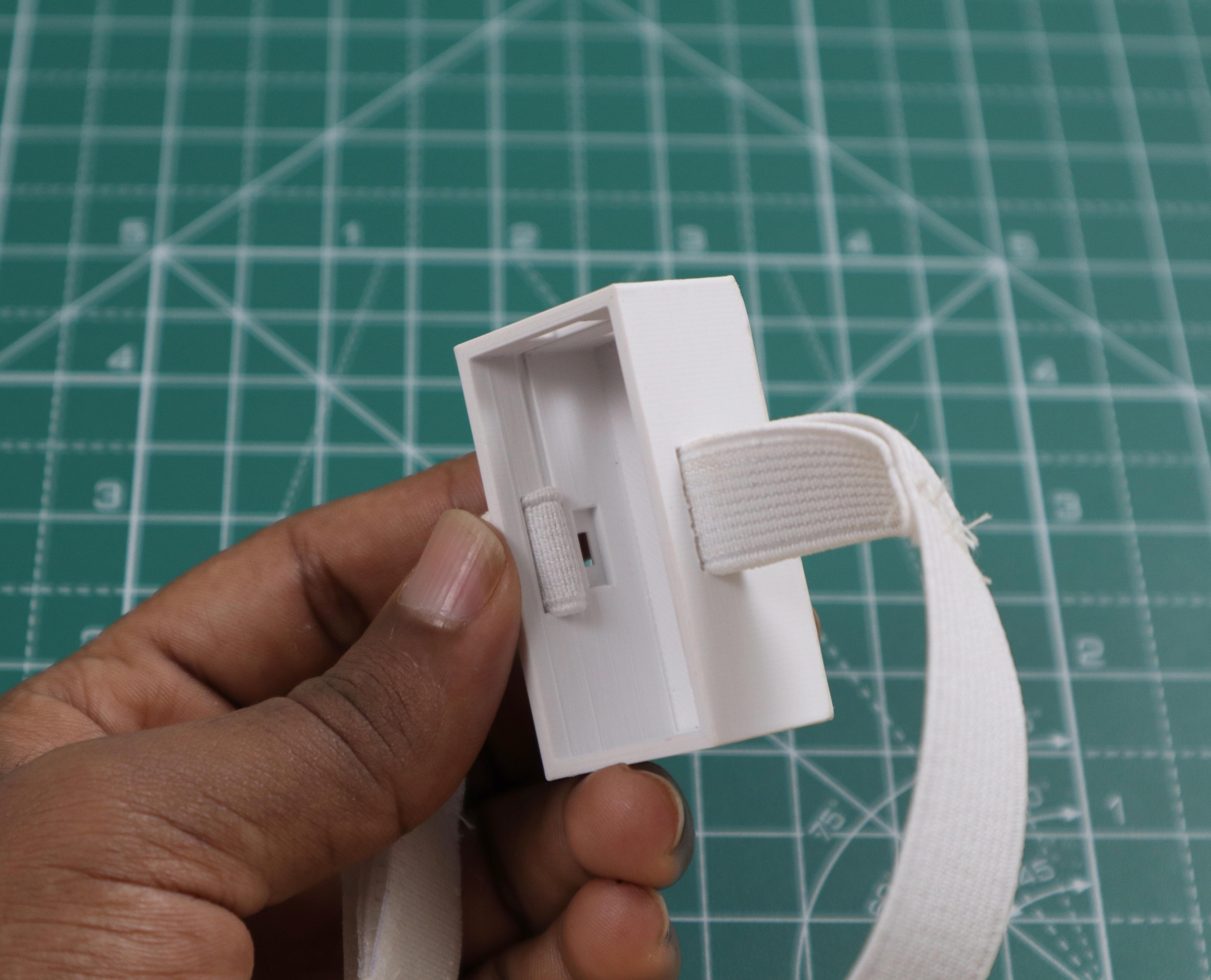

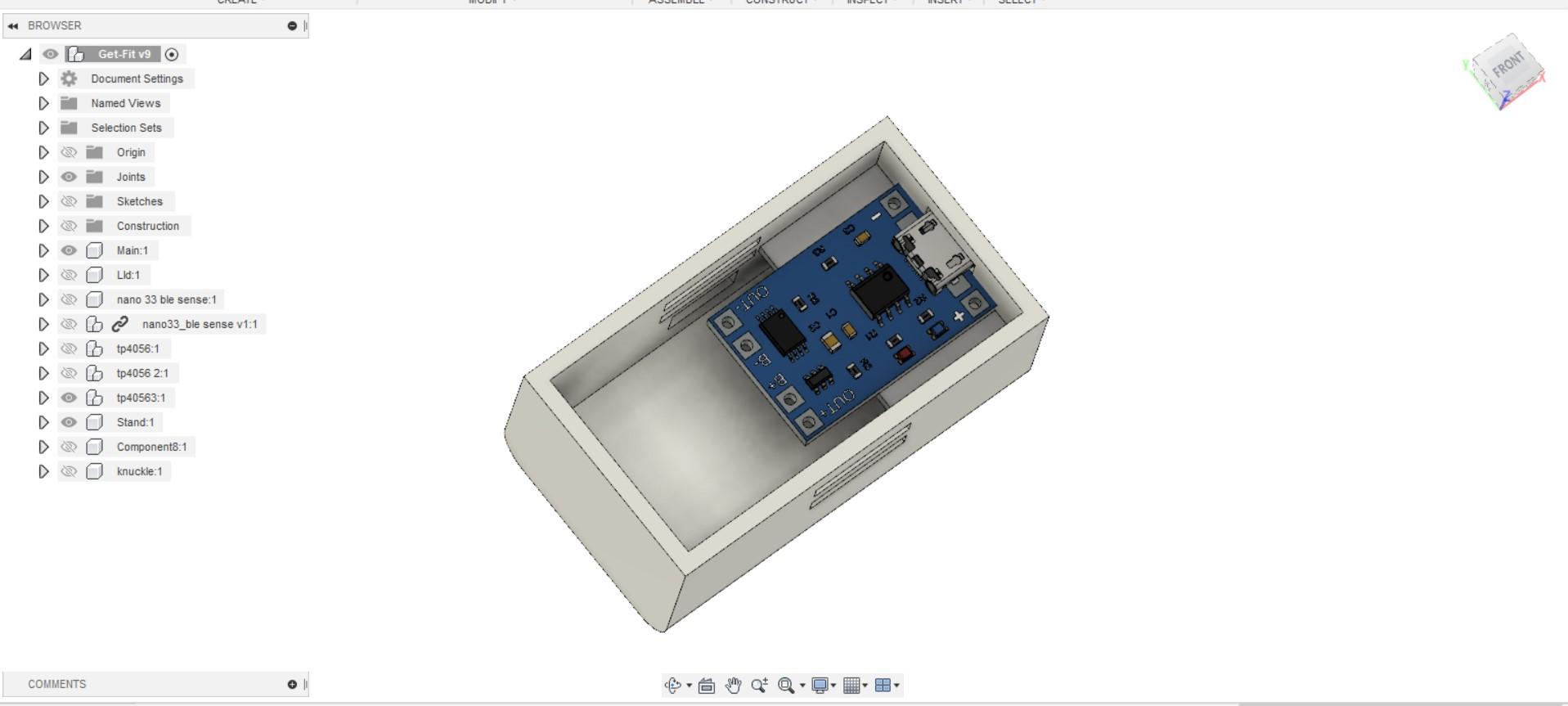

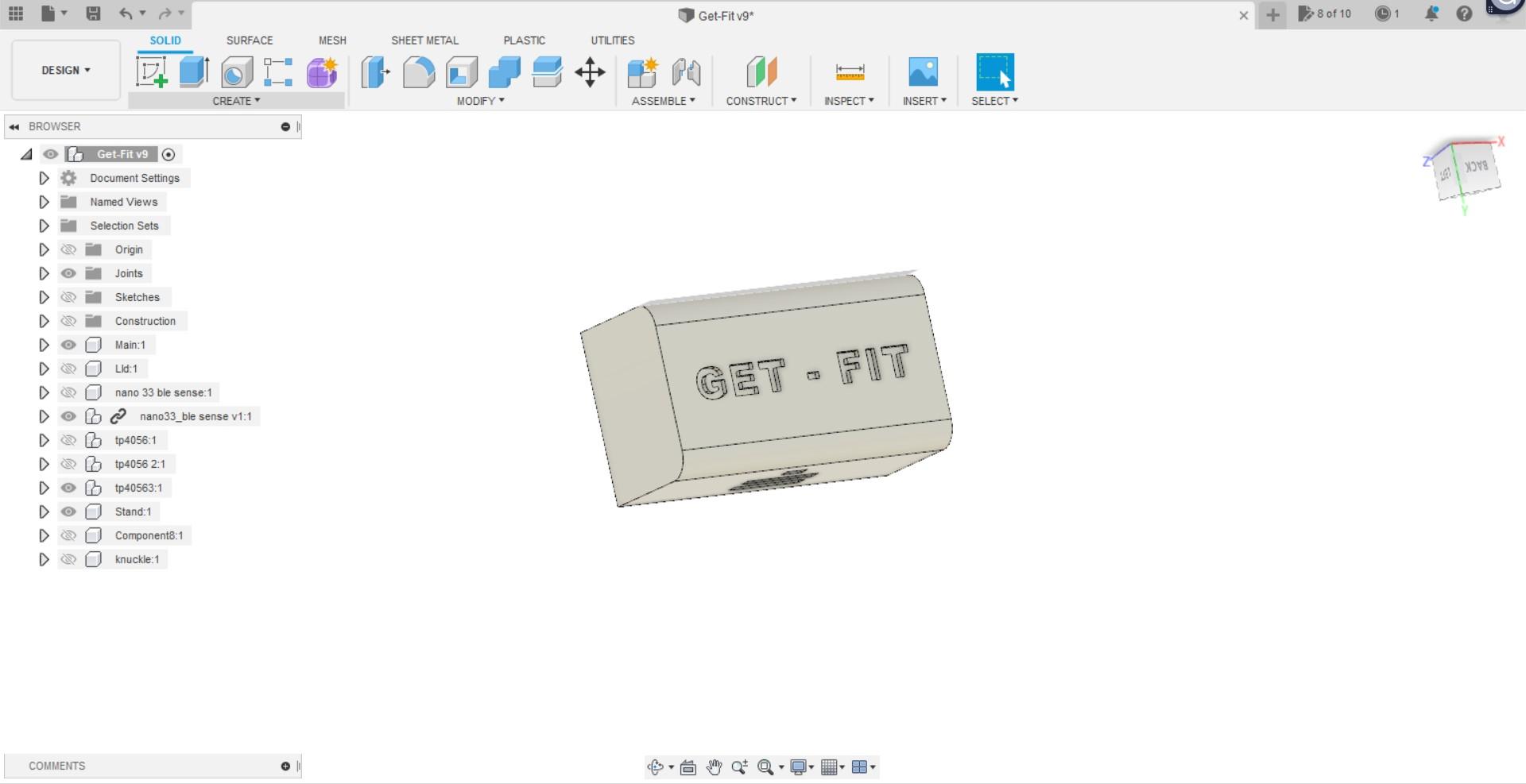

For making the case we have used the Fusion 360, the case actually consists of two parts the main body and the lid. The body and the lid are attached by frictional fit. For attaching the TP4056 charger module we actually designed a stand that can be plugged inside. The stand is actually a separate file, not merged with the body.

The buckles were not found in a cheap amount in stores, that's why we designed that as well. These are the 3d printed parts that we designed. The blue and white color combination makes it more appealing. In total we have 4 files.

Hook and Loop

Hook and Loop.jpg

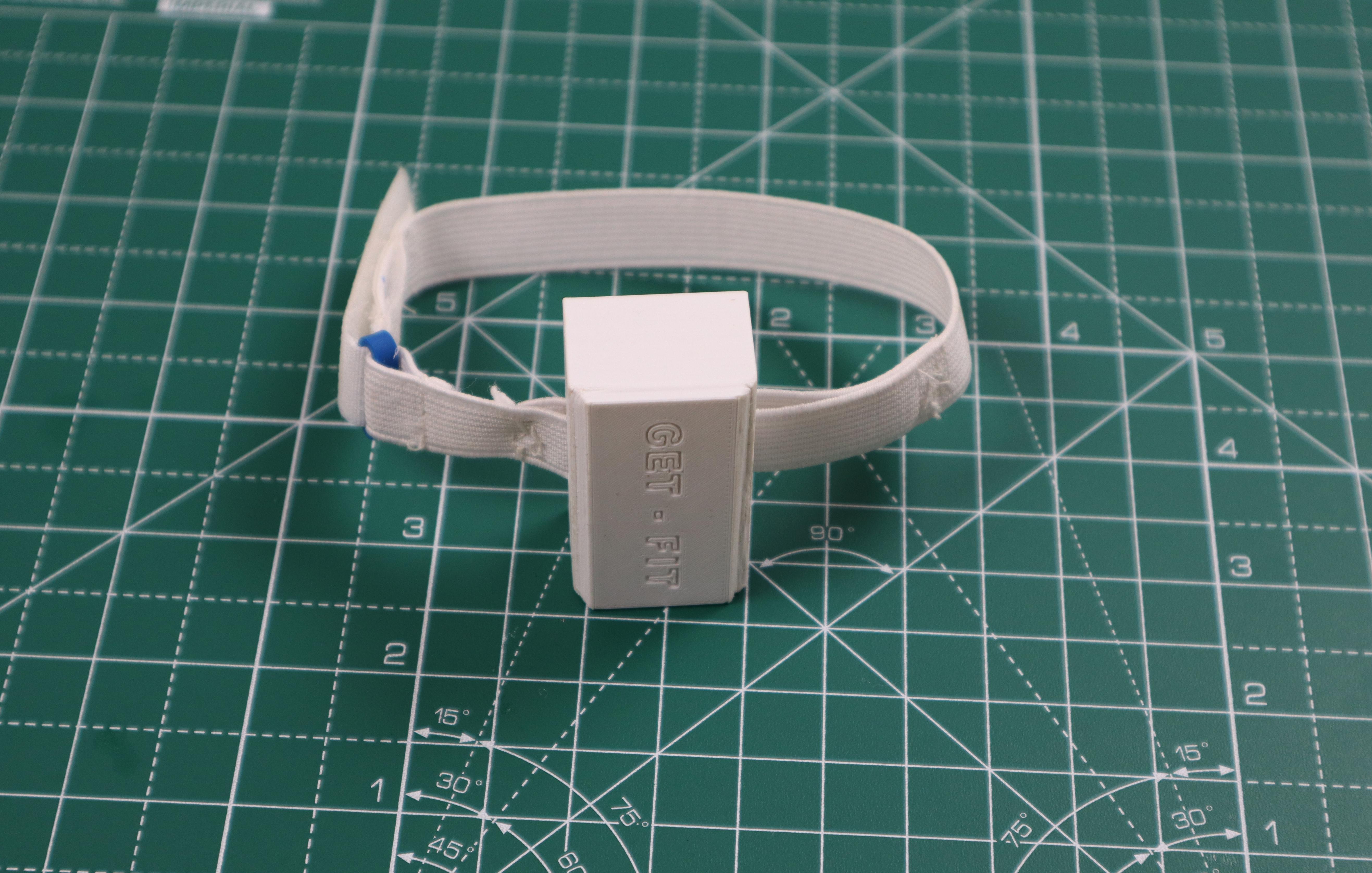

This design is actually meant for the arms, as an armband. The hook and loop mechanism is used here as the fasteners along with this 1/2 inch elastic band. So Any person can wear this band by easily adjusting the strap.

Assembling Hardware

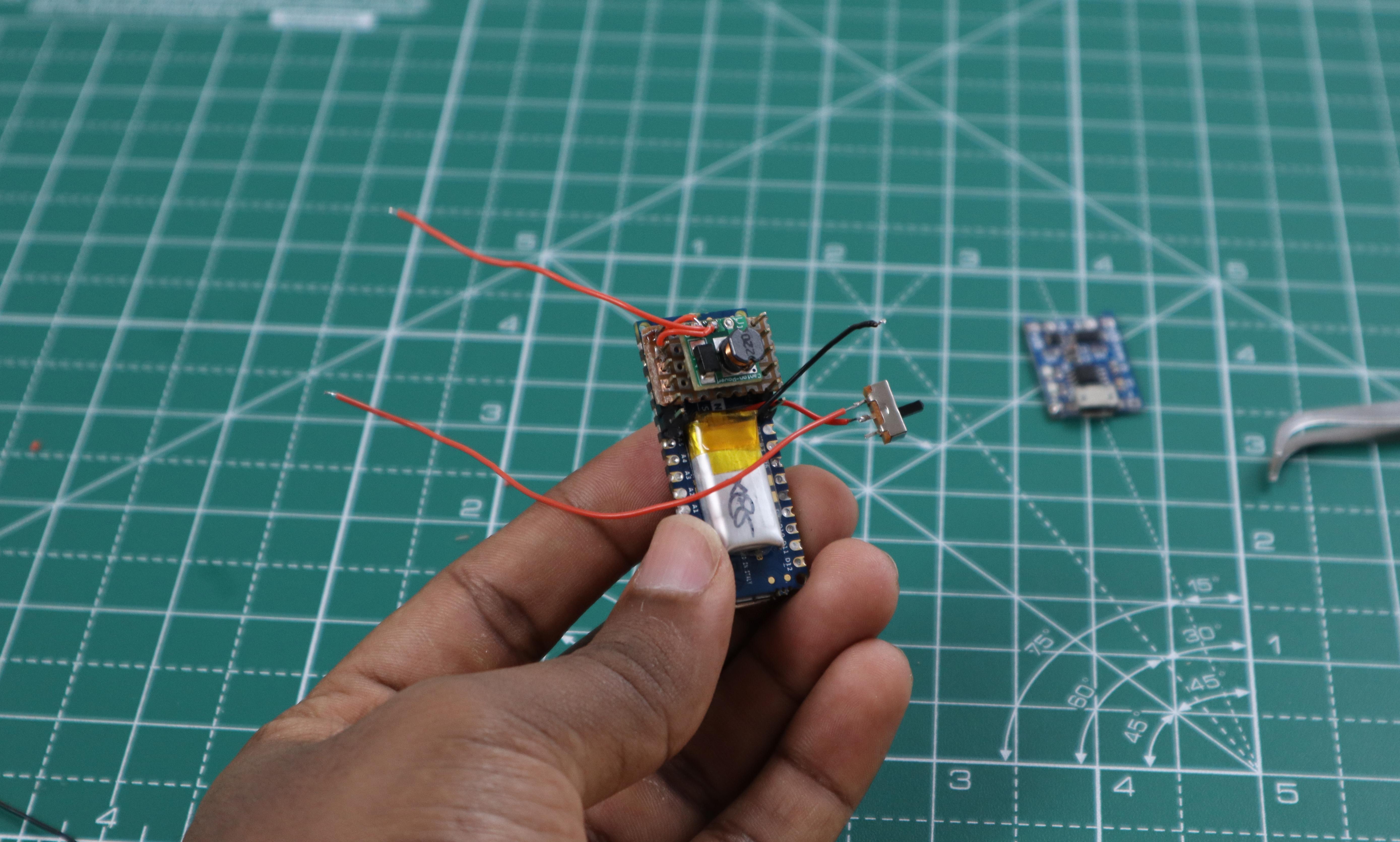

After attaching the strap, Then we started assembling the hardware as per the schematics given above. Use the above image for reference or watch the video.

Our Get-Fit is ready to wear now.

Future Updates

The following updates will be done on the next version.

  • A heart rate sensor will be included
  • Galvanic skin response will be included
  • More exercise will be added
  • Give more clear analytics of your workout
