DISCLAIMER:
This content is for educational purposes only. The author (OR AUTHORS) makes (MAKE) no representations or warranties of any kind (express or implied) relating to accuracy, safety, usefulness, usability, marketability, or performance of the content released here. The author (OR AUTHORS) disclaims (DISCLAIM) all express and implied warranties of merchantability, fitness of the content for a particular purpose, and non-infringement of any patent, copyright, trademark, or other third party rights in the content or in use of the content, or in the making, using, or selling of products or services by any person or entity. THE CONTENT IS RELEASED “AS-IS.” Anyone who uses the content in any way, including creating products or offering services, assumes all risk and responsibility related to those uses, including all risks associated with legal and regulatory compliance, safety, efficacy, performance, design, marketability, title, and quality.
This is a modification for a medical mask that will release pressure off of the straps which will let less air in from the sides due to a pressure drop from a one way valve that is made from a bottle of soap.
Supplies

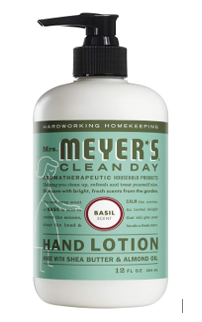

- Bottle of soap (This example uses the one shown, but any bottle of soap/shampoo with a similar pump will work)

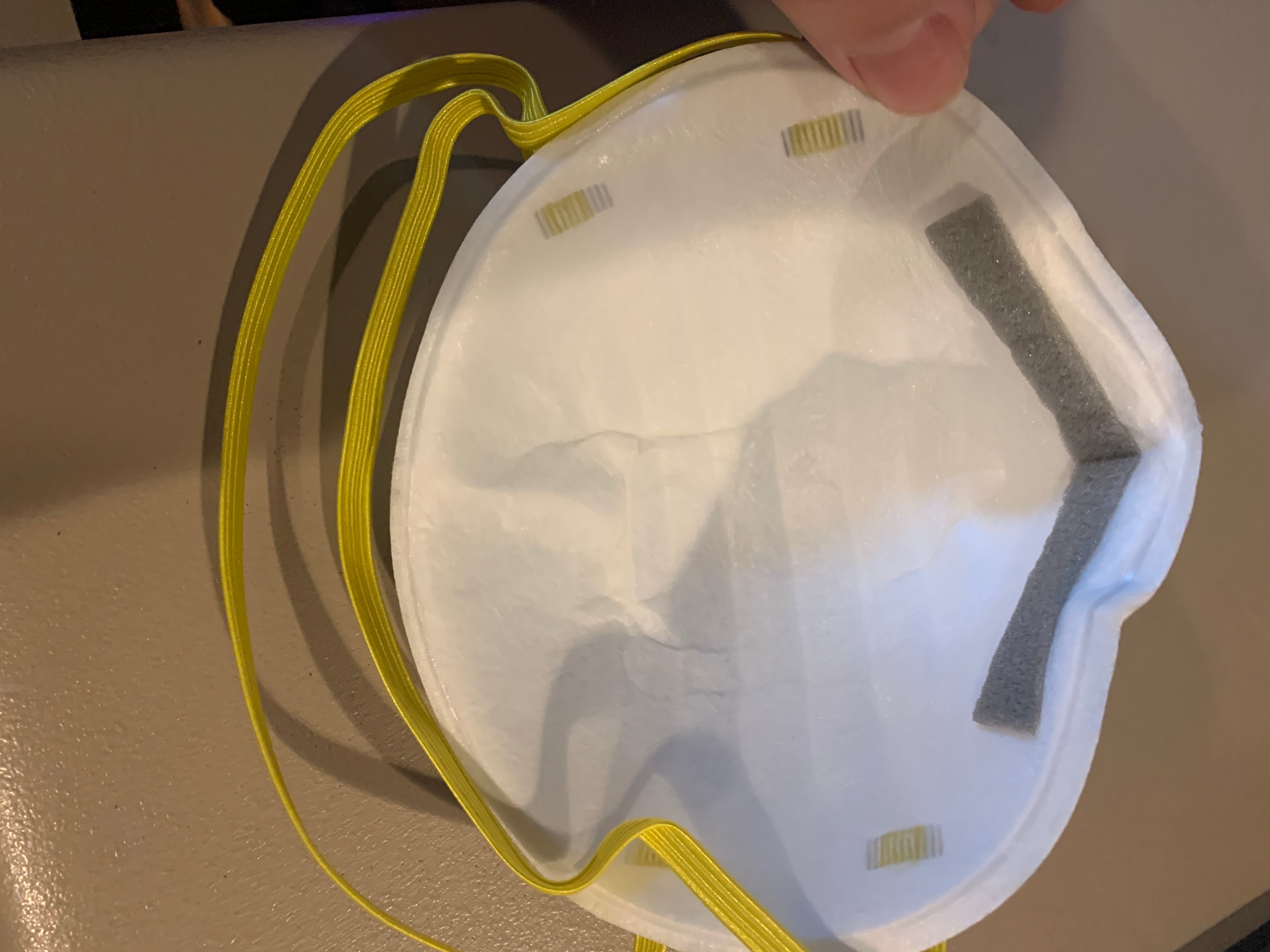

- Mask (n95 is the one that is shown because that is the most commonly referred to)
- Gorilla Glue or super glue
- Basic hand tools for disassembly
Step 1: Disassembly

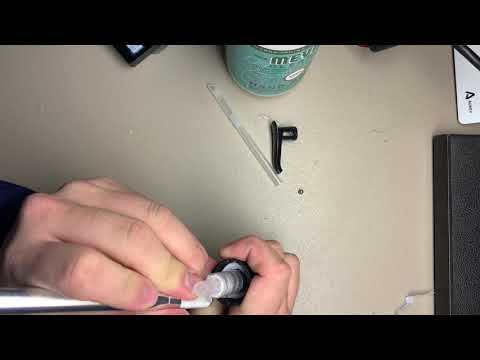

![Disassembly Video](/proxy/?url=https://content.instructables.com/FAF/62JC/K9G9ECLV/FAF62JCK9G9ECLV.jpg&filename=Disassembly Video)
Disassemble the soap container.
First, I separated the cap from the bottle by unscrewing.
Then I removed the top from the plunger by unscrewing. Next, with force I removed the tube from the chamber and by tapping the chamber, the smaller ball came off. Next, I used a hacksaw to remove the cap of the bottle. It could probably be removed using force or by using a knife, but a hacksaw was the quickest way. I then removed the top cap by taking off the flanges with an xacto knife. After this, all the pieces could separate from the chamber and it was completely taken apart.
Note: When using sharp objects make sure to use proper eye protection, never cut towards yourself, and put objects in a vice if available.
Step 2: Assemble the Valve

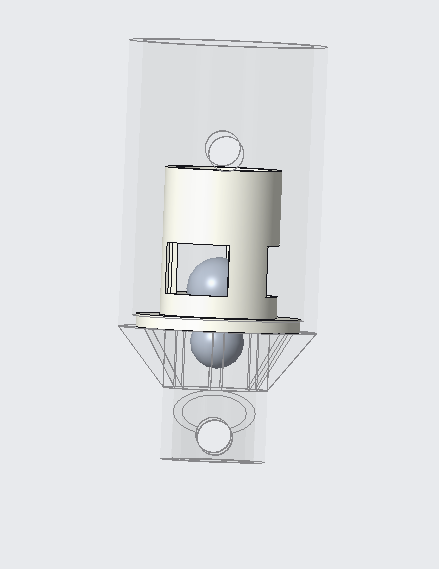

![valve without dowels.PNG](/proxy/?url=https://content.instructables.com/FBW/CO1Z/K9G9EDK5/FBWCO1ZK9G9EDK5.png&filename=valve without dowels.PNG)

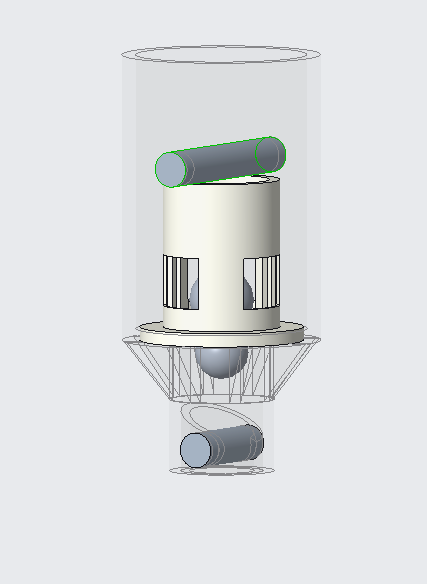

![dowelsin.PNG](/proxy/?url=https://content.instructables.com/FBO/JQ0A/K9G9EDK6/FBOJQ0AK9G9EDK6.png&filename=dowelsin.PNG)
A material to make dowels/pins is needed. You can use wire from the screw or any other wire. Assemble the valve as it was. Cut the chamber and the tube down to size and drill two holes to make the inside valve and the smaller ball stay in place. Put the dowels into the holes that were made. See attached PDF for dimensions.
To cut dowel, probably the best idea to use wire clippers or scissors. Use eye protection to prevent material cut from flying into eye.
Downloads
Step 3: Prepare the Mask

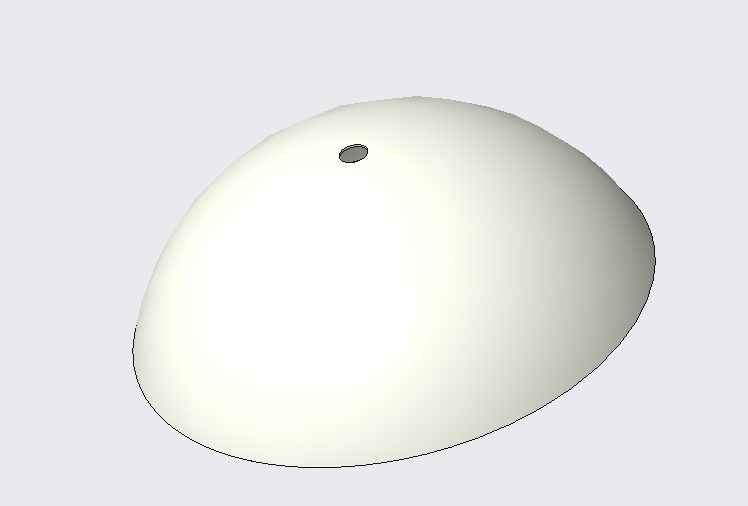

![Maskwithhole.PNG](/proxy/?url=https://content.instructables.com/F3U/CW6D/K9G9EDXV/F3UCW6DK9G9EDXV.png&filename=Maskwithhole.PNG)

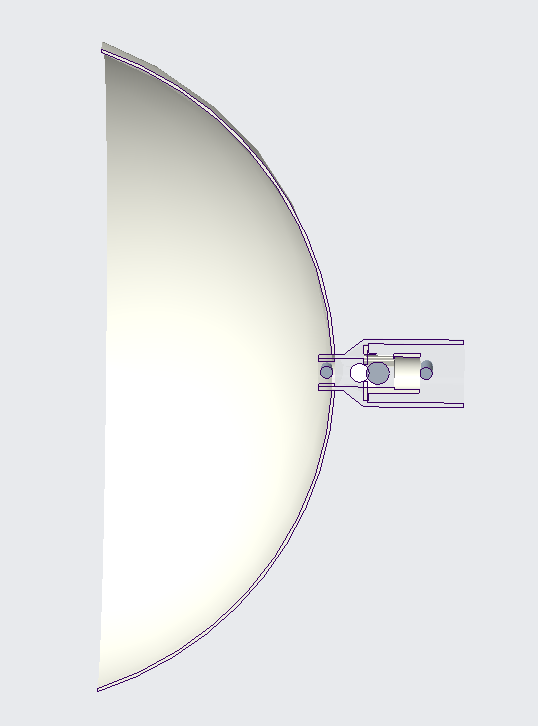

![Maskhalfsection.PNG](/proxy/?url=https://content.instructables.com/F9S/CT6P/K9G9ECPX/F9SCT6PK9G9ECPX.png&filename=Maskhalfsection.PNG)
Cut a hole to a diameter of 0.3 inches in the mask. You can use the valve to trace. Make sure the fit is tight on the smaller side of the valve.
To cut the mask, scissors or an exacto knife are reccommended. Make sure to use a cutting mat or a material that you do not mind scratching.
Glue the Seam

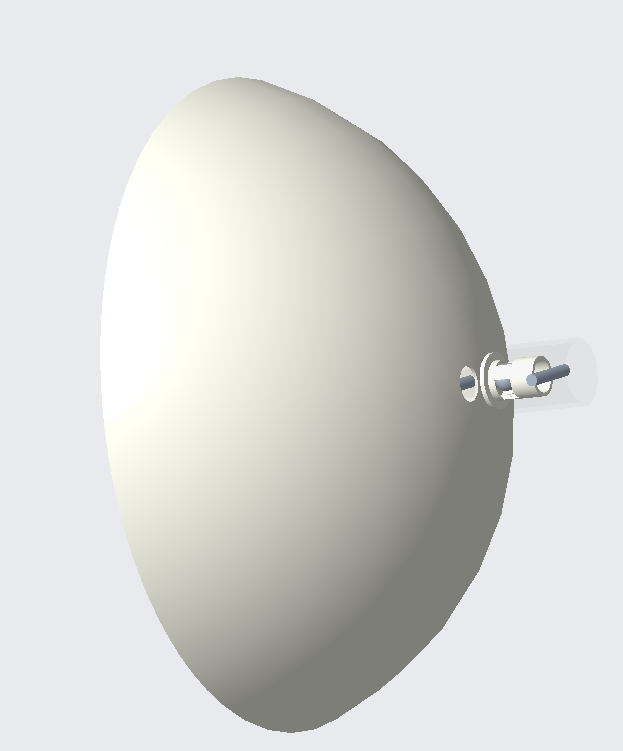

![Mask.PNG](/proxy/?url=https://content.instructables.com/FNN/DM5D/K9G9ECPW/FNNDM5DK9G9ECPW.png&filename=Mask.PNG)
After inserting the valve into the mask, put a glue seam on both sides. Be generous because you want the seal to be airtight.
Make sure to be extra careful with superglue. It is very easy to glue fingers together and they will need to be ripped off. Also the fumes are noxious when it is curing so do not inhale directly and use in a well ventilated area.
Files
Stls of the two assemblies are uploaded if you want to look at it in 3D. The drawing package is also attached. Drawings are to scale.
