D.I.Y Card Electric Door Lock

Sometimes a lot of valuables, or simply our favorite stuff stored in your private room . and there were only family members or strangers who bother it. Dont worry , because you can make your electric door lock for your room. No need to pay expensive, because it is made from unused item.

https://www.youtube.com/watch?v=9PTIyPEEQ1s&list=UUTNgTJ9d68zGRyk8D1GNWCg&index=14

materials tools

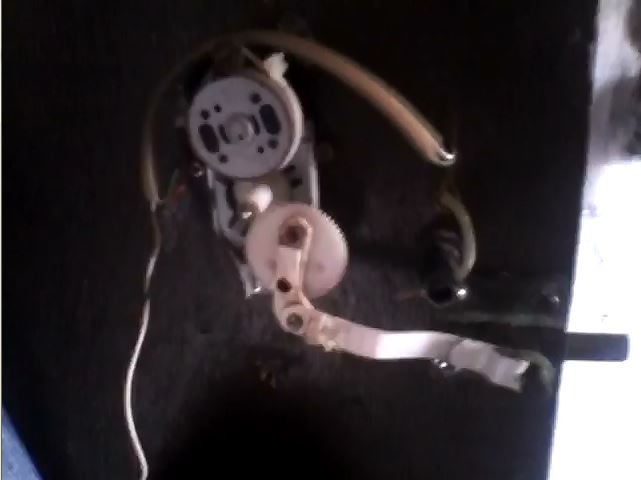

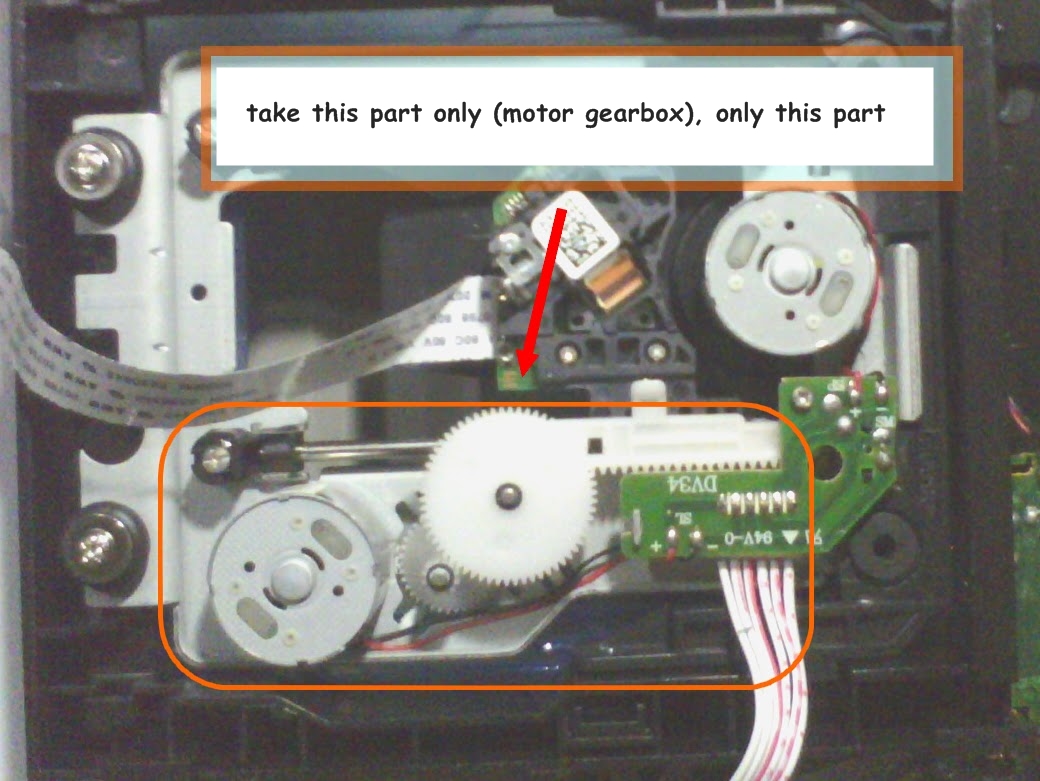

1-DVD gearbox

2-slide door lock

3-micro magnet 6 or more

4-little squre tube

5-metals conductor

6-led red and blue

7-battery 3,7v (x phone battery)

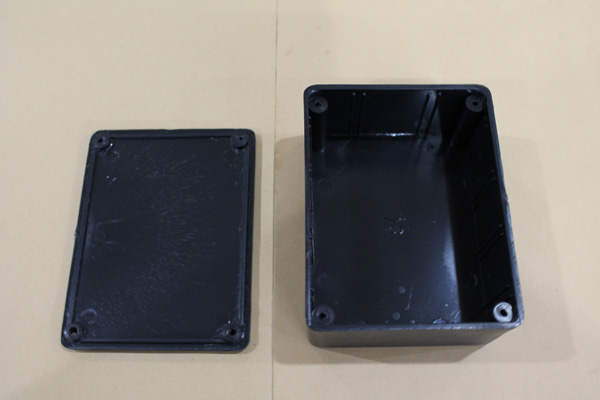

8-mini box (4x6 cm)

9-wire

tools

1-super glue

2-soldering

3-scissors

4-srew driver

5-etc

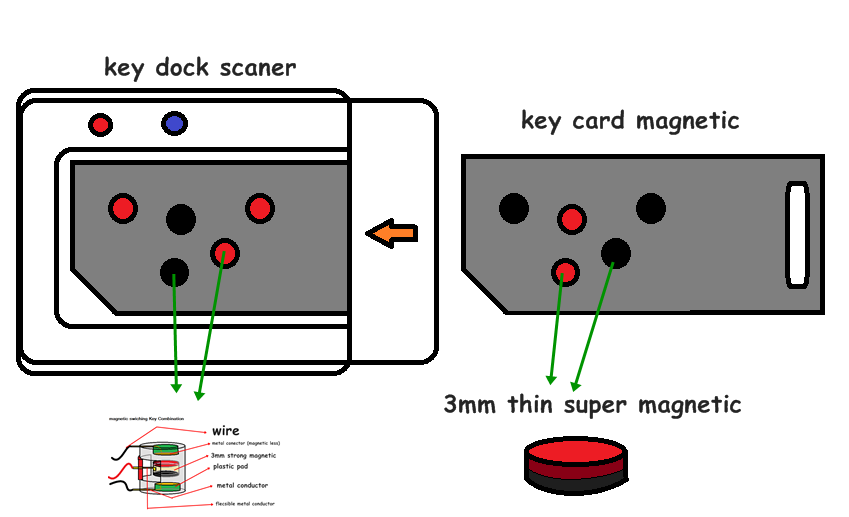

-with a combination of quantity magnets, magnet sides and magnetic position layout would add security key.

-Magnetic sensor as swiching for motor on/off and spining direction.

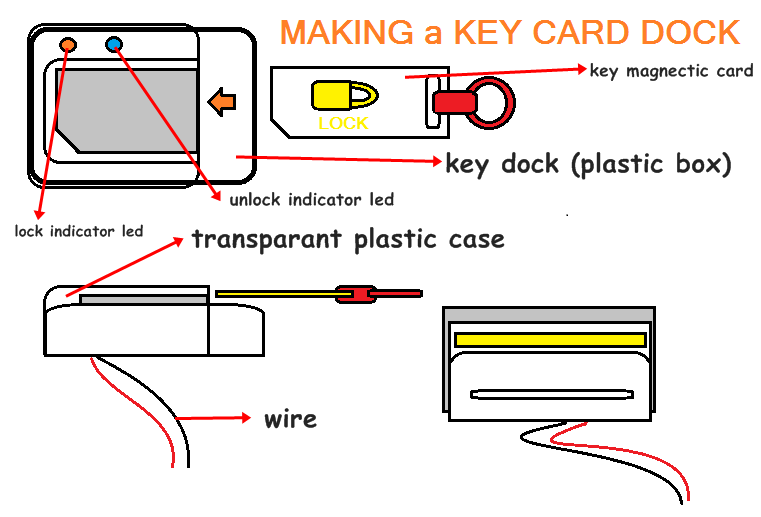

-You can coustumize the quantity of magnet, up or down magnet side, and position on the dock card scaner

-key card key card, contains a composition of the same composition with the magnet that is in the dock.

-the wiring, you know what you should do, it's like putting a motor on a battery by using some of the swich and the addition of led

-Select the 2 sensors as the primary magnetic sensor to change direction rotary of the motor and other magnetic sensors as swich 1-0
