DIY Electric Screwdriver With Flashlight / Torch Rechargable
by BidCZI in Circuits > Gadgets
2669 Views, 61 Favorites, 0 Comments
DIY Electric Screwdriver With Flashlight / Torch Rechargable
![Screwdriver INSPoster.jpg](/proxy/?url=https://content.instructables.com/FCP/SUV8/KT2XT7U7/FCPSUV8KT2XT7U7.jpg&filename=Screwdriver INSPoster.jpg)

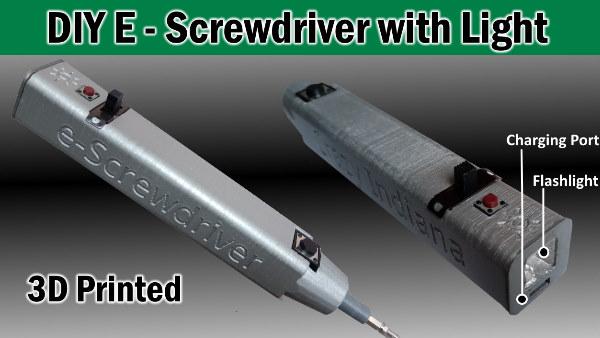

I made a Electric Screwdriver With Flashlight / Torch which has Rechargable Li-ion Battery. The case can be easily printed with 3D printer. It has a DPDT switch to control clockwise/anticlockwise rotation a big Tactile/Push Button to switch to on/off the motor. And a small Tactile switch to on/off torch/flashlight. Also it's battery can be easily recharged by any mobile charger.All the components are easily available.
Components Required
![Screwdriver Components.jpg](/proxy/?url=https://content.instructables.com/FN7/RS8L/KT2XT31E/FN7RS8LKT2XT31E.jpg&filename=Screwdriver Components.jpg)
1. USB charger Module 134N3P
2.Led 5mm
3.DPDT 6 pin switch
4.Tactitle Switch Big
5.Tactitle Switch small
6.N20 Geared Motor
7. 18650 Battery
e-Screwdriver case can be be 3D printed with 3D printer. You can download the file .
Soldering the Components
![Screwdriver Circuit.jpg](/proxy/?url=https://content.instructables.com/FRI/0OTG/KT2XT31F/FRI0OTGKT2XT31F.jpg&filename=Screwdriver Circuit.jpg)
![EScrewdriver Soldering2.jpg](/proxy/?url=https://content.instructables.com/FER/QHQH/KT2XT4G8/FERQHQHKT2XT4G8.jpg&filename=EScrewdriver Soldering2.jpg)
As per the circuit diagram solder the components. First you need to remove the USB port from Charger module. we will use the usb port +/- pin for output power supply. You can check the video for detailed instruction.
Assembling the Components
![EScrewdriver Soldering1.jpg](/proxy/?url=https://content.instructables.com/FF7/R3MN/KT2XT4G7/FF7R3MNKT2XT4G7.jpg&filename=EScrewdriver Soldering1.jpg)
![EScrewdriver Assembly.jpg](/proxy/?url=https://content.instructables.com/FJI/F11V/KT2XT6SJ/FJIF11VKT2XT6SJ.jpg&filename=EScrewdriver Assembly.jpg)
Now Just assemble the components & done . First motor next battery & other components. Check video for detail instruction.
Detail Instruction & Download 3D Files.
![DIY Electric Screwdriver With Flashlight / Torch Rechargable](/proxy/?url=https://content.instructables.com/F6M/B96G/KT2XT31H/F6MB96GKT2XT31H.jpg&filename=DIY Electric Screwdriver With Flashlight / Torch Rechargable)
Check the video for detail Instruction.
