DIY Easy Cinderblock Patio Bench

by BMsculptures in Workshop > Furniture

20551 Views, 203 Favorites, 0 Comments

DIY Easy Cinderblock Patio Bench

DIY- EASY Cinderblock Benches using NO POWER TOOLS

You can build this cinderblock patio bench with NO POWER TOOLS! Check out all the steps so you can do it yourself.

Supplies

For ONE Bench you will need

1.) 14 Cinderblocks 8"x8"x16" ( Big box store)

2.) 6, 8' 4x4's (Big box store)

3.) Construction Adhesive https://amzn.to/3kKo87l

4.) Exterior paint - Valspar Stormcoat exterior (home Depot)

5.) Paint roller- https://amzn.to/3kKo87l

6.) Caulking Gun- https://amzn.to/3kKo87l

7.) Wood Stain- https://amzn.to/3kKo87l

8.) Wood Sealer- https://amzn.to/3kKo87l

9. Sandpaper sponge thingy- https://amzn.to/3kKo87l

For the Upholstery

1.) 4" Foam cushioning- https://amzn.to/35LpH0y

2.) Fabric (Local Fabric store)

3.) T-50 Staple gun- https://amzn.to/35LpH0y

4.) 1/4" Staples- https://amzn.to/35LpH0y

5.) 1/8" x 4'x8' piece of fiberboard (EUCABOARD)- (big box store) 6.) Hand Saw- https://amzn.to/35LpH0y

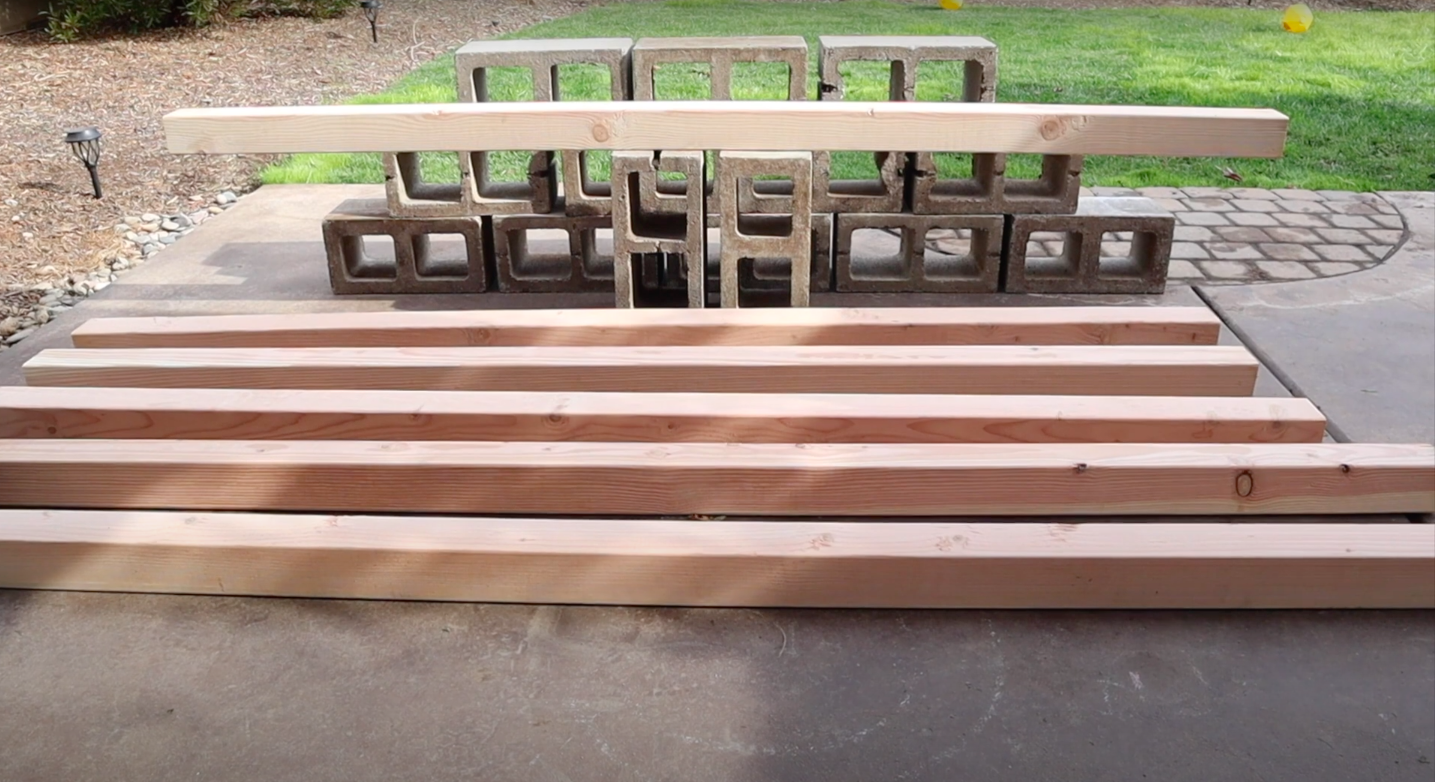

Gather Materials

Screen Shot 2020-11-23 at 8.38.00 AM.png

Check out the Materials list for all materials used.

Lightly Sand the 4x4's

Screen Shot 2020-11-23 at 8.38.32 AM.png

You will need to lightly sand the 4x4's. Make sure to sand off sharp corners and edges as well as any labeling from the factory.

Sanding will prepare each 4x4 for better staining in step 2.

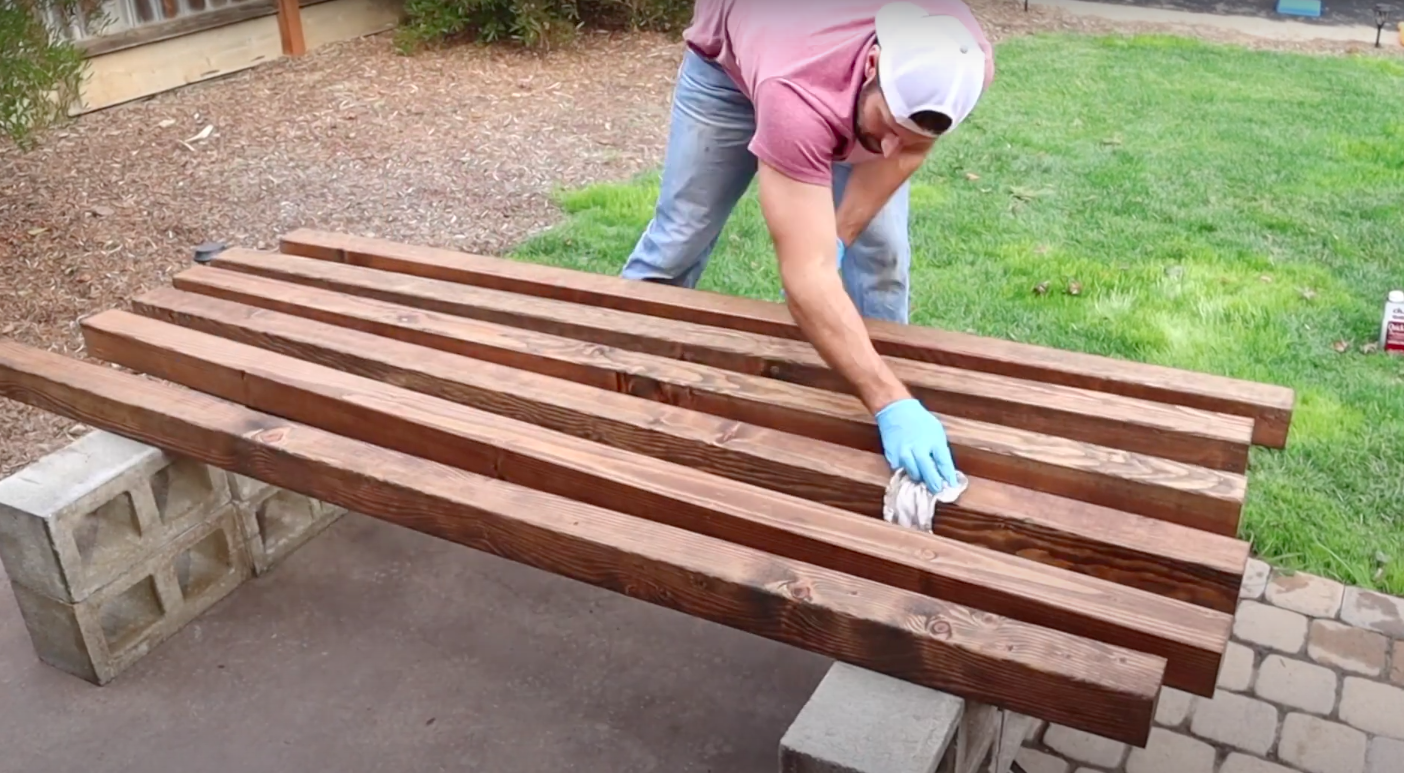

Stain and Seal the 4x4's

Screen Shot 2020-11-23 at 8.39.10 AM.png
Screen Shot 2020-11-23 at 8.39.31 AM.png

I used a Special Walnut stain along with a polyurethane sealant for the 4x4's. Let the stain soak into the wood for around 20 minutes, then make sure to wipe off the access stain completely with a rag before applying the sealing coat of polyurethane. Apply the polyurethane coating and make sure to let it cure completely.

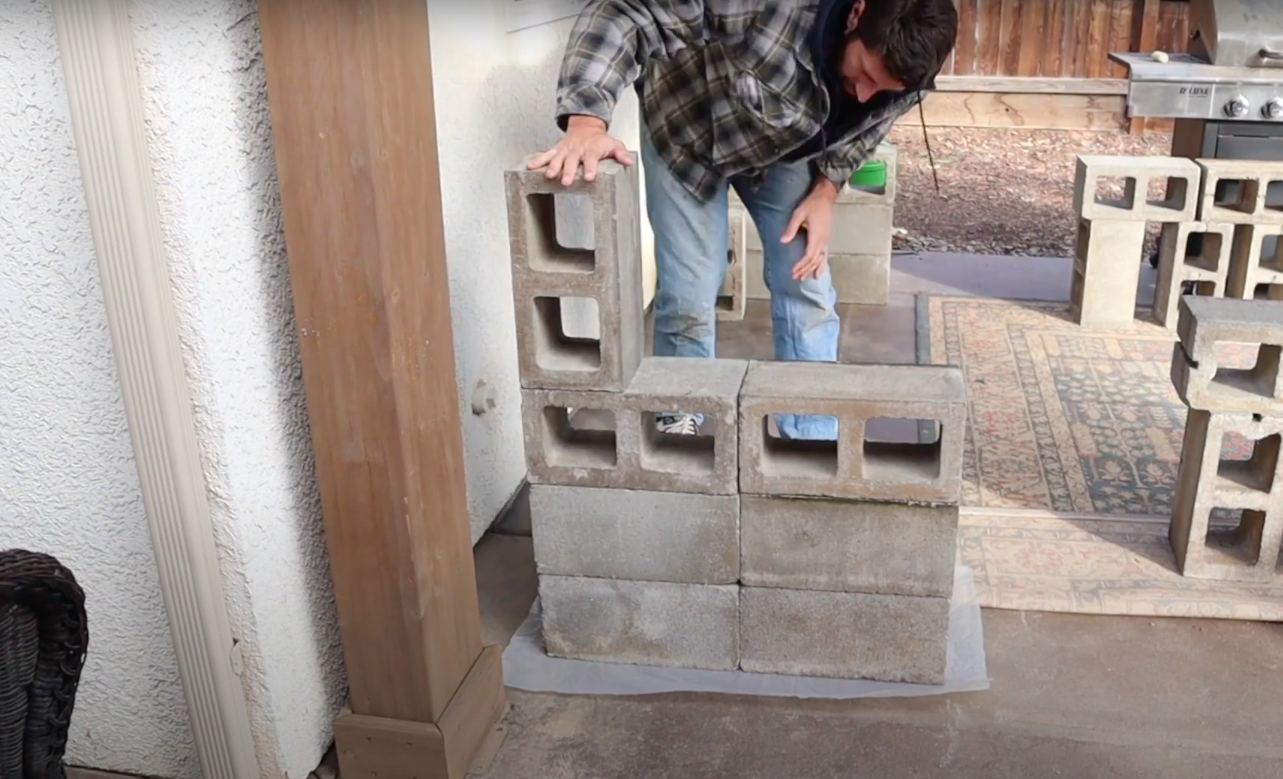

Dry Fit the Cinderblocks.

Screen Shot 2020-11-23 at 8.55.25 AM.png

Do a dry fit of the cinderblocks to make sure they are all even and fit together nicely.

Glue Up the Cinderblocks

Screen Shot 2020-11-23 at 8.40.48 AM.png

Glue up the cinderblocks by applying a liberal bead of construction adhesive. Make sure to place each cinderblock as precise as possible, because you will not be able to move them once cured. Allow the adhesive to cure overnight before painting.

Paint the Cinderblocks

Screen Shot 2020-11-23 at 8.41.10 AM.png

I used a common exterior paint to cover all the cinderblocks. I used less than 1 gallon of paint. You may need to switch from a paint roller to a small brush to get inside all the cracks between the cinderblocks.

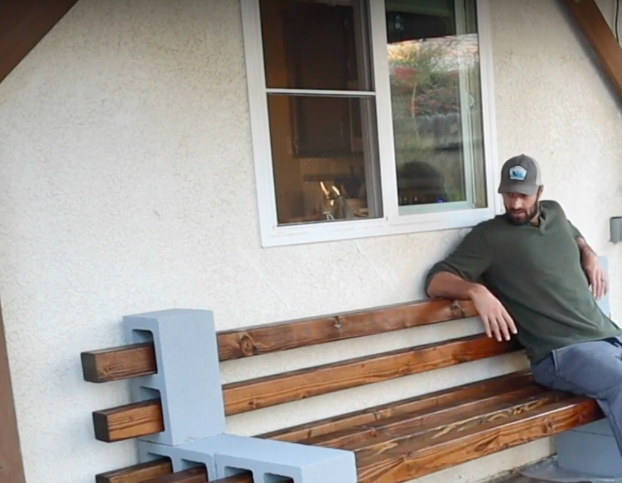

Do a Dry Fit and Test the Bench.

Screen Shot 2020-11-23 at 8.40.07 AM.png
Screen Shot 2020-11-23 at 8.41.34 AM.png

Do a dry fitting of the 4x4's to make sure the cinderblocks are where you want them. Move them around to get the look you want.

Upholster Cushions

Screen Shot 2020-11-23 at 8.41.58 AM.png

Check the materials list for everything you will need for the upholstery.

Upholster

Screen Shot 2020-11-23 at 8.42.28 AM.png
Screen Shot 2020-11-23 at 8.42.46 AM.png

Measure your bench seat and cut the cushion to fit. Take the 1/8" Fiber board (eucaboard) and cut it slightly smaller than the cushion you have just cut. Lay down the fabric and put the cushion on top leaving around 16" of fabric on all sides. place the Fiberboard on top and pull the fabric tightly over the cushion. Start at both long sides and staple into the fiberboard. Once both long sides are complete start to work on the ends. Do the corners last and fold them the same way on all four sides.

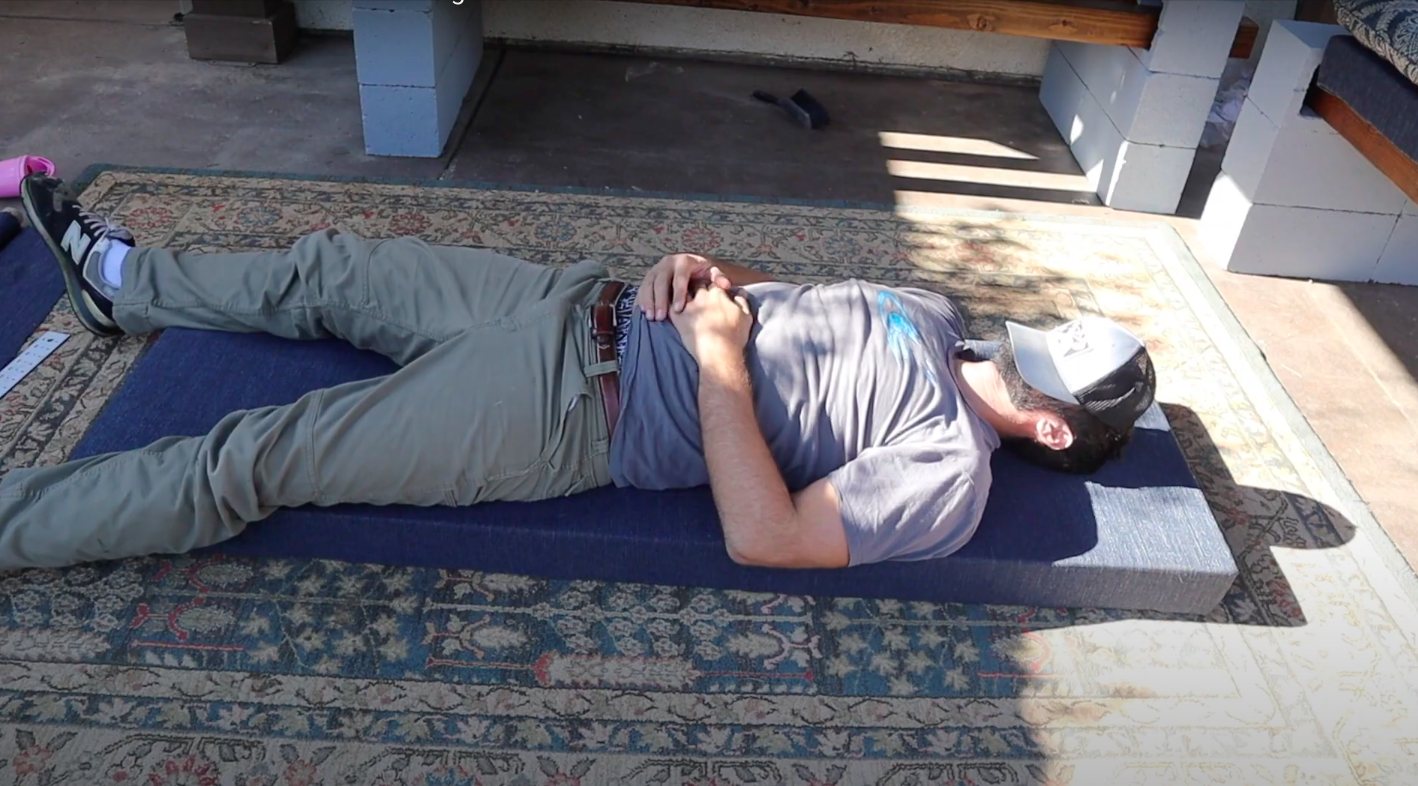

Test Out the Cushion

Screen Shot 2020-11-23 at 8.43.14 AM.png

If you fall asleep immediately you know you did it right.

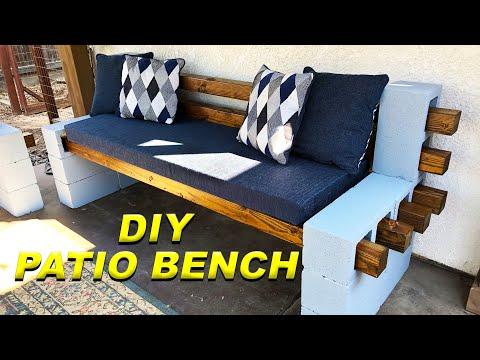

YOU ARE DONE! Add Some Contrasting Pillows and You Are Complete!

Screen Shot 2020-11-23 at 8.43.32 AM.png

Easy as that! Finished!
