DIY Drill Press Machine. I've Been Dying to Have a Drill Press and Finally Made It!

by evilbotto in Workshop > Tools

2570 Views, 56 Favorites, 0 Comments

DIY Drill Press Machine. I've Been Dying to Have a Drill Press and Finally Made It!

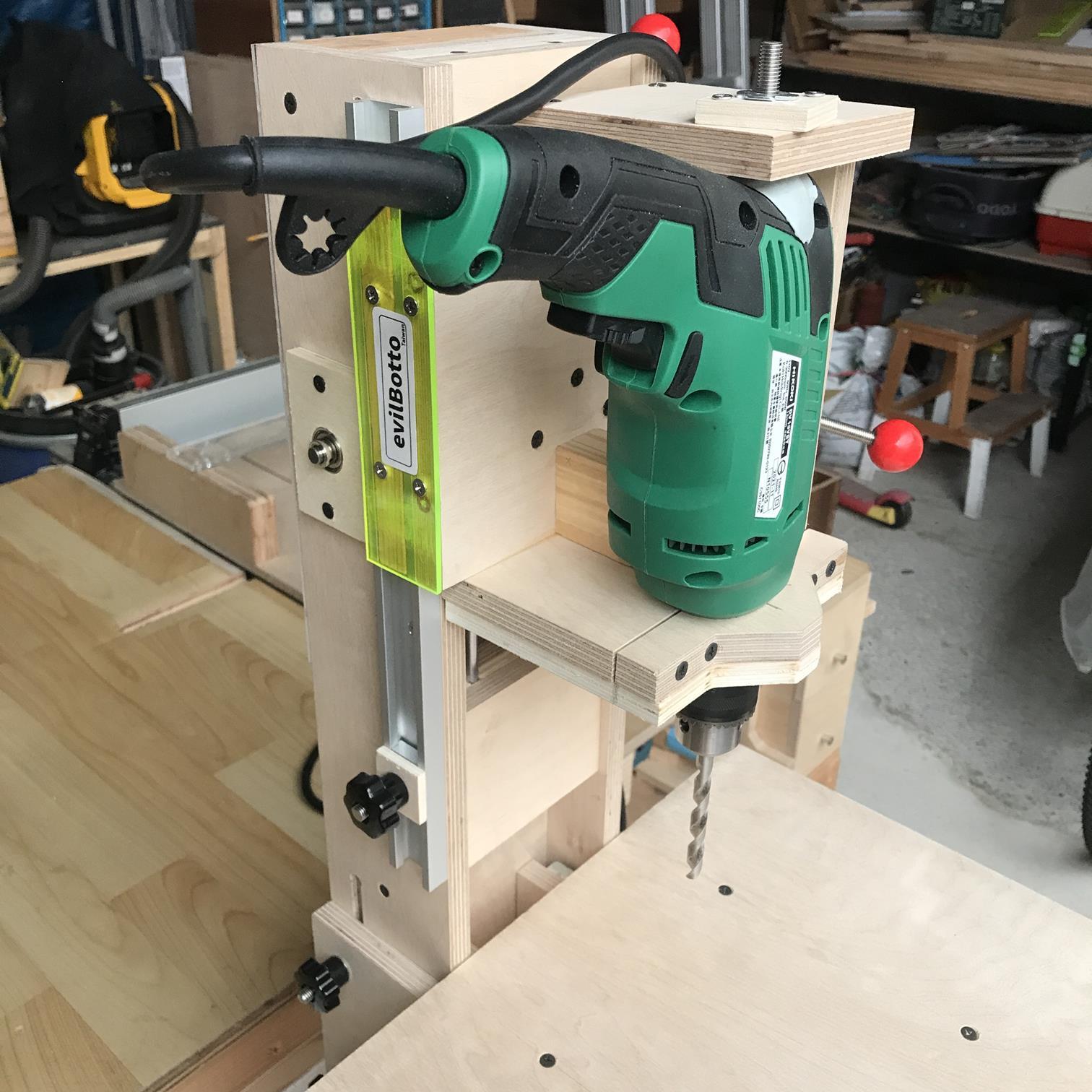

DIY drill press.jpg

I've been dying to have a drill press and finally made it!

It's a 5 Amp, 36" height machine that should work fine for any project in the future.


Supplies

Tools

1. Table saw

2. Jigsaw

3. Router

4. Drill Machine

5. Screwdriver

6. Glue & screws

7. Epoxy putty


Main material

1. A birch plywood 1200*600*15mm

2. DIY gear and rack

3. 2 Linear Motion Rods + 4 linear bearings

4. 3 flange couplings

5. 2 springs + 4 hooks

6. A pair of 25CM slide rails

7. M8 Tooth bar + Ball Knob 3 set

8. Plywood 8mm a little

9. M8 knob + M8 stainless steel screw 4 set

10. Aluminum T-Track 3/4

Gear and Rack

Make wood gears and rack 製作木齒輪和齒條

Generally, Many YouTubers made drilling machines mostly use a long rod to press down to drive.

I want to challenge the transmission with gears.

In this video, I will show you how to design gear from an internet website and make wood gear.

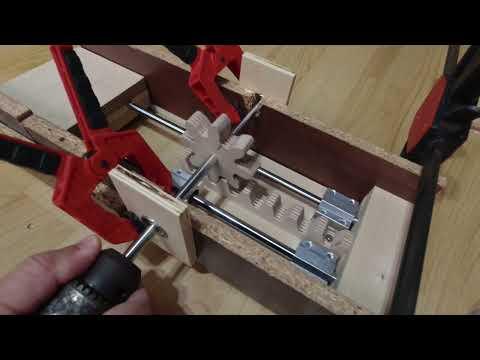

Linear Motion Machinery Driven by Gears and Racks

Linear motion machine driven by gear and rack

Pillar


For the main structure of the drilling machine, I choose 15mm birch plywood and make it into an H shape.

I installed two drawer slides in the front and mill 8mm width grooves on both sides to provide the movement of the lifting platform.

Base


The base is made of two 2x4 wooden strips and a piece of plywood.

then make a small box to cover it to look good, and can be a storage.

Lifting Platform


The lifting platform is 15mm birch plywood too, the front is fixed to the drawer slides, and the two sides are locked with 4 sets of M8 hexagonal bolts and hand-turned nuts

Electric Drill Holder


Make a hole with a diameter of 43mm, then cut it in half, and secure it with screws.

In the step, I made it too loose, so I just cut it all, repair it with screws, and glue 8mm plywood under it.

In addition, I put a hex nut on the electric drill with epoxy putty, used for fine-tuning and providing vertical support

Handle


I use a wooden block to make a hexagonal column shape, and then glue a triangular

wooden block with M8 four-prong tee nuts

(it is better to use a pre-embedded insert nut ) and then

lock it into the tooth bar and the ball knob

Depth Stop


I secure the aluminum t-track on the left side of the pillar and make a runner with plywood.

connect the electric drill holder and the runner with an acrylic board and screws.

then I can set up the limit of depth by knob

Fine-tuning


Adjusting the drill bit and the lifting platform to 90 degrees is the most important step.

At this time, the nut fixed on the tail of the electric drill can play a role.

First, put the upper cover, start to adjust 90 degrees,

and then put the four-prong tee nuts and secured them with screws.


Finish

DIY Drill Press 鑽床

My experience

DIY can get priceless experience and a sense of accomplishment, which cannot be replaced by buying ready-made tools.

Enjoy DIY fun :)


There are more details in the video, welcome to visit my YouTube channel, thank you.
