DIY Double Heart RGB LED Kit Build a Sincerity Love Gift!

by ICStation in Circuits > Electronics

495 Views, 1 Favorites, 0 Comments

DIY Double Heart RGB LED Kit Build a Sincerity Love Gift!


Feature:

  • With music and high quality buzzer.
  • New animation mode, flashing according to the heart.
  • With new high quality STC12C5A60S2 chip.
  • With 15 animation +11 music
  • The electrical parameters have been strictly calculated, and the circuit board has been optimized for electrical performance.
  • Beautiful appearance: red PCB + arrow through two hearts style + button+ exquisite butterfly pattern.
  • High quality acrylic crystal shell with high precision laser cutting.

Know About the Basic Info Before Installtion: Component List and Parameter

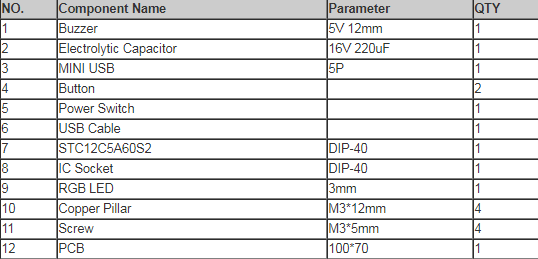

Component List.png

Parameter

  • Power Supply: 5V-60mA
  • Power Supply Interface: USB or 2P Male Pin
  • Led Color: RGB
  • Control mode: Button
  • PCB Size: 100*70mm
  • PCB Material: FR4

Now, Let's Get It Started With the Following Guide!

  1. Install small components at first
  2. Install complex components preferentially
  3. Pay attention to the installation direction of components
  4. Make sure the soldering iron will not touch the components for a long time, otherwise it is easy to damage them.

A: Install 85pcs LED


Please pay attention to the installation direction.

NOTE: It is just install LED on this side of PCB.Other components are installed on other side of PCB.

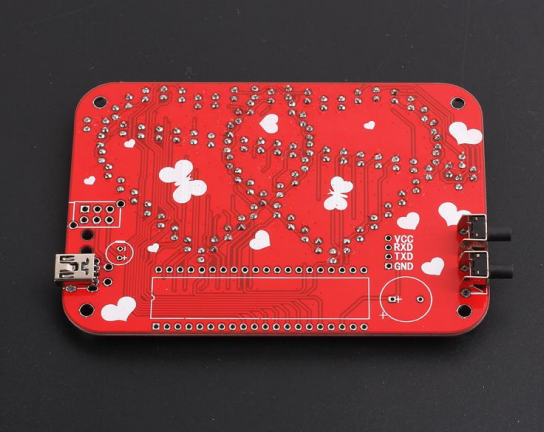

B: Install Mini USB and 2pcs Button on Other Side of PCB.


C: Install 1pcs IC Socket.Pay Attention to the Installation Direction.


D: Install Electrolytic Capacitor,power Switch,buzzer.

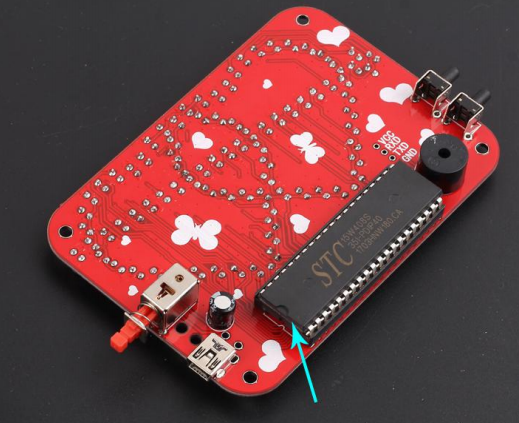

E: Install IC.


F: Install Copper Pillar and Test!


Basic Instruction


  • Power Input: 2kinds input type USB or Male Pin;
  • Power Switch: Control power;
  • Buzzer: Play voice;
  • Next: Display next animation and music;
  • Music ON/OFF: ON or OFF voice playback.

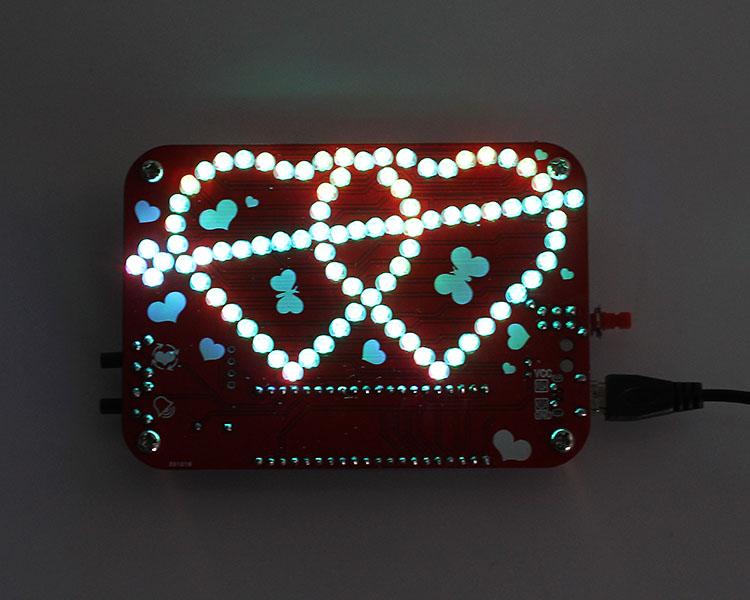

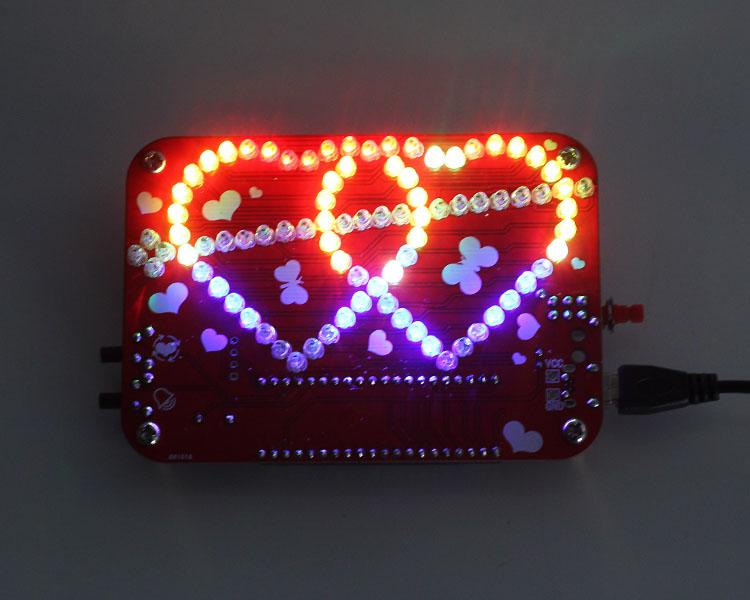

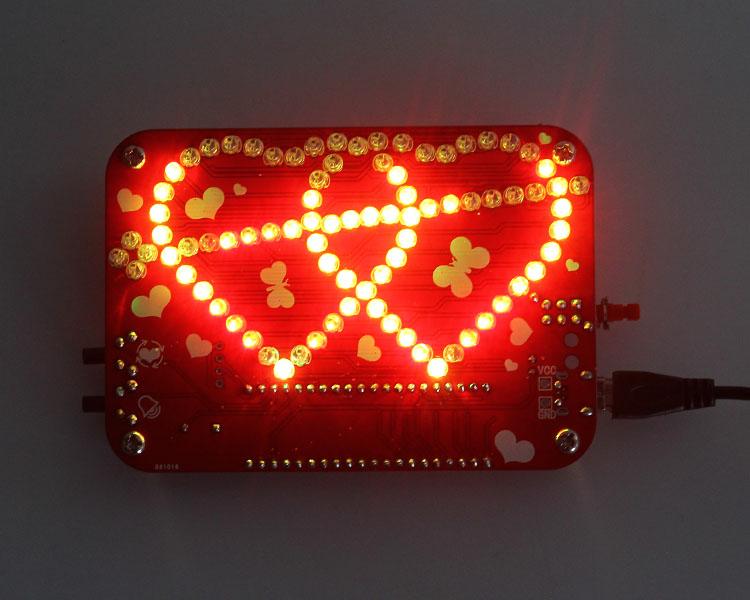

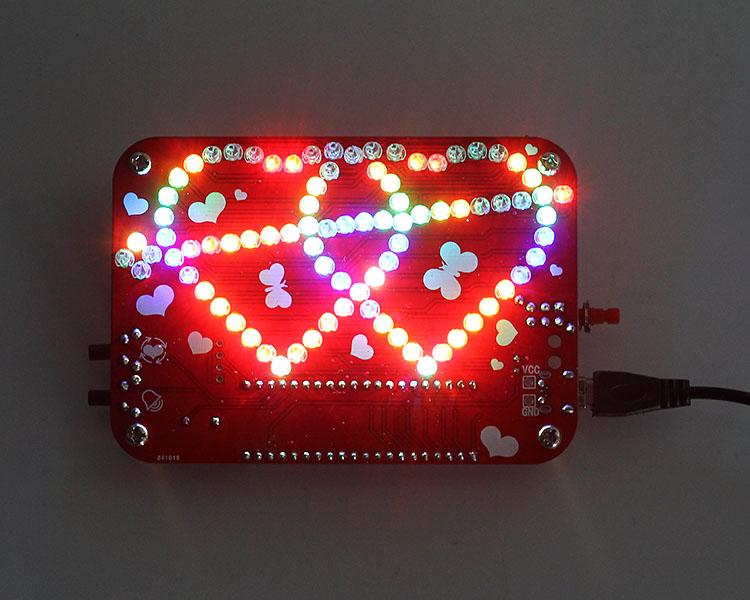

Done! Here Comes the Effect Demonstration


Finally you get a completed Arrow Through Two Heart-Shaped LED Kit with colorful flash light display.

Popular application for 1>.Home Furnishing decoration 2>.Store decoration 3>.Practice for electronic enthusiasts 5>.Holiday/Prize gifts
