DIY Doorbell With 555 Timer + UM66T Chip
by Jacks how2s in Circuits > Soldering
150 Views, 0 Favorites, 0 Comments
DIY Doorbell With 555 Timer + UM66T Chip
![Cover DoorBell PCB.jpg](/proxy/?url=https://content.instructables.com/FNE/CT2F/JFMTKK8V/FNECT2FJFMTKK8V.jpg&filename=Cover DoorBell PCB.jpg)
The 555 timer ic and the UM66T are a perfect couple! Not only is this circuit great for beginners, but can actually be used in daily life. As a real functioning doorbell! The doorbell is running on standard AA batteries but all of the components can be purchased for less then $7.00!
Making This Circuit on a Breadboard!
![breadboard.png](/proxy/?url=https://content.instructables.com/FRJ/39ZF/JFMTKKLT/FRJ39ZFJFMTKKLT.png&filename=breadboard.png)
This circuit is very simple to build on a breadboard. You will need the following components though:
- 1x 555 Timer IC
- 1x UM66T 19L
- 1x BC548 Transistor
- 1x Tactile Momentary Switch
- 1x10K OHM Resistor
- 1x 18K OHM Resistor
- 1x 100 OHM Resistor
- 1x 1000uF Capacitor
- 1x 4.5V AA Battery Pack
- 1x 0.5W 18OHM Speaker
- 1x Breadboard
Follow the schematic diagram attached!
PCB Circuit
![Screenshot 2018-04-08 18.46.58.png](/proxy/?url=https://content.instructables.com/F08/KHUQ/JFMTKK7L/F08KHUQJFMTKK7L.png&filename=Screenshot 2018-04-08 18.46.58.png)
![Screenshot 2018-04-08 18.49.45.png](/proxy/?url=https://content.instructables.com/FRT/NE9Z/JFMTKK89/FRTNE9ZJFMTKK89.png&filename=Screenshot 2018-04-08 18.49.45.png)
Using Fritzing I turned my breadboard design into a PCB layout! I then proceeded to download my GERBER files and went to https://jlcpcb.com and 10 boards cost me only $2.00!!!! The Boards only took 48Hours to make then they were shipped!
Receiving the PCB's
![Screenshot 2018-04-08 18.47.20.png](/proxy/?url=https://content.instructables.com/FK4/RZ14/JFMTKK7O/FK4RZ14JFMTKK7O.png&filename=Screenshot 2018-04-08 18.47.20.png)
![Screenshot 2018-04-08 18.47.32.png](/proxy/?url=https://content.instructables.com/F73/R7DM/JFMTKK7U/F73R7DMJFMTKK7U.png&filename=Screenshot 2018-04-08 18.47.32.png)
![Screenshot 2018-04-08 18.48.10.png](/proxy/?url=https://content.instructables.com/F7M/OIYA/JFMTKK7V/F7MOIYAJFMTKK7V.png&filename=Screenshot 2018-04-08 18.48.10.png)

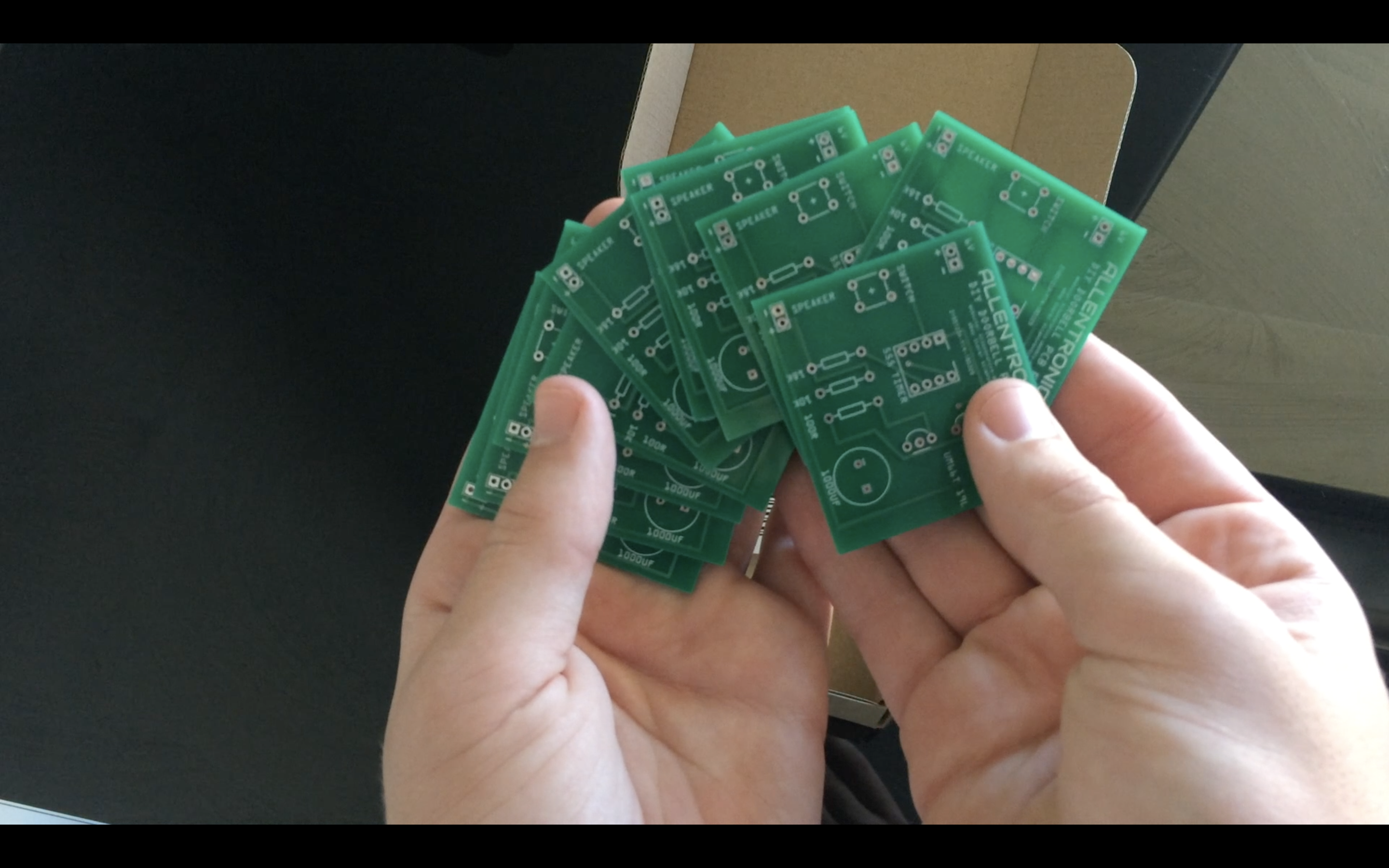

Within 5 days my PCB's arrived! I inspected each individual PCB's and they all looked great! Very impressed!
Soldering!
![Screenshot 2018-04-08 18.48.23.png](/proxy/?url=https://content.instructables.com/FMK/YSO0/JFMTKK80/FMKYSO0JFMTKK80.png&filename=Screenshot 2018-04-08 18.48.23.png)
![Screenshot 2018-04-04 21.09.15.png](/proxy/?url=https://content.instructables.com/FV5/YIE4/JFMTKK77/FV5YIE4JFMTKK77.png&filename=Screenshot 2018-04-04 21.09.15.png)
![Screenshot 2018-04-08 18.48.38.png](/proxy/?url=https://content.instructables.com/FTI/D4IL/JFMTKK81/FTID4ILJFMTKK81.png&filename=Screenshot 2018-04-08 18.48.38.png)
![Screenshot 2018-04-04 12.20.14.png](/proxy/?url=https://content.instructables.com/FTX/CX6I/JFMTKK75/FTXCX6IJFMTKK75.png&filename=Screenshot 2018-04-04 12.20.14.png)
I soldered all of the necessary components to the PCB board! starting with the biggest components and then finishing with the external components! When i connected power and pressed the button, The circuit worked!
Thanks for Reading!
![How To Make A DIY Doorbell With UM66T + 555 Timer IC](/proxy/?url=https://content.instructables.com/FY7/RYEI/JFMTKK91/FY7RYEIJFMTKK91.jpg&filename=How To Make A DIY Doorbell With UM66T + 555 Timer IC)
Remember to watch the video for more!
