DIY Death Star Clock

by cannibal869 in Living > Decorating

25308 Views, 312 Favorites, 0 Comments

DIY Death Star Clock

Some backstory:  I recently got a 2.5' millenium falcon gift that I subsequently hung in my office...
Well, I got a small wall decal of the death star to put on my wall, but that was sort of... lacking... in some ways.

I decided, why not make a 3D-ish Death Star myself instead?

While I was thinking about it, I also figured, why not make it somewhat functional if I can?

Materials (all available through Amazon and/or your local hobby/craft store):

Lightning "Factory Second" Prostyle #1 Driver  $6.48 shipped

Clock Movement Quartz Square Straight Black Hand Shaft 3/4" Kit   $12.95
(note:  if I were to do it again, I would suggest going with the 1/4" or 1/2" kit instead of the 3/4")

Sticky Back Foam Sheets-Basic Colors   $9.44 shipped

Black and Grey Spray paint about $4-5?

Optional but recommended:  carbon paper - about $5 as well for 10 sheets

So to start off with, I resized and printed out an internet photo of the death star.
Using the carbon paper, I traced the outlines onto the frisbee.

(side note:  if I were to do this again, I would next use my dremel tool and sand away the "emitter / focusing disc" portion as well as dremel in the curved lines -- on this run I did the sanding after I put the foam blocks on and had a few missteps which you'll see on the close up photos below)

Next, I used that same printout photo and traced the outlines onto a sheet of the adhesive backed white foam sheet.  Using a scalpel / X-acto knife, I then cut out the blocks and stuck them to the frisbee, using the outlines as a guide to where they should go.

then spray painted the whole thing in semi gloss black (but any black will work I think) - paint was still wet in this image.  The textural difference between the foam blocks and the frisbee was quite nice once the paint was on.

I used a strip of 1/4" tape to mask the center groove / canyon area, then lightly misted some gray primer to highlight some of the areas and provide contrast.

I then drilled a small hole for the clock nubbin to stick through and attached the clock arms.

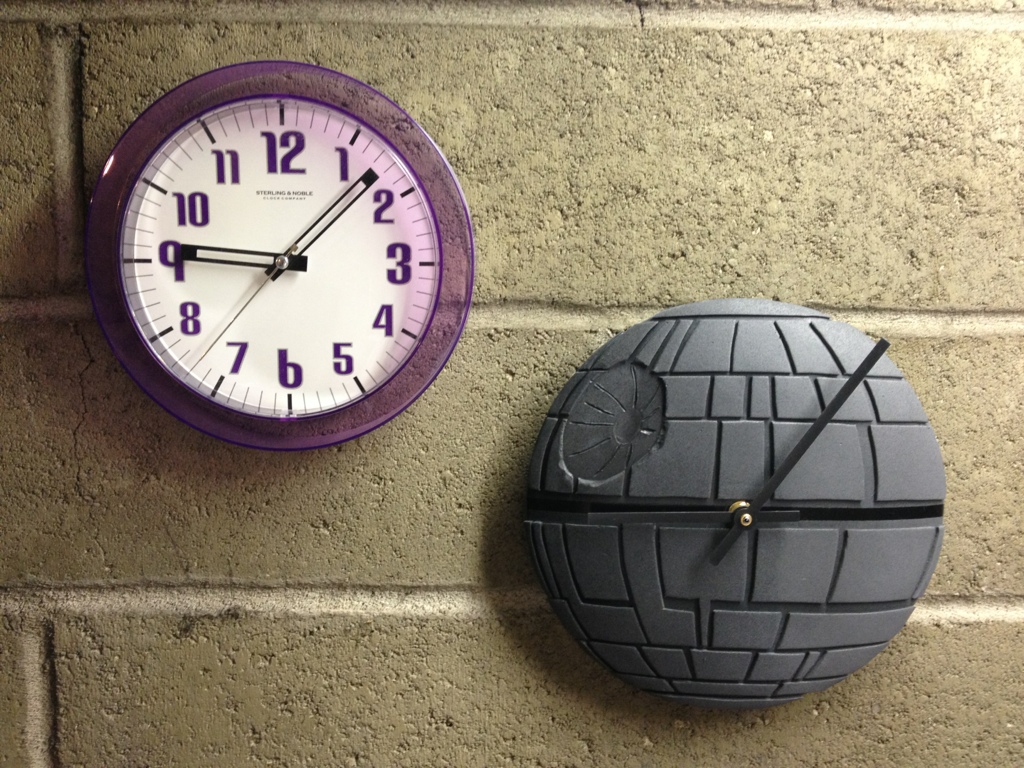

Here it is mounted next to my shop clock for comparison

total cost: about $38-39

and the final result hanging in my office next to the falcon and TIE fighter:
