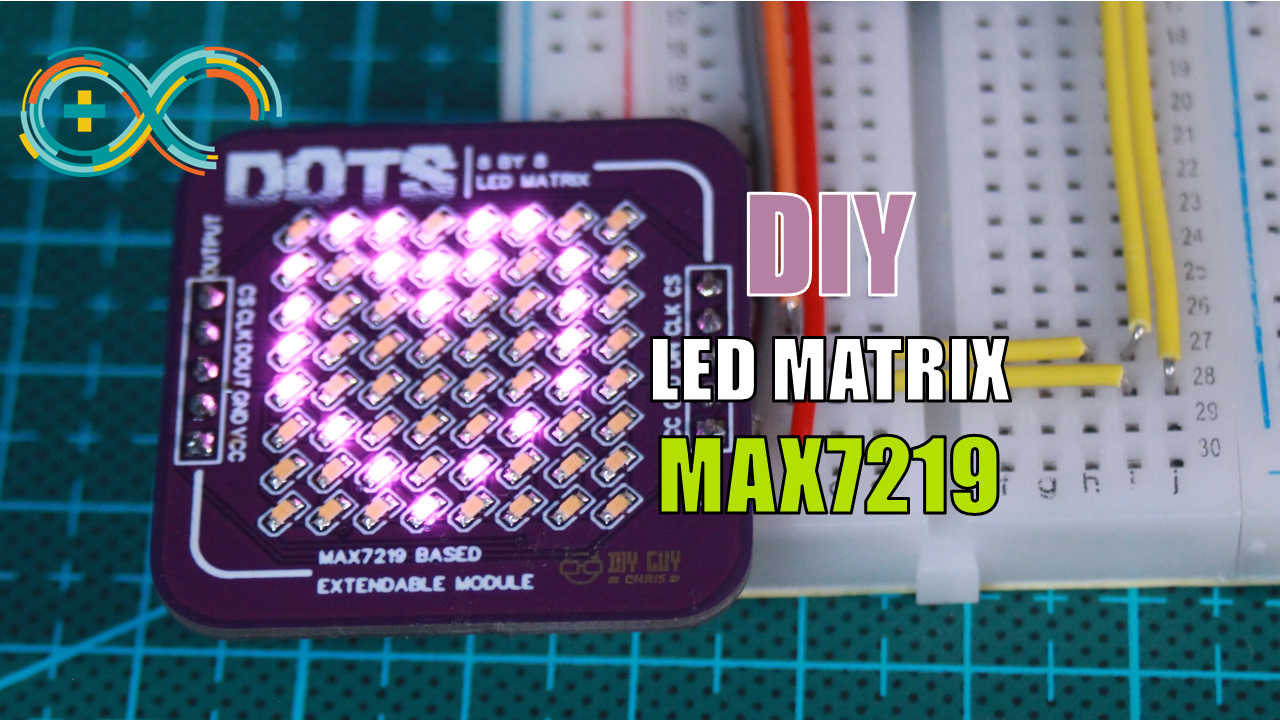

DIY Customized 8x8 LED Matrix Tutorial (MAX7219 Meets Arduino)

In this step-by-step tutorial, we're diving into the world of electronics and microcontrollers to create a personalized 8 by 8 LED matrix that can be controlled using an Arduino board. I'm Chris, and I'll walk you through the entire process, from designing the circuit and assembling the components to programming mesmerizing animations. So, let's roll up our sleeves and get started on this exciting DIY project!

Materials and Tools You'll Need:

• MAX7219 Display Driver
• 64 LEDs (0603 package)
• Arduino Board
• 10K Ohm Resistor
• Solder Paste and Stencil
• Hot Plate and Hot Air Gun
• Male Header Pins
• Altium Designer (for schematic and PCB design)
• Flux Removal Solvent

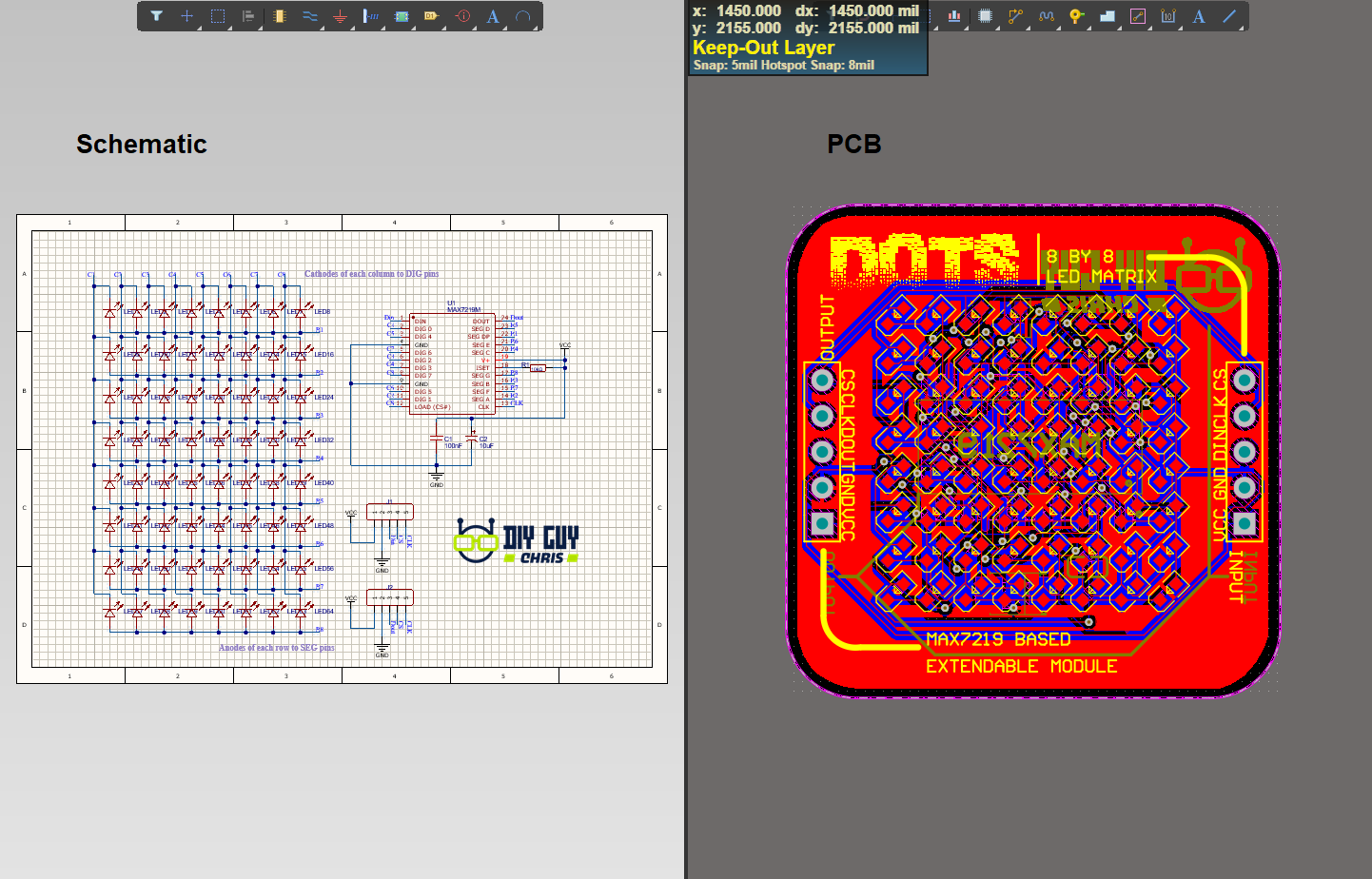

We kick things off by designing the circuit schematic using Altium Designer. The heart of our LED matrix is the versatile MAX7219 display driver, capable of driving the LED matrix efficiently. This driver uses SPI communication, requiring only three Arduino pins to control all 64 LEDs in the matrix. I carefully placed 64 LEDs in an 8 by 8 matrix layout, ensuring proper connections for the MAX7219's common-cathode display driving. Attention to detail is crucial here, connecting the cathodes of each column to the Digit output pins and the anodes of each row to the Segments output pins.

With the schematic in place, I transformed it into a PCB design. The LEDs were organized in an 8 by 8 matrix, with a focus on proper arrangement. I utilized the cross-probe tool to ensure accurate component placement by viewing both the schematic and PCB documents simultaneously. The align components tool proved helpful for matrix alignments. Afterward, I generated design GERBER files and sent them to JLCPCB for PCB fabrication. The result? A vibrant PCB with a purple solder mask, eagerly awaiting assembly.

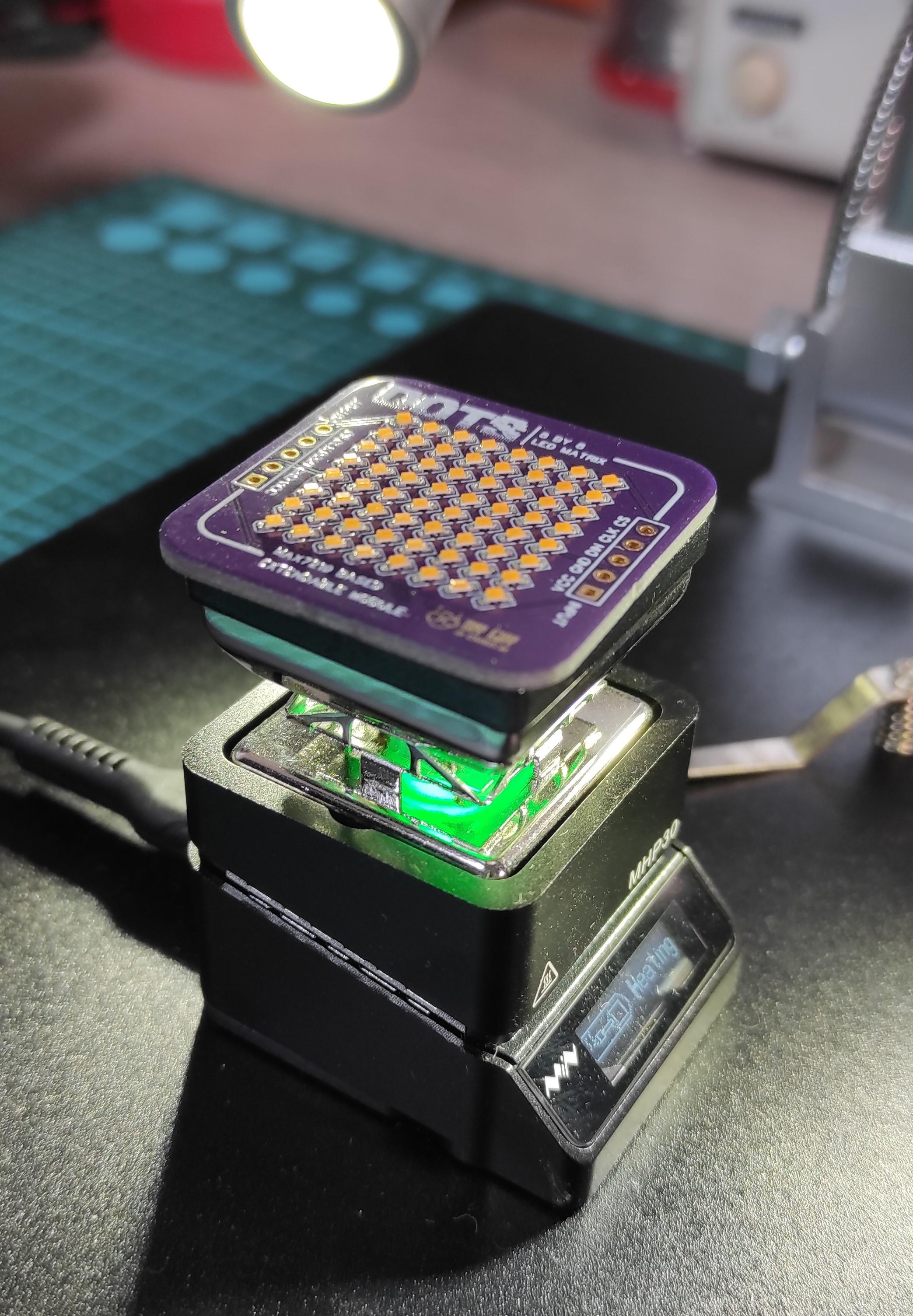

The assembly process begins with solder paste deposition using a stencil. This technique guarantees uniform solder paste application for even assembly. I then meticulously placed each LED, utilizing Altium 365 Assembly Tool to avoid part misplacement or incorrect orientation. The hot plate was employed to complete the soldering process, resulting in a solid connection.

Moving to the bottom side of the matrix, I placed solder paste for the MAX7219, decoupling capacitors, and a 10K Ohm resistor. The hot air gun was utilized for reflowing these components, ensuring a secure fit. The male header pins were soldered to establish the connection between the matrix and the Arduino board.

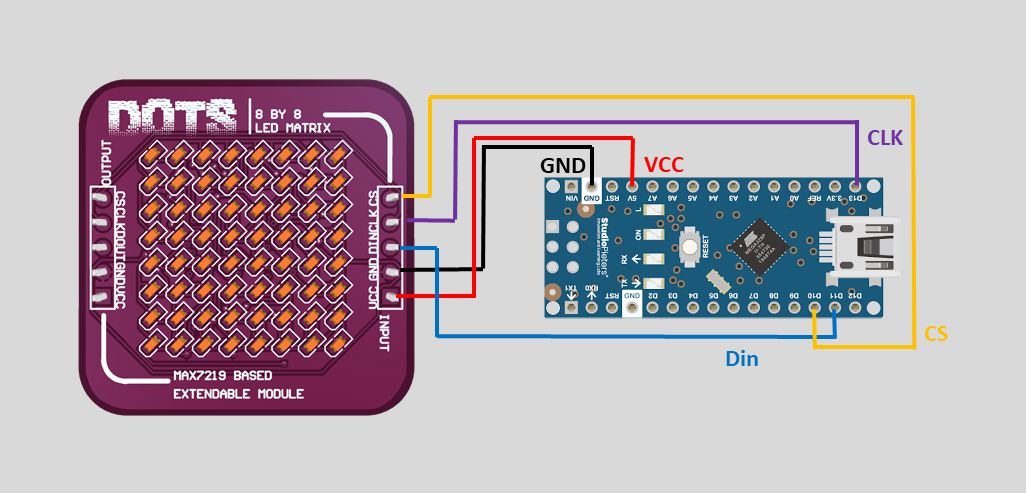

I wired the matrix to the Arduino board, connecting VCC and Ground pins, and linking the Data in, CS, and CLK pins to the respective Arduino pins.

• Matrix VCC to Arduino VCC
• Matrix GND to Arduino GND
• Matrix Din to Arduino D11
• Matrix CS to Arduino D10
• Matrix CLK to Arduino D13

To control the matrix, I used the Arduino LEDControl library, enabling access to individual LED pixels, rows, and columns. Drawing captivating animations became a breeze using an online Matrix Sprite generator. Once programmed, I uploaded the code to the Arduino, and voila! Our LED matrix sprung to life, showcasing mesmerizing visuals.

Our journey doesn't end here. The possibilities are limitless. This module can be extended to interface with other modules, creating a dynamic and interactive system. Stay tuned for future projects where I explore these exciting expansions and take our LED matrix project to new heights.

With a blend of meticulous circuit design, careful assembly, and creative programming, we've brought our customized 8 by 8 LED matrix to life. I hope you've enjoyed this tutorial as much as I've enjoyed guiding you through it.
