DIY Custom Stencil and Stain Furniture!

by doodlecraft in Workshop > Furniture

30037 Views, 242 Favorites, 0 Comments

DIY Custom Stencil and Stain Furniture!

decor stencil craft size custom finished pieces nightstand crate box and stool.jpg
before and after 2.jpg
before and after 3.jpg
finished stencil stenciled pieces.jpg
before and after 1.jpg
Stencil and Stain furniture with a custom made stencil!

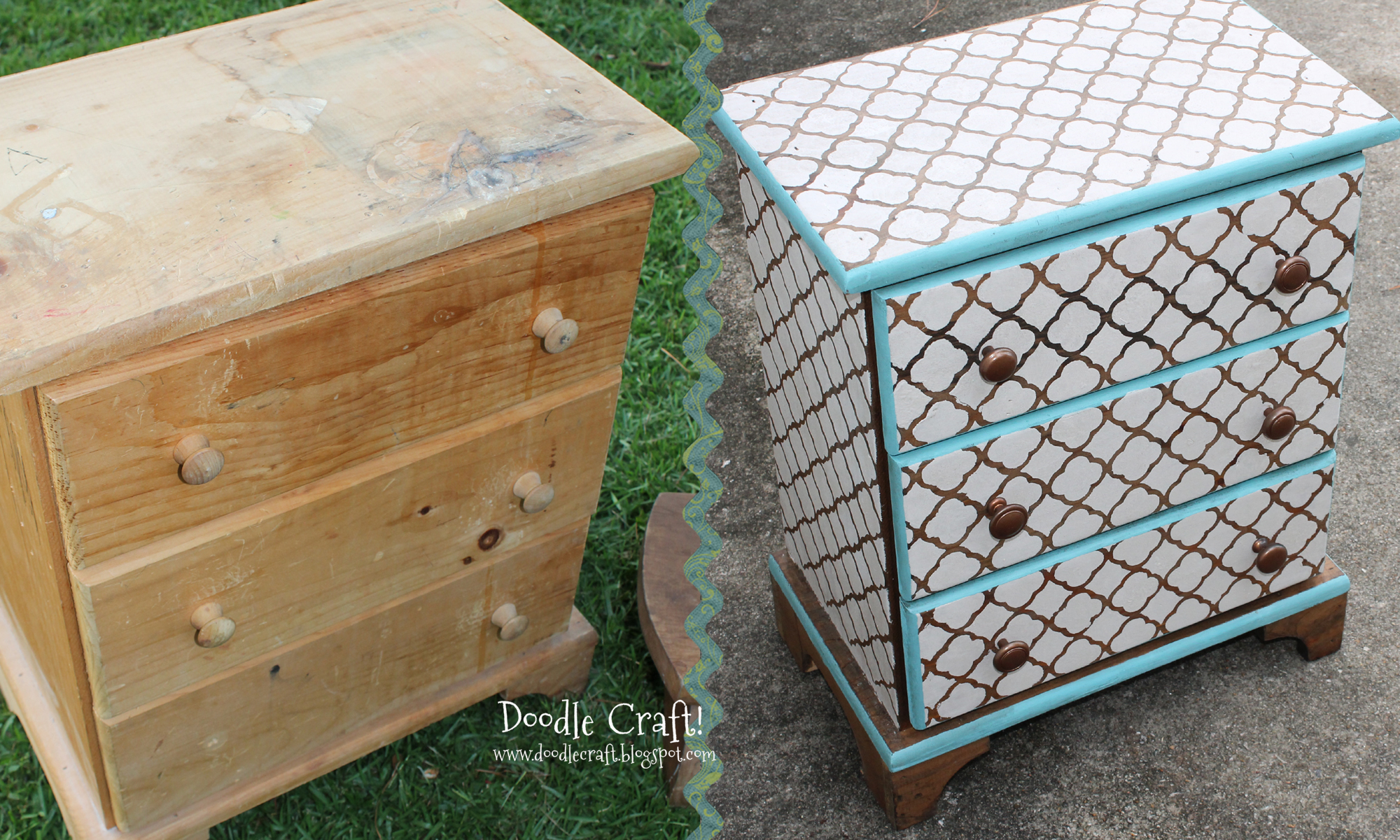

Here's some alarming before and afters...

Acquire Furniture Items.

dresser before it was sanded painted and stained.jpg
dresser top before gross scratched goop.jpg
crate with wheels.jpg
all three things sanded and ready to paint stencil and stain.jpg
I began with a nightstand that was in seriously bad shape.
Glue, dents, dings, water stains, sticker goo...you name it...
this thing was disgusting!
The redeeming feature is that they were REAL wood...
I knew I could work with it!

The stool was in comparable shape. Thankfully they were cheap at yard sales.

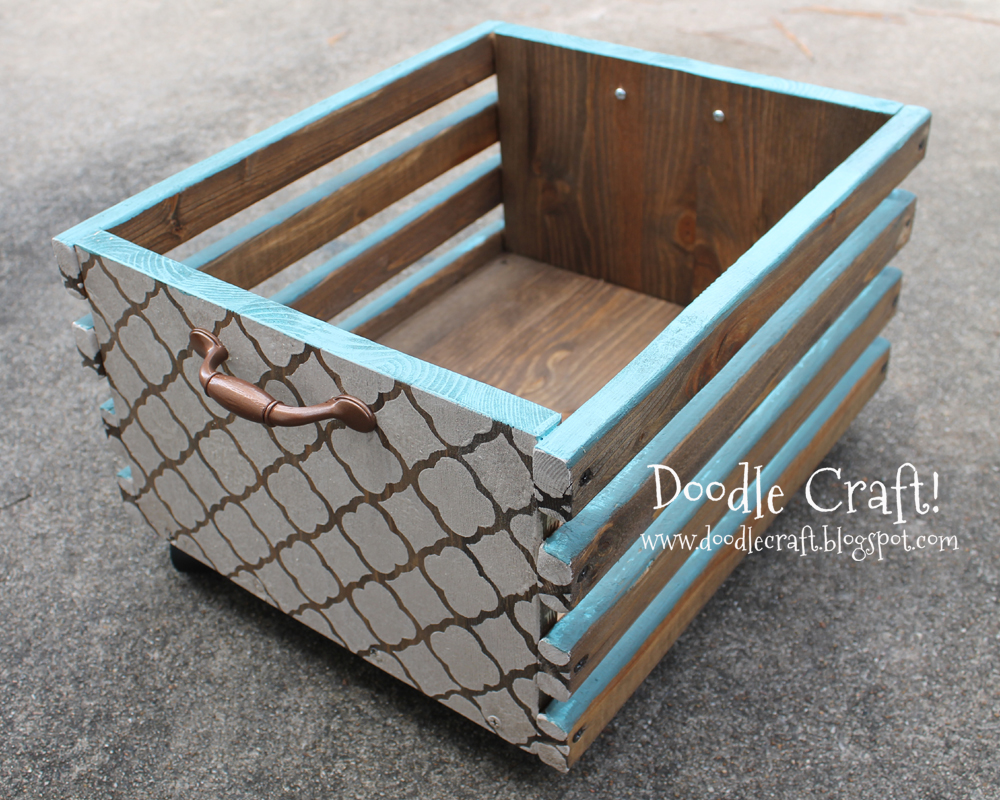

The crate I built from scrap wood from the garage...and spare casters.

I spent a lot of time scraping things off and sanding things down.  Removed the wooden knobs off the drawers...

Custom Stencil

small version 5 by 5.jpg
cameo scoring stencil plastic sheet.jpg
custom diy stencil.jpg
stencil making make your own custom stenciling.jpg
cutting the plastic into a stencil.jpg
stencil cut out useable moroccan quatrefoil pattern.jpg
stencil cut and ready to use diy stenciled tutorial thick plastic.jpg
I am too cheap to buy a $40-50 stencil for a project I am going to use once...
so I improvise and make my own.
I inserted my thick plastic (I got sheets of it at the thrift store, but they sell plastic for stencils at places like the depot)
right into my silhouette cameo. about a 12 by 12 pattern.

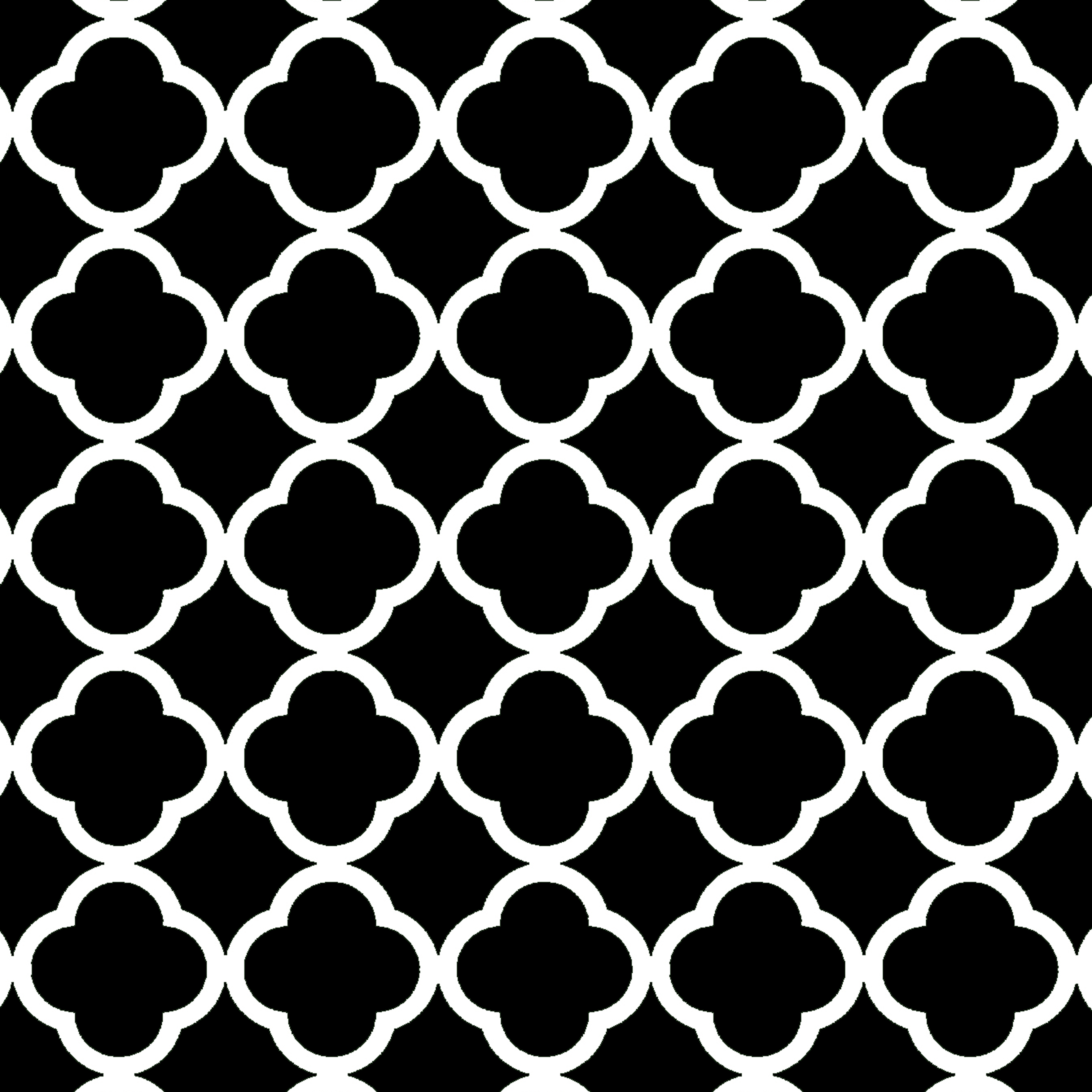

Once I tweaked the quatrefoil background I wanted...I had the cameo "cut" it.  Here's the pattern file I used, if you are interested...there are others on my blog here.

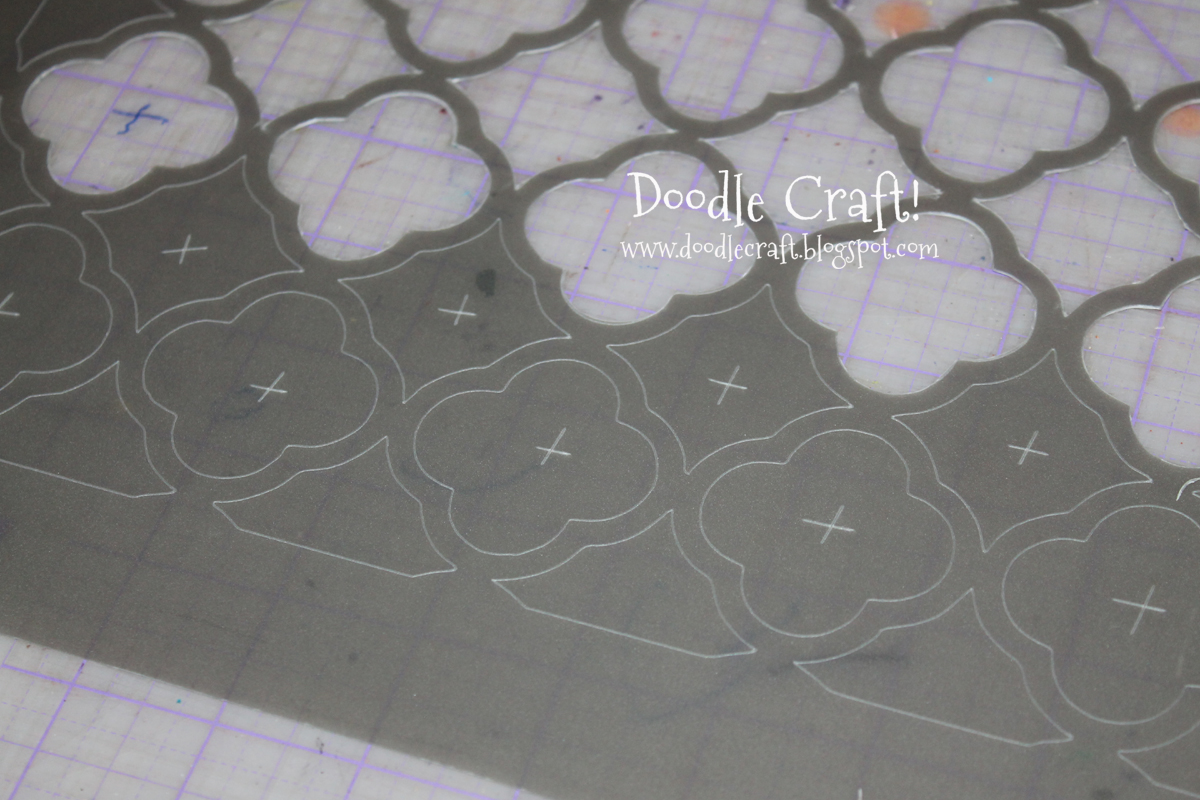

This plastic is much too thick to have the cameo cut it out though.

It did score the lines though...and that's what I wanted!

Then I spent hours cutting it out with some fine tip scissors.
Yeah, it was slow going...but my son and I listened to some of the Hobbit on cd,
so that was fun.

I always put an x on the inside of where I am cutting...sometimes,
you (okay, me) are so close to something and you snap
and start cutting out the wrong parts!

Here's the secret...repositionable spray.
Keep it in place while you work!

Actual Stenciling!

stencil the nightstand mark the center and tape down.jpg
painting the stencil quatrefoil pattern background.jpg
stencil taped and painted.jpg
stenciling the top of dresser nightstand.jpg
drawers stenciled stenciling stencil.jpg
stenciling process.jpg
stencil process.jpg
stenciling finished phase one needs something.jpg
With no time to spare...I measure the surfaces of everything to
stencil and marked a tiny x on the center.
Then I lined up my stencil and started in the middle.  This is kind of an eyeballing it job.

I used a parisian slightly off-white paint that I
had sitting around and a stipple brush.
You dab paint straight down over the edge of the stencil.  Don't rub or the paint will seep under the stencil edge.
((It will do that a little anyway...I used my x-acto knife to clean up the stencil when it was totally dry.))

One you do the first stenciling...you wait until the paint is totally
dry before pressing it down again and painting the next piece.
But it worked pretty well, because I had so many surfaces that
needed to be painted...so I just went around until all the centers
were painted and then the first one was ready for part 2, and so on.

At first I wasn't going to stencil the sides of the nightstand...
besides I had run out of white paint! But it needed it, so I got out some
acrylic paint and did it.

Adding a Pop of Color!

side of dresser nightstand stenciled.jpg
paint inside of drawers.jpg
Not a perfect paint match, but close enough.
Well, they still looked boring to me, so I edged them in aqua blue.
This pop of color helped clean up weird stencil fades and stuff like that.

Oh, ya, painted the inside of the drawers too!
And used up all my aqua paint as well!

Let them dry over night.

Next Comes the Stain!

staining the wood stool paint stencil and stain.jpg
stain and rags and brushes and paper towels.jpg
staining the stenciled nightstand.jpg
Next day was the fun!
Staining!
I used dark walnut stain. I wanted it dark...so I painted it on with a
paintbrush and then rubbed off the excess with an old rag.
Repeated over all the surfaces. I love how it makes the stencil pop out!

Change Up the Hardware!

cheap unmatching handles and knobs.jpg
spray painted knobs and handles.jpg
nightstand crate and stool stacked and finished.jpg
upclose of handles and knobs finished and matching.jpg
furniture set finished.jpg
Once the staining was done...the knobs and handles needed replacing.
I had a ton of random knobs I got at a yard sale...none match.
and they were gold.

I just sprayed them all brassy copper and they match perfectly now!

See how perfectly they work with the stained wood?

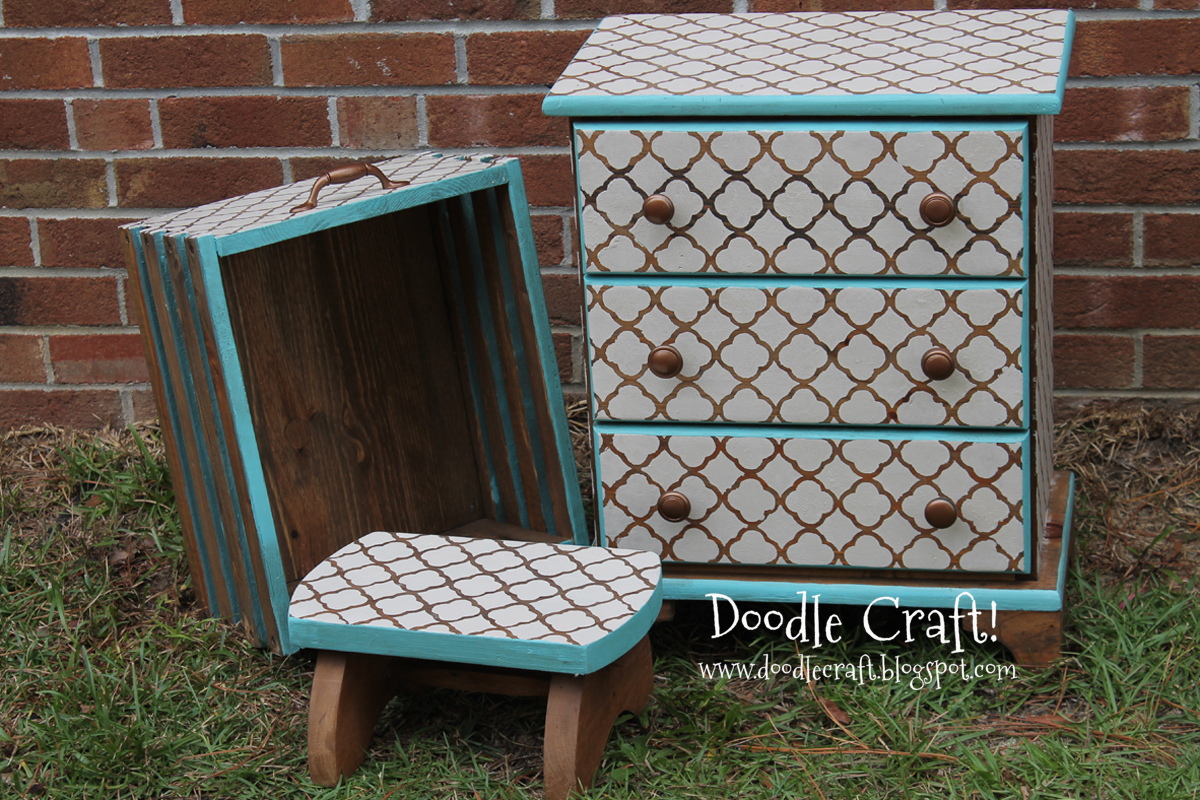

Finished Matching Stenciled Set!

top view of finished stencil stain and painted furniture.jpg
finished pieces.jpg
hanmade crate pine stencil and stain handles in copper.jpg
stool done.jpg
finished stencil stenciled pieces.jpg
I love how they turned out!  Perfect accents for the boys room to match the bunk bed!  :)
