DIY Convert Studio Light Stand to Horizontal Camera Tripod
by RP HOBBYIST in Circuits > Cameras
2737 Views, 31 Favorites, 0 Comments
DIY Convert Studio Light Stand to Horizontal Camera Tripod
Taking Top Shoot for Project becomes hard to get, people prefer to buy a horizontal tripod. In this project, I converted Studio Light Stand into Horizontal Tripod. In addition, you will get a light facility for the shoot. If you have Studio Light Stand standing alone at a corner and thinking to get a horizontal tripod then convert it now into Horizontal Tripod, "Don't Buy New Tripod".
Studio Light Stand is made up of heavy-duty material and a steady structure so it makes a better choice for it. And also you will get Light on the tripod for the shoot which makes this excellent conversion. It is very easy to build and makes more usability for photography or videography for Top Shoot.
Below you will find Fusion360 File (F3d), download it and edit it according to your requirement.
What you need to make this Project is 3D Printed Parts, PVC Pipe (or Aluminum Pipe), Screws, Camera Holder mount (from an old tripod) and Studio Light Stand that's all. Yes, that sounds easy to make!! so try to make this conversion to Horizontal Tripod.
Supplies
- PVC Pipe (40inch- 30mm diameter).
- PVC Pipe (10inch- 30mm diameter).

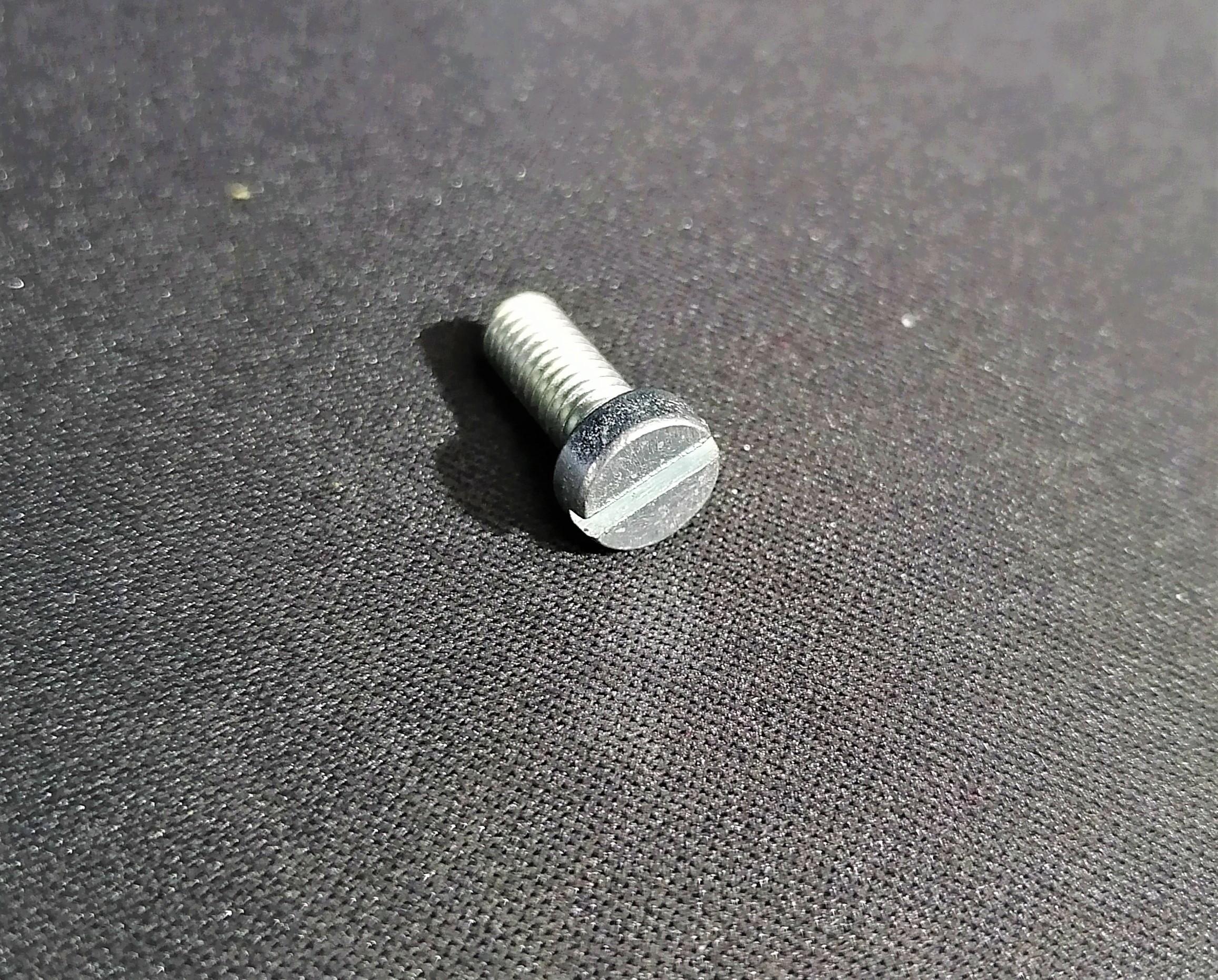

- Screw (15mmX5mm) (Refer screw type from image).

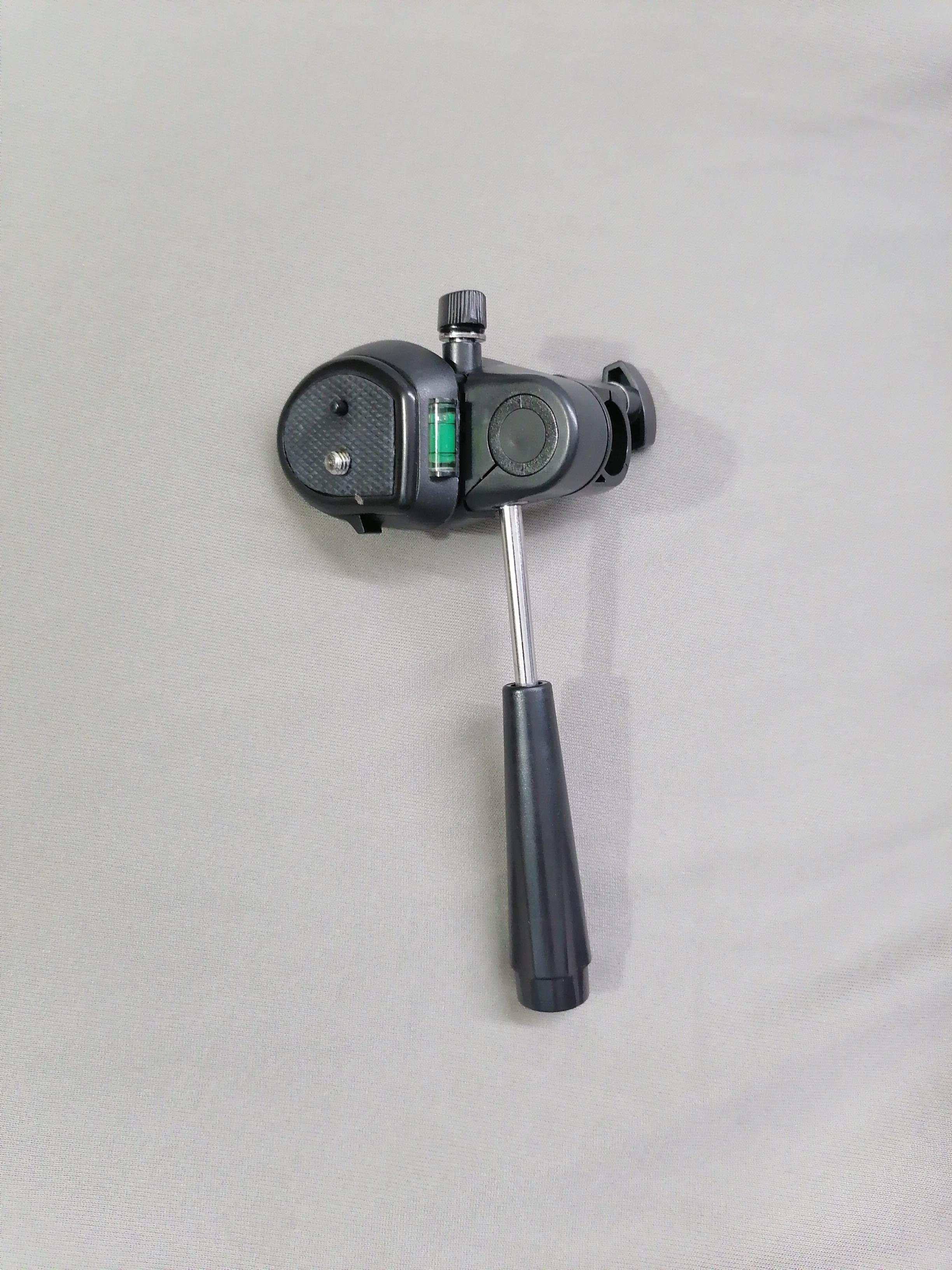

- Camera holder mount.
- 3D printed Parts.
- Studio Light Stand.
Noted: You can use aluminum pipe instead of PVC.
Design in Fusion360
I provided Fusion360 file so you can edit according your dimensions.
Downloads

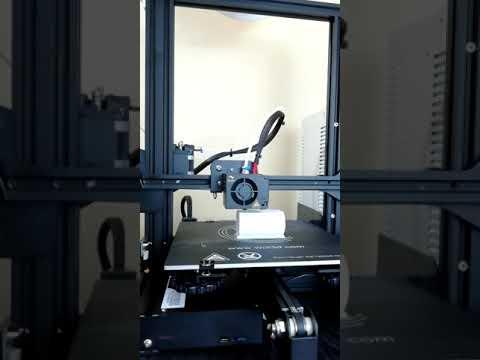

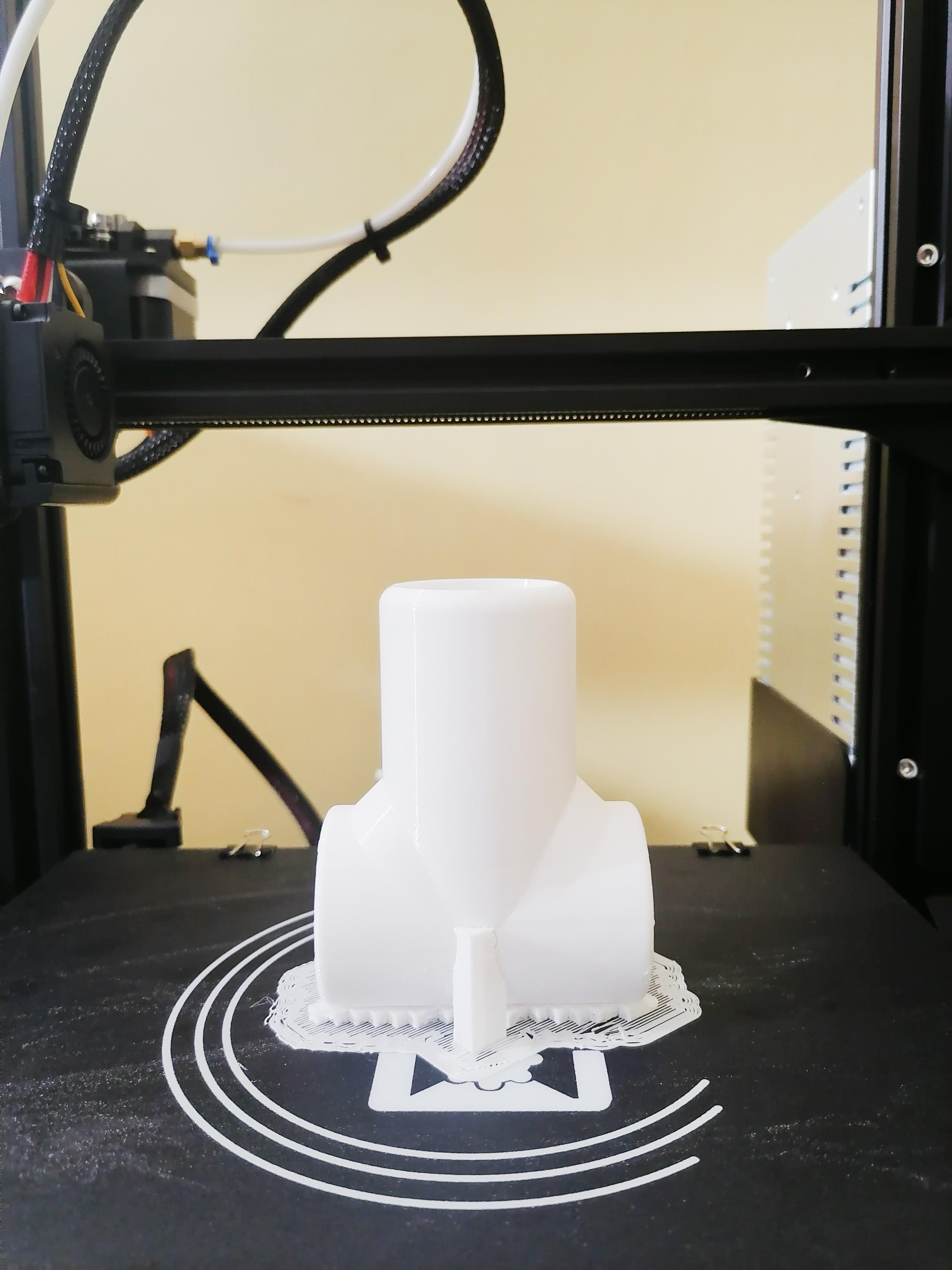

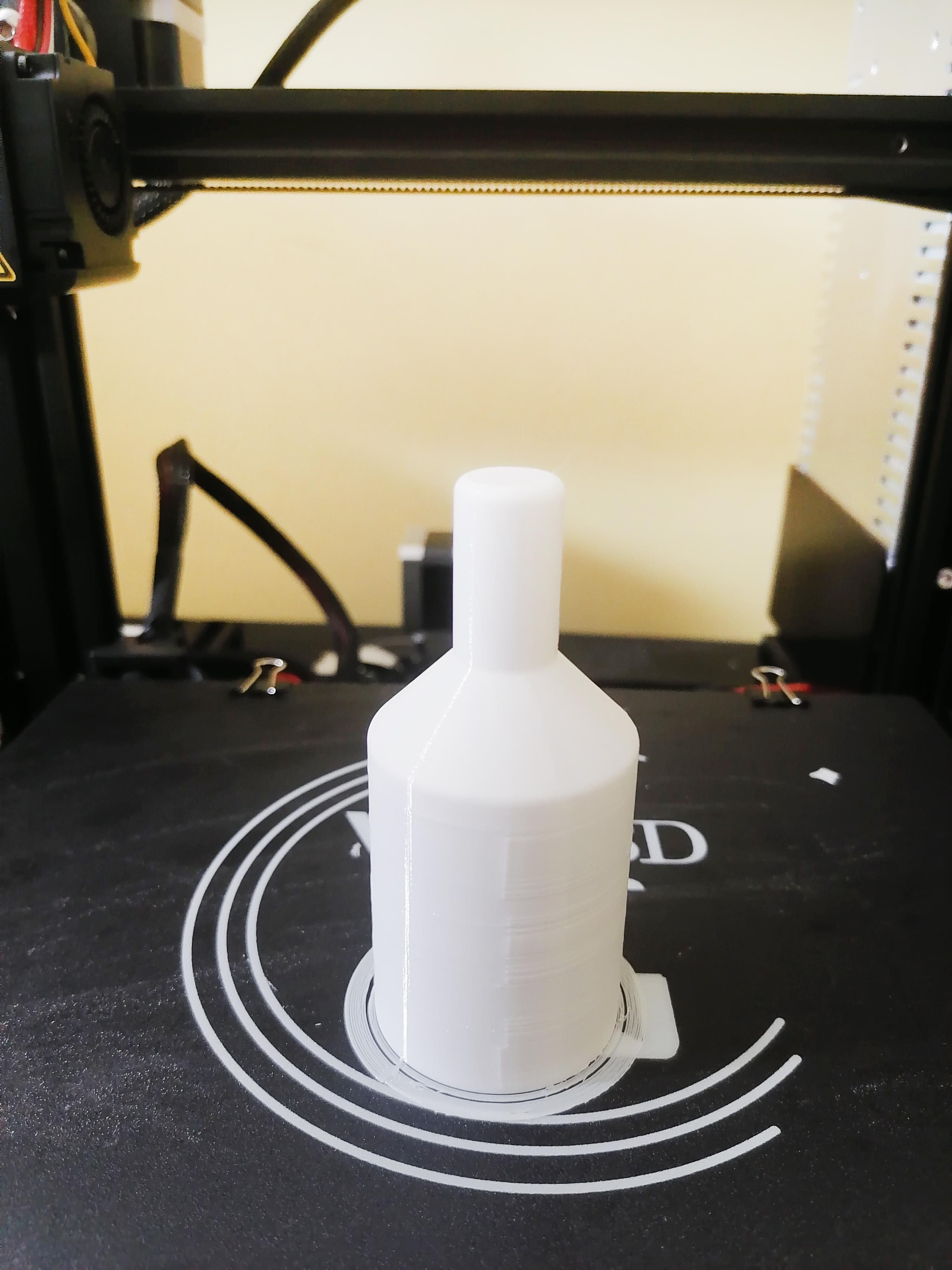

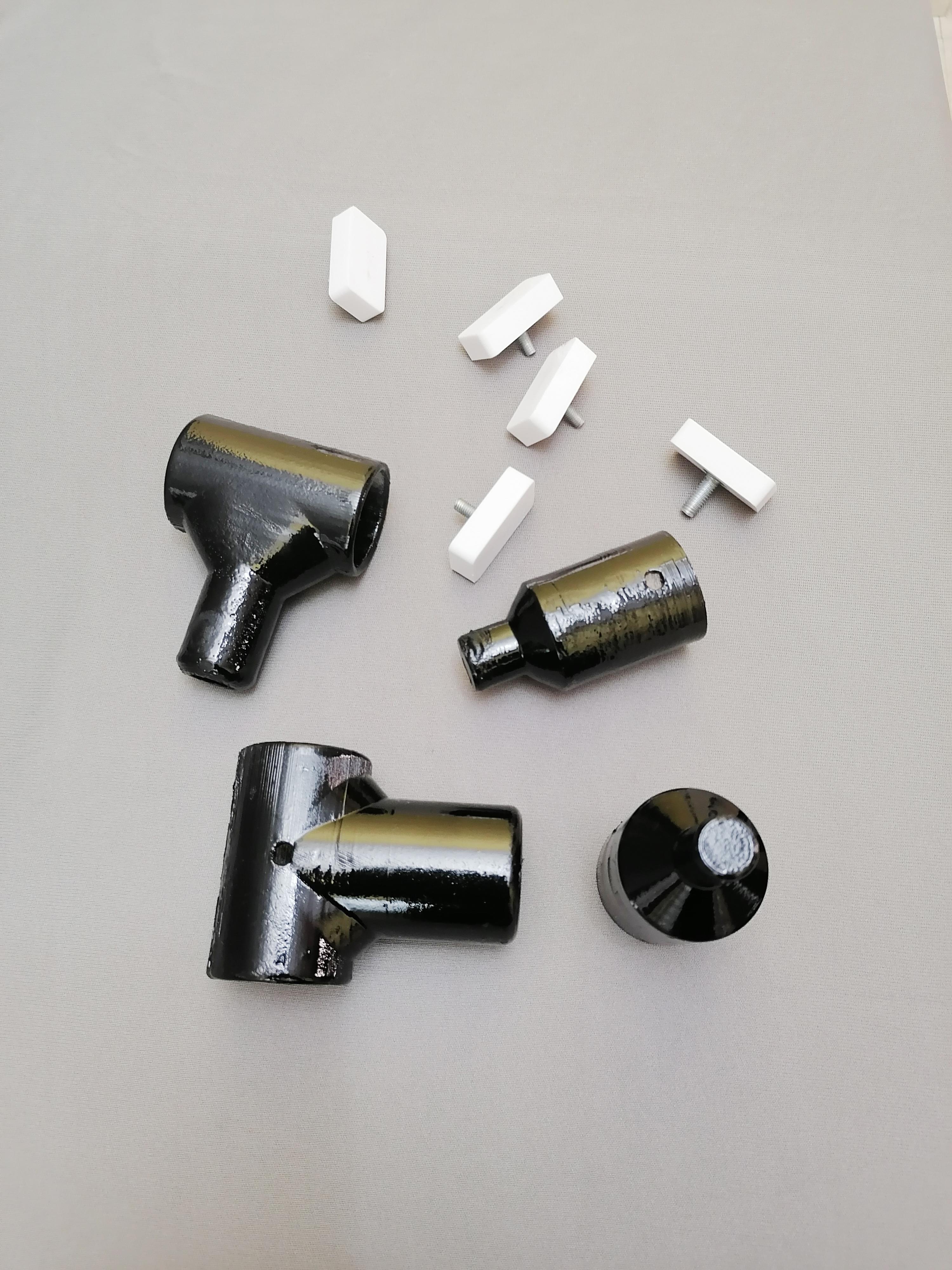

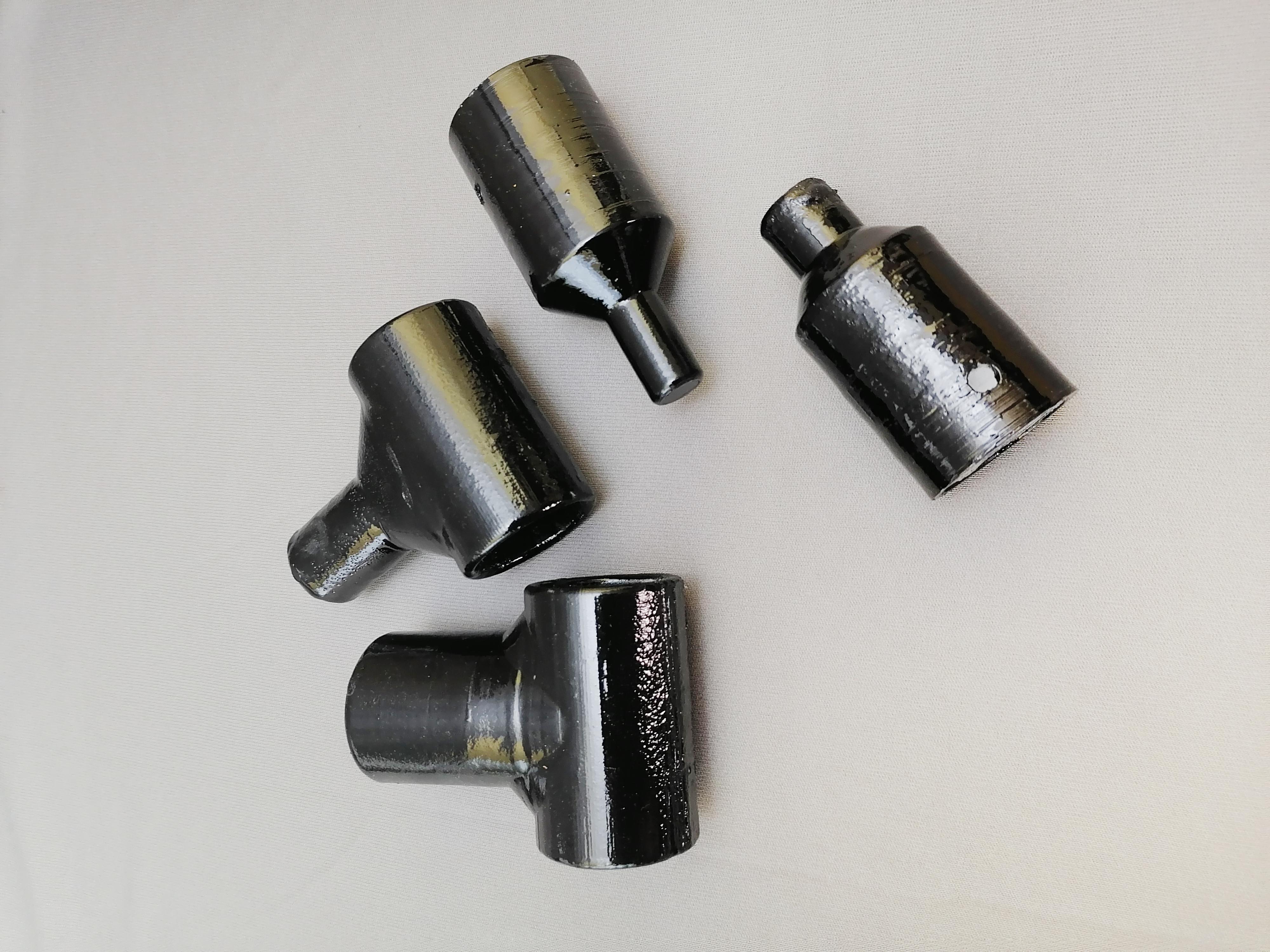

3D Print All Parts
I recommend you to print all parts with 100% infill.

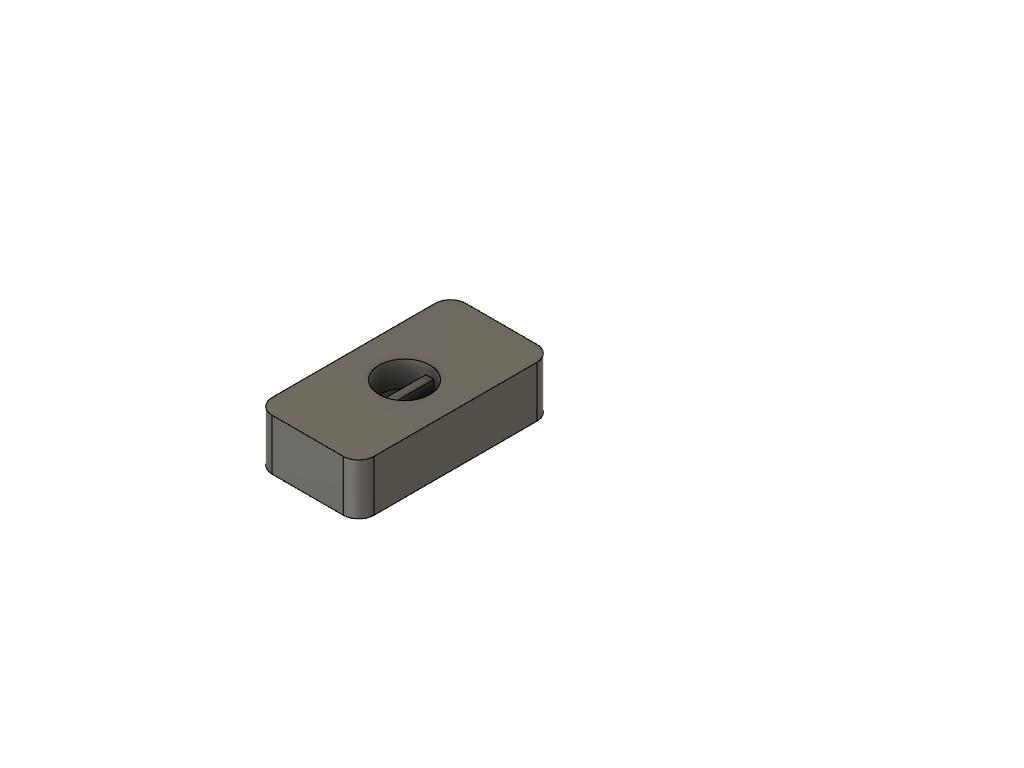

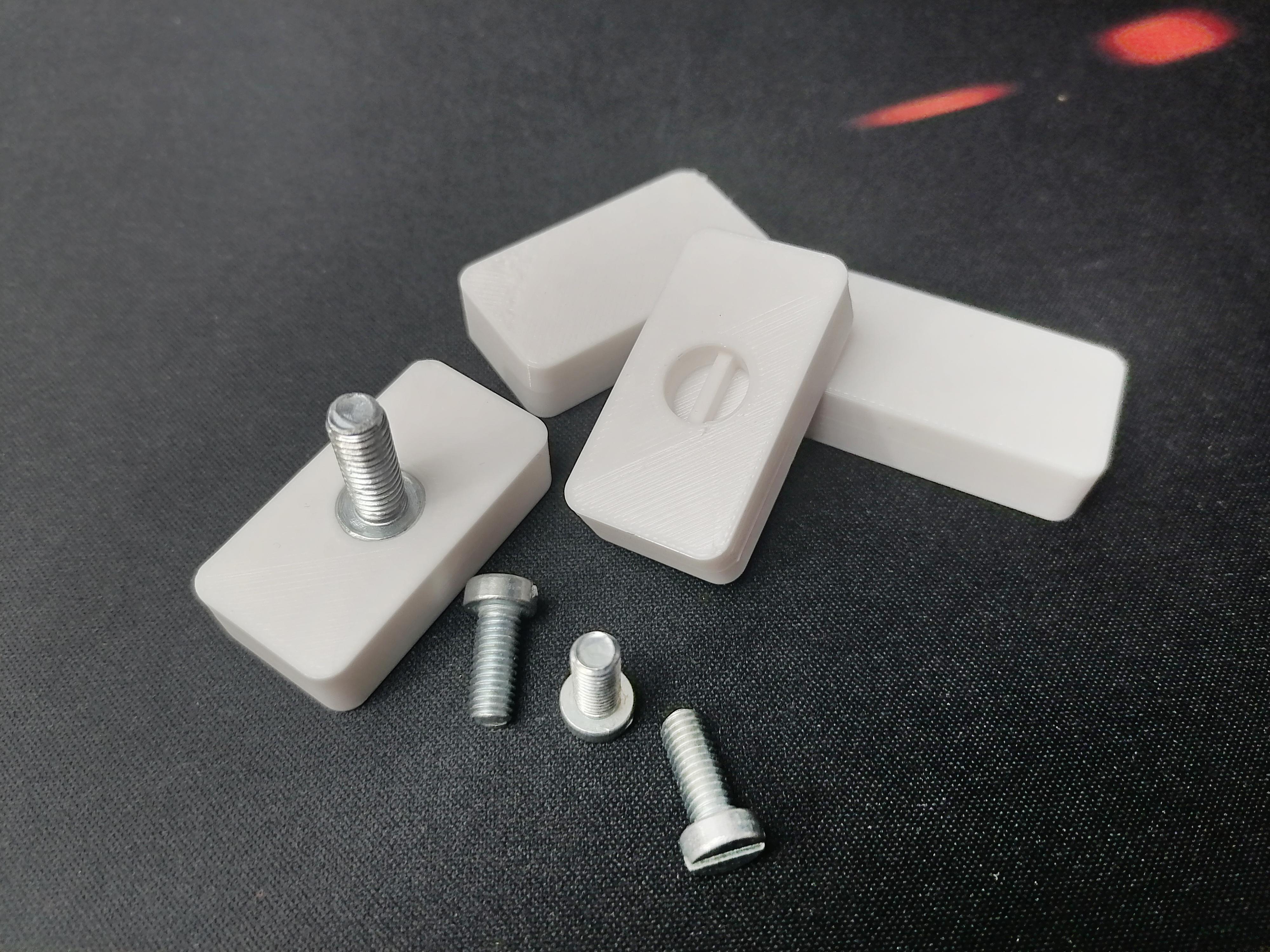

Insert Screw Into 3D Printed Knob
Insert screw head (little tapping needed) into knob then put superglue in it.

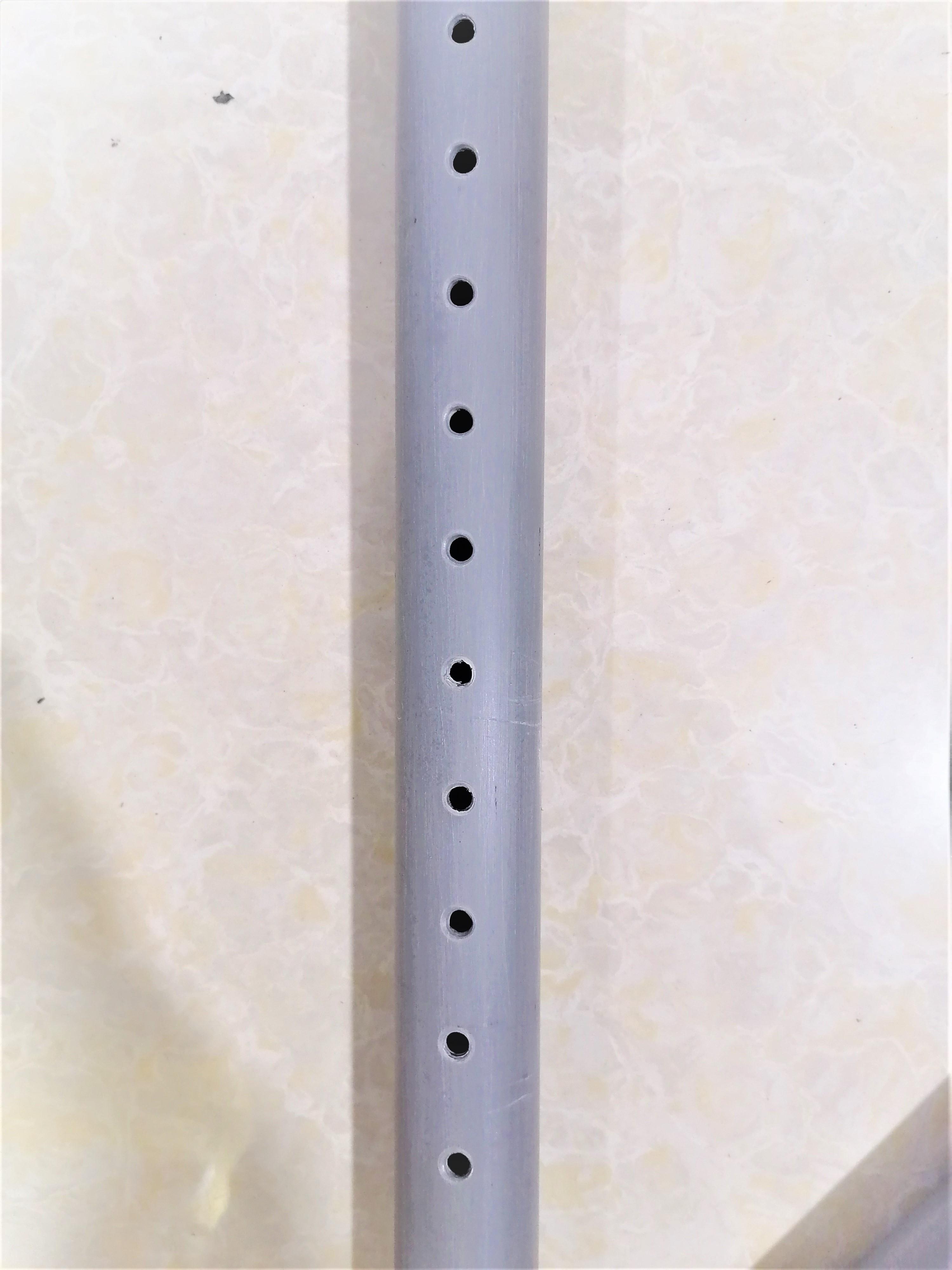

Make Multiples Holes in 40inch PVC Pipe
Make multiples holes in pipe with diameter of 5mm on every 1inch distance. Why these holes?? these holes for change length of camera distance.

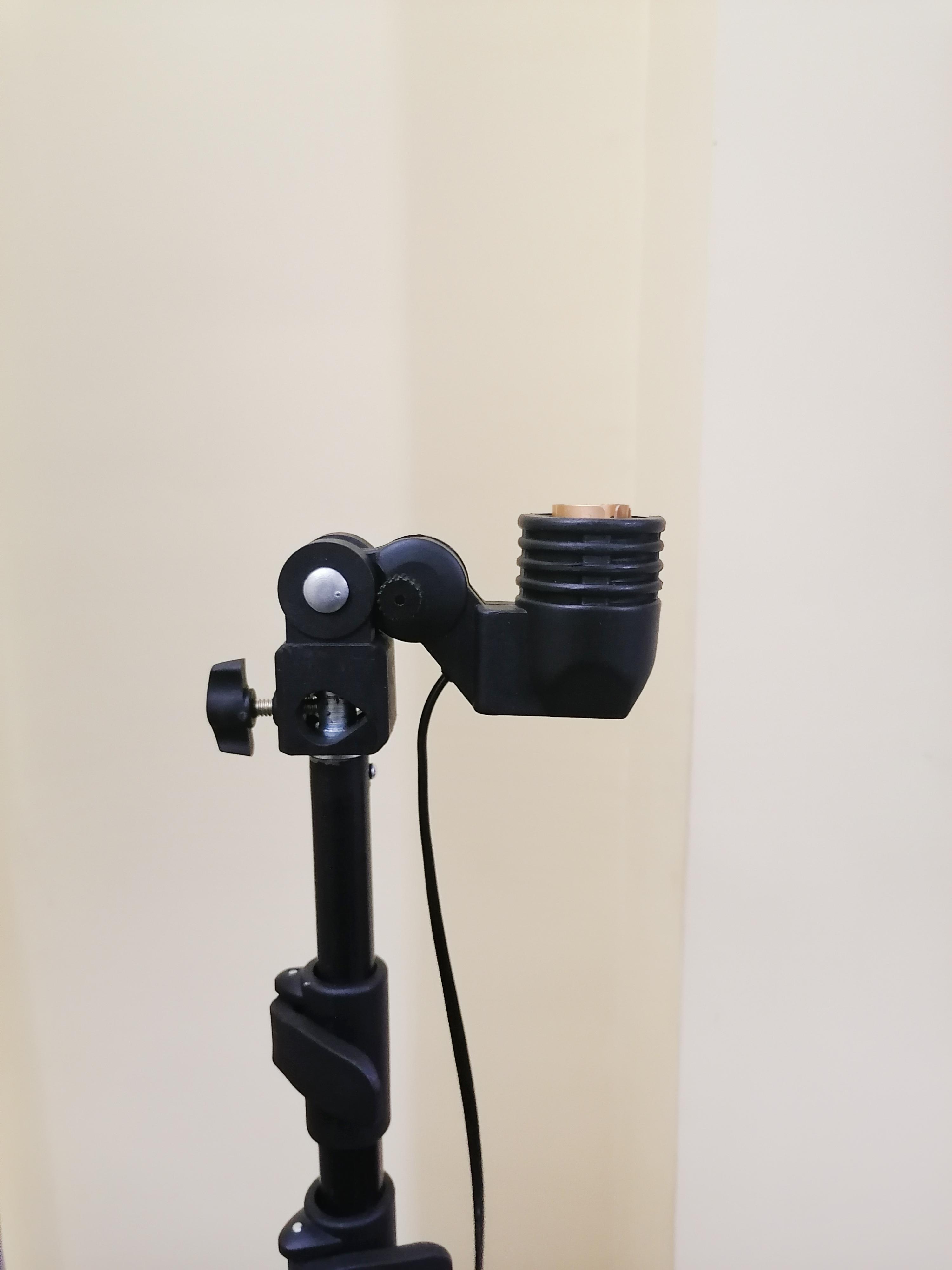

Remove the Light Holder From Light Stand
Insert Part-1 and Tight It With Screw Knob
Use Part-1 3D printed.
Insert Pipe to Holder Part -1

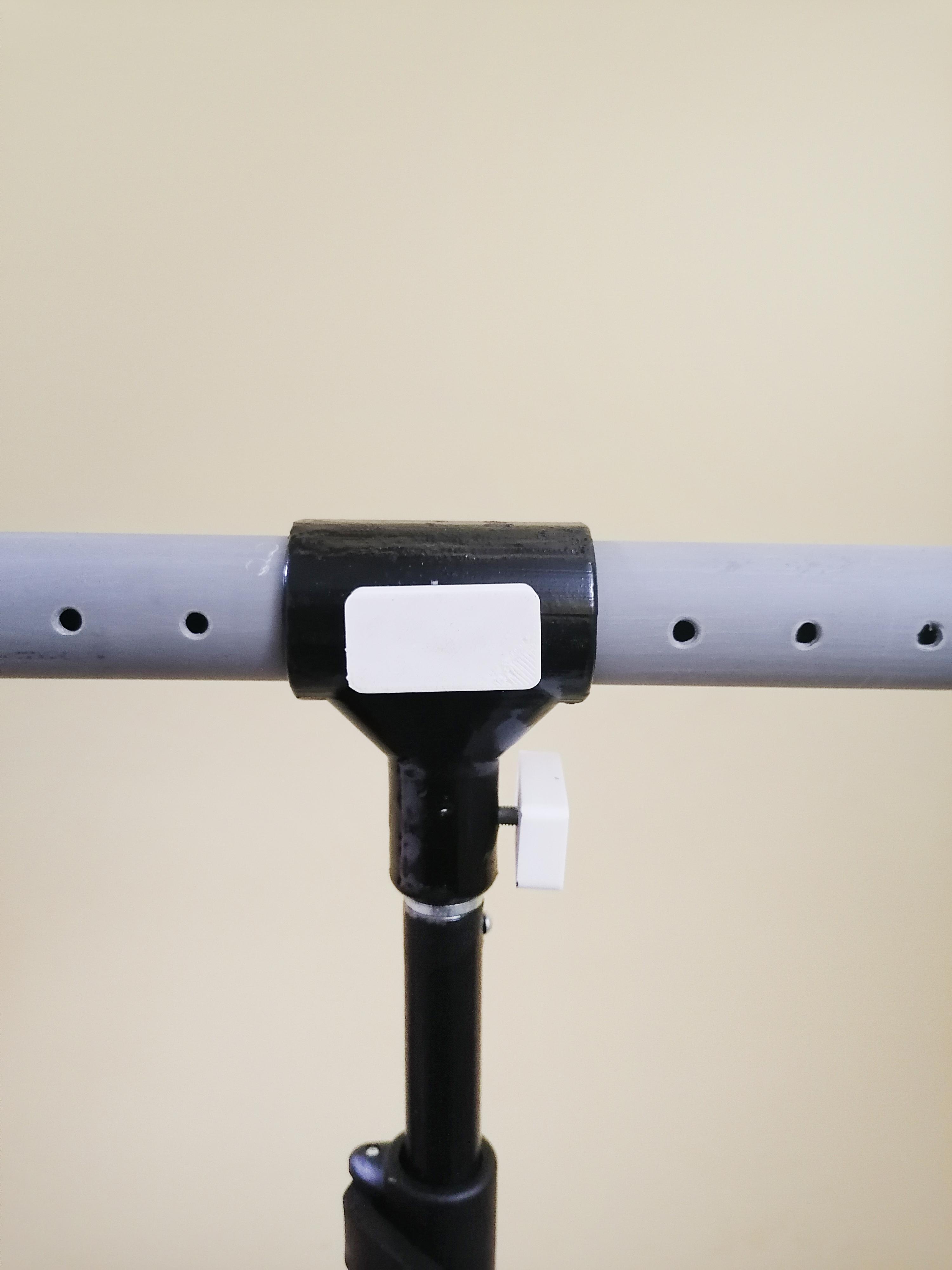

Tight It With Screw Knob

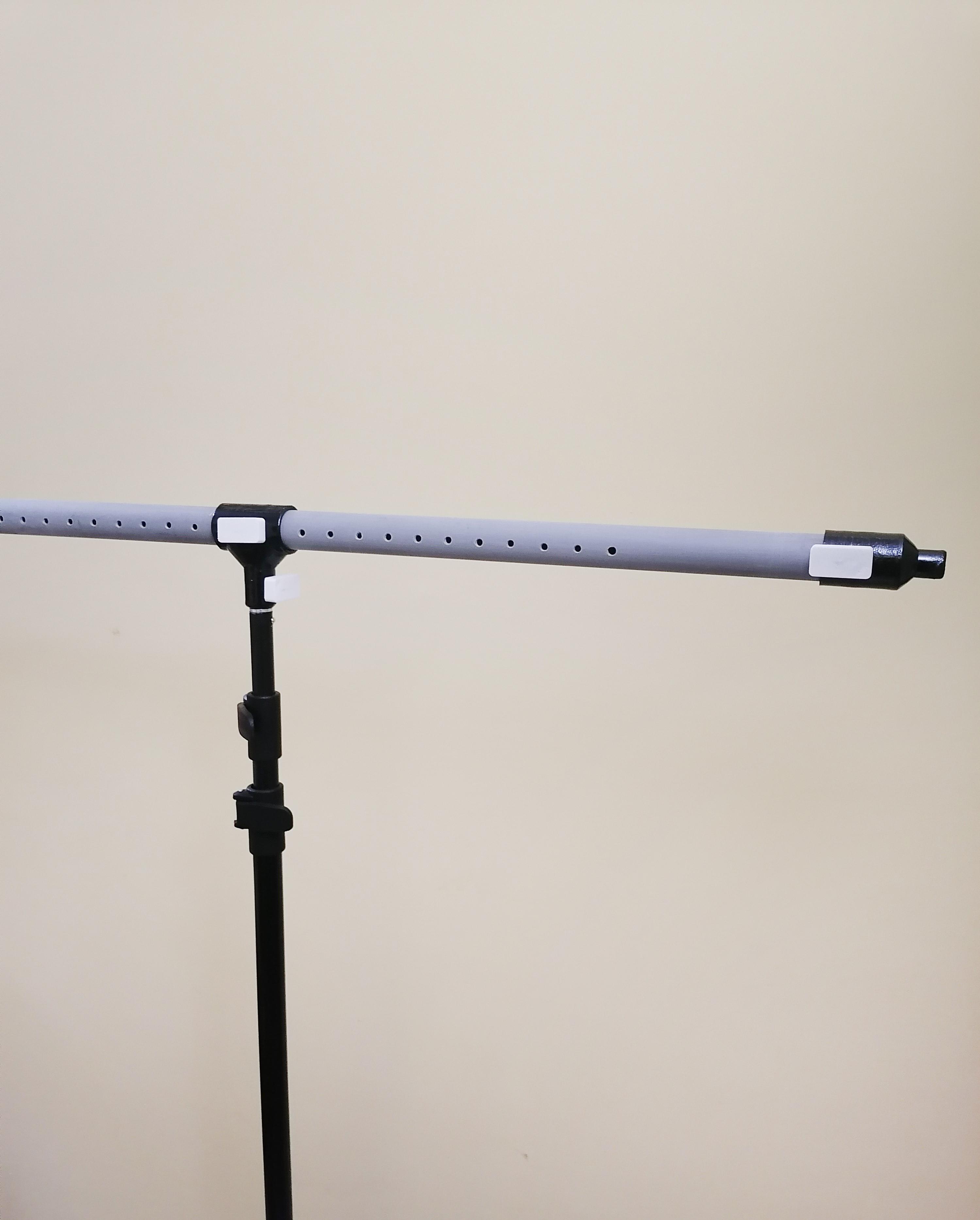

Attach Part-2 to End of Pipe
Use Part-2 3D printed. Tight It With Screw Knob.

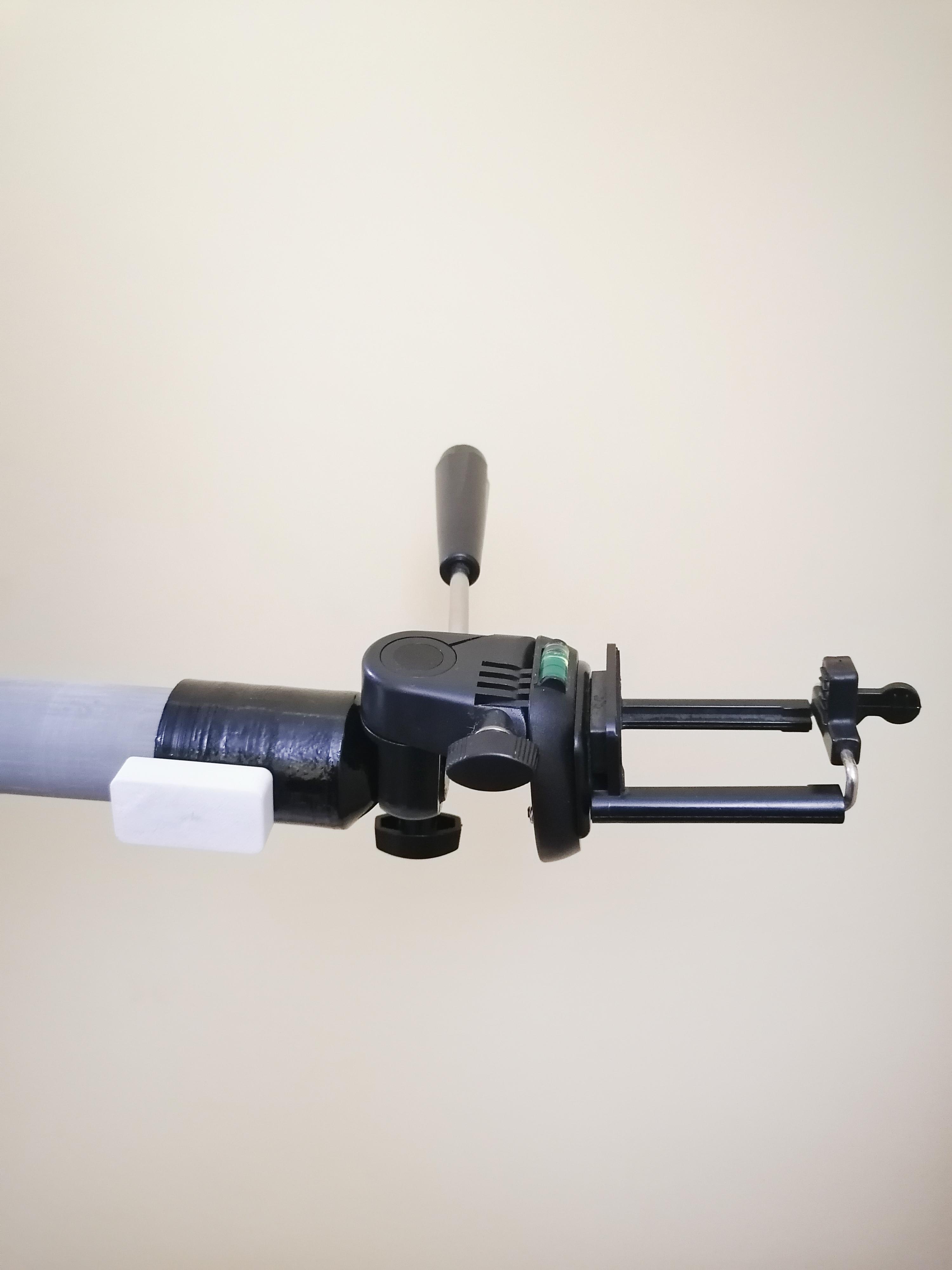

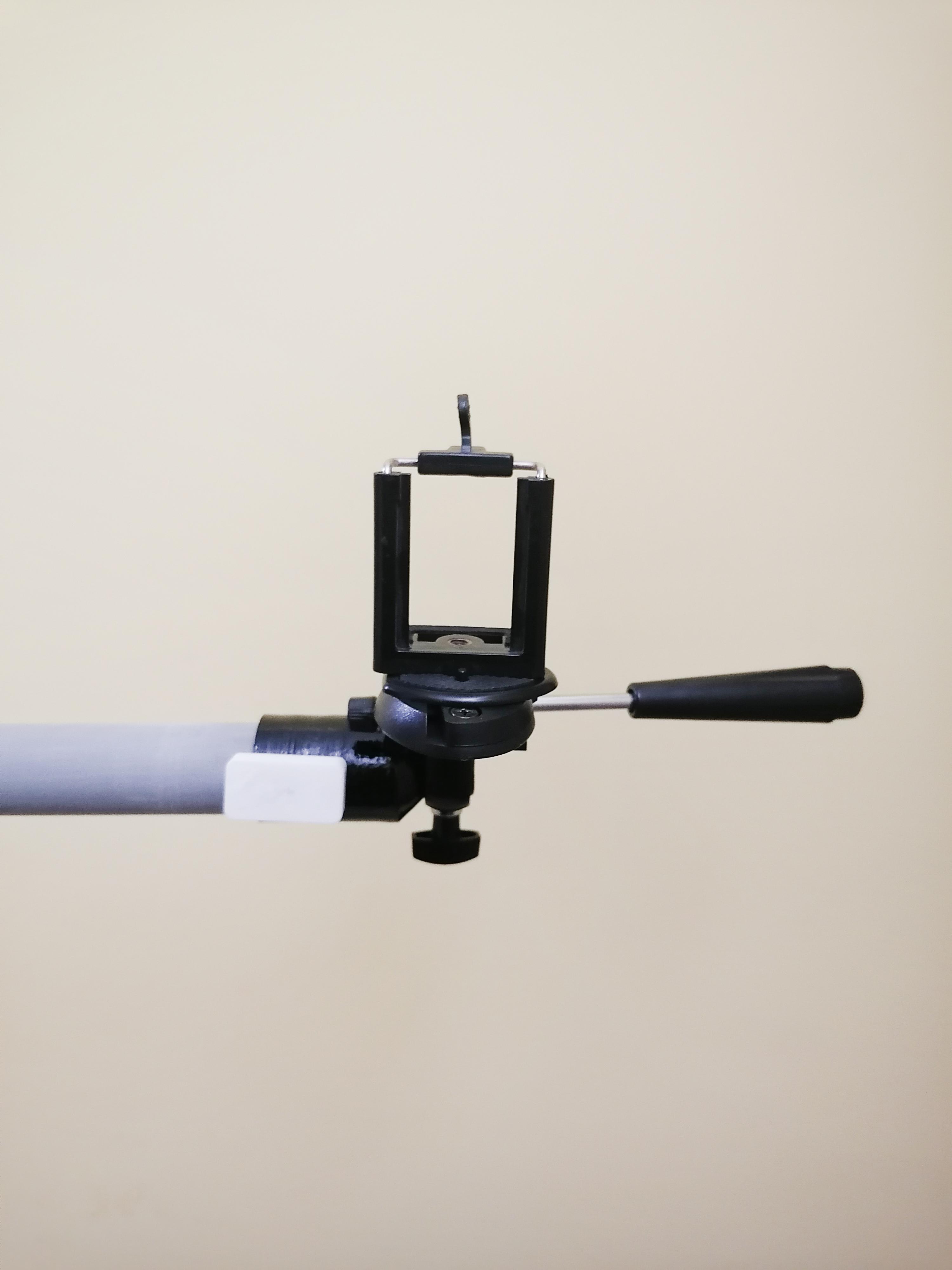

Attach the Camera Mount on Part-2

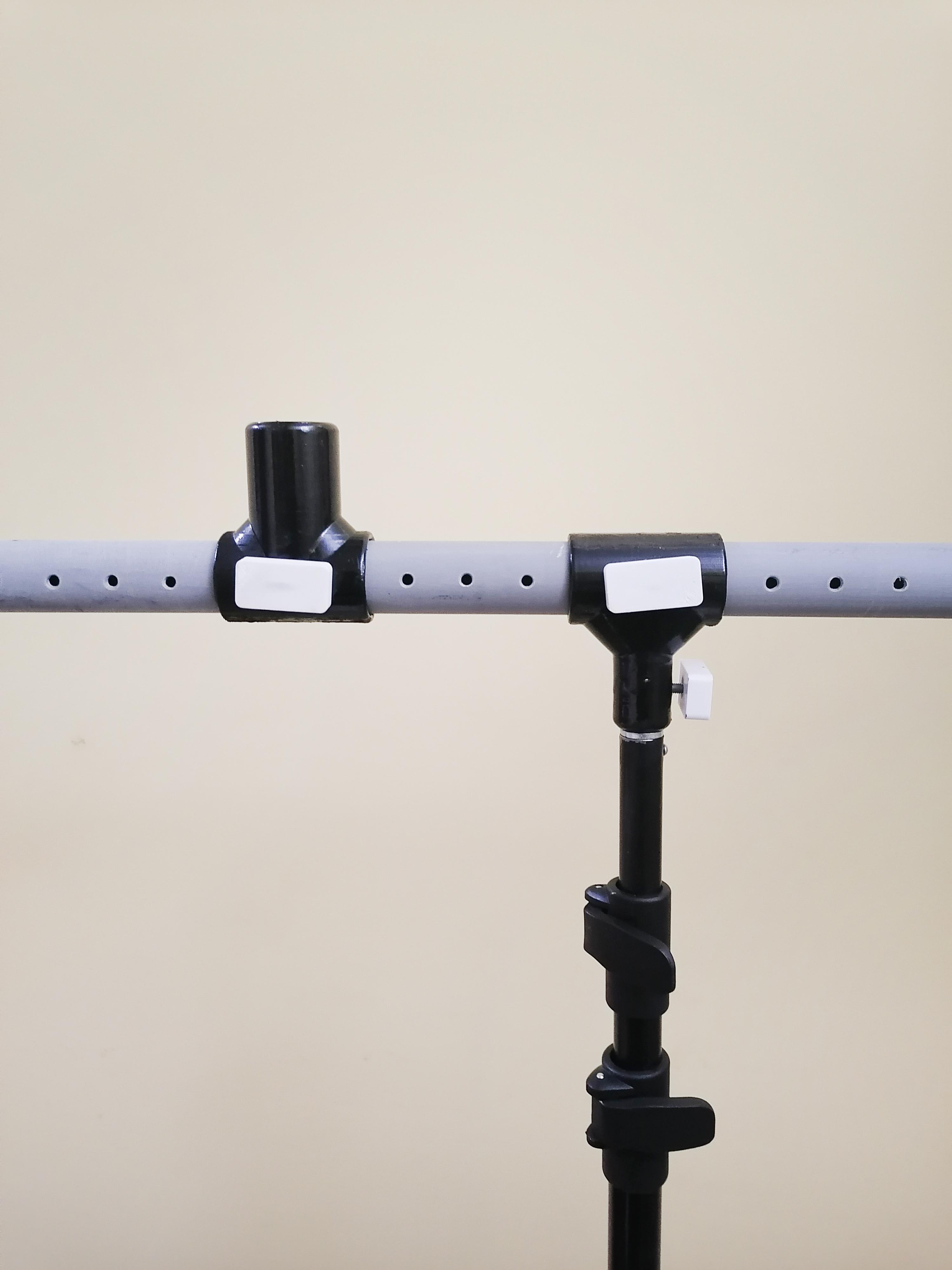

Insert Part-3 Holder to Pipe
Use Part-3 3D printed. Tight It With Screw Knob.

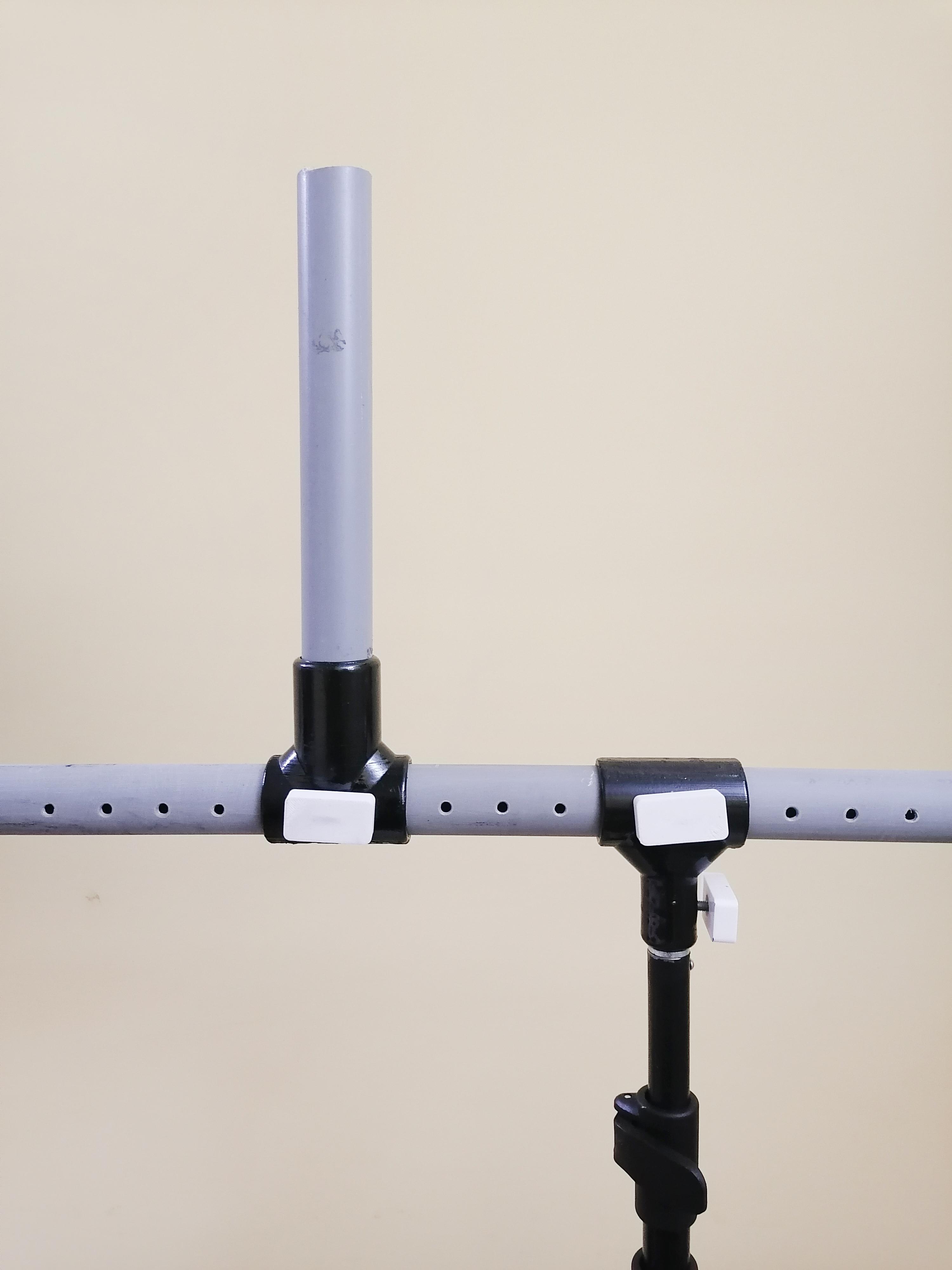

Insert the Small Pipe Into Part-3
Insert Part-4 Holder to Pipe
Use Part-4 3D printed.
Mount the Light Holder on Part-4
Complete Your Assembly
Noted: To counterbalance the Whole bodyweight then some use extra weight to the end of the pipe. Hang some weight at the end of the horizontal pipe. It depends on your camera weight.
Final Setup!!!
"Hope you Enjoy to make this project"
If any question about this project just let me know in comment box!!
