DIY Concrete/Wood Dog Bowl Stand

I made this awesome DIY dog bowl stand with a concrete top for my dog's food and water bowls. This is an easy build and a great into into working with concrete! I used Quikrete for the top and 2x8's for the wooden base.

Be sure to watch the video to see more details on how I did it

• Table Saw
• Circular Saw
• Hot Glue Gun
• Drill/Driver
• Orbital Sander
• Melamine Boards
• Quickrete Concrete Mix
• Concrete Sealer
• 2/8 Boards
• Wooden Dowels
• Wood Glue
• Matte Poly Finish

The Concrete Top

I started this project by cutting 4 strips of melamine 1.5" wide on the table saw to make the sides of my concrete form. You could also use a circular saw. I then cut the strips to length on the miter saw.

*Tip: When I need melamine for a project, I visit my local Habitat Restore and find scraps that are very inexpensive.

Once I had the four pieces to size I screwed them together to make a rectangular form, making sure my corners were square.

I hot glued the form down to a bigger melamine piece, creating the bottom of the form. And then caulked the inside corners and edges with silicone.

I mixed up some Quikrete and then filled the form, making sure to push the mixture into the corners.

I set in a piece of wood (coated with polyurethane to keep out moisture) that will later be used to attach the wood base to the concrete top. I secured it with scrap wood and screws to keep the wood from floating up while the concrete cures. And finally I hammered on the edges of the form with a mallet to get out any air bubbles.

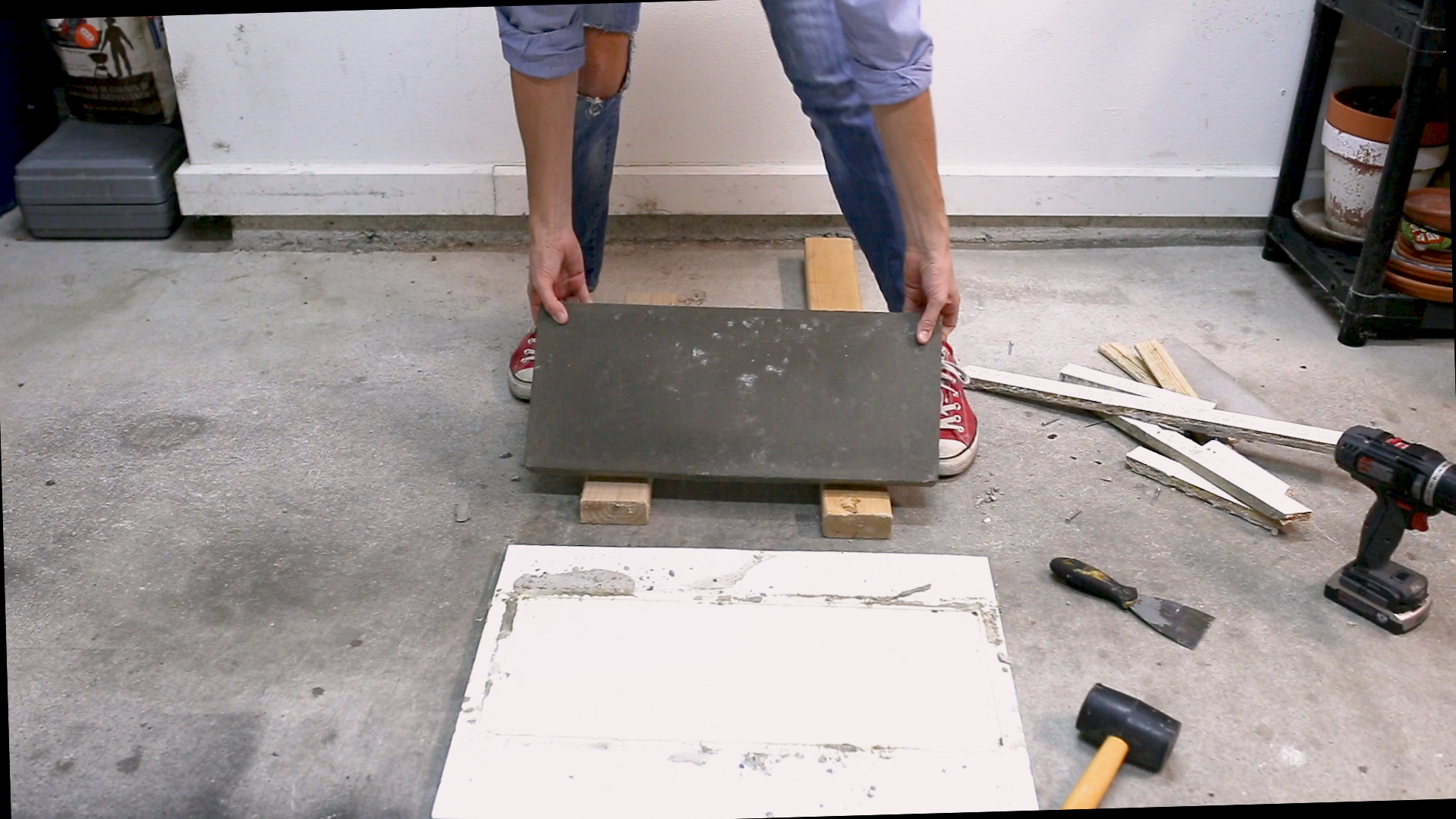

I let the concrete cure in the form for at least 48 hours. I then removed it from the form and lightly sanded any rough corners. After the slab was fully dry, I sealed it with a concrete sealer to protect it from moisture and stains.

The Wood Base

I cut off the rounded sides of a 2x8 with my table saw, giving me nice square edges. I then cut the board to the 4 shorter lengths I needed using a circular saw. I cut two to 14" and two to 8.5".

I'm going to attach the boards using screws but I don't want the screws to be shown. So I drilled recesses for the screws to sit down in that I will later cover. Then then glued and screwed the side boards to the top board.

Once the sides were attached, I attached the base to the concrete top while I could still access it easliy. I drilled recesses and screwed the base into the board in the concrete.

With the top attached, I could then attach the bottom board to the wooden base.

To cover the recessed screws, I used dowels. I applied glue to the end of a dowel, stuck them in the screw holes and then cut the dowels off with my flush trim saw.

I then sanded the wooden base and the dowels smooth and gave the wood base a couple of coats of polyurethane in a matte finish. This will protect the wood from the waterfall of water that appears every time my Labrador gets a drink.

That's it! This is a great intro into working with concrete. I love how modern, simple and sturdy this little stand is. I hope you have enjoyed this build and been inspired to build your own!
