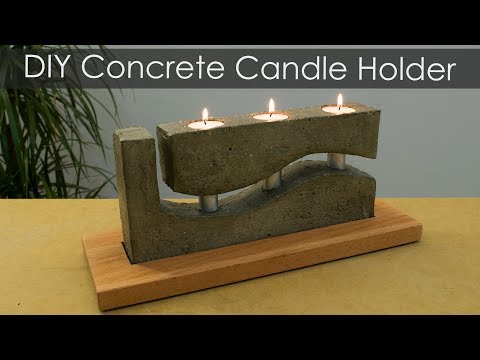

DIY Concrete Tea Light Candle Holder

In this Instructable I’ll show you how I built a concrete tea light candle holder step by step. At first sight it may seem complex, but actually it is pretty easy to build.

I found a simple method for casting concrete which works great. To make such shape you only need a thick Styrofoam board and a utility knife.

Watching the video will significantly simplify the process, and I hope it will inspire you to use your creativity and make something wonderful.

Dimensions:

• Concrete form: 28 x 13 x 5 cm
• Wooden base: 36 x 14 x 2 cm

Materials:

• Styrofoam board http://amzn.to/2GhQbbH
• Aluminum pipe http://amzn.to/2p4aMId
• Quikrete http://amzn.to/2GdUYLb
• Spray paint http://amzn.to/2FxjkOy
• Shellac http://amzn.to/2tBbzps
• Protective gloves http://amzn.to/2oVZx5l
• Cabinet bumpers http://amzn.to/2FvB7WA
• Tea lights http://amzn.to/2FsXorZ

Tools:

• Router http://amzn.to/2Furwz7
• Circular saw http://amzn.to/2FxnLsX
• Cordless drill http://amzn.to/2FqVw3b
• Forstner drill bit http://amzn.to/2FpNZl0
• Utility knife http://amzn.to/2GfjM5a
• Chisel http://amzn.to/2GcW6yw
• Hacksaw http://amzn.to/2tyMjjz
• Sanding block http://amzn.to/2FtUvaw
• Glue gun http://amzn.to/2Gf9thu

The mold is made out of 5 cm thick Styrofoam board.

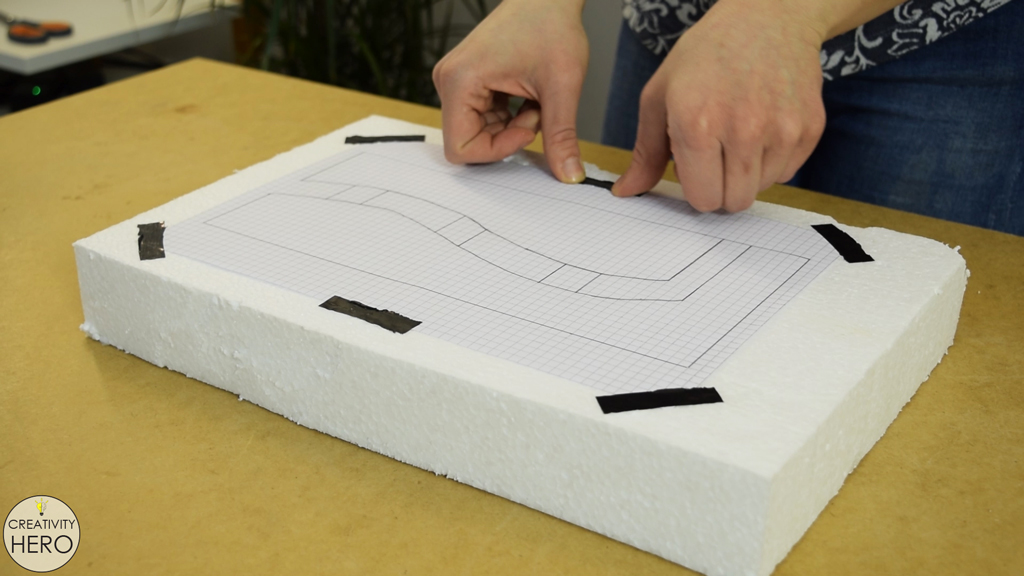

First, I drew the shape on a piece of paper, and to be able to follow the drawing, I stuck it onto the Styrofoam with a duct tape. Then, I made all the cuts, making sure to keep the knife straight and close to the line.

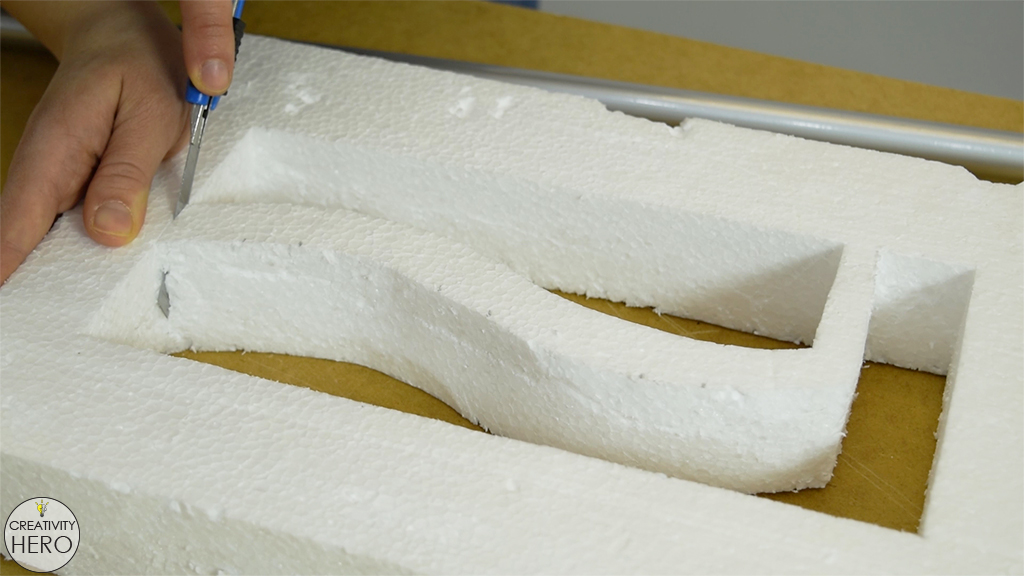

Once finished cutting I removed the cut-outs, and got a rectangle with a wavy form in the middle which separates the rectangle into two parts.

In the middle I wanted to insert aluminum pipes, so to be able to do that I cut the wavy form as well.

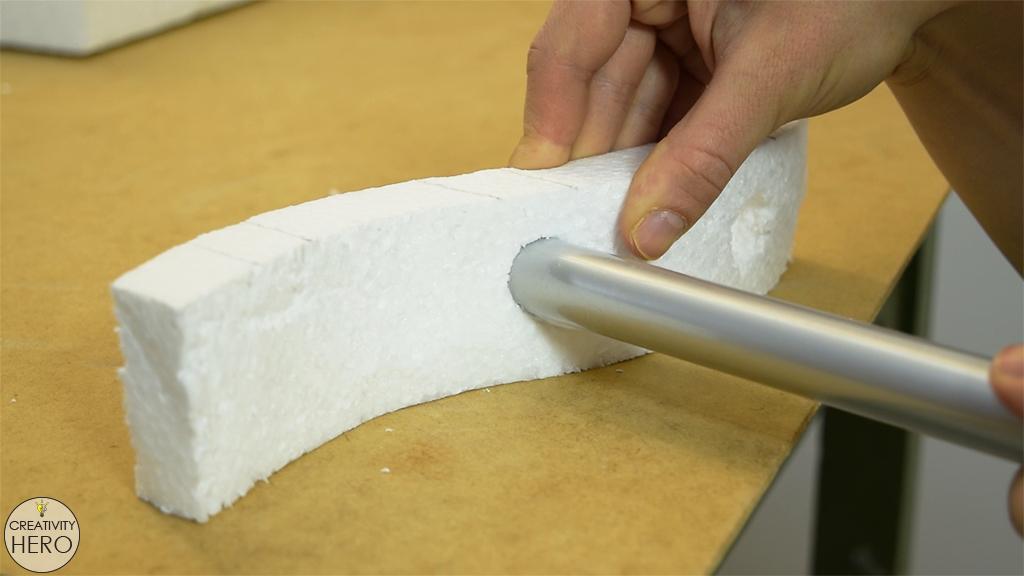

With the middle removed from the board I could make three holes with the help of the aluminum pipe. I just rotated the pipe into the foam carefully, until came out from the other side.

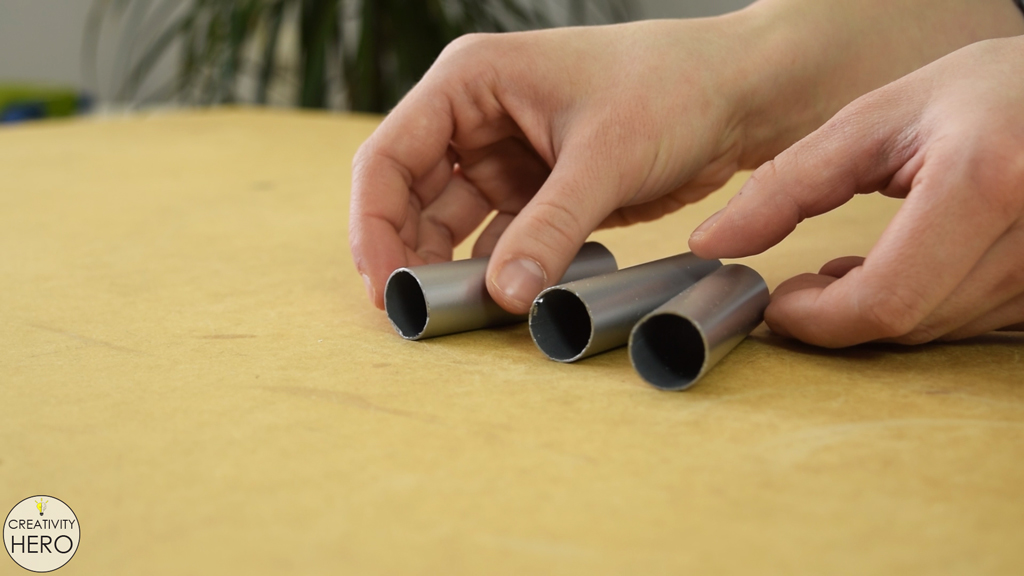

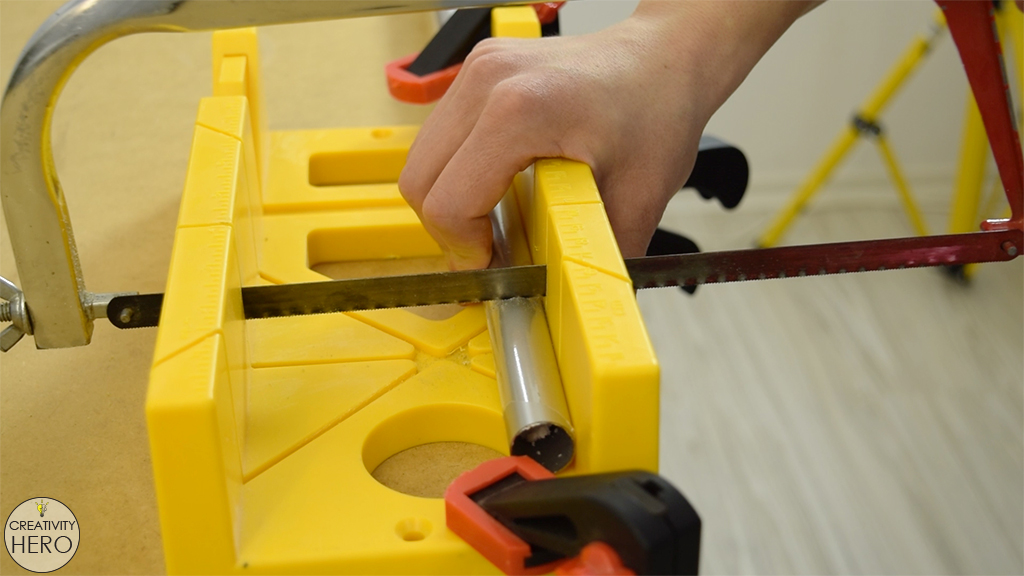

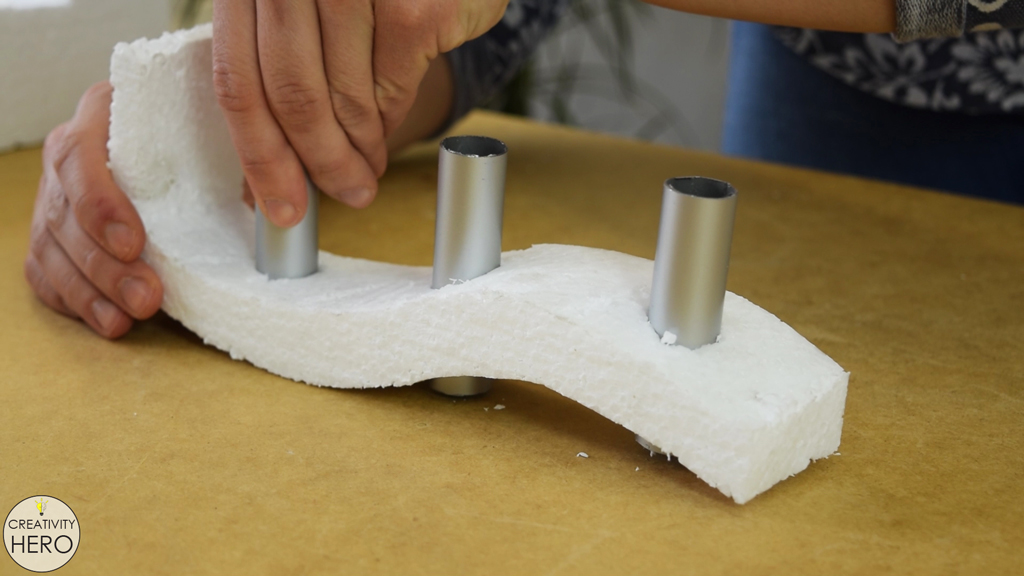

I cut the aluminum pipe into three short pieces, and inserted them into the holes.

To make space for the tea light candles I cut three circles out of 1 cm thick Styrofoam and hot glued them in the predetermined places. Inserting toothpicks into each circle is a great way to reinforce the joints.

For the bottom of the mold I used a piece of fiberboard, which I cut with a handsaw.

Now all the parts are ready to be joined together.

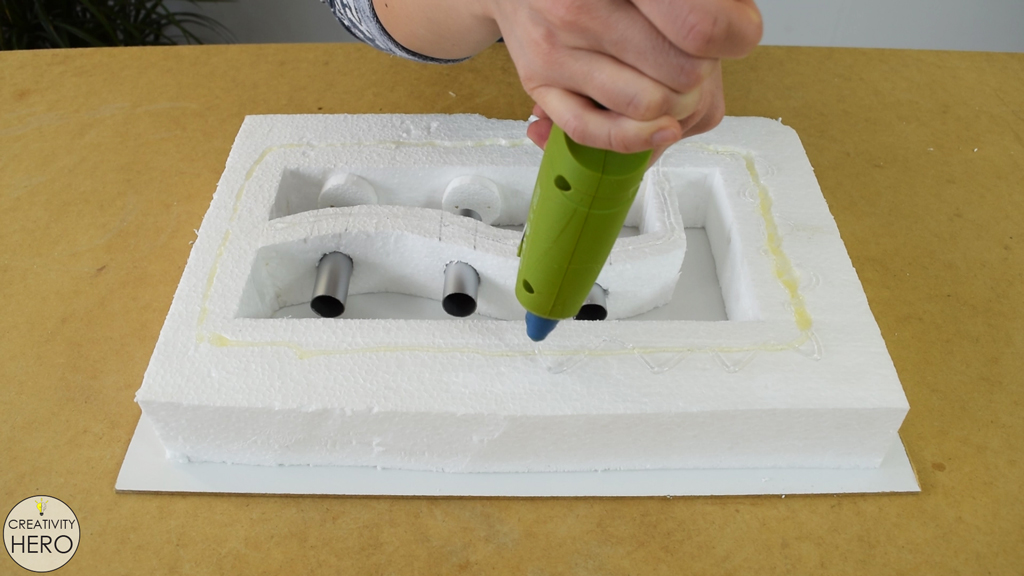

I hot glued the wavy form along with the pipes in place. Here I also used toothpicks as dowels to keep it in place.

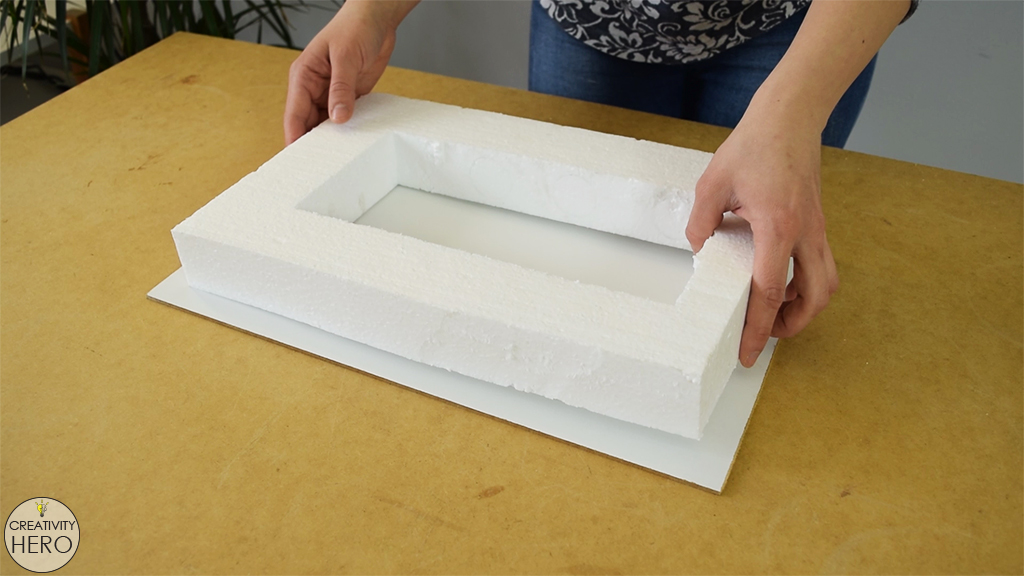

Also, I applied hot glue onto the Styrofoam board and stuck it onto the fiberboard bottom. Additionally, I applied a large amount of hot glue from the outside to avoid water leaking.

When gluing Styrofoam, make sure to use a low-temperature hot glue gun to prevent the foam from melting and burning, which happened to me.

Finally, I spread cooking oil over the entire surface with a brush. This will help me remove the mold very easy once the concrete has cured.

Now I can mix up some concrete. I’m mixing one part cement with one part sand and adding water until I get a nice consistency which is not too thick and not too watery.

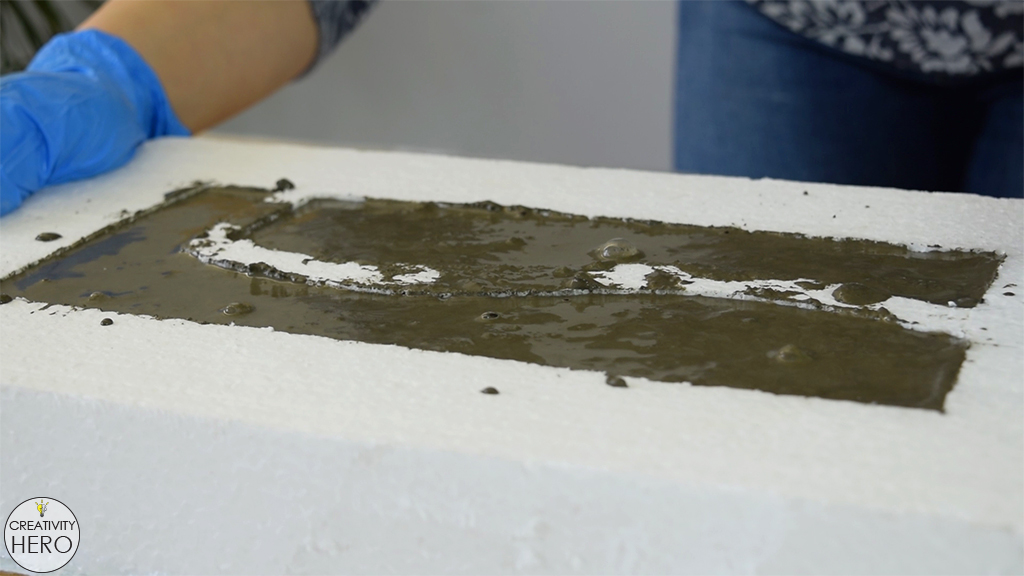

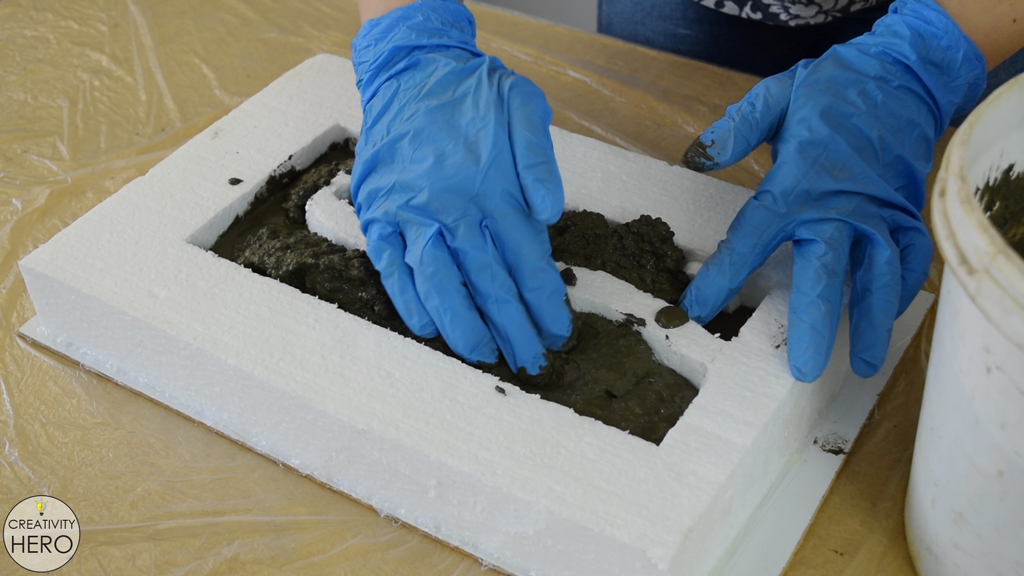

So, I can fill the mold with concrete. I’m using my fingers to fill up the pipes, as they need to make a strong connection between the two concrete parts.

Then, I’m releasing the air pockets by vibrating the mold. This means that I’m done with the concrete, so I can leave it to cure for 2 days.

Once the concrete has cured, I can remove the mold. The cooking oil made removing the foam extremely easy.

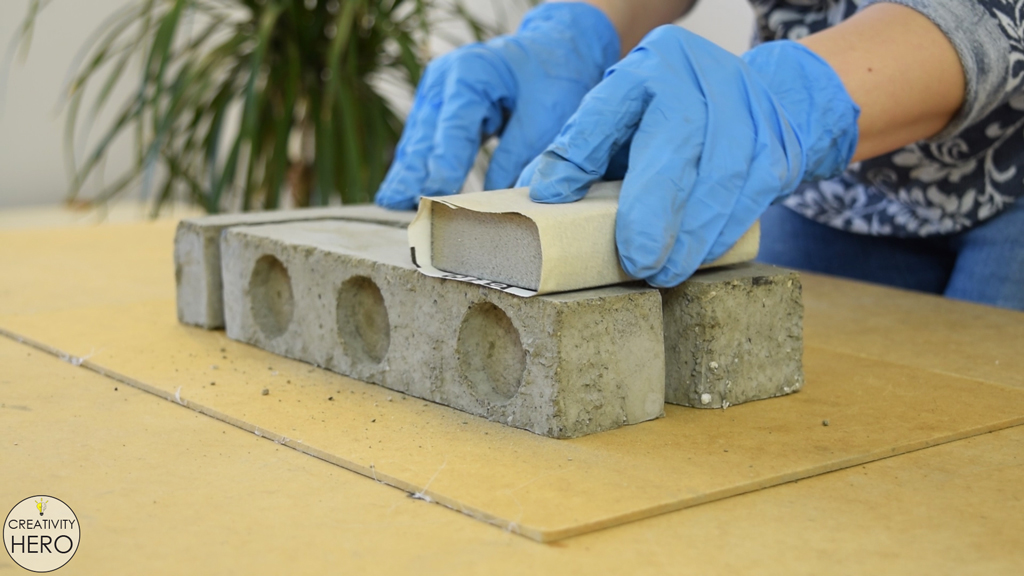

I took a 220 grit sandpaper and sanded down the surface in order to get rid of the dust, and to make it nice and smooth. Lastly, I wiped the dust off of the surface with a wet rag.

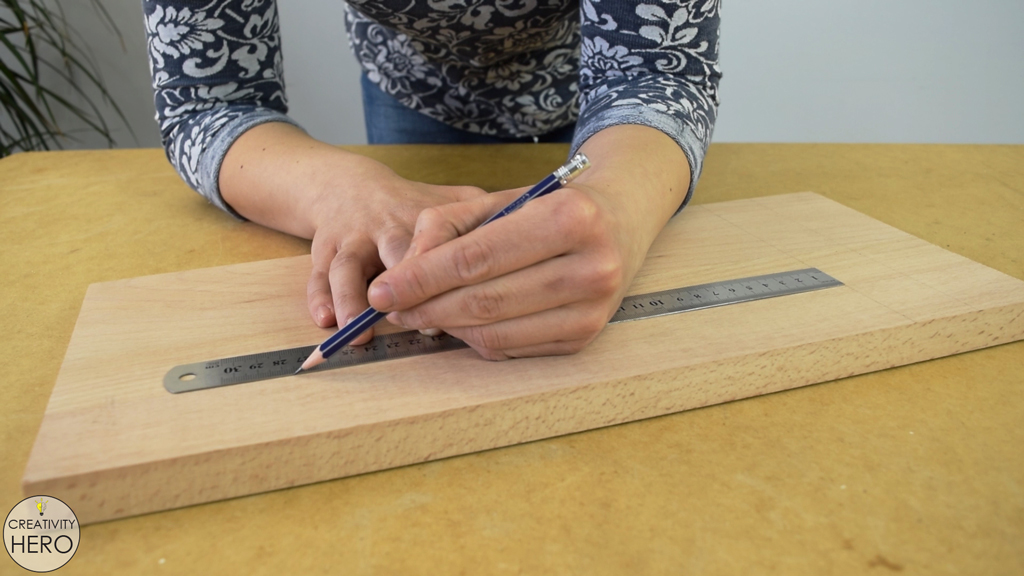

The wooden base is made out of beech wood. First, I marked all the dimensions.

I’ll place the concrete form in the middle of the base, and for that purpose I need to remove 1 cm of the thickness of the wood.

The easiest way to do that is to use a router. But, the problem here is that I don’t have a plunge router base. So, here’s how I did it:

I clamped some scrap pieces of wood onto the board, which will serve as guides. Then, in the center I drilled 10 mm deep hole using a 15 mm Forstner bit. This way I created a starting point for the router.

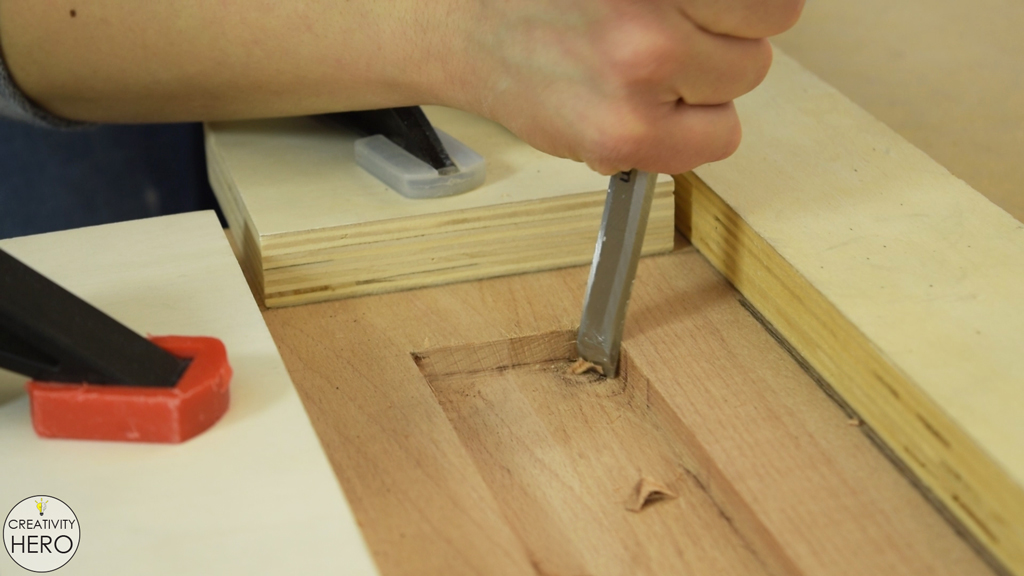

After that, it was very easy to work with the router. I routed the section out, and after that I chiseled out the corners in order to make right angles.

Now, I can finally cut the base to size. To make the cuts I used the table saw and the crosscut sled. There are so many other ways of making a base, depending on the tools you have.

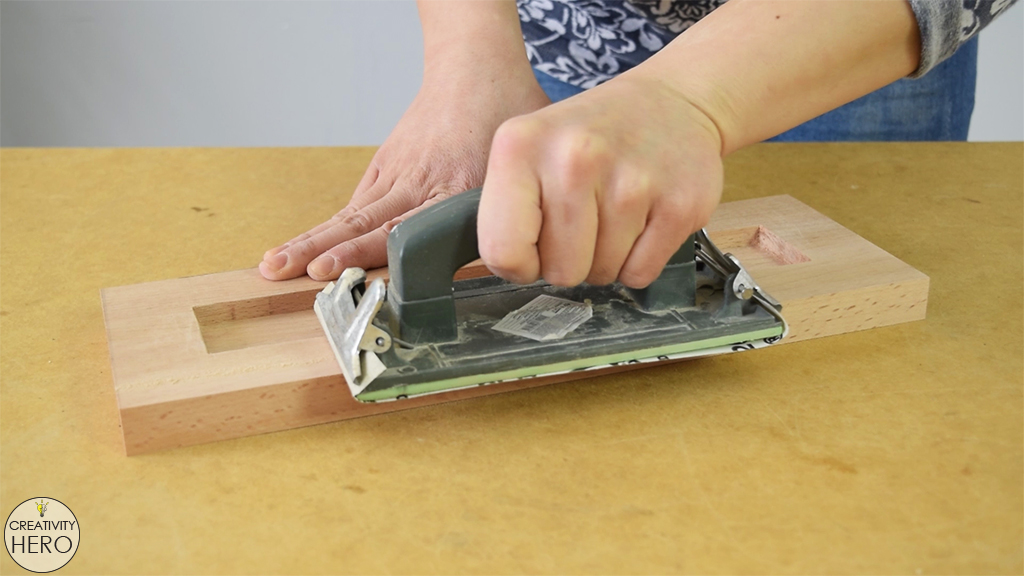

To sand the surface, I started with 120 grit sandpaper, and moved on to 220 grit until I got smooth finish.

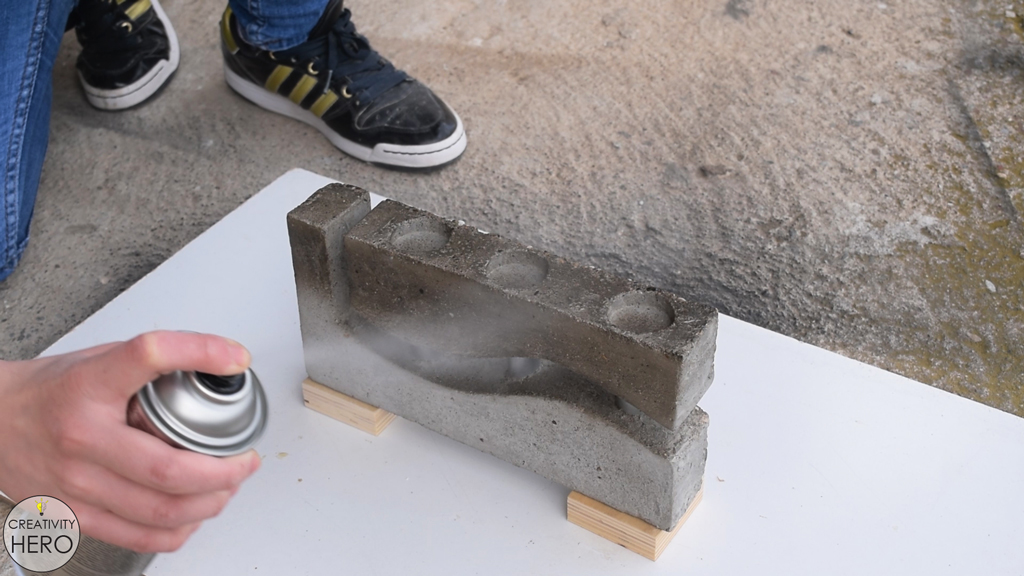

To protect and seal the concrete I applied one coat transparent spray paint with satin finish.

Onto the base I applied one coat of transparent finish, which will protect the wood, and will emphasize its natural beauty.

The last thing I need to do is to attach self-adhesive silicone pads on the bottom of the base.

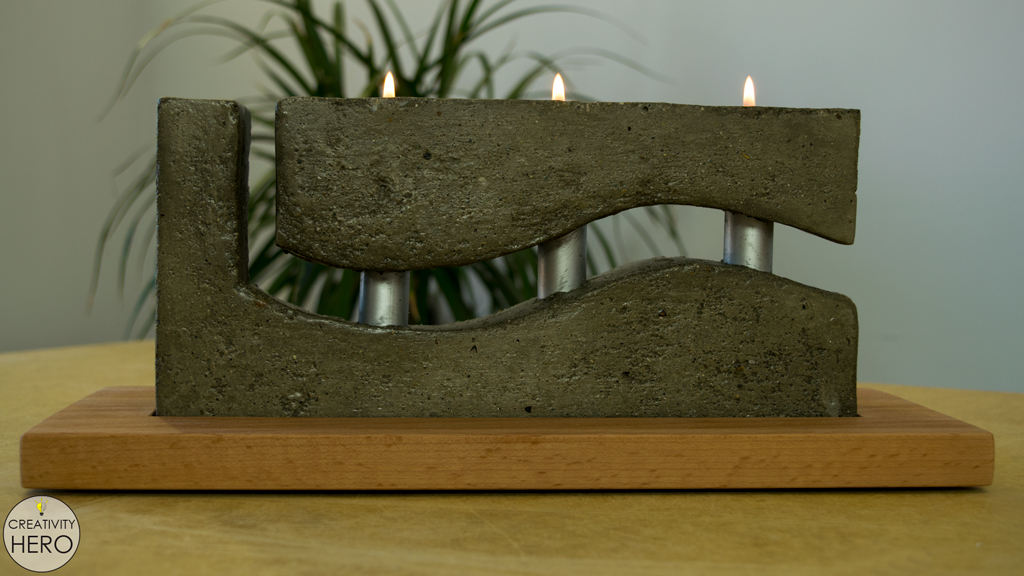

I can finally place the candle holder in the middle of the base, and add the tea light candles into the holes.

This candle holder came out pretty cool. I really enjoyed the process of creating it.

Tell me what you think about this project in the comments below. Also, don’t forget to watch the video for more details.
